Ikea OVN 948 W, OVN 648 S, OVN 648 W Installation guide [EN]

61002009GB.fm Page 14 Wednesday, September 17, 2008 11:16 AM

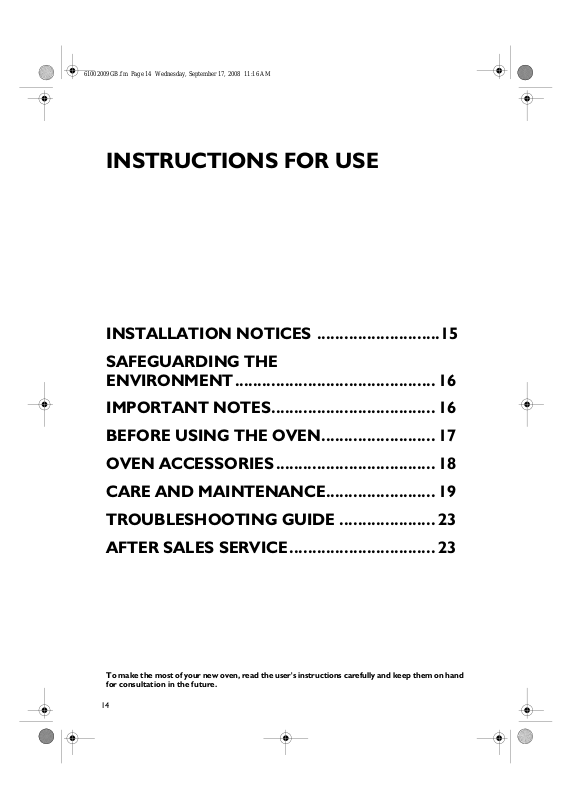

INSTRUCTIONS FOR USE

INSTALLATION NOTICES ...........................	15
SAFEGUARDING THE
ENVIRONMENT............................................	16
IMPORTANT NOTES....................................	16
BEFORE USING THE OVEN.........................	17
OVEN ACCESSORIES...................................	18
CARE AND MAINTENANCE........................	19
TROUBLESHOOTING GUIDE .....................	23
AFTER SALES SERVICE................................	23

To make the most of your new oven, read the user's instructions carefully and keep them on hand for consultation in the future.

14

61002009GB.fm Page 15 Wednesday, September 17, 2008 11:16 AM

INSTALLATION NOTICES

Recommendations

IMPORTANT: Disconnect the oven from the mains before carrying out any installation work or servicing.

•Installation must be carried out by a qualified technician in accordance with the manufacturer's instructions and in compliance with local regulations.

•Unpack the oven and make sure that the oven has not been damaged during transport and that the oven door closes properly. If you are not sure contact the dealer or the nearest service centre.

Preparing the housing unit

•Kitchen units in contact with the oven must be heat resistant (90 °C min).

•Cut the kitchen unit and worktop to fit before installing the oven. Carefully remove any shavings or sawdust that could prevent the oven from running properly.

•The bottom of the oven must not be accessible after installation.

•During installation make sure that the sides of the oven do not touch the adjacent units.

•For correct appliance operation, the minimum opening required between the worktop and the top of the oven must not be obstructed.

Electrical connection

Regulations require that the appliance be earthed.

•Connection to the mains must be carried out by a qualified technician in accordance with the manufacturer's instructions and in compliance with local regulations.

•The installer is responsible for connecting appliances correctly to the mains and for observing the safety regulations.

•The oven power cable must be long enough to connect the built-in oven to the mains.

•Observance of safety directives requires that a multi-pole switch with a minimum contact gap of 3 mm be used for the installation.

•After the oven has been installed, the electrical components must be inaccessible.

Connecting the oven to the power supply

•Make sure that the voltage indicated on the rating plate is the same as the mains voltage. The rating plate is on the front edge of the oven (visible when the door is open).

•If the power cable is not present proceed as follows:

1.Remove the two fastening screws of the terminal box cover located on the bottom part of the oven's rear covering.

2.Remove the cover to gain access to the terminal box and insert the power cable (see table) through the opening located on the bottom of the oven.

Power supply cable table

N° of conductors			Type of cable
1N+		~	H05 RR-F 3 X 1.5 mm²

3.Connect the cable to the terminal box, tighten the screws as far as they will go and secure it to the cable fastener.

4.Put the cover back on by inserting the two blades in the slots and fasten it with the two screws.

15

61002009GB.fm Page 16 Wednesday, September 17, 2008 11:16 AM

SAFEGUARDING THE ENVIRONMENT

Disposal of packaging materials

•The packaging material is 100% recyclable and is marked with the recycle symbol .

•The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Disposal of used household appliances

•The appliances are built from recyclable or reusable materials. When scrapping them, comply with local waste-disposal regulations. Before scrapping, cut off the power cords so that the appliances cannot be connected to the mains

Oven

This appliance is marked according to the European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is scrapped suitably, you can help prevent potentially damaging consequences for the environment and health.

The symbol on the appliance, or on the accompanying documentation, indicates that this product must not be treated as household waste, but must be delivered to the nearest collection centre for the recycling of electrical and electronic appliances.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further information on the treatment, recovery and recycling of this appliance, contact your competent local authority, the collection service for household waste or the shop where you purchased the appliance.

Energy saving

•Only pre-heat the oven if specified in the cooking table of the Product Description Sheet or in your recipe.

•Use dark, black enamelled baking moulds as they absorb heat very well.

IMPORTANT NOTES

•This oven is designed solely for use as a home appliance for cooking food. Other uses are not allowed. The Manufacturer declines any liability for improper use or incorrect setting of the controls.

•Any repairs or adjustments must be carried out exclusively by a qualified technician.

•Do not expose the oven to atmospheric agents.

•Do not place heavy objects on the door as they could damage it and the hinges.

•Do not cling to the door.

•Do not hang anything heavy on the oven door handle.

•Do not cover the bottom of the oven with aluminium foil or other objects.

•The oven door must close properly. The door seals must be kept clean.

•Never pour water directly inside the oven when hot. This could damage the enamel.

•The juices of fruit dripping from the pan could leave permanent stains. It is advisable to clean the oven before reusing it.

•To avoid scratching the coating, do not drag pots and pans on the bottom of the oven.

•Residual condensate, after cooking, could eventually damage the oven and surrounding cabinets. It is advisable to:

-set the temperatures recommended in the cooking tables;

-dry the wet parts when the oven is cold.

•Overheated fats and oils catch fire easily. Heating oils and fats inside the oven is dangerous.

•Do not touch the oven with wet parts of the body, or use it when barefoot.

•Do not pull the appliance or the power cable to unplug it.
