ENGLISH 3

4

english

For your safety and correct operation of the

appliance, read this manual carefully before
installation and use. Always keep these
instructions with the appliance even if you move
or sell it. Users must fully know the operation and
safety features of the appliance.

Recommendations and suggestions

• The Instructions for Use apply to several

versions of this appliance. Accordingly, you
may find descriptions of individual features
that do not apply to your specific appliance.

• The manufacturer will not be held liable for

any damages resulting from incorrect or
improper installation.

• The minimum safety distance between the

cooker top and the extractor hood is 650
mm (some models can be installed at a
lower height, please refer to the paragraphs
technical data).

• Check that the mains voltage corresponds to

that indicated on the rating plate fixed to the
inside of the hood.

• For Class I appliances, check that the

domestic power supply guarantees
adequate earthing.

• Connect the extractor to the exhaust flue

through a pipe of minimum diameter 120
mm. The route of the flue must be as short as
possible.

• Do not connect the extractor hood to exhaust

ducts carrying combustion fumes (boilers,
fireplaces, etc.).

• If the extractor is used in conjunction with

non-electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration

must be guaranteed in the room in order to
prevent the backflow of exhaust gas. When
the cooker hood is used in conjunction with
appliances supplied with energy other than
electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being
drawn back into the room by the cooker hood.

• If the supply cord is damaged, it must be
replaced from the manufacturer or its service
agent.

• Connect the plug to a socket complying with
current regulations, located in an accessible
place.

• WARNING: Before installing the Hood,
remove the protective films (white and
transparent).

Use

• The extractor hood has been designed
exclusively for domestic use to eliminate
kitchen smells.

• Never use the hood for purposes other than
for which it has been designed.

• Never leave high naked flames under the
hood when it is in operation.

• Adjust the flame intensity to direct it onto the
bottom of the pan only, making sure that it
does not engulf the sides.

• Deep fat fryers must be continuously
monitored during use: overheated oil can
burst into flames.

• Do not flambè under the range hood; risk of
fire.

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,

Contents

Safety information 4
Product description 5
Care and cleaning 6

What to do if... 7
Technical data 7
Environment concerns 8
IKEA GUARANTEE 8

Safety information

5

english

or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.

• Children should be supervised to ensure that
they do not play with the appliance.

Accessible parts may become hot when
used with cooking appliances.

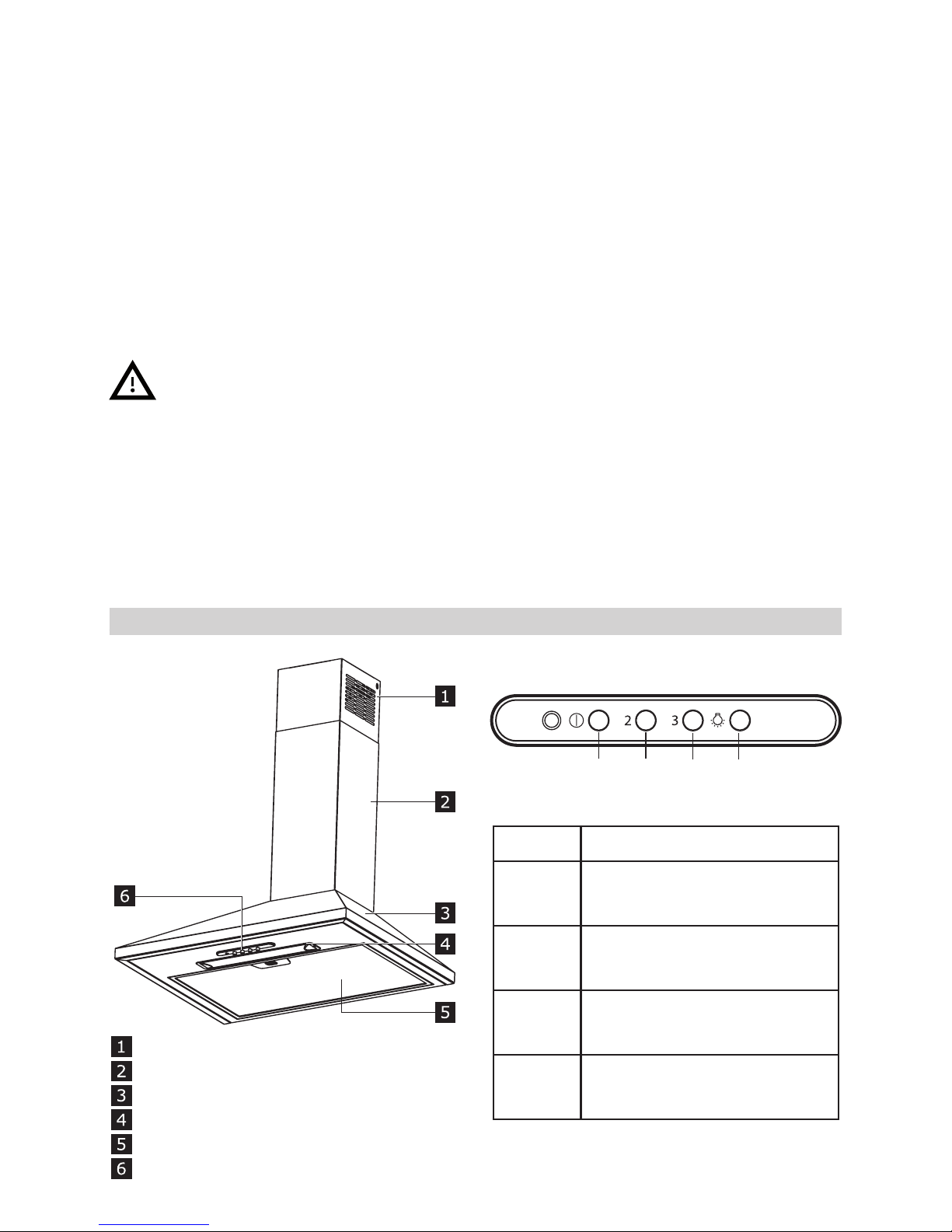

Product description

Upper Chimney
Lower Chimney
Hood body
Lighting
Grease filters
Control Pannel

BUTTON FUNCTION

A =

Speed

Turns the Motor on at Speed
one.
Turns the Motor off.

B =

Speed

Set the Motor at Speed two.

C =

Speed

Set the Motor at speed three.

D = Light

Turns the Lighting System on and
off.

DCBA

6

english

Care and cleaning

Switch off or unplug the appliance from
the mains supply before carrying out any
maintenance work.
Clean the hood using a damp cloth and a
neutral liquid detergent.

Charcoal Filter
These filters are not washable and cannot
be regenerated, and must be replaced
approximately every 4 months of operation, or
more frequently with heavy usage.

Grease Filters

Clean or replace the filters continuously
according to below time intervals, to maintain
good performance of the hood and to prevent
a potential fire hazard, caused by excessive
grease build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently for
particularly heavy usage, and can be washed in
a dishwasher.

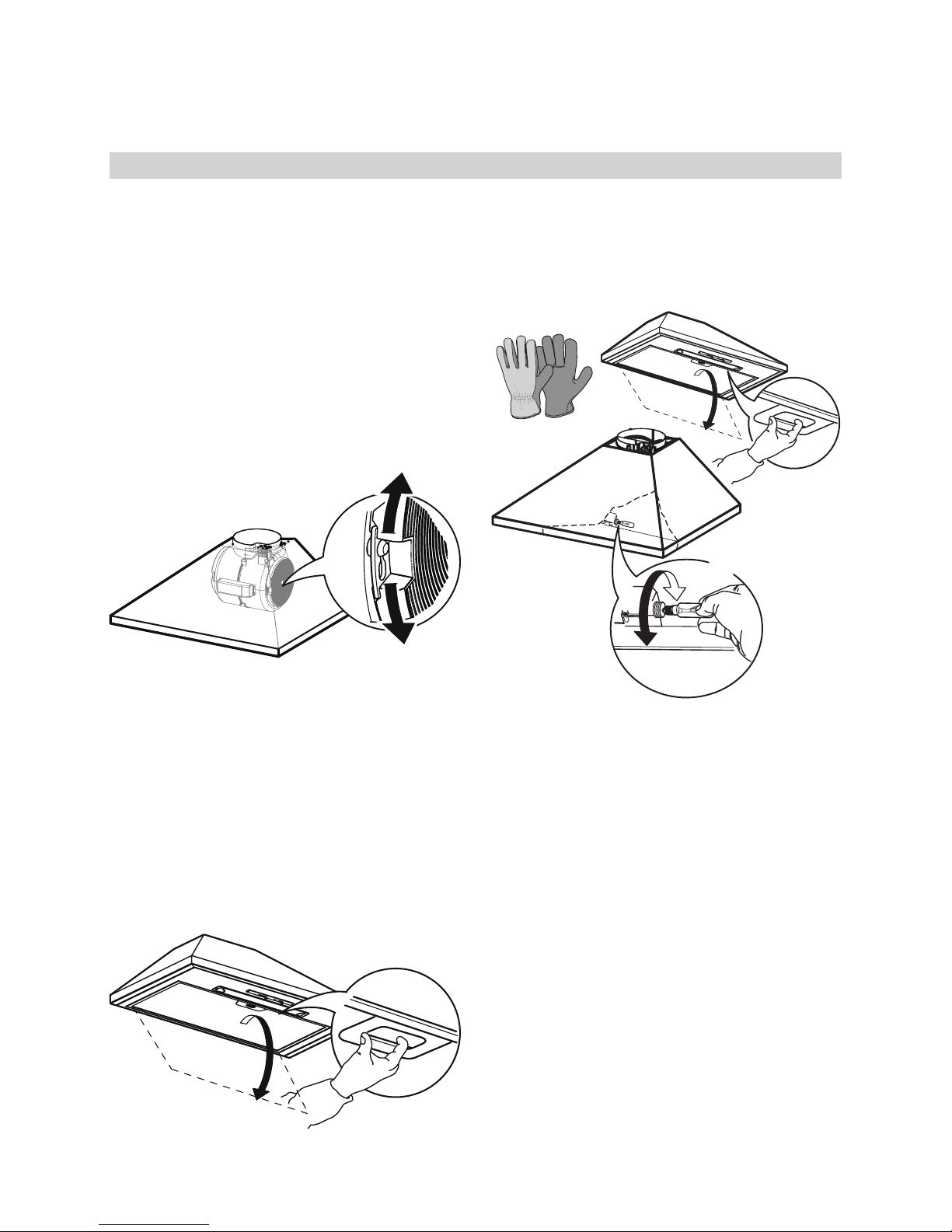

Replacing the lamps

Unscrew the bulbs, by using the gloves, and
replace them with new ones having the same
characteristics 28W (Connection type: E14).

2x

7

english

What to do if...

PROBLEM POSSIBLE CAUSE SOLUTION

Appliance not stable The appliance is not correctly installed

Respect the Installation instruction enclosed
to the appliance.

Appliance is not in horizontal position The appliance is not correctly installed

Respect the Installation instruction enclosed
to the appliance.

Performance in terms of oil capture
arent satisfying

Oil and greaseonmetal lters

Respectthe cleaningfrequencyof lters as

described in the user manual

Appliance doesn't work The appliance is not correctly connected

Verify that the main cable is connected to
the motor group or the plug is connected
to the socket

The lamp is not working The lamp isnot correctly xed

Verify that the lamp is screwed properly to
the lampholder

The lamp is not working The lamp is faulty Replace the lamp bulb

If there is a fault, first try to find a solution to the
problem yourself. If you cannot find a solution
to the problem yourself, contact the After Sales
Service.

If you operated the appliance wrongly, or

the installation was not carried out according
to the Assembly instructions, the visit from the
After Sales Service technician or dealer may not
take place free of charge, even during the
warranty period.

Technical data

Dimensions

Width
Height
Depth

598 mm
Min.620 mm - Max.995 mm
471 mm

Lamp (Total power) 56 W

Total rating 181 W

Type of lamp and socket Halogen 28 W E14

AirowMax - Exhaust 400 m

3

/h

Noice Max - Exhaust 64 dB(A)

AirowMax - Recirculation 260 m

3

/h

Noice Max - Recirculation 70 dB(A)

Installation Min. Height - Gas Hoob 650 mm

Installation Min. Height - Electric Hoob 500 mm

This appliance has been designed,
manufactured and marketed in compliance with
the E.E.C. Directives.

8

english

Environment concerns

IKEA GUARANTEE

Maintenance

• The symbol

on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.
For more detailed information about
recycling of this product, please contact

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the
original date of purchase of Your appliance at
IKEA, unless the appliance is named LAGAN in
which case two (2) years of guarantee apply.
The original sales receipt is required as proof
of purchase. If service work is carried out under
guarantee, this will not extend the guarantee
period for the appliance.

Which appliances are not covered by the
IKEA five (5) years guarantee?

The range of appliances named LAGAN and
all appliances purchased in IKEA before 1 st of
August 2007

Who will execute the service?

IKEA service provider will provide the service
through its own service operations or authorized
service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance,
which have been caused by faulty construction
or material faults from the date of purchase
from IKEA. This guarantee applies to domestic

your local city office, your household waste
disposal service or the shop where you
purchased the product.

Packaging materials

The materials with the symbol

are
recyclable. Dispose the packaging in suitable
collection containers to recycle it.

use only. The exceptions are specified under
the headline “What is not covered under this
guarantee?” Within the guarantee period, the
costs to remedy the fault e.g. repairs, parts,
labour and travel will be covered, provided that
the appliance is accessible for repair without
special expenditure. On these conditions the EU
guidelines (Nr. 99/44/EG) and the respective
local regulations are applicable. Replaced parts
become the property of IKEA.

What will lKEA do to correct the problem?

IKEA appointed service provider will examine
the product and decide, at its sole discretion, if
it is covered under this guarantee. If considered
covered, IKEA service provider or its authorized
service partner through its own service
operations, will then, at its sole discretion, either
repair the defective product or replace it with the
same or a comparable product.

What is not covered under this
guarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage

9

english

caused by failure to observe operating
instructions, incorrect installation or by
connection to the wrong voltage, damage
caused by chemical or electro-chemical
reaction, rust, corrosion or water damage
including but not limited to damage caused
by excessive lime in the water supply,
damage caused by abnormal environmental
conditions.

• Consumable parts including batteries and
lamps.

• Non-functional and decorative parts which
do not affect normal use of the appliance,
including any scratches and possible color
differences.

• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.

• Damage to the following parts: ceramic glass,
accessories, crockery and cutlery baskets,
feed and drainage pipes, seals, lamps
and lamp covers, screens, knobs, casings
and parts of casings. Unless such damages
can be proved to have been caused by
production faults.

• Cases where no fault could be found during
a technician’s visit.

• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where non­original parts have been used.

• Repairs caused by installation which is faulty
or not according to specification.

• The use of the appliance in a non-domestic
environment i.e. professional use.

• Transportation damages. If a customer
transports the product to their home or other
address, IKEA is not liable for any damage
that may occur during transport. However, if
IKEA delivers the product to the customer’s
delivery address, then damage to the
product that occurs during this delivery will be
covered by this guarantee.

• Cost for carrying out the initial installation
of the IKEA appliance. However, if an IKEA

service provider or its authorized service
partner repairs or replaces the appliance
under the terms of this guarantee, the service
provider or its authorized service partner will
re-install the repaired appliance or install the

replacement, if necessary.
This restriction do not apply to fault-free work
carried out by a qualified specialist using our
original parts in order to adapt the appliance to
the technical safety specifications of another EU
country.

How country law applies

The IKEA guarantee gives You specific legal rights,
which covers or exceed local demands. However
these conditions do not limit in any way consumer
rights described in the local legislation

Area of validity

For appliances which are purchased in one EU
country and taken to another EU country, the
services will be provided in the framework of
the guarantee conditions normal in the new
country. An obligation to carry out services in
the framework of the guarantee exists only
if the appliance complies and is installed in
accordance with:

• the technical specifications of the country in

which the guarantee claim is made;

• the Assembly Instructions and User Manual

Safety Information;

The dedicated After Sales Service for
IKEA appliances:

Please do not hesitate to contact IKEA After
Sales Service to:

1. make a service request under this guarantee;

2. ask for clarification on installation of the

IKEA appliance in the dedicated IKEA

kitchen furniture. The service won’t provide

clarifications related to:

- the overall IKEA kitchen installation;

- connections to electricity (if machine comes
without plug and cable), to water and to
gas since they have to be executed by an
authorized service engineer.

10

english

3. ask for clarification on user manual contents
and specifications of the IKEA appliance.

To ensure that we provide you with the best
assistance, please read carefully the Assembly
Instructions and/or the User Manual section of
this booklet before contacting us.

How to reach us if You need our service

Please refer to the last page of this manual
for the full list of IKEA appointed contacts and
relative national phone numbers.

Important! In order to provide You with a
quicker service, we recommend that You use the
specific phone numbers listed at the end of this
manual. Always refer to the numbers listed in the
booklet of the specific appliance You need an
assistance for. Before calling us, assure that You
have to hand the IKEA article number (8 digit
code) for the appliance of which you need our
assistance.

Important! SAVE THE SALES RECEIPT! It
is Your proof of purchase and required for the
guarantee to apply. Note that the receipt reports
also the IKEA article name and number (8 digit
code) for each of the appliances you have
purchased.

Do You need extra help?

For any additional questions not related to After
Sales of your appliances. please contact our
nearest IKEA store call centre. We recommend
you read the appliance documentation carefully
before contacting us.

Country Phone number Call Fee Opening time

België

070 246016

Binnenlandse gesprekskosten 8 tot 20 Weekdagen

Belgique Tarif des appels nationaux 8 à 20. En semaine

България 0700 10 218 Такса за повикване от страната От 9 до 18 ч в работни дни

Česká republika 246 019721 Cena za místní hovor 8 až 20 v pracovních dnech

Danmark 70 15 09 09 Landstakst

man.-fre. 09.00-20.00

lør. 09.00-16.00

1 søndag pr. måned, normalt første

søndag i måneden

Deutschland 01803-334532

(0,09 € / Min.*)
* aus dem Festnetzder DTAG;
Mobilfunkpreise abweichend

8 bis 20 Werktage

Ελλάδα 211 176 8276 Υπεραστική κλήση 8 έως 20 κατά τις εργάσιμες ημέρες

España 91 1875537 Tarifa de llamadas nacionales De 8 a 20 en días laborables

France 0170 36 02 05 Tarif des appels nationaux 9 à 21. En semaine

Hrvatska 01 63 23 338 Lokalna cijena poziva pon. - pet. 8:00 - 16:00

Ireland 0 14845915 National call rate 8 till 20 Weekdays

Ísland 5880503 Innanlandsgjald fyrir síma 9 til 18. Virka daga

Italia 02 00620818

Tariffa applicata

alle chiamate nazionali

dalle 8 alle 20 nei giorni feriali

Κυπρος 22 030 529 Υπεραστική κλήση 8 έως 20 κατά τις εργάσιμες ημέρες

Lietuva 5 278 06 03 Nacionalinių pokalbių tarifai

Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00

Pnkt.: 8:00 - 12:00, 12:45 - 15:45

Magyarország 061 998 0549 Belföldi díjszabás Hétköznap 8 és 10 óra között

Nederland

0900 235 45 32

and/or

0900 BEL IKEA

0,10 EUR/min (niet lokaal)Incl. BTW

ma-vr 9.00-21.00

zat 9.00-20.00
zon 9.00-18.00

Norge 815 22052 Takst innland 8 til 20 ukedager

Österreich 0810 300486 zum Ortstarif 8 bis 20 Werktage

Polska 012 297 8787 Stawka wg taryfy krajowej Od 8 do 20 w dni robocze

Portugal 211557985 Chamada Nacional

9 às 21. Dias de Semana

*excepto feriados

România 0212121224 Tarif apel naţional 8 - 20 în zilele lucrătoare

Россия 8 495 6662929 Действующие телефонные тарифы

с 8 до 20 по рабочим дням

Время московское

Schweiz

031 5500 324

Tarif für Anrufe im Bundesgebiet 8 bis 20 Werktage

Suisse Tarif des appels nationaux 8 à 20. En semaine

Svizzera

Tariffa applicata

alle chiamate nazionali

dalle 8 alle 20 nei giorni feriali

Slovensko [phone] Cena vnútroštátneho hovoru 8 až 20 v pracovných dňoch

Suomi 030 600 5203

Lankapuhelinverkosta

0,0828€/puhelu+0,032€/min

Matkapuhelinverkosta 0,192€/min

arkipäivisin 8.00-20.00

Sverige 0775 700 500 lokalsamtal (lokal taxa)

mån-fre 8.30-20.00

lör-sön 9.30-18.00

Türkiye 212 244 0769 Ulusal arama ücreti Hafta içi saat 09:00’dan 18:00’a kadar

Україна 044 586 2078 Міжміськи дзвінки платні 9 - 21 В робочі дні

United Kingdom 020 3347 0044 National call rate 9 till 21. Weekdays

64

AA-575080-1© Inter IKEA Systems B.V. 2008

436005801_01 - 120316
