LÄCKERBIT
Page 2
Page 3
ENGLISH 4
Page 4
4
ENGLISH
Contents
Safety information 4
Product description 7
Care and cleaning 8
What to do if... 9
Technical data 9
Environment concerns 10
IKEA GUARANTEE 11
Safety information
For your safety and correct operation of the appliance, read this
manual carefully before installation and use. Always keep these
instructions with the appliance even if you move or sell it. Users must
fully know the operation and safety features of the appliance.
The wire connection has to be done by specialized technician.
Recommendations and suggestions
• This appliance is intended to be used in household and similar
applications such as:
• Farm houses.
• By clients in serviced apartments, holiday apartments and other
residential type environments.
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the
extractor hood is: for electrical hob 500mm and for gas hob
650mm.
• If the instructions for installation for the gas hob specify a greater
distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must
be guaranteed in the room in order to prevent the backflow of
exhaust gas. When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the negative
pressure in the room must not exceed 0,04 mbar to prevent fumes
being drawn back into the room by the cooker hood.
Page 5
5
ENGLISH
• WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical hazards.
• If the supply cord is damaged, it must be replaced from the
manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations,
located in an accessible place.
• With regards to the technical and safety measures to be adopted
for fume discharging it is importat to closely follow the regulations
provided by the local authorities.
• WARNING: Before installing the Hood, remove the protective films
(white and transparent).
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical hazards.
• Connect the hood to the power net by using a bipolar switch
having a contact gap of at least 3 mm.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Children should be supervised to ensure that they do not play with
the appliance.
Accessible parts may become hot when used with cooking
appliances.
• Clean and/or replace the Filters after the specified time period
(Fire hazard).
Page 6
6
ENGLISH
Use
• Switch off or unplug the appliance from
the mains supply before carrying out any
maintenance work.
• The extractor hood has been designed
exclusively for domestic use to eliminate
kitchen smells.
• Never use the hood for purposes other
than for which it has been designed.
• Never leave high naked flames under the
hood when it is in operation.
• Adjust the flame intensity to direct it onto
the bottom of the pan only, making sure
that it does not engulf the sides.
• Deep fat fryers must be continuously
monitored during use: overheated oil can
burst into flames.
Care and cleaning
• Activated charcoal filter these filters
are not washable and cannot be
regenerated, and must be replaced
approximately every 4 months of
operation, or more frequently with heavy
usage.
• Grease filters the filters must be cleaned
every 2 months of operation, or more
frequently for particularly heavy usage,
and can be washed in a dishwasher.
• Clean the hood using a damp cloth and
a neutral liquid detergent.
Page 7
7
ENGLISH

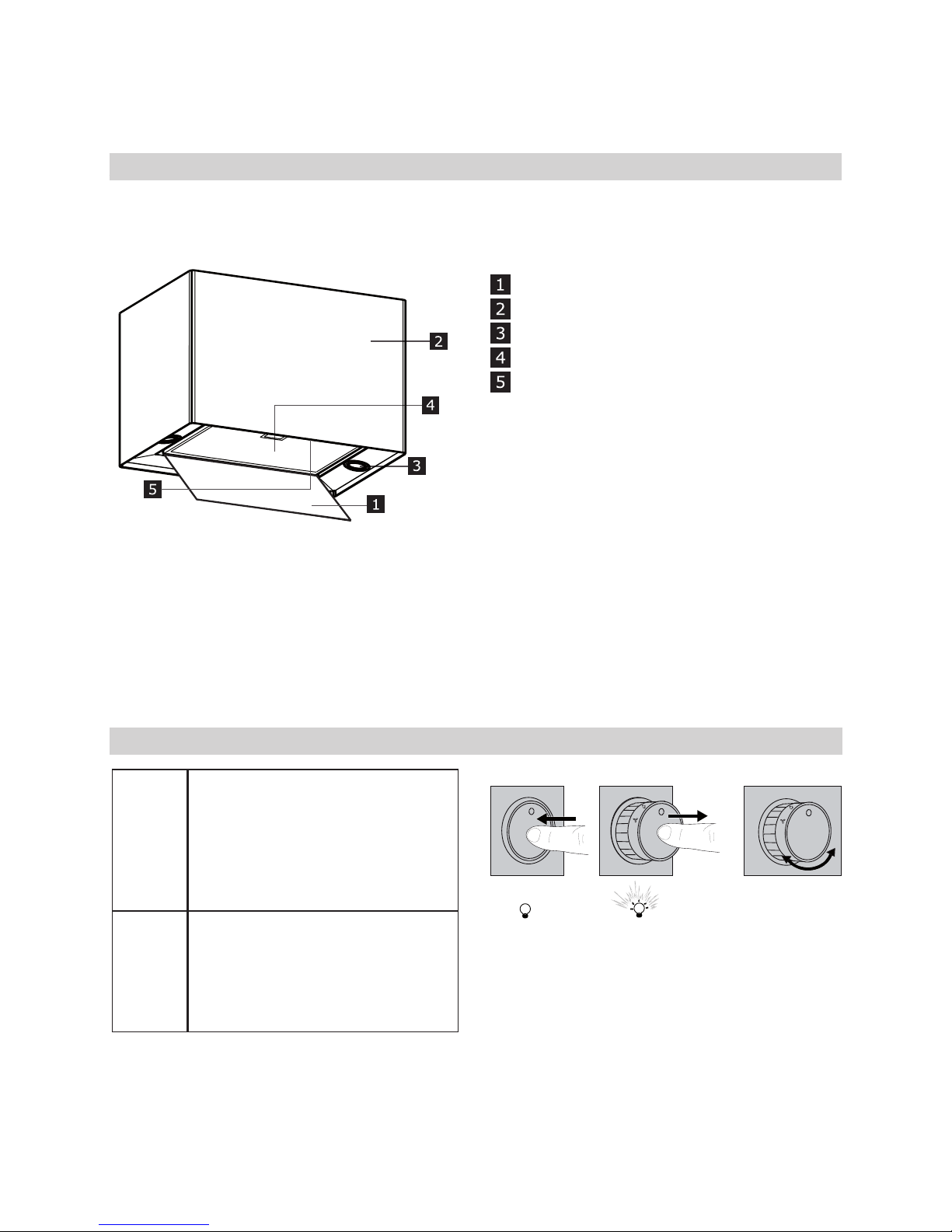

Product description
Perimeter panel
Hood body
Lighting
Grease filter
Control panel
Lights
To turn the lights ON, press the dial
and release it so that it pops out
of its housing.
To turn the lights OFF, push the dial
back inwards, returning it to the
OFF position
Motor
Press the dial and release it so
that it pops out of its housing, then
turn the dial counterclockwise to
select one of the available suction
speeds.
Control Panel
Page 8
8
ENGLISH

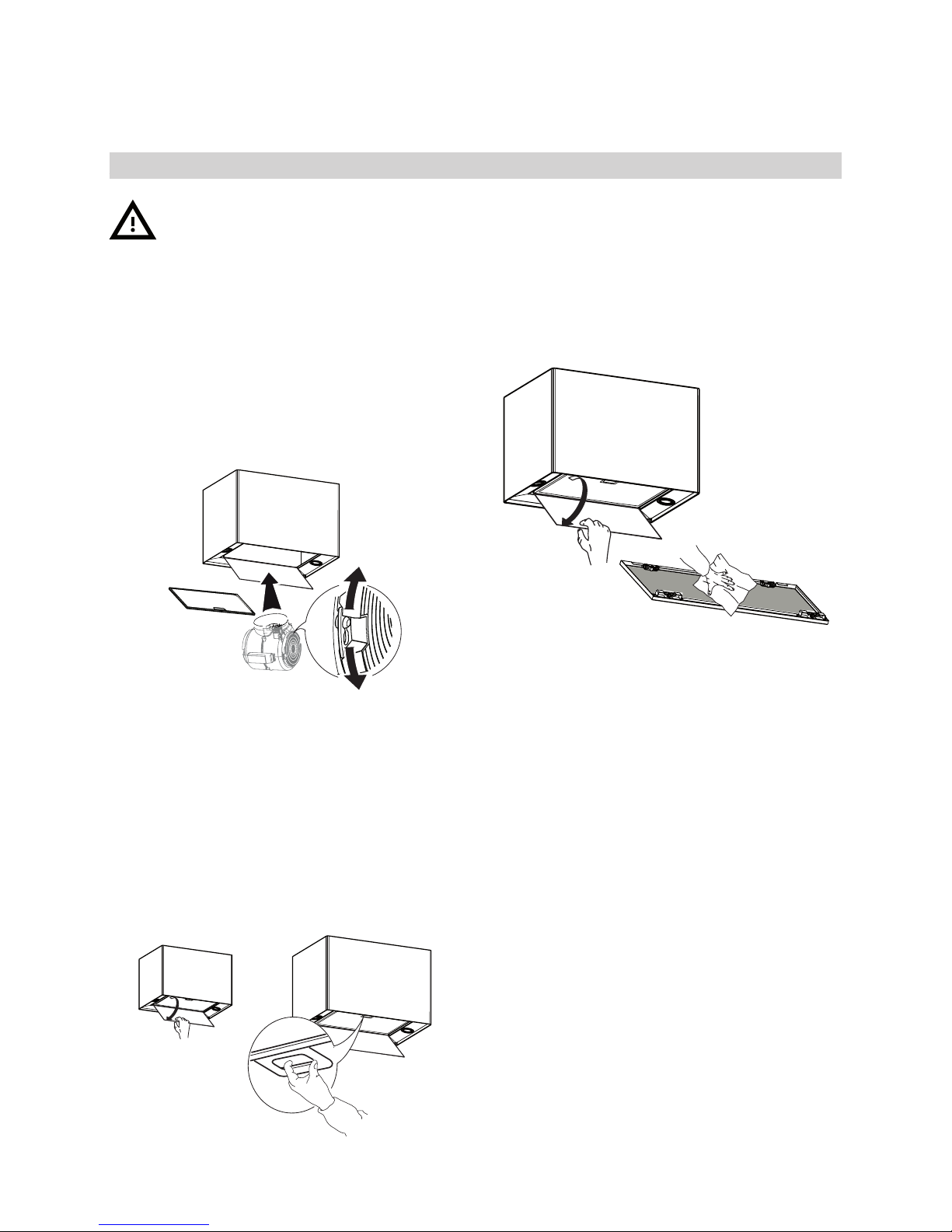

Care and cleaning
Switch off or unplug the appliance from
the mains supply before carrying out any maintenance work.
IMPORTANT Clean the hood using a damp
cloth and a neutral liquid detergent.
Charcoal Filter
These filters are not washable and cannot be
regenerated, and must be replaced approximately every 4 months of operation, or more
frequently with heavy usage.
Grease Filters
Clean or replace the filters continuously according to below time intervals, to maintain good
performance of the hood and to prevent a potential fire hazard, caused by excessive grease
build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently for
particularly heavy usage, and can be washed in
a dishwasher.
Opening Perimeter Panel
Open the Panel by pulling it. Clean the outside
with a damp cloth and neutral detergent. Clean
the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of
water; do not use abrasive substances.
Page 9
9
ENGLISH

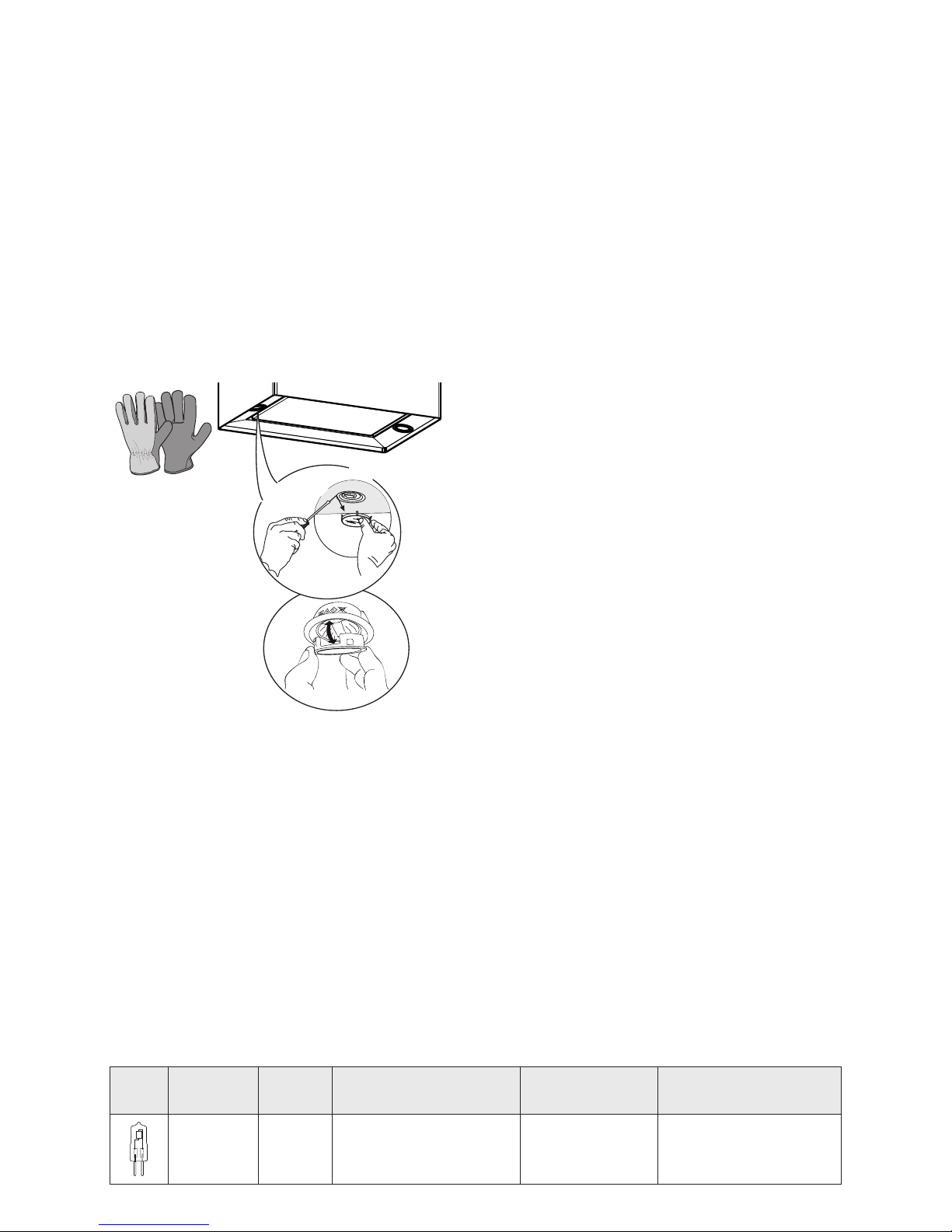

Replacing the lamps
Remove the snap-on lamp cover by levering it
from under the metal ring, supporting it with one
hand. Remove the halogen lamp from the lamp
holder by pulling gently. Replace the lamp with
a new one of the same type, making sure that
you insert the two pins properly into the housings
on the lamp holder. Replace the snap-on lamp
cover. 20 W - 12V halogen light. Connection
type: G4, Length 30mm.
[
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
20 G4 12 33 x 9 HSG/C/UB-20-12-G4
Page 10
10
ENGLISH
What to do if...
PROBLEM POSSIBLE CAUSE SOLUTION
Appliance not stable The appliance is not correctly installed
Follow the Installation instruction enclosed to
the appliance.
Appliance is not in horizontal position The appliance is not correctly installed
Follow the Installation instruction enclosed to
the appliance.
Performance in terms of oil capture
arent satisfying
Oil and grease on metal lters
Follow the cleaning frequency of lters as
described in the user manual
Appliance doesn't work The appliance is not correctly connected
Verify that the main cable is connected to
the motor group or the plug is connected
to the socket
The lamp is not working The lamp is not correctly xed
Verify that the lamp is screwed properly to
the lampholder
The lamp is not working The lamp is faulty Replace the lamp bulb
If there is a fault, first try to find a solution to the
problem yourself. If you cannot find a solution
to the problem yourself, contact an authorized
service center.
If you operated the appliance wrongly, or
the installation was not carried out according
to the Assembly instructions, the visit from the
After Sales Service technician may not take
place free of charge, even during the warranty
period.
Technical data
Product Type Island hood / Wall mounted hood
Dimensions
Width
Height
Depth
600 mm
400 mm
420 mm
Lamp 2 x 20W
Total Connection Rating
180 W
Type of lamp and socket Halogen
12V 20W G4 /
Length 30mm
Airow Max - Exhaust
-
Noice Max - Exhaust
-
Airow Max - Recirculation
320 m3/h
Noice Max - Recirculation
76 dB(A)
Installation Min. Height - Gas Hob
650 mm
Installation Min. Height - Electric Hob
500 mm
Weight 17,7 Kg
Page 11
11
ENGLISH

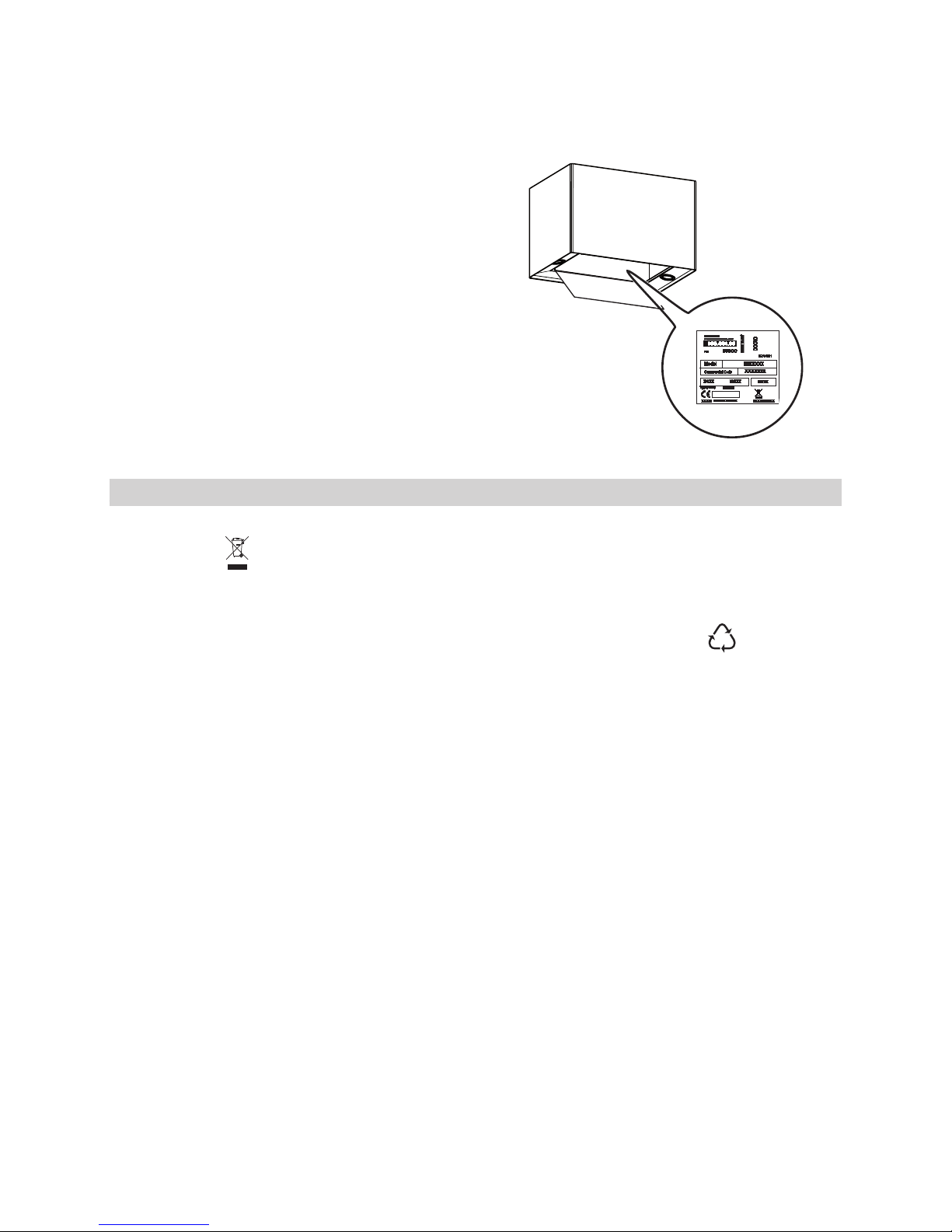

The technical information is situated in the rating
plate on the internal side of the appliance.
Environment concerns
Maintenance
• The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.
For more detailed information about recycling of this product, please contact your local
city office, your household waste disposal
service or the shop where you purchased the
product.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in suitable collection
containers to recycle it.
Page 12
12
ENGLISH
• Children of less than 3 years should be
kept away unless continuously
supervised.
sales customer service center phone
number, online email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and
Victorian customers please contact:
IKEA Pty Ltd
IKEA Pty Ltd
IKEA Service Office
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Contact - IKEA Customer Service at
www.IKEA.com.au
For Western Australian and South
Australian customers please contact:
Cebas Pty Ltd
8c Sunray Drive, Innaloo WA 6018
Australia
Contact - IKEA Customer Service at
www.IKEA.com.au
• Children of less than 3 years should be
kept away unless continuously
supervised.
sales customer service center phone
number, online email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and
Victorian customers please contact:
IKEA Pty Ltd
IKEA Pty Ltd
IKEA Service Office
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Contact - IKEA Customer Service at
www.IKEA.com.au
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years from the
original date of purchase of Your appliance at
IKEA Pty Ltd, ABN 84006270757 or at Cebas Pty
Ltd, ABN 15 009 156 003 (Both Trading as IKEA)
unless the appliance is named LAGAN in which
case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase.
If service work is carried out under guarantee,
this will not extend the guarantee period for the
appliance.
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN .
Who will execute the service?
IKEA service provider will provide the service
through its own service operations or authorized
service partner network. Contact IKEA for further
information.
If you encounter any trouble with the appliance
and wish to register a service call or make a
claim, please refer to www.ikea.com.au for your
local store after sales customer service center
phone number, online email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and Victorian customers please contact:
IKEA GUARANTEE
For Western Australian and South Australian
customers please contact:
What does this guarantee cover?
The guarantee covers faults of the appliance,
which have been caused by faulty construction
or material faults from the date of purchase from
IKEA. This guarantee applies to domestic use
only. The products have been designed and
tested for domestic purposes only and this guarantee does not cover damage arising from use
of the Product in a commercial environment.
The exceptions are specified under the headline
“What is not covered under this guarantee?”
Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel
will be covered, provided that the appliance is
accessible for repair without special expenditure.
Replaced parts become the property of IKEA.
The guarantee exists only if the appliance complies and is installed in accordance with:
• The technical specifications.
• The Assembly Instructions and user manual
Safety Information.
IKEA’s guarantee is subject to Australian Consumer Law - see Schedule 2 to Competition and
Consumer Act, 2010. This guarantee is in addition
to (and does not exclude, restrict or modify in
any way) any non-excludable statutory warranties in Australia.
What will IKEA do to correct the problem?
IKEA appointed service provider will examine
the product and decide, at its sole discretion, if it
is covered under this guarantee.
They will notify you as to whether your claim
Page 13
13
ENGLISH
is covered under this guarantee. If your claim
is approved, the IKEA service provider or its
authorized service partner, will then, at its sole
discretion, either repair the defective product
or replace it with the same or a comparable
product.
What is not covered under this guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage
caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, dam age caused
by chemical or electro-chemical reaction, rust,
corrosion or water damage including but
not limited to damage caused by excessive
lime in the water supply, damage caused by
abnormal environmental conditions.
• Consumable parts including batteries and
lamps.
• Non-functional and decorative parts which
do not affect normal use of the appliance,
including any scratches and possible colour
differences.
• Accidental damage caused by foreign objects
including insect or vermin infestation or substances and cleaning or unblocking of filters,
drainage systems or soap drawers.
• Damage to the following parts: ceramic glass,
accessories, crockery and cutlery baskets, feed
and drainage pipes, seals, lamps and lamp
covers, screens, knobs, casings and parts of
casings. Unless such damages can be proved
to have been caused by production faults.
• Cases where no fault could be found during a
technician’s visit.
• Repairs not carried out by our appointed service providers and/or an authorized service
contractual partner or where non-original
parts have been used.
• Repairs caused by installation which is faulty
or not according to specification.
• The use of the appliance in a non-domestic
environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or other
address, IKEA is not liable for any damage
that may occur during transport. However, if
IKEA delivers the product to the customer’s
delivery address, then damage to the product
that occurs during this delivery will be covered
by this guarantee.
• Cost for carrying out the initial installation of
the IKEA appliance. However, if an IKEA service provider or its authorized service partner
repairs or replaces the appliance under the
terms of this guarantee, the service provider or
its authorized service partner will reinstall the
repaired appliance or install the replacement,
if necessary.
• The appliance’s serial number or warranty
seal has been removed or defaced.
How country law applies
Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law (ACL). You are entitled to a replacement
or refund for a major failure and compensation
for any other reasonably foreseeable loss or
damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
This guarantee is not intended in any way to limit
or exclude such rights and remedies that you
may have under law.
You can find out more information about the
Australian Consumer Law on the ACCC website:
www.accc.gov.au
Area of validity
This IKEA guarantee applies only to products
purchased and installed in AUSTRALIA .
What you must do to make a claim under
the guarantee:
To make a claim under the guarantee contact
IKEA after sales customer service center at the
above address, the IKEA catalogue or refer to
www.ikea.com.au for your local store customer
Page 14
14
ENGLISH
service phone number, online email and opening times. Please describe the problem that you
are facing with the appliance in detail along with
your product article number (8 digit code) and
date of purchase at the time of call registration.
Please do not hesitate to contact the dedicated after sales customer service center
for IKEA appliances to:
1. Make a service request under this guarantee;
2. Ask for clarification on installation of the IKEA
appliance in the dedicated IKEA kitchen
furniture.
3. Ask for clarification on user manual contents
and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly
Instructions and/or the User Manual section of
this booklet before contacting us.
How to reach us if you need our service
The IKEA after sales customer service centre will
assist you on the phone with basic trouble shooting for your appliance at the time of service call
request. Please refer to the IKEA catalogue or
www.ikea.com.au and select your local store for
local store phone numbers and opening times.
Please describe the problem that you are
facing with the appliance in detail along
with your product article number ( 8 digit
code ) and date of purchase at the time of
call registration
SAVE THE SALES RECEIPT!
Kindly keep all these details and original
invoice of purchase handy during the service technician’s visit to enable him to carry
out the job. It is your proof of purchase and
required for the guarantee to apply. Note
that the receipt reports also the IKEA article
name and number (8 digit code) for each of
the appliances you have purchased.
Page 15
Page 16
AA-1750544-1© Inter IKEA Systems B.V. 2015
991.0375.344_02 - 150720
Loading...
