Ikea IUD8000WS5 Installation Guide

INSTALLATIONINSTRUCTIONS

UNDERCOUNTERDISHWASHER

PLASTICGIANT TUBMODELS

INSTRUCTIONSD'INSTALLATION

LAVE-VAISSELLESOUSCOMPTOIR

MODELESA TRESGRANDE CUVE EN PLASTIQUE

Table of Contents .............................................................. 2

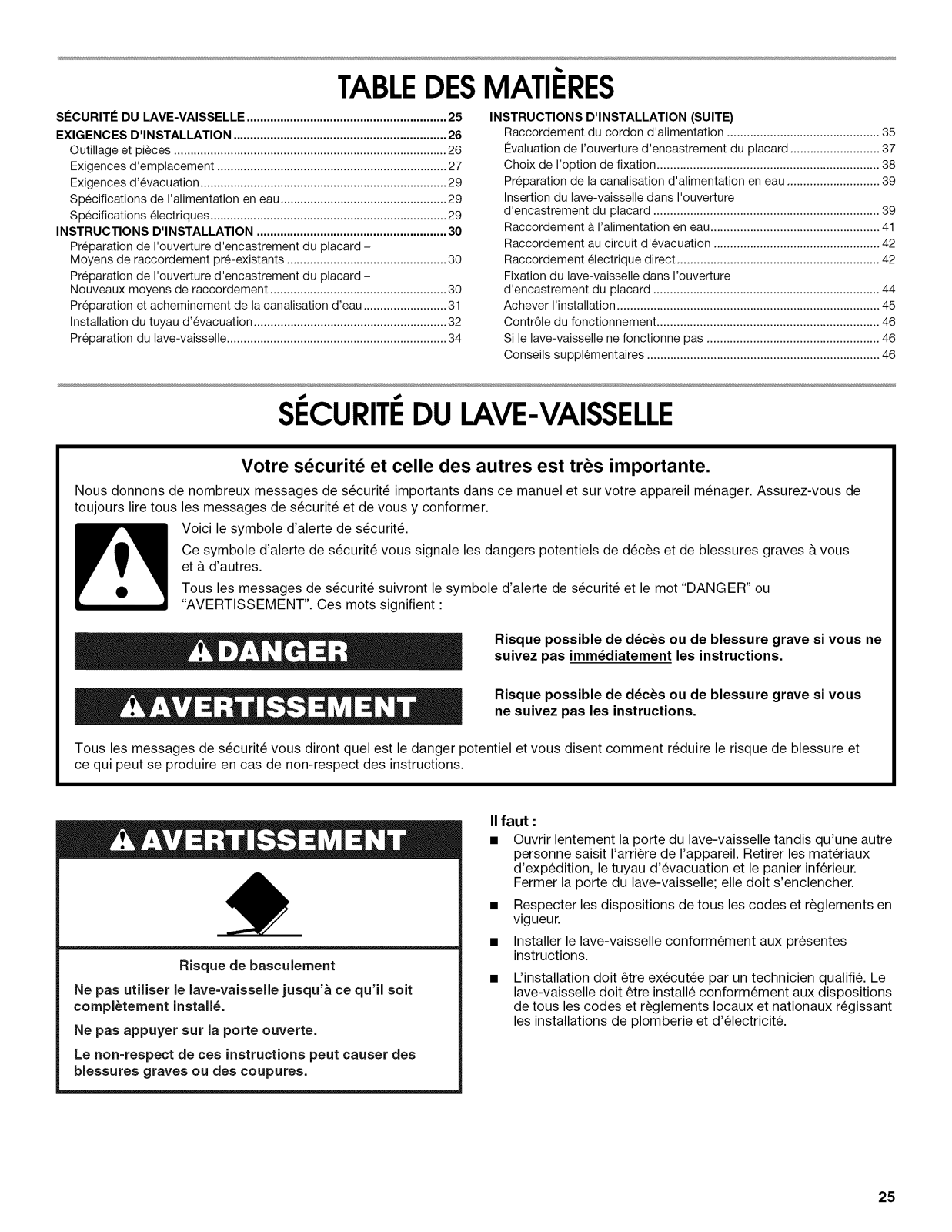

Table des matieres .......................................................... 25

W10435039B

TABLEOF CONTENTS

DISHWASHER SAFETY ............................................................................... 2

INSTALLATION REQUIREMENTS ............................................................. 3

Tools and Parts ......................................................................................... 3

Location Requirements ............................................................................. 4

Drain Requirements .................................................................................. 6

Water Supply Requirements ..................................................................... 6

Electrical Requirements ............................................................................ 6

INSTALLATION INSTRUCTIONS ............................................................... 7

Prepare Cabinet Opening--Existing Utilities ............................................ 7

Prepare Cabinet Opening--New Utilities ................................................. 7

Prepare and Route Water Line ................................................................. 8

Install Drain Hose ...................................................................................... 9

Prepare Dishwasher ................................................................................ 11

INSTALLATION INSTRUCTIONS (CONT.)

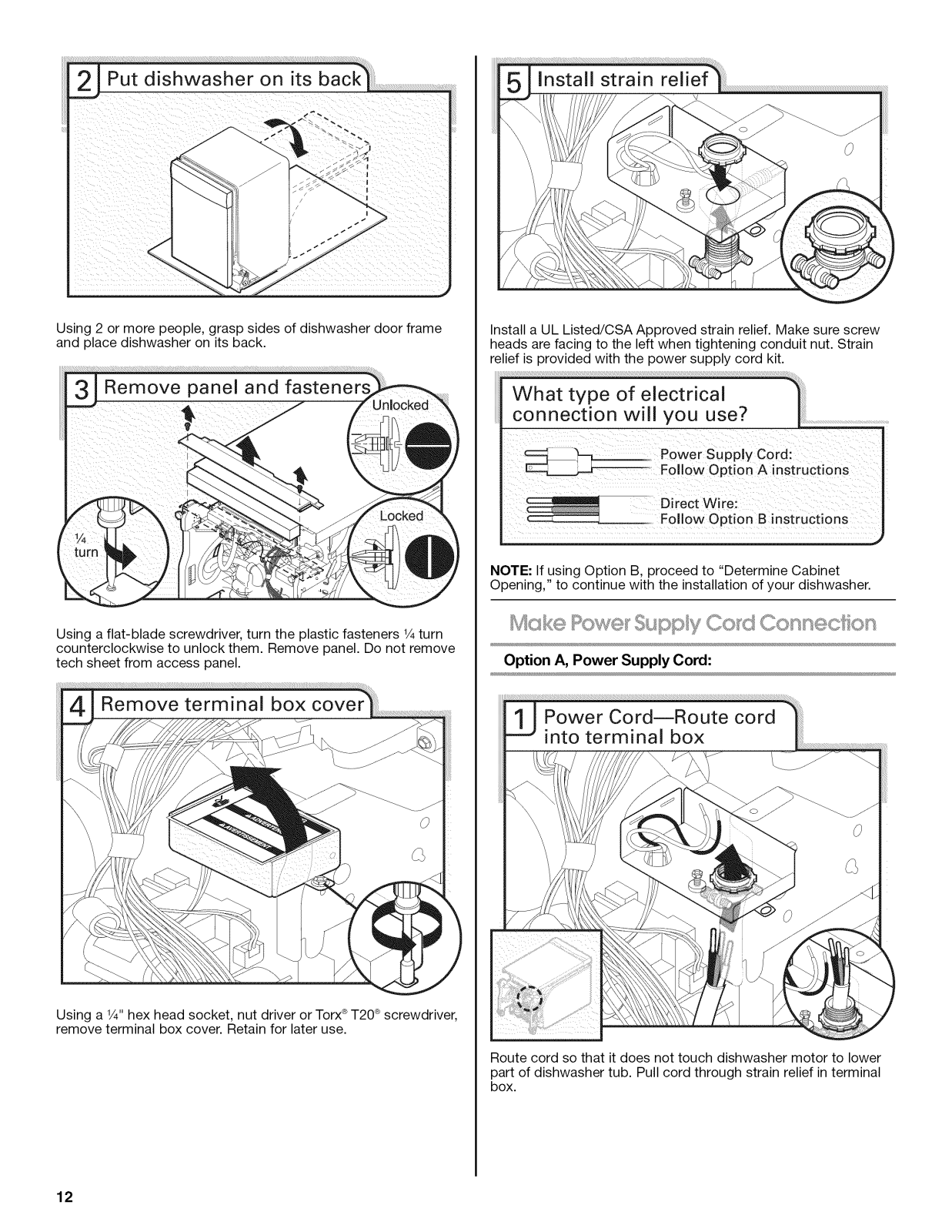

Make Power Supply Cord Connection .................................................. 12

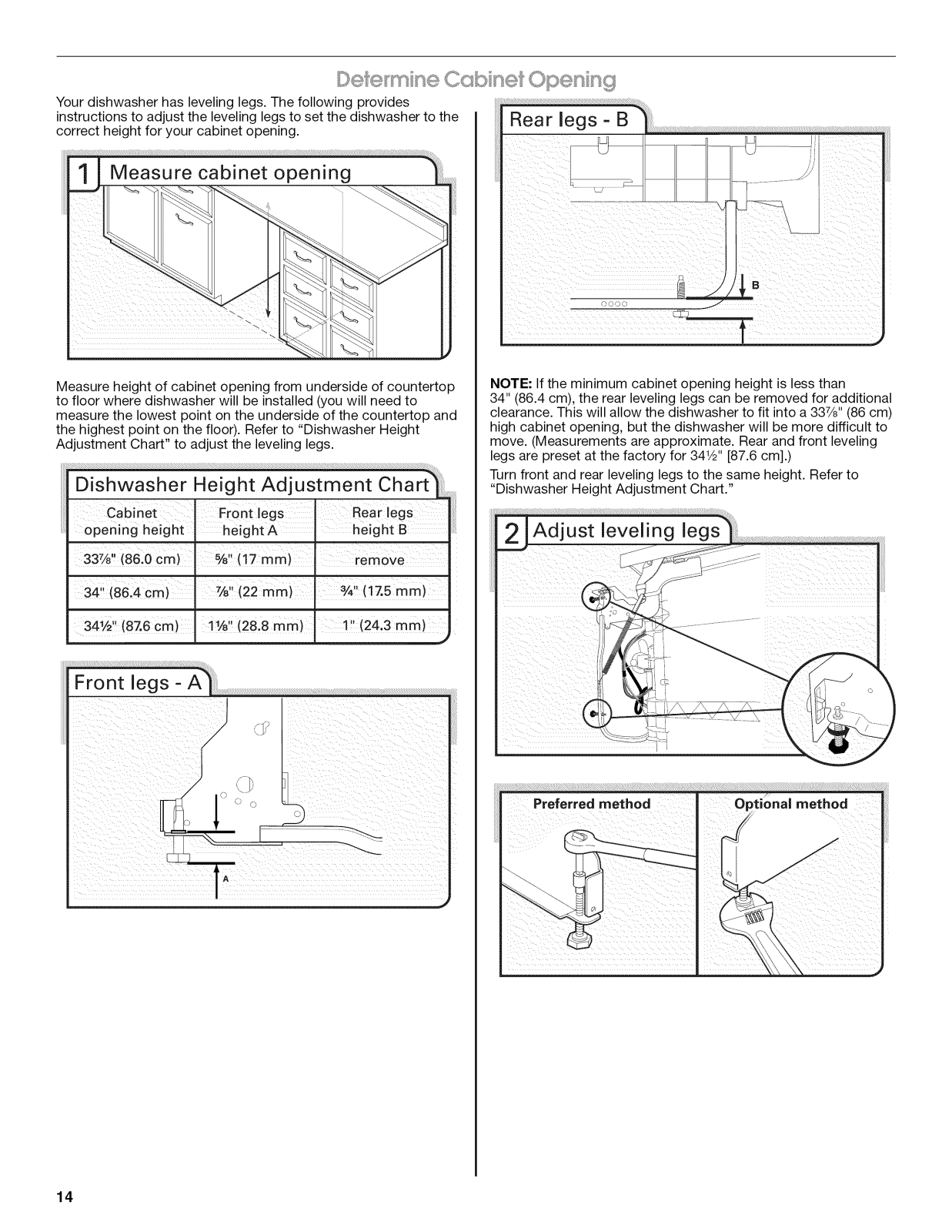

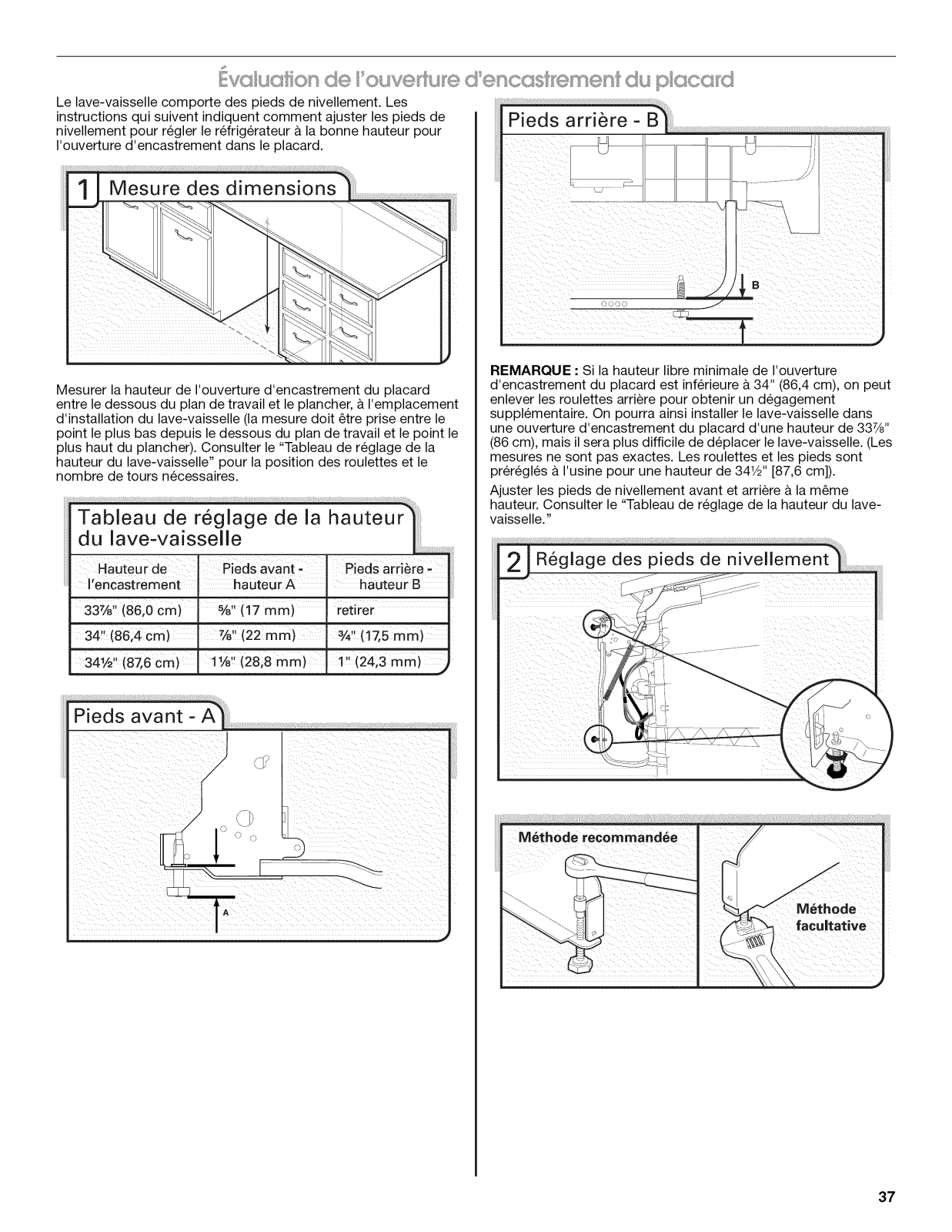

Determine Cabinet Opening ................................................................... 14

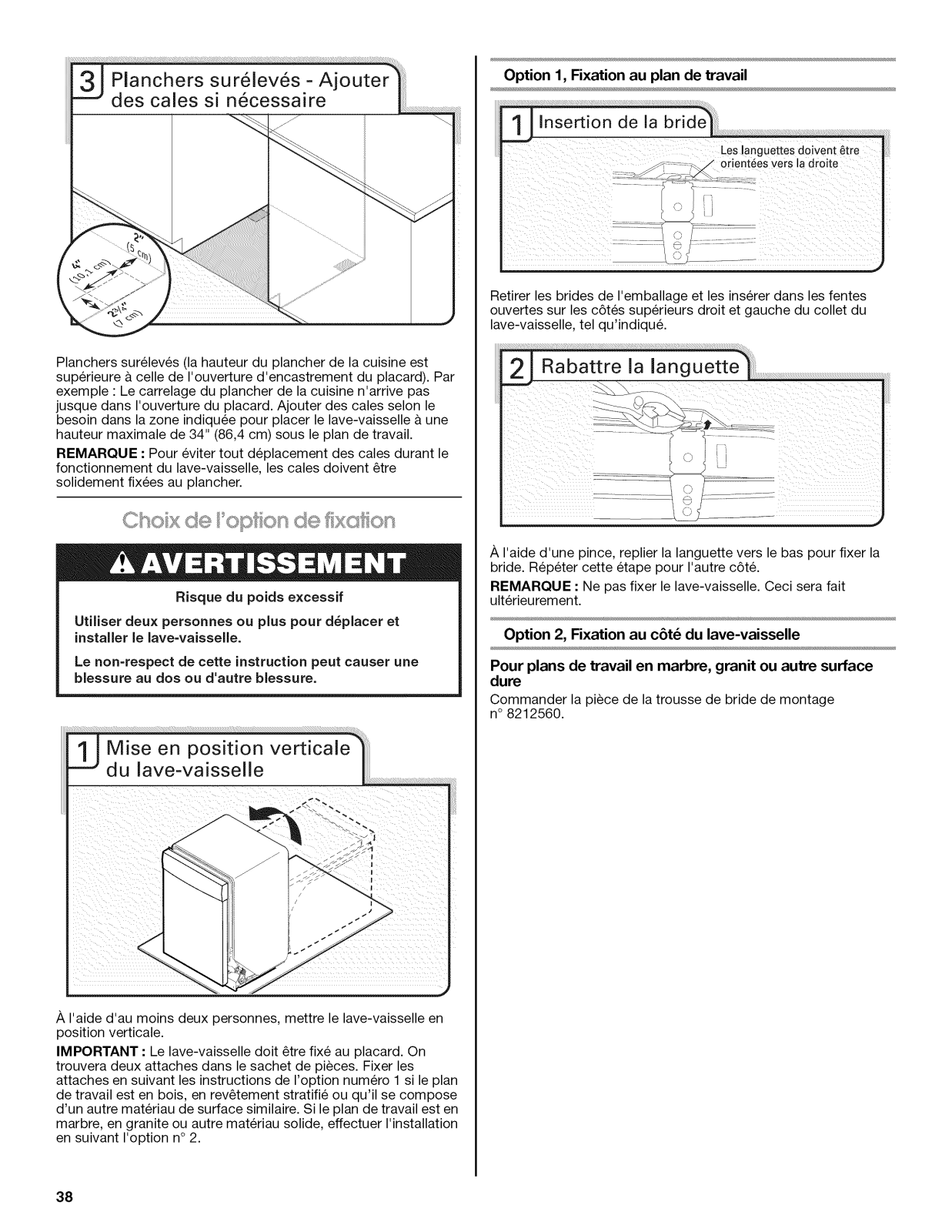

Choose Attachment Option .................................................................... 15

Prepare Water Supply Line..................................................................... 15

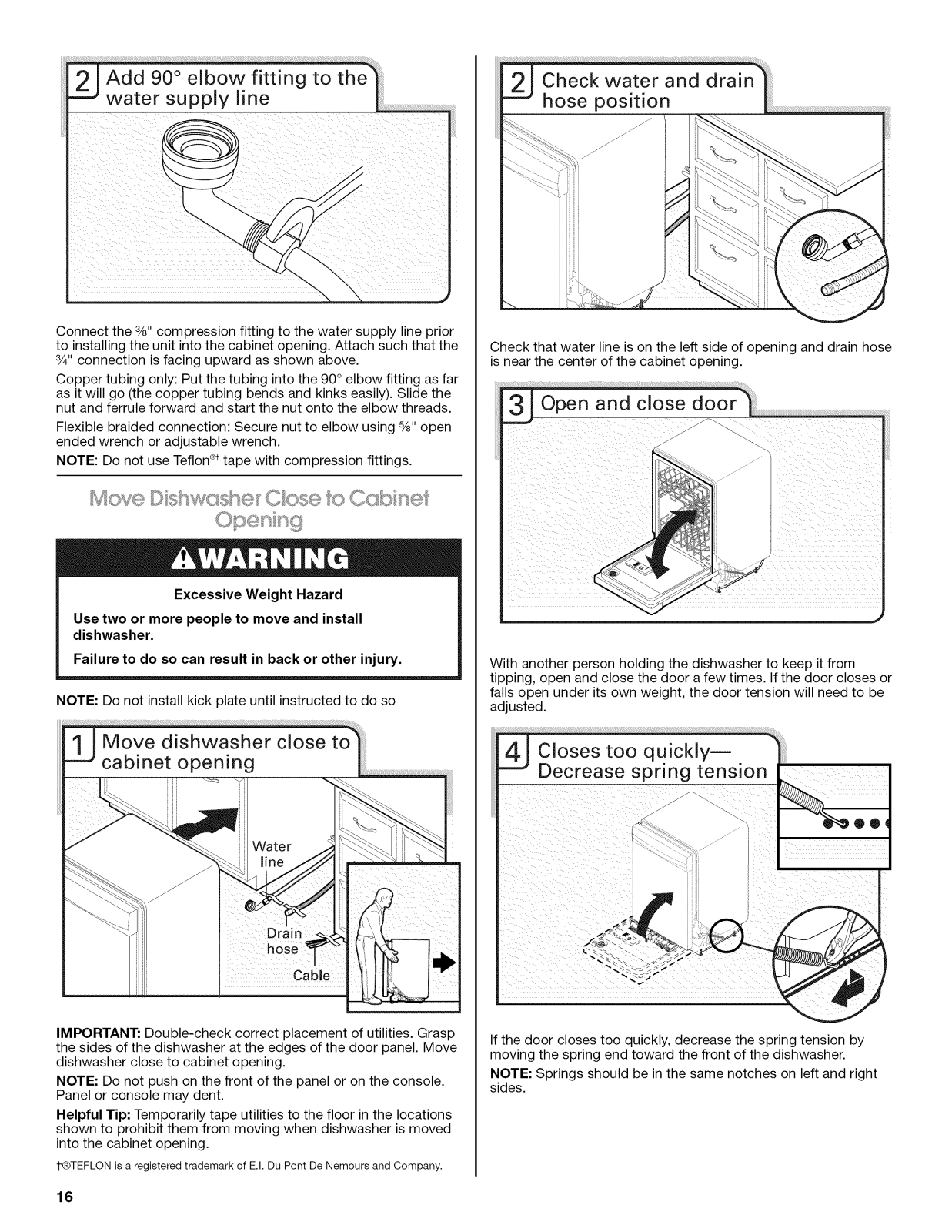

Move Dishwasher Close to Cabinet Opening ........................................ 16

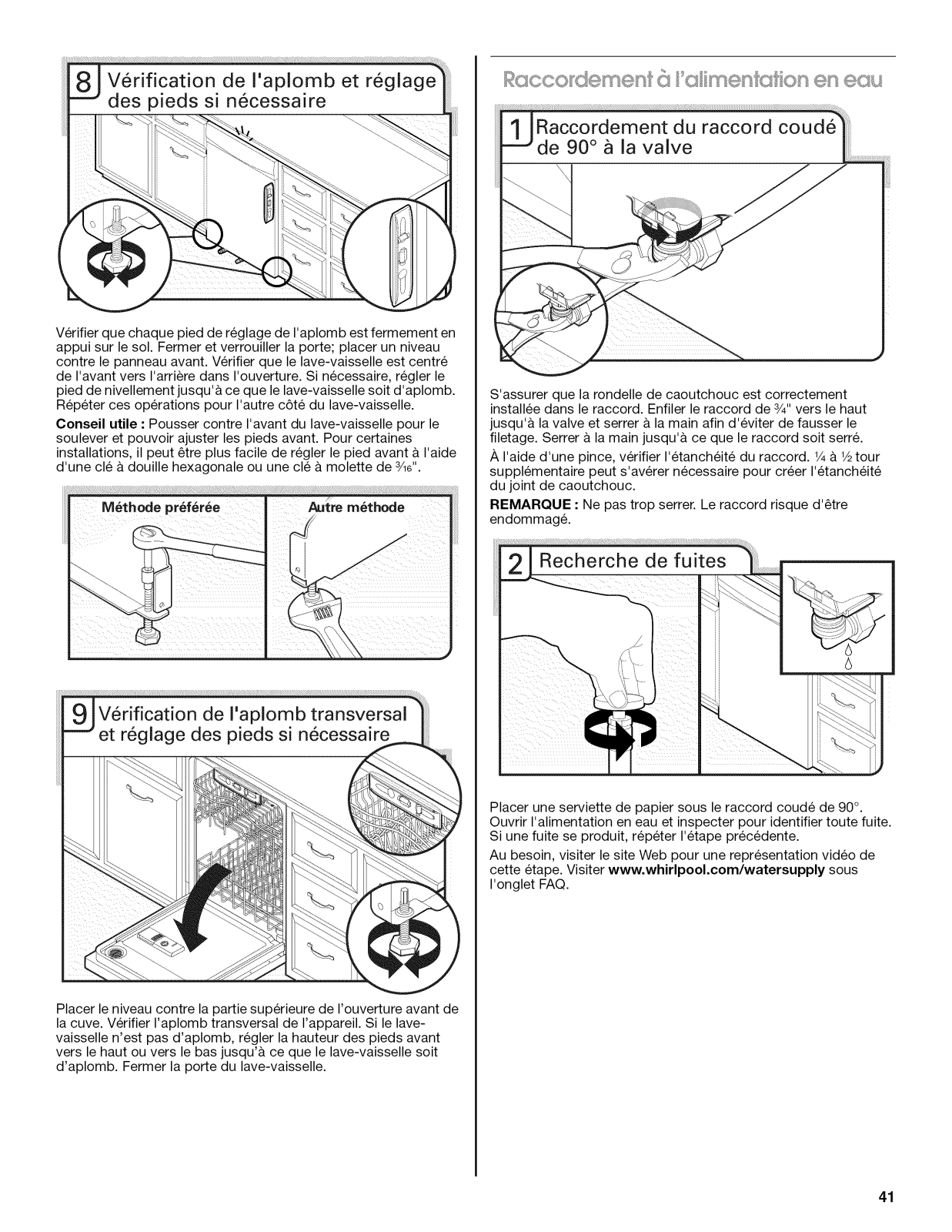

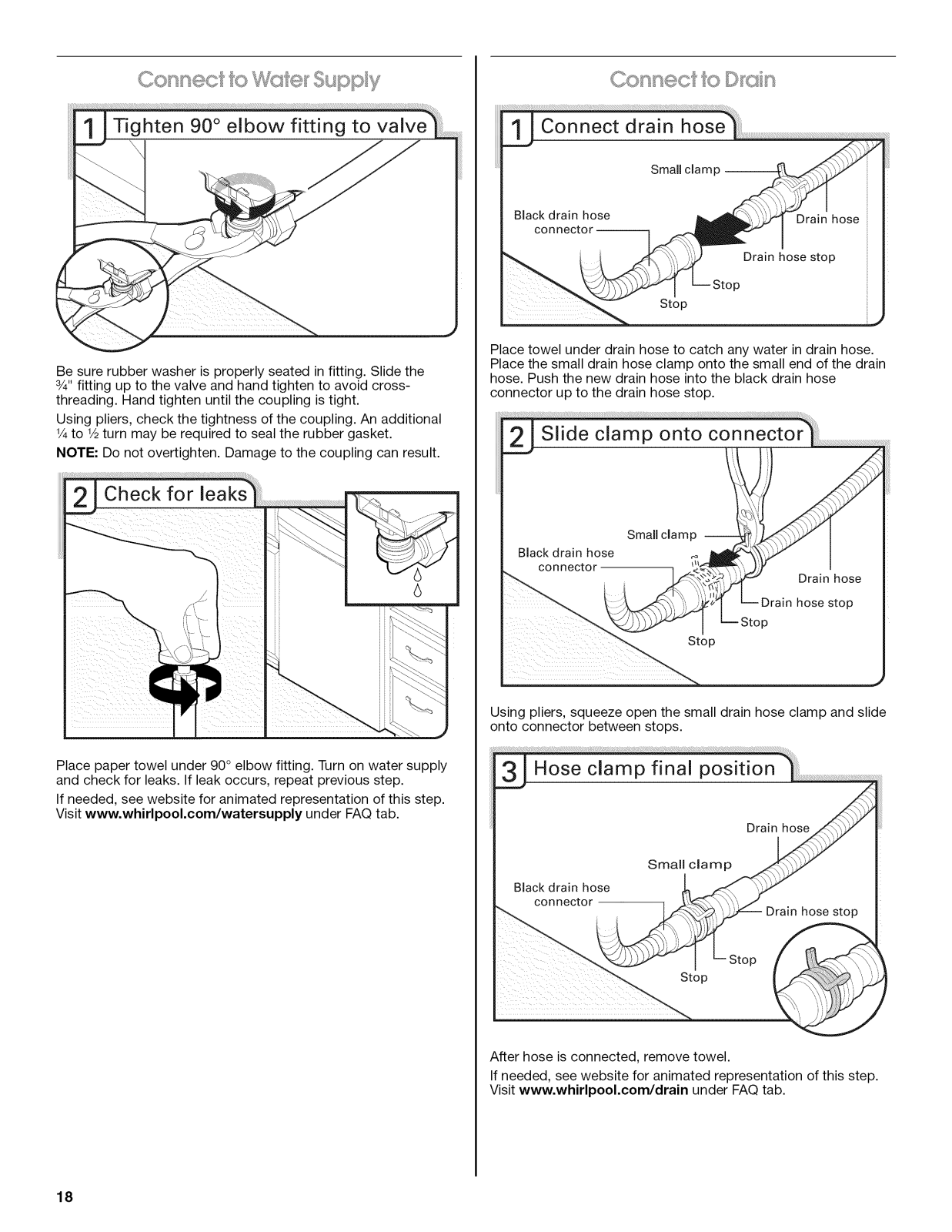

Connect to Water Supply ....................................................................... 18

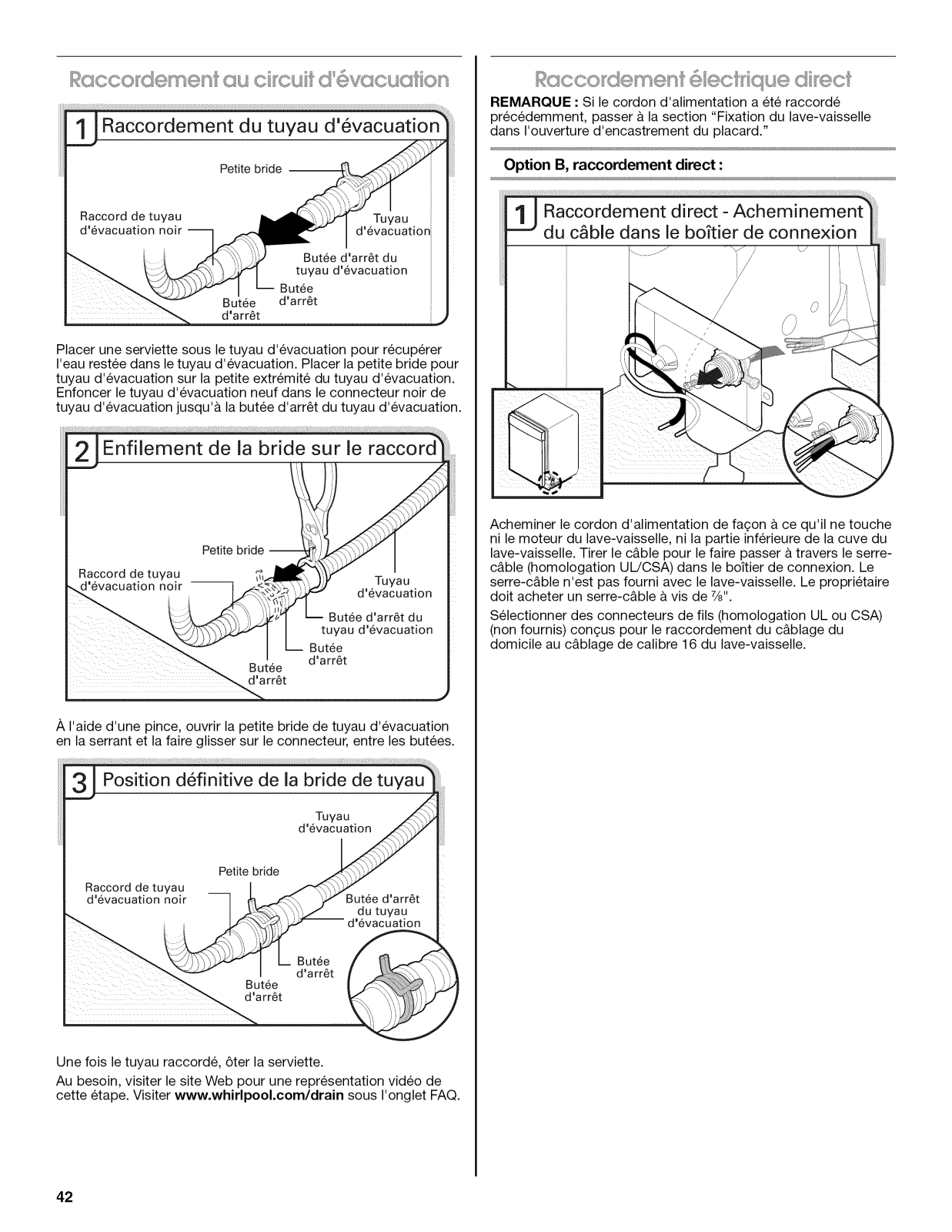

Connect to Drain ..................................................................................... 18

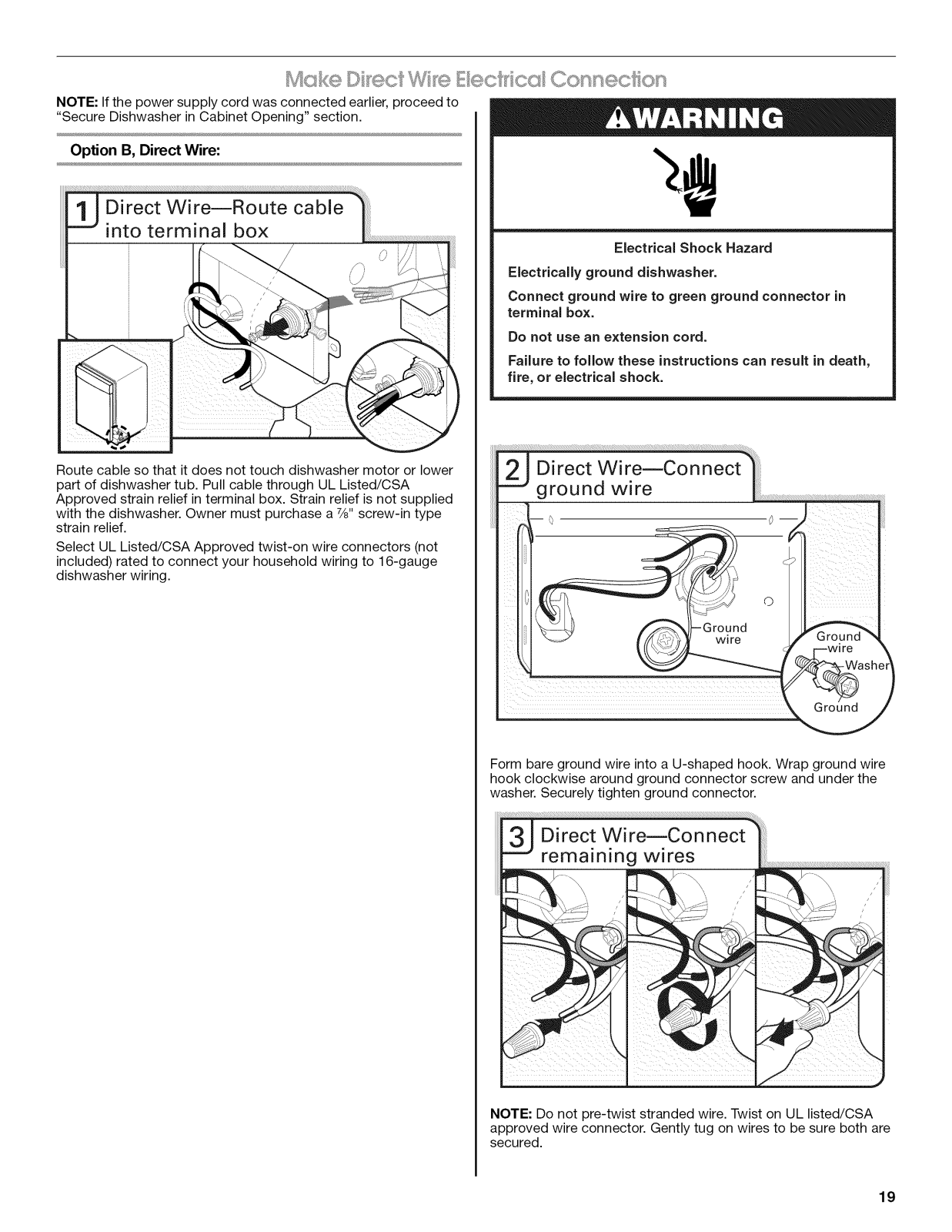

Make Direct Wire Electrical Connection ................................................. 19

Secure Dishwasher in Cabinet Opening ................................................ 20

Complete Installation .............................................................................. 22

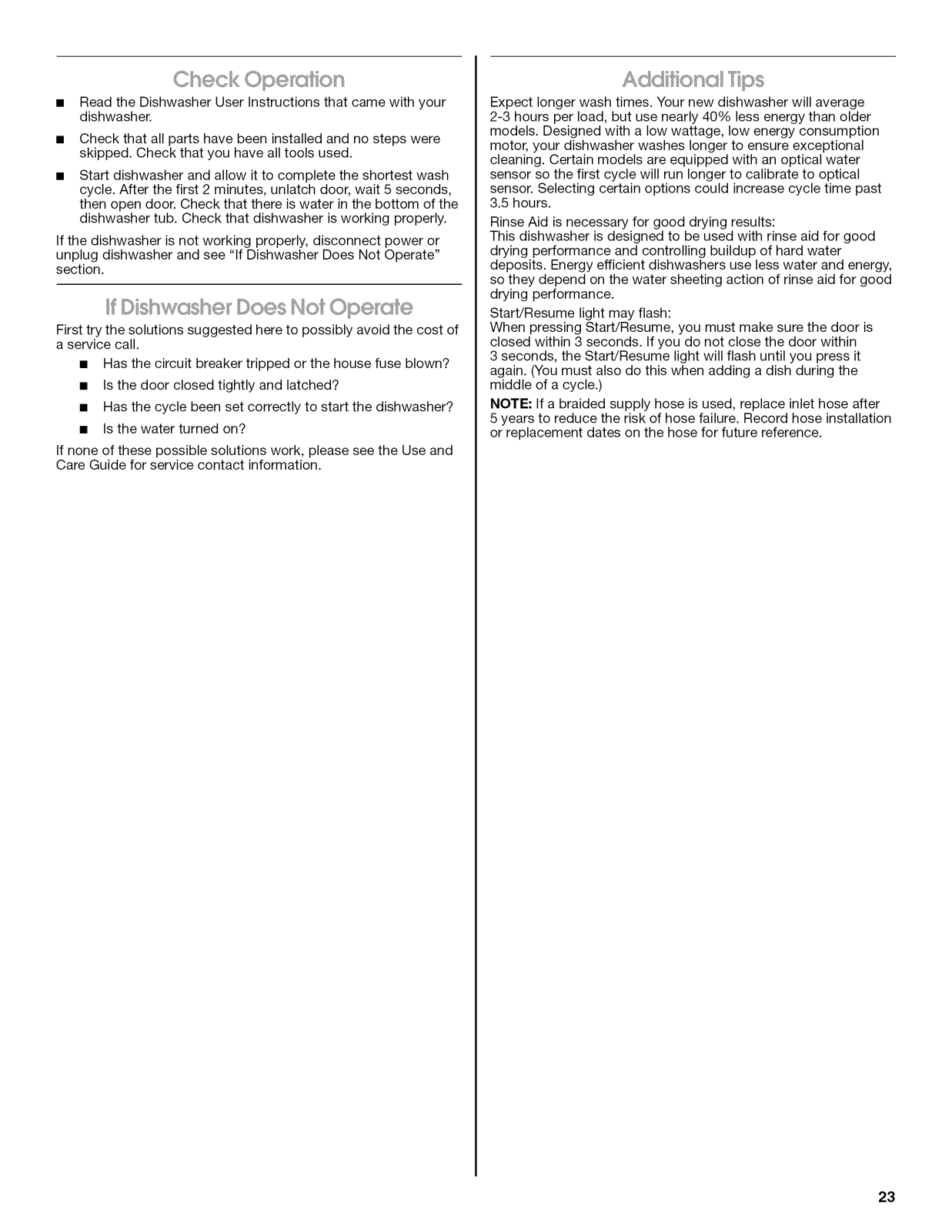

Check Operation ..................................................................................... 23

If Dishwasher Does Not Operate ............................................................ 23

Additional Tips ........................................................................................ 23

DISHWASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You Need to:

• Slowly open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials, drain hose and

lower rack. Close dishwasher door until latched.

• Observe all governing codes and ordinances.

• Install this dishwasher as specified in these instructions.

• Installation should be performed by a qualified service technician. The dishwasher must be installed to meet all

Tip Over Hazard

Do not use dishwasher until completely installed.

electrical and plumbing national and local codes and ordinances.

Do not push down on open door. Doing so can result in serious injury or cuts.

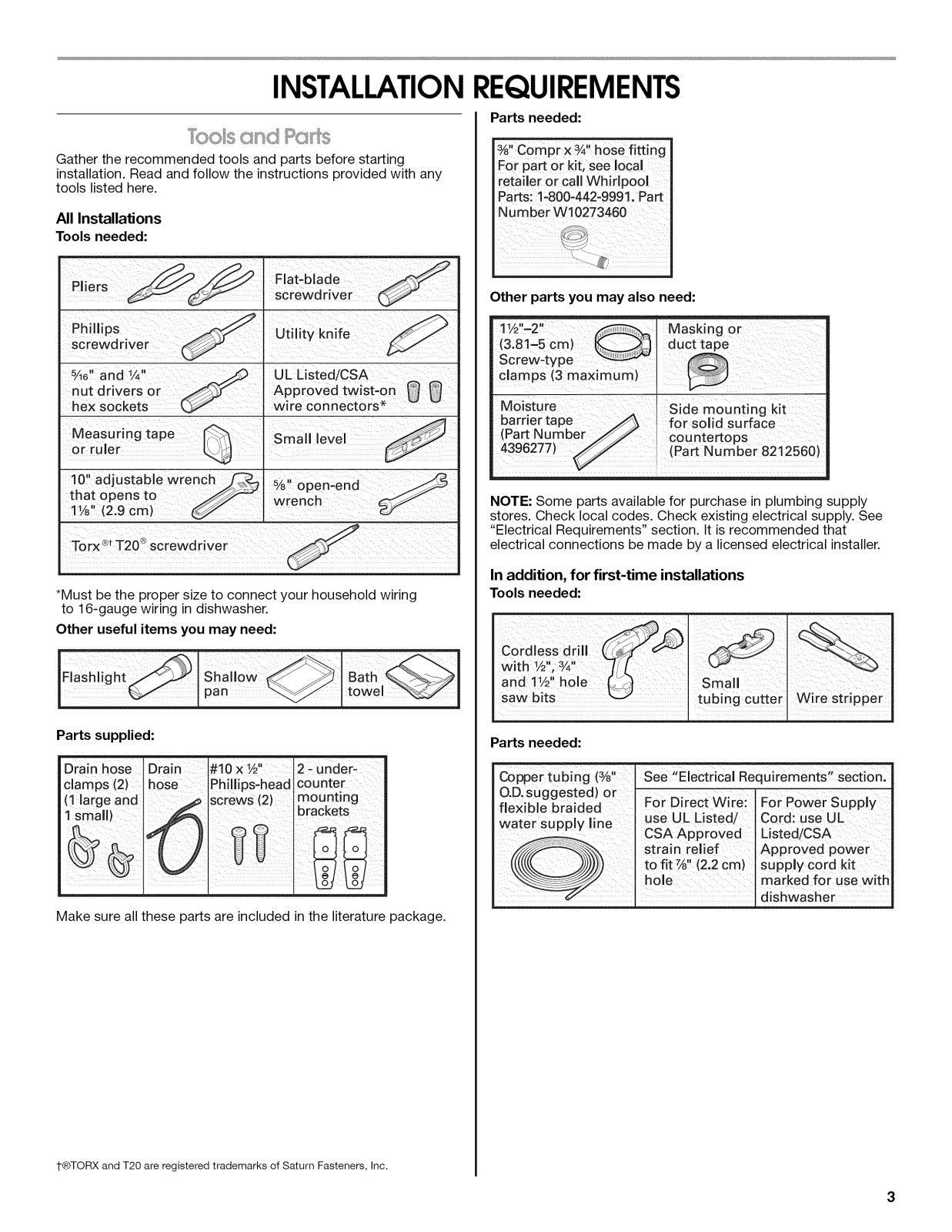

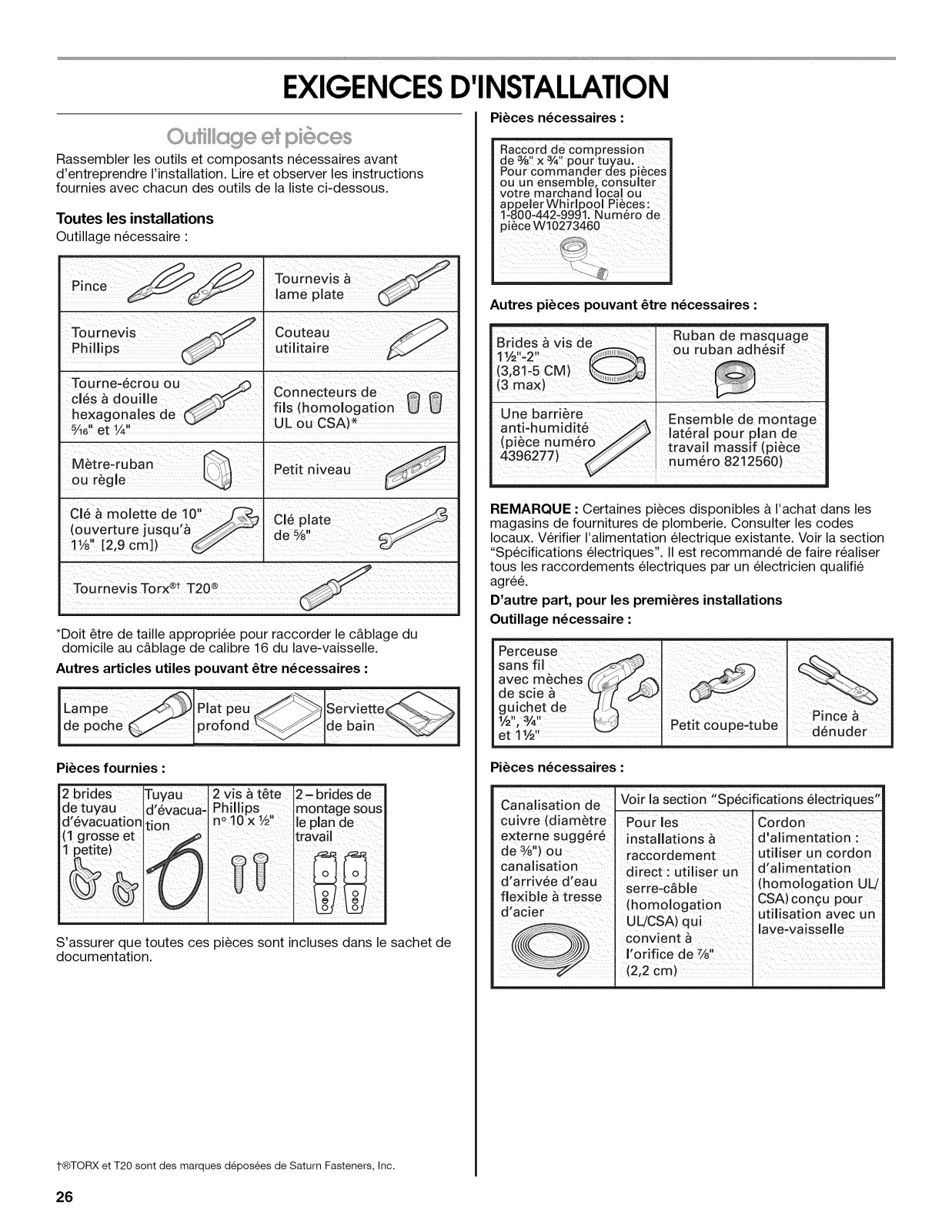

INSTALLATIONREQUIREMENTS

Parts needed:

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with any

tools listed here.

All Installations Tools needed:

Pers Flat-blade

• screwdriver

%6" and 1/4" _ _tedlCSA -- nut drivers or _._ Approved twist-on _

hex sockets _ wire connectors*

10 adjustab e wrench %" n n

" " h _ ope -e d

that opens to _JJ_'_ wmn^h _JCJ"

1 _ L,

1V8' (2 9 cm) _,

*Must be the proper size to connect your household wiring

to 16-gauge wiring in dishwasher.

Other useful items you may need:

3AComprx 3Ahose fitting

For part or kit, see !ocal retailer or call Whirlpool

Parts: 1_800-442-9991. Part

Number W10273460

Other parts you may also need:

barrier tape for Solid surface

countertops

(Part Number 8212560)

NOTE: Some parts available for purchase in plumbing supply stores. Check local codes. Check existing electrical supply. See

"Electrical Requirements" section. It is recommended that electrical connections be made by a licensed electrical installer.

In addition, for first-time installations Toolsneeded:

_ _ Bath _---_i

towel -_" !

Parts supplied:

Drain hose Drain #1oxw, 2_ clamps (2) hose Phillips.head counter (! large and screws (2) mounting

r ck ts

Make sure all these parts are included in the literature package.

Parts needed:

copper tubing (%, See ',Electrical Requirements" secti0nl

O.D.suggested) or I .- _. :; . I; .. .. .

flexible braided i t-oru_rectwlre: r-orr'ower_upp!y watersupp y ne I use UL h!sted/ ICord:use

{,(_1,._._)/_.))),) I tOfit%'! (2,2 cm) supply Cord

CSA Approved Listed/CSA

I strain relief I Approved power

hole marked for use with

dishwasher

t®TORX and T20 are registered trademarks of Saturn Fasteners, Inc.

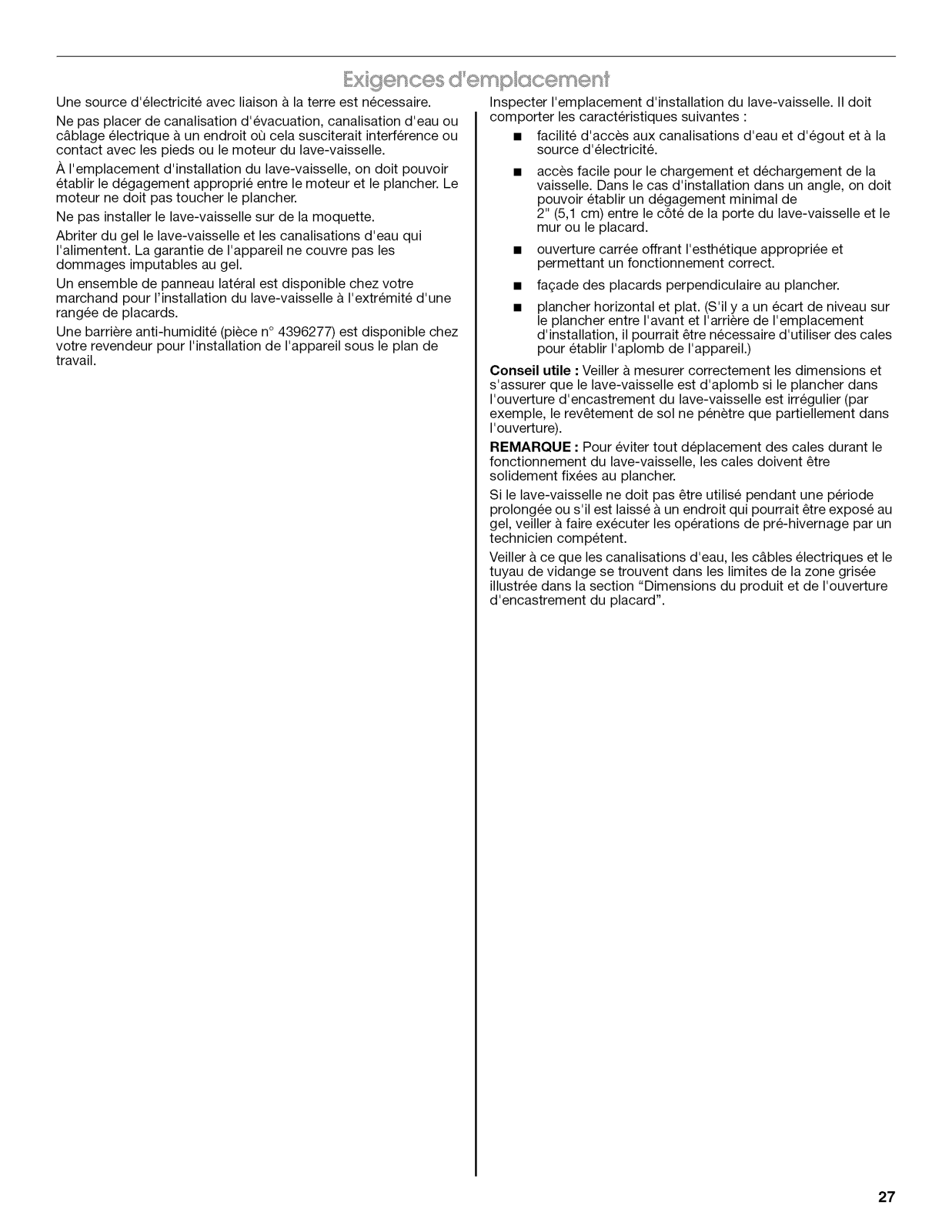

Grounded electrical supply required. Do not run drain lines, water lines or electrical wiring where they

can interfere with or contact dishwasher motor or legs. The location where the dishwasher will be installed must provide

clearance between motor and flooring. Motor should not touch the floor.

Do not install dishwasher over carpeted flooring. Shelter dishwasher and water lines leading to dishwasher against

freezing. Damage from freezing is not covered by the warranty. A side panel kit is available from your dealer for installing your

dishwasher at the end of your cabinetry. A moisture barrier accessory (Part Number 4396277) is available

from your dealer for installing underneath the countertop.

Check location where dishwasher will be installed. The location must provide:

• easy access to water, electricity and drain.

• convenient access for loading and unloading dishes.

Corner locations require a 2" (5.1 cm) minimum clearance

between the side of the dishwasher door and the wall or

cabinet.

• square opening for proper operation and appearance.

• cabinet front perpendicular to floor.

• level floor. (If floor at front of opening is not level with floor

at rear of opening, shims may be needed to level dishwasher.)

Helpful Tip: Be sure to accurately measure dimensions and ensure dishwasher is level if the floor in the dishwasher opening is

uneven (example: Flooring extends only partway into opening). NOTE: To avoid shifting during dishwasher operation, shims must

be securely attached to the floor. If dishwasher will be left unused for a period of time or in a

location where it may be subject to freezing, have it winterized by authorized service personnel.

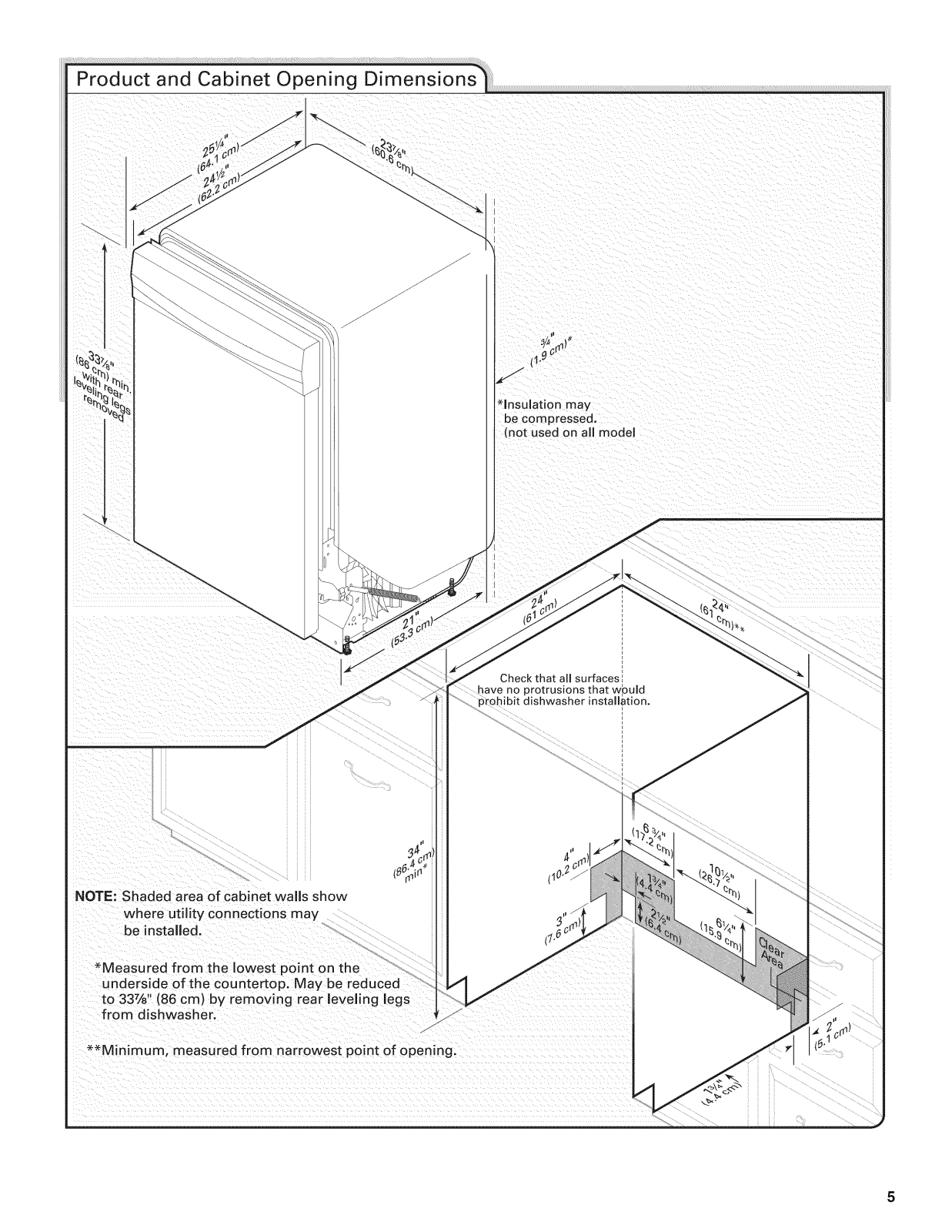

Make sure pipes, wires and drain hose are within the shaded area shown in the "Product and Cabinet Opening Dimensions" section.

/ {I'_

*Insulation may

be compressed. (not used on all model

Check that all surfaces

have no protrusions that wpuld

rohibit dishwasher installation.

NOTE: Shaded area of cabinet walls show

where utility connections may

be installed.

*Measured from the lowest point on the

underside of the countertop. May be reduced to 33%" (86 cm) by removing rear leveling legs from dishwasher.

**Minimum, measured from narrowest point of opening.

d.6

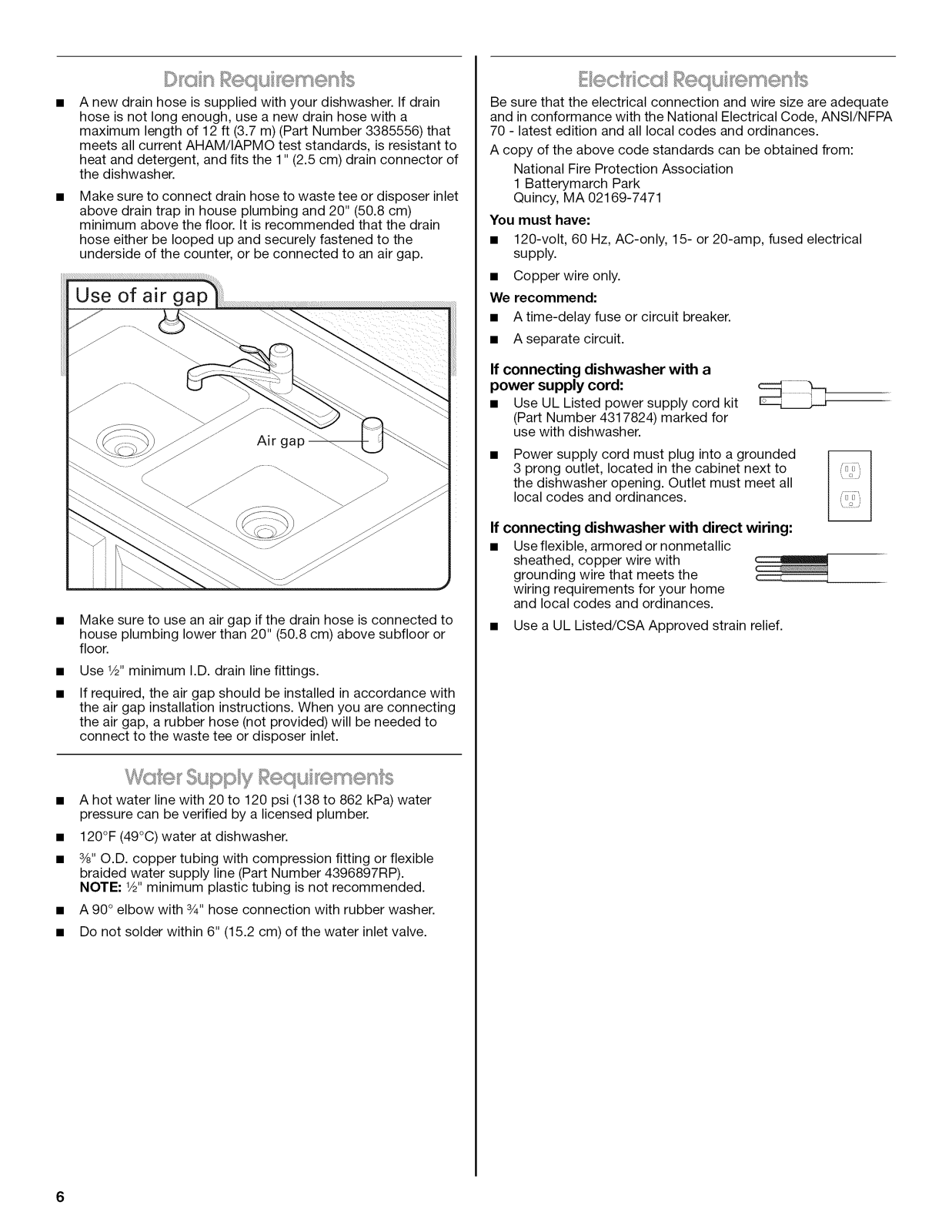

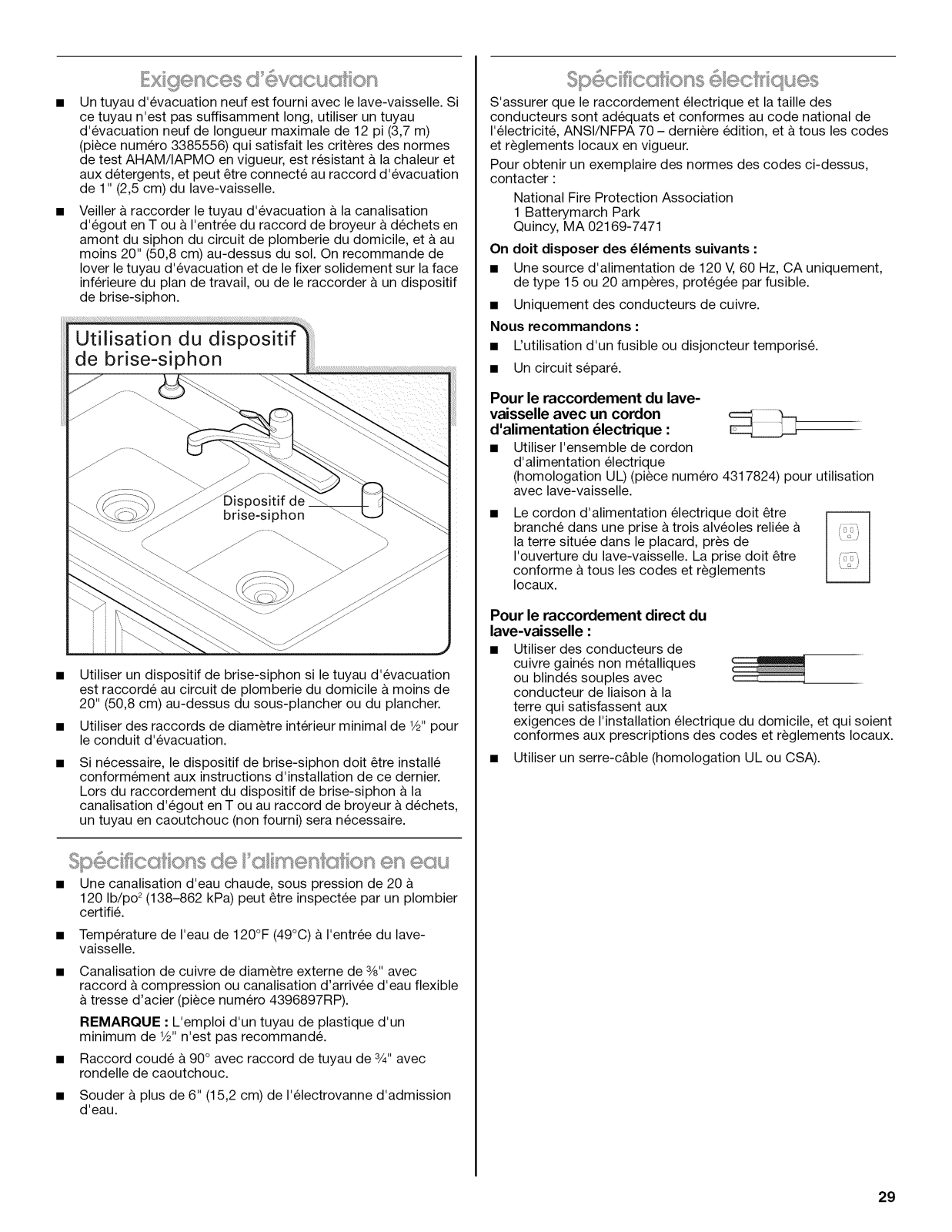

A new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a new drain hose with a maximum length of 12 ft (3.7 m) (Part Number 3385556) that meets all current AHAM/IAPMO test standards, is resistant to

heat and detergent, and fits the 1" (2.5 cm) drain connector of the dishwasher.

Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20" (50.8 cm)

minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the

underside of the counter, or be connected to an air gap.

Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20" (50.8 cm) above subfloor or

floor. Use 1/2"minimum I.D. drain line fittings. If required, the air gap should be installed in accordance with

the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.

iii)ec cJ:s)BSeq i s

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA

70 - latest edition and all local codes and ordinances. A copy of the above code standards can be obtained from:

National Fire Protection Association 1 Batterymarch Park

Quincy, MA 02169-7471

You must have:

• 120-volt, 60 Hz, AC-only, 15- or 20-amp, fused electrical supply.

• Copper wire only.

We recommend:

• A time-delay fuse or circuit breaker.

• Aseparate circuit.

If connecting dishwasher with a

power supply cord:

Use UL Listed power supply cord kit (Part Number 4317824) marked for

use with dishwasher. Power supply cord must plug into a grounded

3 prong outlet, located in the cabinet next to the dishwasher opening. Outlet must meet all

local codes and ordinances.

If connecting dishwasher with direct wiring:

• Use flexible, armored or nonmetallic sheathed, copper wire with

grounding wire that meets the wiring requirements for your home

and local codes and ordinances.

• Use a UL Listed/CSA Approved strain relief.

A hot water line with 20 to 120 psi (188 to 862 kPa) water pressure can be verified by a licensed plumber.

120°F (49°C) water at dishwasher. 3/8"O.D. copper tubing with compression fitting or flexible

braided water supply line (Part Number 4396897RP). NOTE: 1/2"minimum plastic tubing is not recommended.

A 90° elbow with 3/4"hose connection with rubber washer. Do not solder within 6" (15.2 cm) of the water inlet valve.

INSTALLATIONINSTRUCTIONS

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

I Disc0nneCt electiican P0we[ atthe fuse b0x or Ci[Cu!t !

--" hookups?

YeS _Follow instruCtions,!n the "Prepare cabinet

Opening_Existing Utilities section:

No _F0110w instructi0ns in the ,,Prepare Cabinet

Opening_New Utilities" Section,

ity hookups

If the water line and the cable extend to the locations shown, proceed to the "Install Drain Hose" section. If they do not reach far

enough, follow the instructions in the "Prepare Cabinet Opening-- New Utilities" section.

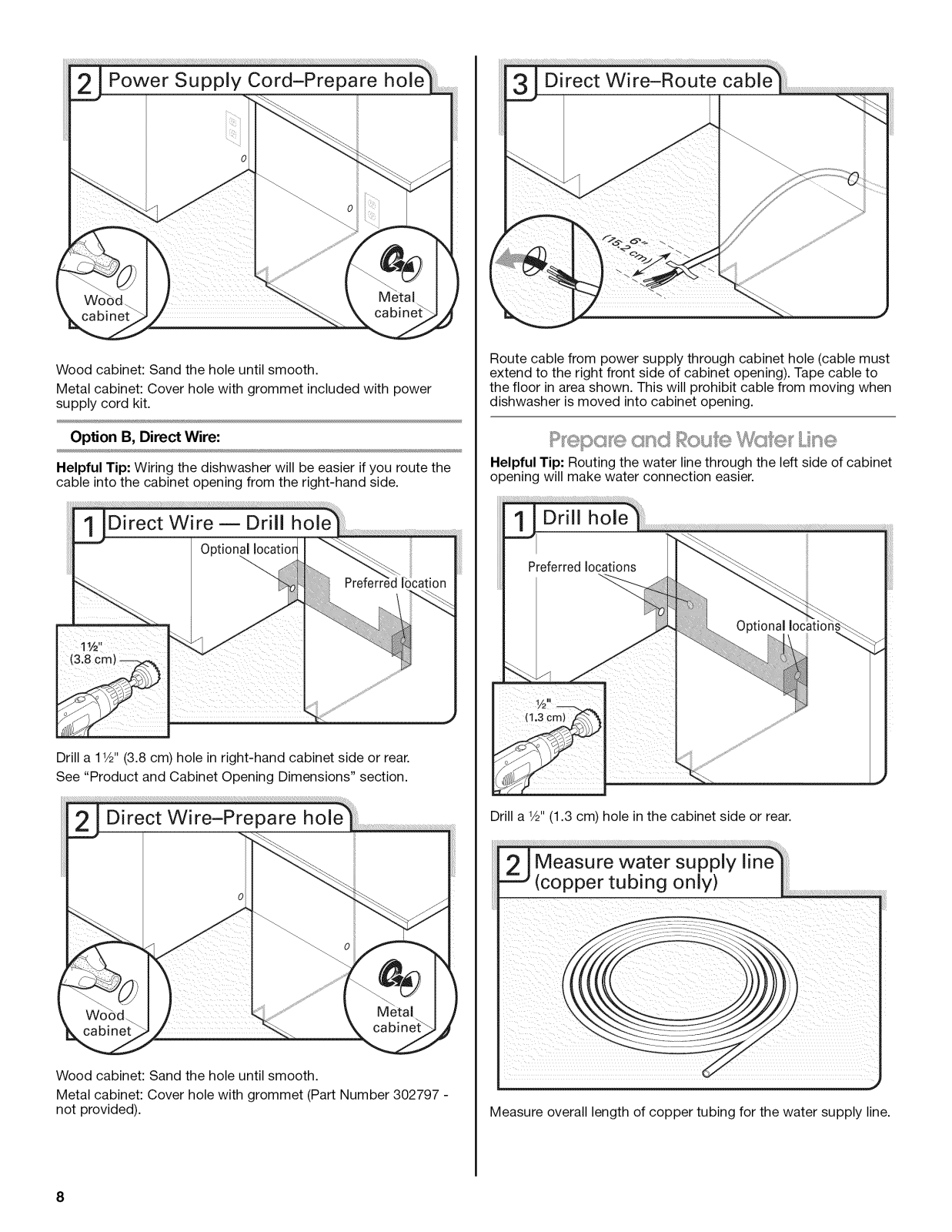

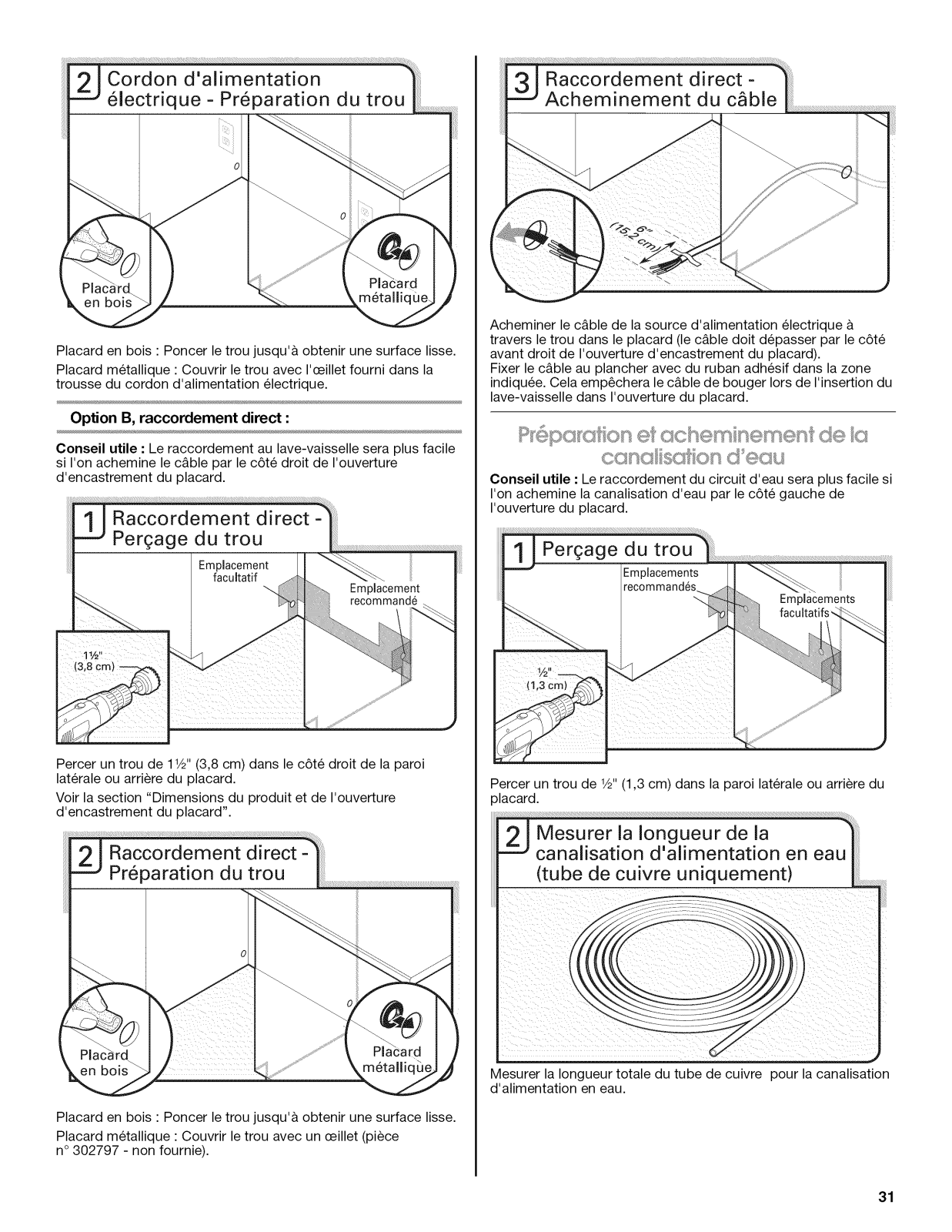

Prepare and route the electrical supply

Option A, Power Supply Cord:

NOTE: A grounded 3 prong outlet is required inside a cabinet next to the dishwasher cabinet opening.

Drill a 11/2"(3.8 cm) hole in cabinet side or rear. See "Product and Cabinet Opening Dimensions" section.

Woodcabinet:Sandtheholeuntilsmooth. Metalcabinet:Coverholewithgrommetincludedwithpower

supplycordkit.

Option B, Direct Wire:

Helpful Tip: Wiring the dishwasher will be easier if you route the cable into the cabinet opening from the right-hand side.

Drill a 1V2"(3.8 cm) hole in right-hand cabinet side or rear. See "Product and Cabinet Opening Dimensions" section.

Route cable from power supply through cabinet hole (cable must extend to the right front side of cabinet opening). Tape cable to the floor in area shown. This will prohibit cable from moving when dishwasher is moved into cabinet opening.

Helpful Tip: Routing the water line through the left side of cabinet opening will make water connection easier.

Wood cabinet: Sand the hole until smooth. Metal cabinet: Cover hole with grommet (Part Number 302797 -

not provided).

Drill a V2"(1.3 cm) hole in the cabinet side or rear.

Measure overall length of copper tubing for the water supply line.

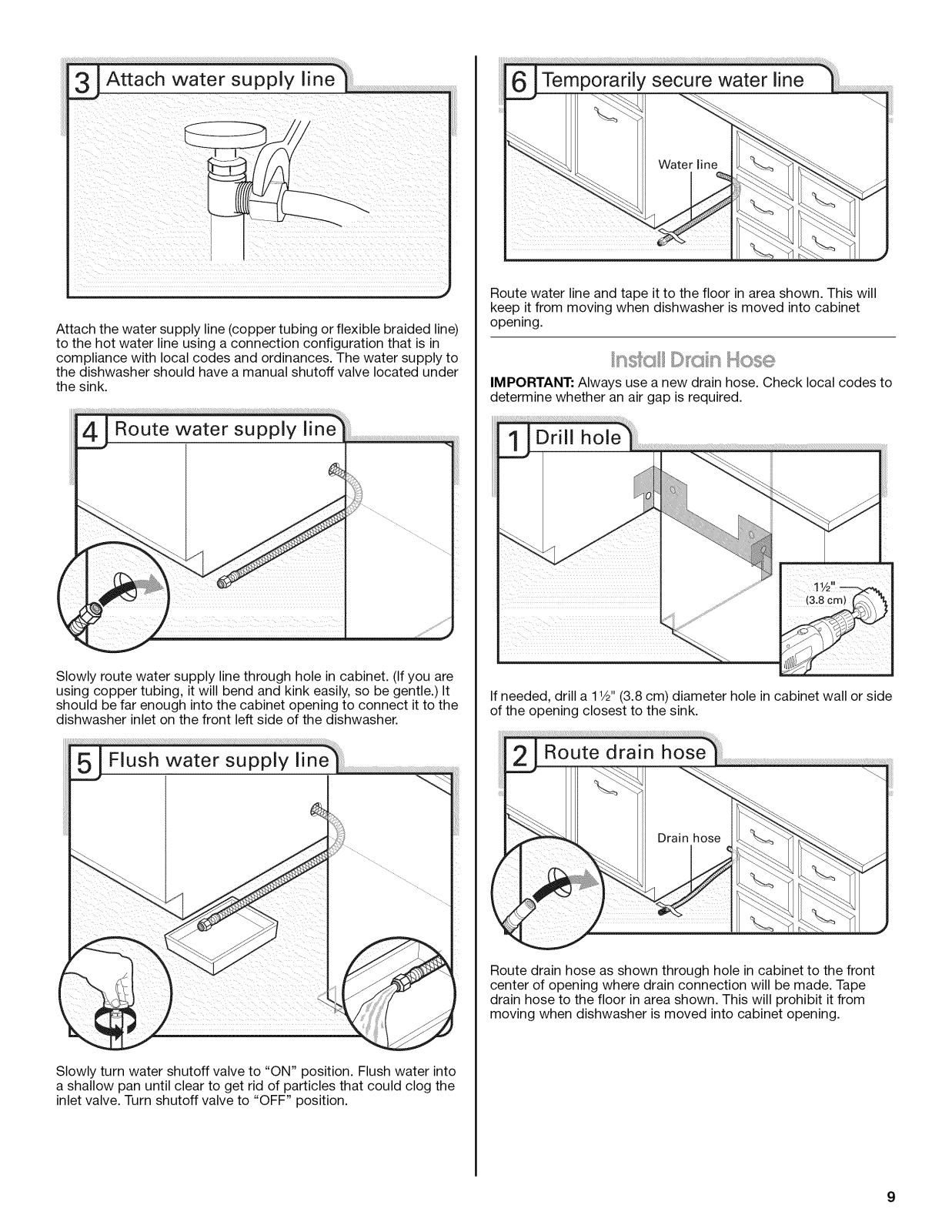

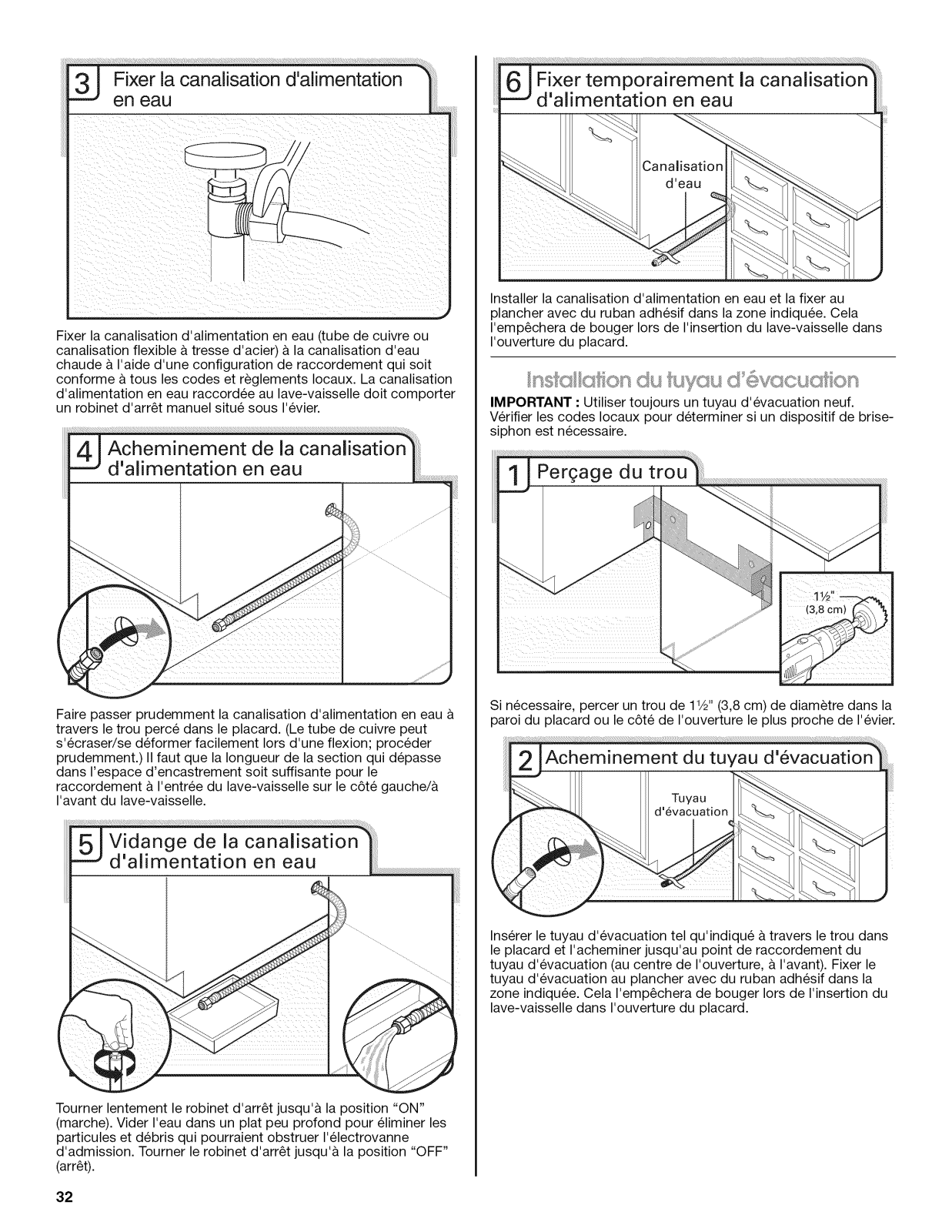

Attach the water supply line (copper tubing or flexible braided line) to the hot water line using a connection configuration that is in compliance with local codes and ordinances. The water supply to

the dishwasher should have a manual shutoff valve located under the sink.

Slowly route water supply line through hole in cabinet. (If you are using copper tubing, it will bend and kink easily, so be gentle.) It should be far enough into the cabinet opening to connect it to the dishwasher inlet on the front left side of the dishwasher.

Route water line and tape it to the floor in area shown. This will keep it from moving when dishwasher is moved into cabinet opening.

IMPORTANT: Always use a new drain hose. Check local codes to determine whether an air gap is required.

If needed, drill a 1V2"(3.8 cm) diameter hole in cabinet wall or side of the opening closest to the sink.

Flush water supply line

Slowly turn water shutoff valve to "ON" position. Flush water into a shallow pan until clear to get rid of particles that could clog the

inlet valve. Turn shutoff valve to "OFF" position.

Route drain hose as shown through hole in cabinet to the front center of opening where drain connection will be made. Tape

drain hose to the floor in area shown. This will prohibit it from moving when dishwasher is moved into cabinet opening.

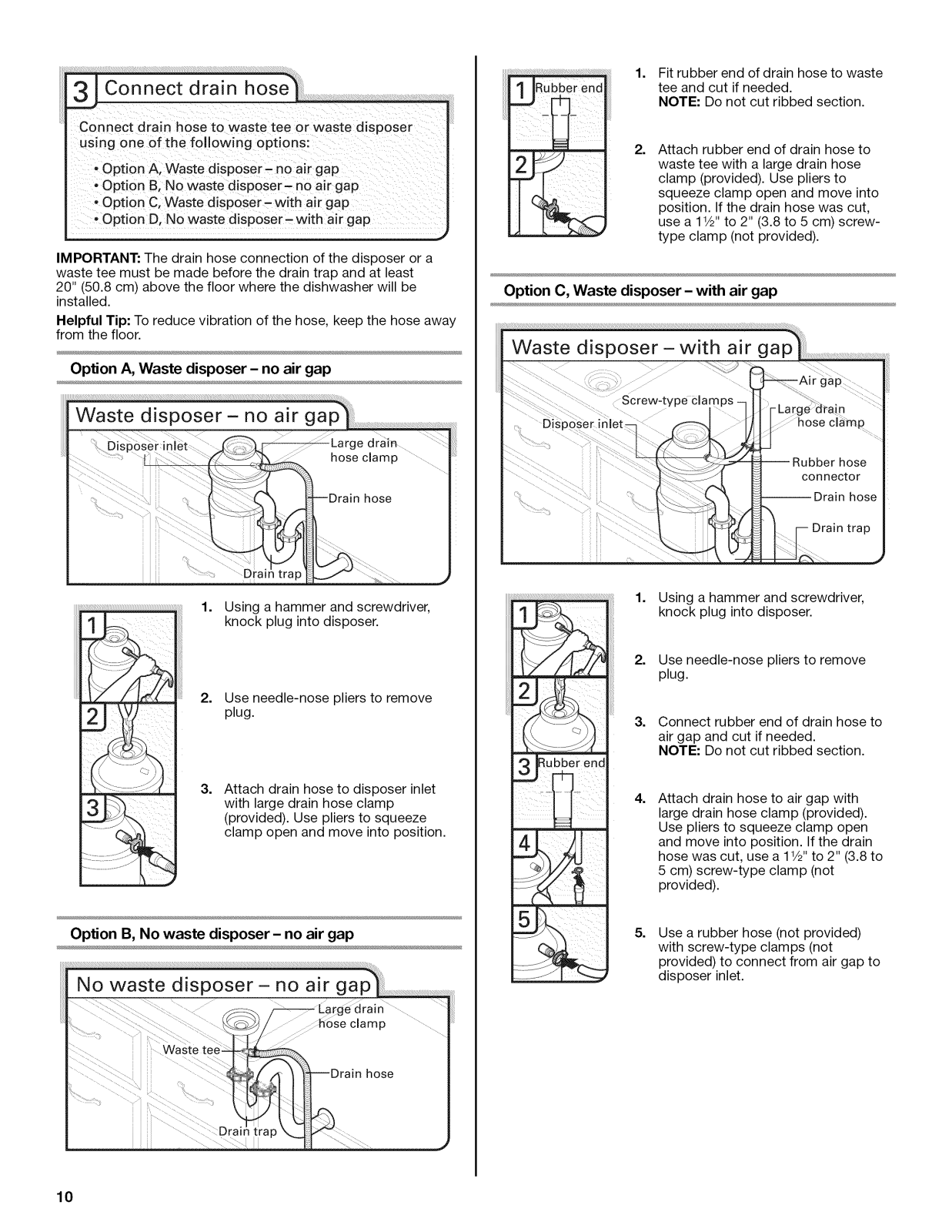

*OptionB,Nowastedisposer-noairgap

IMPORTANT:Thedrainhoseconnectionofthedisposerora wasteteemustbemadebeforethedraintrapandatleast

20"(50.8cm)abovethefloorwherethedishwasherwillbe installed.

HelpfulTip:Toreducevibrationofthehose,keepthehoseaway fromthefloor.

Option A, Waste disposer - no air gap

1. Fit rubber end of drain hose to waste tee and cut if needed.

NOTE: Do not cut ribbed section.

i!il i

2• Attach rubber end of drain hose to

waste tee with a large drain hose clamp (provided). Use pliers to squeeze clamp open and move into

position. If the drain hose was cut, use a 1V2"to 2" (3.8 to 5 cm) screw- type clamp (not provided).

Option C, Waste disposer - with air gap

Using a hammer and screwdriver, knock plug into disposer.

..... 1 •

Use needle-nose pliers to remove plug.

Attach drain hose to disposer inlet with large drain hose clamp

(provided). Use pliers to squeeze clamp open and move into position.

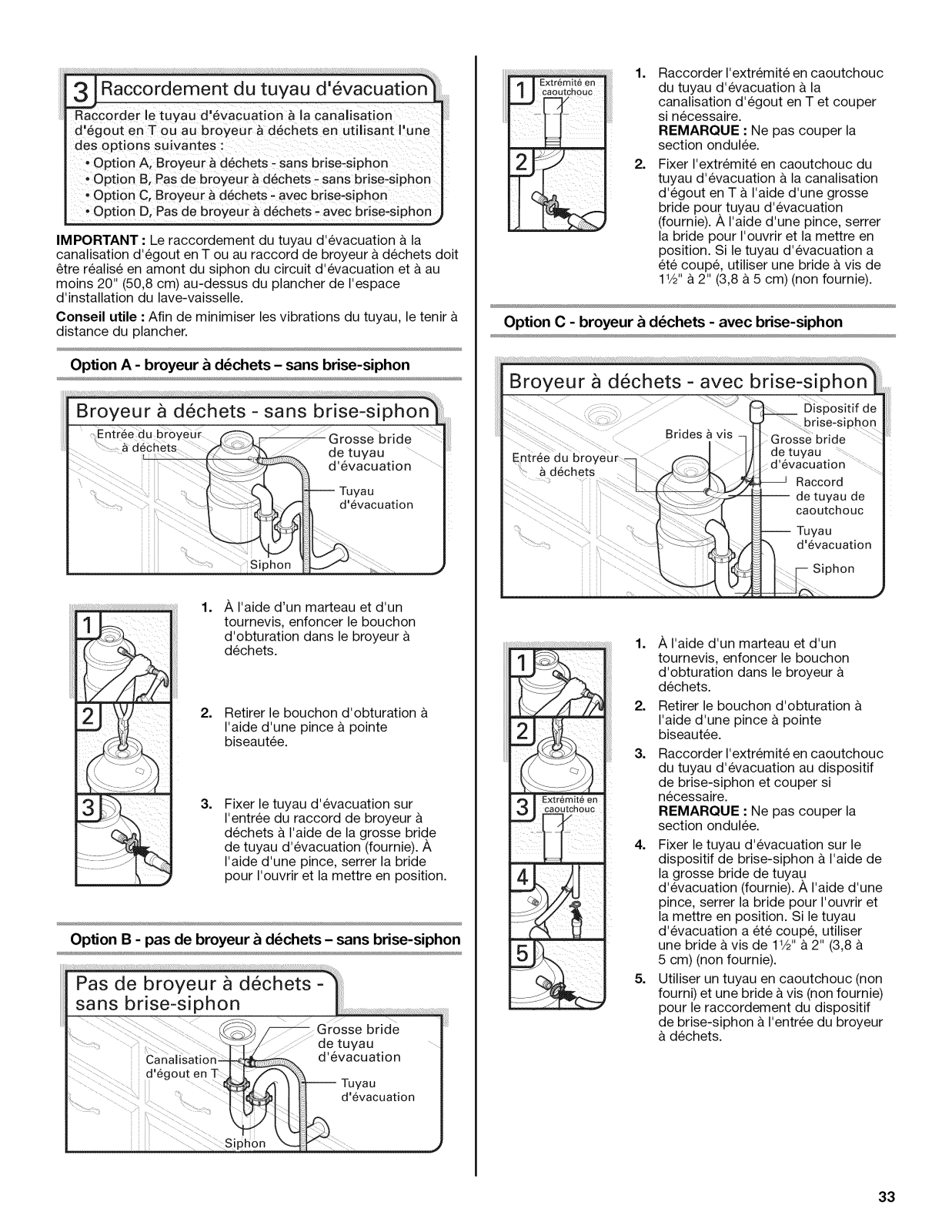

Option B, No waste disposer - no airgap

1. Using a hammer and screwdriver, knock plug into disposer.

2. Use needle-nose pliers to remove plug.

3. Connect rubber end of drain hose to

air gap and cut if needed.

NOTE: Do not cut ribbed section.

4•

Attach drain hose to air gap with

large drain hose clamp (provided). Use pliers to squeeze clamp open

and move into position. If the drain hose was cut, use a 11/2"to 2" (3.8 to

5 cm) screw-type clamp (not

provided).

5•

Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from air gap to

disposer inlet.

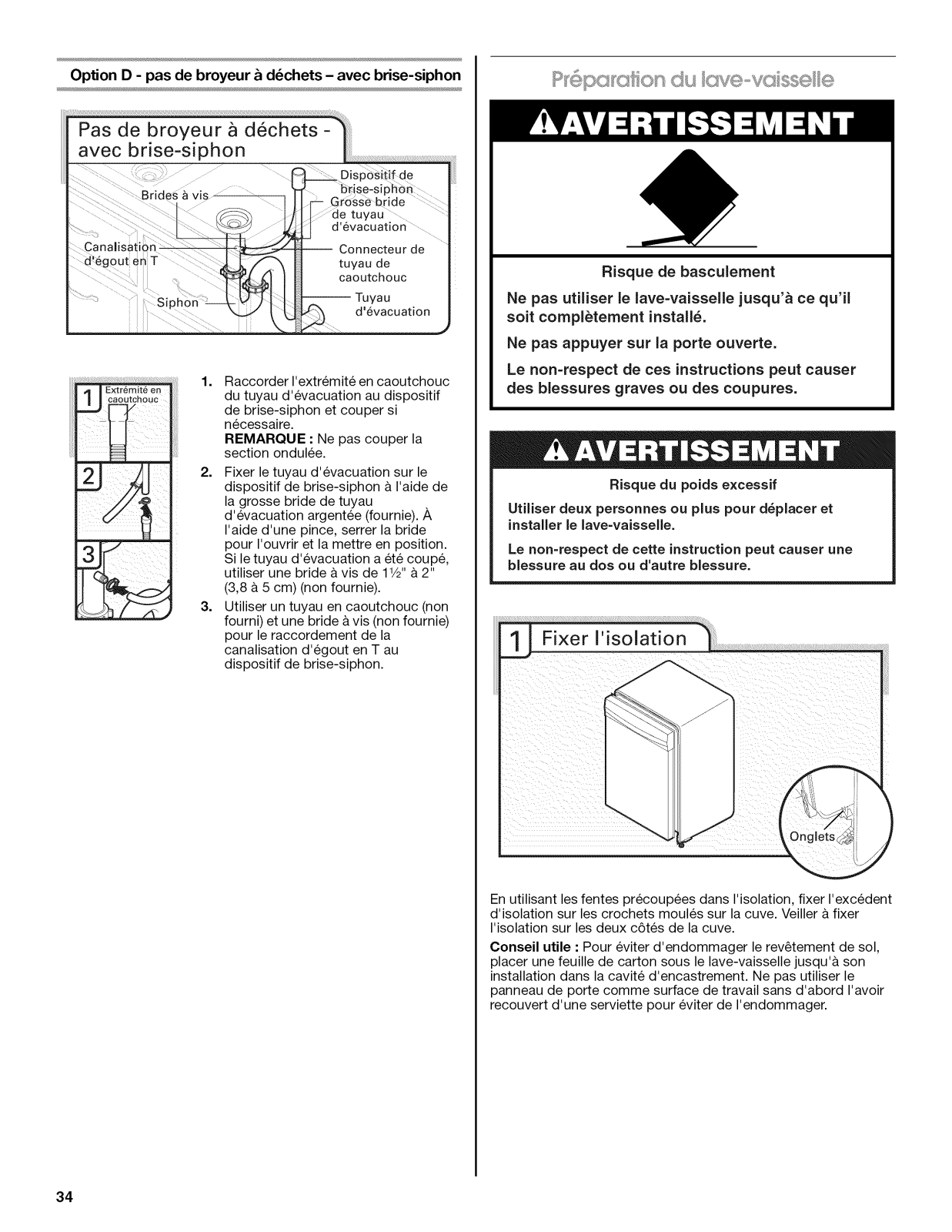

Option D, No waste disposer - with air gap

1. Connect rubber end of drain hose to air gap and cut if needed.

NOTE: Do not cut ribbed section.

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door.

Doing so can result in serious injury or cuts.

Attach drain hose to air gap with large drain hose clamp (provided). Use pliers to squeeze clamp open

and move into position. If the drain hose was cut, use a 11/2'' to 2" (3.8 to 5 cm) screw-type clamp (not provided).

Use a rubber hose (not provided) with screw-type clamps (not

provided) to connect from waste tee to air gap.

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

Using the precut slots in the insulation, fasten the insulation over the molded hooks on the tub. Be sure to fasten the insulation

down on both sides of the tub. Helpful Tip: Place cardboard under dishwasher until installed in

cabinet opening to avoid damaging floor covering. Do not use door panel as a worktable without first covering with a towel to

avoid scratching the door panel.

Using 2 or more people, grasp sides of dishwasher door frame and place dishwasher on its back.

Install a UL Listed/CSA Approved strain relief. Make sure screw heads are facing to the left when tightening conduit nut. Strain

relief is provided with the power supply cord kit.

Removea di!asten

iiiii!iiiII ! iiiiiiiiiiI!iiiiiiiiiill_ @_

_!tun Q

Using a flat-blade screwdriver, turn the plastic fasteners 1/4turn counterclockwise to unlock them. Remove panel. Do not remove tech sheet from access panel.

........... /

connection will you use?

Direct Wire:

: Follow Option B instructions

NOTE: If using Option B, proceed to "Determine Cabinet Opening," to continue with the installation of your dishwasher.

Option A, Power Supply Cord:

Using a 1/4"hex head socket, nut driver or Torx' T20 screwdriver, remove terminal box cover. Retain for later use.

® ®

Route cord so that it does not touch dishwasher motor to lower part of dishwasher tub. Pull cord through strain relief in terminal

box.

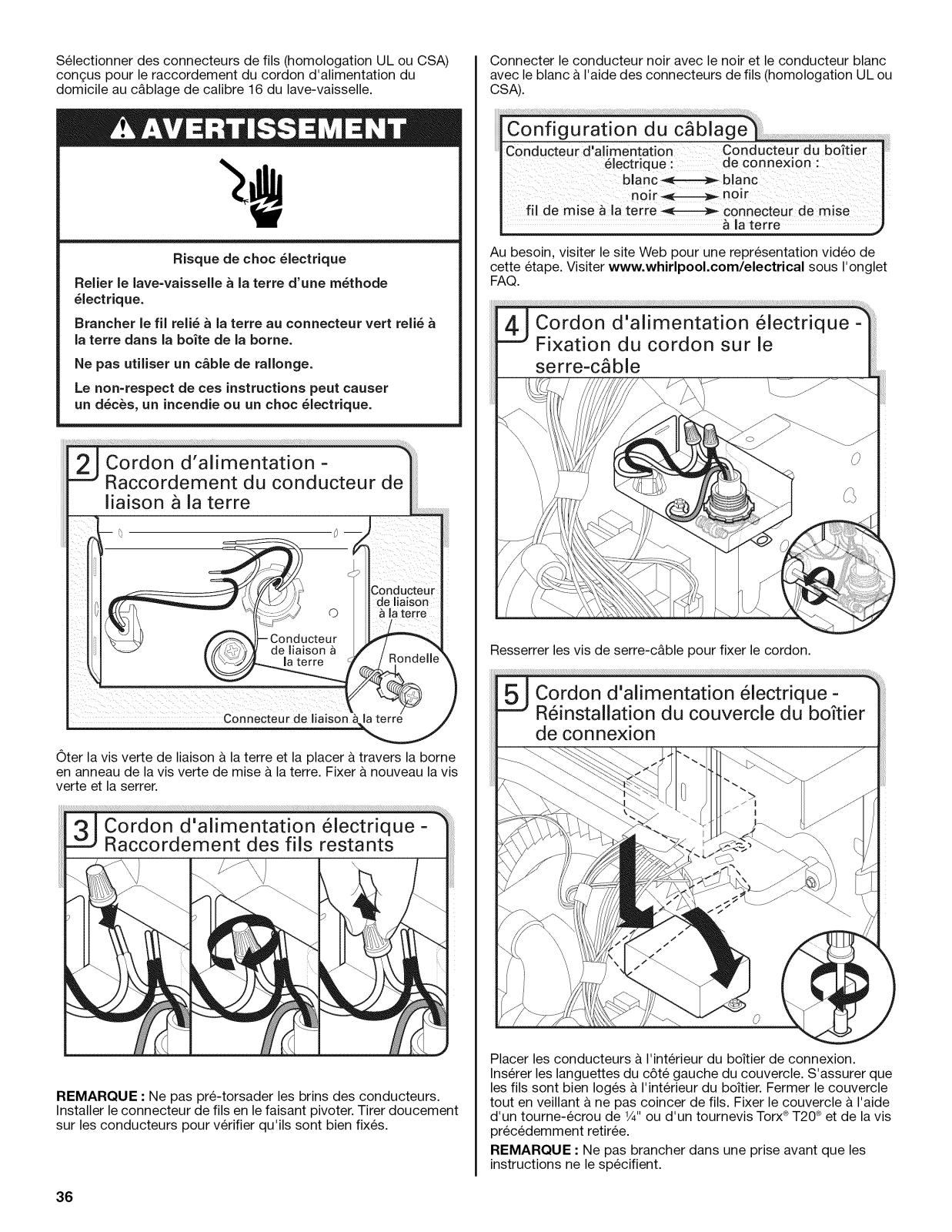

Select UL Listed/CSA Approved twist-on wire connectors rated to connect your power supply cord to 16-gauge dishwasher wiring.

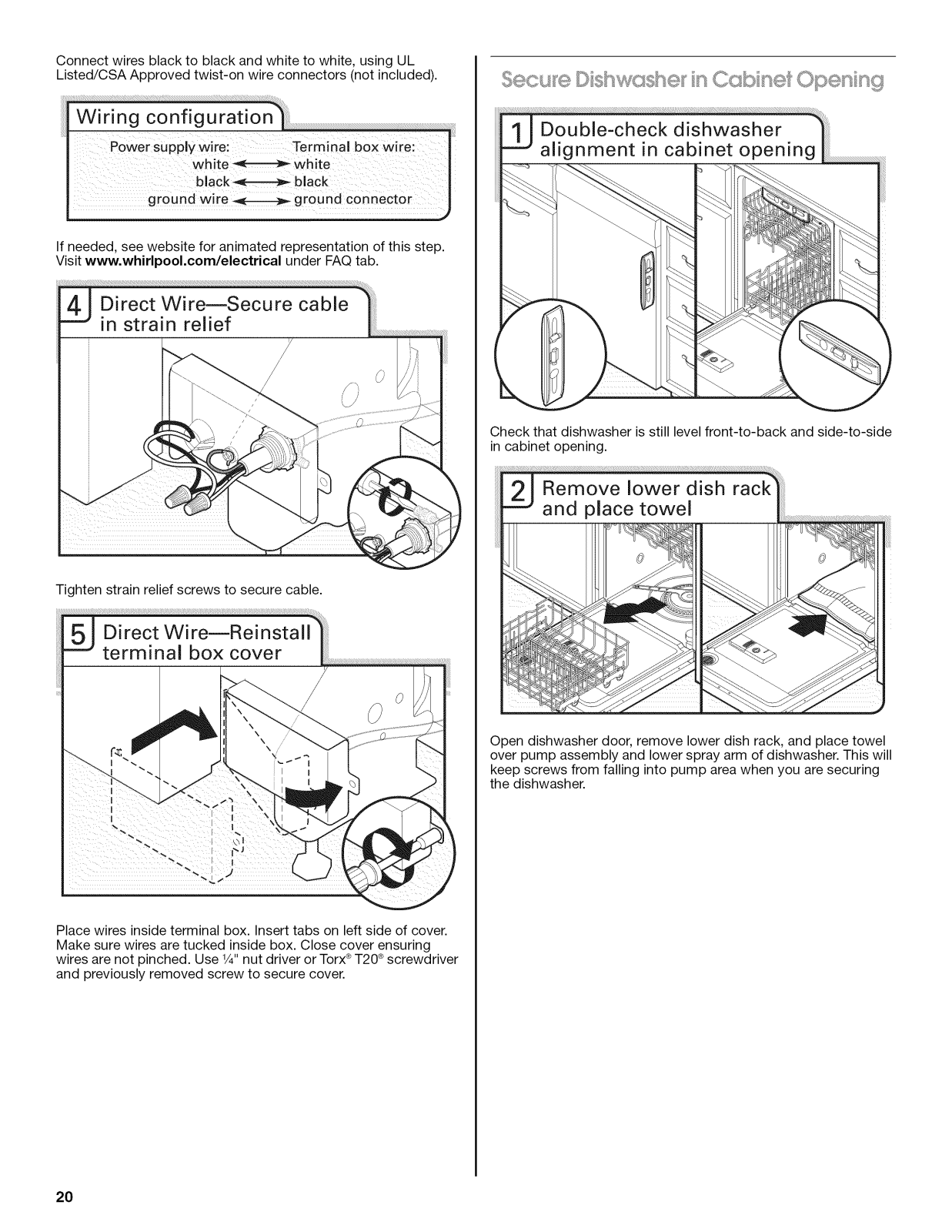

Connect wires black to black and white to white, using UL Listed/CSA Approved twist-on wire connectors.

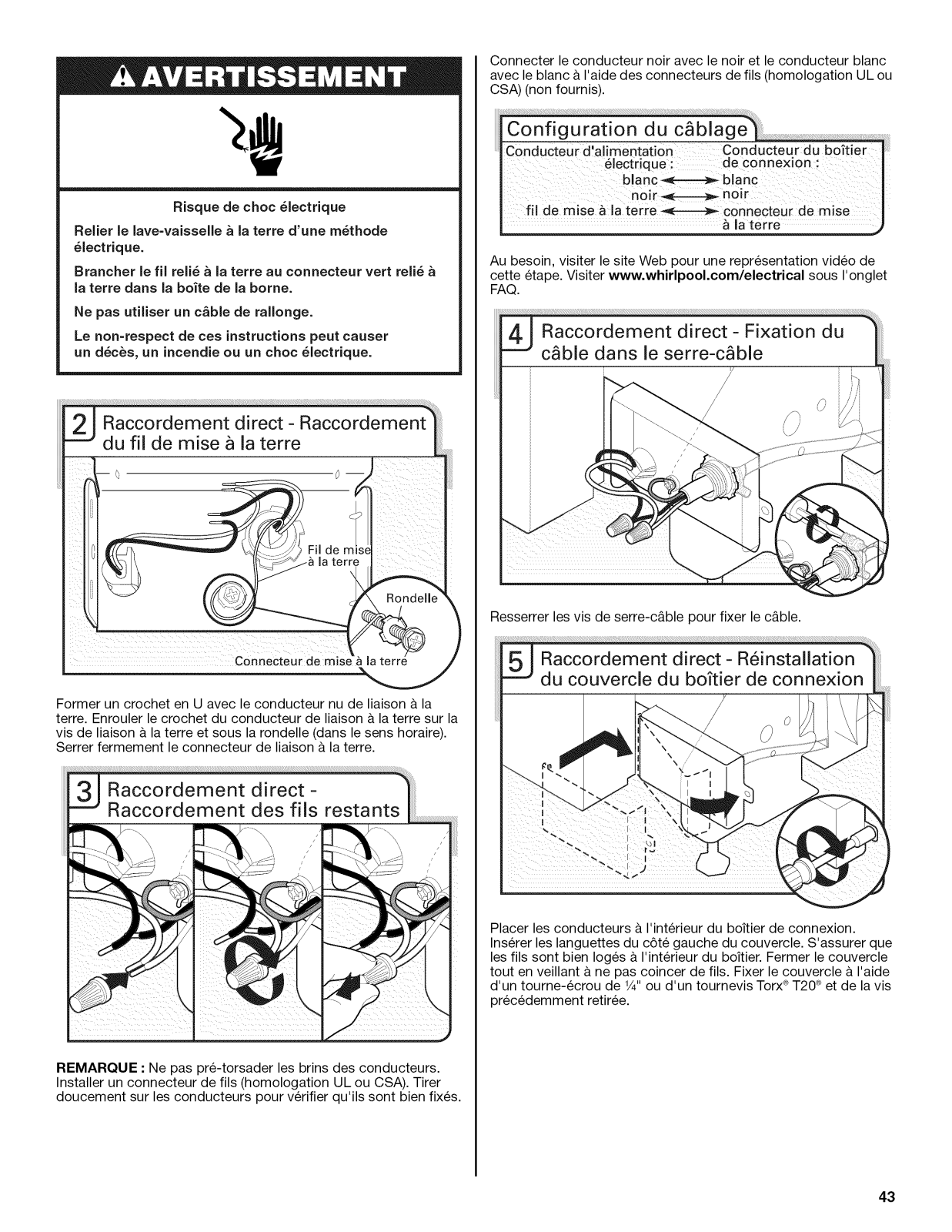

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in

terminal box.

Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

21Povv;;sop;iyco;d-'l

.,.......J

Connect

-"_urounu wire ..........................................

_ashe)

If needed, see website for animated representation of this step. Visit www.whirlpool.com/electrical under FAQ tab.

Tighten strain relief screws to secure cord.

Remove the green grounding screw and place through the ring terminal of the green ground wire. Reattach and tighten the green

screw.

Power Cord--Connect

J _:

remaining wires

' /

NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured.

Place wires inside terminal box. Insert tabs on left side of cover. Make sure wires are tucked inside box. Close cover ensuring

wires are not pinched. Use 1/4"nut driver or Torx®T20®screwdriver and previously removed screw to secure cover.

NOTE: Do not plug into outlet until instructed to do so.

De et,_museCclb i_e__6s}_,,_¢s,_,_,,__,_

Your dishwasher has leveling legs. The following provides instructions to adjust the leveling legs to set the dishwasher to the correct height for your cabinet opening.

Rear legs= B"

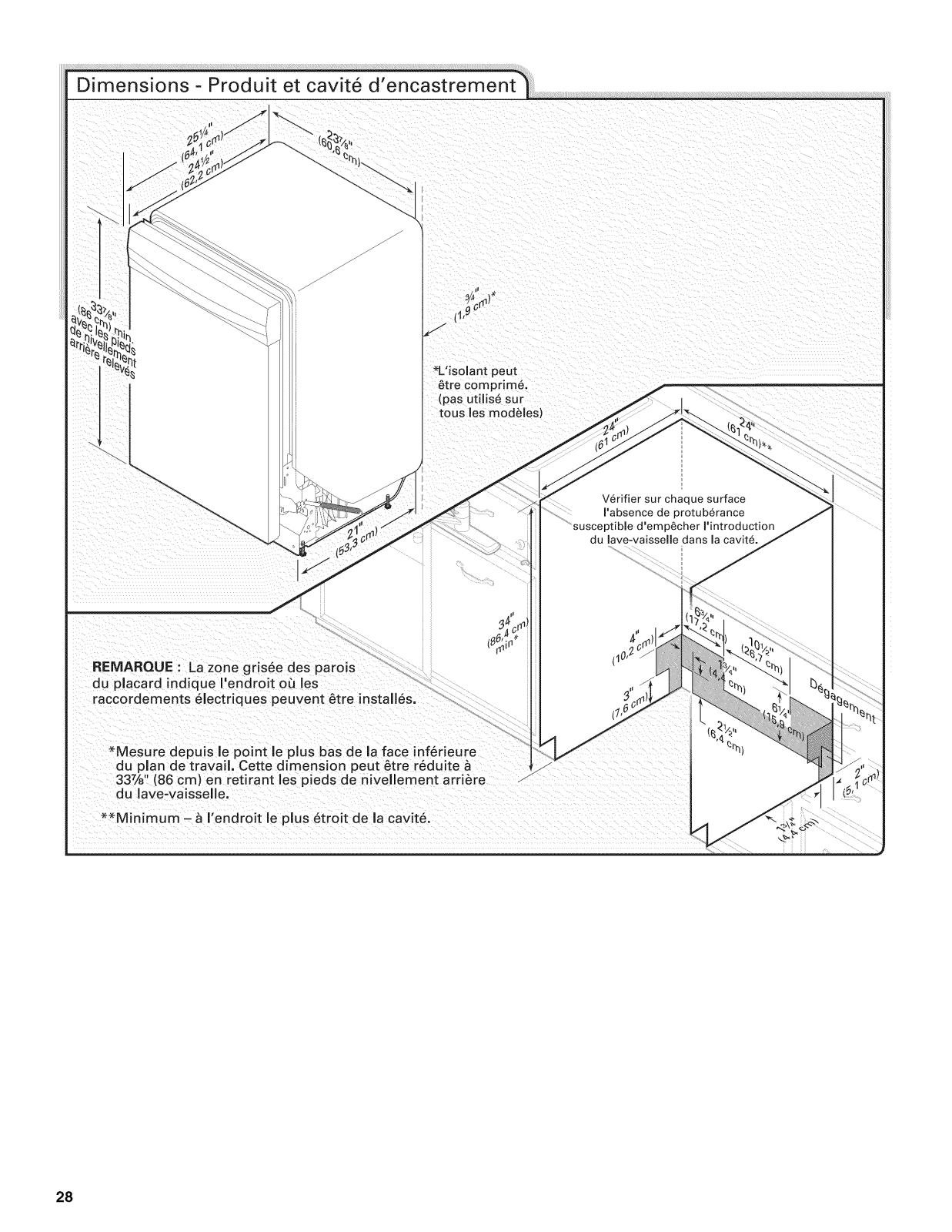

Measure height of cabinet opening from underside of countertop to floor where dishwasher will be installed (you will need to measure the lowest point on the underside of the countertop and the highest point on the floor). Refer to "Dishwasher Height

Adjustment Chart" to adjust the leveling legs.

337/8"(8&0 cm)%'! (17 mm)remove

34, (86,4 cm)%" (22 mm) . 3/4"(17.5 mm)

341/p (87.6 cm)i!/8" (28.8 mm)!' (24.3 m m)

NOTE: If the minimum cabinet opening height is less than 34" (86.4 cm), the rear leveling legs can be removed for additional clearance. This will allow the dishwasher to fit into a 33z/8'' (86 cm)

high cabinet opening, but the dishwasher will be more difficult to move. (Measurements are approximate. Rear and front leveling legs are preset at the factory for 341/2'' [87.6 cm].)

Turn front and rear leveling legs to the same height. Refer to "Dishwasher Height Adjustment Chart."

Adjust leveling legs

Preferred method

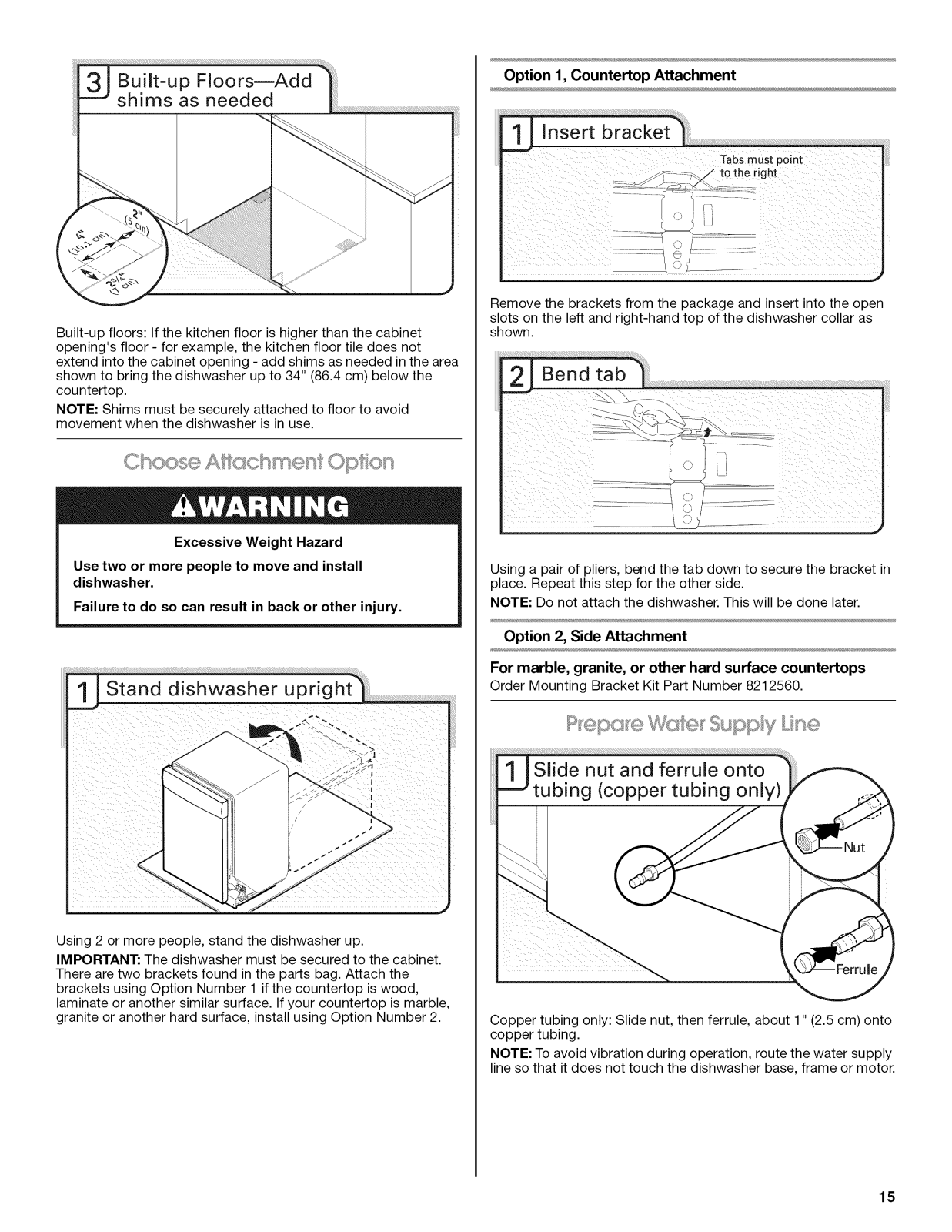

Built-up floors: If the kitchen floor is higher than the cabinet opening's floor - for example, the kitchen floor tile does not

extend into the cabinet opening - add shims as needed in the area shown to bring the dishwasher up to 34" (86.4 cm) below the countertop.

NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.

Option 1, Countertop Attachment

Remove the brackets from the package and insert into the open slots on the left and right-hand top of the dishwasher collar as

shown.

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

Using 2 or more people, stand the dishwasher up. IMPORTANT: The dishwasher must be secured to the cabinet.

There are two brackets found in the parts bag. Attach the brackets using Option Number 1 if the countertop is wood,

laminate or another similar surface. If your countertop is marble, granite or another hard surface, install using Option Number 2.

Using a pair of pliers, bend the tab down to secure the bracket in place. Repeat this step for the other side.

NOTE: Do not attach the dishwasher. This will be done later.

Option 2, Side Attachment

For marble, granite, or other hard surface countertops

Order Mounting Bracket Kit Part Number 8212560.

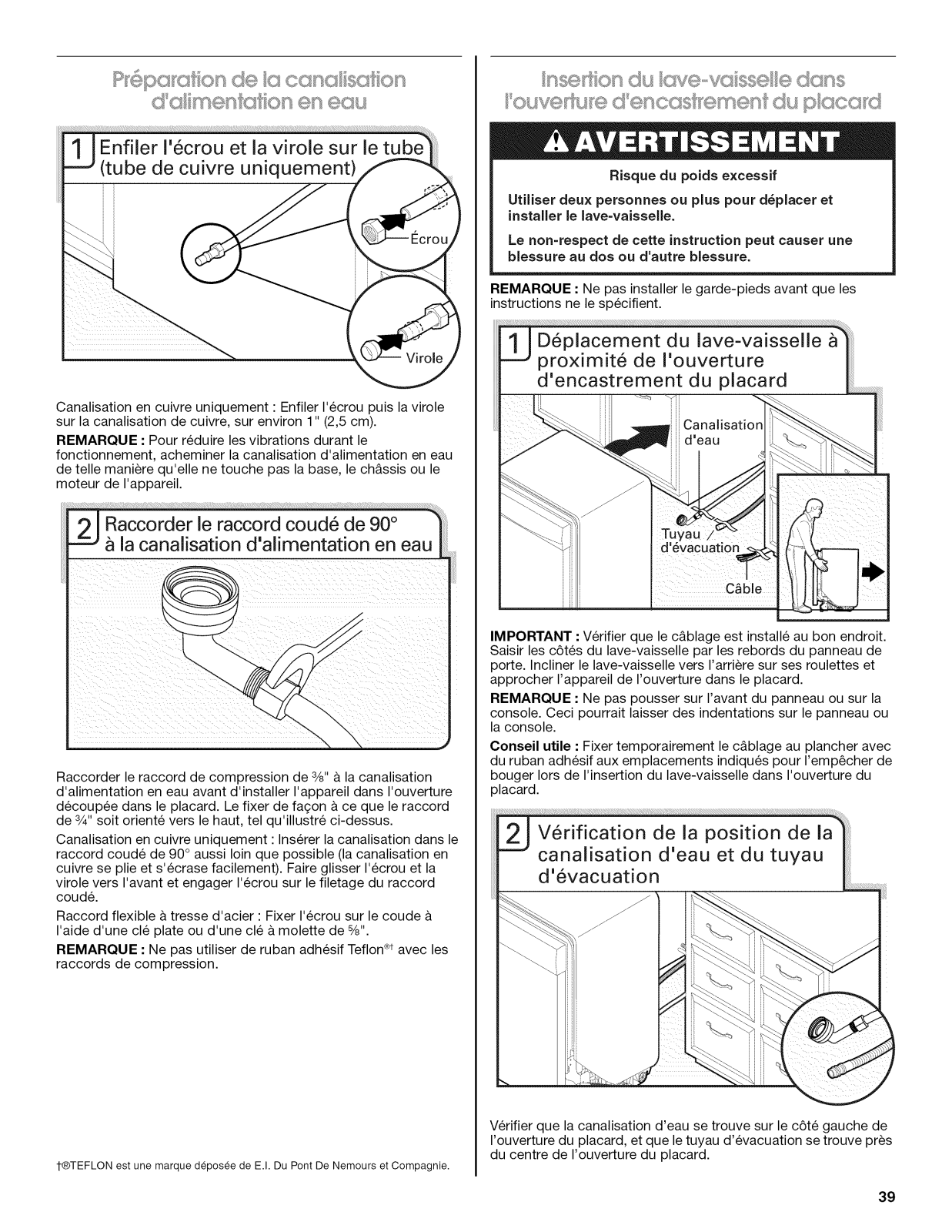

Copper tubing only: Slide nut, then ferrule, about 1" (2.5 cm) onto copper tubing.

NOTE: To avoid vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame or motor.

+ 33 hidden pages
