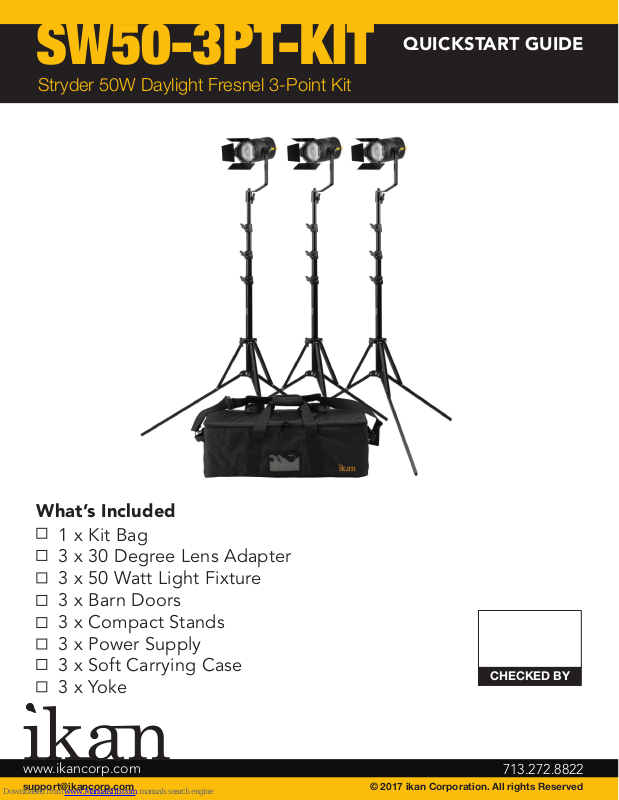

SW50-3PT-KIT
Stryder 50W Daylight Fresnel 3-Point Kit
QUICKSTART GUIDE
What’s Included
1 x Kit Bag
3 x 30 Degree Lens Adapter
3 x 50 Watt Light Fixture
3 x Barn Doors
3 x Compact Stands
3 x Power Supply
3 x Soft Carrying Case
3 x Yoke
www.ikancorp.com
CHECKED BY
713.272.8822
Page 2
Getting started:
Thank you for buying the Stryder 50W daylight fresnel 3-point kit from Ikan. Carefully read the instructions and guide before
operating the products. The guide includes important product usage and maintenance information.
All the content of this manual is based on up-to-date information; technical data is subject to change without notice.
Safety Instructions:
1. (WARNING: YOU RISK GETTING ELECTROCUTED IF YOU DON’T FOLLOW THESE INSTRUCTIONS.) Connect the power
cable to the SW50 LED Light before plugging it into the power source.
2. Don’t drag cables with excessive force. Any repairs on the products should be performed by Ikan technicians. When
dealing with the power cable, handle with care. Applying excessive force on the power connector can cause the power
supply to short or stop working.
3. Make sure that the power is off before connecting and changing the fixture head or disconnecting your cable from the
power source. We recommend using Ikan customized connecting cables and connectors to avoid electrical shock.
4. The voltage shouldn’t exceed the value in the technical specifications. If the voltage is greater than or less than the regulated
values, it could damage the product.
Overview:
1. A 4-inch diameter Fresnel lens provides even, well-distributed light at a 60° beam angle.
2. The Fresnel Spot adaptor allows the beam to be reduced to a 30° spot.
3. Ultra-low noise and active cooling technology contribute to excellent thermal stability.
4. The bright LCD readout is easy to view, enabling the smooth adjustment of functions.
5. AC/DC power supply (110-220VAC / 15VDC)
Instructions:
The LED Fresnel housing of metal with a lightweight plastic body. It’s easy to transport the fixture for any shoot. The SW50
structure is illustrated as follows:
Page 3

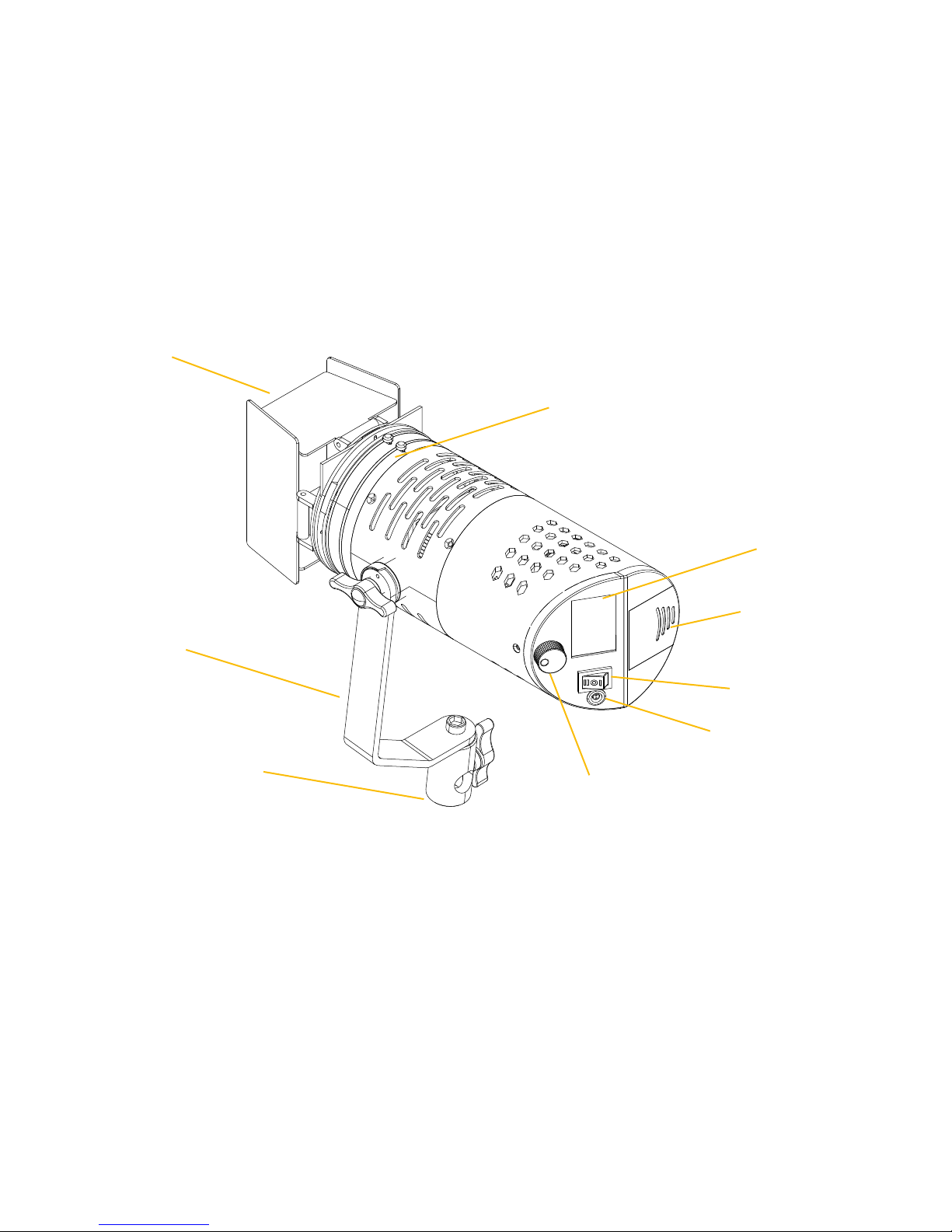

Appearance & Structure of the Fixture
5/8 Receiver: Connects the lamp to stands
30º beam adapter: Allows the light to move from a 60° beam angle to a 30° beam angle
4-Way Barn Doors: Removable four way barn doors for adjusting light
Power switch: Turn power to DC or BATT
LCD Display Screen: Displays Brightness and Battery Life
Large Control Knob: Allows for brightness adjustment
Half Yoke: Allows the light to be placed on a stand or underslung and attached to any mounting point
AC/DC Power Connector (15VDC): To attach the power connector for AC/DC Power.
4-Way Barn Doors
Beam Adapter
LCD Display Screen
Battery Compartment
Yoke
Power Switch
AC/DC Power
5/8 Receiver
Large Control Knob
Installation & Power Supply
1. Make sure that the power is off before installation.
2. Place the light on the Ikan stands, release the tension knob on the 5/8” receiver, adjust the light in the desired
direction, and then tighten the tension knob on the 5/8” receiver.
3. When connecting the power cords, plug the DC power cords into the socket on the rear panel (as shown in the
drawing). Flip the power switch to DC to power up the light while plugged up to an electrical outlet.
4. When using the 18650 batteries, place the batteries into the slots following the minus and plus directions to orient
the batteries correctly. Slide the battery door back into place and confirm that it is locked. Flip the power switch to
BATT to power up the light. (Note: When using the battery option, the light is only equivalent to 30 watts.)
Batteries NOT INCLUDED with SW50 Light Fixture
Page 4

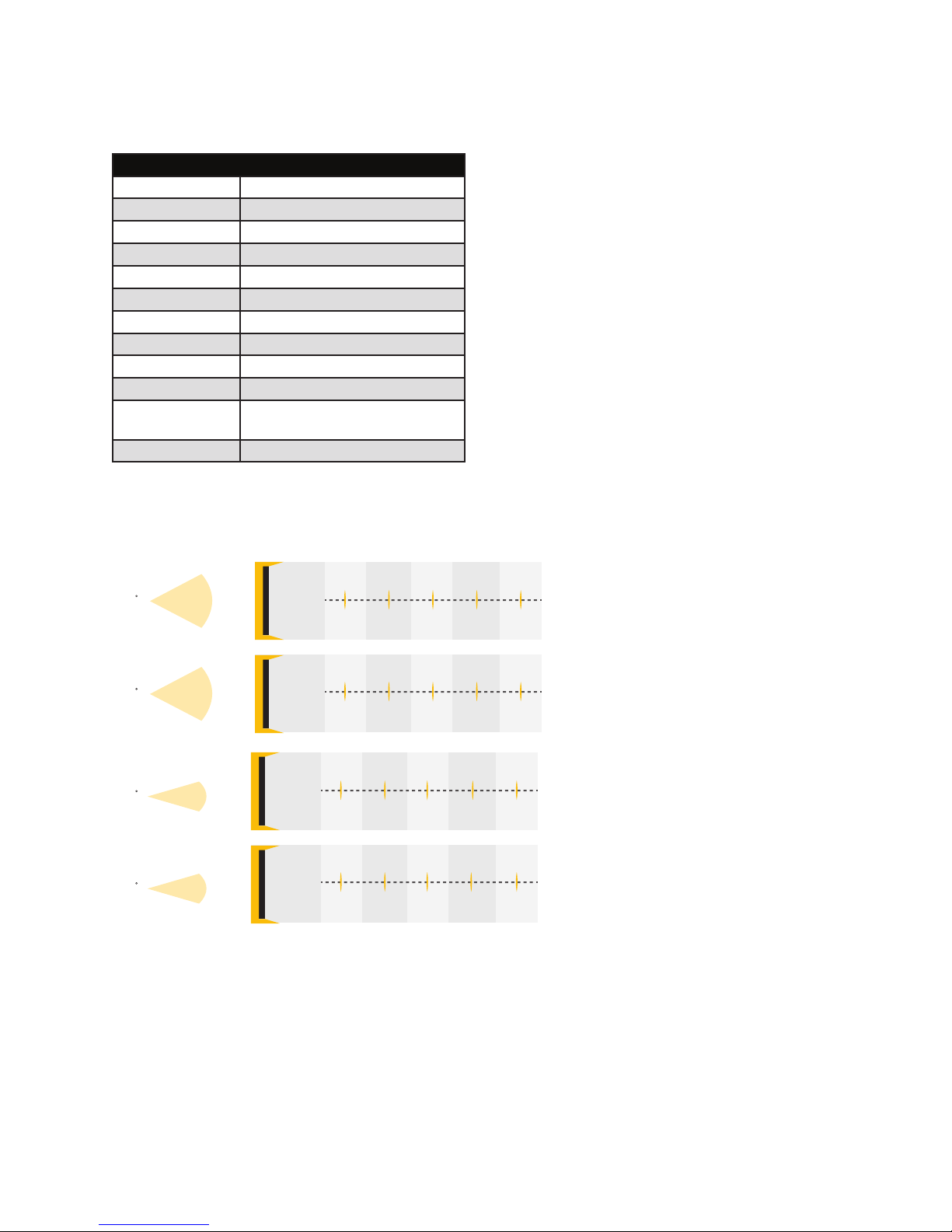

Specifications
Fixture Specifications
Beam Angle 60° with adapter 30°
Build Material Plastic & Metal
Control Knob Control
Cooling System Active Cooling Fan
Dimming On-Board dimming knob 100%-0%
Fixture Size 9 x 4 x 12 in.
Fixture Weight 4 lbs
Head Type 5600K
Lens 4 in. Fresnel
Light Source 50 Watt Daylight LED
Power Supply Input: 100-240VAC
Output: 15VDC
Yoke Cast Aluminum with 5/8" Baby Pin Receiver
Photometrics
60
Beam Angle
60
Beam Angle
30
Beam Angle
30
Beam Angle
FC
FEET
LUX
METERS
FC
FEET
LUX
METERS
87 33 17 10 8
2' 4' 6' 8' 10'
936.43 55.21 82.9 107.68 6
0.6M 1.2M 1.8M 2.4M 3M
4941 82 96 57 41
2' 4' 6' 8' 10'
5317 1959 10336 13.54 41
0.6M 1.2M 1.8M 2.4M 3M
Optional Accessories
KCP-703
CV600
SW-04
CP-STND
PWRGP-01
Stage Clamp with 16mm Stud
Digital LED Light Meter w/ Exposure
Safety Wire
Compact Light Stand Version 3
Power Grip
Page 5
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2017 ikan Corporation. All rights reserved
