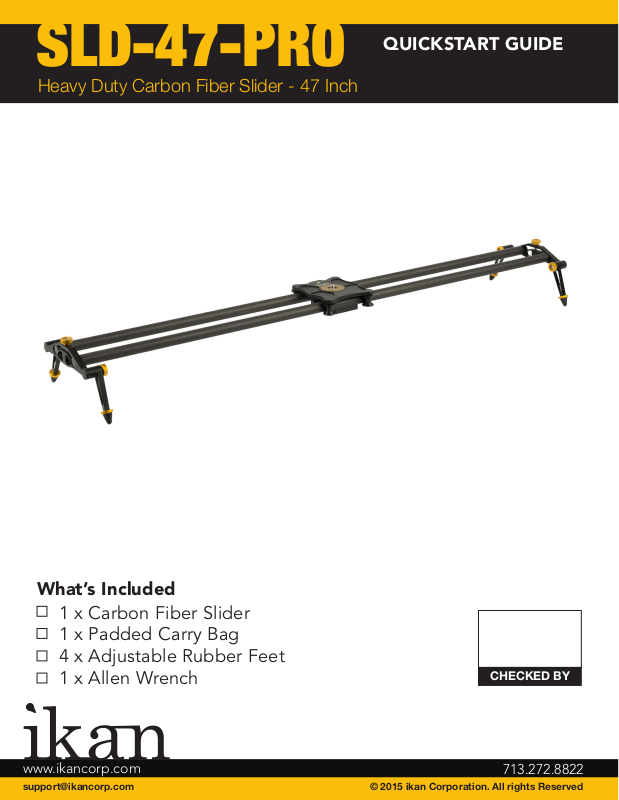

Page 1
SLD-47-PRO
Heavy Duty Carbon Fiber Slider - 47 Inch
QUICKSTART GUIDE
What’s Included
1 x Carbon Fiber Slider
1 x Padded Carry Bag
4 x Adjustable Rubber Feet
1 x Allen Wrench
www.ikancorp.com
CHECKED BY
713.272.8822
Page 2
Getting Started
Slider Start-Up:
You can utilize the built-in adjustable legs or mount it to one tripod (using the slider’s lower mounting plate). Also, you
may utilize two tripods or heavy duty stands on both end plates using the 1/4"-20 or 3/8"-16 mounting points.
Slider Center Mount
A 3/8"-16 thread in the center of the camera platform is provided to mount ball-level heads, fluid heads, and quick
release plates, making camera mounting and removal easy. Any flat mount 3/8"-16 threaded fluid head will mount to
the slider without tools. Mount your camera to the provided plate with these products.
Level & Shoot:
When shooting, find a stable platform or use tripods and stands to level your slider. Use the slider carriage brake to
lock the movement while leveling the slider. The legs have rosettes to adjust to angles. Use the provided bubble level
to see when the slider is level. Note: Always lock your slider when not operating or near the camera to ensure safe
movement on the slider.
You may operate the slider from the base (preferred) or by pushing the camera or head down the tracks. Using just
fingertips to gently push the slider will help feather the movement from start to stop. The finesse you put into the
slider movement will show in your shots.
Caring for your Slider:
The sealed bearings in the slider are maintenance-free, however, if you get dirt or sand in moving components you
may clean with a moist cloth, blow out with air and lightly oil only the bearing races with graphite or multi-purpose oil.
And never feed after midnight!
Adjustable
Rubber Feet
Friction
Lock Knob
Adjustable
Leg Angles
Integrated
Bubble Level
1/4"-20 Thread and
3/8"-16 Thread Adapter
Baseplate
3/8"-16
Mounting Points
Page 3
Specifications
Specications
Supported Camera Weight 20 lbs
Travel Length 47 in
Weight 3.25 lbs
Optional Accessories
Some other products that work well with the SLD-47-PRO available from Ikan include:
EG03A2
IK-RSR3
IK-RSR6
ELE-DOVETAIL-9
GH03F
MA207
MA211
2-Stage Aluminum Tripod w/ GH03 Head
3" Camera Riser
6" Hi-Hat Riser
Elements Camera Mount w/ 9" Dovetail Plate and Riser
Flat Base Pro Fluid Head 11 lbs Max
7" Articulating Arm
11" Articulating Arm
Common Practices and Acceptable Use Guidelines:
When using this slider, be sure to keep full control of the carriage. When the slider is not in use, lock
the carriage using the friction lock knob.
When moving the slider, lock the carriage and remove the camera and any accessories from the
slider and carriage.
Slider end-pieces are not designed to withstand uncontrolled or multiple impacts. They are there to
support the slider rails and carriage, and can be positioned to reduce the overall travel distance of the
carriage. If the carriage makes contact with an end piece, check the position of the piece and the
integrity of the lock that piece has on the rails.
Never let the carriage move uncontrolled. Doing so may result in damage to the slider and mounted
equipment (cameras, lenses, etc.)
Page 4
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2015 ikan Coporation. All rights reserved
