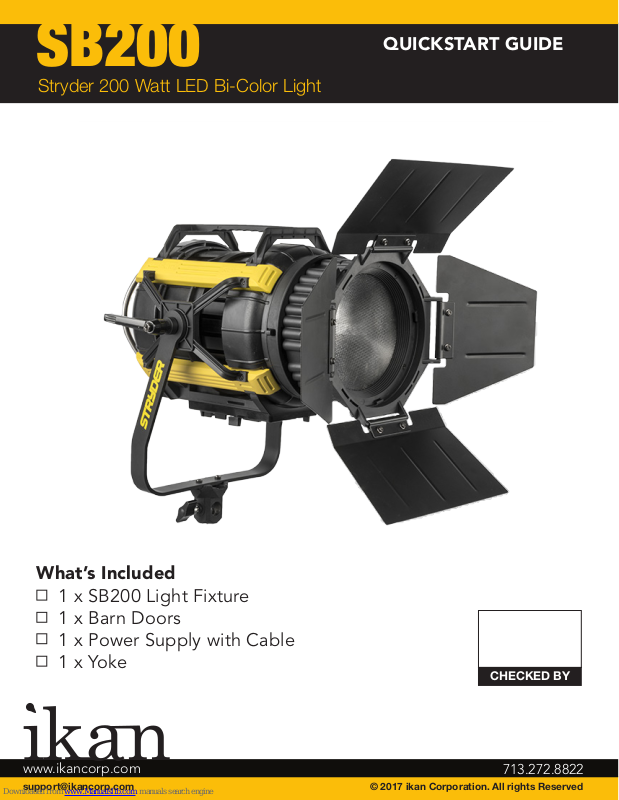

Ikan SB200 Quick Start Manual

SB200

Stryder 200 Watt LED Bi-Color Light

QUICKSTART GUIDE

What’s Included

1 x SB200 Light Fixture
1 x Barn Doors
1 x Power Supply with Cable
1 x Yoke

CHECKED BY

www.ikancorp.com

[e-mail] © 2017 ikan Corporation. All rights Reserved

713.272.8822

Getting Started

Thank you for buying the Stryder Portable LED Fresnel Spotlight from Ikan. Please carefully read the instructions and guide
before operating the products. The guide includes product usage and maintenance. When you operate the product, please
make sure that you have read the instructions carefully.

All the content of the manual is based on up-to-date information; technical data subject to change without notice.

Safety Instructions:

1. Connect the power supply to the 15VDC Connector on the SB200 Light before plugging into the power source. You risk
electrocution by not following the instruction.

2. Don’t drag cables with excessive force. Any repairs on the products should be performed by Ikan technicians. Users
should not remove the power supply, or else the damage will not be covered under warranty.

3. Confirm that the power is off before connecting and changing the fixture head or disconnecting your cable from the
power source. We recommend using Ikan customized connecting cables and connectors to avoid electrical shock.

4. The voltage shouldn’t exceed the value in the technical specifications. If the voltage is greater than, or less than the
regulated values, it could damage the product.

Overview

Benchmark color temperatures for today’s TV production are 5600K (daylight) and 3200K (tungsten). Ikan developed the SB­200 Spotlight to handle both these temperatures. With patented technologies, the SB200 offers a professional and customizable
LED light source. In addition, the light features separately-cooling ducts for optimizing heat dissipation. Specifically, the SB-200
Spotlight offers the following features:

1. The 0-100% brightness incremental adjustment of the 2700K-5600K temperature enable fine-tuning your color range.

2. A 7-inch diameter Fresnel lens provides even, well-distributed light at a 60 degree beam angle.

3. Fresnel Spot adaptor allows the Beam to be reduced to a 30 degree spot.

4. Ultra-low noise and active cooling technology contribute to excellent thermal stability.

5. The power supply will automatically cut off when the fixture overheats.

6. The bright LCD readout is easy to view, enabling smooth adjustment of functions.

7. Digitally adjustable knob allows you to adjust menu settings quickly and accurately.

8. AC/DC power supply, AC110VAC-270VAC, DC 15V.

What’s in the Box?

Please carry and place the packing box carefully. Check the lighting equipment and accessories upon opening the box. Please
contact us if anything is damaged or missing. Please save the packing materials for replacing and repairing the products in the future.

What’s Included:

SB200 Light Fixture
Power Supply with Cable

Barn Doors
Yoke Mount

Instructions:

LED spotlight’s housing is made of fiber reinforced plastic which is heavy-duty, lightweight, flexible and easy to transport/ The
SB200 structure is illustrated as follows:
