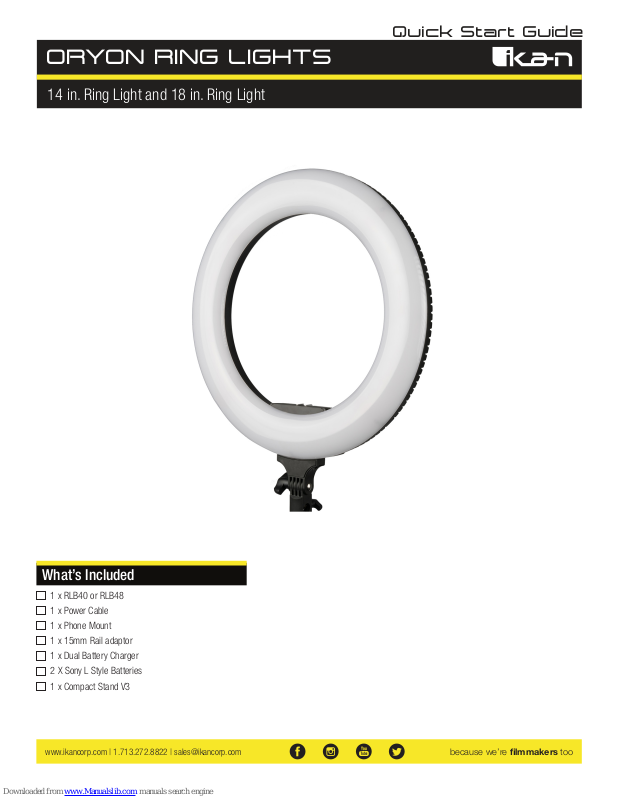

ORYON RING LIGHTS
14 in. Ring Light and 18 in. Ring Light
Quick Start Guide
What’s Included
1 x RLB40 or RLB48
1 x Power Cable
1 x Phone Mount
1 x 15mm Rail adaptor
1 x Dual Battery Charger
2 X Sony L Style Batteries
1 x Compact Stand V3
Page 2
Getting Started
Thank you for buying the Oryon Ring Lights from Ikan. Please carefully read the instructions and guide before operating the products. The guide includes
product usage and maintenance. When you operate the product, please make sure that you have read the instructions carefully.
All the content of the manual is based on up-to-date information; technical data subject to change without notice.
Safety Instructions
1. Connect the power cord to the light before plugging into the power source. You risk electrocution by not following the instructions
2. Don’t drag cables with excessive force. Any repairs on the products should be performed by Ikan technicians. Users should not remove the power
supply, or else the damage will not be covered under warranty.
3. Confirm that the power is off before connecting and changing the fixture head or disconnecting your cable from the power source. We recommend
using Ikan customized connecting cables and connectors to avoid electrical shock.
4. The voltage shouldn’t exceed the value in the technical specifications. If the voltage is greater than, or less than the regulated values, it could damage
the product.
5. If Using DCV batteries make sure both batteries are charged before attaching them to the light.
6. The ring light battery run times depend on the voltage, and age of the DV batteries used.
Overview
Benchmark color temperatures for today’s TV production are 5600K (daylight) and 3200K (tungsten). Ikan developed the Oryon Ring Lights to handle both
these temperatures. The Bi-Color technologies, the RLB40 & RLB48 offers a professional and customizable LED light source. In addition, the light features
separately-cooling ducts for optimizing heat dissipation. Specifically, the ring lights offer the following features:
1. The 10-100% brightness incremental adjustment of the 3200K-5600K temperature enable fine-tuning your color range.
2. A 14-inch/18-inch diameter soft light provides even, well-distributed light at a 120 degree beam angle.
3. The RLB40 has a 9.5-inch inner diameter. The RLB48 has a 13-inch inner diameter.
4. Passive cooling technology contribute to excellent thermal stability.
5. Multi-channel remote is included with each light.
6. The bright LCD readout is easy to view, enabling smooth adjustment of functions.
7. The 14in. has separate buttons for brightness and color.
8. The 18in. has a power button and a toggle push button that allows you to switch between color and brightness.
9. Digitally adjustable knob allows you to adjust menu settings quickly and accurately.
What’s in the Box?
Please carry and place the packing box carefully. Check the lighting equipment and accessories upon opening the box. Please contact us if anything is
damaged or missing. Please save the packing materials for replacing and repairing the products in the future.
Instructions
LED Ring lights housing is made of lightweight durable plastic and easy to transport.
The right light structure is illustrated on the following page.
Page 3
Appearance & Structure - Front
5/8 Receiver Stand Mount: Connecting the lamp with stands
RLB40 RLB48
Appearance & Structure - Back
5/8 Receiver5/8 Receiver
AC/DC Power Switch: Move the switch to I for AC power or II for DC power
Power Button
LCD Settings
Power Control Knob
Dimmer Channel Knob
RLB48RLB40
D
C
2
.4
GHz
Page 4
Installation & Power Supply
1. Ensure power is OFF before installation.
2. Place the light on the Ikan stands, release the tension knob on the 5/8” receiver, adjust the light in the desired direction, and tighten the tension knob
on the 5/8” receiver.
3. When connecting the power cords, plug the DC power cords into the socket on the rear panel (as shown on the drawing).
4. If batteries are used: Illuminate light by pressing power switch. The default of the RLB40 will show the brightness of the light.
5. If batteries are used: Illuminate light by pressing power switch. The default of the RLB48 will show the brightness of the light. Use the color button to
change from 3200K-5600K.
Power the LEDs
Both the RLB40 & RLB48 lights comes with an included 10ft power cable. This allows the user to plug into any standard 120VAC outlet. The RLB40 &
RLB48 light can be powered from 2 Sony L Style DV batteries.
RLB40 Specifications RLB48 Specifications
Beam Angle 120 degrees
Build Material Heavy Duty Plastic
Control Dimming Knob
Cooling System Passive
Dimming 10-1000%
Fixture Size 14 in. Diameter
Fixture Weight 1 lb
Head Type Bi-Color 3200-5600K
Mount Stand Mount
Rating 120v @ 60Hz
Shipping Dimensions 24 x 20 x 8 in.
Shipping Dimensions (Metric) 60.96 x 50.8 x 20.32 cm
Shipping Weight 3 lb
Shipping Weight (Metric) 1.3 kg
UPC Code 847983025558
Optional Accessories
Beam Angle 120 degrees
Build Material Heavy Duty Plastic
Control Dimming Knob
Cooling System Passive
Dimming 10-1000%
Fixture Size 18 in. Diameter
Fixture Weight 2 lb
Head Type Bi-Color 3200-5600K
Mount Stand Mount
Rating 120v @ 60Hz
Shipping Dimensions 24 x 20 x 8 in.
Shipping Dimensions (Metric) 60.96 x 50.8 x 20.32 cm
Shipping Weight 4 lb
Shipping Weight (Metric) 1.8 kg
UPC Code 847983025541
Some other products that work well with the Oryon Ring Lights available from Ikan include:
HD-STND-V2
KCP-703
SW-04
Heavy Duty Light Stand
Stage Clamp w/ 16mm Stud
Safety Wire
Page 5
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2018 ikan Corporation. All rights reserved
