PT4900-PEDESTAL
19” Teleprompter, Pedestal & Dolly Turnkey
Quick Start Guide

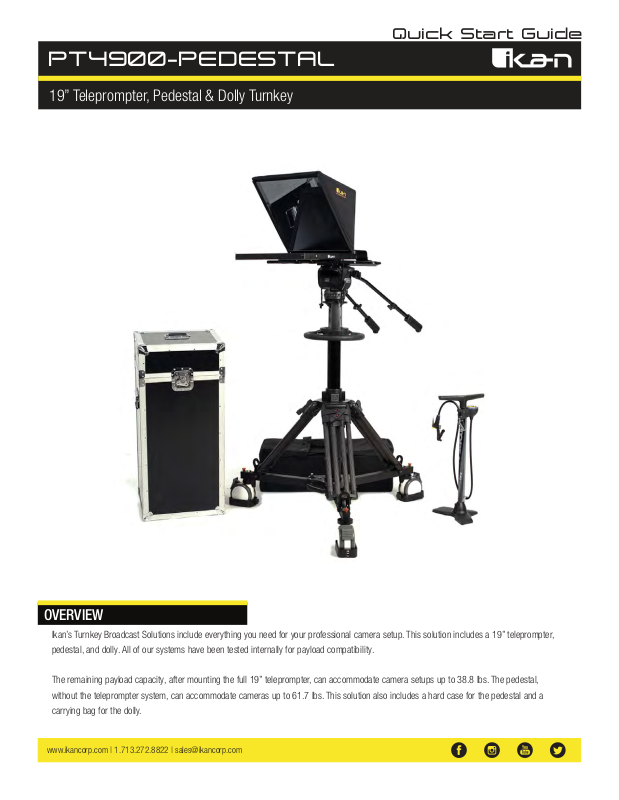

OVERVIEW
Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19” teleprompter,
pedestal, and dolly. All of our systems have been tested internally for payload compatibility.
The remaining payload capacity, after mounting the full 19” teleprompter, can accommodate camera setups up to 38.8 lbs. The pedestal,
without the teleprompter system,
carrying bag for the dolly.
www.ikancorp.com | 1.713.272.8822 | [email protected]
can accommodate cameras up to 61.7 lbs. This solution also includes a hard case for the pedestal and a
Page 2
PT4900
19” Professional High Bright Beam Splitter Teleprompter

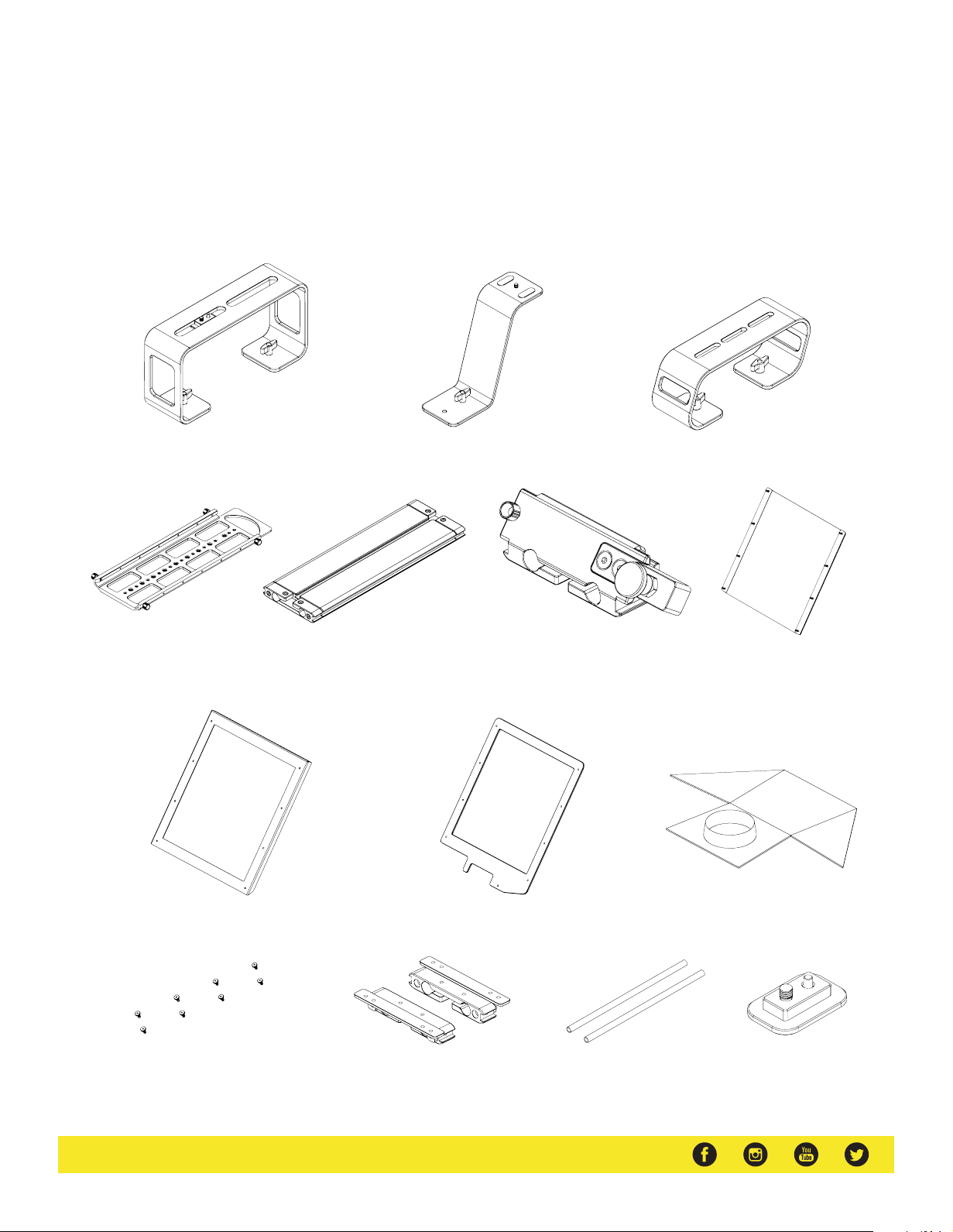

What’s Included
Large Riser
Bottom Plate
DSLR/Mirrorless Riser
Base
Glass Frame Holder Bracket
Medium Riser
Glass
w/ Rod Clamps
Hood Attachment Frame
Glass Holder Hood
Glass Frame Screws 15mm Rod Clamps 15mm Rods Large Riser
Bracket
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 3
Teleprompter Assmebly Setup
Step 1

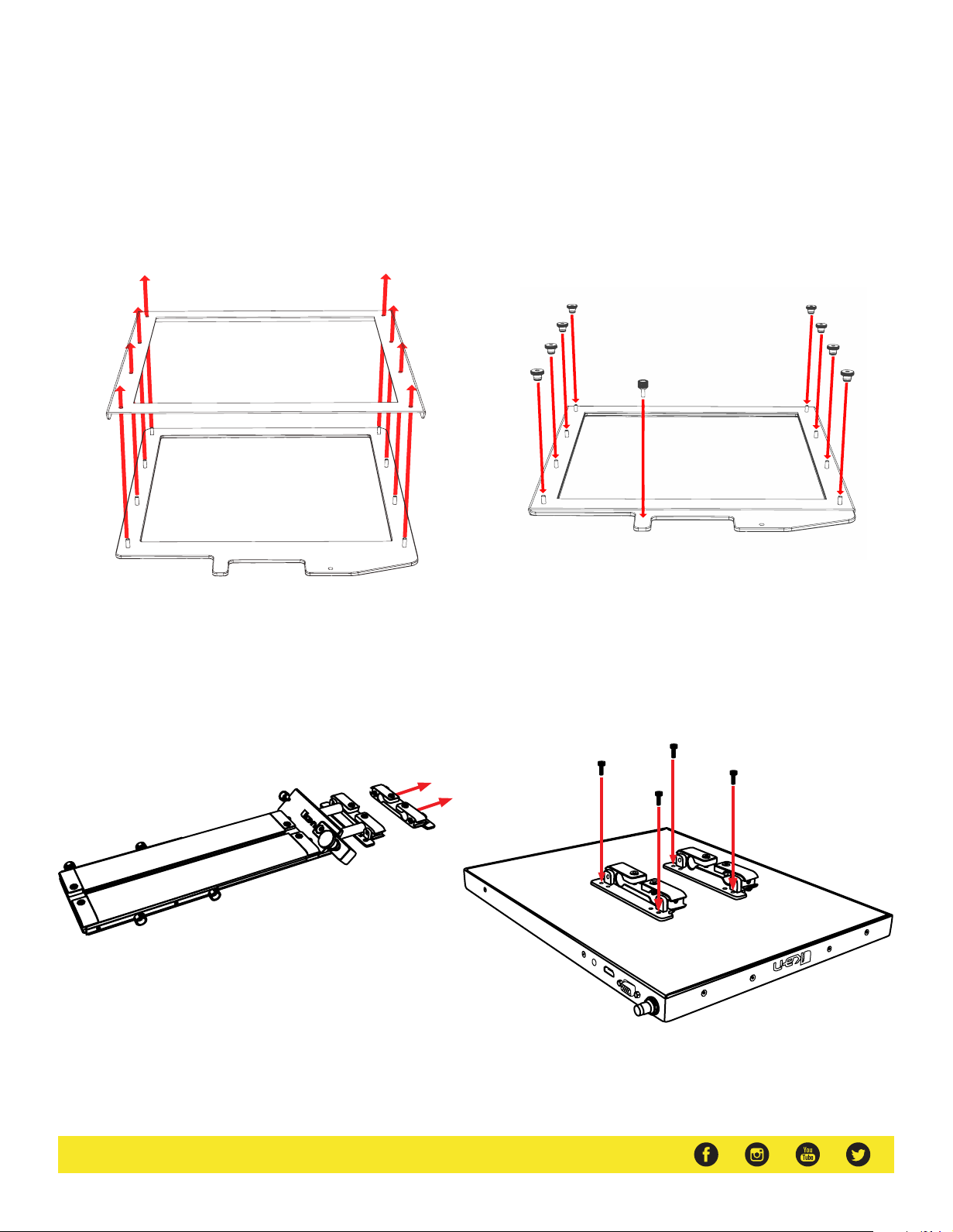

Place the Hood Attachment Frame over the Glass Holder. Then place the
glass against the Glass Holder. Make sure the screws pass through the
holes on the both the Hood Attachment Frame and the Glass Holder.
Step 3
Remove the monitor mounts from the teleprompter base using
the included larger 4mm hex key to loosen from the 15mm rods.
Step 2
Secure the Glass Holder by fastening the knurled nuts to the screws as
pictured below.
Step 4
Put the washers on before tightening the screws. The washers and 4
additional screws are inside a bag on the bottom foam.
www.ikancorp.com | 1.713.272.8822 | [email protected]
V
4
2
-
2
1
I
M
D
H
A
G
V
AV
Page 4

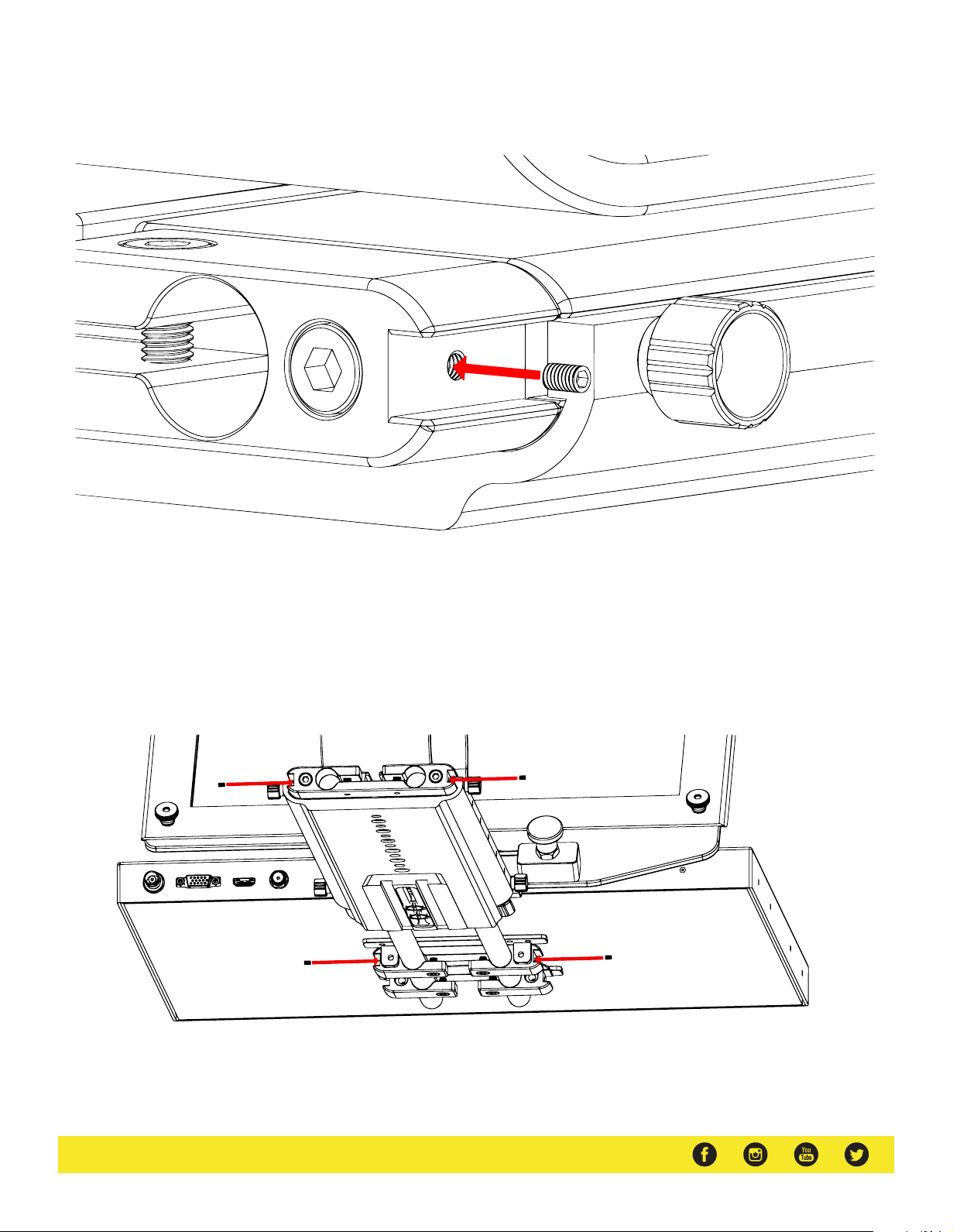

Step 5

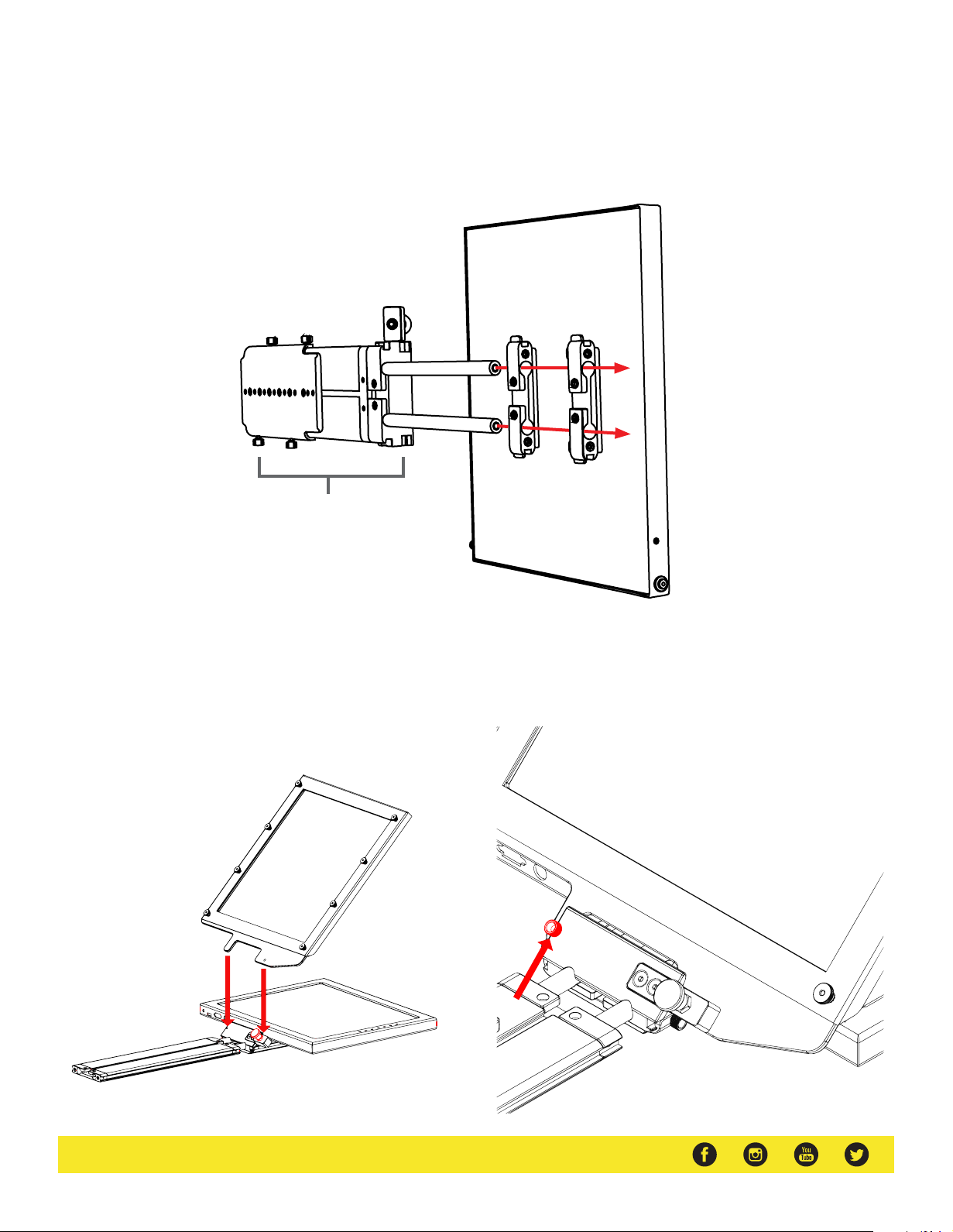

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
Step 6
While sliding the teleprompter bracket into the slot of the Glass Frame
Holder Bracket, pull on the red knob to allow the bracket to fully slide in.
Step 7
Once the bracket is in place, tighten the side screw to lock in place.
Double check and make sure all the screws are tightened with the
included hex keys.
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 5
Step 8

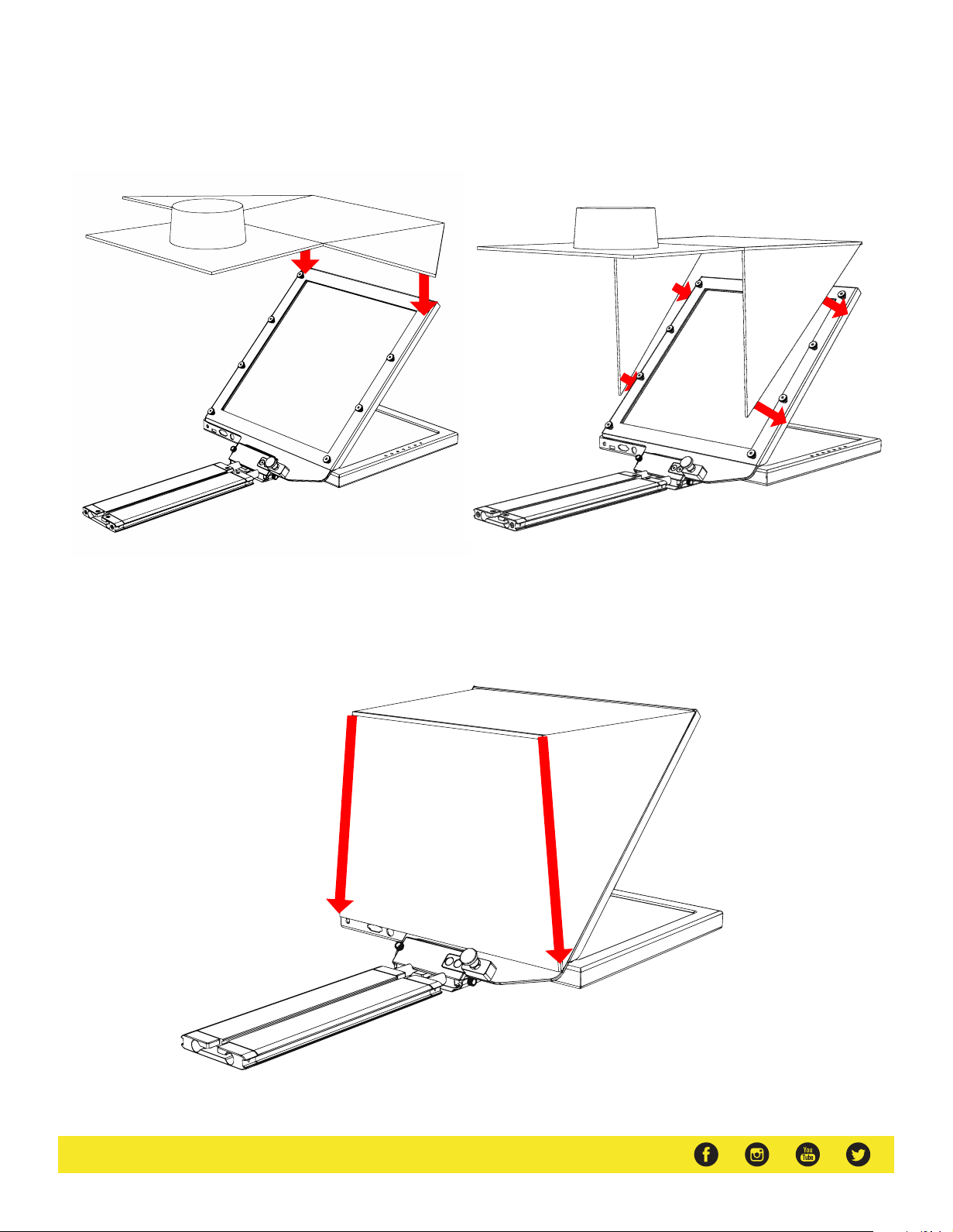

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach.
Step 9
To prevent light from leaking through the hood, seal both zippers down.
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 6
Step 10

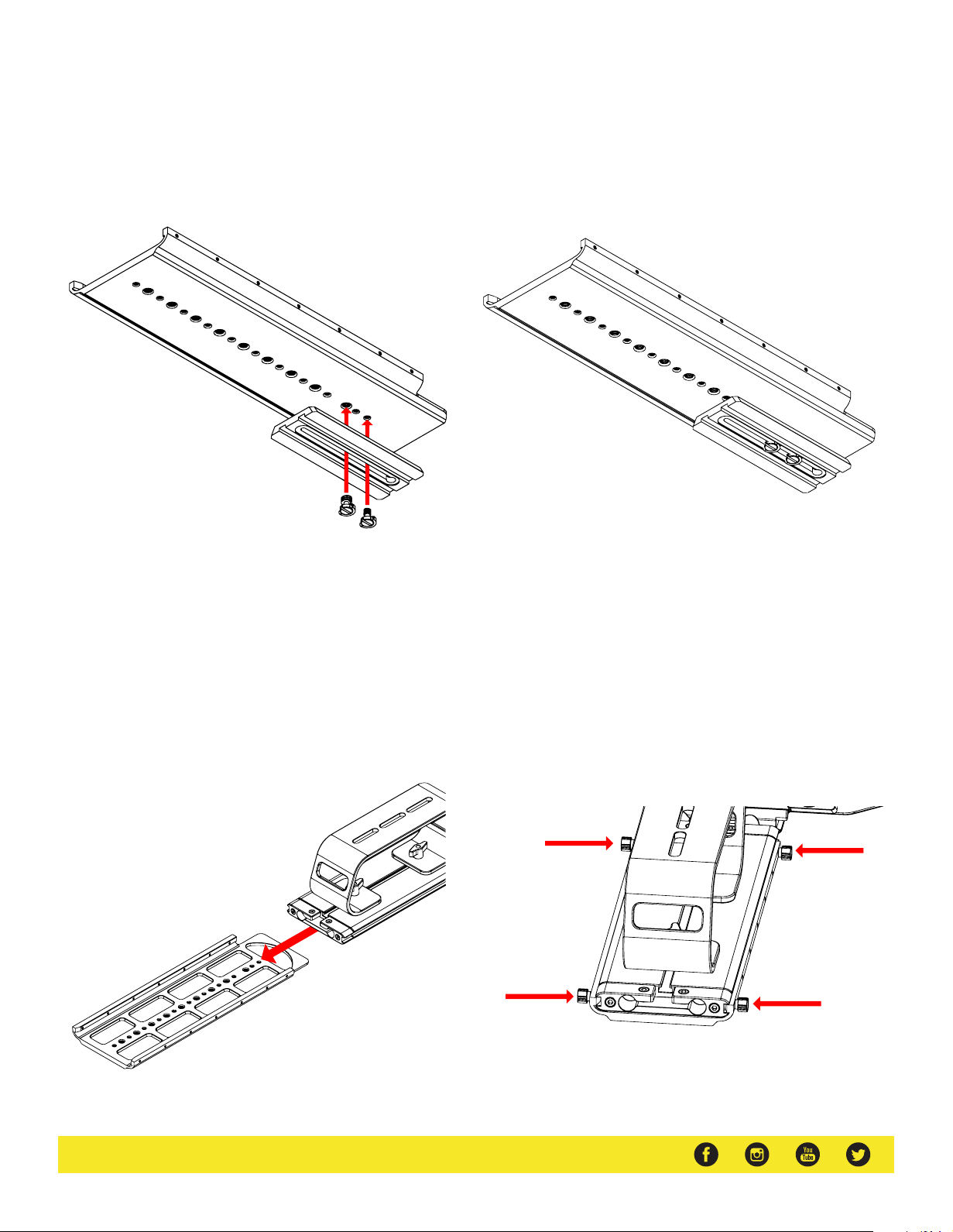

Slide in the Riser plate of your choice by aligning the screws on the riser plate to the slot on the Base. Once the screws are aligned, Slide the riser plate into
the Base.
Step 10
Slide in the Riser plate of your choice by aligning the screws on the riser plate to the slot on the Base. Once the screws are aligned, Slide the riser plate into
the Base.
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 7
Step 12
Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Bottom Plate. It is recommended
that you connect your tripod plate to front of the Bottom Plate so that you can balance your teleprompter easier. Once your tripod plate is connected to the
Bottom Plate, mount the tripod plate to your tripod head.
Step 13

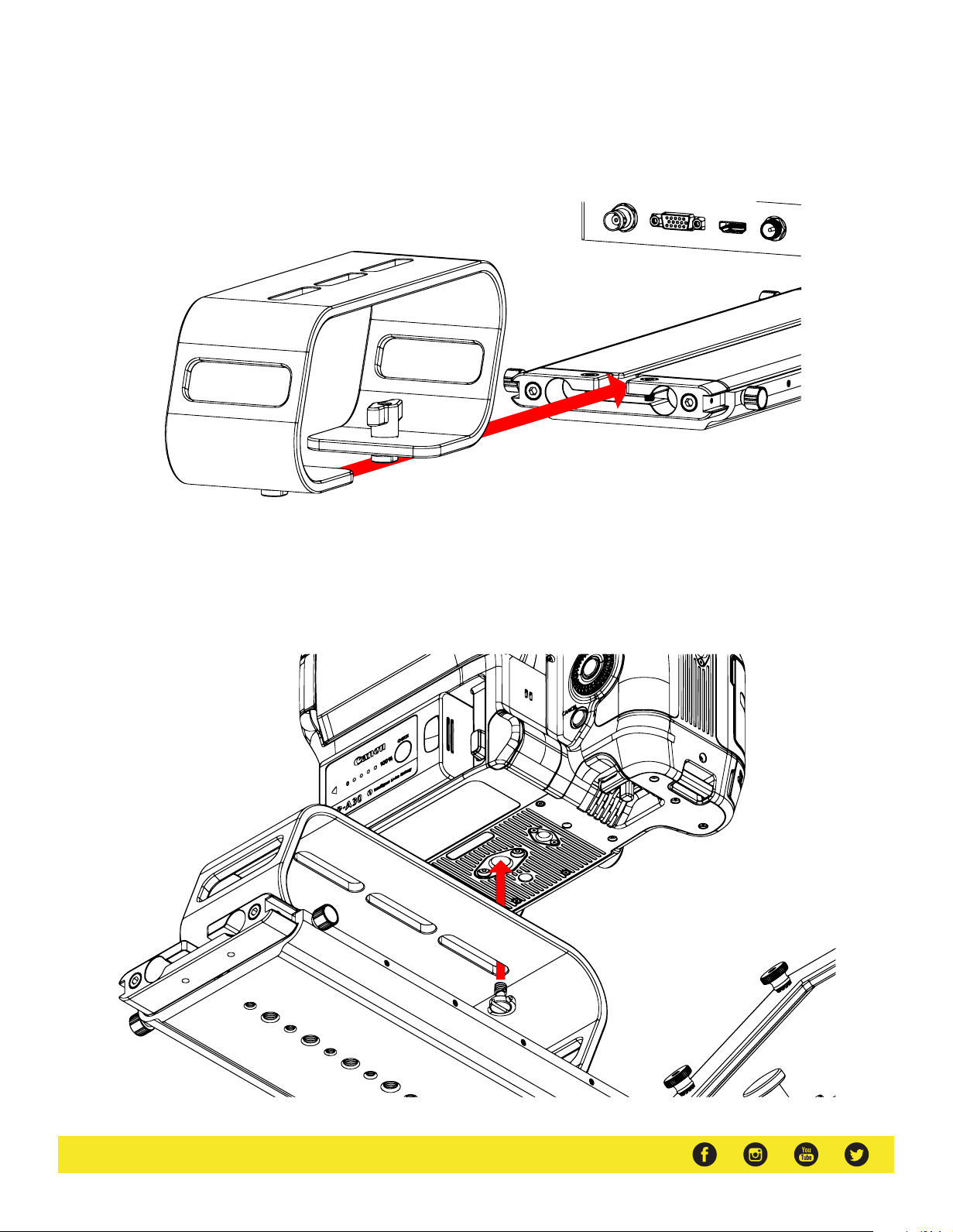

Slide the entire teleprompter system into the Bottom Plate. Once the
teleprompter system is inserted, you can balance it by sliding it along the
Bottom Plate until the center of gravity is determined.
Step 14
Once the center of gravity has been determined, tighten the thumb screws
to keep the base from sliding.
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 8
Step 15
To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.
Step 16
The headless screws should be inserted to the threads as pictured below.
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 9

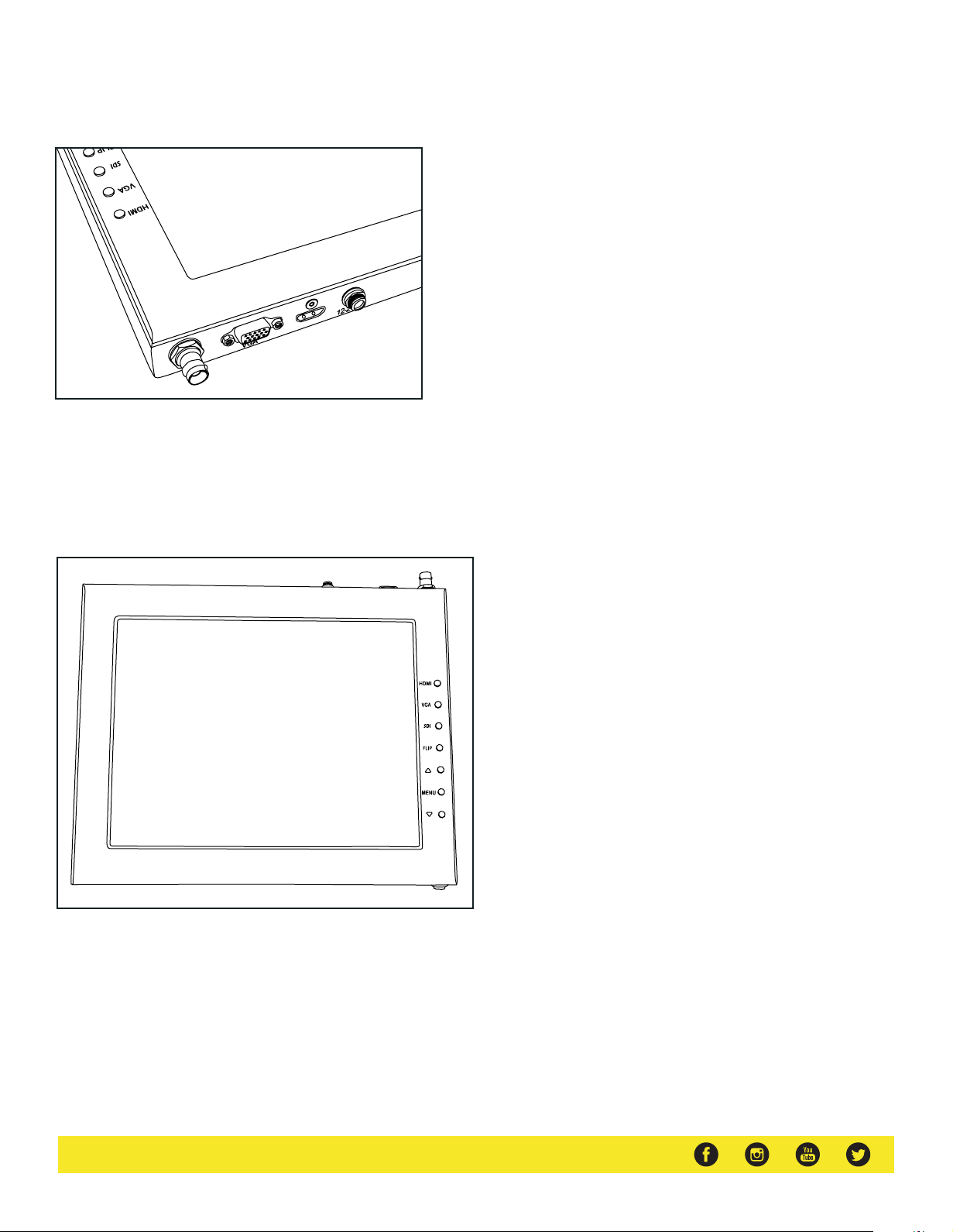

Monitor Ports
H
D
M
I
3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
HDMI – Switch HDMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 10
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters:
https://youtube.com/playlist?list=PLcjaK5n9Y8ctrbYS3t2g4nyx2uADOXjuF
Specifications
PT4900-SDI
Optional Accessories
PT4900-GM
PT19-SDI-TM
PT-PEDAL
PT-CASE-V2
Replacement Glass for PT4900
19” 3G-SDI Talent Monitor Add On Kit for PT4900
Teleprompter Foot Control Pedal
Rolling Hard Case for PT4900 Teleprompter
Aspect Ratio 4:3
Backlight LED
Brightness 1000 nits
Build Material Aluminum Chassis
Diagonal 19”
Input Signal 3G-SDI, HDMI, and VGA inputs
Input Voltage DC 12v / 4A
Power Consumption 10W
Reading Range 25’
Resolution 1280 x 1024
Viewing Angle 160° (H) / 170° (V)
Weight 33.75 lbs
Shipping Weight 36 lbs
Shipping Dimensions 25 x 20 x 16 in
www.ikancorp.com | 1.713.272.8822 | [email protected]
Page 11
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.
** DO NOT THROW AWAY FOAM CASE **
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
www.ikancorp.com | 1.713.272.8822 | [email protected]
©2022 Ikan International. All rights reserved.
Page 12
EP880SK Pedestal
182.0cm
71.7in
102.5cm
182.5in
38.0cm
15.0in
Component:
Fluid head
Pedestal
Dolly
3.0-28.0kg
6.6-61.7lbs
28.5kg
15.0lbs
100mm
GH25
EP880S
EI7007
Standard kit
+
Extendable column
(extra part)
High version kit
165.5cm
Pneumatic column
pedestal system
Fluid head with
100mm ball
1 2
Air-pressure in the
pneumatic column
can be adjusted
3
4
Double-wheel 125mm
casters with adjustable
cable guards
Page 13

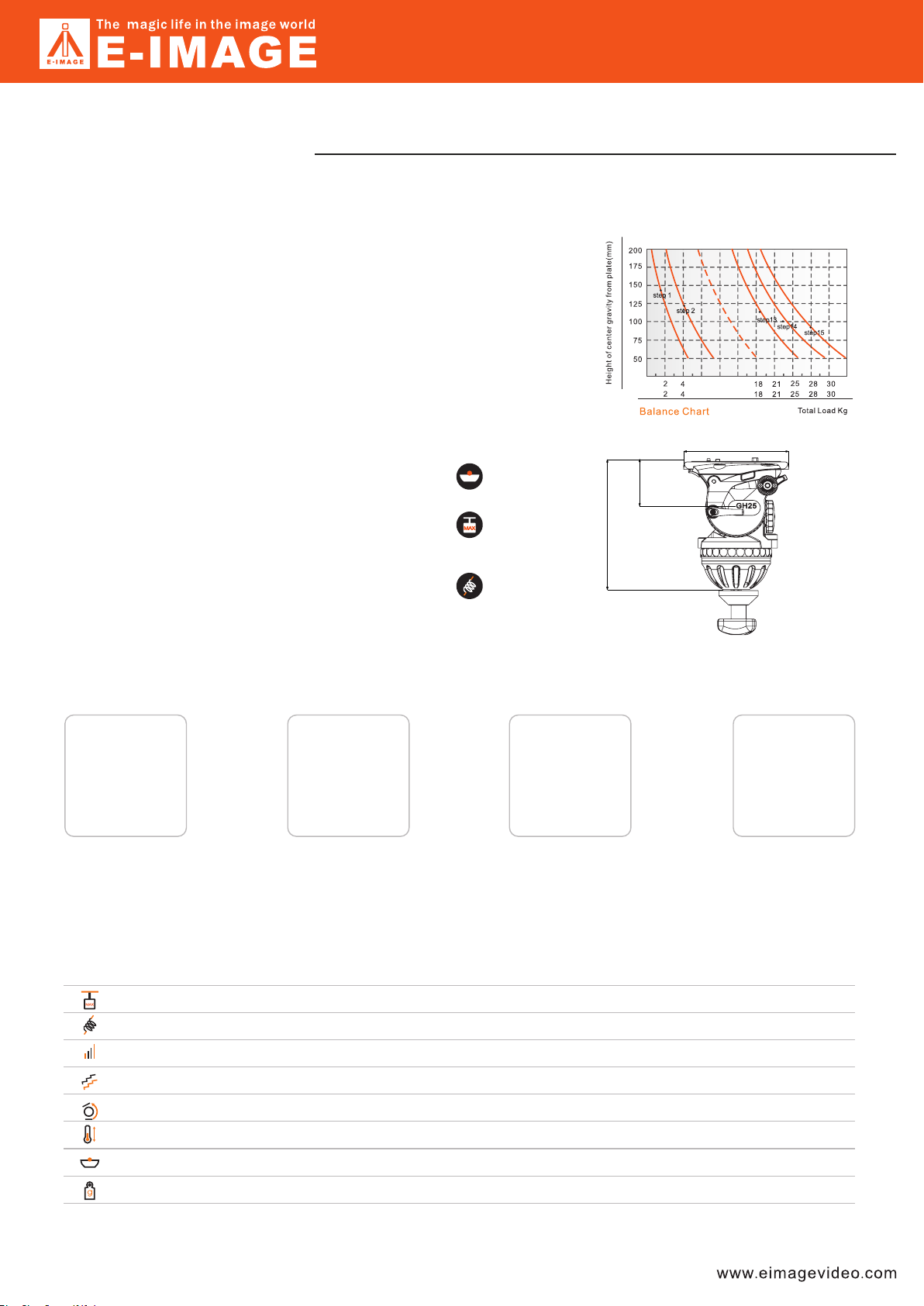

GH25 100mm Fluid Head
160mm/6.3in
FEATURES
7 plus 0 grades of pan &
tilt drag
15 steps of counterbalance
100mm
3.0-28.0kg
6.6-61.7lbs
1-15
203mm/8.0in
llluminated leveling bubble
73mm/2.9in
Additional standard 1/4" &
3/8" screw holes
SPECIFICATIONS
Model
Payload Range
Counterbalance Range
Grades Of Pan Drag
Grades Of Tilt Drag
Tilt Range
Temperature Range
Bowl Size
Net Weight
GH25
3.0-28.0kg / 6.6-61.7lbs
1-15
0-7
0-7
-65°/+90°
-40℃~+80℃
100mm
4.2kg / 9.2lbs
Page 14
EP880S Pedestal
165.0cm
65.0in
86.0cm
33.9in
38.0cm
15.0in
Component:
Pedestal
Dolly
30.0kg
66.1lbs
23.9kg
52.7lbs
100mm
EP880S
EI7007
Standard kit
+
Extendable column
(extra part)
High version kit
165.5cm
Pneumatic column
pedestal system
Ergonomic hand
wheel
1 2
Air-pressure in the
pneumatic column
can be adjusted
3 4
Double-wheel 125mm
casters with adjustable
cable guards
Page 15
EI-7007 Super dolly

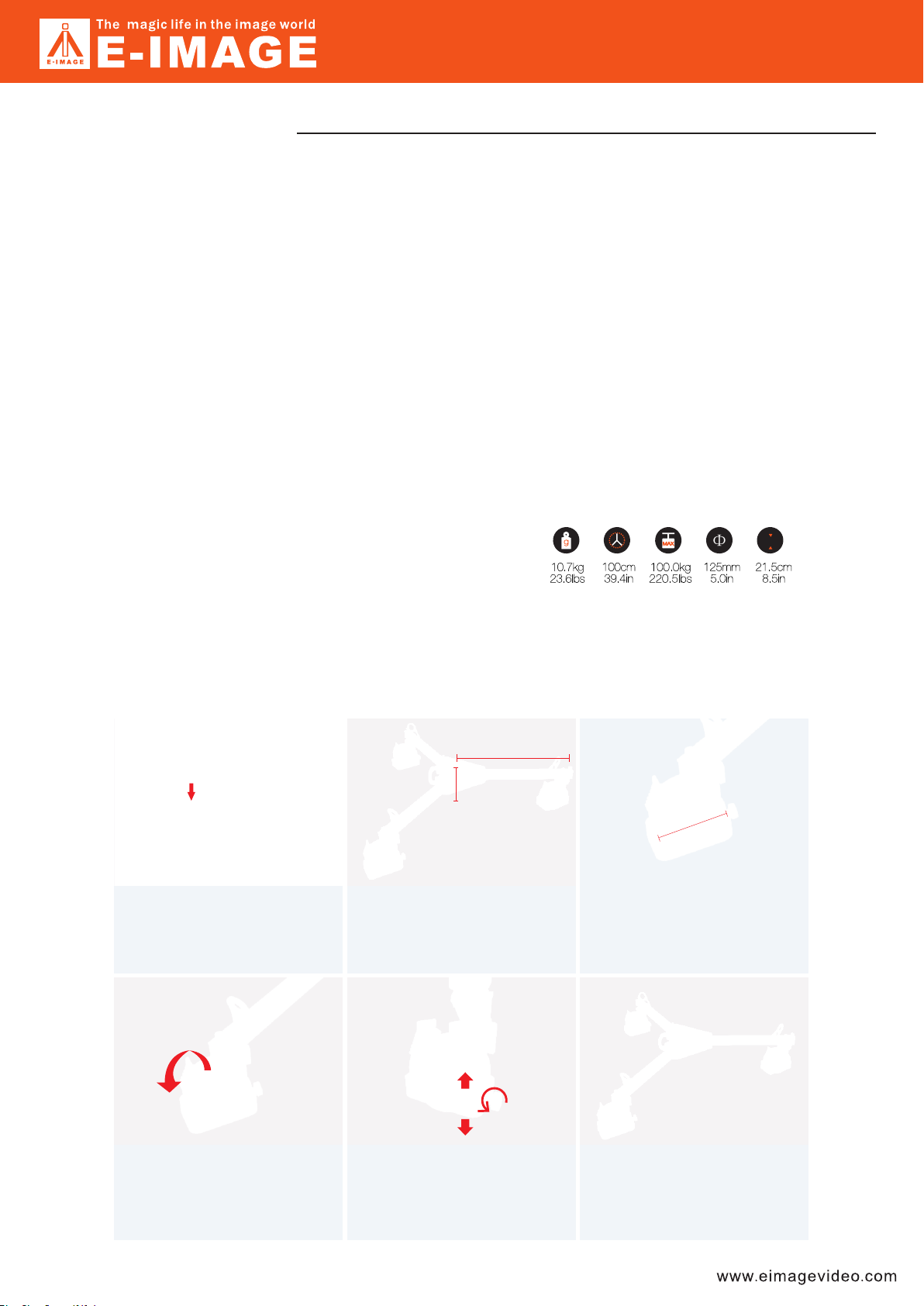

Designed for pedestal system and other heavy duty system. The 125mm/5inch wheels with cable guard can be
individually braked, also the movement direction can be fixed.
Folds for transporting.
FEATURES
Pull the knob to extend the dolly,
easy to go out.
21.5cm
Height : 21.5cm / 8.5in
Radius: 50cm / 19.7in
50cm
Φ
125mm
Casters diameter: 125mm / 4.9in.
H
Locking
The rubber wheels are non-marring
during normal use,protecting the
oor surface.
Each wheel incorporates its own
foot-activated brake.
Payload
100kg
Cable guards and brakes. Supports up to 100kg of tripod,
camera and accessories.
Page 16
GB3 Pa n bar
Telescopic pan bar for GH08L, GH10L, GH15, GH25 heads
SPECIFICATIONS
Length range
Net weight
405-605mm / 15.9-23.8in
385g / 0.8lbs
