PT4700S-TRIPOD
17” SDI Teleprompter, Tripod & Dolly Turnkey
Quick Start Guide
OVERVIEW
Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 17” 3G-SDI
teleprompter, tripod, and dolly. All of our systems have been tested internally for payload compatibility.
The remaining payload capacity, after mounting the full 17” teleprompter system without the counterweight, can accommodate camera setups
up to 18 lbs. The tripod, without the teleprompter system, can accommodate cameras up to 44 lbs. This solution also includes separate
carrying bags for the tripod and dolly.
Page 2
What’s Included
PT4700-SDI
17” Professional High Bright Beam
Splitter Teleprompter w/ 3G-SDI
Teleprompter Assmebly Setup
Step 1

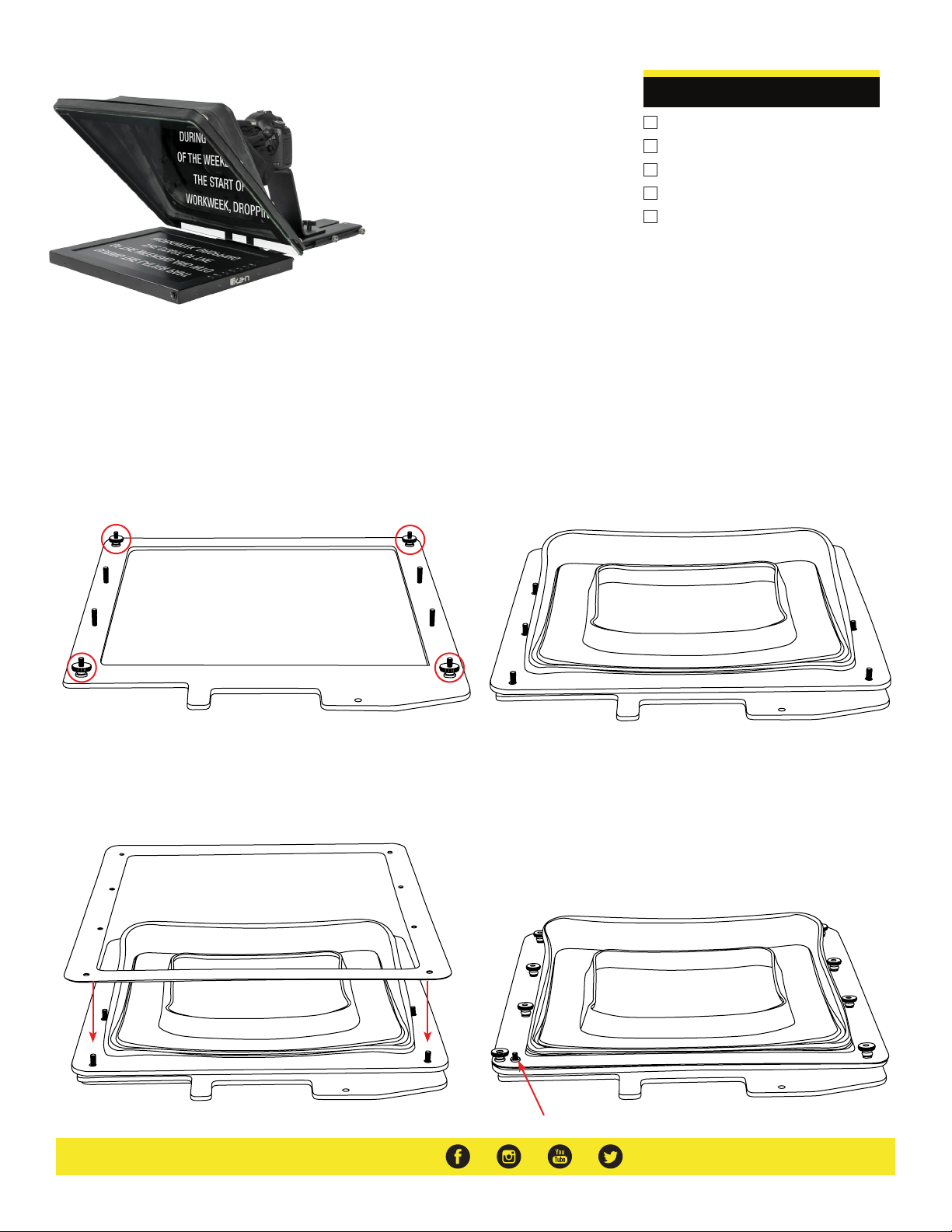

Place the teleprompter glass frame on a flat surface and remove the four
screws as shown.
1 x Tripod w/ Head

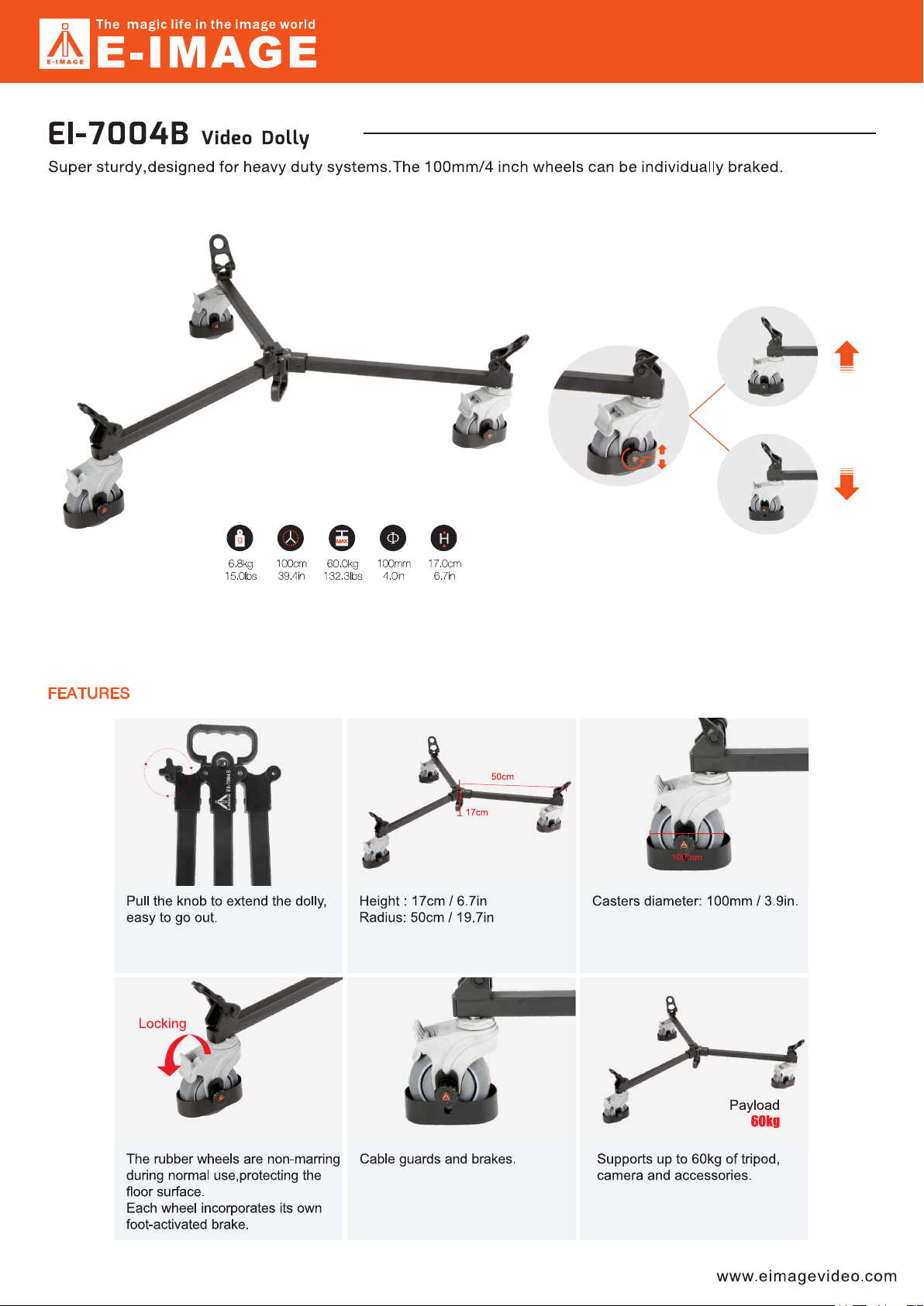

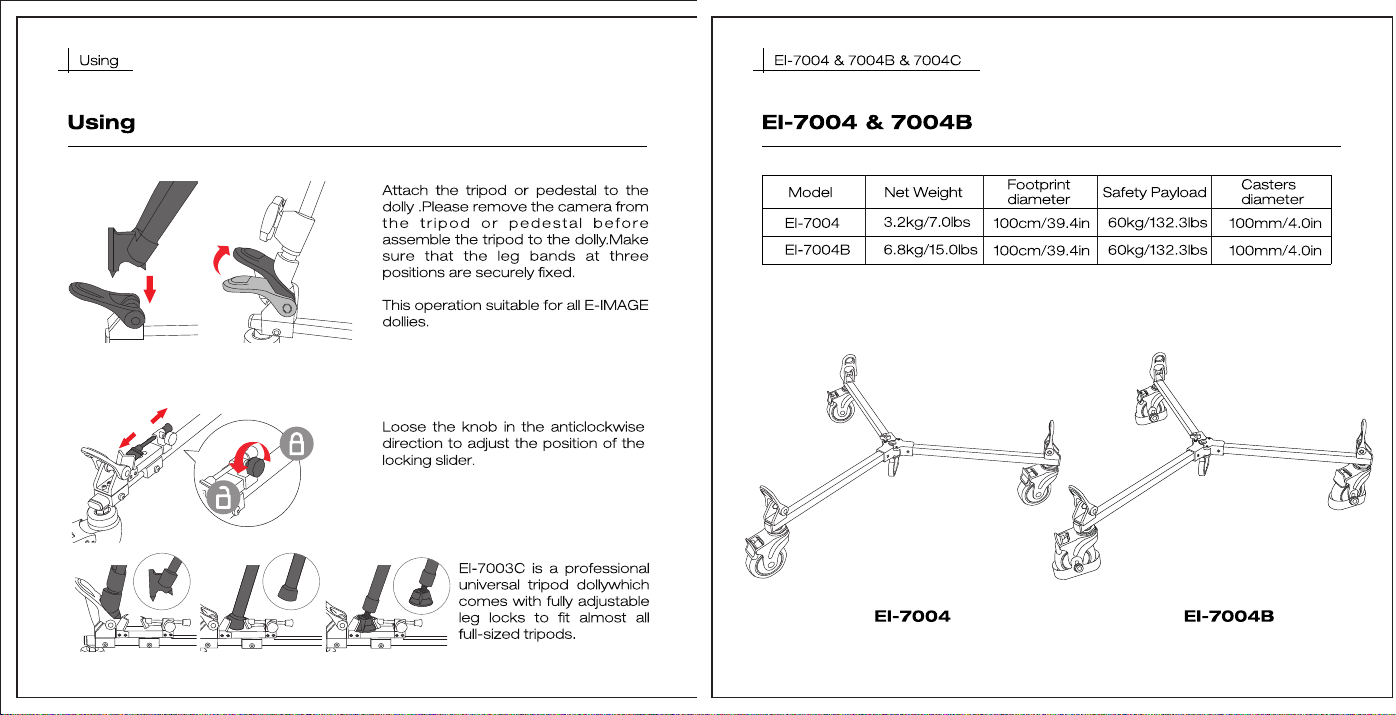

1 x Dolly w/ Wheels & Cable Guards
1 x 17” Teleprompter System w/ Monitor
4 x Camera Riser Plates
1 x PrompterPro Software (FREE with
this teleprompter)
Step 2
Align and attach the teleprompter hood with the 8 screw pegs from the
teleprompter frame.
Step 3
The metal frame is directional. Make sure the thicker side is on top and
the slimmer side is on the bottom.
Step 4
Put the washers on before tightening the screws. The washers and 4
additional screws are inside a bag on the bottom foam.
Page 3
Step 5

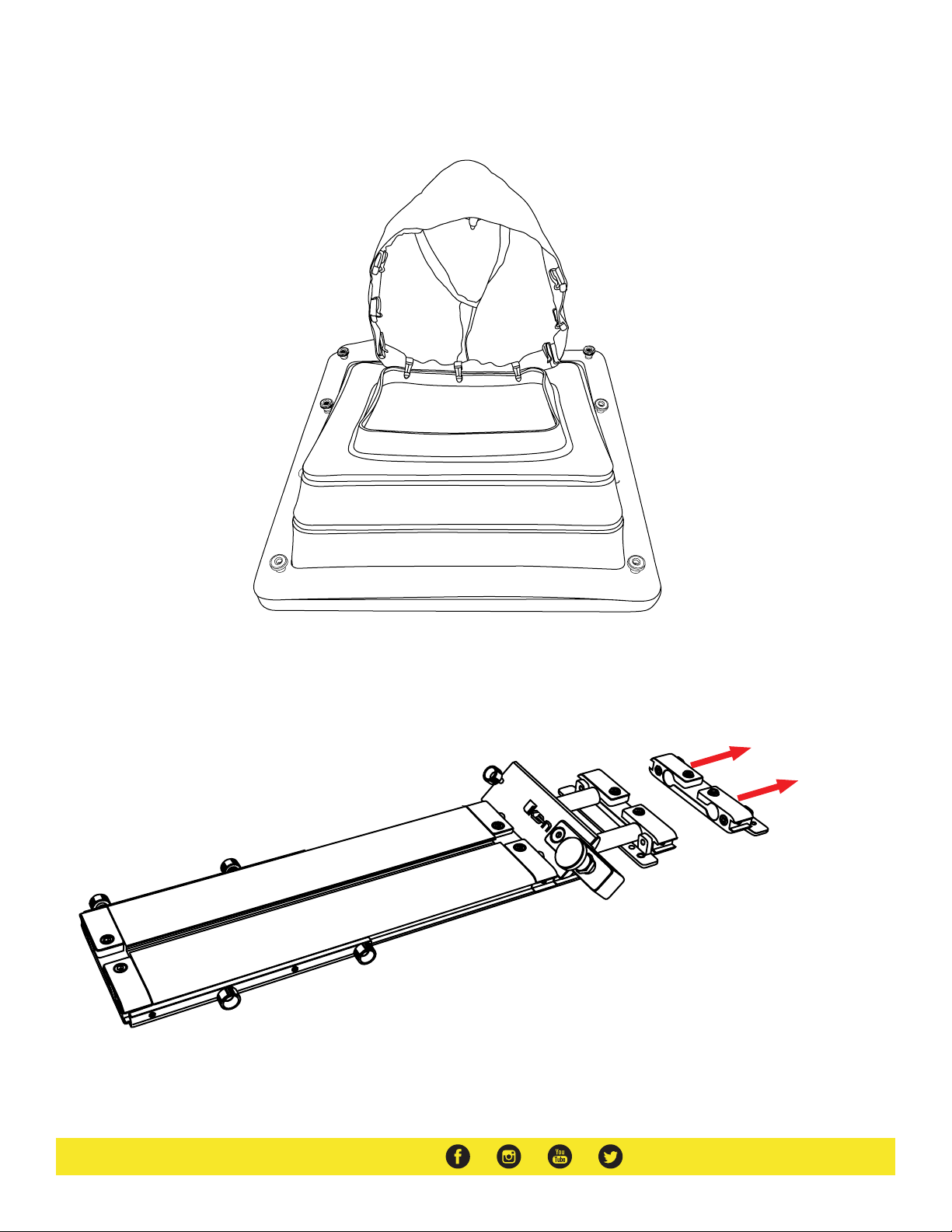

Extend the teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seam with the bottom of the teleprompter hood.
Step 6
Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.
Page 4

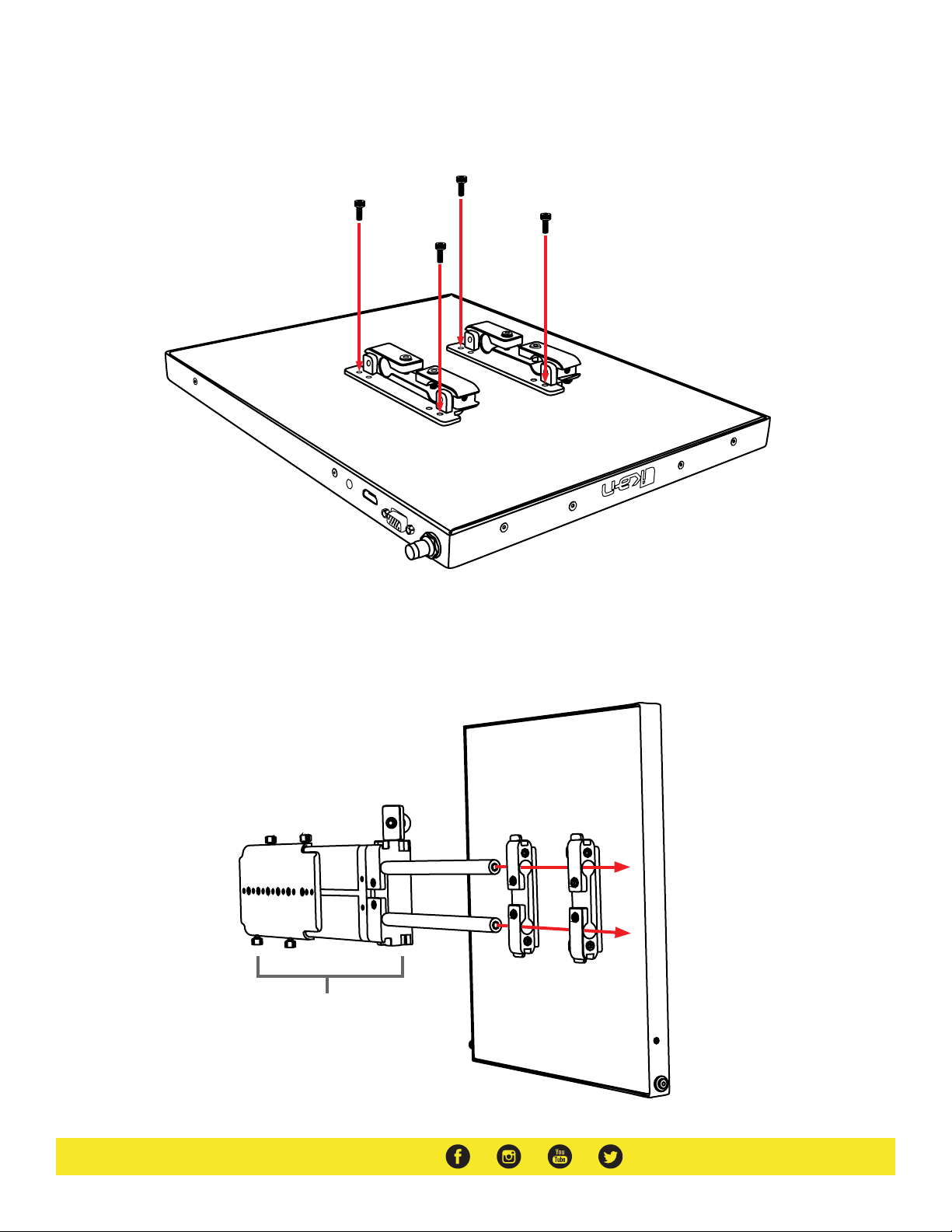

Step 7
Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key.
V
4
2
-
2
1
I
M
D
H
A
G
V
AV
Step 8
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
Page 5

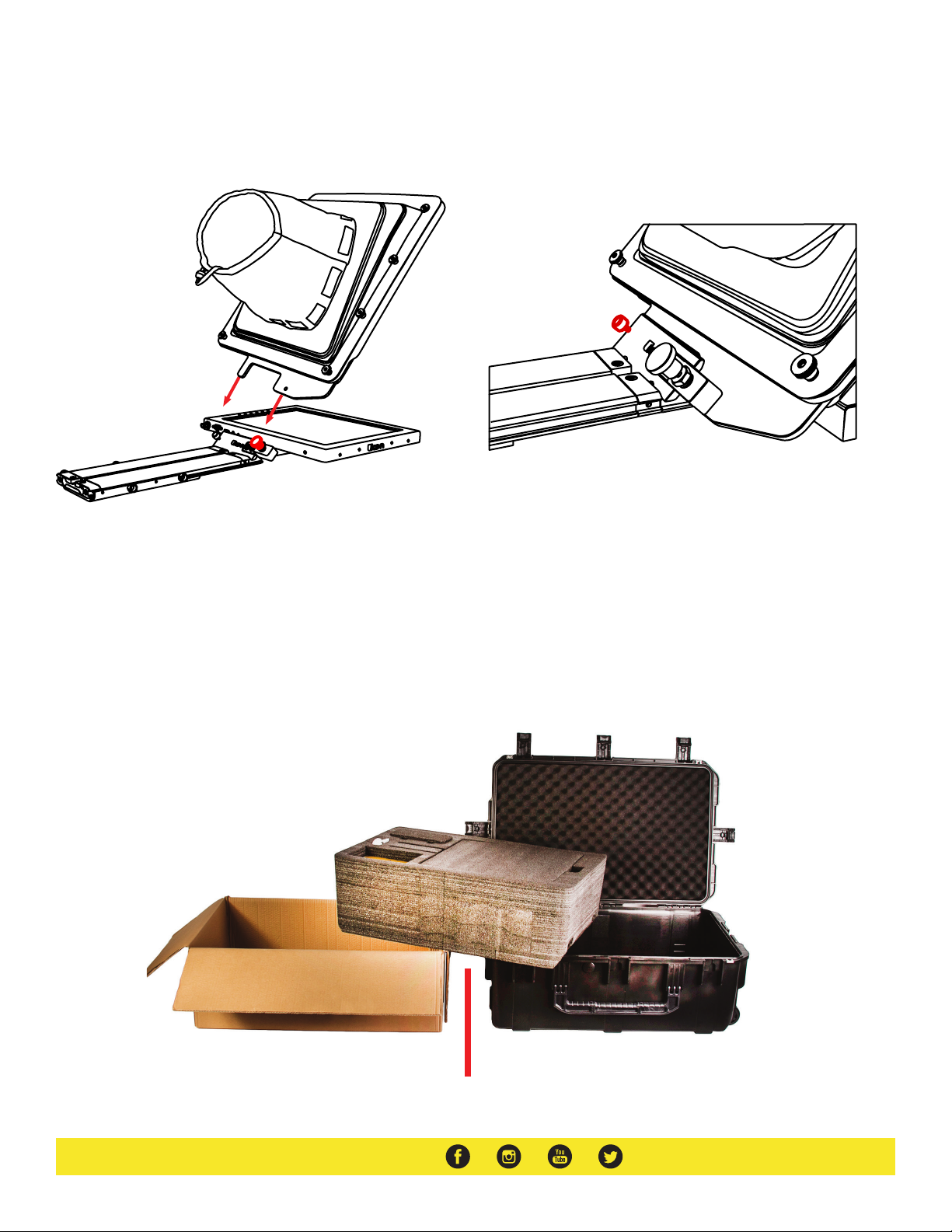

Step 9
While sliding the teleprompter bracket into the slot of the teleprompter
base pull on the red knob to allow the bracket to fully slide in.
Step 10
Once the bracket is in place, tighten the side screw to lock in place. Double
check and make sure all the screws are tightened with the included hex
keys.
Step 11 (optional)
Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.
** DO NOT THROW AWAY FOAM CASE **
Page 6

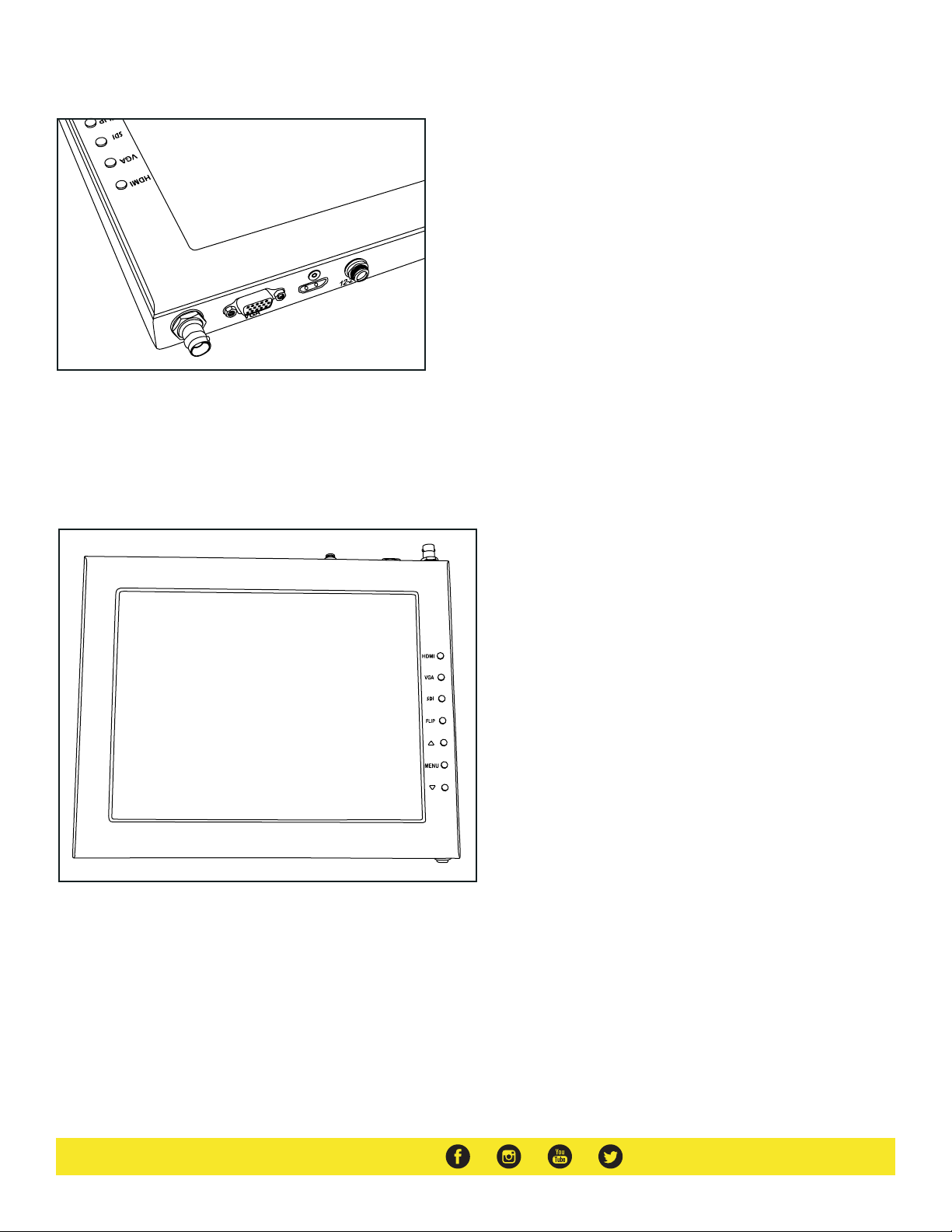

Monitor Ports
H
D
M
I
3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
HDMI – Switch HDMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
Page 7
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters:
https://youtu.be/5TjIxzBc_Vc
Specifications
General 17 in. Teleprompter
Available Payload w/o Counterweight 18 lbs.
Available Payload w/ Counterweight 12.1 lbs.
Max Height of Full System 7.14 ft. / 2.18 m
Min Height of Full System 3.43 ft. / 1.05 m
17 in. Monitor
Aspect Ratio 4:3
Maximum Brightness 1000 cd/m2
Screen Size (Diagonal) 17 in.
Mount VESA 100mm
Video Inputs HDMI, VGA, 3G-SDI
Input Voltage DC 12v / 4A
Power Consumption 22W
Product Weight 5 lbs.
Product Dimensions 15.5 in. x 13.75 in. x 1 in.
Native Resolution 1280 x 1024
Viewing Angle 160° (H) / 170° (V)
Build Material Aluminum Chassis
Image Flip Horizontal: Yes | Vertical: Yes
Riser Plate Height Low: 2.06 in./52.5mm
Medium: 3.74 in./95mm
High: 5.31 in./135mm
DSLR: 6.29 in./160mm
Length of Rods 15mm x 400mm
Build Material Chassis: Anodized Aluminum
Rods: Carbon Fiber
Reading Range 20 ft./6.1m
Beamsplitter Ratio 70/30
Beamsplitter Shape Rectangular
Beamsplitter Material Glass
Tripod Mounts 8 x 1/4 in. -20 Female
6 x 3/8 in. -16 Female
Product Weight w/
Low Plate
Product Weight w/ Medium Plate 25.38 lbs.
Product Weight w/ High Plate 25.51 lbs.
Product Weight w/ DSLR Plate 24.88 lbs.
Sliding Range 5.9 in./150 mm
Shipping Weight 74 lbs.
Shipping Dimensions (in.) Box 1: 41 x 20 x 11
24.98 lbs.
Box 2: 25 x 20 x 16
Optional Accessories
PT4500-G
PT-CASE-V2
Replacement Glass for both PT4500-SDI / PT4700-SDI
Rolling Hard Case for PT4500-SDI / PT4700-SDI Teleprompter
Page 8
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2018 ikan Corporation. All rights reserved
Page 9

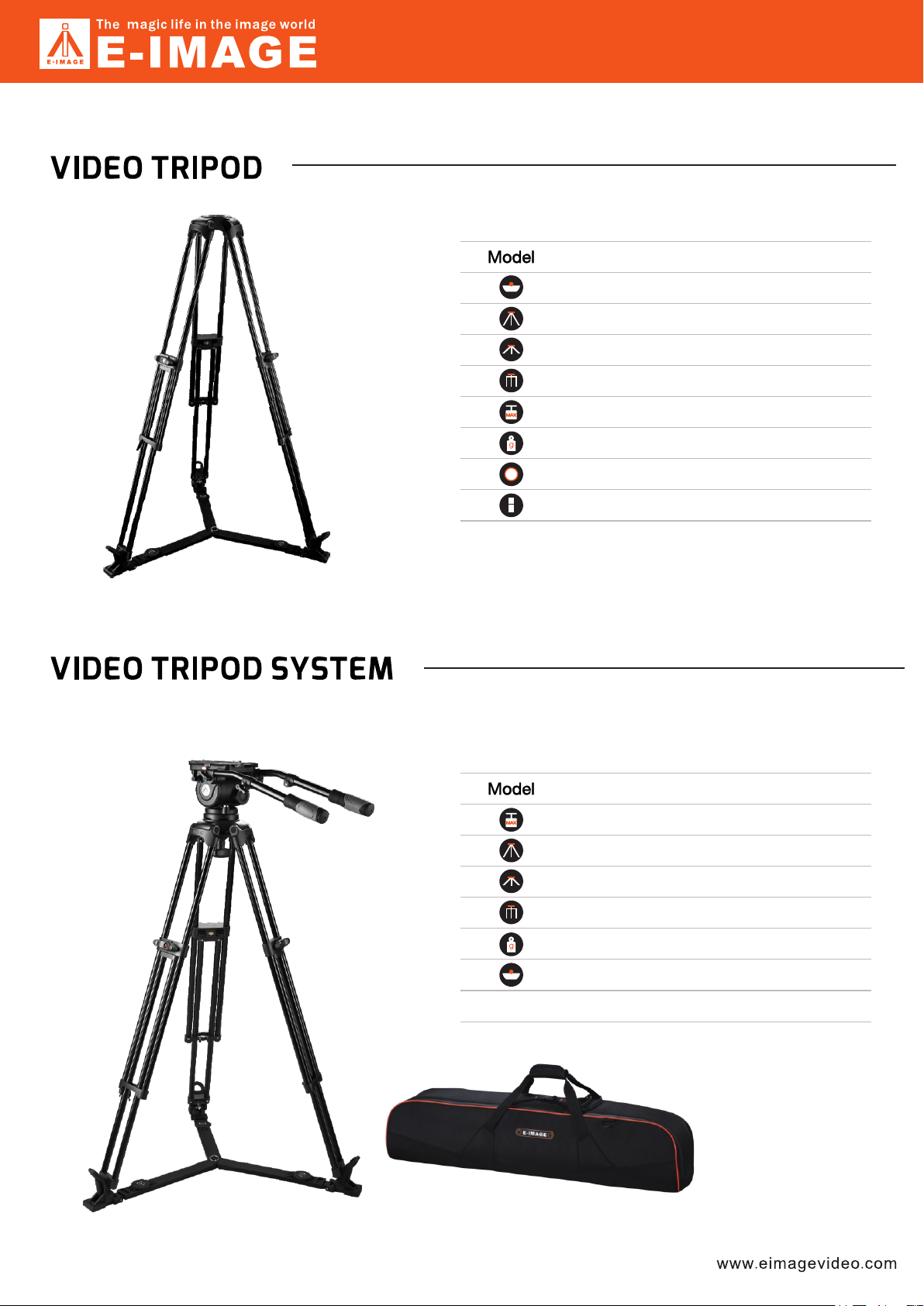

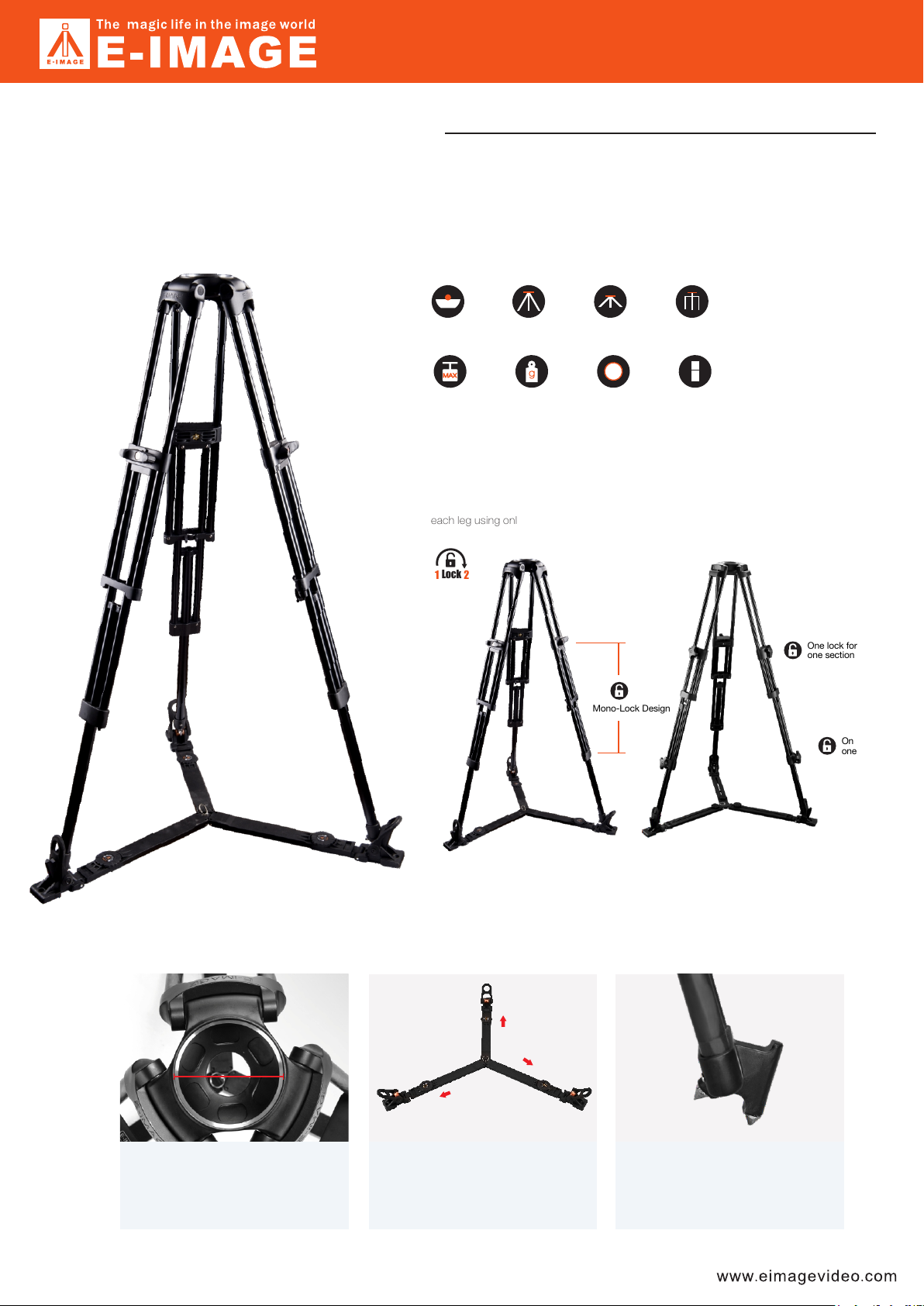

GA102 100mm Aluminum Video Tripod
The GA102 two stage aluminum tripod supports a payload weighing up to 132 lbs. It is made of lightweight
aluminum, has a 100mm bowl, and the legs are a twin tube design with two stages. The tripod can be adjusted
to a maximum height of 63” and a minimum height of 18” with a folded length of 29”. The mono-lock feature
allows for quick height adjustments of both stages with one twist. An adjustable floor spreader provides extra
security and stability.
100mm
60.0kg
132.0lbs
160.0cm
63.0in
5.1kg
11.2lbs
47.0cm
18.5in
Aluminum
74.0cm
29.1in
3
2-stages With Mono-lock Patent Design
Mono-lock design al lows you to l ock and unl ock the thr ee sections of
each leg using only one l ocking le ver quick er than normal.
Lock
21
Mono-Lock Design
One lock for
one section
One lock for
one section
FEATURES
100mm
100mm Bowl Size
Compatible with all professional
100mm half-ball video heads.
Extendable Ground Spreader
Extendable spreader is designed
to offer added stability to the tripod.
Removable Rubber Feet
Removable feet attach to the spiked
feet for working on delicate or hard
surfaces.
Page 10

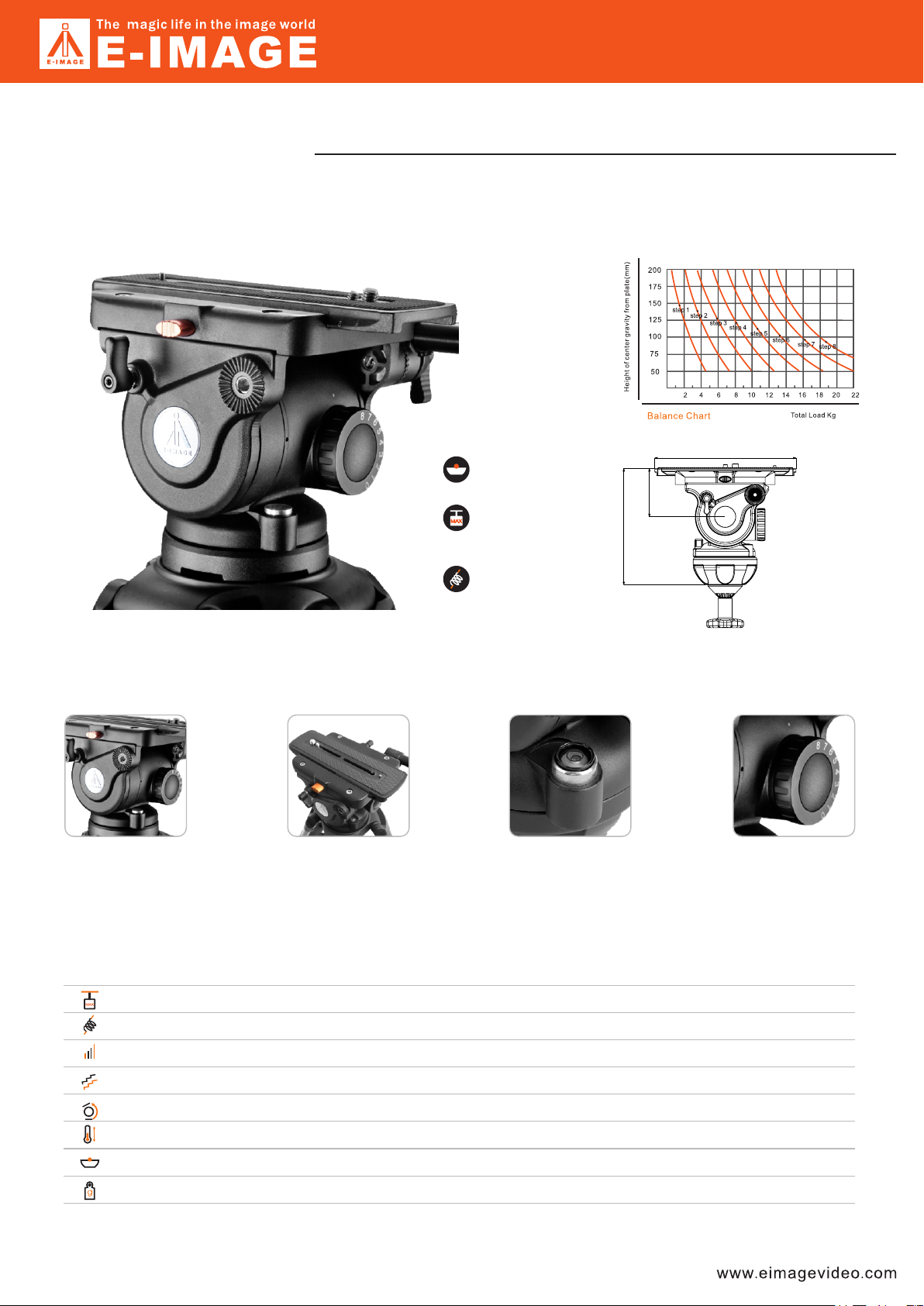

GH20 100mm Fluid Head
