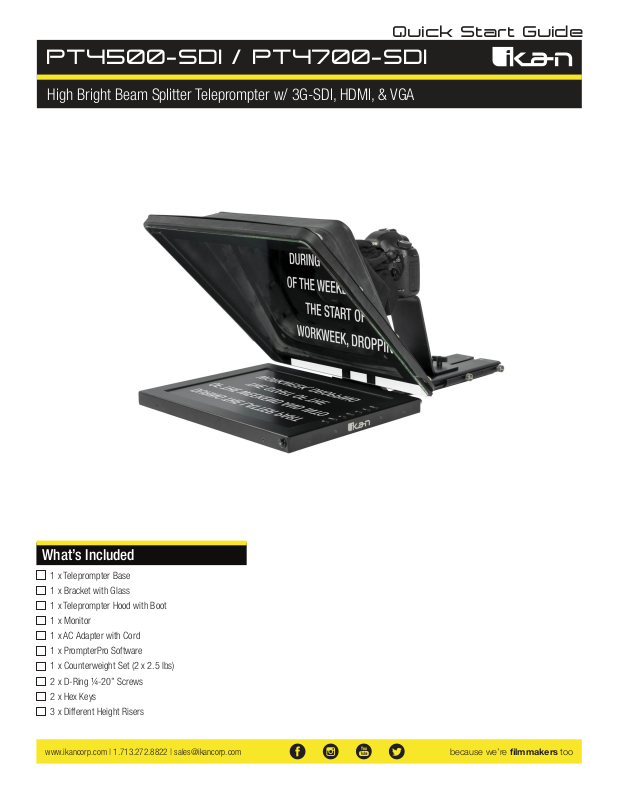

Page 1
Quick Start Guide
PT4500-SDI / PT4700-SDI
High Bright Beam Splitter Teleprompter w/ 3G-SDI, HDMI, & VGA
What’s Included
1 x Teleprompter Base
1 x Bracket with Glass
1 x Teleprompter Hood with Boot
1 x Monitor
1 x AC Adapter with Cord
1 x PrompterPro Software
1 x Counterweight Set (2 x 2.5 lbs)
2 x D-Ring ¼-20” Screws
2 x Hex Keys
3 x Different Height Risers
Page 2
Assembly Steps
Step 1
Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.
Step 2
Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key.
V
4
2
-
2
1
I
M
D
H
A
G
V
Page 3
Step 3
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
Step 4
While sliding the teleprompter bracket into the slot of the teleprompter base pull on the red knob to allow the bracket to fully slide in.
Page 4

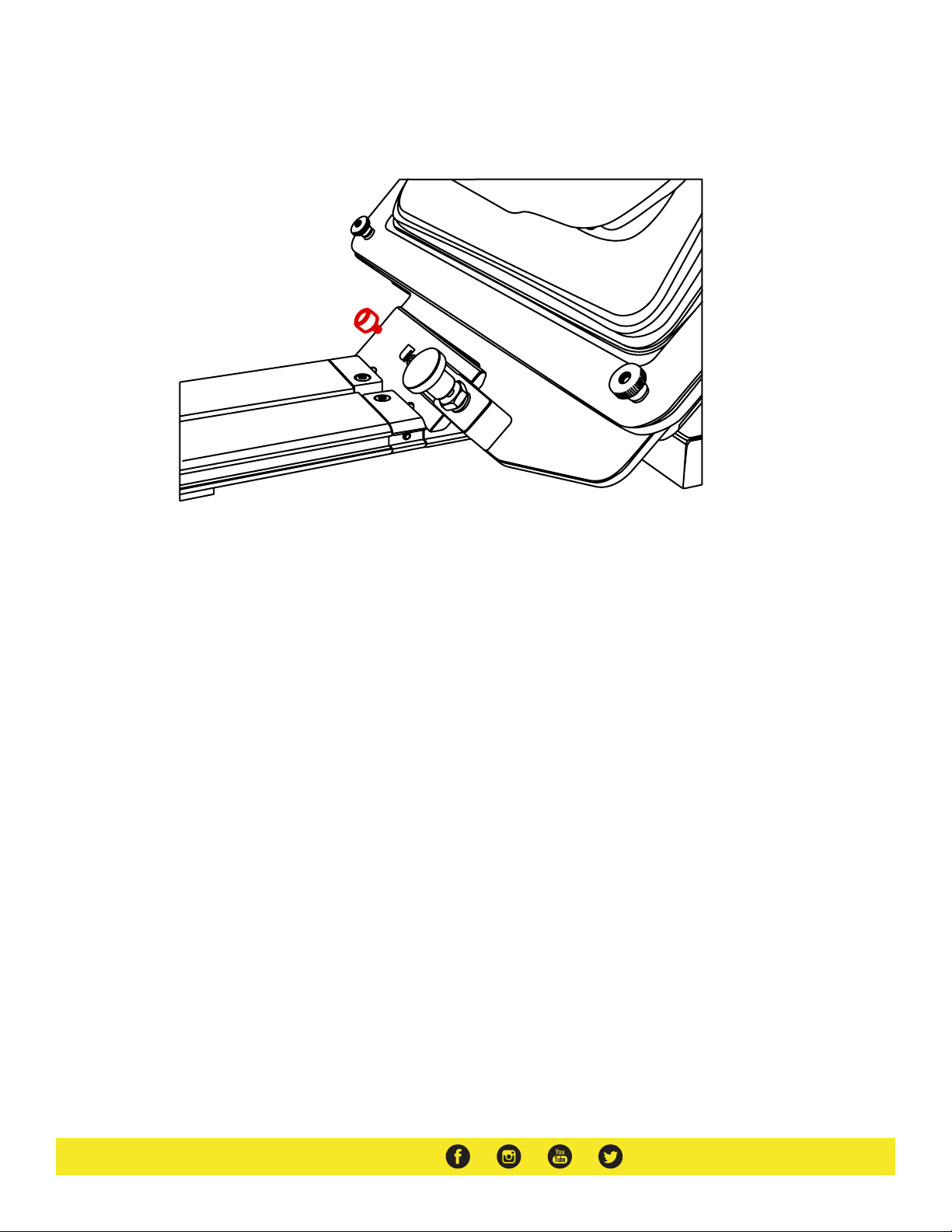

Step 5
Once the bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.
Step 6 (optional)
Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.
Page 5

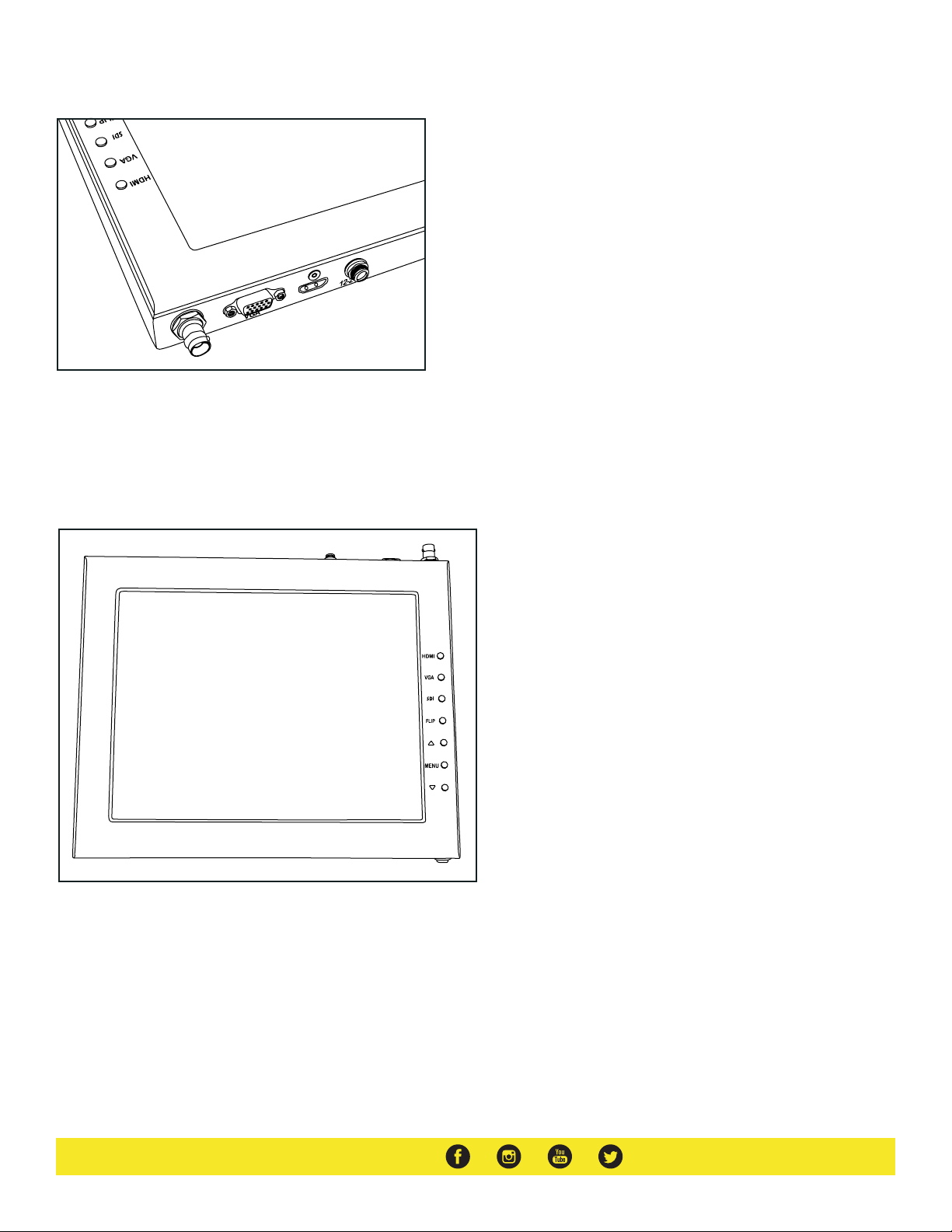

Monitor Ports
H
D
M
I
3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
HDMI – Switch HDMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
Page 6
Specifications
PT4500-SDI PT4700-SDI
Aspect Ratio 4:3
Backlight LED
Brightness 1000 nits
Build Material Aluminum
Diagonal 15”
Input Signal 3G-SDI, VGA, HDMI
Input Voltage DC 12v / 4A
Power Consumption 10W
Reading Range 17’
Resolution
Viewing Angle 160° (H) / 170° (V)
Weight 22 lb
Shipping Weight 28 lb
Shipping Dimensions 25 x 20 x 15.5 in
1280 x 1024
Aspect Ratio 4:3
Backlight LED
Brightness 1000 nits
Build Material Aluminum
Diagonal 17”
Input Signal 3G-SDI, VGA, HDMI
Input Voltage DC 12v / 4A
Power Consumption 10W
Reading Range 20’
Resolution
Viewing Angle 160° (H) / 170° (V)
Weight 23 lb
Shipping Weight 29 lb
Shipping Dimensions 25 x 20 x 15.5 in
1280 x 1024
Optional Accessories
PT4500-G
PT-CASE-V2
Replacement Glass for both PT4500-SDI / PT4700-SDI
Rolling Hard Case for PT4500-SDI / PT4700-SDI Teleprompter
Page 7
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2018 ikan Corporation. All rights reserved
