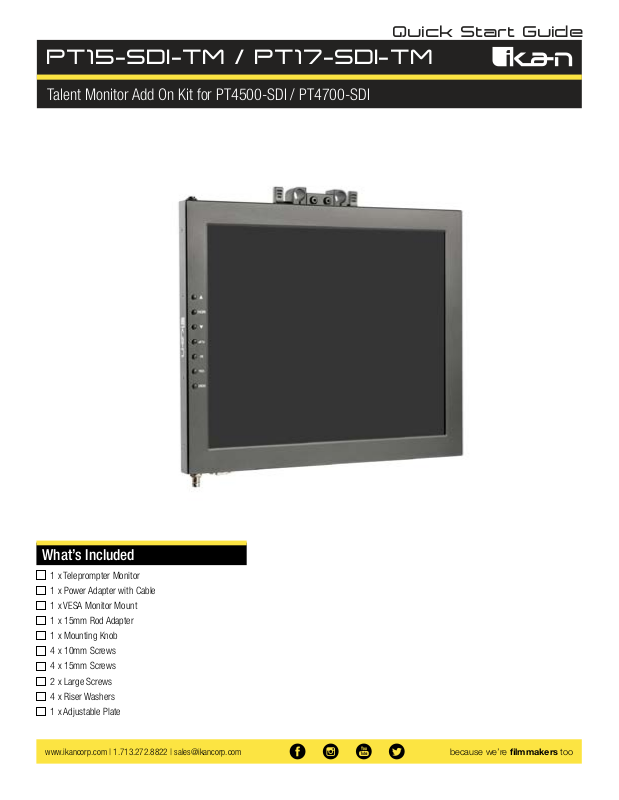

Quick Start Guide
PT15-SDI-TM / PT17-SDI-TM
Talent Monitor Add On Kit for PT4500-SDI / PT4700-SDI
What’s Included

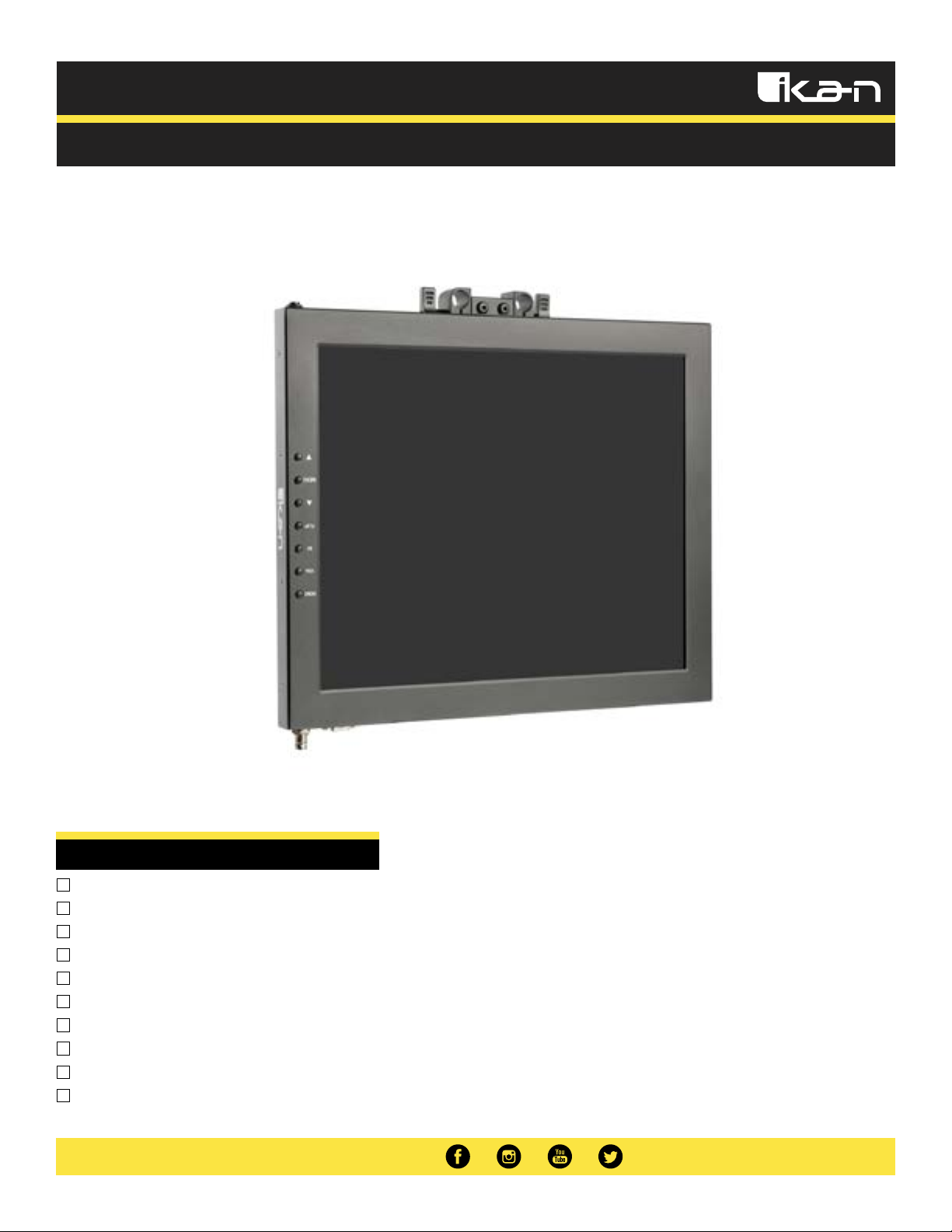

1 x Teleprompter Monitor
1 x Power Adapter with Cable
1 x VESA Monitor Mount
1 x 15mm Rod Adapter
1 x Mounting Knob
4 x 10mm Screws
4 x 15mm Screws
2 x Large Screws
4 x Riser Washers
1 x Adjustable Plate
Page 2
Assembly Steps
Setting Up the Talent Monitor

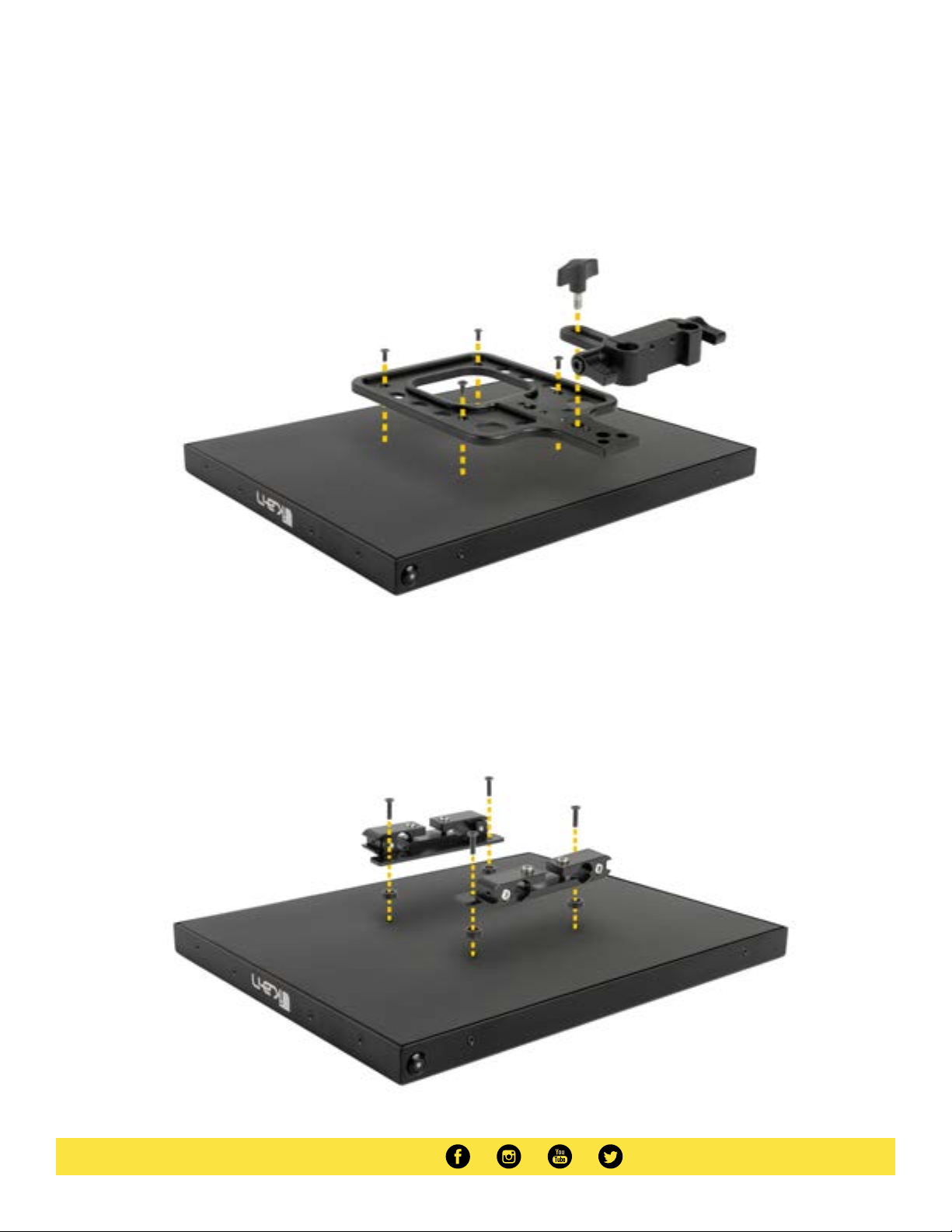

Using the shorter 4 x 10mm Screws, attach the VESA Monitor Mount. Make sure that the long end of the VESA Monitor Mount is pointing in the direction
of the power button like the image above. Use the Mounting Knob to tighten the 15mm Rod Adapter to the VESA Monitor Mount.
Setting Up the Teleprompter Monitor (Monitor from the PT4500-SDI/PT4700-SDI)
If the mounting brackets where previously installed on the teleprompter monitor, remove those screws. Using the longer 4 x 15mm Screws and 4 x Riser
Washers attache the mounting brackets with the washers between the bracket and monitor like the image below.
Page 3
Attaching the Talent Monitor

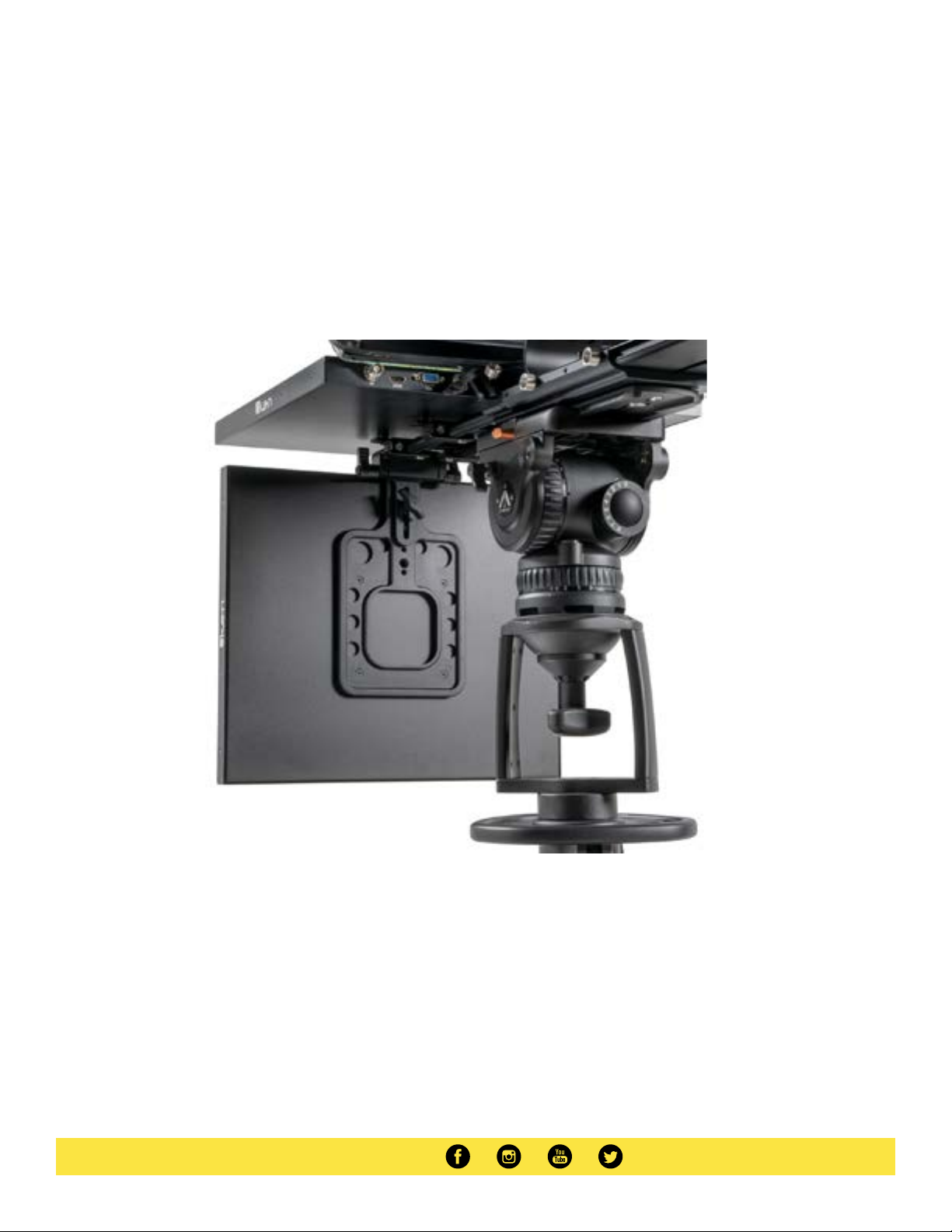

After both the talent monitor and teleprompter monitor are set up, slide the talent monitor on to the PT4500-SDI/PT4700-SDI.
*WARNING* We recommend at least 1 inch of rod should be left inside the teleprompter base.
Page 4
Specifications
PT17-SDI
17” High Bright SDI Teleprompter Monitor
Aspect Ratio 4:3
Brightness 1000 cd/m2
Diagonal 17”
Input Signal Composite BNC, VGA, HDMI
Input Voltage DC 12v / 4A
Power Consumption 10 w
Product Weight 6 lbs
Product Dimensions 15.75” x 13” x 1”
Resolution 1280 x 1024
Shipping Weight 8 lbs
Shipping Dimensions 16.25” x 14.25” x 2”
Viewing Angle 160° (H) / 170° (V)
UPC 847983031924
Supported Video Signals
SDI
720x480i @ 59.94, 60 Hz
720x576i @ 50 Hz
1280x720p @ 50, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
PT15-SDI
15” High Bright SDI Teleprompter Monitor
Aspect Ratio 4:3
Brightness 1000 cd/m2
Diagonal 15”
Input Signal 3G-SDI, VGA, HDMI
Input Voltage DC 12v / 4A
Power Consumption 10 w
Product Weight 5 lbs
Product Dimensions 14.25” x 11.25” x 1”
Resolution 1280 x 1024
Shipping Weight 7 lbs
Shipping Dimensions 15” x 12” x 4”
Viewing Angle 160° (H) / 170° (V)
UPC 847983031917
Supported Video Signals
SDI
720x480i @ 59.94, 60 Hz
720x576i @ 50 Hz
1280x720p @ 50, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
HDMI
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
HDMI
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
Optional Accessories
Some other products that work well with this item available from Ikan include:
PT4500-SDI
PT4700-SDI
15” High Bright Beam Splitter Teleprompter (
3G-SDI, VGA, HDMI)
17” High Bright Beam Splitter Teleprompter (3G-SDI, VGA, HDMI)
Page 5
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
