IKAN OTTICA-4K Quick Start Guide

Download

Page 1

Manual

OTTICA-4K

OTTICA NDI HX PTZ Video Camera 12x Optical Zoom POE 4K 60p

www.ikancorp.com [email protected]

- 1 -

Page 2

Table of Contents

1. Getting Started 3

1.1 Camera Interface 3

1.2 Power-On Initial Conﬁguration 4

1.3 Video Output 4

1.4 Mounting Brackets 5

2. Product Overview 7

2.1 Product Introduction 7

2.1.1 Dimensions 7

2.1.2 Accessories 7

2.2 Main Features 8

2.3 Technical Speciﬁcations 9

2.4 Interface Instructions 12

2.4.1 External Interface 12

2.4.2 RS-232 Interface 12

3. Application Instructions 14

3.1 Video Output 14

3.2 Remote Control 14

3.2.1 Key Instructions 15

3.3 Menu Introduction 18

3.3.1 Main Menu 18

3.3.2 System Settings 18

3.3.3 Camera Settings 19

3.3.4 P/T/Z 21

3.3.5 Video Format 21

3.3.6 Version 22

3.3.7 Restore Default 22

4. Network Connection 23

4.1 Obtain Camera IP Address 23

4.2 IE Log In 24

4.2.1 Web Client 25

4.2.2 Preview 25

4.2.3 Conﬁguration 25

4.2.4 Audio Conﬁguration 25

4.2.5 Video Conﬁguration 25

4.2.6 Network Conﬁguration 29

4.2.7 System Conﬁguration 30

4.2.8 Logout 32

5. Serial Communication Control 32

5.1 VISCA Protocol List 32

5.1.1 VISCA Protocol Return Command 32

5.1.2 VISCA Protocol Control Command 33

- 2 -

Page 3

5.1.3 Inquiry Command 38

5.2 Pelco-D Protocol Command List 41

5.3 Pelco-P Protocol Command List 42

6. Camera Maintenance and Troubleshooting 43

6.1 Camera Maintenance 43

6.2 Troubleshooting 43

1. Getting Started

1.1 Camera Interface

Table of Contents (cont.)

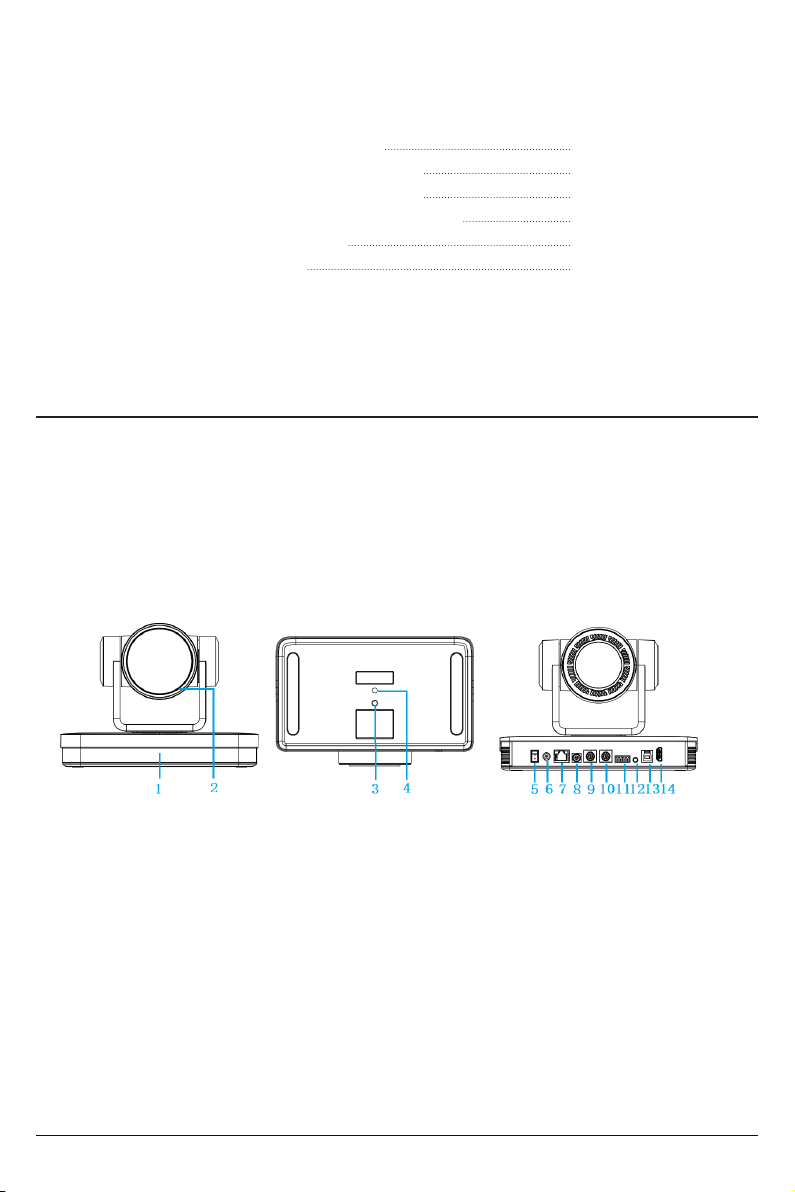

Figure 1.1 Product Interface

1. Remote Control Receiving Indicator

2. Camera Lens

3. 1/4”-20 Screw Thread

4. 1/4”-20 Screw Thread

5. Power Switch

6. DC12V Input Power Supply Socket

7. LAN Port

8. Rotary DIP Switch

9. RS232 Control Interface (input)

10. RS232 Control Interface (output)

11. RS422/RS485 Input

12. Audio Input Interface

13. USB 3.0 Interface

14. HDMI Output Interface

- 3 -

Page 4

1.2 Power-On Initial Conﬁguration

1. Power-On: Connect the DC12V power supply adapter with the power supply socket.

2. Initial Conﬁguration: Upon powering on, the remote control receiver light will turn on and start blinking red. The camera head will move and adjust into the HOME position (intermediate position of both horizontal and vertical). When the remote control receiver light stops blinking red, it will stay on and turn green; this means the self-checking is ﬁnished.

- Note: After the Power-On self-test is completed If you press “set preset” then “0”, the camera head automatically moves to the preset HOME position any time you press “0”.

1.3 Video Output

The OTTICA has a variety of video outputs including LAN, HDMI and 3G-SDI.

1. Video Output from LAN

A. Network Cable Connection Port: No.12 in Figure1.1; B. Webpage Login:

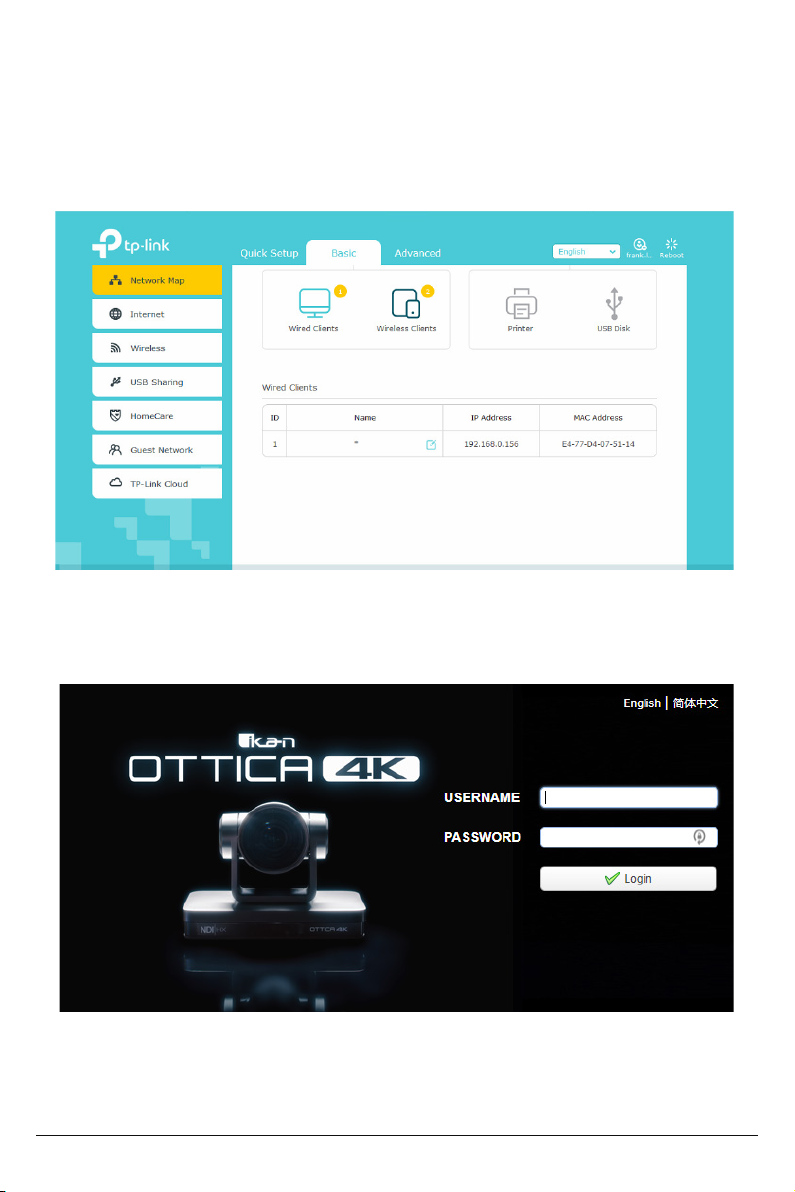

- The OTTICA-4K is set to auto DHCP so you’ll need to connect the camera to devices that can automatically assign an IP address, such as routers and switches.

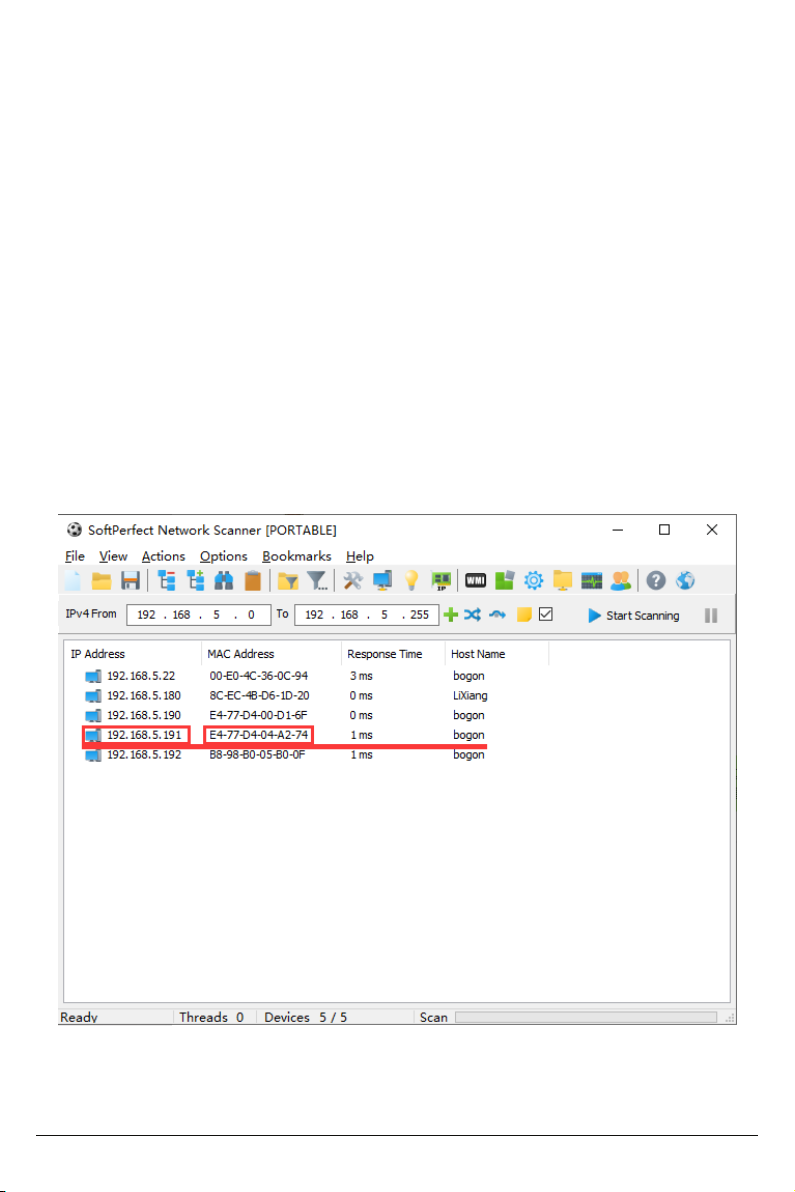

- Next, you’ll have to use an IP scanning software to ﬁnd the camera’s IP address (visit the OTTICA-4K product page at www.ikancorp.com to ﬁnd a link to our recommended software for IP scanning).

- Copy and paste the camera’s IP address and paste it into your web browser’s address bar and press “Enter” to proceed into the login page.

- Enter the user name “admin” and password “admin” (factory default) and press ”Enter” to proceed into the preview page.

- If you do not have the latest version of Flash installed, click on the button that says “Get ADOBE Flash Player.”

- After you’ve installed the latest version of ﬂash, the camera feed should be visible and you can now perform PTZ control, video recording, playback, conﬁguration, and other operation.

- NOTE: See chapter 4.1 for more details.

2. HDMI Video Output A. HDMI Video Cable Connection: Refer to No.11 in Figure1.1.

B. Connect the camera and monitor via HDMI video cable.

3. 3G-SDI Video Output A. 3G-SDI video cable connection: Refer to No.10 in Figure1.1

B. Connect the camera and the monitor via 3G-SDI video cable

- 4 -

Page 5

1.4 Mounting Brackets

Note: The bracket can only be mounted on a wall or ceiling on either template or concrete wall, but cannot be installed on plasterboard.

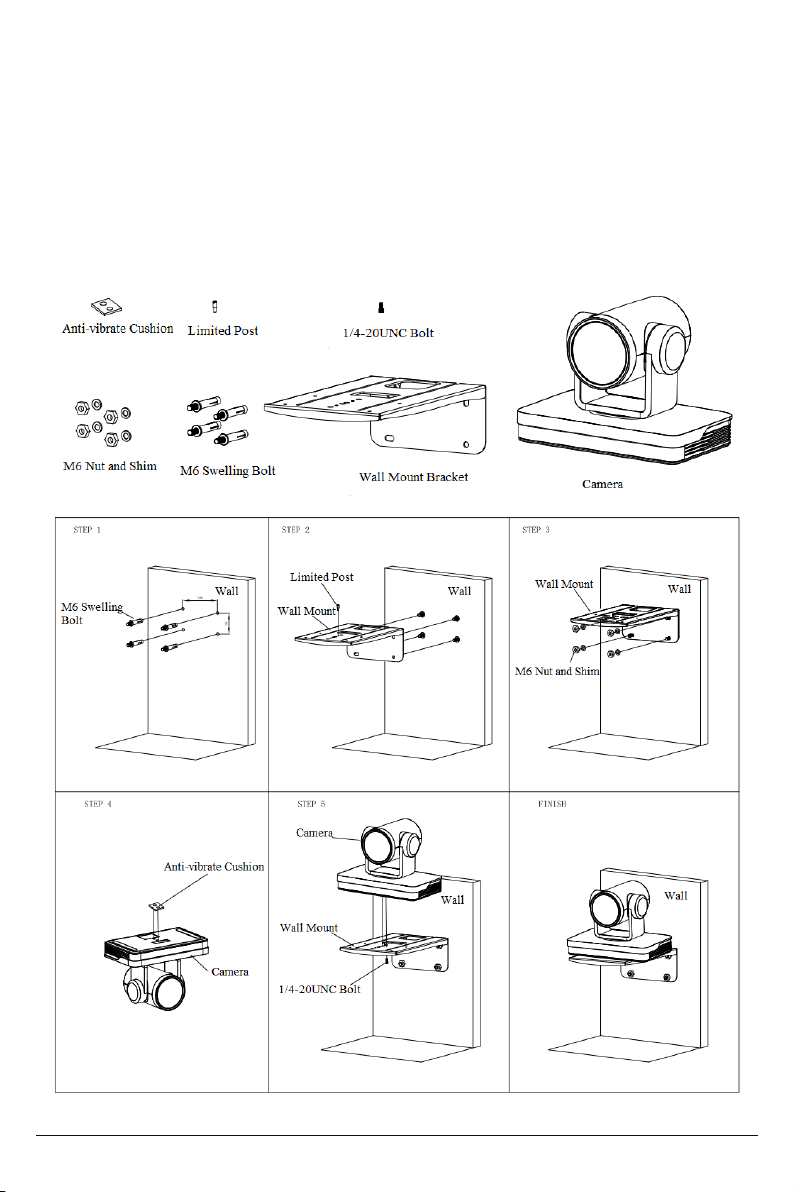

Wall Mount Steps

- 5 -

Page 6

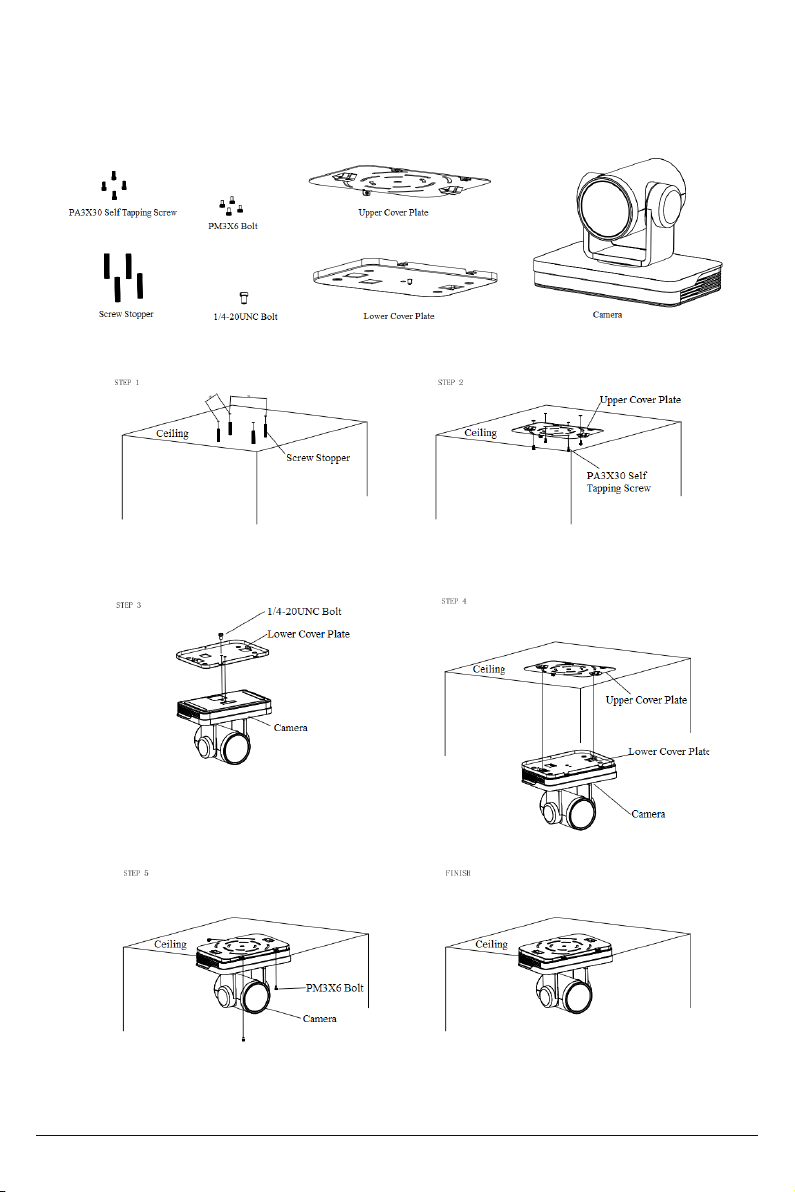

Ceiling Mount Steps

- 6 -

Page 7

2. Product Overview

2.1 Product Introduction

2.1.1 Dimensions

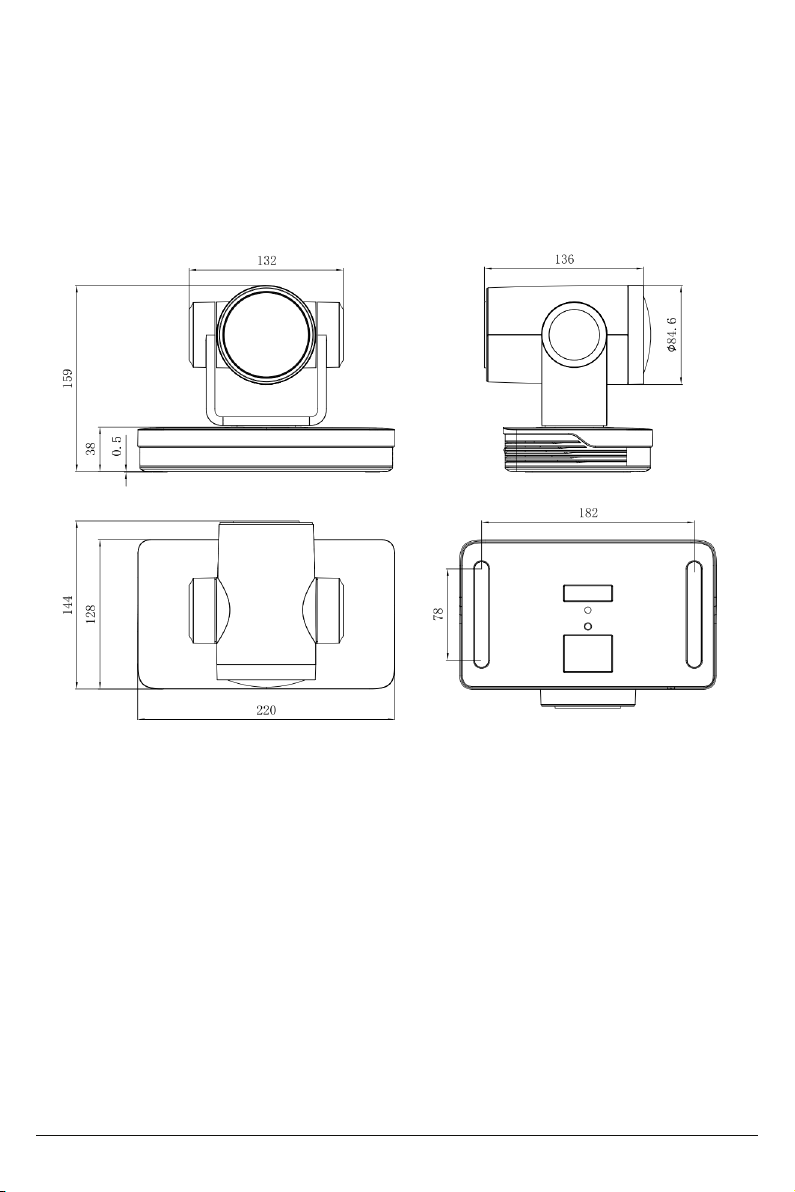

Figure 2.1 Camera Dimensions

2.1.2 Accessories

When unboxing, check that all the Standard Accessories are included:

Standard Accessories

1 x Power Adapter 1 x RS232 Cable 1 x IR Remote Controller 1 x Wall Mounting Bracket 1 x RS485 Connector 1 x Cascade Cable

Optional Accessories

OTTICA Controller Ceiling Mount Wireless Remote Control

- 7 -

Page 8

2.2 Main Features

The OTTICA-4K camera is a new UHD 4K camera with 12X optical zoom and a 80.4° wide angle lens. Featuring with advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition.

1. 4K UHD Resolution: 1/2.5” high quality SONY CMOS sensor. Up to 4K 60fps Resolution/ Frame rate.

2. Dual Stream Output: USB output can support main stream and sub stream output at the same time, and can meet the needs of near-end and far-end.

3. Optical Zoom Lens: 12X optical zoom. Wide 80.4° ﬁeld of view.

4. Multi-format Video Outputs: Supports HDMI, USB 3.0, LAN, and outputs 4K audio and video simultaneously.

5. Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.

6. Low Noise and High SNR: The Low Noise CMOS effectively ensures high SNR of the camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

7. Multiple Audio/Video Compression Standards: LAN interface supports H.264/H.265 video compression, USB3.0 interface supports MJPG, H264, YUY2, NV12, H265; supports AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling frequencies.

8. Multiple Network Protocol: Supports NDI, ONVIF, RTSP, RTMP protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.

9. Control Interface: RS422 input (compatible with RS485), RS232 input/output, RS232 (cascade connection)

10. Multiple Control Protocol: VISCA, PELCO-D, PELCO-P protocols; Automatic identiﬁcation protocols.

11. Multiple presets: Up to 255 presets (10 presets via remote control).

12. Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Uniﬁed Communication, Emergency command and control systems, etc.

- 8 -

Page 9

2.3 Technical Speciﬁcations

Camera Parameters

Optical Zoom 12X; f=3.85 mm ~ 43.06 mm ±5%

View Angle

AV F1.8 ~ F3.56±5%

Sensor 1/2.5inch SONY CMOS sensor

Effective Pixels 8.51M megapixel 16:9

Video Format

Parallel: 7.59° (N) ~ 80.4° (W) Vertical: 4.6° (N) ~ 50.0° (W)

HDMI Video Format

4K@60fps/ 4K@50fps/ 4K@30fps/ 4K@25fps/ 1080P@60fps/ 1080P@50fps/ 1080I@60fps/ 1080I@50fps/ 1080P@30fps/ 1080P@25fps/ 720P@60fps/ 720P@50fps

USB3.0 Interface Video Format

YUY2/NV12: 1920×1080@30/25fps/ 1280×720@30/25fps/ 960×540@30/25fps/ 640×360@30/25fps/ 640×480@30/25fps/ 320×176@30/25fps MJPEG/H.264/H.265: 3840×2160@30/25fps/ 1920×1080@30/25fps/ 1280×720@30/25fps/ 960×540@30/25fps/ 640×360@30/ 25fps/640×480@30/25fps/ 320×176@30/25fps

USB3.0 is Compatible with USB2.0 Video Format

YUY2/NV12: 640×360@30/25fps/ 640×480@30/25fps/ 320×176@30/25fps MJPEG/H.264/H265: 3840×2160@30/25fps/ 1920×1080@30/25fps/ 1280×720@30/25fps/ 960×540@30/25fps/ 640×360@30/25fps/ 640×480@30/25fps/ 320×176@30/25fps

Minimum Illumination 0.05Lux(F1.8, AGC ON)

DNR 2D﹠3D DNR

White Balance Auto / Manual / One Push/ Specify Color Temperature

Focus Auto / Manual / One Push Focus

- 9 -

Page 10

Camera Parameters

Exposure Mode

Auto/Manual / Shutter priority / Aperture Priority / Brightness Priority

Aperture F1.8 - F11

Shutter Speed 1/25 - 1/10000

BLC ON/OFF

WDR OFF/ Dynamic Level Adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve

SNR ≥50dB

Input / Output Interface

HDMI, LAN (POE), USB3.0 (Type-B compatible with

Video Interfaces

USB2.0, A-IN, RS232-IN,

RS232-OUT, RS422 (compatible with RS485), Rotary DIP

switch, DC12V Power Supply, Power Switch

Video Compression Format

LAN Interface: H.264, H.265 USB 3.0 Interface: MJPG, H264, YUY2, NV12, H265

Audio Input Interface Double track 3.5mm linear input

Audio Output Interface HDMI, LAN, USB3.0

Audio Compression Format AAC, MP3, G.711A

Network Interface

Network Protocols

10M/100M/1000M Adaptive Ethernet port, support POE power supply, support audio and video output

NDI ,RTSP, RTMP, ONVIF; Network VISCA control protocol: Support remote upgrade, reboot and reset

Control Interface RS232-IN,RS232-OUT, RS422 compatible with RS485

Serial Communication Protocol

VISCA/PELCO-D/PELCO-P Baud Rate: 115200/38400/9600/4800/2400

USB Communication Protocol UVC (Video), UAC (Audio)

Power Interface HEC3800 outlet (DC12V)

Supply Adapter AC110V~AC220V to DC12V/2.5A

- 10 -

Page 11

Input / Output Interface

Input Voltage DC12V±10%

Input Current <1A

Power Consumption <12W

PTZ Parameters

Pan Rotation -110° ~ +110°

Tilt Rotation -30° ~ +30°

Pan Control Speed 0.1 -100°/sec

Tilt Control Speed 0.1-70°/sec

Preset Speed Pan: 78.8°/s, Tilt: 31.7°/s

Preset Number 255 presets (10 presets via Remote Control)

Other Parameters

Stored Temperature -10°C ~ +60°C

Storage Humidity 20% ~ 95%

Working Temperature -10°C ~ +50°C

Working Humidity 20% ~ 80%

Dimension 220mm (L) x 144mm (W) x 159mm (H)

Weight 1.7kg

Application Indoor

- 11 -

Page 12

2.4 Interface Instructions

2.4.1 External Interface

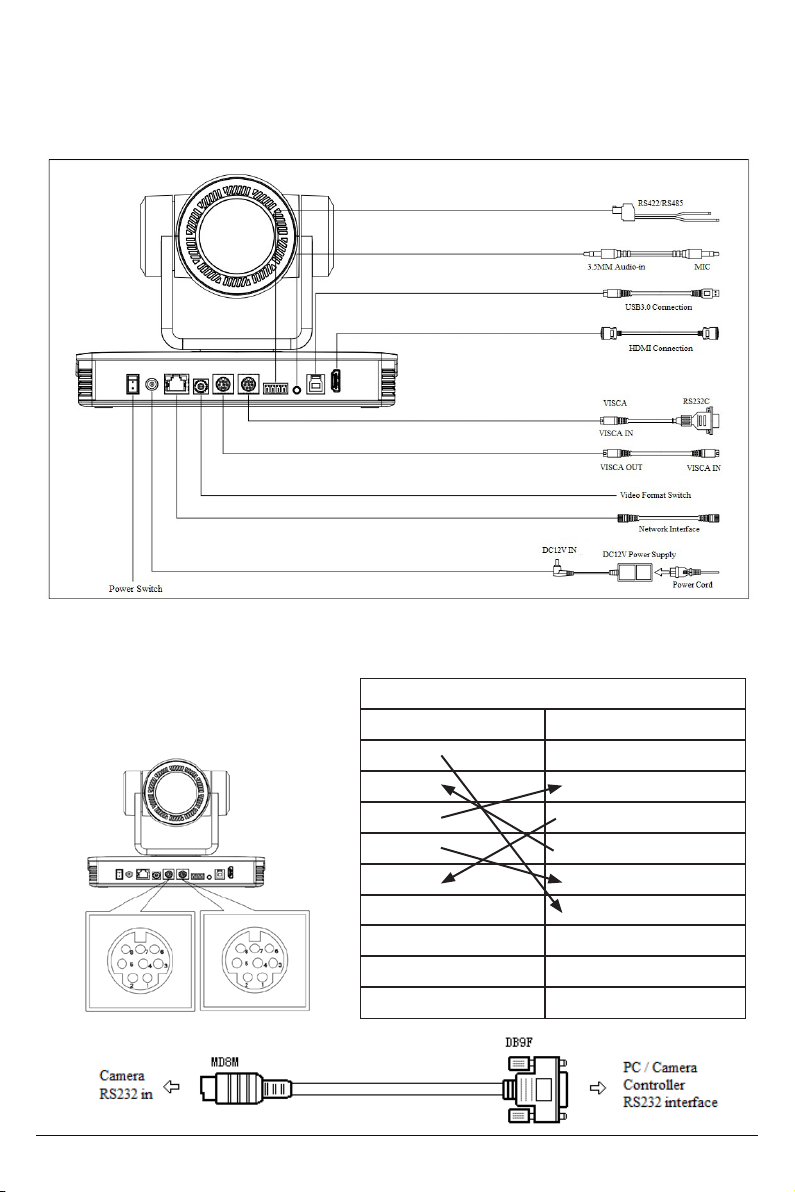

Figure 2.5 Wiring Diagram

2.4.2 RS-232 Interface

1. RS-232 Interface Deﬁnition

Computer / Keyboard ﹠ Camera Connection Method

Camera Windows DB-9

1. DTR 1. DCD

2. DSR 2. RXD

3. TXD 3. TXD

4. GND 4. DTR

5. RXD 5. GND

6. GND 6. DSR

7. IR OUT 7. RTS

8. NC 8. CTS

9. RI

- 12 -

Page 13

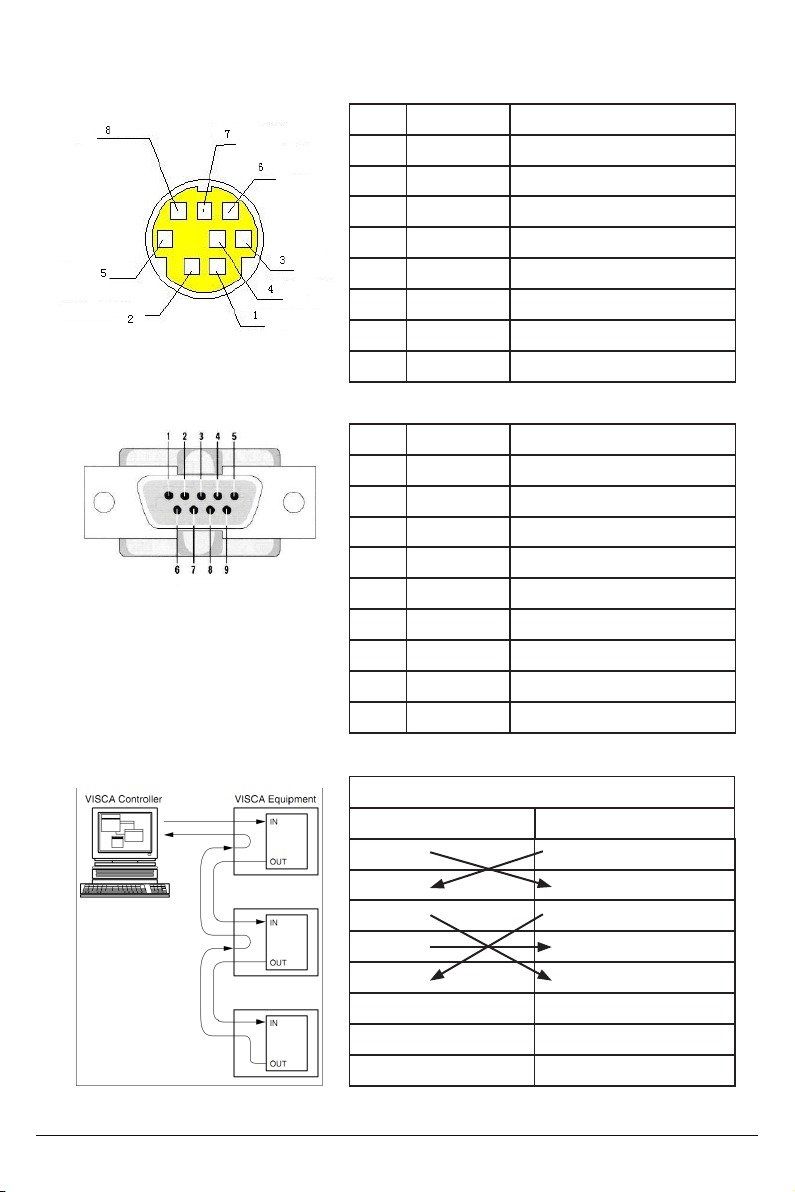

2. RS-232 Mini-DIN 8-pin Port Deﬁnition

3. RS232 (DB9) Port Deﬁnition

No. Port Deﬁnition

1 DTR Data Terminal Ready

2 DSR Data Set Ready

3 TXD Transmit Data

4 GND System Ground

5 RXD Receive Data

6 GND System Ground

7 IR OUT IR Commander Signal

8 NC No Connection

No. Port Deﬁnition

1 DCD Data Carrier Detect

2 RXD Receive Data

3 TXD Transmit Data

4 DTR Data Terminal Ready

5 GND System Ground

6 DSR Data Set Ready

7 RTS Request to Send

8 CTS Clear to Send

9 RI Ring Indicator

4. VISCA Networking:

Camera Cascade Connection Method

Camera 1 Camera 2

1. DTR 1. DTR

2. DSR 2. DSR

3. TXD 3. TXD

4. GND 4. GND

5. RXD 5. RXD

6. GND 6. GND

7. IR OUT 7. OPEN

8. NC 8. OPEN

Note: OTTICA-4K has RS232 input and output interface, so you can cascade as shown above.

- 13 -

Page 14

3. Application Instructions

3.1 Video Output

Connect to the video output cable: the user can refer to Figure 1.1 product interfaces.

1. Network Output: Upon powering on, the remote control receiver light will turn on and start

blinking red. The camera head will move and adjust into the HOME position (intermediate position of both horizontal and vertical). When the remote control receiver light stops blinking red, it will stay on and turn green; this means the self-checking is ﬁnished.

2. HDMI output: Connect the monitor with the corresponding video output interface.

3. USB3.0 output: Connect the camera to the computer with the USB3.0 interface (blue cable),

open the Device Manager to see whether there is an imaging device and whether the Universal Serial Bus controllers recognize the USB3.0 device. After properly identiﬁed, open the software, choose the imaging device, and then it will output the image.

3.2 Remote Control

One to One Code Matching:

- Press the “set” and “*” keys combined for 3 seconds, the LED indicator will start ﬂashing.

The indicator will go off if the code matches successfully. The camera can be controlled by this wireless remote control only after one to one code pairing. Otherwise please clear the code matching of this remote control, or use another remote control to pair with the camera again.

- If one to one code matching has failed, the red LED light ﬂashes for 20 seconds and then

goes off and the camera will stop code matching and commence sleep mode. Press any key to wake up the camera and re-match code.

Note: After code matching is successful, please select the camera address to control it.

Clear Code:

- Press the “set” and “*” keys combined for 3 seconds. The LED indicator will start ﬂashing.

The camera will power off and on and the LED indicator will turn off if the clear code is successful.

Sleep Mode and Wake Up:

- Press any key to wake up the camera from sleep mode.

- 14 -

Page 15

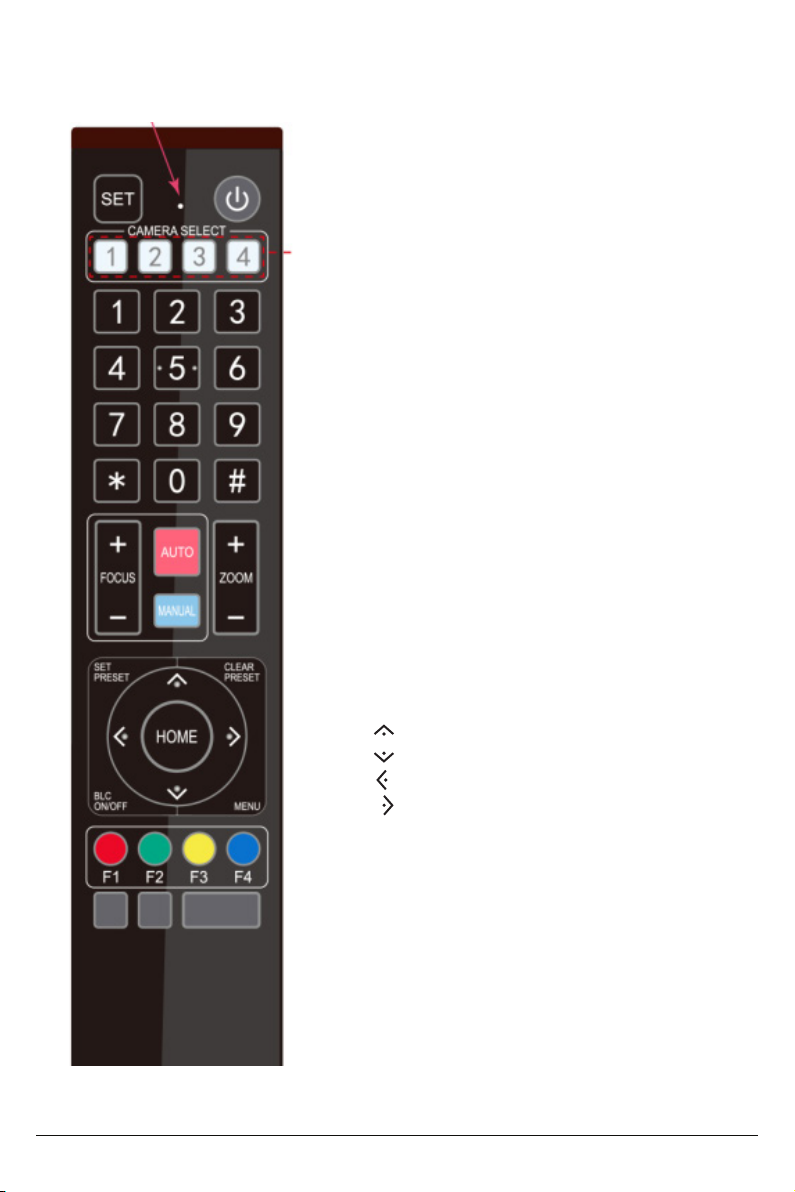

3.2.1 Key Instructions

1. Standby Key After a 3-second long press, the camera will step into

standby mode. After pressing the standby key for 3 seconds again, the camera will self-test again and go back to the HOME position.

2. Camera Address Selection Select the camera address to be controlled.

3. Number Keys Set or run 0-9 presets.

3. # + * Keys Use for key combinations.

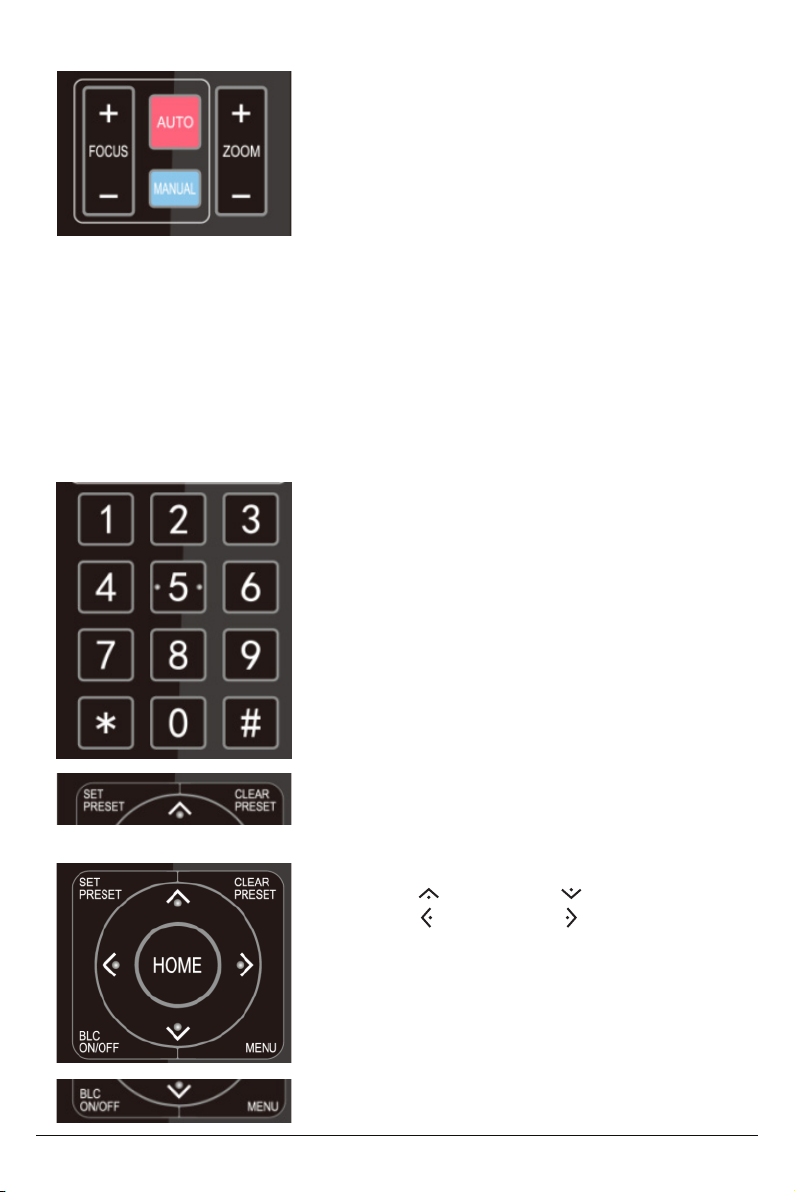

5. Focus Control Key Auto Focus: Enter into auto focus mode. Manual Focus: The camera focus mode is manual Switch the camera focus mode to manual focus by

pressing [focus +] or [focus -] to adjust.

6. Zoom Control Key Zoom +: Zoom In. Zoom - :Zoom Out.

7. Set or Clear Preset key: Set Preset: Sets preset key + 0-9 number key. Clear Preset: Clears preset key + 0-9 number key.

8. Pan/Tilt Control Key Press Key: Tilts camera upwards. Press Key: Tilts camera downwards. Press Key: Pans camera left. Press Key: Pans camera right. “HOME” Key: Returns camera to the middle position. Also

used to enter into the next level menu.

9. BLC Control Key Back Light ON / OFF: Turn on or off the back light.

10. Menu Setting Open or close the on-screen-display menu. Enter / exit the on-screen-display menu or return to the

previous menu.

- 15 -

Page 16

11. Camera IR Remote Control Address Setting [ * ]+ [ # ]+[ F1 ] : Camera Address No. 1 [ * ]+ [ # ]+[ F2 ] : Camera Address No. 2 [ * ]+ [ # ]+[ F3 ] : Camera Address No. 3 [ * ]+ [ # ]+[ F4 ] : Camera Address No. 4

12. Key Combination Functions

[ # ] + [ # ] + [ # ]: Clear all presets [ * ] + [ # ] + [ 6 ]: Restore factory defaults

[ * ] + [ # ] + [ 9 ]: Flip switch [ * ] + [ # ] + Auto: Enter into the aging mode

[ * ] + [ # ] + [ 3 ]: Menu set to Chinese [ * ] + [ # ] + [ 4 ]: Menu set to English

[ * ] + [ # ] + Manual: Restore the default user name, password, and IP address

[ # ] + [ # ] + [ 1 ]: Switch video format to 1080p50

[ # ] + [ # ] + [ 3 ]: Switch video format to 1080i50

[ # ] + [ # ] + [ 5 ]: Switch video format to 720p50

[ # ] + [ # ] + [ 7 ]: Switch video format to 1080p25

[ # ] + [ # ] + [ 0 ]: Switch video format to 1080p60

[ # ] + [ # ] + [ 2 ]: Switch video format to 1080i60

[ # ] + [ # ] + [ 4 ]: Switch video format to 720p60

[ # ] + [ # ] + [ 6 ]: Switch video format to 1080p30

[ # ] + [ # ] + [ 8 ]: Switch video format to 720p30

[ # ] + [ # ] + [ 9 ]: Switch video format to 720p25

Users can control the pan/tilt/zoom, settings and execute preset positions via the IR remote control.

Key Instructions:

- In these instructions, “press the key” means a click rather than a long-press. A special note will be given if a long-press for more than one second is required.

- When a key-combination is required, do it in sequence. For example, “[ * ] + [ # ] + [ F1 ]” means press [ * ] ﬁrst, then press [ # ], lastly press { F1 ]

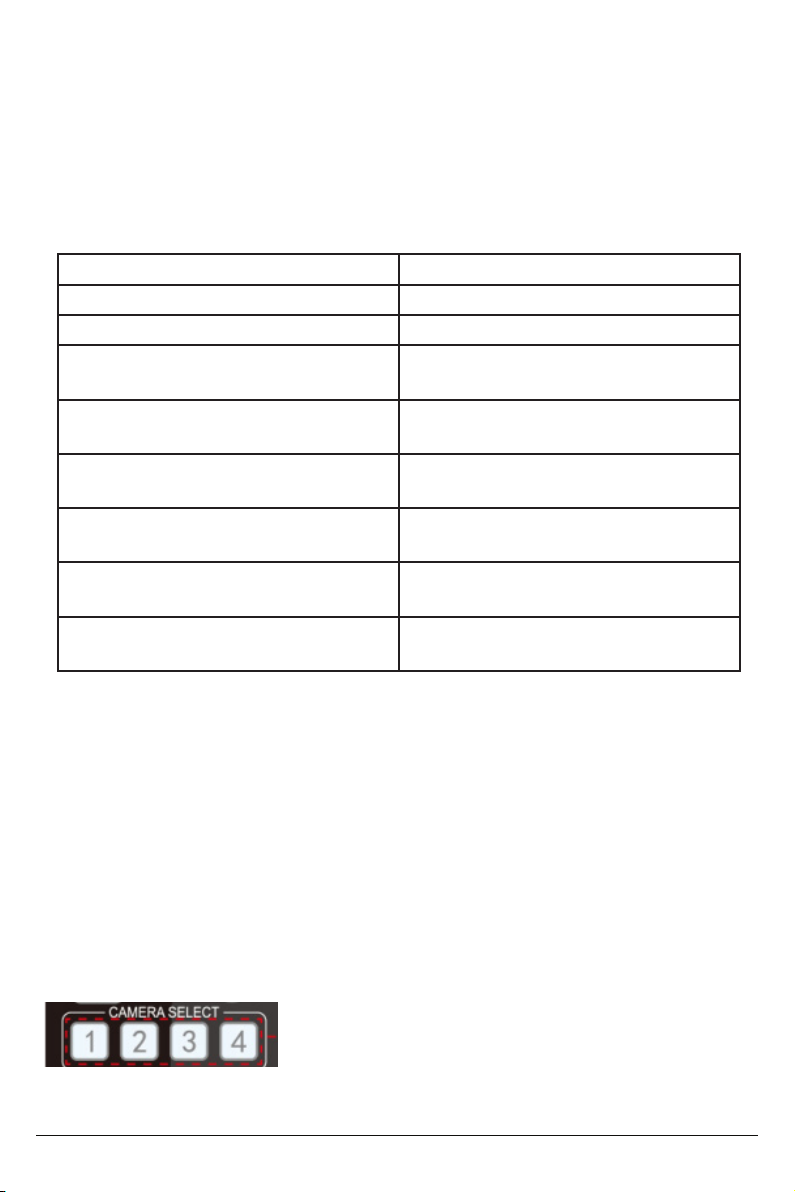

Camera Selection

- Select the camera address to control.

- 16 -

Page 17

Focus Control

- Focus (near):Press FOCUS + Key (Valid only in manual focus mode)

- Focus (far): Press FOCUS - Key (Valid only in manual focus mode)

- Pressing and holding the “+” or “–“ keys will result in the action of focus to continue. Release the key to stop the action of focus.

- Auto Focus: Enables auto focus function.

- Manual Focus: Enables manual focus function.

Zoom Control

- ZOOM IN: Press Zoom + Key

- ZOOM OUT: Press Zoom - Key

- By pressing and holding the key, the camera lens will keep zooming in or zooming out and stops as soon as the key is released.

Preset Setting

- To set a preset position, press the [ SET PRESET ] key ﬁrst and then press the number key 0-9 to set a relative preset.

- Note: 10 preset positions in total are available by remote control.

Preset Running

- Press a number key 0-9 directly to run a relative preset.

- Note: Action will not be completed if a relative preset position doesn’t exist.

Preset Clearing

- To clear a preset position, press the [CLEAR PRESET] key ﬁrst and then press the number key 0-9 to clear the relative preset.

- Note: press the [ # ] key three times to clear all presets.

Pan/Tilt Control Up: Press Down: Press Left: Press Right: Press

- Back to middle position: Press HOME

- Press and hold the up/down/left/right key to pan or tilt the camera. The camera movement will ease from slow to fast until it reaches the endpoint. The pan/tilt movement stops as soon as the key is released.

BLC ON / OFF

- Enables and/or disables backlight compensation

- 17 -

Page 18

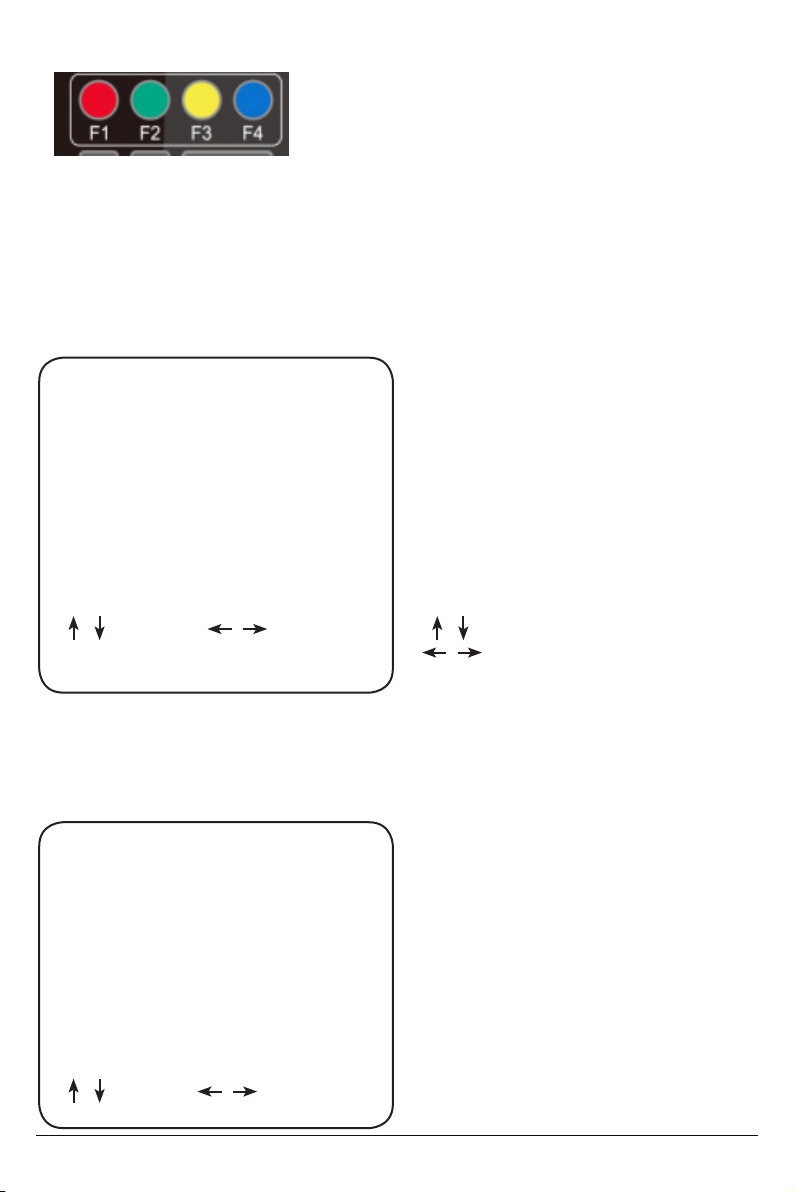

Remote Control Address Setting [ * ]+ [ # ]+[ F1 ] : Camera Address No. 1 [ * ]+ [ # ]+[ F2 ] : Camera Address No. 2 [ * ]+ [ # ]+[ F3 ] : Camera Address No. 3 [ * ]+ [ # ]+[ F4 ] : Camera Address No. 4

3.3 Menu Introduction

3.3.1 Main Menu

In normal working mode, press the MENU key to display the menu. Use the scroll arrow to point at or highlight the selected items.

MENU ======================== Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) (Restore Default)

[ ] Select [ ] Change Value [ MENU ] Back [ HOME ] OK

3.3.2 System Settings

Move the arrow to the SETUP option in the Main Menu and click the HOME key to enter into the SETUP Settings Menu.

SETUP ======================== Protocol Auto Visca Address 1 Visca Address Fix OFF PELCO-P Address 1 PELCO-D Address 0 Baud Rate 9600 Auto Flip OFF

[ MENU ] Back: Press MENU to Return [ HOME } OK: Press HOME to Conﬁrm Language Setting: English / Chinese Setup: System Settings Camera: Camera Parameter Settings PTZ: Pan / Tilt / Zoom Settings Video Format: Resolution ﹠ Frame Rate Version: Camera Version Information Restore Default: Reset All Settings

[ ] Select: Menu Selection [ ] Change Value: Modify Parameters

Protocol: VISCA / PELCO-P / PELCO-D/ AUTO Visca ADDR: VISCA = 1~7 PELCO-P = 1~255 PELCO-D = 1~255 Visca Address Fix: ON / OFF Baud Rate: 2400 / 4800 / 9600 / 115200 Auto Flip: ON / OFF

[ ] Select [ ] Change Value

- 18 -

Page 19

3.3.3 Camera Settings

Move the arrow to the CAMERA option in the Main Menu and click the HOME key to enter into the CAMERA Settings Menu.

CAMERA ======================== (Exposure) (Color) (Image)

Move the arrow to desired setting (Exposure, Color, etc.) option in the CAMERA menu and

click the HOME key to enter. (Focus) (Noise Reduction) Style Default

[ ] Select [ ] Change Value [ MENU ] Back [ HOME ] OK

EXPOSURE

1. EXPOSURE

======================== Mode Auto EV OFF BLC OFF Flicker 50Hz Gain Limit 6

- Mode: Auto / Manual / Shutter Priority / Iris Priority / Brightness Priotity

- EV: ON / OFF (Only available in Auto mode)

- Compensation Level: -7~7 (only available in auto mode when EV is ON)

- BLC: ON/OFF for options (only available in auto mode)

[ ] Select [ ] Change Value [ MENU ] Back

- Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes)

- Gain Limit: 0~15(only available in Auto/ Iris Priority /Brightness Priority mode)

- Shutter Priority: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (only available in Manual and Shutter priority mode)

- IRIS Priority: OFF, F11.0, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8 (only available in Manual and Iris priority mode)

- Brightness: 0~23 (only available in Brightness Priority mode)

- 19 -

Page 20

COLOR ======================== WB Mode Auto RG Tuning -10 BG Tuning -10 Saturation 100% Hue 7 AWB Sensitivity High

[ ] Select [ ] Change Value [ MENU ] Back

2. COLOR

- WB Mode: Auto, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 500K, 7000K, Manual, One Push

- RG Tuning: -10 ~ 10 (only available in Automatic mode)

- BG Tuning: -10 ~ 10 (only available in Automatic mode)

- Red Gain: 0~255 (only available in Manual Mode)

- Blue Gain: 0~255 (only available in Manual Mode)

- Saturation: 60% ~ 200% (in increments of 10%)

- Hue 0 ~ 14

- AWB Sensitivity: High/Middle/Low

IMAGE ======================== Brightness 7 Contrast 7 Sharpness 6 Flip-H OFF Flip-V OFF B﹠W-Mode Color Gamma Default DZoom OFF DCI Close Low-Light Mode Close

[ ] Select [ ] Change Value [ MENU ] Back

FOCUS ======================== Focus Mode Auto AF-Zone Center AF-Sensitivity Low

[ ] Select [ ] Change Value [ MENU ] Back

3. IMAGE

- Brightness: 0~14

- Contrast: 0~14

- Sharpness: 0~15

- Flip Horizontal: On/Off

- Flip Vertical: On/Off

- B﹠W Mode: Color, Black/White

- Gamma: default, 0.45, 0.50, 0.55, 0.63

- Digital Zoom Options: On/Off

- Dynamic Contrast: Off, 1~8

- Low-Light Mode: On/Off

4. FOCUS

- Focus Mode: Auto, Manual

- AF-Zone: Up, Middle, Down

- AF-Sensitivity: High, Middle, Low

- 20 -

Page 21

NOISE REDUCTION

4. NOISE REDUCTION

======================== NR-2D 3 NR-3D 3 Dynamic Hot Pixel 3

- 2D Noise Reduction: Auto, Close, 1~7

- 3D Noise Reduction: Close, 1~8

- Dynamic Hot Pixel: Close, 1~5 Auto, Close, 1~7

[ ] Select [ ] Change Value [ MENU ] Back

3.3.4 P/T/Z

Move the arrow to the P/T/Z option in the Main Menu and click the HOME key to enter into the P/T/Z Settings Menu.

P/T/Z ======================== Depth of Field ON Zoom Speed 5 Image Freezing OFF Acc Curve Slow

- Speed by Zoom: Only effective for remote controller, On/Off;

- When zooming in, the PT control speed by remoter will become slow)

- Zoom Speed: Set the zoom speed for remote controller, 1~8

[ ] Select [ ] Change Value [ MENU ] Back

- Image Freezing: On/Off

- Accelerating Curve: Fast/slow

3.3.5 Video Format

Move the arrow to the VIDEO FORMAT option in the Main Menu and click the HOME key to enter into the VIDEO FORMAT Settings Menu.

VIDEO FORMAT ======================== 4KP60 4KP50 4KP30 4KP25 1080P60 1080P50

- Exiting the menu will save the modiﬁcation of the parameter. Restart device for parameter modiﬁcation to be enabled.

1080I60 1080I50 720P60 720P50

[ ] Select

[ MENU ] Back [ HOME ] OK

- 21 -

Page 22

3.3.6 Version

Move the arrow to the VERSION option in the Main Menu and click the HOME key to enter into the VERSION Settings Menu.

VERSION ======================== MCU Version 3.1.0 2019-11-23 Camera Version 1.0.0 2019-12-4 AF Version 1.0.0 2019-08-20

- MCU Version: Display MCU version information

- Camera Version: Display camera version information

- AF Version: Display the focus version information

3.3.7 Restore Default

Move the arrow to the RESTORE DEFAULT option in the Main Menu and click the HOME key to enter into the RESTORE DEFAULT Settings Menu.

RESTORE DEFAULT ======================== Restore Default? NO

- Restore default: Yes/No; (Color Style and Video Format cannot be restored to factory default.)

- Note: If the address of former remote is 2, 3, or 4, the corresponding camera address

[ ] Select [ ] Change Value [ MENU ] Back [ HOME ] OK

will restore to 1 when all parameters or system parameters are restored. User should change the remote address to be 1 (press No.1 according to the camera to get normal operation)

- 22 -

Page 23

4. Network Connection

4.1 Obtain Camera IP Address

The OTTICA is set to Auto DHCP, so you’ll need to obtain camera IP address before connecting to a networtk. See 2 common solutions to obtain the camera IP address.

Solution 1:

1. Connect the camera to a device that can automatically assign an IP address, such as routers and switches.

2. Use an IP Search Tool to search LAN segment, such as “192.168.5.0~192.168.5.255”. We suggest using “SoftPerfect Network Scanner” or “Advanced IP Scanner” software to get the search results.

3. Then search the results and refer to the MAC address pasted on the bottom of the camera to obtain the camera IP address.

Reference Image:

- 23 -

Page 24

Solution 2:

1. Connect the camera to devices that can automatically assign IP address, such as routers and switches.

2. Enter into the Management Interface of the router or switch and obtain the camera IP address with reference to the MAC address pasted on the bottom of the camera.

4.2 IE Log In

4.2.1 Web Client

Web Client Log In

- Input the camera IP address (the IP address you obtain through Search Tool) in the address ﬁeld of your browser and click the “Enter” button to proceed to the Web Client login page.

- 24 -

Page 25

- You can login as the administrator and normal user. If logging in as an administrator, ﬁll out the required ﬁelds with the following: Username: admin. Password: admin.

- Users can preview, playback, cancel, and conﬁgure in the Web Client; If logging in as a normal user, the default User name/Password is: user1 or user2. Users can only preview playback and cancel. There is no option for conﬁguration.

- The camera’s video feed should be visible and you can now perform PTZ control, video recording, playback, conﬁguration, and other operations.

4.2.2 Preview

- After successfully logging into the management interface, the video preview interface will become visible. In this interface, users can control pan, tilt, zoom, focus, video capture, sound, full screen, set the preset position, run, delete, and other operations.

Note: There are no conﬁguration rights for normal user login. To access the conﬁgurations

menu, you will need to login as Username: admin / Password: admin

4.2.3 Conﬁguration

- Click Conﬁguration to enter into the settings page.

- There are the following options: Audio Conﬁguration, Video Conﬁguration, Network Conﬁguration, System Conﬁguration.

4.2.4 Audio Conﬁguration

- Switch: Choose to enable the audio or not.

- Encoding Type: Set the audio compressing format and the device will reboot automatically after the change (default: AAC. optional: G.711A ﹠ MP3).

- Sample Rate: Set the sampling frequency and the device will reboot automatically after change (default: 48000; optional: 16000, 32000, 44100) (G.711A default: 8000)

- Sampling Bits: Set the sampling precision (Default: 16bits)

- Bit Rate: Set the audio compressing code rate (Default: 64kbps; Optional: 32, 48, 96, 128kbps)

- Input Volume: Set the volume level (default: 2; Optional: 1-10).

Note: Click “SAVE” and restart the device to enable the new settings.

4.2.5 Video Conﬁguration

1. Video Encoding

- Compression Format: Set the video compression format (main / secondary stream default: H.264. H.265 is optional)

- Proﬁle: Proﬁle Mode Setting (default is set to HP. BP ﹠ MP are optional)

- Video Resolution: Set video image resolution (main stream default 1920x1080. 3840x2160, 2592x1944, 2304x1296, 1920x1080,1280x720 are optional; default secondary stream 320*180. 640x360, 320x240, 640x480, 320x180, 1280x720 are optional)

- 25 -

Page 26

- Rate Control: Set rate control mode (main / secondary stream default variable bit rate, ﬁxed rate is for option).

- Image Quality: Set the image quality, image quality can be changed only when rate control is variable bit rate,(main stream defaulted is better, secondary stream default is not good, there are best, better, good, bad, worse, worst for options).

- Bit Rate (kbs): Set the video bit rate (main stream default 8192b/s. 64-40960Kb/s are optional; secondary stream default 512Kb/s. 64-40960Kb/s are optional).

- Frame Rate (fps): Set the video frame rate (main/ secondary stream default 25fps. main stream 5-60fps are optional, secondary stream 5-30fps are optional).

- Frame Interval: Set the key frame interval (main / secondary stream default 100. main stream 1-300F optional. secondary stream 1-150F optional).

- Frame Min QP: Set the key frame minimum QP (default 20)

- Stream Name: When streaming via RTSP or RTMP , user can modify stream name. Main Stream (live/av0), secondary stream (live/av1)

- Click the “Save” button to display the “saved successfully” message. The new settings will then be activated.

2. Stream Publish

- Switch: Turn on/off the main / secondary stream.

- Protocol Type: Primary / secondary stream applies RTMP protocol.

- Host Address: Server IP addresses (Default: 192.168.5.11)

- Host Port: Server port number (Default 1935: Optional: 0-65535)

- Stream Name: Choose a different stream name (live / av0, live / av1 optional).

- User Name: Set the user name.

- Password: Set the password.

- Click on the “Save” button to display the “Save successful” message. The new settings will then be activated.

- Method of obtaining RTSP: rtsp: // device IP address: 554 / live / av0 (av0 main stream; av1 secondary stream).

3. RTP Multicast

- Main/Sub Stream: On/Off

- Protocol: RTP or TS

- Address: Default 224.1.2.3. It can be edited.

- Port: Main Stream Default Port: 4000, Sub Stream Default Port: 4002

- Visit: Address comes up after setting. Eg; rtp: //224.1.2.3:4000; udp: //@224.1.2.3:4000

4. Video Parameters

A. Focus Settings

- Focus Mode: Auto (default); Manual (optional)

- Focus range: Middle (default); Upper, Lower (optional)

- Focus Sensitivity: Low (default), High, Medium (optional)

- 26 -

Page 27

B. Exposure

- Mode: Automatic (default), Manual, Shutter Priority (SAE), Aperture Priority (AAE), Brightness Priority.

- EV: Off (default), On (optional) Settings activated when Exposure Mode is set to Auto

- EV Value: 0 (default) -7 through 7 (optional); Settings activated when Exposure Mode is set to Auto

- BLC: Black Light Compensation Settings are activated only when Exposure Mode is set to Automatic (Default: OFF).

- Flicker: Anti-ﬂicker settings are activated only when Exposure Mode is set to Automatic (Default: 50Hz. Optional: Off ﹠ 60Hz).

- Gain Limit: Gain limit setting are activated only when status is set to AAE or Brightness Priority (Default: 4; Optional: 0-15).

- Dynamic Range: (Default: 4; Optional: 1-8).

- Shutter Speed: Settings are activated only when Exposure Mode is set to Manual or Shutter-Priority (Default:1/100. Optional: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000,1/3000, 1/4000, 1/6000, 1/10000).

- Iris: Settings are activated only when Exposure Mode is set to Manual or AAE (Default: F1.8; Optional: Closed, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, and F2.0).

- Brightness: Settings are activated only when Exposure Mode is set to Brightness Priority (Default: 7; Optional: 0-23).

C. Color

- White Balance Mode: (Default: Automatic; Optional: 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6500K, 7000K, Manual, One-push)

Note: Click the “Correction” button when selecting the One-push white balance mode.

- RG Tuning: Red Gain Tuning settings are activated only when WB mode is set to Automatic (Default: -10; Optional: -9~10)

- BG Tuning: Blue Gain Tuning settings are activated only when WB mode is set to Automatic (Default: -10; Optional: -9~10)

- Saturation: (Default: 60%; Optional: 70%, 80%, 90%, 100%, 110%, 120%, 130%, 140%, 150%, 160%, 170%, 180%, 190%, 200%).

- Auto White Balance Sensitivity: (Default: Low; Optional: High ﹠ Medium).

- Chroma: (Default: 7; Optional: 0-14).

- Red Gain: Red Gain settings are activated only when WB mode is set to Manual (Default: 255; Optional: 0-255).

- Blue Gain: Blue Gain settings are activated only when WB mode is set to Manual (Default: 199; Optional: 0-255).

- AWB Sensitivity: (Default: High; Optional: Low ﹠ Medium)

D. Image

- Brightness: (Default: 7; Optional: 0-14).

- Contrast: (Default: 7; Optional: 0-14).

- Sharpness: (Default: 6; Optional: 0-15).

- 27 -

Page 28

- Gamma: (Default: 0.45; Optional: 0.50, 0.55, 0.63).

- DCI (Dynamic Contrast): (Default: OFF; Optional: 1-8)

- Black and White Mode: (Default: Color; Optional: Black ﹠White).

- Auto Flip: (Default: OFF; Optional: ON)

- Flip Horizontal: (Default: OFF; Optional: ON)

- Flip Vertical: (Default: OFF; Optional: ON).

- DZoom (Digital Zoom): (Default: OFF; Optional: ON).

E. Noise Reduction

- 2D Noise Reduction: (Default: AUTO; Optional: 1-7 and OFF).

- 3D Noise Reduction: (Default: 5; Optional: 1-8 and OFF).

- Dynamic Dead Pixel Correction: (Default: OFF; Optional: 1-5).

Note: Click “Refresh” to make revision of any video parameters of a, b, c, d, e effective.

4. Character-Overlapping

- Display Date and Time: Set whether to display the time and date (default display).

- Display Title: Set whether to display the title (default display).

- Font Color of Time: (Default: White; Optional: Black, Yellow, Red, Blue).

- Font Color of Title: (Default: White; Optional: Black, Yellow, Red, Blue).

- Moving Characters: You can set the display position of moving date, time and title, click on the “Up, Down, Left, Right” buttons to move the corresponding character position.

- Title Content: You can set Title Content (default is set to CAMERA1).

- Time Content: You can set Time Content (default is set to 1970/01/10 05:36:00).

- After clicking on the “Save” button, the “Save Successful” message will be displayed. Your selected time settings will now be visible.

5. Character Size

- Main stream character size: Set the character size of the display, the device will restart automatically after changed and saved (Default: 48; Optional: 28-200).

- Secondary stream character size: You can set the Character Size on the display. The device will restart automatically after changed and saved (Default: 48; Optional: 28-

200).

- After clicking on the “Save” button, the conﬁguration will be validated when you see the “Parameter Saved Successfully” message displayed.

6. Video Output

- Output formats: 3840x2160P60, 3840x2160P50, 3840x2160P30, 3840x2160P25

1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50

- Click on the “Save” button to enable video output resolution ﹠ frame rate.

- 28 -

Page 29

4.2.6 Network Conﬁguration

1. Network Port

- Data port: Set the Data Port. The device will restart automatically after it’s changed (Default: 3000; Optional: 0-65535).

- Web Port: Set the Web Port. The device will restart automatically after changed (Default: 80; Optional: 0-65535).

- Onvif Port: Set the Onvif Port. The device will restart automatically after changed (Default: 2000; Optional: 0-65535).

- Soap Port: Set the Soap Port (Default: 1936; Optional: 0-65535).

- RTMP Port: Set the RTMP Port (Default: 1935; Optional: 0-65535).

- RTSP Port: Set the RTSP Port. The device will restart automatically after changed (Default: 554; Optional: 0-65535).

- Visca Port: Set the Visca Port. The device will restart automatically after changed (Default: 1259; Optional: 0-65535).

- RTSP Obtaining method: rtsp: // device IP address: 554 / live / av0 (av0 main stream; av1 secondary stream)

- RTMP Obtaining method: rtmp: // device IP address: 1935 / live / av0 (av0 main stream; av1 secondary stream)

2. Ethernet Parameters

- DHCP: Enable or disable the option to obtain IP automatically. By clicking on the “Save” button and rebooting the device, a display saying “Save successful” will be shown. (Default is set to ON).

- IP Address: You can set the IP Address. By clicking on the “Save” button and rebooting the device, a display saying “Save successful” will be shown. (Default is now set to

192.168.5.163).

Note: This IP address is the same with the one used to login to the web page..

- Subnet Mask: You can set the Subnet Mask (Default is set to 255.255.5.0).

- Default Gateway: You can set the Default Gateway (Default is set to 0.0.0.0). - Physical Address: You can set the Physical Address (The parameter is read-only and can not be modiﬁed).

- By clicking on the “Save” button, the conﬁguration will be validated when you see the display message: “Save successful”

3. DNS Parameters

- Preferred DNS Server: You can set the preferred DNS server (Default is set to 0.0.0.0).

- Alternate DNS Server: Alternate DNS server settings (Default is set to 0.0.0.0).

- By clicking on the “Save” button, the conﬁguration will be validated when you see the display message: “Save successful”.

- 29 -

Page 30

4. NDI

- Switch: Set NDI funcion on or off. NDI Name: User can change the NDI Name NDI Group: User can change the NDI Group

- By clicking on the “Save” button, the conﬁguration will be validated when you see the display message: “Save successful”.

4.2.7 System Conﬁguration

1. Device Properties

- Device Name: Set the device name (Default is Camera1. User can create their own).

- Device ID: Set the device ID (default is set to 1. Read-Only).

- System Language: Set the system language (Default: English; Optional: Simpliﬁed Chinese). Re-login after modiﬁcation and save the setting.

- By clicking on the “Save” button, the conﬁguration will be validated when you see the display message: “Save successful”.

2. System Time

- Date Format: Set the Date Format (YYYY-MM-DD).

- Date Separator: (Default: “/” Optional: “.” and “-”).

- Time Zone: Set the Time Zone.

- Time Type: (Default: 24 hours; Optional: 12 hours.

- Time Setting: Set the Time Mode (to choose the computer time synchronization, NTP server time synchronization, or set manually).

- Computer Time: Set the time by synchronizing with your computer time.

- Update Interval: Set the NTP server to automatically update the time interval. Valid after setting NTP server synchronization (Default: One Day; Optional: 2-10 days).

- NTP Server Address or Domain Name: Set the NTP server address or domain name (default time.nits.gov). Valid after setting NTP server synchronization.

- NTP Server Port: Set the NTP server port (Default: 123). Valid after setting NTP server synchronization. - Set the time manually. Effective when set manually.

- By clicking on the “Save” button, the conﬁguration will be validated when you see the display message: “Save successful”.

- 30 -

Page 31

3. User Management

- Select Users: You can set the User Type (the default is set to Administrator. Common User 1, Common User 2 are optional)

- User name: You can set the User Name (Select User Administrator default admin; select a common user1 default user1; to select a common user 2 default user2; user can modify their own)

- Password: You can set a Password (Select User Administrator default admin; select a common user1 default user1; to select a common user 2 default user2; user can modify their own).

- Password Conﬁrmation: Conﬁrm the input passwords are identical.

- By clicking on the “Save” button, the conﬁguration will be validated when you see the display message: “Save successful”.

Note: User name and Password are case-sensitive.

4. Version Upgrade

- MCU Version: Displays MCU Version Information

- Camera Version: Displays Camera Version Information

- AF Version: Displays AF Version Information

- Update: Click “Browse ...” installation, to select the upgrade ﬁle in the pop-up window. Once you’ve selected the ﬁle, click on the “Upgrade” button. The upgrade dialog will appear and the device will reboot automatically after the update is successful. Make sure the power and network remains connected during the upgrading process.

Note: If you need to restore factory defaults, choose one of the three options: A. Through web to restore the factory default conﬁguration. B. Through the recovery menu. C. Remote control shortcut: * # 6.

5. Restore Factory Setting

- Click on “Restore Factory Defaults” button and choose “yes” or “no”, then the device will restart automatically and restore factory setting.

6. Reboot

- Click on the “Reboot” button and choose “yes” or “no”.

- The device will restart automatically.

- 31 -

Page 32

4.2.8 Logout

Click “Logout.” When the pop-up “Conﬁrmation” dialog appears, select “Yes” or “No”. Choose “Yes” to exit the current page and return to the user login interface again.

5. Serial Communication Control

The OTTICA 4K can be controlled through RS232/RS485 interface; RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None

5.1 VISCA Protocol List

5.1.1 VISCA Protocol Return Command

ACK/Completion Message

Command Packet Note

ACK z0 41 FF Returned when the command is accepted.

Completion z0 51 FF Returned when the command has been executed.

Error Messages

Command Packet Note

Syntax Error z0 60 02 FF Returned when the command format is different or

when a command with illegal command parameters is accepted

Command Not Executable

z0 61 41 FF Returned when a command cannot be executed due

to current conditions. For example,when commands controlling the focus manually are received during auto focus.

- 32 -

Page 33

5.1.2 VISCA Protocol Control Command

Command Function Command Packet Notes

AddressSet Broadcast 88 30 0p FF p: Address setting

IF_Clear Broadcast 88 01 00 01 FF I/F Clear

CommandCancel 8x 21 FF

CAM_Power

On 8x 01 04 00 02 FF

Off 8x 01 04 00 03 FF

Power ON/OFF

Stop 8x 01 04 07 00 FF

CAM_Zoom

Tele(Standard)

Wide(Standard)

Tele(Variable) 8x 01 04 07 2p FF

Wide(Variable)

Direct

8x 01 04 07 02 FF

8x 01 04 07 03 FF

8x 01 04 07 3p FF

8x 01 04 47 0p 0q 0r 0s FF

p = 0(low) - F(high)

pqrs: Zoom Position

Stop 8x 01 04 08 00 FF

Far(Standard) 8x 01 04 08 02 FF

Near(Standard)

8x 01 04 08 03 FF

Far(Variable) 8x 01 04 08 2p FF

p = 0(low) - F(high)

pqrs: Focus Position

CAM _Focus

Near (Variable)

Direct

8x 01 04 08 3p FF

8x 01 04 48 0p 0q 0r 0s FF

Auto Focus 8x 01 04 38 02 FF

One Push Mode

Manual Focus

CAM _Zoom Focus Direct

8x 01 04 38 04 FF

8x 01 04 38 03 FF

8x 01 04 47 0p 0q 0r 0s 0t 0u 0v 0w FF

pqrs: Zoom Position tuvw: Focus Position

- 33 -

Page 34

Command Function Command Packet Notes

Auto 8x 01 04 35 00 FF

3000K 8x 01 04 35 01 FF

CAM_WB

4000k 8x 01 04 35 02 FF

One Push Mode

8x 01 04 35 03 FF

5000k 8x 01 04 35 04 FF

Manual 8x 01 04 35 05 FF

6500k 8x 01 04 35 06 FF

3500K 8x 01 04 35 07 FF

CAM-WB (continued)

4500K 8x 01 04 35 08 FF

5500K 8x 01 04 35 09 FF

6000K 8x 01 04 35 0A FF

7000K 8x 01 04 35 0B FF

Reset 8x 01 04 03 00 FF

Manual Control of R GainUp 8x 01 04 03 02 FF

CAM _RGain

Down 8x 01 04 03 03 FF

Direct

8x 01 04 43 00 00 0p 0q FF

pq: R Gain

Reset 8x 01 04 04 00 FF

Manual Control of B GainUp 8x 01 04 04 02 FF

CAM_ Bgain

Down 8x 01 04 04 03 FF

Direct

8x 01 04 44 00 00 0p 0q FF

pq: B Gain

Full Auto 8x 01 04 39 00 FF Automatic Exposure mode

Manual 8x 01 04 39 03 FF Manual Control mode

CAM_AE

Shutter priority

8x 01 04 39 0A FF

Iris Priority 8x 01 04 39 0B FF

Shutter Priority Automatic Exposure mode

Iris Priority Automatic Exposure mode

Bright 8x 01 04 39 0D FF Bright mode

Reset 8x 01 04 0A 00 FF

Shutter SettingUp 8x 01 04 0A 02 FF

CAM_Shutter

Down 8x 01 04 0A 03 FF

Direct

8x 01 04 4A 00 00 0p 0q FF

pq: Shutter Position

- 34 -

Page 35

Command Function Command Packet Notes

Reset 8x 01 04 0B 00 FF

Iris SettingUp 8x 01 04 0B 02 FF

CAM_Iris

Down 8x 01 04 0B 03 FF

Direct

8x 01 04 4B 00 00 0p 0q FF

pq: Iris Position

CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon

Reset 8x 01 04 0D 00 FF

Bright SettingUp 8x 01 04 0D 02 FF

CAM_Bright

Down 8x 01 04 0D 03 FF

Direct

8x 01 04 4D 00 00 0p 0q FF

On 8x 01 04 3E 02 FF

Off 8x 01 04 3E 03 FF

pq: Bright Positon

Exposure Compensation ON/OFF

Reset 8x 01 04 0E 00 FF

CAM_ExpComp

Up 8x 01 04 0E 02 FF

Exposure Compensation Amount Setting

Down 8x 01 04 0E 03 FF

8x 01 04 4E 00 00 0p 0q FF

pq: ExpComp Position

Back Light Compensation

CAM_Back Light

Direct

On 8x 01 04 33 02 FF

Off 8x 01 04 33 03 FF

Reset 8x 01 04 21 00 FF

WDR Level SettingUp 8x 01 04 21 02 FF

CAM_WDRStrength

Down 8x 01 04 21 03 FF

Direct

8x 01 04 51 00 00 00 0p FF

p: WDR Level Positon

CAM_NR (2D) 8x 01 04 53 0p FF P=0-7 0:OFF

CAM_NR (3D) 8x 01 04 54 0p FF P=0-8 0:OFF

p = 0 – 4 0: Default

CAM_Gamma 8x 01 04 5B 0p FF

1: 0.45 2: 0.50 3: 0.55 4: 0.63

OFF 8x 01 04 23 00 FF OFF

CAM_Flicker

50HZ 8x 01 04 23 01 FF 50HZ

60HZ 8x 01 04 23 02 FF 60HZ

- 35 -

Page 36

Command Function Command Packet Notes

Reset 8x 01 04 02 00 FF

Aperture ControlUp 8x 01 04 02 02 FF

CAM_Aperture

Down 8x 01 04 02 03 FF

Direct

8x 01 04 42 00 00 0p 0q FF

pq: Aperture Gain

Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0

CAM_Memory

CAM_LR_Reverse

CAM_PictureFlip

Set 8x 01 04 3F 01 pq FF

Recall 8x 01 04 3F 02 pq FF

On 8x 01 04 61 02 FF

Off 8x 01 04 61 03 FF

On 8x 01 04 66 02 FF

Off 8x 01 04 66 03 FF

to 254) Corresponds to 0 to 9 on the Remote Commander

Image Flip Horizontal ON/ OFF

Image Flip Vertical ON/OFF

P=0-14 0:60% 1:70% 2:80% 3:90% 4:100% 5:110%

CAM_ColorSaturation Direct

8x 01 04 49 00 00 00 0p FF

6:120% 7:130% 8:140% 9:150% 10:160% 11:160% 12:180% 13:190% 14:200%

CAM_IDWrite

SYS_Menu

IR_Receive

IR_ReceiveReturn

8x 01 04 22 0p 0q 0r 0s FF

ON 8x 01 04 06 06 02 FF Turn on the menu screen

OFF 8x 01 04 06 06 03 FF Turn off the menu screen

ON 8x 01 06 08 02 FF

OFF 8x 01 06 08 03 FF

Off

8x 01 7D 01 03 00 00 FF

8x 01 7D 01 13 00 00 FF

pqrs: Camera ID (=0000 to FFFF)

IR (remote commander) receive On/Off

IR(remote commander) receive message via the VISCA communication ON/ OFF

CAM_SettingvReset Reset 8x 01 04 A0 10 FF Reset Factory Setting

CAM_Brightness Direct

CAM_Contrast Direct

8x 01 04 A1 00 00 0p 0q FF

8x 01 04 A2 00 00 0p 0q FF

pq: Brightness Position

pq: Contrast Position

- 36 -

Page 37

Command Function Command Packet Notes

OFF 8x 01 04 A4 00 FF

CAM_Flip

Flip-H 8x 01 04 A4 01 FF

Flip-V 8x 01 04 A4 02 FF

Single Command For Video Flip

Flip-HV 8x 01 04 A4 03 FF

P: 0~E Video Format 0:1080P60 5:720P50 1:1080P50 6:1080P30 2:1080i60 7:1080P25 3:1080i50 8:720P30 4:720P60 9:720P25 A: 1080P59.94

CAM_VideoSystem

Set camera video system

8x 01 06 35 00 0p FF

B: 1080i59.94 C: 720P59.94 D: 1080P29.97 E: 720P29.97

8x 01 06 01 VV WW 03 01 FF

8x 01 06 01 VV WW 03 02 FF

8x 01 06 01 VV WW 01 03 FF

8x 01 06 01 VV WW 02 03 FF

8x 01 06 01 VV WW 01 01 FF

8x 01 06 01 VV WW 02 01 FF

8x 01 06 01 VV WW 01 02 FF

8x 01 06 01 VV WW 02 02 FF

8x 01 06 01 VV WW 03 03 FF

8x 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

VV: Pan speed 0x01 (low speed) to 0x18 (high speed) WW: Tilt speed 0x01 (low speed) to 0x14 (high speed) YYYY: Pan Position ZZZZ: Tilt Position

Pan_tiltDrive

Down

Left

Right

Upleft

Upright

DownLeft

DownRight

Stop

AbsolutePosition

- 37 -

Page 38

Command Function Command Packet Notes

Pan_tiltDrive (continued)

RelativePosition

8x 01 06 03 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

Home 8x 01 06 04 FF

VV: Pan speed 0x01 (low speed) to 0x18 (high speed) WW: Tilt speed 0x01 (low speed) to 0x14 (high speed) YYYY: Pan Position

Pan-tiltLimitSet

Reset 8x 01 06 05 FF

8x 01 06 07 00 0W

Set

0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

8x 01 06 07 01 0W

Clear

07 0F 0F 0F 07 0F 0F 0F FF

ZZZZ: Tilt Position

W:1 UpRight 0:DownLeft YYYY: Pan Limit Position(TBD) ZZZZ: Tilt Limit Position(TBD)

5.1.3 Inquiry Command

Command Function Command Packet Notes

CAM_PowerInq 8x 09 04 00 FF

y0 50 02 FF On

y0 50 03 FF Off(Standby)

CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position

y0 50 02 FF Auto Focus

CAM_FocusAFModeInq 8x 09 04 38 FF

y0 50 03 FF Manual Focus

y0 50 04 FF One Push Mode

CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position

y0 50 00 FF Auto

y0 50 01 FF 3000K

y0 50 02 FF 4000K

y0 50 03 FF One Push Mode

y0 50 04 FF 5000K

y0 50 05 FF Manual

CAM_WBModeInq 8x 09 04 35 FF

y0 50 00 FF 6500K

y0 50 06 FF 6500K

y0 50 07 FF 3500K

y0 50 08 FF 4500K

y0 50 09 FF 5500K

y0 50 0A FF 6000K

y0 50 0B FF 7000K

- 38 -

Page 39

Command Function Command Packet Notes

CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain

CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain

y0 50 00 FF Full Auto

y0 50 03 FF Manual

CAM_AEModeInq 8x 09 04 39 FF

y0 50 0A FF Shutter Priority

y0 50 0B FF Iris Priority

y0 50 0D FF Bright

CAM_ShutterPosInq

CAM_IrisPosInq

CAM_Gain LimitInq

CAM_ BrightPosiInq

CAM_ExpCompModeInq 8x 09 04 3E FF

8x 09 04 4A FF

8x 09 04 4B FF

8x 09 04 2C FF

8x 09 04 4D FF

y0 50 00 00 0p 0q FF pq: Shutter Position

y0 50 00 00 0p 0q FF pq: Iris Position

y0 50 0p FF p: Gain Positon

y0 50 00 00 0p 0q FF pq: Bright Position

y0 50 02 FF On

y0 50 03 FF Off

CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position

CAM_BacklightModeInq 8x 09 04 33 FF

y0 50 02 FF On

y0 50 03 FF Off

CAM_WDRStrengthInq 8x 09 04 51 FF y0 50 00 00 00 0p FF p: WDR Strength

CAM_NRLevel(2D) Inq 8x 09 04 53 FF y0 50 0p FF P: 2DNRLevel

CAM_NRLevel(3D) Inq 8x 09 04 54 FF y0 50 0p FF P:3D NRLevel

CAM_FlickerModeInq 8x 09 04 55 FF y0 50 0p FF

p: Flicker Settings(0: OFF,1: 50Hz,2:60Hz)

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain

CAM_PictureEffectModeInq 8x 09 04 63 FF

CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF

SYS_MenuModeInq 8x 09 06 06 FF

CAM_LR_ReverseInq 8x 09 04 61 FF

y0 50 00 FF Off

y0 50 04 FF B﹠W

p: Memory number last operated.

y0 50 02 FF On

y0 50 03 FF Off

y0 50 02 FF On

y0 50 03 FF Off

- 39 -

Page 40

Command Function Command Packet Notes

CAM_PictureFlipInq 8x 09 04 66 FF

y0 50 02 FF On

y0 50 03 FF Off

p: Color Gain setting

CAM_ColorSaturationInq 8x 09 04 49 FF y0 50 00 00 00 0p FF

0h (60%) to Eh (130%)

CAM_IDInq 8x 09 04 22 FF y0 50 0p FF p: Gamma ID

IR_ReceiveInq 8x 09 06 08 FF

y0 50 02 FF On

y0 50 03 FF Off

y0 07 7D 01 04 00 FF Power ON/OFF

y0 07 7D 01 04 07 FF Zoom tele/wide

IR_ReceiveReturn

y0 07 7D 01 04 38 FF AF ON/OFF

y0 07 7D 01 04 33 FF Camera _Backlight

y0 07 7D 01 04 3F FF Camera _Memery

y0 07 7D 01 06 01 FF Pan_titleDriver

CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF

pq: Brightness Position

CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position

y0 50 00 FF Off

CAM_FlipInq 8x 09 04 A4 FF

y0 50 01 FF Flip-H

y0 50 02 FF Flip-V

y0 50 03 FF Flip-HV

CAM_GammaInq

8x 09 04 5B FF

y0 50 0p FF p: Gamma setting

ab cd:

- vendor ID ( 0220) mn pq:

- model ID ST (0950) U3 (3950) rs tu:

CAM_VersionInq 8x 09 00 02 FF

y0 50 ab cd mn pq rs tu vw FF

- ARM Version vw:

- Reserve

- 40 -

Page 41

Command Function Command Packet Notes

P: 0~E Video format 0:1080P60 1:1080P50 2:1080i60 3:1080i50 4:720P60 5:720P50

VideoSystemInq 8x 09 06 23 FF y0 50 0p FF

Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF

Pan-tiltPosInq 8x 09 06 12 FF

Note: [X] in the above table indicates the camera address to be operated, [ y ] = [ x + 8 ].

y0 50 0w 0w 0w 0w 0z 0z 0z 0z FF

6:1080P30 7:1080P25 8:720P30 9:720P25 A: 1080P59.94 B: 1080i59.94 C: 720P59.94 D: 1080P29.97 E: 720P29.97

ww: Pan Max Speed zz: Tilt Max Speed

wwww: Pan Position zzzz: Tilt Position

5.2 Pelco-D Protocol Command List

Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7

Up 0xFF Address 0x00 0x08 Pan Speed Tilt Speed SUM

Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed SUM

Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed SUM

Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed SUM

Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed SUM

Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed SUM

DownLeft 0xFF Address 0x00 0x14 Pan Speed Tilt Speed SUM

DownRight 0xFF Address 0x00 0x12 Pan Speed Tilt Speed SUM

Zoom In 0xFF Address 0x00 0x20 0x00 0x00 SUM

Zoom Out 0xFF Address 0x00 0x40 0x00 0x00 SUM

Focus Far 0xFF Address 0x00 0x80 0x00 0x00 SUM

Focus Near 0xFF Address 0x01 0x00 0x00 0x00 SUM

- 41 -

Page 42

Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7

Set Preset 0xFF Address 0x00 0x03 0x00 Preset ID SUM

Clear Preset 0xFF Address 0x00 0x05 0x00 Preset ID SUM

Call Preset 0xFF Address 0x00 0x07 0x00 Preset ID SUM

Query Pan Position

Query Pan Position Response

Query Tilt Position

Query Tilt Position Response

Query Zoom Position

Query Zoom Position Response

0xFF Address 0x00 0x51 0x00 0x00 SUM

0xFF Address 0x00 0x59

0xFF Address 0x00 0x53 0x00 0x00 SUM

0xFF Address 0x00 0x5B

0xFF Address 0x00 0x55 0x00 0x00 SUM

0xFF Address 0x00 0x5D

Value High Byte

Value Low Byte

SUM

5.3 Pelco-P Protocol Command List

Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8

Up 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF XOR

Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF XOR

Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF XOR

Right 0xA0 Address 0x00 0x02 Pan Speed Tilt Speed 0xAF XOR

Upleft 0xA0 Address 0x00 0x0C Pan Speed Tilt Speed 0xAF XOR

Upright 0xA0 Address 0x00 0x0A Pan Speed Tilt Speed 0xAF XOR

DownLeft 0xA0 Address 0x00 0x14 Pan Speed Tilt Speed 0xAF XOR

DownRight 0xA0 Address 0x00 0x12 Pan Speed Tilt Speed 0xAF XOR

Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF XOR

Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF XOR

Focus Far 0xA0 Address 0x01 0x00 0x00 0x00 0xAF XOR

Focus Near 0xA0 Address 0x02 0x00 0x00 0x00 0xAF XOR

- 42 -

Page 43

Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8

Set Preset 0xA0 Address 0x00 0x03 0x00 Preset ID 0xAF XOR

Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF XOR

Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF XOR

Query Pan Position

Query Pan Position Response

Query Tilt Position

Query Tilt Position Response

Query Zoom Position

Query Zoom Position Response

0xA0 Address 0x00 0x51 0x00 0x00 0xAF XOR

0xA0 Address 0x00 0x59

0xA0 Address 0x00 0x53 0x00 0x00 0xAF XOR

0xA0 Address 0x00 0x5B

0xA0 Address 0x00 0x55 0x00 0x00 0xAF XOR

0xA0 Address 0x00 0x5D

Value High Byte

Value Low Byte

0xAF XOR

6. Camera Maintenance and Troubleshooting

6.1 Camera Maintenance

1. If the camera hasn’t been used for long time, please turn off the power adapter switch and AC plug.

2. Use a soft cloth or tissue to clean the camera cover.

3. Use soft cloth to clean the lens. Do not use strong or corrosive cleanser and avoiding scufﬁng.

6.2 Troubleshooting

1. No Video Output

A. Check whether the camera power supply is connected, that the voltage is normal, and

that the power indicator is lit. B. Check to see if the camera performs the self-inspection after restarted. C. Check whether the bottom of the DIP switch is in the normal operating mode D. Check whether the video output cable or video display is normal.

- 43 -

Page 44

2. Image Dithering When Zooming In or Out

A. Check whether the camera installation position is solid. B. Whether there is a shaking machine or objects around the camera.

3. Remote Controller Not Working

A. The remote control address could be set to 1 (if the has been set back to the factory

defaults, the remote control addresses need to be set back to 1 also). B. Check if the batteries are low or if they are installed properly in the remote controller. C. Check if the camera working mode is the normal operating mode D. Check whether the menu is closed. Camera control through the remote controller is only

available after exiting the menu. If video is being output from LAN, the menu will not be

displayed. After the menu automatically exists 30 seconds later, it can be controlled by

remote controller.

4. Serial Port Not Working

A. Check if the camera serial device protocol, baud rate, and address are all consistent. B. Check if the control cable is connected properly. C. Check if the camera working mode is in the normal operating mode

5. Web Page Not Logging In

A. Check if the camera outputs video normally by connecting directly to the screen or

monitor. B. Check whether the network cable is connected properly. (Ethernet port ﬂashes yellow

light to indicate normal network cable connection). C. Check if your camera’s IP address is consistent with the computer network segment.

- 44 -

Page 45

Learn More at www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period is expired.

Free service will not be provided in the Following Situations: (*Even if the

product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

- 45 -
