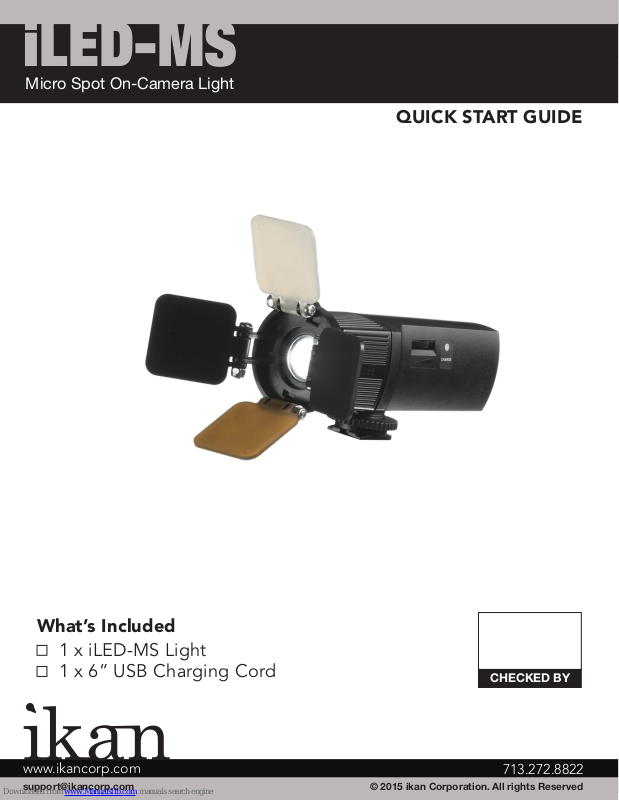

iLED-MS
Micro Spot On-Camera Light
QUICK START GUIDE
What’s Included
1 x iLED-MS Light
1 x 6” USB Charging Cord
www.ikancorp.com
CHECKED BY
713.272.8822
713.272.8822
Page 2
Getting Started:
1.
2. 3.
1. Power charging port is located on the base of the light, directly about ON/OFF switch.
2. The barndoor attachment for this light is unique because of it’s multiple types of “doors”. There are two standard
doors, one diffusion door, and one CTO (Color Temperature Orange). Not to mention how easy it is to remove
and attach.
3. Cold Shoe mount allows for easy and secure set up.
Power Charging Port
ON/OFF Switch
Barndoor Attachment can
be removed by twisting a
quarter-turn to the right
Cold Shoe Mount w/
¼-20 Receiver Mount
Specifications
Beam Angle
Build Material
Control
Cooling System
Fixture Size
Fixture Weight
Focusing
Head Type
Lens
Light Source
Mount
Operating Volts
Operating Wattage
Power Supply
Shipping Dimensions
Shipping Weight
30° @ 3 ft
Heavy Duty Plastic
Dimming Knob
Passive
5” x 2” x 2”
4.5 oz
N/A
5600K Daylight
30 degrees
4 watt LED
Camera Shoe Mount
5v
5 watts
5v @ 1A USB Mini
5” x 5” x 5”
1 lbs
www.ikancorp.com
Page 3
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2015 ikan Coporation. All rights reserved
