Page 1
iLED312-v2

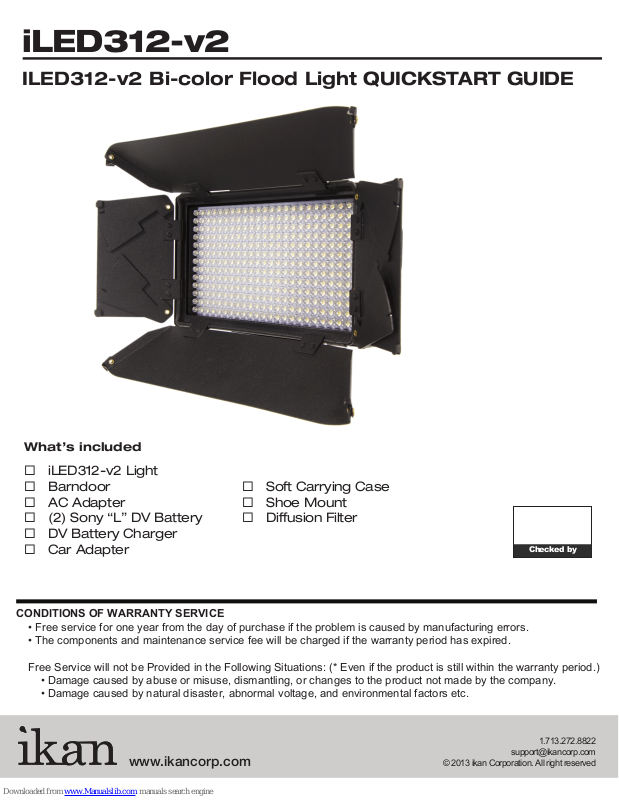

ILED312-v2 Bi-color Flood Light QUICKSTART GUIDE
What’s included
iLED312-v2 Light
Barndoor Soft Carrying Case
AC Adapter Shoe Mount
(2) Sony “L” DV Battery Diffusion Filter
DV Battery Charger
Car Adapter
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
Checked by
www.ikancorp.com
1.713.272.8822
© 2013 ikan Corporation. All right reserved
Page 2
iLED312-v2
ILED312-v2 Bi-color Flood Light QUICKSTART GUIDE
Wide Angle LEDs
1
Diffusion Filter
2
Warning:
!
• Do not block the vents or look directly at the
LED light while its on.
• The body of the light might get hot, after
prolong use.
1
Release Knob
3
4
Battery Release
5
Variable Color Temperature
6
LCD Display
DV Power
7
8
Built-In Dimmer
9
Barndoors
2
3200K <
5600K
DC7.4 14.8V
10% <
%
100
3
4
5
6 7
8
9
www.ikancorp.com 713-272-8822
Page 3
iLED312-v2
ILED312-v2 Bi-color Flood Light QUICKSTART GUIDE
Barndoor Slide
Diffuser Slide
Barndoor
Diffuser
Release Knob
ATTACHING THE BARNDOOR
The iLED312-v2 light can attach quickly and easily to barndoors. Simply slide the barndoor along the
diffuser slide until it locks into place. To release, pull down the knob and slide the barndoor out.
www.ikancorp.com 713-272-8822
Page 4
iLED312-v2
ILED312-v2 Bi-color Flood Light QUICKSTART GUIDE
T-Slot
T-Slot
T-SLOT
The iLED312-v2 light features T-slots on both the top and bottom and on the sides for easy attachment
of multiple 312 lights.
SPECIFICATIONS:
Bulb Type: 312 LEDs
Brightness: 6800 lux / 50cm
Color Temperature: 3200 K - 5600 K
Voltage: 7.4V-14.8V
Weight (kg): 0.35
Dimension (mm): 190 x 115 x 35
www.ikancorp.com 713-272-8822
