IFD576

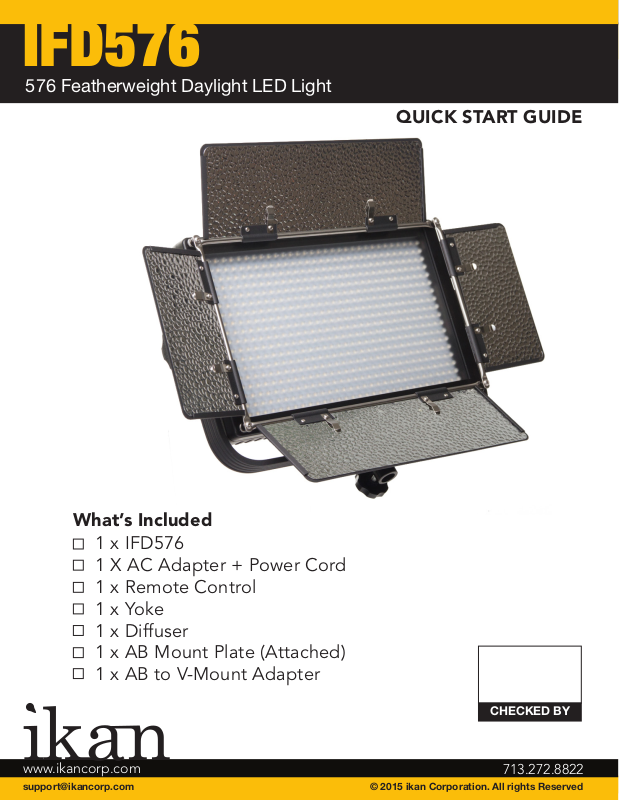

576 Featherweight Daylight LED Light
QUICK START GUIDE
What’s Included
1 x IFD576
1 X AC Adapter + Power Cord
1 x Remote Control
1 x Yoke
1 x Diffuser
1 x AB Mount Plate (Attached)
1 x AB to V-Mount Adapter
CHECKED BY
www.ikancorp.com
713.272.8822
713.272.8822
Page 2
IFD576
Getting Started
1. Connect the included AC Adapter to power the IFD576 light.
2. Turn the light on/off with the power switch.
3. Control the amount of light with the dimmer knob. Adjust the intensity of the
light by turning the dimmer knob clock-wise to increase the intensity, and counter
clock-wise to reduce it.
4. The IFD576 can also be powered by pro battery.
Pro Battery Plate
Diffuser Lock
Yoke
www.ikancorp.com
MADE IN CHINA
IFD576
Model: LED576AL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
1234
1
GND
-
2,3
4
+12V
Do not block the vents or look directly
at the LED lights while its on.
10%Y 100%
POW
LCD Touch
Screen
Yoke
Adjustment
Knob
Power
Switch
OFF
ON
ER
DC
12V
DC Power
Connection
www.ikancorp.com
Brightness
Page 3
IFD576
Specifications

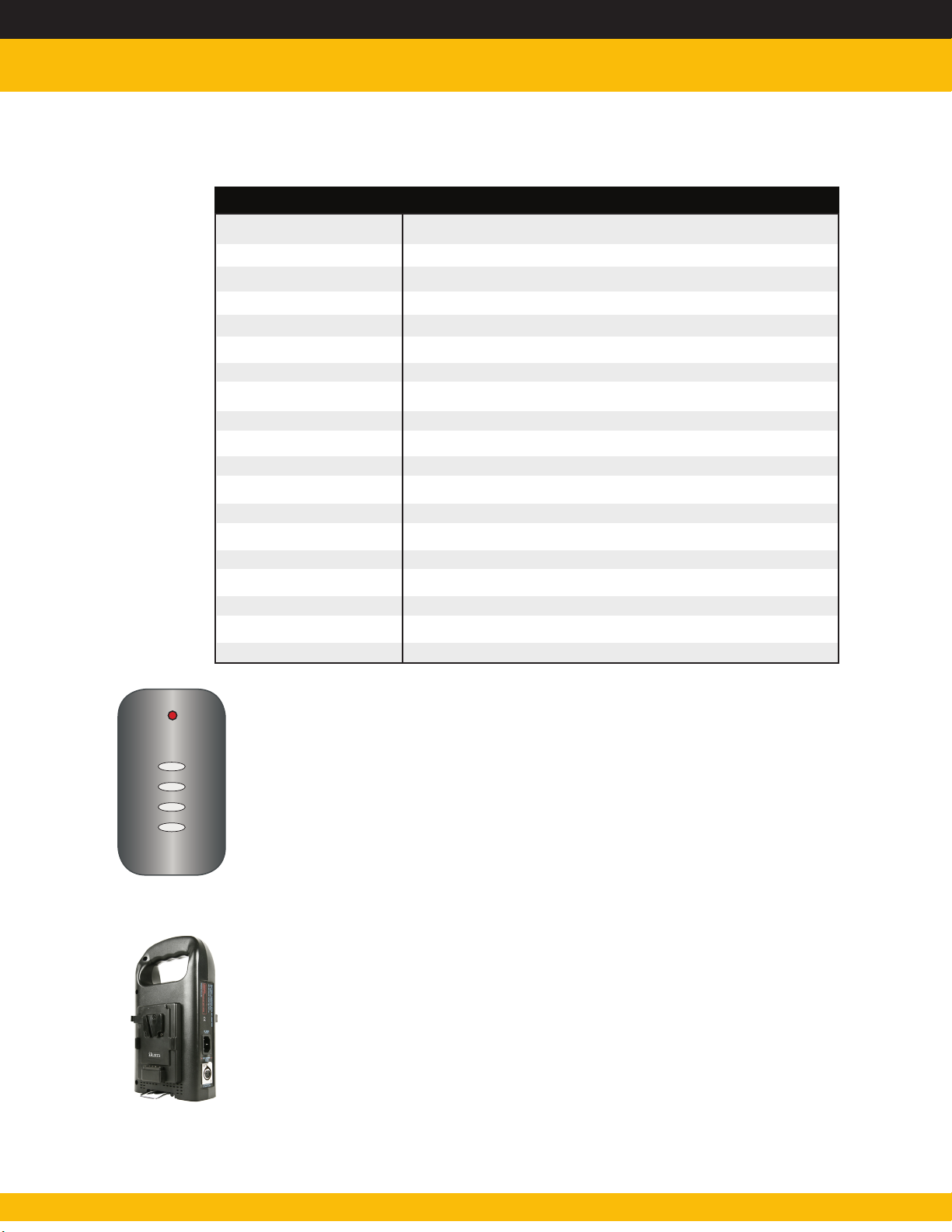

Product Specs
Beam Angle
Build Material
Control
Cooling System
Dimensions
Dimming
Focusing
Foot Candles
Head Type
Lens
Light Source
Mount
Operating Volts
Power Supply
Rating
Yoke
Fixture Size
Fixture Weight
Shipping Weight
60°
Heavy Duty Plastic
Local Knob & Touchscreen
Passive Cooling
13.5” x 8.5” x 2.75”
0-100%
NO
520.6
Daylight
60° Lens
576 0.06 watt LED @5600K
Yoke
12-24v
12v @ 3.33 Amps
120v @ 60 Hrz
60°
14” x 8.5” x 2.75”
4 lbs
7 lbs
Remote Control Button Functions
A
B
C
D
Press & hold “A” for 5 seconds to sync remote control to light.
Press “A” to power ON/OFF
Press “B” to adjust 4 levels of light intensity in increments of 25%
Press & hold “B” for 5 seconds to enable/disable sound
Hold down “C” to increase light intensity 0%-100%
Hold down “D” to decrease light intensity 100%-0%
Optional Accessories
IB-L130A AB-Mount Professional Battery
IB-L130S V-Mount Professional Battery
IB-LD160 A
IB-LD160 S
C-2KA-KIT
C-2KS-KIT
713.272.8822
Page 4

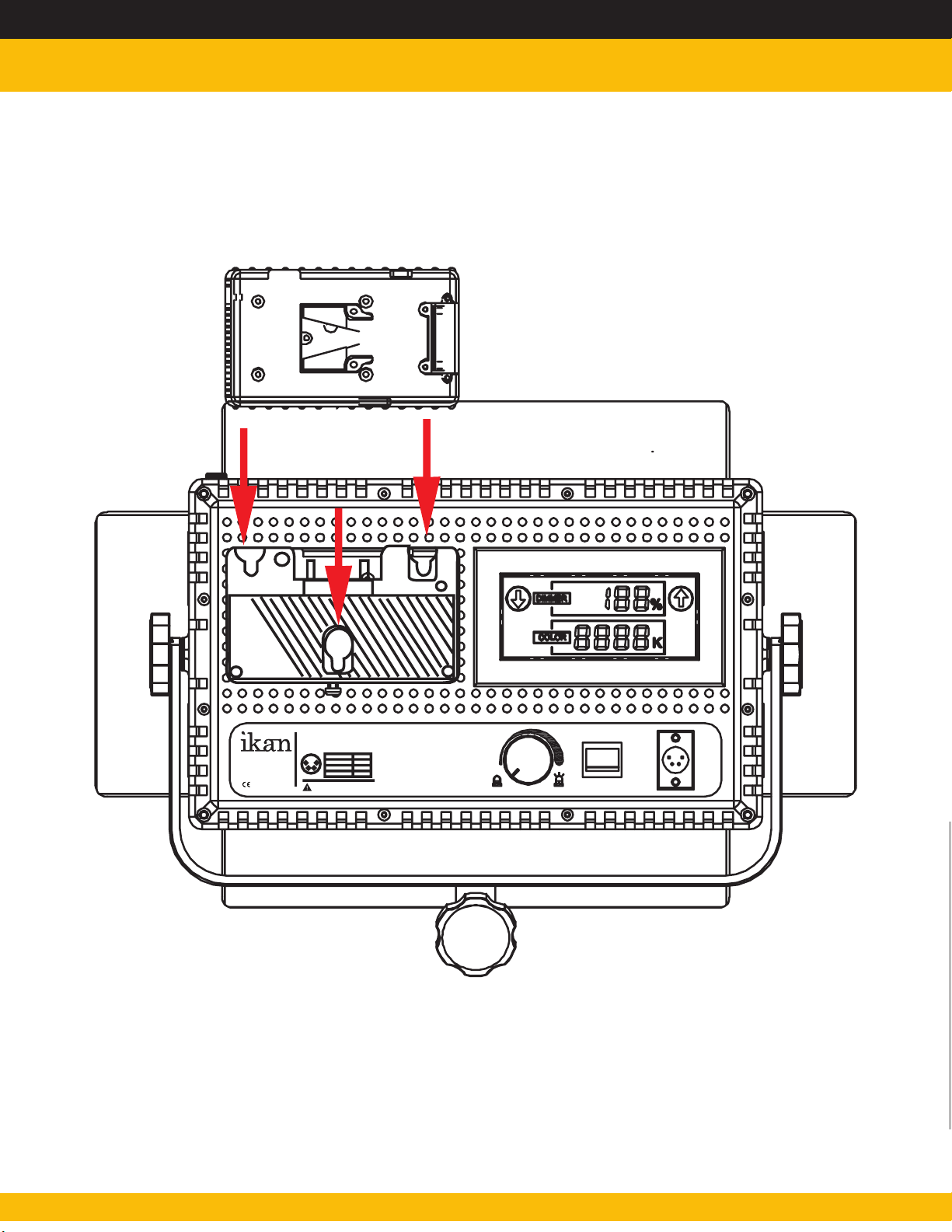

Connecting AB-Mount to V-Mount
www.ikancorp.com
MADE IN CHINA
IFD576
Model: LED576AL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
1234
1
GND
-
2,3
4
+12V
Do not block the vents or look directly
at the LED lights while its on.
10%Y 100%
POW
ER
OFF
ON
DC
12V
www.ikancorp.com
Page 5
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2015 ikan Coporation. All rights reserved
