IFD2511

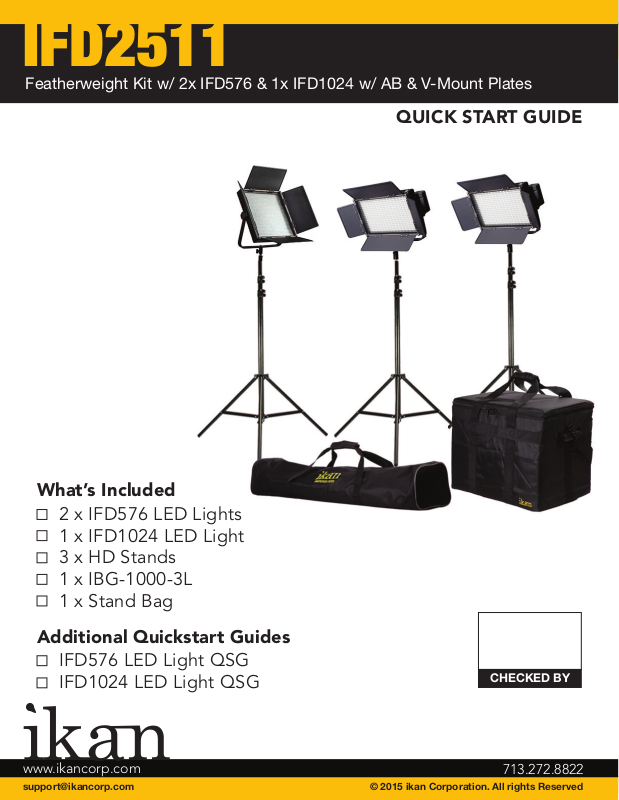

Featherweight Kit w/ 2x IFD576 & 1x IFD1024 w/ AB & V-Mount Plates
QUICK START GUIDE
What’s Included
2 x IFD576 LED Lights
1 x IFD1024 LED Light
3 x HD Stands
1 x IBG-1000-3L
1 x Stand Bag
Additional Quickstart Guides
IFD576 LED Light QSG
IFD1024 LED Light QSG
www.ikancorp.com
CHECKED BY
713.272.8822
713.272.8822
Page 2
IFD576
576 Featherweight Daylight LED Light
QUICK START GUIDE
What’s Included
1 x IFD576
1 X AC Adapter + Power Cord
1 x Remote Control
1 x Yoke
1 x Diffuser
1 x AB Mount Plate (Attached)
1 x AB to V-Mount Adapter
CHECKED BY
www.ikancorp.com
www.ikancorp.com
713.272.8822
Page 3
IFD576
Getting Started
1. Connect the included AC Adapter to power the IFD576 light.
2. Turn the light on/off with the power switch.
3. Control the amount of light with the dimmer knob. Adjust the intensity of the
light by turning the dimmer knob clock-wise to increase the intensity, and counter
clock-wise to reduce it.
4. The IFD576 can also be powered by pro battery.

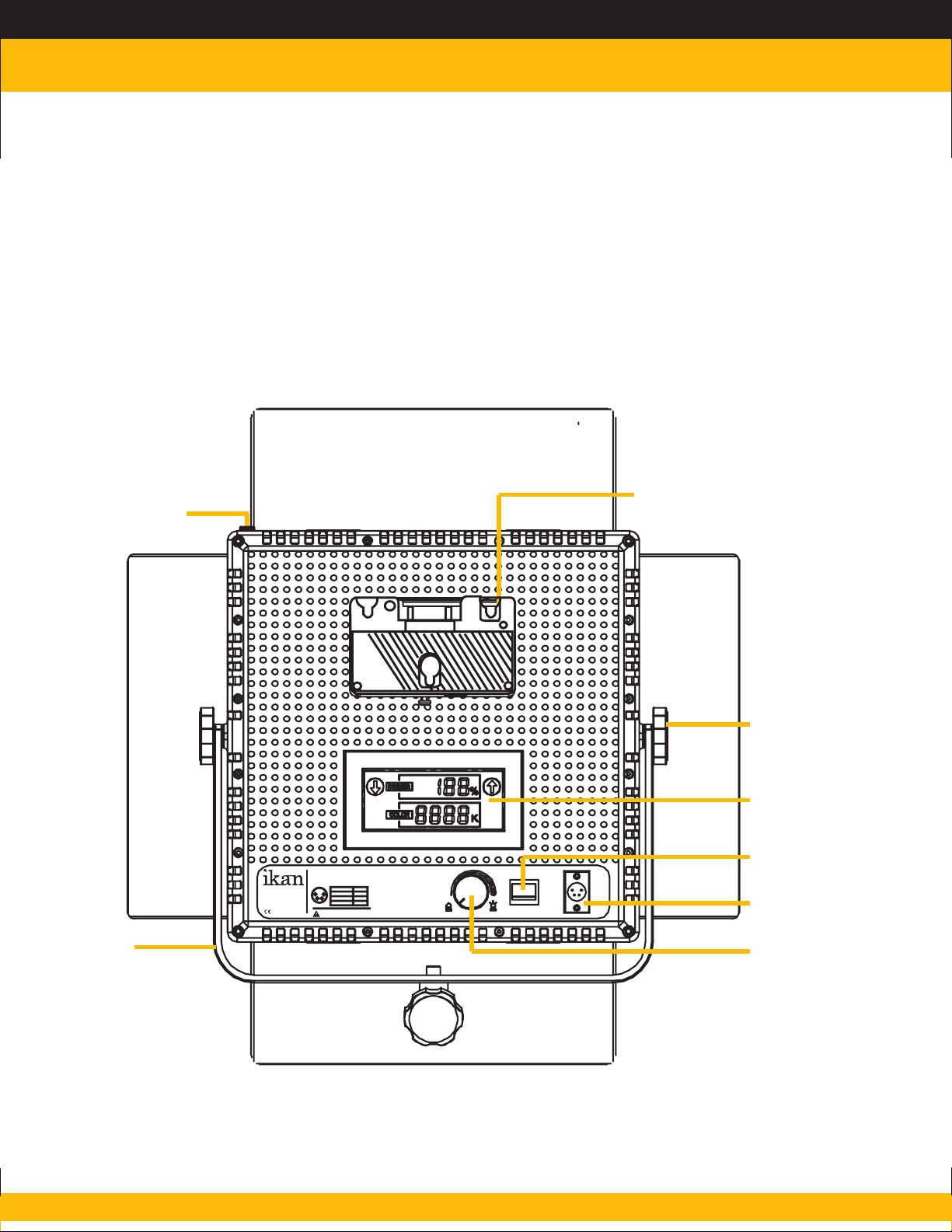

Pro Battery Plate
Diffuser Lock
Yoke
www.ikancorp.com
MADE IN CHINA
IFD576
Model: LED576AL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
1234
1
GND
-
2,3
4
+12V
Do not block the vents or look directly
at the LED lights while its on.
10%Y 100%
POW
LCD Touch
Screen
Yoke
Adjustment
Knob
Power
Switch
OFF
ON
ER
DC
12V
DC Power
Connection
Brightness
713.272.8822
Page 4
IFD576
Specifications
Product Specs
Beam Angle
Build Material
Control
Cooling System
Dimensions
Dimming
Focusing
Foot Candles
Head Type
Lens
Light Source
Mount
Operating Volts
Power Supply
Rating
Yoke
Fixture Size
Fixture Weight
Shipping Weight
60°
Heavy Duty Plastic
Local Knob & Touchscreen
Passive Cooling
13.5” x 8.5” x 2.75”
0-100%
NO
520.6
Daylight
60° Lens
576 0.06 watt LED @5600K
Yoke
12-24v
12v @ 3.33 Amps
120v @ 60 Hrz
60°
14” x 8.5” x 2.75”
4 lbs
7 lbs

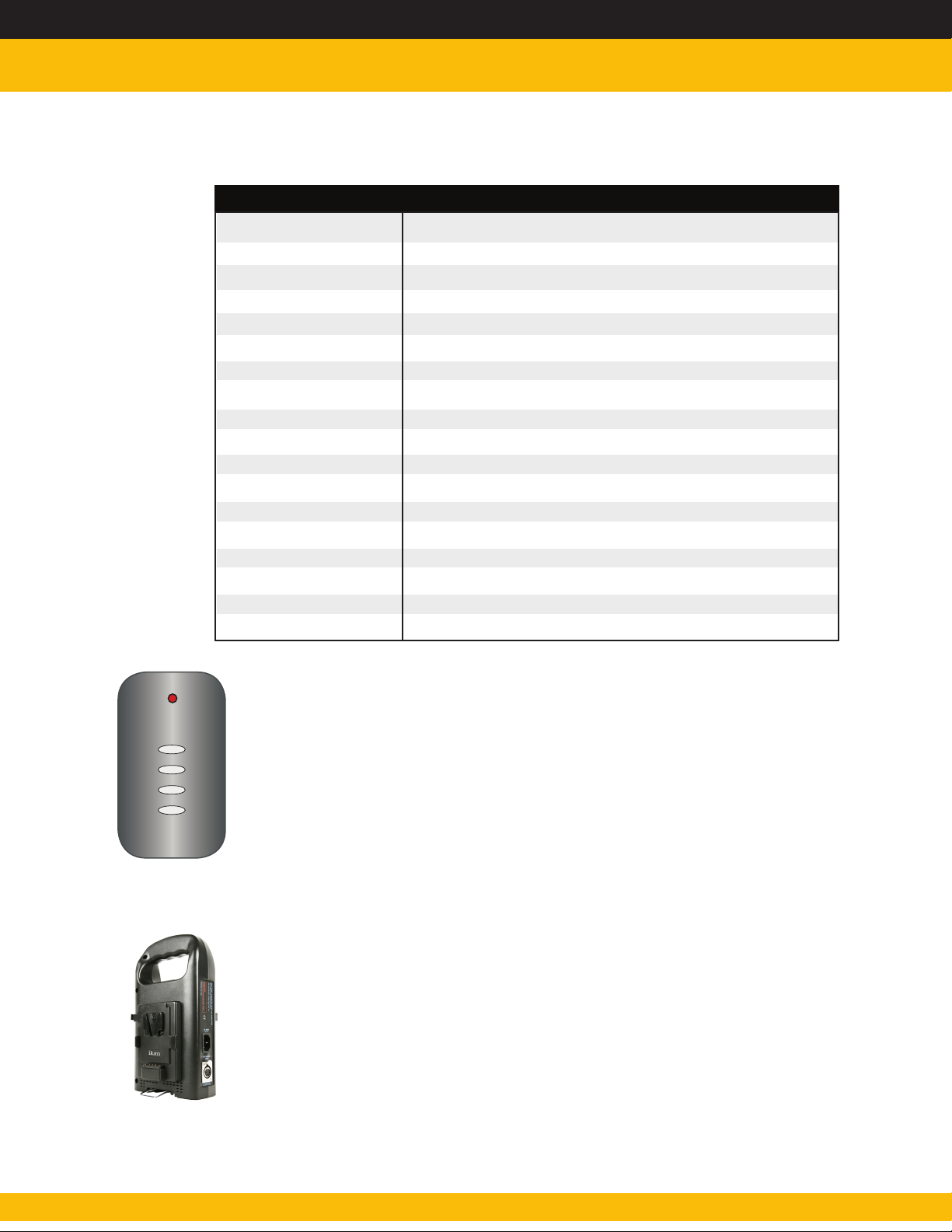

Remote Control Button Functions
A
B
C
D
Press & hold “A” for 5 seconds to sync remote control to light.
Press “A” to power ON/OFF
Press “B” to adjust 4 levels of light intensity in increments of 25%
Press & hold “B” for 5 seconds to enable/disable sound
Hold down “C” to increase light intensity 0%-100%
Hold down “D” to decrease light intensity 100%-0%
Optional Accessories
IB-L130A AB-Mount Professional Battery
IB-L130S V-Mount Professional Battery
IB-LD160 A
IB-LD160 S
C-2KA-KIT
C-2KS-KIT
www.ikancorp.com
Page 5

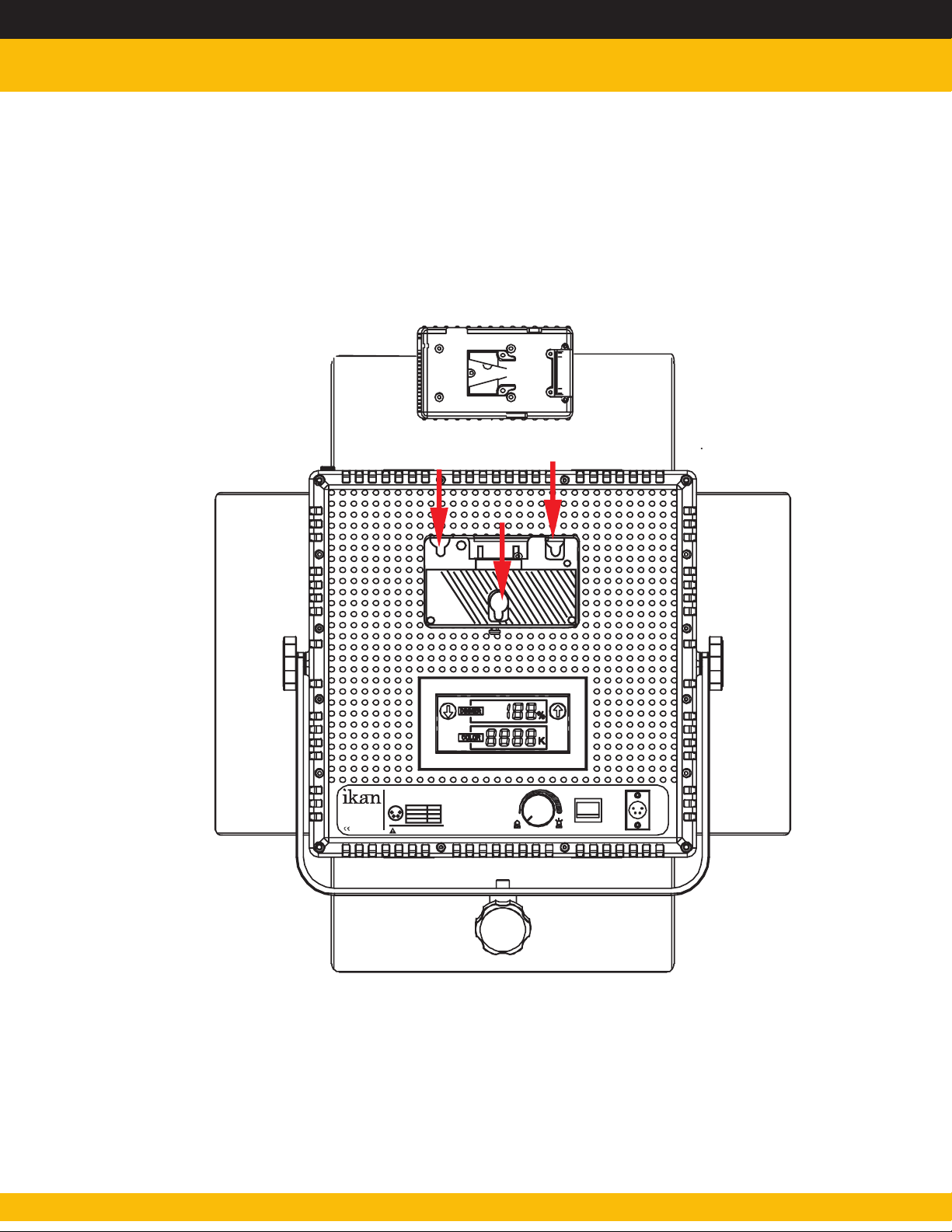

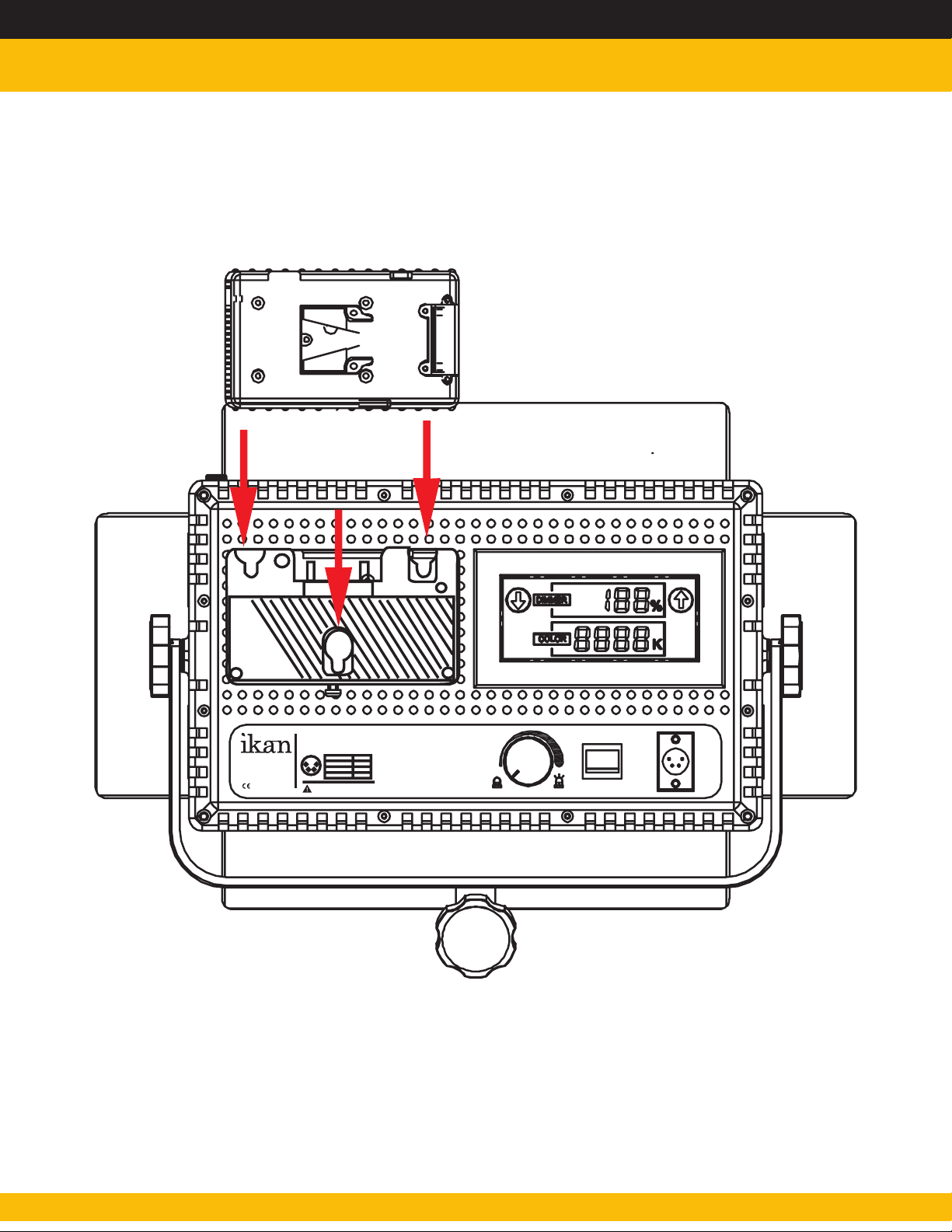

Connecting AB-Mount to V-Mount
www.ikancorp.com
MADE IN CHINA
IFD576
Model: LED576AL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
1234
1
GND
-
2,3
4
+12V
Do not block the vents or look directly
at the LED lights while its on.
10%Y 100%
POW
ER
OFF
ON
DC
12V
713.272.8822
Page 6
IFD1024
1024 Featherweight Daylight LED Light
QUICK START GUIDE
What’s Included
1 x IFD1024
1 x AC Adapter + Power Cord
1 x Remote Control
1 x Yoke
1 x Diffuser
1 x AB Mount Plate (Attached)
1 x IB-BTE AB to V-Mount Adapter Plate
CHECKED BY
www.ikancorp.com
www.ikancorp.com
713.272.8822
Page 7
IFD1024
Getting Started
1. Connect the included AC Adapter to power the IFD1024 light.
2. Turn the light on/off with the power switch.
3. Control the amount of light with the dimmer knob. Adjust the intensity of the
light by turning the dimmer knob clock-wise to increase the intensity, and counter
clock-wise to reduce it.
4. The IFD1024 can also be powered by pro battery.
Diffuser Lock
Pro Battery Plate for
AB-Mount or V-Mount
Yoke
www.ikancorp.com
MADE IN CHINA
IFD1024
Model: LED1024ASL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
1234
1
GND
-
2,3
+12V
4
Do not block the vents or look directly
at the LED lights while its on.
Adjustment
Knob for Yoke
LCD Touch
Screen
Power Switch
~
10% 100
OFF
ON
POWER
%
DC
12V
DC Power
Connection
Brightness
˚
713.272.8822
Page 8
IFD1024
Specifications
Product Specs
Beam Angle
Build Material
Color Temperature
Control
Cooling System
Dimensions
Dimming
Fixture Size
Focusing
Foot Candles
Head Type
Lens
Light Source
Mount
Power Supply
Rating
Fixture Weight
Shipping Weight
60°
Heavy Duty Plastic
5600(±100)
Local Knob Control & Touchscreen
Passive Cooling
17” x 14” x 3.75”
43.18 x 35.56 x 9.53 cm
14” x 14” x 2.75”
NO
979.8
Daylight
60° Lens
1024 0.06watt LED @ 5600K
Yoke
12v @ 6.66 Amps
120v @ 60Hrz
6 lbs
10 lbs
Remote Control Button Functions
A
B
C
D
Press & hold “A” for 5 seconds to sync remote control to light.
Press “A” to power ON/OFF
Press “B” to adjust 4 levels of light intensity in increments of 25%
Press & hold “B” for 5 seconds to enable/disable sound
Hold down “C” to increase light intensity 0%-100%
Hold down “D” to decrease light intensity 100%-0%
Optional Accessories
IB-L130A AB-Mount Professional Battery
IB-L130S V-Mount Professional Battery
IB-LD160 A
IB-LD160 S
C-2KA-KIT
C-2KS-KIT
www.ikancorp.com
Page 9
Connecting AB-Mount to V-Mount
www.ikancorp.com
MADE IN CHINA
IFD1024-SP
Model: LED1024ASL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
1
4
1
GND
2
3
-
2,3
4
+12V
Do not block the vents or look directly
at the LED lights while its on.
10
% 100%
FF
O
ON
POW
~
ER
DC
12V
713.272.8822
Page 10
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
