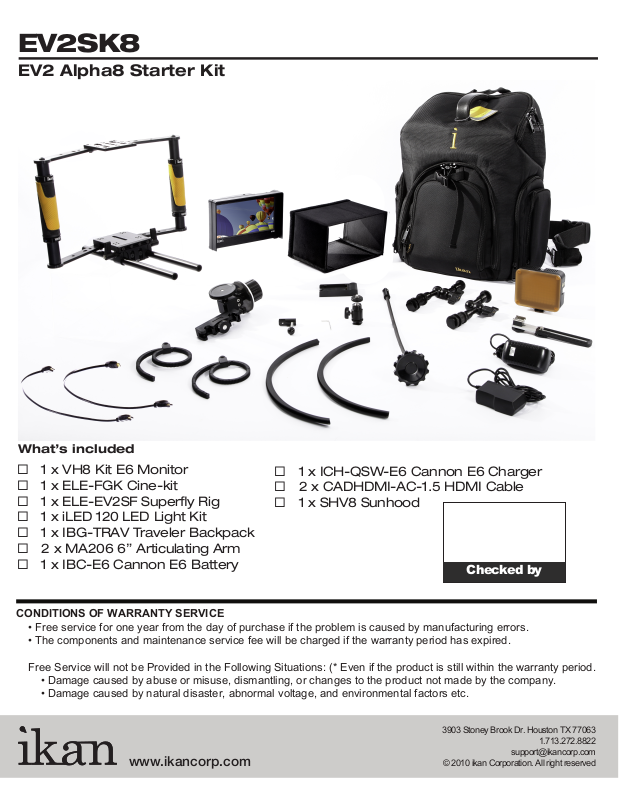

ikan EV2SK8 User Manual
EV2SK8
EV2 Alpha8 Starter Kit
What’s included
1 x VH8 Kit E6 Monitor
1 x ELE-FGK Cine-kit
1 x ELE-EV2SF Superfly Rig
1 x ICH-QSW-E6 Cannon E6 Charger
2 x CADHDMI-AC-1.5 HDMI Cable
1 x SHV8 Sunhood
1 x iLED 120 LED Light Kit
1 x IBG-TRAV Traveler Backpack
2 x MA206 6” Articulating Arm
1 x IBC-E6 Cannon E6 Battery
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
Checked by
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
support@ikancorp.com
© 2010 ikan Corporation. All right reserved
VH8
8-inch HDMI Monitor QUICKSTART GUIDE
Checked by
What’s included
1 x VH8 Monitor
1 x AC Adapter
1 x SM103 Shoe Mount
1 x DV Battery Adapter (Check one)
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
BP5-S Sony "L" Series
BP5-SU Sony "BP-U" Series
BP5-C Canon "900" Series
BP5-E6 Canon E6 Battery
BP5-P Panasonic "D54" Series
BP5-PG6 Panasonic G6 Battery
www.ikancorp.com
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
support@ikancorp.com
© 2010 ikan Corporation. All right reserved
VH8
8-inch HDMI Monitor QUICKSTART GUIDE
8 Inches
Resolution: 1600 x 768
5 Inches
SPECIFICATIONS
Diagonal: 8-inch
Resolution: 1600 x 768
LCD Brightness: 300 NIT
Contrast Ratio: 400:1
Viewing angles: 35º/35º (R/L)
10º/30º (U/L)
Operating Volts: DC 7v to 24v
Inputs: HDMI, Composite
Outputs: HDMI, Headphone
Dimensions: 8”W x 5”H x 0.5”D
Weight: 0.6 lb
Shipping Weight: 3 lbs
SUPPORTED RESOLUTIONS & FRAME RATES
Video:
HDMI:
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
www.ikancorp.com 713-272-8822
VH8
8-inch HDMI Monitor QUICKSTART GUIDE
3
Rear view
1
2
4
13
MENU
EXIT INPUT
5
IN
F1 F2
HDMIHDMI
F3 F4
OUT AV
6 7 8 9 10
12
11
MENU Button
1
Access to the main menu.
In MENU, push button to select menu setting
ASPECT/EXIT Button
2
Aspect: 16:9, 4:3, Full
In MENU, it is to exit the menu
3
Signal Input Select
AV and HDMI
F1, F2, F3 & F4 Buttons
4
Function key actions are selected in the menu
User programmable function keys. For quick access, the user
may program the F1, F2 and F3 buttons to enable frequently
accessed monitor features via the main monitor conguration
menu.
Head Phone Jack
5
HDMI terminal
6
IN : HDMI input terminal
DC 7V-24V Connector
7
Standard DC Connection
Power Switch
8
Power ON / OFF
HDMI terminal
9
OUT: Input signal through-out terminal
AV Input
10
Composite signal input terminal
¼-20 Threaded insert (on two sides of monitor)
11
Mounting Monitor
DV Battery Plate Slot
12
Mounting ikan DV battery plate
Sun Visor
13
Mounting ikan DV battery plate
www.ikancorp.com 713-272-8822
VH8
8-inch HDMI Monitor QUICKSTART GUIDE
CONFIGURATION OF SETTING MENUS
GUIDES
Guides 16:9 OFF / 90% / 80% / 4:3
Guides 4:3 OFF / 90% / 80%
G. Background Normal / Half / Black
Crosshair Off / On
Return
VIDEO CONFIGURATION
Brightness 0-100
Contrast 0-100
Chroma 0-100
Sharpness 0-100
Tint 0-100
Color Temp. 5600K / 6500K / 9300K / Manual
Return
SYSTEM CONFIGURATION
OSD Language English / Français / Español / 简体中文
OSD Duration 5-60
Menu Setup User1-5
Backlight 0-100
Sense Key Off / On
DSLR Auto Scaling Off / Full / 16:9 / 3:2
System Reset
Return
FUNCTION SETUP
Luma Under Warn
Luma Over Warn
F1 Key Peaking
False Color
Clip Guide
Underscan
Check Field
Pixel
HV Delay
Guides
Crosshair
EXIT
User programmable function keys. For quick
access, the user may program the F1, F2, F3 and
F4 buttons to enable frequently accessed monitor
features via the main monitor conguration menu.
(Same As F2,
F3, and F4 Key)
Display a crosshair on the center of screen.
R 0-255
G 0-255
B 0-255
Exit
This function recalls user dened values settings .The user setting will
remain in memory indenitely and can be erased by using the reset option
in the main menu.
Allows you to adjust the brightness of the LCD backlight.
Turns off / on the touch sensitivity of the function keys.
The DSLR Scaling1 function will allow users to extend their DSLR camera’s
HDMI video output any option of 3:2, 16:9 or Full Screen – convenience
made simple.
Only active when false color is enabled.
The VH8 is equipped with Monochrome Peaking features which highlight
the desired focus area in a bright, red outline. The operator adjusts the
focus control until the red indicator outlines on the desired area are razor
sharp, indicating optimal focus. For the best results, be sure the subject is
properly exposed.
The False Color feature utilizes a full spectrum of assigned color indicators,
ensuring awless shot exposure. As the camera Iris is adjusted, the subject
of the image will change color based on specic brightness values
indicating optimal exposure. See included chart for color assignments.
The VH8 offers adjustable upper Clip Guide levels to accurately display
overexposed images in any shooting condition. The operator simply
assigns the upper IRE to their preference and any exposure over the set
IRE limit will ash in a vivid purple, indicating only the over exposed area.
Allows to see the image in monochrome or only the red, blue, or green
channels.
Notes:
1 DSLR Scaling (for HDMI only)
The LCD panel in this display has a native display of 1600 x 768 pixels.
A signal of any other resolution is scaled to t this native resolution. There
may be time when it is desired to view the incoming signal without scaling.
Enabling Pixel to Pixel mode turns off the scaling and displays a 1600 x
768 pixel window of the original image. Each pixel of the panel displays
one pixel of the original image. The user may use the scroll wheel on top of
the monitor to move the window left, right. Push the scroll wheel again to
toggle up and down.
www.ikancorp.com 713-272-8822
