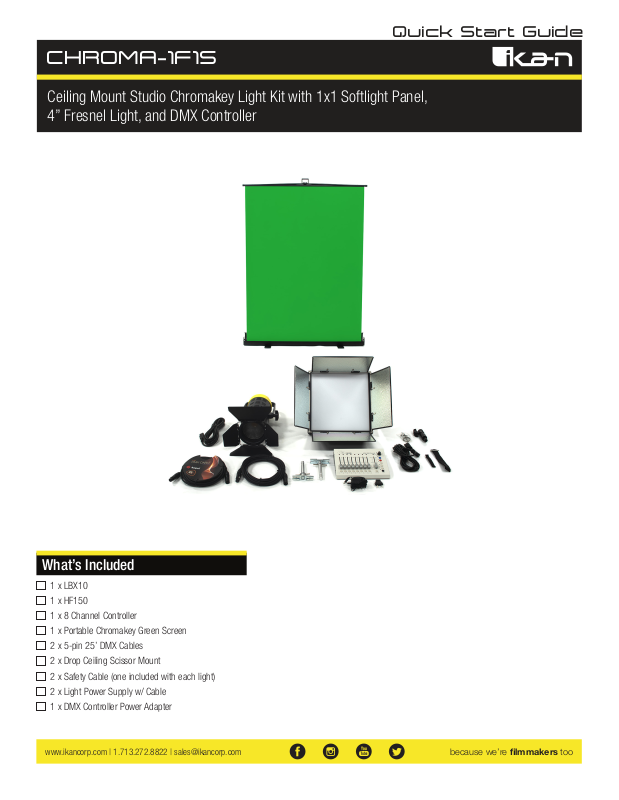

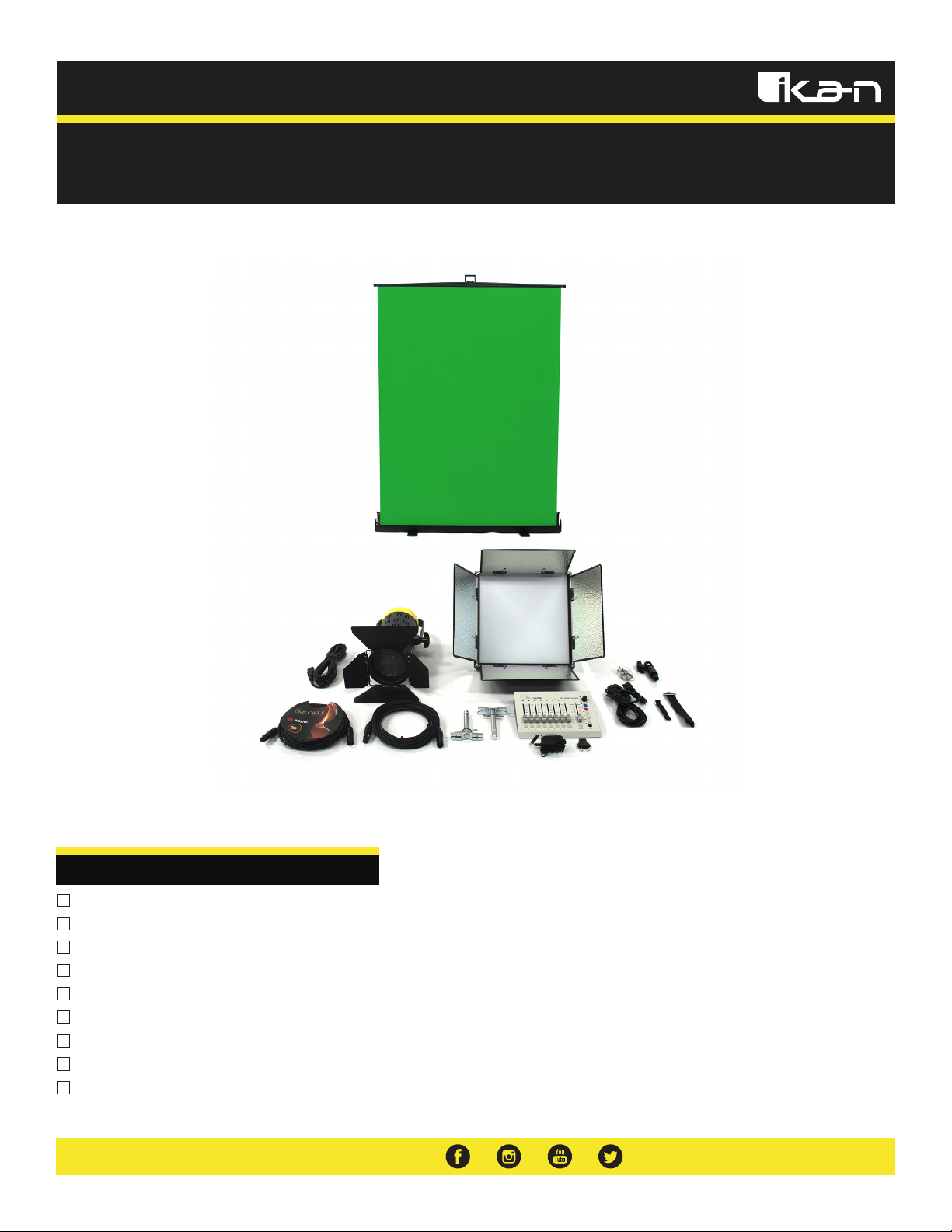

Page 1
Quick Start Guide
CHROMA-1F1S
Ceiling Mount Studio Chromakey Light Kit with 1x1 Softlight Panel,
4” Fresnel Light, and DMX Controller
What’s Included
1 x LBX10
1 x HF150
1 x 8 Channel Controller

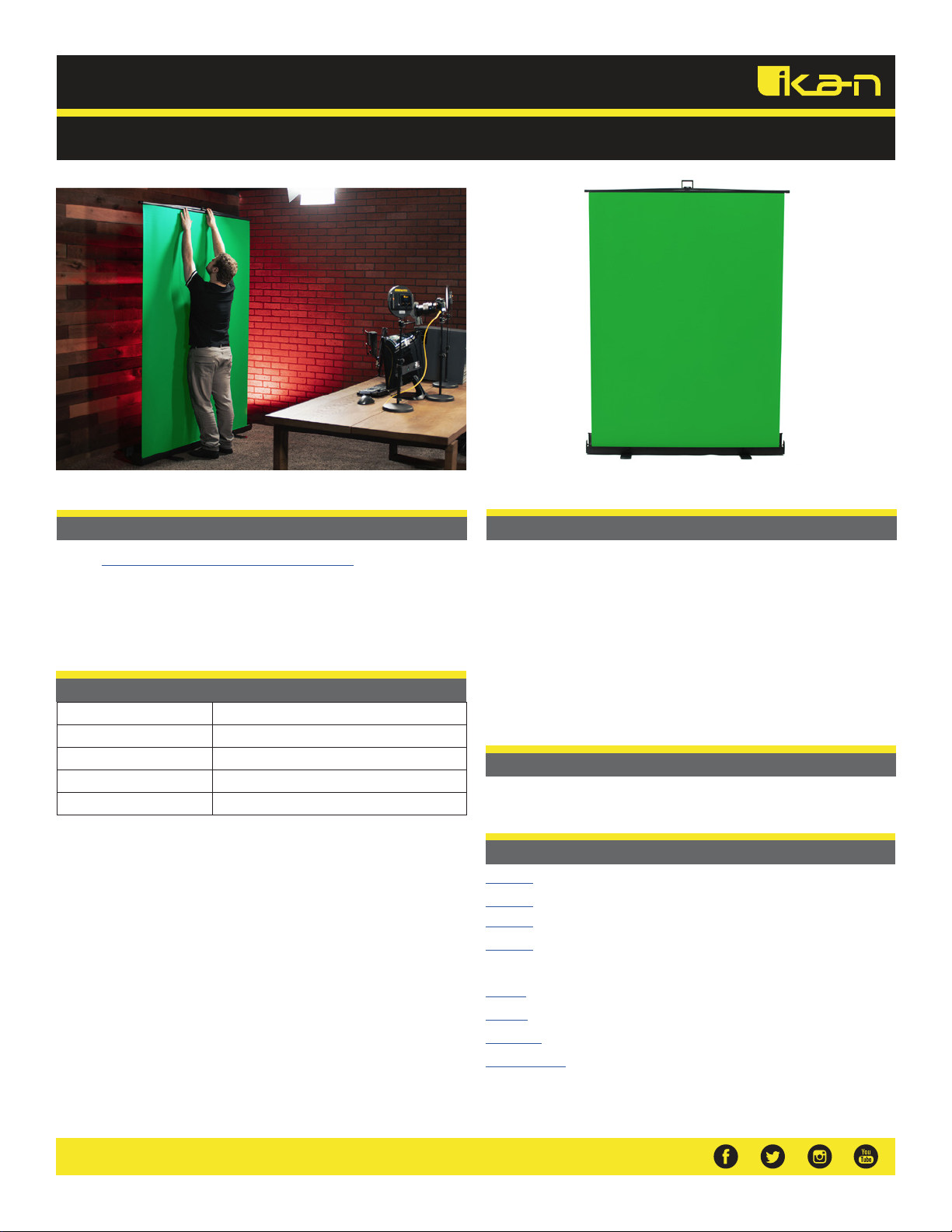

1 x Portable Chromakey Green Screen
2 x 5-pin 25’ DMX Cables
2 x Drop Ceiling Scissor Mount
2 x Safety Cable (one included with each light)
2 x Light Power Supply w/ Cable
1 x DMX Controller Power Adapter
Page 2
LYRA DMX
Lyra Bi-Color DMX Flat Panel Light
QUICKSTART GUIDE
L
BX10
Lyra Bi-Color LED 1 x 1 Soft Light with DMX
What’s Included
1 x 15V Power supply
1 x Yoke Mount
www.ikancorp.com
[email protected] © 2017 ikan Corporation. All rights Reserved
713.272.8822
Page 3
General Information
Thank you for buying the ikan Lyra Bi-Color DMX512 LED Lights. This fixture has been designed to perform reliably for years
when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and
thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use
and maintenance.
Every fixture has been thoroughly tested. Carefully check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your unit for damage and be sure all accessories necessary
to operate the unit have arrived intact. In the event damage has been found or parts are missing, please contact our customer
support team for further instructions. Please do not return this unit to your dealer without first contacting customer support at
the number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible.
Safety Instructions:
This fixture is an extremely sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to
follow the guidelines in this manual. The manufacturer of this device will not accept responsibility for damages resulting from the
misuse of this fixture due to the disregard of the information printed in this manual.
This device falls under PROTECTION CLASS 1. It’s essential this device be grounded properly. Only qualified personnel should
perform all electrical connections.
INDOOR USE ONLY!
DO NOT EXPOSE FIXTURE TO RAIN AND/OR MOISTURE!!
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
For proper operation, follow the Installation guidelines described in this manual. Only qualified and certified personnel should
perform installation of this fixture and only the original rigging parts (yoke) included with this fixture should be used for installation.
Any modifications will void the original manufacturer’s warranty and increase the risk of damage and/or personal injury.
Never look directly into the light source of this fixture to prevent risk of injury to your retina, which may induce blindness.
Always disconnect from main power source before performing any type of service and/or cleaning procedure. Only handle the
power supply by the plug end, never pull out the plug by tugging the wire portion of the cord.
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power
cord is damaged, replace it immediately with a new one of similar power rating.
General Guidelines:
NEVER OPEN THIS FIXTURE WHILE IN USE!!
Please make sure there are NO FLAMMABLE MATERIALS close to the fixture while operating, to prevent any fire hazard.
The fixture must be installed in a location with adequate ventilation, at least 1.5 feet (.5m) from adjacent surfaces. Be sure no
air ventilation slots are blocked.
DO NOT attempt installation and/or operation without knowledge of how to do so.
DO NOT permit operation by persons who are not qualified to operate this type of fixture. Most damages are the result of
operations by nonprofessionals.
Consistent operational breaks may ensure the fixture will function properly for many years to come.
DO NOT shake fixture and avoid using brute force when installing and/or operating the fixture.
Always install the fixture with an appropriate safety cable. When installing the fixture in a suspended environment, always use
correct mounting hardware that can be inserted into the Baby 1/8" or Junior 1-1/8" combo pin adaptor.
Use the original packaging and materials to transport the fixture in for service.
Page 4

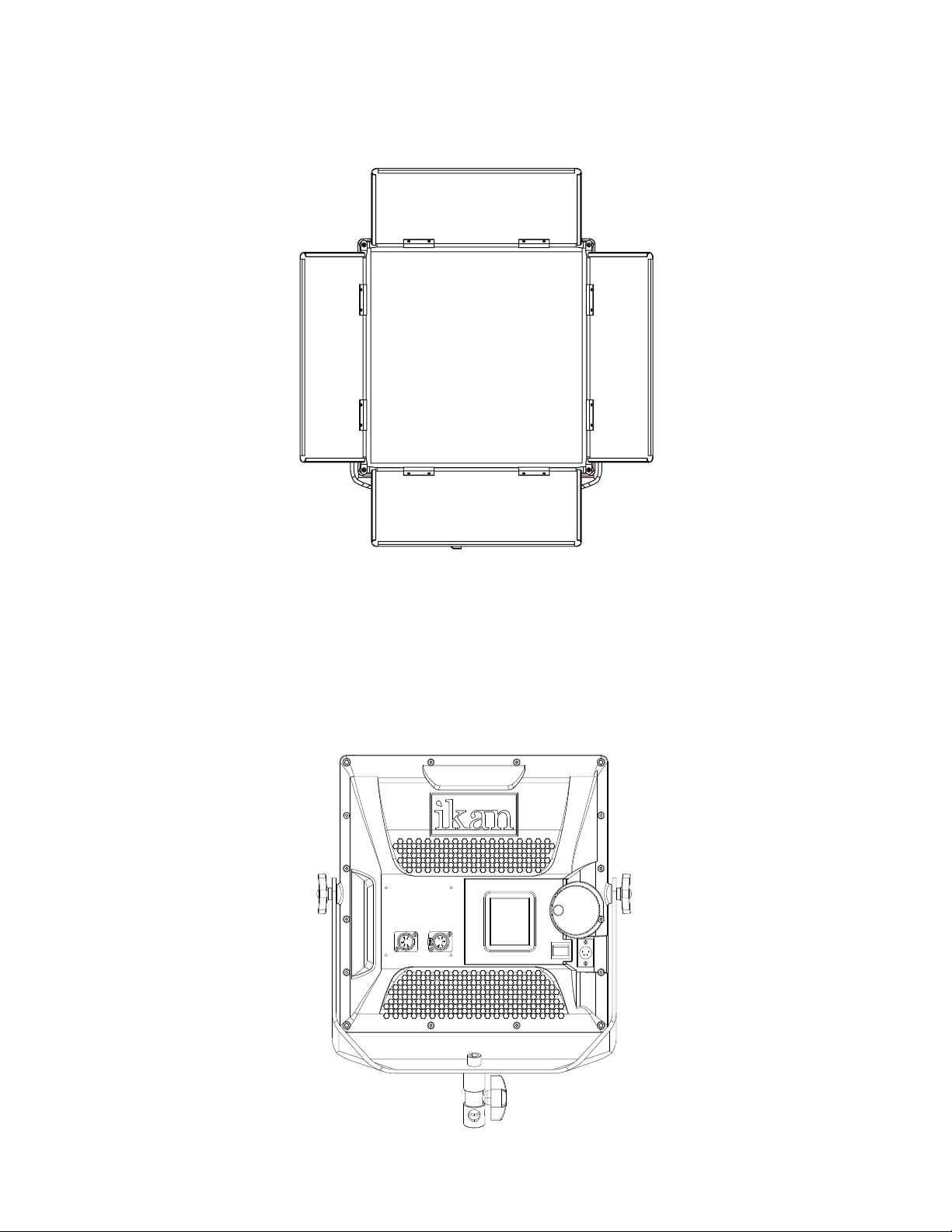

Fixture Overview (Front)
LBX10
Fixture Overview (Back)
LBX10
Page 5
Fixture Menu
ON-BOARD SYSTEM MENU
The fixture comes with an easy to navigate system menu. The next section will detail the functions of each command in the
system menu.
LCD MENU CONTROL KNOB
The control knob allows for local control as well as control from DMX board. The local control gives the user adjustment from
10%-100% in brightness. On Bi-Color fixtures, the local knob gives the user the ability to switch from 5600K -3200K just by
pressing down on the large yellow dial. The user can also adjust the DMX channels 1 thru 512 by pressing down again on the
large yellow dial.
DMX Channel
The DMX512 channel selection can be made from the back of the fixture using the large yellow knob to dial in the correct
DMX number. When a DMX signal is detected on the fixture, all other controls are closed down and only DMX channel control
can be selected on the rear of the fixture.
Depending on DMX channel selected a bi-color light will require two channels for use on the DMX board.
100% will be the 5600K color output. 0% will be the 3200K color output. The middle position will be 4600K color output.
Example:
Channel Brightness Color
5 & 6 Channel 5 Channel 6
Cleaning & Maintenance
CAUTION!
DISCONNECT POWER BEFORE CLEANING OR MAINTENANCE!
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency
of cleaning depends on the environment in which the fixture operates: damp, smoky, or particularly dirty environments can
cause greater accumulation of dirt on the fixture.
Never use alcohol, solvents, or ammonia- based cleaners
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside
this fixture. Please refer all other service issues to an authorized ikan service technician. Should you need any spare parts,
please order genuine parts from your local ikan dealer.
Please refer to the following points during routine inspections:
Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting
in damage or injury as larger parts could fall.
Check for any deformations on the housing, rigging hardware and rigging points (ceiling, suspension, trussing). Deformations
in the housing could allow for dust to enter into the fixture. Damaged rigging points or unsecured rigging could cause the
fixture to fall and seriously injure a person(s).
Electric power supplies and cables must not show any damage or fraying.
Never remove the ground prong from the power cable.
Page 6
Specifications
LBX10 Fixture Specifications
Light Source 900 0.2 watt LEDs
Head Type Bi-Color 5600K-3200K
Lens ½ Stop Soft Diffusion
Beam Angle 110°
Control / Dimming Knob Control
Build Material Heavy Duty Resin Plastic
Cooling System Passive Cooling
Yoke Baby 5/8" --Junior 1 1/8" Combo Pin
Fixture Size 14 x 14 x 3 in.
Fixture Weight 6 lbs
LBX10 Electrical Specifications
Power Supply Input: 110-220VAC
Output: 15VDC
Power Consumption 90W; 14-18VDC
Optional Accessories
Some other products that work well with the Lyra DMX Lights available from Ikan include:
CP-STND-V3
KCP-703
PWRGP-01
ROLLR-STND10
SW-04
IDX-096
Compact Light Stand Version 3
Stage Clamp with 16mm Stud
Power Grip
2-Stage Roller Stand 10ft 6in
Safety Wire
96 Channel DMX Console
Page 7

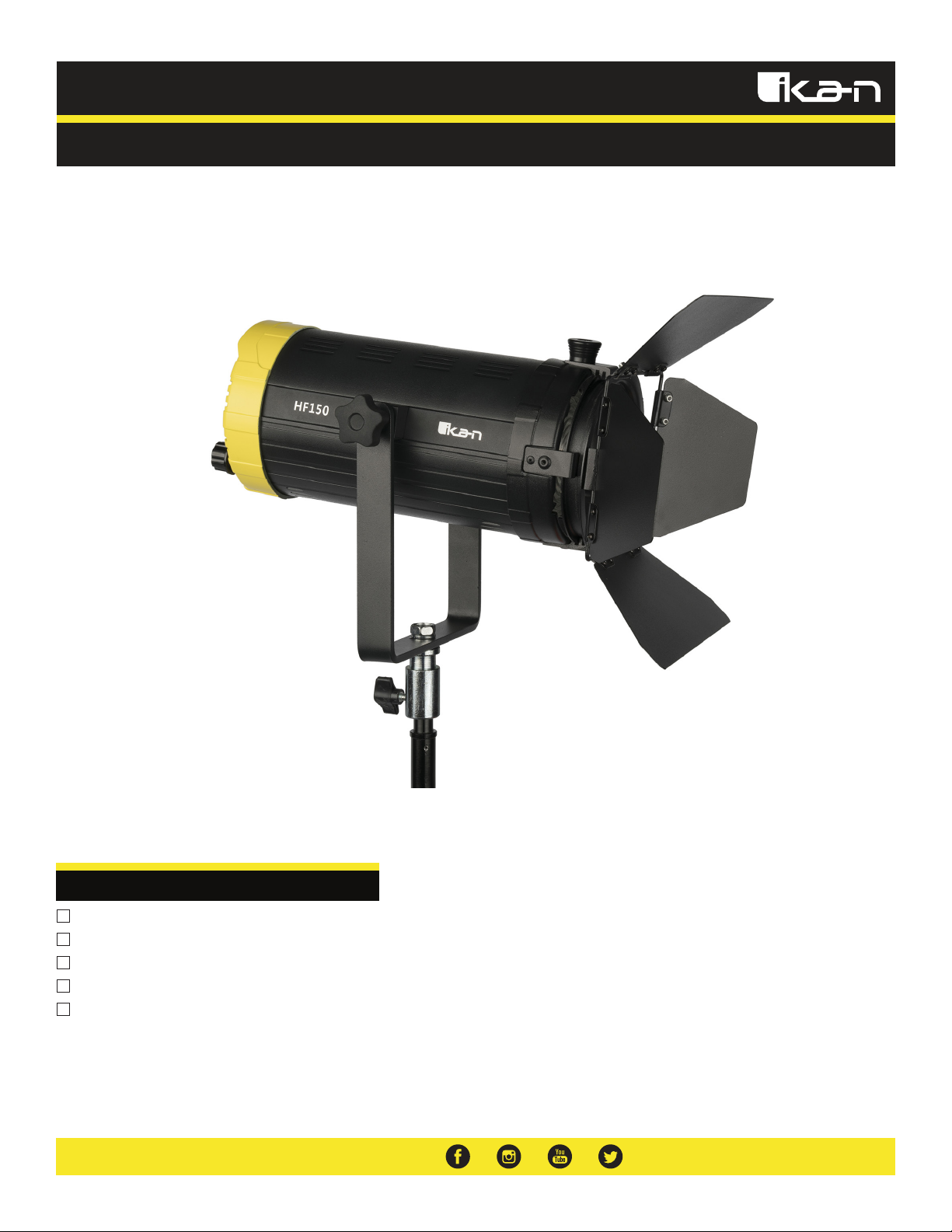

Quick Start Guide
HF150
Helia 150 Watt 4 in. Fresnel Bi-Color LED Studio Light w/ DMX
What’s Included
1x Helia 150 Watt Fresnel
1x Barn Doors
1x Gel Frame
1x Yoke
1x AC Power Cord
Page 8
Getting Started
Thank you for buying the HF150 Fresnel Light from ikan. Please carefully read the instructions and guide before operating the products. The guide includes
product usage and maintenance. When you operate the product, please make sure that you have read the instructions carefully.
All the content of the manual is based on up-to-date information; technical data subject to change without notice.
Safety Instructions
1. Connect the AC power cable to the HF150 light before plugging into the power source. You risk electrocution by not following this instruction.
2. Don’t drag cables with excessive force. Any repairs on the products should be performed by ikan technicians. Users should not remove the power
supply, or else the damage will not be covered under warranty.
3. Be sure that the power is off before connecting and changing the fixture head or disconnecting your cable from the power source. We recommend using
Ikan connecting cables and connectors to avoid electrical shock.
4. The voltage shouldn’t exceed the value in the technical specifications. If the voltage is greater than, or less than the regulated values, it could damage
the product.
Overview
Benchmark color temperatures for today’s film and TV production are 5600K (daylight) and 3200K (tungsten). Ikan developed the HF150 Fresnel Light
to handle both these temperatures. With patented technologies, the HF150 offers a professional and customizable LED light source. In addition, the light
features separately-cooling ducts for optimizing heat dissipation. Specifically, the HF150 Fresnel Light offers the following features:
1. The 10-100% brightness incremental adjustment of the 3200K-5600K temperature enable fine-tuning your color range.
2. A four-inch diameter Fresnel lens provides even, well-distributed light
3. Ultra-low noise and active cooling technology contribute to excellent thermal stability.
4. The power supply will automatically cut off when the fixture overheats.
5. The bright LCD readout is easy to view, enabling smooth adjustment of functions.
6. Digitally adjustable knob allows you to adjust menu settings quickly and accurately.
7. DMX Channel assignments can be adjusted as needed.
8. AC/DC power supply, AC110VAC-270VAC
Instructions
LED Fresnel housing is made aluminum alloy, which is heavy-duty, lightweight, and easy to transport.
The HF150 structure is illustrated on the following page.
Page 9

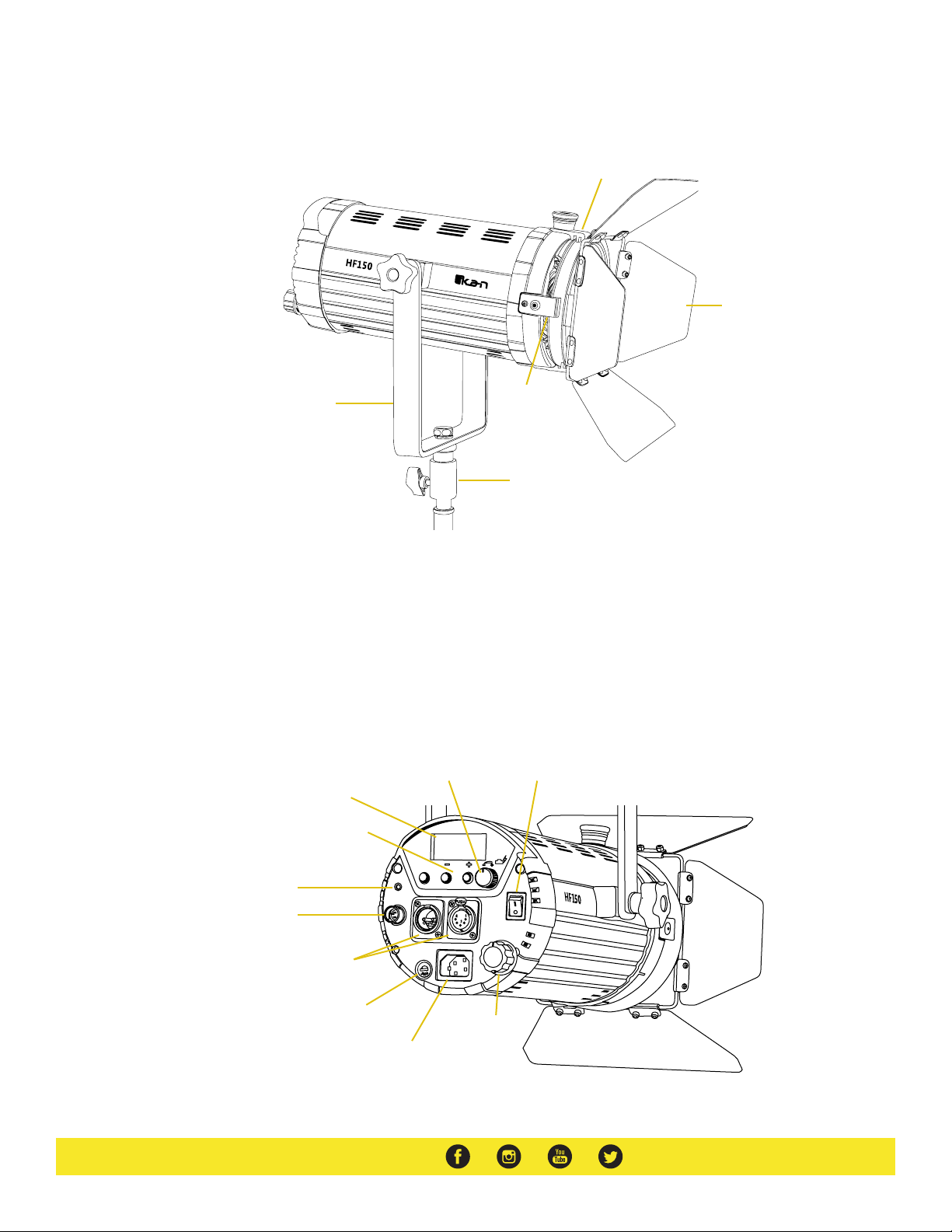

Appearance & Structure - Front
SY
N
C
SET
mode
DC42V
D
M
X
512
SPOT
O
F
F
/O
N
5/8 Receiver: Connecting the lamp with stands or grid mounts
Yoke: Adjustable lighting direction
The pushing claw of barn doors; the holding claw of barn doors:
Pushing Claw
Barn Doors
Yoke
Appearance & Structure - Back
Power switch: Turn on/turn off power
Color Knob: Adjust the color from 3200K-5600K
(Press in to set DMX channel)
Brightness Knob: Adjusts brightness from 10%-100%
(Press in to Toggle off the LED)
LCD Setting Screen: Displays brightness and color temperature
Color/ Brightness
LCD Setting Screen
+ & - Buttons
Knob
Holding Claw
5/8 Receiver
+&- Buttons: Adjusts the DMX channels
SYNC: Not in use.
DC24V: Not in use.
Fuse Cap: Fuse Holder with T6.3A 250V fuse
AC 110-220V Power Connector: Connecting with 110-220V power cable
Focusing Knob: Changing the Beam angle of the light from flood to spot
Power Switch
SYNC
DC24V
DMX IN/OUT
Fuse Cap
AC 110-220C
Power Connector
Focusing
Knob
Page 10
Installation & Power Supply
N
C
SET
mode
D
M
X
512
SPOT
O
F
F
/O
1. Ensure power is off before installation.
2. Place the light on the Ikan customized stands, release the tension knob on the 5/8” receiver, adjust the light in the desired direction, and then tighten
the tension knob on the 5/8” receiver.
3. When connecting the power cords, plug the AC power cords into the AC120 socket on the rear panel (as shown in the drawing).

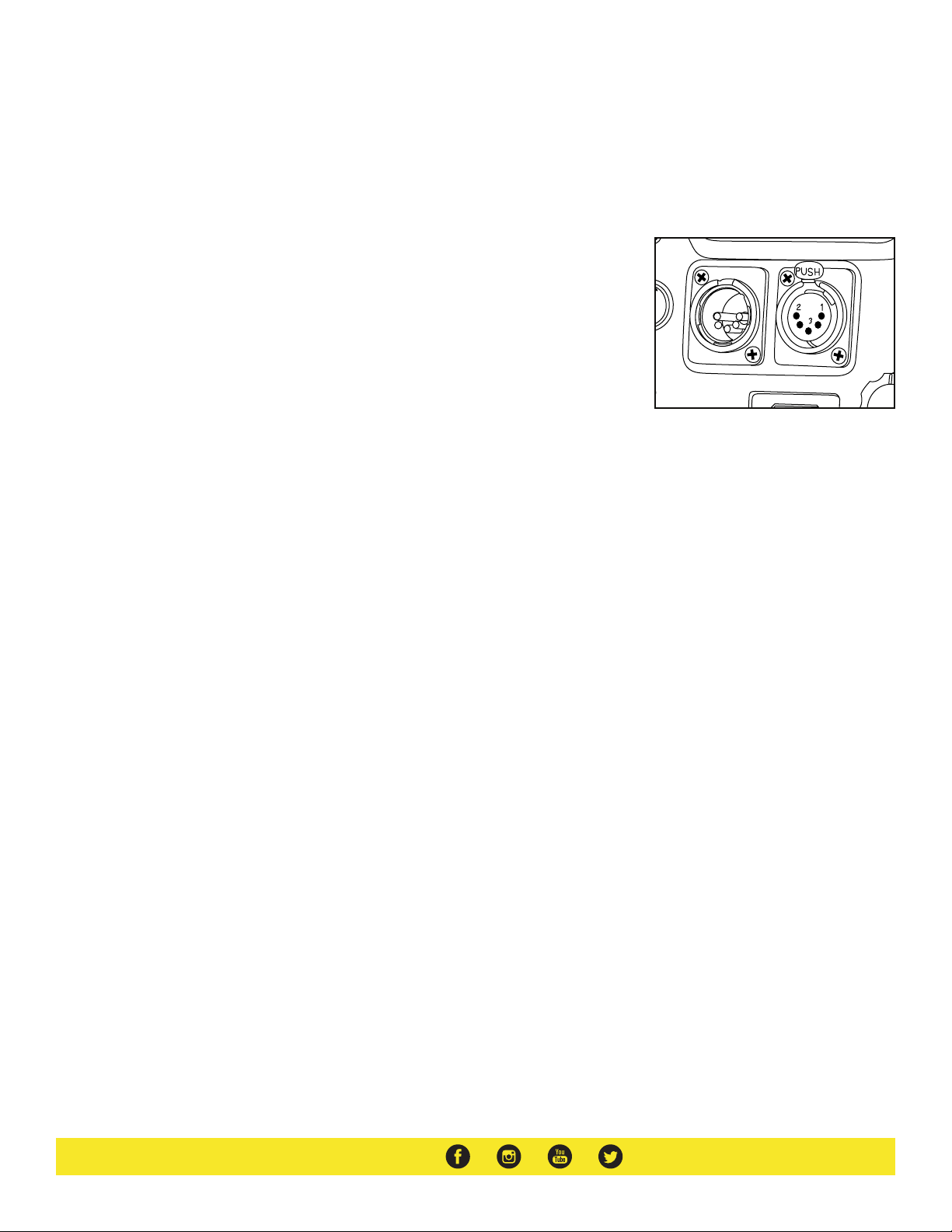

DMX 512 Controls
The DMX IN/OUT on the HF150 allows for remote fixture control over the color and brightness.
The 8Bit DMX allows for use with controllers that use just dimmer controls.
Depending on channel assigned the brightness is controlled on the first fader.
The next fader controls the color temperature from 3200K at 0% to 5600K at 100%.
What’s in the box?
Please carry and place the packing box carefully. Check the lighting equipment and accessories upon opening the box. Please contact us if anything is
damaged or missing. Please save the packing materials for replacing and repairing the products in the future.
Notice & Maintenance
1. The HF150 Spotlight working temperature range must be regulated. Overheating and Under-cooling will reduce the LED working life.
2. Products must be placed on a stable, dry, flat surface. Avoid exposure to sunlight and operating in an environment with high humidity or explosive gas.
3. Don’t cover the fan vent. It will shorten the working life of the fixture.
4. Don’t beat, knock or shake the lighting equipment during the operation.
5. If the HF150 isn’t working normally, please contact the Ikan repair department. Please don’t disassemble/re-assemble by yourself.
6. Please place the HF150 in a cool and dry place when you don’t use it for an extended period of time.
Page 11
Specifications
Beam Angle 20 - 70 degrees
Build Material Aluminum
Control Local Knob Control and DMX In/Out
Cooling System Active Cooling Fan
Diagonal 17”
Dimming Flicker Free Dimming, Onboard
dimming Knob 100%-10% (minimal
color shift)
Fixture Size 19 x 6 x 12 in.
Fixture Weight 10 lbs
Focusing Rotating Rear Knob
Head Type 3200K - 5600K
Lens 4” Acrylic Fresnel
Light Source 1 x 150 watt LED Bi-Color
Power Supply 6 ft power cable
Rating AC volts 120volts AC,
50-60Hrz, 40 watts
Shipping Dimensions 20 x 10 x 10 in.
Shipping Dimensions
(Metric)
Shipping Weight 14 lb
Shipping Weight (Metric) 6.35 kg
Yoke: Cast Aluminum with 1 1/8” pin
50.8 x 25.4 x 25.4 cm
Optional Accessories
Some other products that work well with the Helia HF150 available from Ikan include:
HD-STND-V2
KCP-703
SW-04
Heavy Duty Light Stand
Stage Clamp w/ 16mm Stud
Safety Wire
Page 12
ISO 9001 CERTIFIED

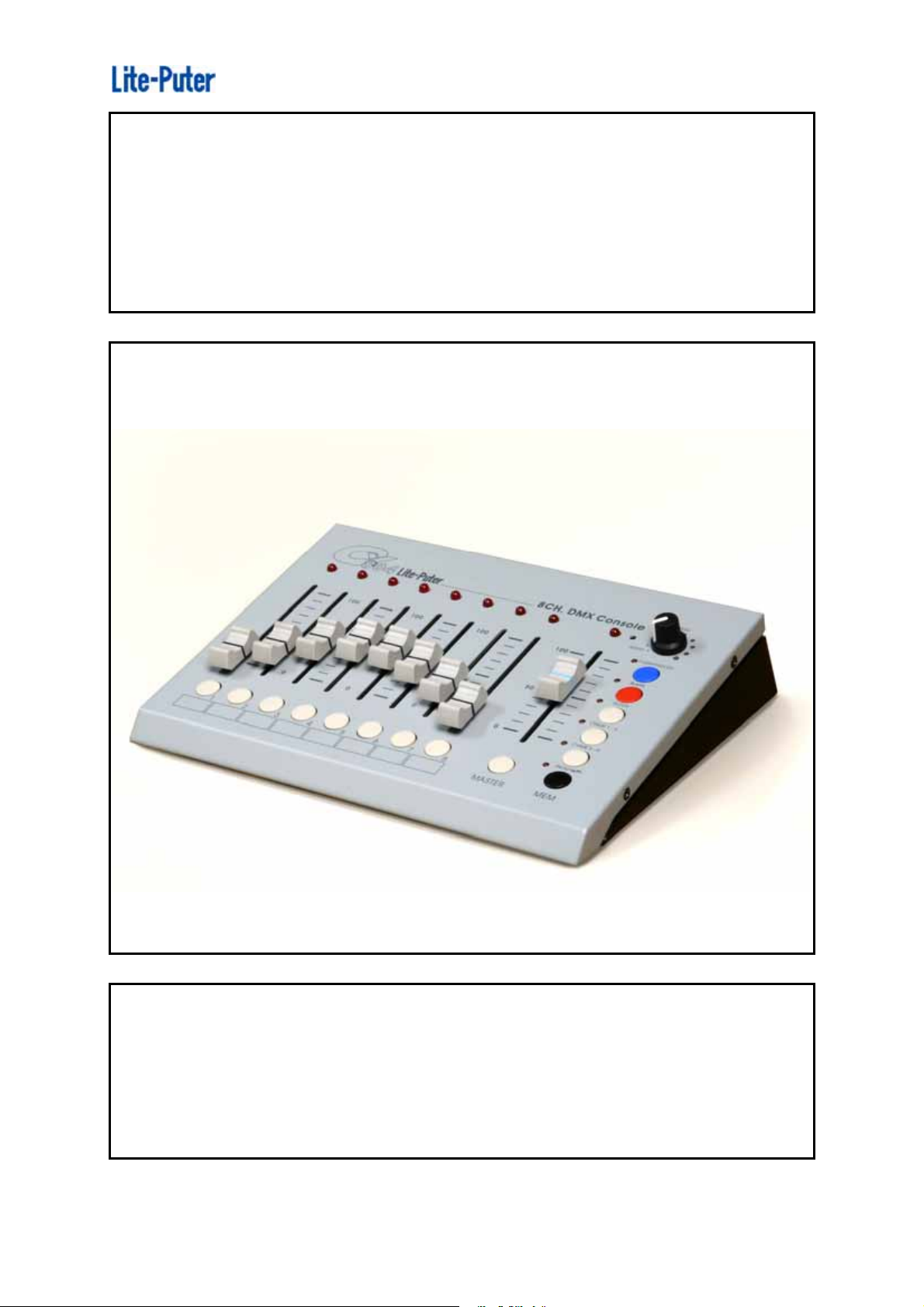

CX-804
8 Channel DMX Console
【User manual】
Lite-Puter Enterprise Co., Ltd.
website：www.liteputer.com.tw
E-mail: [email protected]
Page 13
ISO 9001 CERTIFIED

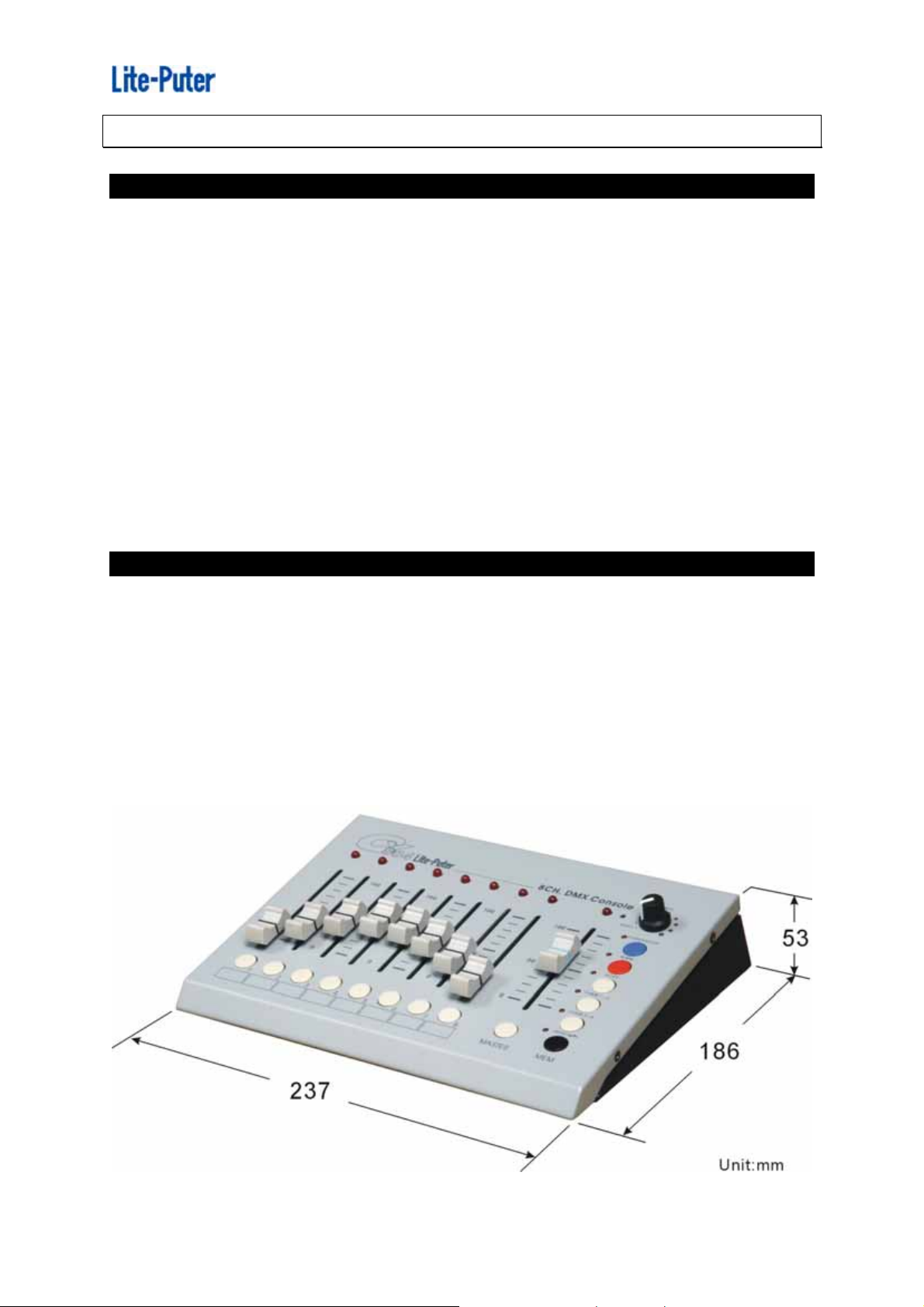

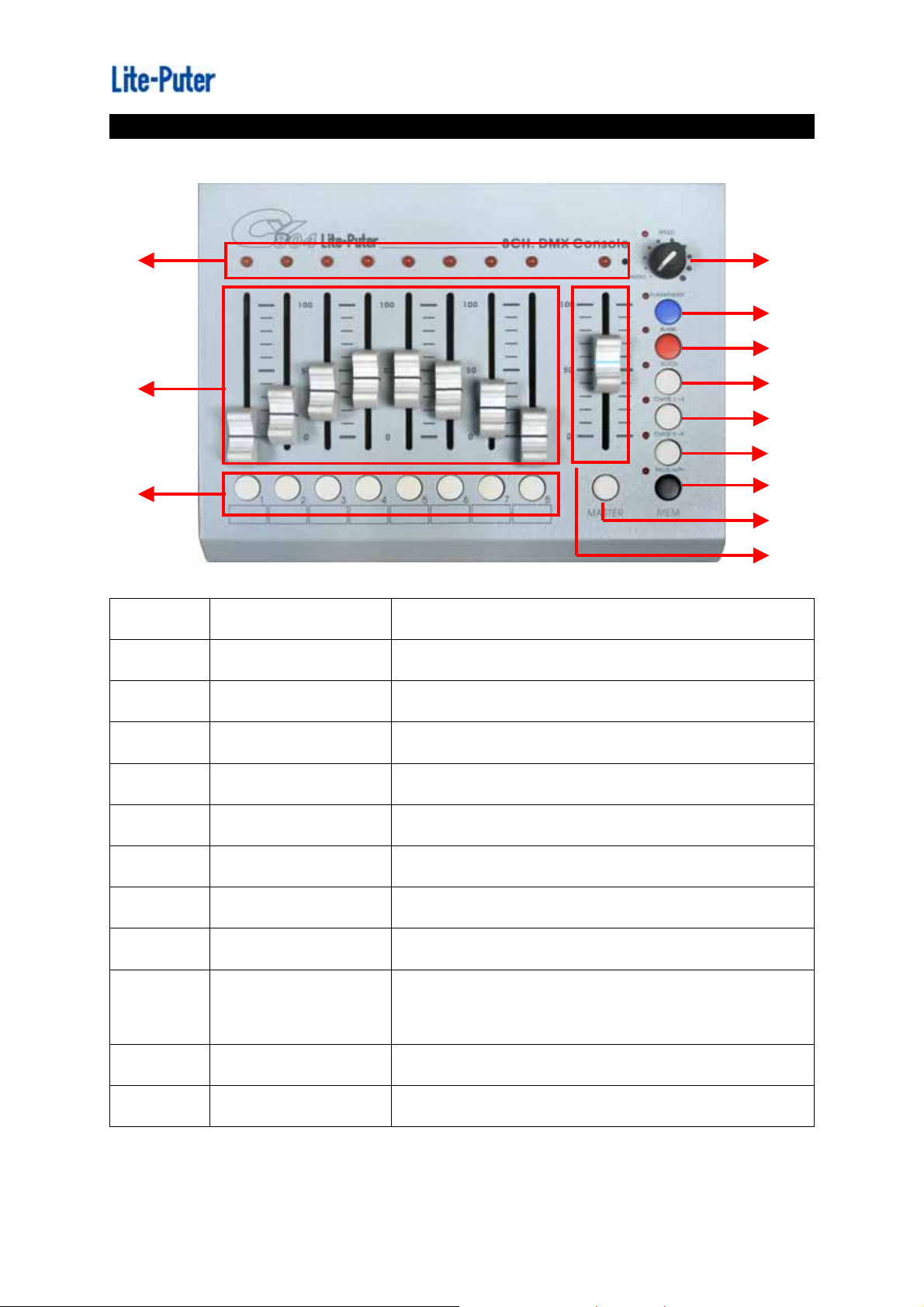

Chapter 1. CX-804 Instruction
1-1 Feature
Standard DMX 512 signal control
8 dimming control channel
8 control scene setting
Chaser function:
1.) Channel chase
2.) Scene chase
3.) Speeding control
4.) Chase Function
Flash
Audio input
1-2 Specification
Power supply DC 12V/ 1A
Control signal DMX512 / 1990
Control channel 8 channel
Connector XLR 3-pin(x1), XLR 5-pin(x1),phone jack RJ11(x2)
Audio input Max. input：-10 db 100mV
Weight 1.5 Kg
Dimension 237(W)*53(H)*186(D)mm
1
CX-804 [EUM-A]
Lite-Pu
ter
Page 14
ISO 9001 CERTIFIED
1-3 CX-804 Function
9
10
11
1
2
3
MASTER-VR
MASTER
SPEED/ AUDIO
3
12
4
5
6
7
8
2
1
Master dimming control
Master Flash control
Audio / speed chase control
4
5
6
7
8
9
10
11
12
BLANK
SC/CH
CHASE 1
CHASE 2
PROG
LED
VR-1…VR-8
1 ~ 8
FLASH/FADER
Pause
Scene / Channel control
Chase 1-4
Chase 5-8
Scene/ Chase direction control
Signal display
Setting 1…8 dimming channel
Recall 1…8 Scene
Channel / Scene setting / FLASH
Chase Mode FLASH / FADER setting
2
CX-804 [EUM-A]
Lite-Pu
ter
Page 15
ISO 9001 CERTIFIED

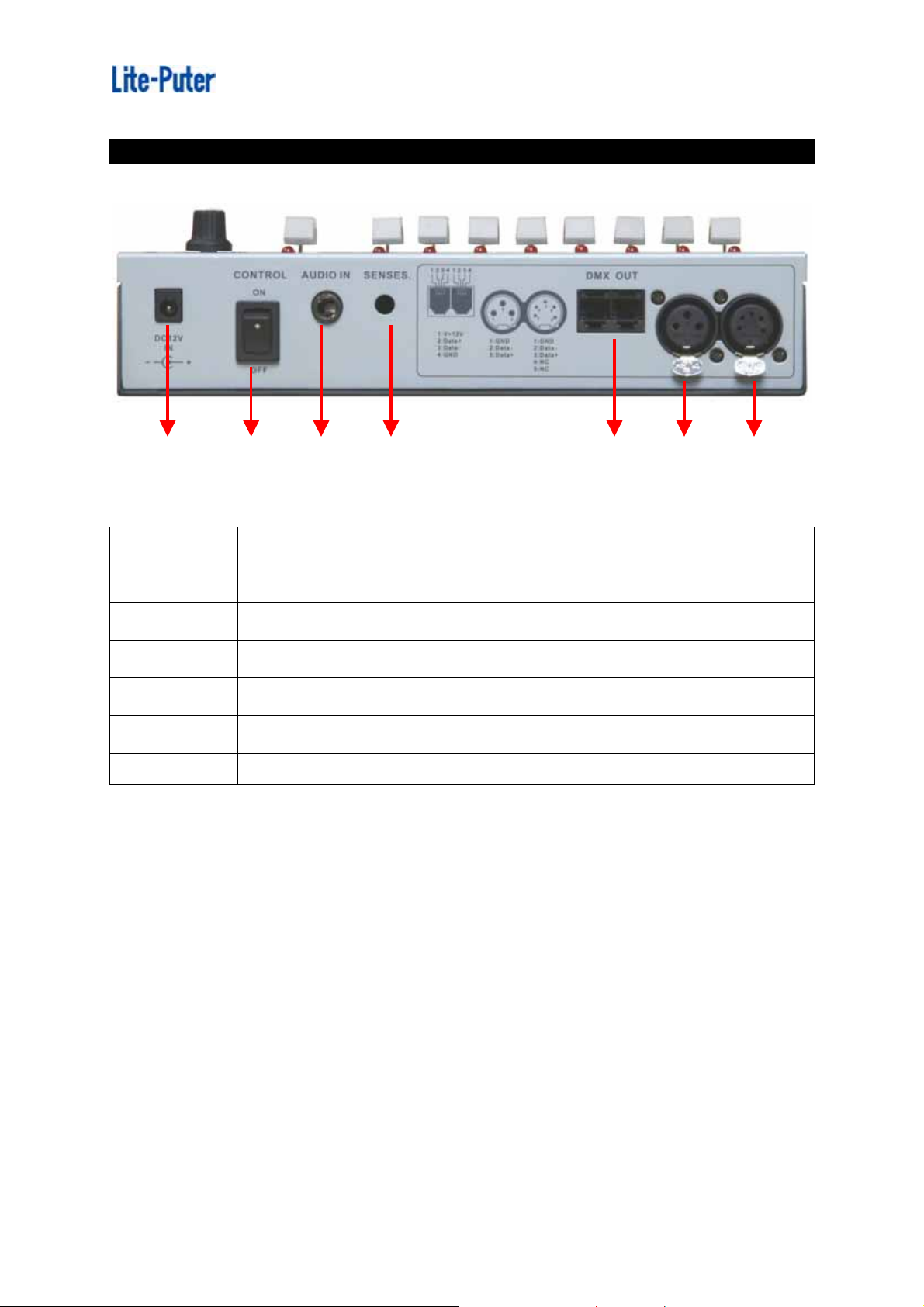

1-4 CX-804 Rear panel
13
14
15 19
13 Power supply: DC 12V / 1A
14 Power switch
15 Audio input: 100mV
16 DMX connector: XLR 5-PIN
17 DMX connector: XLR 3-PIN
18 DMX connector: PHONE JACK (RJ11)
19 Audio sensitivity control
18
17
16
3
CX-804 [EUM-A]
Lite-Pu
ter
Page 16
ISO 9001 CERTIFIED
Chapter 2. CX-804 operation
2-1 SCENE setting
Select【CH】mode, and move the fader to set the dimming value
press【PROG】+【1~8】 to save control scene.
STEP-1 press【SC / CH】to select the control channel
LED : off in CH mode
LED : on in SC mode
STEP-2 move【MASTER-VR】to the top
STEP-3 move【VR-1 … VR-8】to dimming
STEP-4 press【PROG】+【1…8】to confirm and save the selection
1.) When MASTER-VR in 100%, and the VR-1…VR-8 in 50% of dimming value,
the SCENE total output dimming value will be 50%.
2.) When MASTER-VR in 50 %, and the VR-1…VR-8 in 50% of dimming value,
the SCENE total output dimming value will be 25%.
2-2 Scene recall
Refer to 2-1 to set up the dimming value of SC-1…SC-8, use the following
function to recall the scene.
A: 0%…100% VR control
STEP-1 press【SC / CH】key to select【SC】mode. (LED ”on”)
STEP-2 press【VR-1…VR-8】
Ex : to recall SC-2, adjust the【VR-2】, to recall scene 2 by dimming
B: FLASH
STEP-1 press【SC / CH】to select【SC】mode. (LED ”on”)
STEP-2 press【1…8】
EX : to recall SCENE 2, press【2】,and scene 2 switch to 100% full, and release the
key to off the function.
4
CX-804 [EUM-A]
Lite-Pu
ter
Page 17
ISO 9001 CERTIFIED
2-3 CHASE
(1) Internal chase setting (SPEED CHASE)
(2) Audio input control (AUDIO)
2-3-1 Internal chase setting ( SPEED CHASE )
2 mode of chase setting:
(1) in【CH】mode : Chase by CH mode
(2) in【SC】mode : Chase by SC mode
【CH】mode
STEP-1 press【SC/CH】, to select the channel. (LED ”off”)
STEP-2 to select the chase.
1. press【CHASE 1】:
CH. 1 2 3 4 5 6 7 8
STEP 1
STEP 2
STEP 3
STEP 4
● ○ ○ ○ ○ ○ ○ ○
○ ● ○ ○ ○ ○ ○ ○
○ ○ ● ○ ○ ○ ○ ○
○ ○ ○ ● ○ ○ ○ ○
Repeat…
2. press【CHASE 2】：
CH. 1 2 3 4 5 6 7 8
STEP 1
STEP 2
STEP 3
STEP 4
○ ○ ○ ○ ● ○ ○ ○
○ ○ ○ ○ ○ ● ○ ○
○ ○ ○ ○ ○ ○ ● ○
○ ○ ○ ○ ○ ○ ○ ●
Repeat…
Led : ● on ○ off
STEP-3 to adjust the speeding of chase, press【SPEED】to adjust.
STEP-4 press【PROG】to change the chase direction.
STEP-5 press【FLASH/FADER】to change the chase mode.
5
Lite-Pu
CX-804 [EUM-A]
ter
Page 18
ISO 9001 CERTIFIED
【SC】mode
STEP-1 press【SC/CH】, to select the SC mode
STEP-2 to select
press【CHASE 1】：to execute the SC-1…SC-4 chase.
press【CHASE 2】：to execute the SC-5…SC-8 chase.
STEP-3 move【VR-1…VR-8】
Select【CHASE 1】:
move【VR-1…VR-4】, ”SC-1…SC-4” to execute ”Chase” mode
move【VR-5…VR-8】, ”SC-5…SC-8” to execute ”Dimming” mode
Select【CHASE 2】:
move【VR-1…VR-4】, ”SC-1…SC-4” to execute ”Dimming” mode
move【VR-5…VR-8】, ”SC-5…SC-8” to execute ”Chase” mode
The dimming value control by MASTER-VR for above chase setting,
(please refer 2-1 / STEP-2)
STEP-4 Chase speeding, select the【SPEED】to control
STEP-5 Press【PROG】to change the chase direction
STEP-6 press【FLASH/FADER】to change the chase mode.
2-3-2 AUDIO CHASE
STEP-1 turn【SPEED】key to the bottom and feel “ click “ which appointed to audio.
2-4 BLANK
press【BLANK】for pause, and press once again back to the normal mode.
6
CX-804 [EUM-A]
Lite-Pu
ter
Page 19
HS-GS76
HomeStream™ 76” Tall Portable Pull-Up Chroma Key Green Screen
Overview
The Ikan HomeStream™ 76” Portable Pull Up Green Screen is a highly durable
and ultra-convenient pull-up green screen for use with photography, livestreaming, SFX compositing, interviews, etc. This green screen ensures pro-level
chroma keying due to its wrinkle-free material, has an adjustable height reaching a
maximum of 76”, and is housed in an aluminum enclosure.
Specifications
Enclosure Build Material Aluminum
Fixture Size 61.1 x 4 x 4.75” (closed)
Fixture Weight 18.7 lbs
Screen Width 57.5”
Screen Max Height 76”
Features
• Portable Pro-Level Chroma Key Screen
• Aluminum Enclosure
• Fast Setup Time (3 to 7 Seconds)
• Wrinkle-Free Material
• Convenient Collapsible Design
• Screen Width: 57.5”
• Maximum Screen Height: 76”
• Use for Photography, SFX Compositing, Game Streaming, Blogging, Interviews,
etc.
What’s Included
1 x HomeStream 76” Portable Pull-Up Green Screen
Other HomeStreamTM Products
HS-KIT-1
HS-KIT-2
HS-KIT-3
HS-KIT-4
HS-LR6
HS-VCD
HS-LSTND
HS-PROMPTER
Kit #1: 2 Lights, Capture Device, Table Top Camera Stand
Kit #2: 2 Lights, Podcast Microphone & Adjustable Arm
Kit #3: 2 Lights, Capture Device, Stand, Podcast Mic & Arm
Kit #4: 2 Lights, Green Screen, Capture Device, Table Top
Camera Stand, Podcast Mic & Arm
6” Diameter Accent Light w/ Table Top Stand
HDMI Video Capture Device
21” Variable Height Table Top Camera Stand
Smartphone Teleprompter for DSLR, Mirrorless, &
Smartphones w/ Bluetooth Remote
www.ikancorp.com
Page 20
Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2018 ikan Corporation. All rights reserved
Loading...
