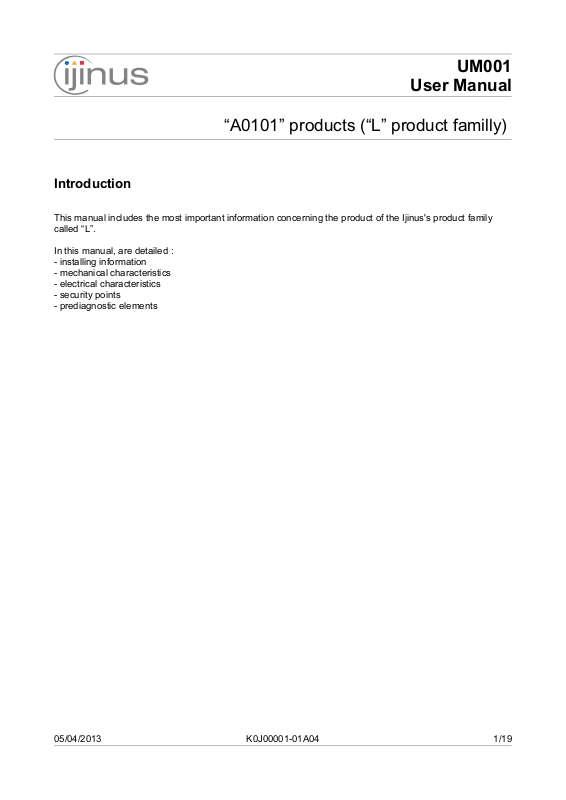

UM001
User Manual
Introduction
This manual includes the most important information concerning the product of the Ijinus's product family
called “L”.
In this manual, are detailed :
- installing information
- mechanical characteristics
- electrical characteristics
- security points
- prediagnostic elements
05/04/2013 K0J00001-01A04 1/19
“A0101” products (“L” product familly)
Contenu UM001
Contenu
1 Concerned products............................................................................................................................... 3
2 Operating and safety instructions........................................................................................................... 4
2.1 Operating instructions................................................................................................................... 4
2.2 Safety instructions........................................................................................................................ 4
2.3 Warning to users in the United States.......................................................................................... 4
2.4 Warning to users in the Canada................................................................................................... 5
3 Technical specifications.......................................................................................................................... 6
3.1 Main specifications....................................................................................................................... 6
3.2 Mechanical speciations................................................................................................................ 9
3.3 Functionalities............................................................................................................................... 9
3.4 Connectors and wiring.................................................................................................................. 9
4 Installation guide................................................................................................................................... 10
4.1 Inserting the SIM card................................................................................................................ 10
4.2 Changing batteries..................................................................................................................... 10
4.3 Mounting the sensor with our mounting plates........................................................................... 11
5 Quick Troubleshooting ......................................................................................................................... 12
5.1 Meaning of the LED flashes ....................................................................................................... 12
5.2 Sensor update............................................................................................................................ 12
5.3 FAQ............................................................................................................................................ 13
6 Attached documents............................................................................................................................. 14
6.1 Batteries recommended by IJINUS........................................................................................... 14
6.2 Technical drawings..................................................................................................................... 14
6.2.1 LNU0300/0600 :.......................................................................................................................... 14
6.2.2 LNU1000 :................................................................................................................................... 15
6.2.3 LOG :.......................................................................................................................................... 16
7 Contact................................................................................................................................................. 17
8 Document History................................................................................................................................. 18
www.ijinus.com K0J00001-01A04 2/19
Concerned products UM001
1 Concerned products
The products concerned by this manual are the devices included in the « L » family.
All these products are based on the same hardware basis and follows the same software updates.
Many functionalities are common to all the products. Especially the radio ISM communication.
www.ijinus.com K0J00001-01A04 3/19
Operating and safety instructions UM001
2 Operating and safety instructions
2.1 Operating instructions
• Check the presence of a desiccant pack after an opening when you close the housing.
This pack must be replaced after a contact with ambient air longer than 3 minutes.
• To ensure the most precise measurements, the sensor must be placed perpendicularly to the target
area to measure.
• Only the use of Ijinus' accessories ensures the the best and the more safely installation.
• Do not handle the devices using the antenna.
• Do not mechanically force the connectors.
• Do not use tools to screw the connectors. They are designed to be hand screwed.
• Take care of the wise of insertion of the SIM card.
• Do not unscrew the transparent raising piece without have removed the gray cover.
2.2 Safety instructions
• Do not shortcut, reload, pierce, warm, put into fire, crush the batteries
• Do not shake the devices.
• Do not physically modify the devices.
• Do not clean the devices with aggressive products like acetone.
• Do not use batteries not recommended by Ijinus (see battery references in attached documents)
• The devices contain elements sensitive to electrostatic discharge. Download your body from
electrostatic loads before opening and manipulate the devices by touching a metallic surface linked
to the Earth.
2.3 Warning to users in the United States
Federal Communication Commission Interference Statement 47 CFR Section 15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device A0101 complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
www.ijinus.com K0J00001-01A04 4/19
Operating and safety instructions UM001
47 CFR Section 15.21
CAUTION: This equipment may not be modified, altered, or changed in any way without signed written
permission from IJINUS. Unauthorized modification may void the equipment authorization from the FCC and
will void the IJINUS warranty.
This device complies with FCC RF radiation exposure limits set forth for general population
(uncontrolled exposure). This device must be installed to provide a separation distance of at least 20cm from
all persons and must not be collocated or operating in conjunction with any other antenna or transmitter
2.4 Warning to users in the Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This device complies with Industry Canada RF radiation exposure limits set forth for general
population (uncontrolled exposure). This device must be installed to provide a separation distance of at least
20cm from all persons and must not be collocated or operating in conjunction with any other antenna or
transmitter.
This device has been designed to operate with the antennas listed below, and having a maximum
gain of 0dBi. Antennas not included in this list or having a gain greater than 0dBi are strictly prohibited for
use with this device. The required antenna impedance is 50 ohms.
List of acceptable antennas for users in the Canada:
- Bulgin : PX0409 (IJINUS Ref: B0E00004)
- IJINUS :
# B0E00017 : GSM Wired Antenna – 850/900/1800/1900MHz SMB IP68 – with 1m cable
# B0E00018 : GSM Wired Antenna – 850/900/1800/1900MHz SMB IP68 – with 3m cable
# B0E00019 : GSM Wired Antenna – 850/900/1800/1900MHz SMB IP68 – with 5m cable
www.ijinus.com K0J00001-01A04 5/19
Technical specifications UM001
3 Technical specifications
The product line « LNU » (Logger de Niveau par imagerie Ultrasonique in French) includes wireless
ultrasonic level sensors.
The product line « LOG » includes logger devices not able to measure by themselves.
3.1 Main specifications
Measurements Ranges :
Products LNU0300 LNU0600 LNU1000
Min (in m) 0,25 0,3 0,4
Max (in m) 3 6 10
Resolution :
Products LNU0300 LNU0600 LNU1000
Up to 1,5m 2 mm 4 mm 7 mm
Up to 3m 4 mm 4 mm 7 mm
Up to 6m / 7 mm 7 mm
Up to 8m / / 10 mm
Up to 10m / / 20 mm
Operating temperature range:
The operating temperature range of the devices described in the user manual is -30 à +80 °C.
IJINUS do not ensure a correct operation, if the devices are used out of the recommended operating
temperature range.
Ultrasonic Frequencies :
Products LNU0300 LNU0600 LNU1000
Frequency (KHz) 120 75 40
Battery life span:
The sensor has a 5 year life span when the measure period is set to 20 minutes and when 1 sms is sent
every day.
www.ijinus.com K0J00001-01A04 6/19
Technical specifications UM001
Beam diameter vs distance between sensor and target area :
Distance between
sensor an target area
(m)
Beam Diameter (m)
LNU0300 LNU0600 LNU1000
0,2 0,05 / /
0,4 0,09 0,11 /
0,6 0,14 0,17 0,14
0,8 0,18 0,23 0,18
1 0,23 0,27 0,23
1,2 0,27 0,34 0,27
1,4 0,32 0,40 0,32
1,6 0,36 0,46 0,36
1,8 0,41 0,52 0,41
2 0,45 0,57 0,45
2,2 0,50 0,63 0,50
2,4 0,55 0,69 0,55
2,6 0,59 0,75 0,59
2,8 0,64 0,80 0,64
3 0,68 0,86 0,68
3,5 / 1,00 0,87
4 / 1,15 1,00
4,5 / 1,29 1,12
5 / 1,43 1,25
5,5 / 1,58 1,37
6 / 1,72 1,50
6,5 / / 1,62
7 / / 1,75
8 / / 1,99
9 / / 2,24
10 / / 2,49
www.ijinus.com K0J00001-01A04 7/19
Technical specifications UM001
Record Memory :
These products are able to record up to 500 000 measurements. When this value is reached the user can
choose to delete de new data or the remplace the oldest one.
Power supply :
All the products described in this user manual are powered by 3,6V lithium batteries witch capacity can be
19Ah or 38Ah. They can not be reloaded.
Use batteries recommended by IJINUS.
Sealing : IP68
Warning : the degree of protection is ensured when the device is equiped with accessories recommended by
IJINUS.
www.ijinus.com K0J00001-01A04 8/19
Technical specifications UM001
3.2 Mechanical speciations
The products described in this user manual have a versatile building. They are composed of 2 or 3 units
depending of the device model. (a shaft, a raising part and a cover)
The different technical drawings are shown in the additional documents.
3.3 Functionalities
Measure : Each level sensor is able to measure a level using ultrasonic waves by determinig the time used
by the wave to come back to the sensor after a reflexion on the target area.
Record : Each device is able do record up to 500 000 values. These values can be measured by the sensor
himself or retrieved from an other sensor.
Concentrate and Broadcast : The sensors or loggers are able to retrieve data from other sensors or
loggers with a short range radio connection.
The devices equiped with a GSM/GPRS modem are able to send data though a cellular network to a SCADA
for example.
3.4 Connectors and wiring
The table below presents the wiring of 2 types of optional connectors:
Connector Options Wiring type
2 TOR 1 Hz Inputs + 1 OW Input (digital T°C) 5B
1 MODBUS RS485 Interface + 1 switch + 1 TOR 1 Hz Input 8A
Refer to the table below to find the diferent ways of wiring :
Numéro PIN 1 2 3 4 5
Couleur 5pts BN WH BU BK GY
Câblage type 5B Vout GND OW TOR 1 TOR 2
Signal 5V 0V T°C Num input Contact input Contact
Type Alim out Alim Digital Digital 1hz Digital 1hz
Numéro PIN 1 2 3 4 5 6 7 8
Couleur 8pts WH BN GN YE GY PK BU RD
Câblage type 8A Vin Switch in GND A / H B / L Switch out TOR 1 NO/NF Shield
Signal 7…24V 0V RS485 RS485 7…24V input TOR Contact Tresse
Type Alim in Alim Modbus Modbus Alim out Digital 1hz Digital 1hz Masse
www.ijinus.com K0J00001-01A04 9/19
Installation guide UM001
4 Installation guide
4.1 Inserting the SIM card
To retrieve data by GSM/GPRS, the sensors and data
loggers that have the GSM option require a SIM card. It
must be installed in the card holder provided for this
purpose. This card holder is located on top of the sensor
on the component side, to the right of the modem.
Before handling the sensor, do not forget to discharge
yourself from electrostatic loads by touching a grounded
conductive surface. The procedure for setting up the SIM
card is:
• Only unscrew the top cover of the sensor / logger
(see photo).
• It is necessary that the modem is inactive (modem
LED off) when inserting the SIM card to be recognize
by the drive. If not, perform a reset of the device.
• Insert the SIM card with a pair of tweezers (see photo
below cons). The notch of the SIM card must be in the
upper left of the connector when inserted.
• Verify the presence of desiccant bags.
• Before closing the lid, turn it anticlockwise one turn to
adjust the antenna wire. Then turn it clockwise until it
stops.
4.2 Changing batteries
- Unscrew the top lid, hold with your finger the electronic card, disconnect the lid cord.
- Unscrew the transparent-extension tube (optional).
- Remove the battery from its housing and disconnect it. Perform multiple
presses on button until the LED to the right of the button does not light up.
- Take off the old desiccant bags
- Insert the battery and connect it (connector is keyed).
- Insert the desiccant packs to the side of the battery, screw the transparent extension tube (optional).
Reconnect the lid cord and then close the lid thoroughly, taking care to preload cord.
Note: After changing the battery, the stored measurements in a sensor are recoverable.
–
www.ijinus.com K0J00001-01A04 10/19
At restart the indicator light should flash red/green and then
the LED should flash green every 10 seconds.
Replacement batteries should not be exposed to temperatures above 25 ° C (capacity degradation).
In cases where replacement batteries are led to be stored for several weeks, it is recommended to
place them in a cool place (fridge for example).
Installation guide UM001
WARNING: This operation must be done quickly because the desiccant packs have a very short life in the
open air (about 3 minutes). After this period, they no longer provide full functions.
You must then reconnect your device to reset the time using the software AVELOUR to ensure that your
measurement dates are not wrong.
4.3 Mounting the sensor with our mounting plates
Mounting plates allow secure attachment while sufficient mobility is needed for the proper orientation of the
sensor (perpendicular to the surface of the fluid).
www.ijinus.com K0J00001-01A04 11/19
Quick Troubleshooting UM001
5 Quick Troubleshooting
5.1 Meaning of the LED flashes
The operating LED the of the motherboard is located above the battery connector. The operating LED the of
the modem is located under the SIM card.
• Motherboard (battery side) :
Alternating red/green for 1 second (10 x 100 ms) then orange for 5 seconds in the following cases:
▪ All restart with external power supply connected
▪ Connecting an external power supply (including USB)
▪ Reset command launched by the application (for example Firmware Update)
Once the application is launched:
▪ 1 green flash 100 ms all 2100 ms
▪ 1 flash green every 50 ms radio activity
▪ 1 red flash of 100 ms in case of system error
▪ Red or fixed green in case of a system failure (followed by an automatic restart after about
16 seconds)
• Modem card (SIM card side) :
▪ Inactive modem (not supplied): Led off
▪ Starting the modem (power application): Green flash and led off for about 2 seconds. Fixed
green light during the recording of the GSM network (10 to 30 seconds)
▪ Operating: Solid green if the modem is not registered on the network or while a network
search. Fixed green light of 200 ms every 2 seconds if the modem is registered on the
network.
5.2 Sensor update
If the device you want to connect to is not up to date, an automatic updating procedure is done from the
latest version of AVELOUR.
www.ijinus.com K0J00001-01A04 12/19
Quick Troubleshooting UM001
5.3 FAQ
From where can I download AVELOUR?
You can download AVELOUR using the download link that was sent to you with your order. However, if you
have misplaced it, you can send a request by mail to the customer service to get a new one.
Which of the two applications should I install ?
You have the choice between two executables:
Setup_Avelour_XXXX.exe and Setup_Avelour_XXXX_DotNet_x32.exe
You must install the "DotNet" if you have never installed on your computer AVELOUR. Alternatively, you can
install the other version.
My access point does not detect any devices.
Check that the antenna provided in the programming kit is placed on the access point and its LED flashes
green.
Check that the USB cable is properly connected and undamaged.
My sensor does not appear in the list of possible connections in AVELOUR.
Check the LED status of this sensor, near the battery connector, that should flashes green.
A minimum distance of 1m between the sensor and the access point is required.
Check the connection of the battery.
I do not receive SMS after doing the “sending SMS test“ under AVELOUR.
Verify the presence and the direction of insertion of the SIM card as well as the presence of the GSM
antenna.
Also check the network status using the “modem diagnostic” button under AVELOUR. The sensor can send
SMS from the moment the reception level(RSSI) is greater than -100.
Prior to joining the after-sales service, please verify that your version of AVELOUR and firmware version of
your devices are up to date. To do this, download the latest version of AVELOUR from the download link that
has been delivered at the same time as your order and connect to your equipment with it.
Please contact the sales personn in charge of your area or the after sales service before any return.
When you return equipment, please attach a note explaining your request.
The after sales service will take into account only full and cleaned equipment.
The coordinates of the different services areiin attached documents,
www.ijinus.com K0J00001-01A04 13/19
Attached documents UM001
6 Attached documents
6.1 Batteries recommended by IJINUS
The batteries used in our products are:
➔ A0G00020 (3,6V ; 19Ah) To be used with the sensors and data logger without GSM
➔ A0G00017 (3,6V ; 38Ah) To be used with the sensors and data logger with GSM
The use of any other battery exposes you to the cancellation of the guarantee.
6.2 Technical drawings
6.2.1 LNU0300/0600 :
www.ijinus.com K0J00001-01A04 14/19
LNU0600-0-82XGSM
LNU0600-1-82XGSM
LNU0300-0-80X
LNU0600-0-80X
LNU0300-1-80X
LNU0600-1-80X
LNU0300-0-82X-
GSM
LNU0300-1-82X-
GSM
Attached documents UM001
6.2.2 LNU1000 :
www.ijinus.com K0J00001-01A04 15/19
LNU1000-0-80X
LNU1000-1-80X
LNU1000-0-82XGSM
LNU1000-1-82XGSM
Attached documents UM001
6.2.3 LOG :
www.ijinus.com K0J00001-01A04 16/19
LOG0500-4-80X
LOG0500-0-82X-GSM
LOG0500-4-82X-GSM
Attached documents UM001
7 Contact
Sales manager W est France :
Mail : laurent.meyer@ijinus.fr
Mobile : +33 6 79 27 37 60
Commercial Ea st France :
Mail : stephane.paire@ijinus.fr
Mobile : +33 6 16 64 17 35
Export & Sales support :
Mail : dominique.mahe@ijinus.fr
Phone : +33 2 98 09 03 37
Mobile : +33 6 07 75 52 51
After Sales Service :
IJINUS
Service Après-vente
25 ZA de Kervidanou 3
29300 MELLAC
Mail : sav@ijinus.fr
Phone : +33 2 98 09 03 32
www.ijinus.com K0J00001-01A04 17/19
Document History UM001
8 Document History
Date Revision Autor(s) Changes
26/02/2013 A01 A. LE BARS Creation
08/03/2013 A02
A. LE GAC /
D. MAHE
Translation
21/03/2013 A03 A. LE GAC FCC warnings to users added
05/04/2013 A04 A. LE GAC IC warnings added
www.ijinus.com K0J00001-01A04 18/19
UM001
© 2013 IJINUS – All rights reserved
IJINUS reserves all rights about this document and the informations it contains. Modification, translation or
reuse of all or parts of this document is strictly prohibited without the written consent of IJINUS.
IJINUS does not guarantee the accuracy or completeness of the contents of this document and reserves the
right to make changes at any time without notice.
IJINUS and the associated logos are trademarks.
IJINUS
25 ZA de Kervidanou 3
29300 Mellac
FRANCE
Tel : +33 2 98 09 03 30
Fax : +33 2 98 96 29 01
www.ijinus.com K0J00001-A01 19/19
Loading...
