USER MANUAL
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through
this brief but comprehensive manual
before installing and switching on the
monitor. Please keep this manual in a
safe place for your future reference.
ENGLISH
ENGLISH
Congratulations!
This product is TCO Certified
This product has been verified to meet all the criteria in TCO Certified, including:
Corporate Social Responsibility
Socially responsible production - working conditions and labor law in manufacturing country
Energy Efficiency
Energy efficiency of product and power supply. Energy Star compliant, where applicable
Environmental Management System
Manufacturer must be certified according to either ISO 14001 or EMAS
Minimization of Hazardous Substances
Limits on cadmium, mercury, lead & hexavalent chromium including requirements for mercury-free
products, halogenated substances and hazardous flame retardants
Design for Recycling
Coding of plastics for easy recycling. Limit on the number of different plastics used.
Product Lifetime, Product Take Back
Minimum one-year product warranty. Minimum three-year availability of spare parts. Product takeback
Packaging
Limits on hazardous substances in product packaging. Packaging prepared for recycling
Ergonomic, User-centered design
Visual ergonomics in products with a display. Adjustability for user comfort (displays, headsets)
Acoustic performance
Ergonomically designed keyboard (notebooks)
Electrical Safety, minimal electro-magnetic Emissions
Third Party Testing
All certified product models have been tested in an independent, accredited laboratory.
A detailed criteria set is available for download at www.tcodevelopment.com, where you can also
find a searchable database of all TCO Certified IT products.
TCO Development, the organization behind TCO Certified, has been an international driver in the
field of Sustainable IT for 20 years. Criteria in TCO Certified are developed in collaboration with
scientists, experts, users and manufacturers. Organizations around the world rely on TCO Certified
as a tool to help them reach their sustainable IT goals. We are owned by TCO, a non-profit
organization representing office workers. TCO Development is headquartered in Stockholm,
Sweden, with regional presence in North America and Asia.
TCO Certified is an international third party sustainability certification for
IT products. TCO Certified ensures that the manufacture, use and
recycling of IT products reflect environmental, social and economic
responsibility. Every TCO Certified product model is verified by an
accredited independent test laboratory.
protection against sound spikes (headsets) and fan noise (projectors, computers)
For more information, please visit
for Sustainable IT
www.tcodevelopment.com
ENGLISH
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2004/108/EC “EMC
Directive”, 2006/95/EC “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
An approved power cord greater or equal to H05VVF, 3G, 0.75mm2 must be used.
ENGLISH
For displays with glossy bezels the user should consider the placement of the display as the
bezel may cause disturbing refl ections from surrounding light and bright surfaces.
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.
We reserve the right to change specifi cations without notice.
All trademarks used in this user manual are the property of their respective owners.
As an ENERGY STAR
for energy effi ciency.
®
Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines
TABLE OF CONTENTS
FOR YOUR SAFETY ............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS .........................................3
CUSTOMER SERVICE ................................................................... 3
CLEANING ......................................................................................3
BEFORE YOU OPERATE THE MONITOR ..........................................4
FEATURES......................................................................................4
CHECKING THE CONTENTS OF THE PACKAGE ........................4
WALL MOUNTING .......................................................................... 5
FITTING AND REMOVAL OF BASE ...............................................6
CONTROLS AND CONNECTORS..................................................7
CONNECTING YOUR MONITOR ................................................... 8
COMPUTER SETTING ...................................................................9

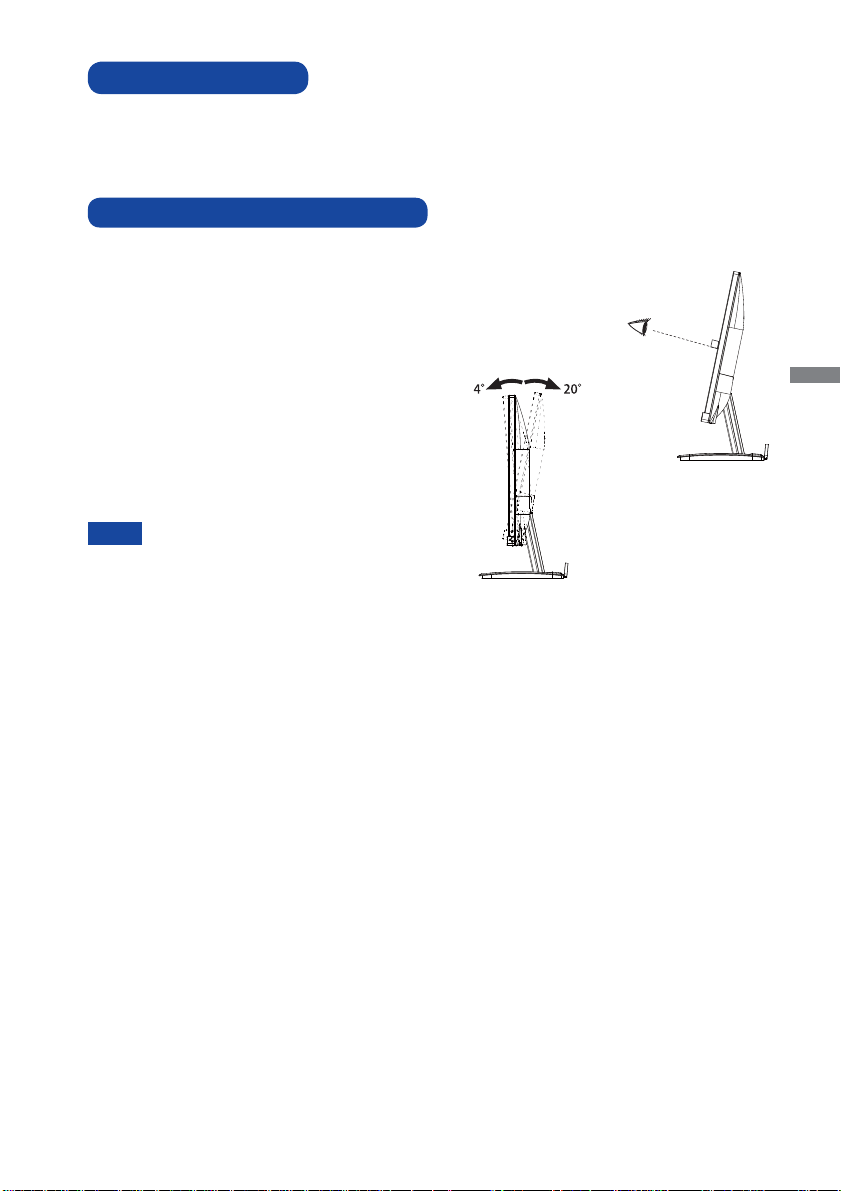

ADJUSTING THE VIEWING ANGLE ..............................................9
OPERATING THE MONITOR .............................................................10
ADJUSTMENT MENU CONTENTS .............................................. 11
SCREEN ADJUSTMENTS ............................................................17
POWER MANAGEMENT FEATURE ............................................. 20
TROUBLE SHOOTING ......................................................................21
RECYCLING INFORMATION .............................................................22
APPENDIX ........................................................................................23
SPECIFICATIONS .........................................................................23
DIMENSIONS ................................................................................24
COMPLIANT TIMING ....................................................................24
ENGLISH
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fi re or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will
cause malfunction and may cause fi re or electric shock.
ENGLISH
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
FOR YOUR SAFETY 1
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
ENGLISH
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the
cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re
or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft
material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable
itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
CAREFUL! PROTECT YOUR HANDS AND FINGERS
Be careful not to hurt your fi ngers or hands when you change the height or the angle.
Injury can occur if care is not taken to avoid fi nger contact with the displays base when adjusting
the height. (Just for height adjustable model.)
REMARK FOR 24/7 USAGE
This product is not specifi cally designed for 24/7 usage in all environments.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
2 FOR YOUR SAFETY
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
When you first turn on the LCD monitor, the picture may not fit in the display area
NOTE
because of the type of computer that is used. In this case, adjust the picture position to
the correct position.
You may fi nd slightly uneven brightness on the screen depending on the desktop pattern
you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screen can be recovered slowly by changing the image or turning off the Power Switch
for some hours.
CUSTOMER SERVICE
NOTE
please contact your dealer or iiyama service center for advice or replacement packaging.
If you have to return your unit for service and the original packaging has been discarded,
CLEANING
If you drop any materials or liquids such as water into the monitor when cleaning,
WARNING
CAUTION
NOTE
unplug the power cable immediately and contact your dealer or iiyama service center.
For safety reasons, turn off the power switch and unplug the monitor before you
clean it.
To protect the LCD panel, do not scratch or rub the screen with a hard object.
Never use any of the following strong solvents. These will damage the cabinet and
the LCD screen.
Thinner
Benzine
Abrasive cleaner
Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Spray-type cleaner
Wax
Acid or Alkaline solvent
ENGLISH
CABINET
LCD
SCREEN
Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
FOR YOUR SAFETY 3
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1000:1 (Typical), Adv. Contrast Function Available / Brightness
250cd/m
Blue Light Reducer
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
ENGLISH
2 × 2W Stereo Speakers
Plug & Play VESA DDC2B Compliant
Windows
Power Management (ENERGY STAR
Ergonomic Design TCO Certifi ed
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyama offi ce.
Power Cable*
Stand-Base (Screw for stand fi xing attached)
Safety Guide
2
(Typical) / Quick Response Time 5ms (Gray to Gray)
®
7/8 Compliant
®
VESA DPMS Compliant)
DVI-D Signal Cable
Quick Start Guide
Audio Cable
Cable Holder
CAUTION
4 BEFORE YOU OPERATE THE MONITOR
* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/250V
must be used. However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.
WALL MOUNTING
WARNING
When you use with the wall mounting, in consideration of thickness of the mounting
stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the
monitor. Using the screw longer than this may cause electric shock or damage
because it may contact with the electrical parts inside the monitor.
Please check if the wall or ceiling can support the weight of the monitor before
mounting it.
Mounting Stage
Screw
L
Chassis
ENGLISH
BEFORE YOU OPERATE THE MONITOR 5
FITTING AND REMOVAL OF BASE
CAUTION
Put the monitor on a stable surface. The monitor may cause injury or damage if it
falls or is dropped.
Do not give a strong impact to the monitor. It may cause damage.
Unplug the monitor before removal or installation to avoid electric shock or damage.
<Installation>
Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.
Lay the monitor fl at on a table with front face down.
Install the stand-base to the stand.
Use ‘thumb screw’ provided to secure base to monitor column.
ENGLISH
Insert the Cable Holder into Hole.
Stand-Base
Thumb screw
for Stand-Base fi xing
Cable Holder
<Removal>
Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.
Lay the monitor fl at on a table with front face down.
Remove ‘thumb screw’ to remove base from monitor column.
Stand-Base
6 BEFORE YOU OPERATE THE MONITOR
CONTROLS AND CONNECTORS
<Front> <Back>
Power Indicator
NOTE
Blue: Normal operation
Orange: Power Management
Power Switch ( )
Menu Button (MENU)
+ / Volume / Blue Light Reducer Button ( + )
- / ECO Button ( - )
Auto Button (AUTO)
Speakers
Audio Connector ( )
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
NOTE
without your permission.
VGA(D-sub) mini 15pin Connector (D-SUB)
DVI-D 24pin Connector (DVI)
HDMI Connector (HDMI)
AC Connector( : Alternating current) ( )
Installation hole of Cable Holder
ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
CONNECTING YOUR MONITOR
Computer
Power Cable
(Accessory)
VGA(D-sub) Signal Cable*
(Not Included)
DVI-D Cable (Accessory)
Audio Cable (Accessory)
HDMI Cable (Not Included)
AV Equipment
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor and computer.
NOTE
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
ENGLISH
regional iiyama offi ce.
For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama offi ce for a suitable adaptor.
Make sure you tighten the fi nger screws at each end of the signal cable.
[Example of Connection]
<Back>
*
VGA (D-Sub) cable is not supplied with the monitor; you need to use a special VGA (D-Sub) cable
dedicated for this model. Please contact the iiyama Support Centre in your country if you wish to
connect the monitor via the VGA input.
[ Collect Cables ]
Put the cables through the cable holder.
Collect cables at the back of the stand.
8 BEFORE YOU OPERATE THE MONITOR
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 24: COMPLIANT TIMING.
ADJUSTING THE VIEWING ANGLE
For optimal viewing it is recommended to look at
the full face of the monitor.
Hold the stand so that the monitor does not
topple when you change the monitor’s angle.
You are able to adjust the monitor’s angle up to
20° upward, 4° downward.
In order to ensure a healthy and relaxed body
position when using the monitor at visual
display workstations, it is recommended that
the adjusted tilt angle should not exceed 10
degrees. Adjust the monitor’s angle to your own
preference.
ENGLISH
NOTE
Do not touch the LCD screen when you
change the height or the angle. It
may cause damage or break the LCD
screen.
Careful attention is required not to
catch your fingers or hands when you
change the height or the angle.
BEFORE YOU OPERATE THE MONITOR 9
OPERATING THE MONITOR
AUTO
:Exit
:Move
MENU
:Select
+
Luminance
Contrast
Brightness
Eco
i-Style Color
50
100
Off
Standard
Adv. Contrast Off
AUTO
:Exit
:Move
MENU
:Select
+
Image Setup
Clock
Phase
Aspect Ratio
H.Position
50
86
Full
V.Position
50
50
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 24. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.
Press the MENU Button to start the On Screen Display feature. There are additional
Menu items which can be switched by using the + / - Buttons.
ENGLISH
Select the Menu item which contains the adjustment icon relating to the adjustment
you want to make. Press the MENU Button. Then, use the + / - Buttons to highlight
the desired adjustment icon.
Press the MENU Button again. Use the + / - Buttons to make the appropriate
adjustment or setting.
Press the AUTO Button to leave the menu, and the settings you just made would be
automatically saved.
For example, to correct for vertical position, select Menu item of Image Setup and then press
the MENU Button. Then, select V.Position by using the + / - Buttons.
An adjustment page appears after you press the MENU Button. Then, use the + / - Buttons
to change the vertical position settings. The vertical position of the overall display should be
changing accordingly while you are doing this.
Press the AUTO Button lastly, it ends, all changes are saved in the memory.
NOTE
When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the OSD Timeout has passed. Also, the AUTO button can be used to return previous
menu and turn off the On-Screen Display.
Any changes are automatically saved in the memory when the On Screen Display
Turning off the power should be avoided while using the Menu.
Adjustments for H. / V. Position, Clock and Phase are saved for each signal timing. Except for
these adjustments, all other adjustments have only one setting which applies to all signal timings.
10 OPERATING THE MONITOR
disappears.
ADJUSTMENT MENU CONTENTS
AUTO
:Exit
:Move
MENU
:Select
+
Luminance
Contrast
Brightness
Eco
i-Style Color
50
100
Off
Standard
Adv. Contrast Off
Direct
Direct
Luminance
Adjustment Item Problem / Option Button to Press
Contrast
Too dull
Too intense
ENGLISH
Brightness *
1
i-Style Color
Adv. Contrast
NOTE
Adv. Contrast adjusts brightness according to the image, and improve the contrast ratio
Too dark
Too bright
Standard
Text
For general windows environment and monitor
default setting.
For text editing and viewing in a word processing
environment.
Internet For internet environment.
Game
Movie
Sports
Off
On
For PC game environment.
For movie and video environment.
For sport environment.
Typical Contrast Ratio
Increased Contrast Ratio
during movie playing.
Contrast, Brightness, Gamma, Color Temp., Eco and i-Style Color cannot be adjusted
and selected while Adv. Contrast is active.
Off Normal
Eco
1
Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
*
bright.
2
i-Style Color is disabled when Blue Light Reducer is activated.
*
Mode1 Brightness of back-light is reduced.
Mode2
Mode3
Brightness of back-light is reduced more than Mode1.
Brightness of back-light is reduced more than Mode2.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Eco: Press the - Button when the Menu is not displayed.
OPERATING THE MONITOR 11
Image Setup
AUTO
:Exit
:Move
MENU
:Select
+
Image Setup
Clock
Phase
Aspect Ratio
H.Position
50
86
Full
V.Position
50
50
Adjustment Item Problem / Option Button to Press
1,2
Clock*
ENGLISH
1,2
Phase*
H. Position*
V. Position*
2
2
Aspect Ratio
*1 See page 17 for SCREEN ADJUSTMENTS.
2
*
Only Analog Input.
To correct fl ickering text or lines
Aspect
Too narrow
Too wide
Too left
Too right
Too low
Too high
Expansion displayFull
Expansion display of Aspect
12 OPERATING THE MONITOR
Color Temp.*
AUTO
:Exit
:Move
MENU
:Select
+
Color Temp.
Color Temp.
User-Red
Gamma
User-Green
Warm
43
Gamma1
User-Bule
44
50
Adjustment Item Problem / Option Button to Press
NormalGamma1
Gamma
Color Temp.
NOTE
sRGB is an international standard which defi nes and unifi es the difference of color
Gamma2
Gamma3
Warm
Normal
Cool
User
sRGB
High contrast
Dark
Greenish white
Yellowish white
Bluish white
User-Red
User-Green
User-Blue
sRGB
Too weak
Too strong
appearance between equipment.
You can not adjust the Brightness, Contrast, i-Style Color, Adv. Contrast, Gamma and
Eco during sRGB mode because those settings are locked.
* Color Temp. adjustments is disabled when Blue Light Reducer is activated.
ENGLISH
OPERATING THE MONITOR 13
AUTO
:Exit
:Move
MENU
:Select
+
OSD
OSD Setup
H.Position
V.Position
OSD Timeout
95
95
Language
10
English
OSD
OSD Setup
Adjustment Item Problem / Option Button to Press
H.Position
ENGLISH
V.Position
OSD Timeout
Language
OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time
between 5 and 100 seconds.
English
Deutsch
English
German
Русский Russian
Français French
Polski
Polish
Nederlands
Simplifi ed Chinese
Japanese
Dutch
14 OPERATING THE MONITOR
Extra
AUTO
:Exit
:Move
MENU
:Select
+
Extra
Reset
DDC / CI
Input Select
Over Drive
HDMI audio
Opening Logo
Information
Input:
Resolution:
H. Frequency:
V. Frequency:
Yes
On
Auto
Off
Line in
On
D-SUB
1920<H> * 1080<V>
67KHz
60Hz
Direct
Direct
Adjustment Item Problem / Option Button to Press
Reset
DDC / CI
Yes
No Return to Menu.
Off DDC / CI is Off.
Auto
Input Select
D-SUB
DVI
HDMI
NOTE
At selected the AUTO, it will automatically be selected when just one source is available.
Factory-preset data is restored.
DDC /CI is On.On
Select the signal input automatically.
Select the Analog input.
Select the Digital (DVI) input.
Select the Digital (HDMI) input.
If there are more input sources available and you select one of them, the AUTO option is
not available.
If multiple inputs are connected, the monitor may not recover the last one used after
turning it off and on again.
It is only possible when you set a specifi c source.
Off / -2 / -1 / 0 / +1 / +2
Over Drive*
2
It will improve the gray level response time of the
LCD panel.
A higher level results in a faster response time.
HDMI audio*
Opening Logo
1
HDMI
LINE IN
Off Opening Logo is Off.
Select the HDMI input.
Select the LINE IN input.
Opening Logo is On.On
Displays information regarding the current input signal coming
Information
from the graphic card in your computer.
NOTE
See your graphic card user guide for more information
about changing the resolution and refresh.
*1 Suitable for HDMI input only.
2
*
When Over Drive is activated, some level of image retention will be caused.
ENGLISH
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Input Select: Press the AUTO button when the Menu is not displayed, it shows following Menu.
You can then select input source press the AUTO button and press the MENU
button.
D-SUB
HDMI
DVI
OPERATING THE MONITOR 15
You can skip the Menu items and display an adjustment scale directly by using the following button
Direct
operations.
Volume: Press the + Button when the Menu is not displayed.
Adjustment Item Problem / Option Button to Press
Volume
Auto Adjust: Press and hold the Auto Button for 3-4 seconds when the Menu is not displayed.
ENGLISH
Only Analog Input
Too soft
Too loud
Adjustment Item Problem / Option Button to Press
Auto Adjust *
* For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 17 for
SCREEN ADJUSTMENTS.
Blue Light Reducer * : Pressing and holding of the + Button for 1-2 seconds when the Menu
is not displayed.
Off : Normal
Mode1 : Blue light is reduced.
Mode2 : Blue light is reduced more than Mode1.
Mode3 : Blue light is reduced more than Mode2.
* Blue Light Reducer cannot be enabled if i-Style Colour, Adv.Contrast or sRGB colour are enabled.
Lock Mode:
<OSD>
Hold the MENU button and turn on the monitor when the monitor is power-off, it will lock/unlock the
OSD Key Lock function.
<Power/OSD>
Pressing and holding the MENU button for 10 seconds when Menu is not displayed, will lock/unlock
the Power/OSD Key Lock function.
Adjust H. / V. Position, Clock and Phase automatically.
16 OPERATING THE MONITOR
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
The screen adjustments described in this manual are designed to set image position and minimize
fl icker or blur for the particular computer in use.
The monitor is designed to provide the best performance at resolution of 1920 × 1080, but can not
provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched
to fi t the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use.
Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than
the computer software or utilities.
Perform adjustments after a warm-up period of at least thirty minutes.
Additional adjustments may be required after the Auto Image Adjust depending on the resolution
or signal timing.
The Auto Image Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock and
Phase. The other way is performing each adjustment manually.
Perform the Auto Image Adjust fi rst when the monitor is connected to a new computer, or resolution
is changed. If the screen has a fl icker or blur, or the picture does not fi t in the display area after
performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be
made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://
www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows
Display the picture at the optimum resolution.
Enter the Test.bmp (screen adjustment pattern) to wallpaper.
®
OS.
OTE
ENGLISH
Consult the appropriate documentation for doing this.
NOTE
Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in
the wallpaper setting dialogue box.
[Adjustment pattern]
Zebra pattern
Color bar
Picture frame
OPERATING THE MONITOR 17
Pressing and holding of the AUTO Button for about 3-4 seconds. (Auto Adjust)
Adjust the image manually by following procedure below when the screen has a fl icker or
blur, or the picture does not fi t in the display area after performing the Auto Image Adjust.
Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display
area.
ENGLISH
1) Adjust the H.Position so that the left side of the picture frame will move to the left edge
of the display area.
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the Clock.
When the left side of the picture frame moves apart from the left edge of the display
NOTE
area during the Clock adjustment, adjust steps 1) and 2).
Another way to make the Clock adjustment is to correct the vertical wavy lines in the
zebra pattern.
The picture may fl icker during the Clock, H.Position and V.Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the
Clock adjustment, repeat steps from .
18 OPERATING THE MONITOR
Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.
NOTE
In case the strong fl icker or blurs remain on a part of the screen, repeat steps and
because the Clock may not be adjusted correctly. If the fl icker or blurs still remain,
set the refresh rate of computer to low (60Hz) and repeat steps from
Adjust the H.Position after the Phase adjustment if the horizontal position moves
again.
during the adjustment.
Adjust the Brightness and Color to get the desired picture after you complete the Clock
and Phase adjustments.
Put back your favorite wallpaper.
ENGLISH
OPERATING THE MONITOR 19
POWER MANAGEMENT FEATURE
0 0.5W 100%
POWER
CONSUMPTION
Blue
Orange
Power Indicator
NORMAL MODE
POWER MANAGEMENT MODE
The power management feature of this product complies with power saving requirement of ENERGY
®
STAR
and VESA DPMS. When activated, it automatically reduces unnecessary power consumption
of the monitor when your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
There is a power management step the monitor takes as described below. The power management
function, including any timer settings is confi gured by the operating system. Check your operating
system manual for information on how this can be confi gured.
Power Management Mode
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the
monitor enters into Power Management Mode which reduces the power consumption to less
than 0.5W. The screen becomes dark, and the power indicator turns to orange. From Power
ENGLISH
Management Mode, the image reappears in several seconds when either the keyboard or the
mouse are touched again.
NOTE
Even when using the power management mode, the monitor consumes electricity. Turn
off the Power Switch whenever the monitor is not in use, during the night and weekends,
to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync
signal is missing. In this instance, the POWER MANAGEMENT feature may not work
properly.
20 OPERATING THE MONITOR
TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem
you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.
If you are experiencing a problem which is not described below or you cannot correct the problem,
3.
discontinue using the monitor and contact your dealer or iiyama service center for further assistance.
Problem Check
The picture does
not appear.
(Power indicator
does not light
up.)
(Power indicator
is blue.)
(Power indicator
is orange.)
The screen is not
synchronized.
The screen
position is not in
the center.
The Power Cable is fi rmly seated in the socket.
The Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.
If the blank screen saver is in active mode, touch the keyboard or the mouse.
Increase the Contrast and/or Brightness.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
If the monitor is in power management mode, touch the keyboard or the mouse.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The video output level of the computer is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
ENGLISH
The screen is too
bright or too dark.
The screen is
shaking.
The video output level of the computer is within the specifi cation of the
monitor.
The power voltage is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
TROUBLE SHOOTING 21
Problem Check
No sound.
The sound is too
loud or too quiet.
A strange noise
is heard.
ENGLISH
The audio equipment (computer etc.) is ON.
The Audio Cable is properly connected.
The Volume is turned up.
The audio output level of the audio equipment is within the specifi cation
of the monitor.
The audio output level of the audio equipment is within the specifi cation
of the monitor.
The Audio Cable is properly connected.
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
22 TROUBLE SHOOTING / RECYCLING INFORMATION
APPENDIX
Design and specifi cations are subject to change without prior notice.
SPECIFICATIONS
Size Category 25"
LCD Panel
Display Colours
Sync Frequency
Maximum Resolution
Input Connector
Plug & Play
Input Sync Signal Separate sync: TTL, Positive or Negative
Input Video Signal
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 2W × 2 (Stereo speakers)
Maximum Screen Size 552.96mm W × 308.64mm H / 21.8" W × 12.2" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption*
Dimensions / Net Weight
Tilt Angle
Environmental
Considerations
Approvals
Panel technology
Pixel pitch
Brightness
Contrast ratio
Viewable angle
Response time
IPS
Diagonal: 25" (63.5cm)Size
0.288mm H × 0.288mm V
2
250cd/m
(Typical)
1000 : 1 (Typical), Adv. Contrast Function Available
Right / Left / Up / Down: 89 degrees each (Typical)
5ms (Gray to Gray)
Approx.16.7M
Analog: Horizontal: 24.0-83.0kHz, Vertical: 55-76Hz
Digital: Horizontal: 30.0-83.0kHz, Vertical: 55-76Hz
1920 × 1080, 2.1 MegaPixels
VGA(D-sub) mini 15 pin, DVI-D 24 pin, HDMI
VESA DDC2B
Analog: 0.7Vp-p (Standard), 75
TM
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Digital: HDMI
26W typical, Power management mode: 0.5W maximum
Energy Effi ciency Class: A
577.5 × 407.5 × 180.0mm / 22.7 × 16.0 × 7.1" (W×H×D)
4.4kg / 9.7lbs
Upward: 20 degrees, Downward: 4 degrees
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
5 to 85% (No condensation)
TCO Certifi ed, CE, TÜV-Bauart, VCCI-B, CU, ENERGY STAR
ENGLISH
®
NOTE
*
Audio equipment is not connected.
APPENDIX 23
DIMENSIONS
577.5mm/22.7”
570.0mm/22.4”
ENGLISH
COMPLIANT TIMING
Video Mode
VGA
SVGA
VESA
XGA
SXGA
WXGA+
WSXGA+
Full HD
640 × 480
800 × 600
1024 × 768
1280 × 1024
1440 × 900
1680 × 1050
1920 × 1080
316.5mm/12.5”
339.5mm/13.4”
Horizontal
Frequency
31.469kHz
37.500kHz
35.156kHz
37.879kHz
46.875kHz
48.363kHz
56.476kHz
60.023kHz
63.981kHz
79.976kHz
55.935kHz
65.290kHz
66.590kHz
45.0mm/1.8”
407.5mm/16.0”
Vertical
Frequency
59.940Hz
75.000Hz
56.250Hz
60.317Hz
75.000Hz
60.004Hz
70.069Hz
75.029Hz
60.020Hz
75.025Hz
59.887Hz
60.000Hz
59.930Hz
180.0mm/7.1”
219.5mm/8.6”
Dot Clock
25.175MHz
31.500MHz
36.000MHz
40.000MHz
49.500MHz
65.000MHz
75.000MHz
78.750MHz
108.000MHz
135.000MHz
106.500MHz
146.250MHz
138.500MHz
24 APPENDIX
