USER MANUAL
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through
this brief but comprehensive manual
before installing and switching on the
monitor. Please keep this manual in a
safe place for your future reference.
ENGLISH
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2004/108/EC “EMC
Directive”, 2006/95/EC “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
ENGLISH
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.
We reserve the right to change specifi cations without notice.
All trademarks used in this user manual are the property of their respective owners.
As an ENERGY STAR
for energy effi ciency.
®
Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines
ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY ............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS .........................................3
CUSTOMER SERVICE ................................................................... 3
CLEANING ......................................................................................3
BEFORE YOU OPERATE THE MONITOR ..........................................4
FEATURES......................................................................................4
CHECKING THE CONTENTS OF THE PACKAGE ........................4
WALL MOUNTING .......................................................................... 5
FITTING AND REMOVAL OF BASE ..............................................6
CONTROLS AND CONNECTORS..................................................7

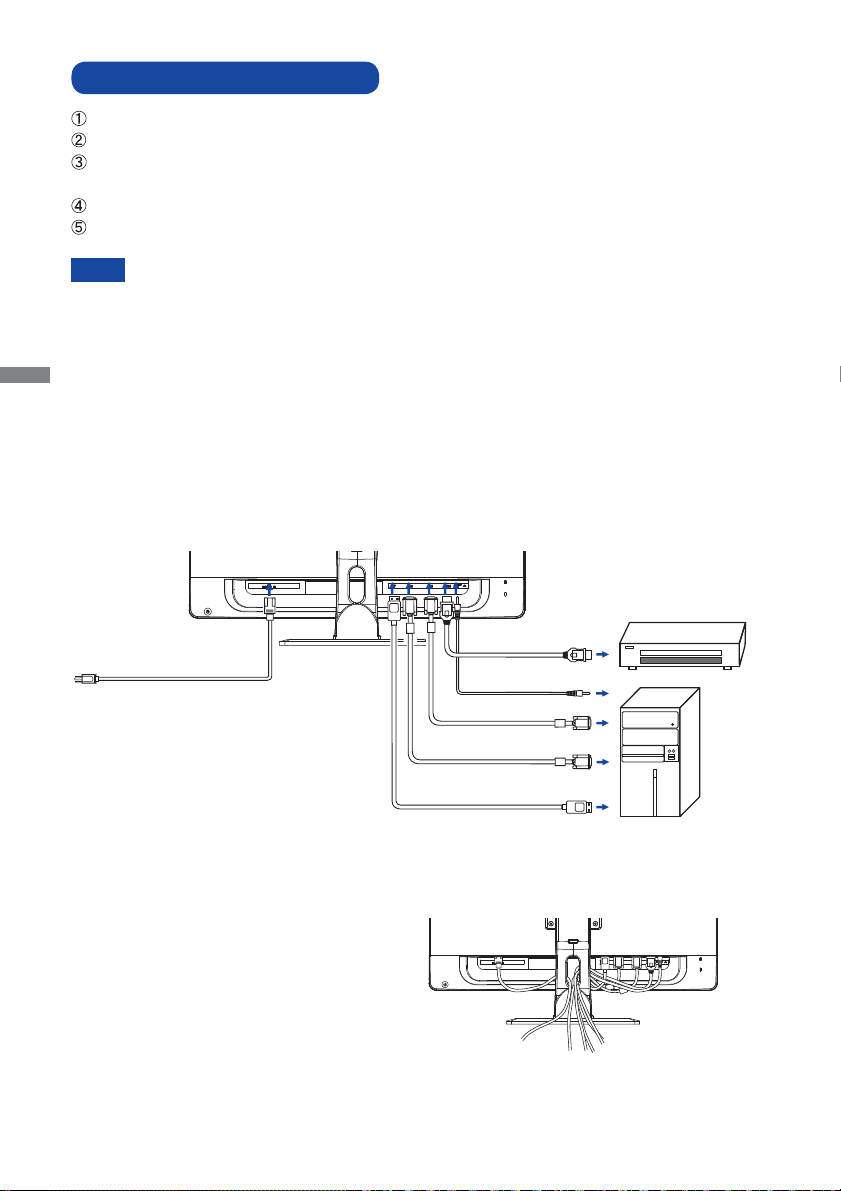

CONNECTING YOUR MONITOR ..................................................8
COMPUTER SETTING ...................................................................9
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE ...............9
PANEL ROTATION ..........................................................................9
OPERATING THE MONITOR .............................................................10
ADJUSTMENT MENU CONTENTS .............................................. 11

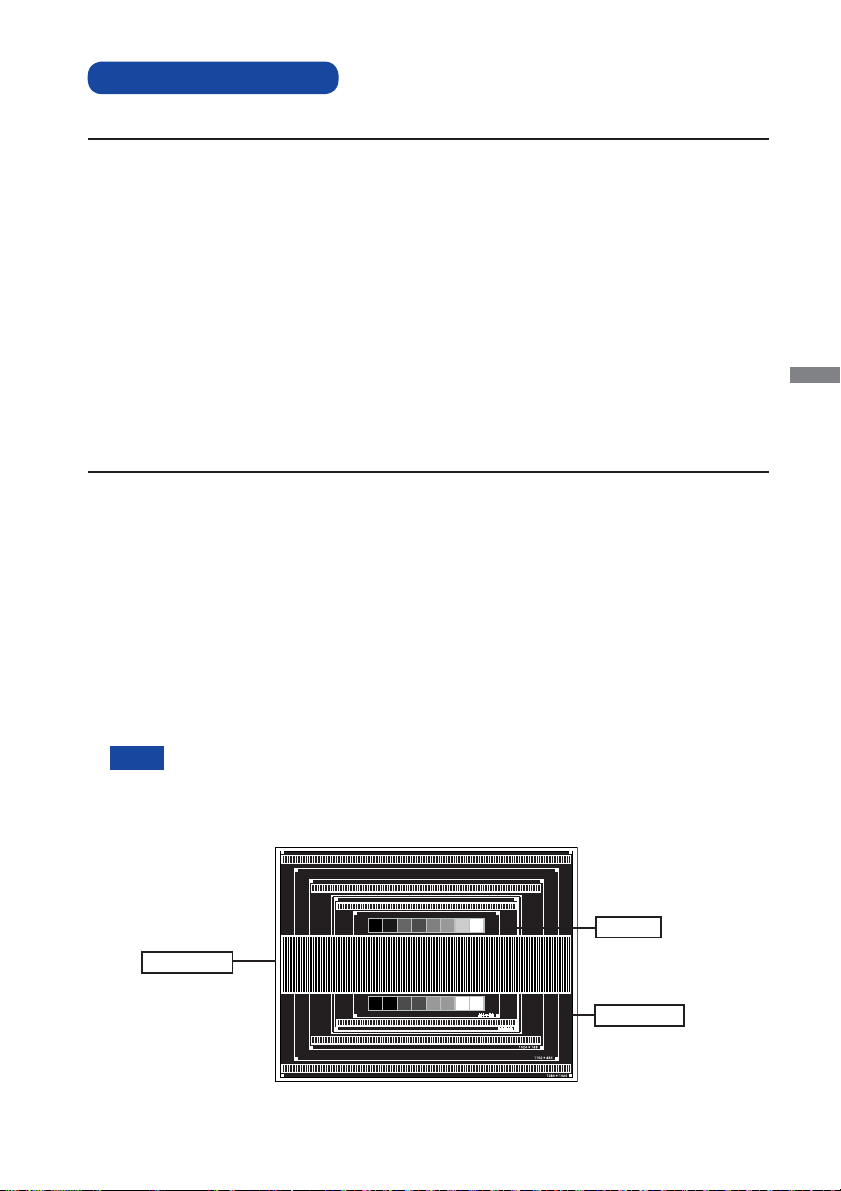

SCREEN ADJUSTMENTS ............................................................17
POWER MANAGEMENT FEATURE ............................................. 20
TROUBLE SHOOTING ......................................................................21
RECYCLING INFORMATION .............................................................22
APPENDIX ........................................................................................23
SPECIFICATIONS .........................................................................23

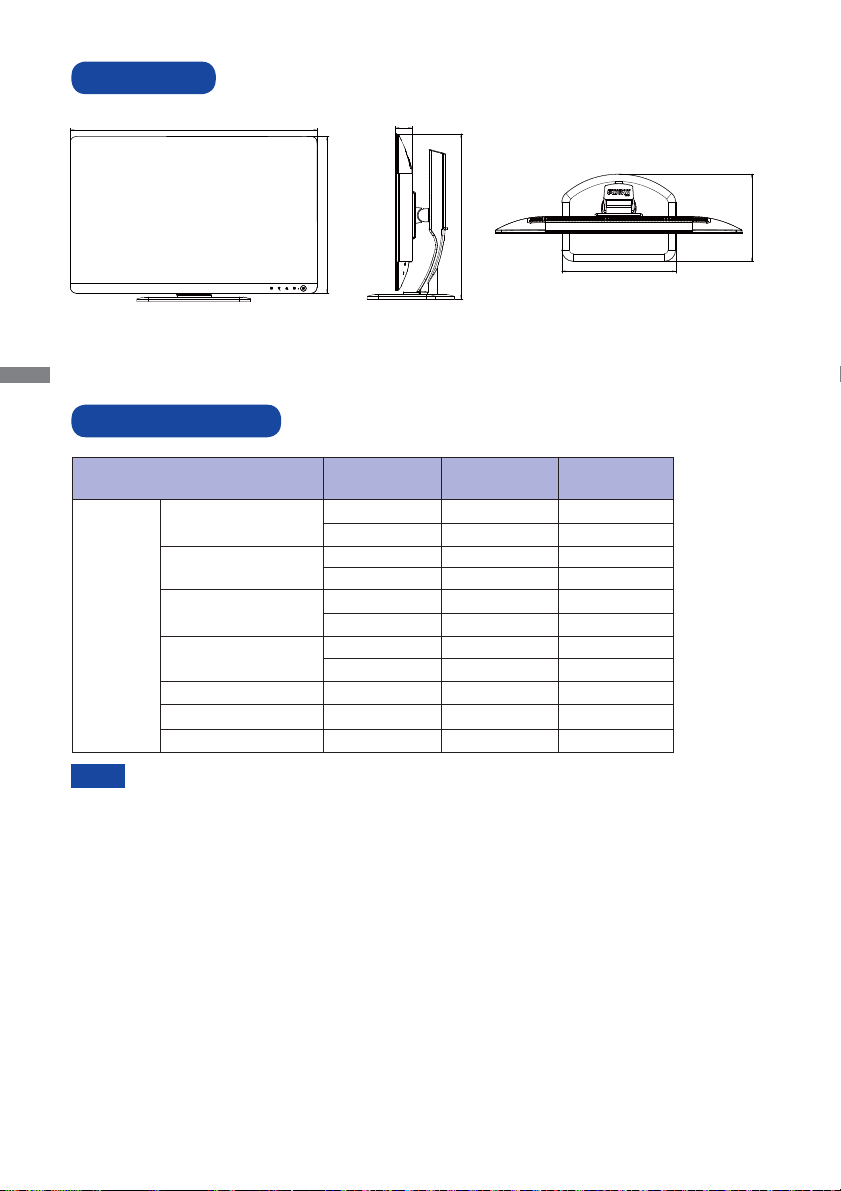

DIMENSIONS ................................................................................24
COMPLIANT TIMING ....................................................................24
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fi re or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will
cause malfunction and may cause fi re or electric shock.
ENGLISH
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
FOR YOUR SAFETY 1
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
ENGLISH
fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the
cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re
or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft
material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to
avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable
itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
DO NOT USE THE MONITOR FOR 24-HOURS CONTINUOUSLY
The monitor is not designed to work for 24-hours continuously, do not use the monitor for 24-hours
continuously.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
2 FOR YOUR SAFETY
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
When you first turn on the LCD monitor, the picture may not fit in the display area
NOTE
because of the type of computer that is used. In this case, adjust the picture position to
the correct position.
Due to the nature of the backlight, the screen may fl icker during initial use. Turn off the
Power Switch and then turn it on again to make sure the fl icker disappears.
You may fi nd slightly uneven brightness on the screen depending on the desktop pattern
you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screen can be recovered slowly by changing the image or turning off the Power Switch
for some hours.
Contact your dealer or iiyama service center for the backlight replacement when the
screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.
CUSTOMER SERVICE
NOTE
discarded, please contact your dealer or iiyama service center for advice or replacement
packaging.
If you have to return your unit for service and the original packaging has been
CLEANING
If you drop any materials or liquids such as water into the monitor when cleaning,
WARNING
CAUTION
NOTE
unplug the power cable immediately and contact your dealer or iiyama service center.
For safety reasons, turn off the power switch and unplug the monitor before you
clean it.
To protect the LCD panel, do not scratch or rub the screen with a hard object.
Never use any of the following strong solvents. These will damage the cabinet and
the LCD screen.
Thinner
Benzine
Abrasive cleaner
Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Spray-type cleaner
Wax
Acid or Alkaline solvent
ENGLISH
CABINET
LCD
SCREEN
Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
FOR YOUR SAFETY 3
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 2560 × 1440
High Contrast 1000:1 (Typical), Adv. Contrast Function Available / Brightness
440cd/m
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
2 × 2W Stereo Speakers
ENGLISH
Plug & Play VESA DDC2B Compliant
Windows
Power Management (ENERGY STAR
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyama offi ce.
Power Cable*
Audio Cable
Safety Guide
2
(Typical)
®
XP/Vista/7/8 Compliant
DVI-D Signal Cable
Stand-Base
Quick Start Guide
®
VESA DPMS Compliant)
DisplayPort Cable
Screw for stand fi xing (
3pcs)
CAUTION
4 FOR YOUR SAFETY
* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/250V
must be used. However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.
WALL MOUNTING
WARNING
When you use with the wall mounting, in consideration of thickness of the mounting
stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the
monitor. Using the screw longer than this may cause electric shock or damage
because it may contact with the electrical parts inside the monitor.
Please check if the wall or ceiling can support the weight of the monitor before
mounting it.
L
Mounting Stage
Screw
ENGLISH
Chassis
FOR YOUR SAFETY 5
FITTING AND REMOVAL OF BASE
Put the monitor on a stable surface. The monitor may cause injury or damage if it
CAUTION
<Installation>
Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.
A
Lay the monitor fl at on a table with front face down.
Hold the monitor and push the Stand-Base.
B
ENGLISH
Use ‘thumb screw’ provided to secure base to monitor column.
C
<Removal>
Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.
A
Lay the monitor fl at on a table with front face down.
Remove ‘thumb screw’ to remove base from monitor column.
B
falls or is dropped.
Do not give a strong impact to the monitor. It may cause damage.
Unplug the monitor before removal or installation to avoid electric shock or damage.
Stand-Base
Thumb screw for Stand-Base fi xing
<Stopper>
Put the monitor on a fl at surface. Press the stopper at
the back of the stand while pushing the monitor from the
top. Careful attention is required as the monitor is sprung
loaded and the stand may expand quickly.
6 BEFORE YOU OPERATE THE MONITOR
Stopper
CONTROLS AND CONNECTORS
<Front> <Back>
Power Switch ( )
Power Indicator
Blue: Normal operation
NOTE
Orange: Power Management
Select / Input select Button (
Scroll up / Volume Button ( )
Scroll down / i-Style Color Button ( )
Menu Button ( )
Speakers
Keyhole for Security Lock
NOTE
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
Headphone Connector (
Audio Connector (AUDIO IN)
HDMI Connector (HDMI)
DVI-D 24pin Connector (DVI)
VGA(D-sub) mini 15pin Connector (VGA)
DisplayPort Connector (DP)
Cable Holes
AC Connector (AC POWER IN)
)
)
ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor and computer.
NOTE
ENGLISH
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regional iiyama offi ce.
For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama offi ce for a suitable adaptor.
Make sure you tighten the fi nger screws at each end of the signal cable.
[Example of Connection]
<Back>
AV Equipment etc.
HDMI Cable
Power Cable
(Accessory)
DVI-D Signal Cable (Accessory)
VGA(D-sub) Signal Cable
DisplayPort Cable (Accessory)
(Not included)
Audio Cable (Accessory)
(Not included)
Computer
[ Collect Cables ]
Put the cables through the cable hole.
A
Collect cables at the back of the stand.
B
8 BEFORE YOU OPERATE THE MONITOR
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 24: COMPLIANT TIMING.
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE
For optimal viewing it is recommended to
position yourself directly opposite to the full face
of the monitor, then adjust the monitor’s height
and angle to your own preference.
Hold the panel so that the monitor does not topple
when you change the monitor’s height or angle.
You are able to adjust the monitor's height up to
130mm, angle up to 45 degrees right and left, 17
degrees upward.
17°
130mm
ENGLISH
NOTE
Do not touch the LCD screen when you
change the height or the angle. It
may cause damage or break the LCD
screen.
Careful attention is required not to
catch your fingers or hands when you
change the height or the angle.
Injury can occur if care is not taken to
avoid fi nger contact with the displays
base when adjusting the height.
Monitor
Stand
45°
45°
BEFORE YOU OPERATE THE MONITOR 9
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the
COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button
operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.
Press the
additional Menu items which can be switched by using the
ENGLISH
Select the Menu item which contains the adjustment icon relating to the adjustment
B
you want to make. Press the
desired adjustment icon.
Press the
C
adjustment or setting.
Press the
D
automatically saved.
For example, to correct for vertical position, select Menu item of Manual Image Adjust and then
press the
Button to start the On Screen Display (OSD) feature. There are
/ Buttons.
Picture Adjust
Brightness
Contrast
Adv. Contrast
ECO Mode
Over Drive
: MOVE
1 : EXIT
49
50
Off
Off
Off
2 : ENTER
Button. Then, use the / Buttons to highlight the
Button again. Use the / Buttons to make the appropriate
Button to leave the menu, and the settings you just made would be
Button. Then, select "H./V. Position" by using the / Buttons.
Manual Image Adjust
H./V. Position
Clock
Phase
Sharpness
Video Mode Adjust
50
76
50
Aspect Ratio
: MOVE
1 : EXIT
An adjustment page appears after you press the
2 : ENTER
Button. Then, select V. Position by using the
/ Buttons. Press the Button again. Then, use the / Buttons to change the vertical
position settings. The vertical position of the overall display should be changing accordingly
while you are doing this.
Press the
NOTE
Button lastly, it ends, all changes are saved in the memory.
When button operations are aborted during adjustment, On-Screen Display disappears
when the time set for the OSD Time Out has passed. Also, the
H./V. Position
H. Position
V. Po sit ion
: MOVE
Manual Image Adjust
1 : EXIT
50
50
2 : ENTER
button can be used to
return previous menu and turn off the On-Screen Display.
Any changes are automatically saved in the memory when the On Screen Display
disappears. Turning off the power should be avoided while using the Menu.
Adjustments for H./V. Position, Clock and Phase are saved for each signal timing. Except for
these adjustments, all other adjustments have only one setting which applies to all signal timings.
10 OPERATING THE MONITOR
ADJUSTMENT MENU CONTENTS
Picture Adjust
Adjustment Item Problem / Option Button to Press
Brightness *
Contrast *
1,2,3
3
Adv. Contrast *
2,3
Too dark
Too bright
Too dull
Too intense
Off
Typical Contrast Ratio
Increased Contrast RatioOn
Off Normal
ECO Mode *
3
1
Brightness of back-light is reduced.
Brightness of back-light is reduced more than 1.2
Brightness of back-light is reduced more than 2.3
Off / -2 / -1 / 0 / +1 / +2
Over Drive
It will improve the gray level response time of the
LCD panel.
A higher level results in a faster response time.
1
Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
*
bright. Can not select when Adv. Contrast is On.
2
Brightness and Adv. Contrast can not enable the same time when ECO Mode is on.
*
3
Contrast, Brightness, Adv. Contrast and ECO Mode adjustments are disabled when i-Style Color
*
is activated.
ENGLISH
OPERATING THE MONITOR 11
Input Select
Direct
Direct
Direct
Direct
Adjustment Item Problem / Option Button to Press
Select the VGA input.
Select the DVI input.
Select the HDMI input. HDMI
Select the DisplayPort input. DisplayPort
Search for an available input source and select
automatically.
Input Select
Input source is fi xed, not selected automatically when VGA, DVI, HDMI and DisplayPort
NOTE
which are selected.
VGA
DVI
Auto
ENGLISH
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Input Select: Press the
Button when the Menu is not displayed.
Audio Adjust
Adjustment Item Problem / Option Button to Press
Volume
Mute
Audio Input *
* Suitable for HDMI/DisplayPort input only.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Audio Adjust: Pressing and holding of the
displayed.
12 OPERATING THE MONITOR
Too soft
Too loud
Off
On
Return the sound volume to the previous level.
Turn off the sound temporarily.
Select the Line-In input. Line-In
Select the HDMI input. HDMI
Select the DisplayPort input. DisplayPort
Button for about 2 seconds when the Menu is not
Color Adjust
Direct
Direct
Adjustment Item Problem / Option Button to Press
Greenish white Warm
Reddish white Normal
Cool
User Color
i-Style Color
Bluish white
Red
Green
Blue
Off
Standard
Too weak
Too strong
Return to a state set by color adjustment except
i-Style Color.
For general windows environment and monitor
default setting.
Scenery For displaying outdoor scenery images
Cinema
Game
Text
For movie and video environment.
For PC game environment.
For text editing and viewing in a word processing
environment.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
i-Style Color: Press the
Button when the Menu is not displayed.
ENGLISH
Information
<Example>
H. Frequency
V. Frequency
Resolution
Pixel Clock
Model Number
: MOVE
Infoemation
1 : EXIT
67KHz
60Hz
1920x1080
148.5MHz
XB2779QS
2 : ENTER
Displays information regarding the current input signal coming
from the graphic card in your computer.
NOTE
See your graphic card user guide for more information
about changing the resolution and refresh.
OPERATING THE MONITOR 13
Manual Image Adjust
Adjustment Item Problem / Option Button to Press
Too left
Too right
Too low
Too high
H./V. Position *
1
Clock *
H. Position
1,2
V. Position
Too narrow
Too wide
ENGLISH
1
Phase *
Sharpness
Video Mode Adjust
1
Only Analog Input.
*
2
*
See page 17 for SCREEN ADJUSTMENTS.
3
It can display in the center of the screen with a 4:3, 5:4 or 16:10 aspect ratio when input video
*
resolution is 4:3, 5:4 or 16:10.
To correct fl ickering text or lines
You can change the picture quality from 0 to 100
(soft to sharp).
Press the
numerical order. Press the
Button to change the picture quality in
Button to change the
picture quality in reverse numerical order.
Full Screen
Aspect Ratio *
Dot by Dot
Full screen display
3
Expansion display of Aspect
Display the picture dot by dot.
14 OPERATING THE MONITOR
Setup Menu
Direct
Direct
Adjustment Item
OSD Setup Menu
Language Select
Opening Logo
LED
NOTE
Turn Off the Power Indicator when you are bothered by the light.
Auto Image Adjust *
Problem / Option Button to Press
H.Position
V.Position
OSD Time
Out
OSD
Background
English
Français
Deutsch
Nederlands
Polski
Off
On
Off
On
Adjust H. / V. Position, Clock and Phase automatically.
OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration
time.
10 - 120 seconds
The background of OSD is mode
transparent. 0 - 100
English
French
German
Dutch
Polish
iiyama Logo does not display when the monitor is
turned on.
iiyama Logo displayed when the monitor is turned on.
The Power Indicator is turned Off.
The Power Indicator is turned On.
Русский
Russian
Japanese
Simplifi ed Chinese
Traditional Chinese
ENGLISH
Memory Recall
* Only Analog Input.
For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page
17 for SCREEN ADJUSTMENTS.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Auto Image Adjust: Pressing and holding of the
not displayed.
Factory-preset data is restored.
Button for about 2 seconds when the Menu is
OPERATING THE MONITOR 15
● Lock Mode
<OSD Menu>
1. The OSD lock will be activated by pressing the front buttons and for about 10 seconds.
If you try to access the OSD by pressing any of the buttons
Locked" will appear on the screen.
2. The OSD lock will be deactivated by pressing the front buttons
<Power Switch>
1. The power switch lock will be activated by pressing the front buttons and for 10 seconds.
Locking the power switch means that won't be able to turn off the Monitor while the power switch
is locked. If presses the power switch message "Power Button Locked" will appear on the screen.
2. The power switch lock will be deactivated by pressing the front buttons
10 seconds.
ENGLISH
, , and , message "OSD
and again for 10 seconds.
and again for about
16 OPERATING THE MONITOR
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
The screen adjustments described in this manual are designed to set image position and minimize
fl icker or blur for the particular computer in use.
The monitor is designed to provide the best performance at resolution of 2560 × 1440, but can not
provide the best at resolutions of less than 2560 × 1440 because the picture is automatically stretched
to fi t the full screen. It is recommended to operate at resolution of 2560 × 1440 in normal use.
Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than
the computer software or utilities.
Perform adjustments after a warm-up period of at least thirty minutes.
Additional adjustments may be required after the Auto Image Adjust depending on the resolution
or signal timing.
The Auto Image Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock and
Phase. The other way is performing each adjustment manually.
Perform the Auto Image Adjust fi rst when the monitor is connected to a new computer, or resolution
is changed. If the screen has a fl icker or blur, or the picture does not fi t in the display area after
performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be
made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://
www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows
Display the picture at the optimum resolution.
A
Enter the Test.bmp (screen adjustment pattern) to wallpaper.
B
®
OS.
ENGLISH
Consult the appropriate documentation for doing this.
NOTE
Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in
the wallpaper setting dialogue box.
[Adjustment pattern]
Zebra pattern
Color bar
Picture frame
OPERATING THE MONITOR 17
Pressing and holding of the
C
Adjust the image manually by following procedure below when the screen has a fl icker or
D
Button for about 2 seconds. (Auto Image Adjust)
blur, or the picture does not fi t in the display area after performing the Auto Image Adjust.
Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display
E
area.
ENGLISH
1) Adjust the H.Position so that the left side of the picture frame will move to the left edge
F
of the display area.
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the Clock.
When the left side of the picture frame moves apart from the left edge of the display
NOTE
area during the Clock adjustment, adjust steps 1) and 2).
Another way to make the Clock adjustment is to correct the vertical wavy lines in the
zebra pattern.
The picture may fl icker during the Clock, H.Position and V.Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the
Clock adjustment, repeat steps from C.
18 OPERATING THE MONITOR
Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.
G
NOTE
In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and
because the Clock may not be adjusted correctly. If the fl icker or blurs still remain,
G
set the refresh rate of computer to low (60Hz) and repeat steps from C again.
Adjust the H.Position after the Phase adjustment if the horizontal position moves
during the adjustment.
Adjust the Brightness and Color to get the desired picture after you complete the Clock
H
and Phase adjustments.
Put back your favorite wallpaper.
ENGLISH
OPERATING THE MONITOR 19
POWER MANAGEMENT FEATURE
0 0.5W 100%
POWER
CONSUMPTION
Blue
Orange
Power Indicator
NORMAL MODE
POWER MANAGEMENT MODE
The power management feature of this product complies with power saving requirement of ENERGY
®
STAR
and VESA DPMS. When activated, it automatically reduces unnecessary power consumption
of the monitor when your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
There is a power management step the monitor takes as described below. The power management
function, including any timer settings is confi gured by the operating system. Check your operating
system manual for information on how this can be confi gured.
Power Management Mode
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the
monitor enters into Power Management Mode which reduces the power consumption to less
than 0.5W. The screen becomes dark, and the power indicator turns to orange. From Power
ENGLISH
Management Mode, the image reappears in several seconds when either the keyboard or the
mouse are touched again.
NOTE
Even when using the power management mode, the monitor consumes electricity. Turn
off the Power Switch whenever the monitor is not in use, during the night and weekends,
to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync
signal is missing. In this instance, the POWER MANAGEMENT feature may not work
properly.
20 OPERATING THE MONITOR

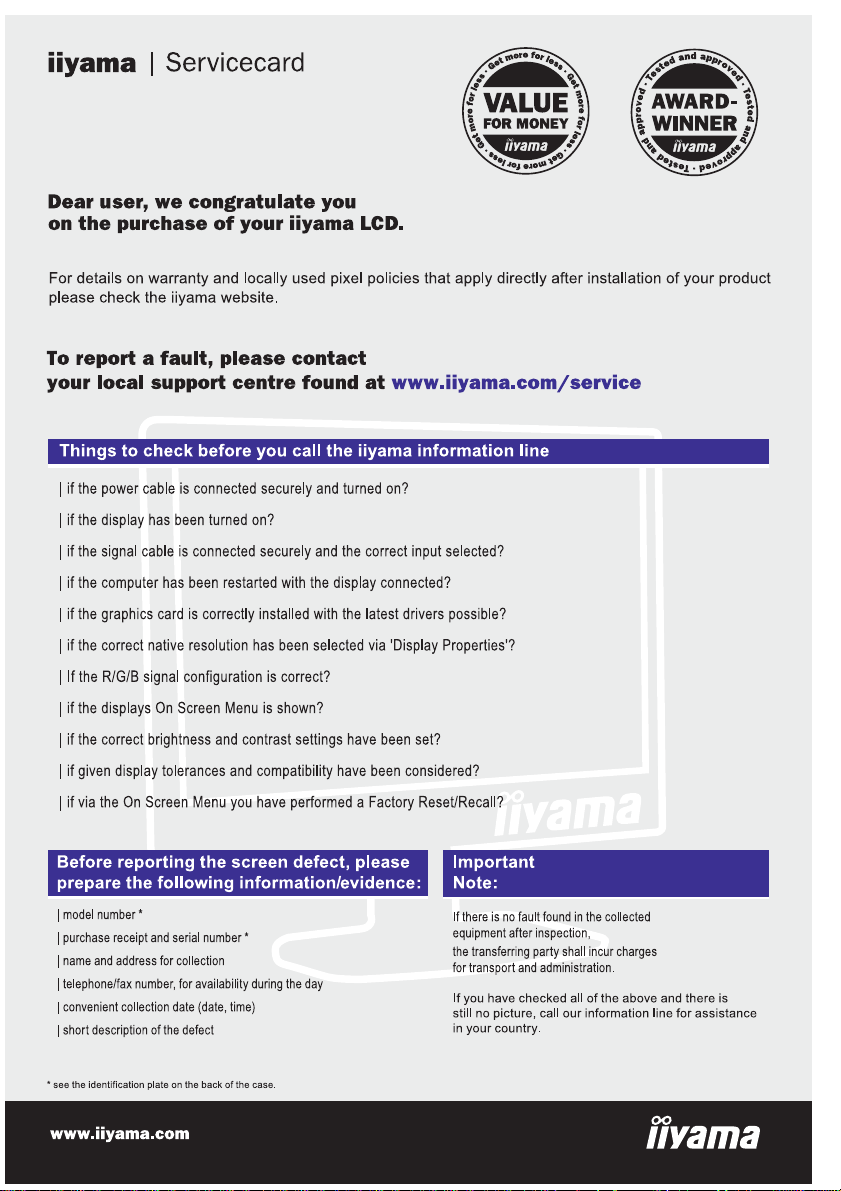

TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem
you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.
If you are experiencing a problem which is not described below or you cannot correct the problem,
3.
discontinue using the monitor and contact your dealer or iiyama service center for further assistance.
Problem Check
The picture does
not appear.
(Power indicator
does not light
up.)
(Power indicator
is blue.)
(Power indicator
is orange.)
The screen is not
synchronized.
The screen
position is not in
the center.
The Power Cable is fi rmly seated in the socket.
The Power Switch is turned ON.
The Main Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.
If the blank screen saver is in active mode, touch the keyboard or the mouse.
Increase the Contrast and/or Brightness.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
If the monitor is in power management mode, touch the keyboard or the mouse.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The video output level of the computer is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
ENGLISH
The screen is too
bright or too dark.
The screen is
shaking.
The video output level of the computer is within the specifi cation of the
monitor.
The power voltage is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
TROUBLE SHOOTING 21
Problem Check
No sound.
The sound is too
loud or too quiet.
A strange noise
is heard.
ENGLISH
The audio equipment (computer etc.) is ON.
The Audio Cable is properly connected.
The Volume is turned up.
The Mute is OFF.
The audio output level of the audio equipment is within the specifi cation
of the monitor.
The audio output level of the audio equipment is within the specifi cation
of the monitor.
The Audio Cable is properly connected.
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
22 TROUBLE SHOOTING / RECYCLING INFORMATION
APPENDIX
Design and specifi cations are subject to change without prior notice.
SPECIFICATIONS
Size Category 27"
LCD Panel
Display Colors
Sync Frequency
Maximum Resolution
Input Connector
Plug & Play
Input Sync Signal Separate sync: TTL, Positive or Negative
Input Video Signal
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Headphone Connector ø 3.5mm mini jack (Stereo)
Speakers 2W × 2 (Stereo speakers)
Maximum Screen Size 596.7mm W × 335.7mm H / 23.5" W × 13.2" H
Power Source 100-240VAC, 50/60Hz, 1.0A
Power Consumption*
Dimensions / Net Weight
Tilt Angle
Environmental
Considerations
Approvals
Panel technology
Pixel pitch
Brightness
Contrast ratio
Viewable angle
Response time
IPS
Diagonal: 27" (68.5cm)Size
0.233mm H × 0.233mm V
2
440cd/m
(Typical) (Factory default settings: 350cd/m2 Typical)
1000 : 1 (Typical), Adv. Contrast Function Available
Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical)
5ms (Gray to Gray)
16,777,216
Analog: Horizontal: 30.0-80.0kHz, Vertical: 55-75Hz
Digital(DVI/DisplayPort): Horizontal: 30.0-90.0kHz, Vertical: 55-75Hz
Digital(HDMI): Horizontal: 30.0-80.0kHz, Vertical: 55-75Hz
2560 × 1440, 3.7 MegaPixels
D-Sub mini 15 pin, DVI-D 24 pin,HDMI, DisplayPort
VESA DDC2B
Analog: 0.7Vp-p (Standard), 75
TM
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Digital: HDMI
Digital: DisplayPort
68W typical (Factory default settings: 55W typical),
Power management mode: 0.5W maximum
650.0 × 434.5 - 564.5 × 230.0mm / 25.6 × 17.1 - 22.2 × 9.1" (W×H×D)
8.2kg / 18.1lbs
Upward: 17 degrees Right / Left: 45 degrees each
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
5 to 85% (No condensation)
CE, TÜV-Bauart, GOST-R, VCCI-B, PSE, ENERGY STAR
ENGLISH
®
NOTE
* Audio equipment is not connected.
APPENDIX 23
DIMENSIONS
650.0mm/25.6”
ENGLISH
COMPLIANT TIMING
Video Mode
VGA
SVGA
VESA
NOTE
XGA 1024 × 768
SXGA
Full HD
QWXGA
WQHD
1
Analog, DVI and DisplayPort input only.
*
2
DVI and DisplayPort input only. DVI : Use the attached DVI-D dual-link signal cable.
*
640 × 480
800 × 600
1280 × 1024
1920 × 1080
2048 × 1152
2560 × 1440
413.0mm/16.3”
Horizontal
Frequency
31.469kHz
37.500kHz
37.879kHz
46.875kHz
48.363kHz
60.023kHz
63.981kHz
79.976kHz
67.500kHz
71.584kHz
88.787kHz
43.5mm/1.7”
434.5mm/17.1”(564.5mm/22.2”)
Vertical
Frequency
59.940Hz
75.000Hz
60.317Hz
75.000Hz
60.004Hz
75.029Hz
60.020Hz
75.025Hz
60.000Hz
60.000Hz
59.951Hz
300.0mm/11.8”
Dot Clock
25.175MHz
31.500MHz
40.000MHz
49.500MHz
65.000MHz
78.750MHz
108.000MHz
135.000MHz
148.500MHz
197.000MHz
241.500MHz
230.0mm/9.1”
1
*
2
*
24 APPENDIX
M122A21
Loading...
