iiyama ProLite T1932MSC-W2AG operation manual

USER MANUAL

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

ENGLISH

ENGLISH

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC
Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.

IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands

Model No. : PLT1532M / PLT1732M / PLT1932M

ENGLISH

We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of diff erent countries from there.

We reserve the right to change specifi cations without notice.



All trademarks used in this user manual are the property of their respective owners.



ENGLISH

TABLE OF CONTENTS

FOR YOUR SAFETY ............................................................................1

SAFETY PRECAUTIONS................................................................1

SPECIAL NOTES ON LCD MONITORS .........................................3

CUSTOMER SERVICE ................................................................... 3

CLEANING ......................................................................................3

BEFORE YOU OPERATE THE MONITOR ..........................................4

FEATURES......................................................................................4

CHECKING THE CONTENTS OF THE PACKAGE ........................5

SPECIAL NOTES ON TOUCH PANEL............................................5

WALL MOUNTING .......................................................................... 5

BUILT-IN EQUIPMENT ....................................................................5

CONTROLS AND CONNECTORS..................................................6

CONNECTING YOUR MONITOR ...................................................7

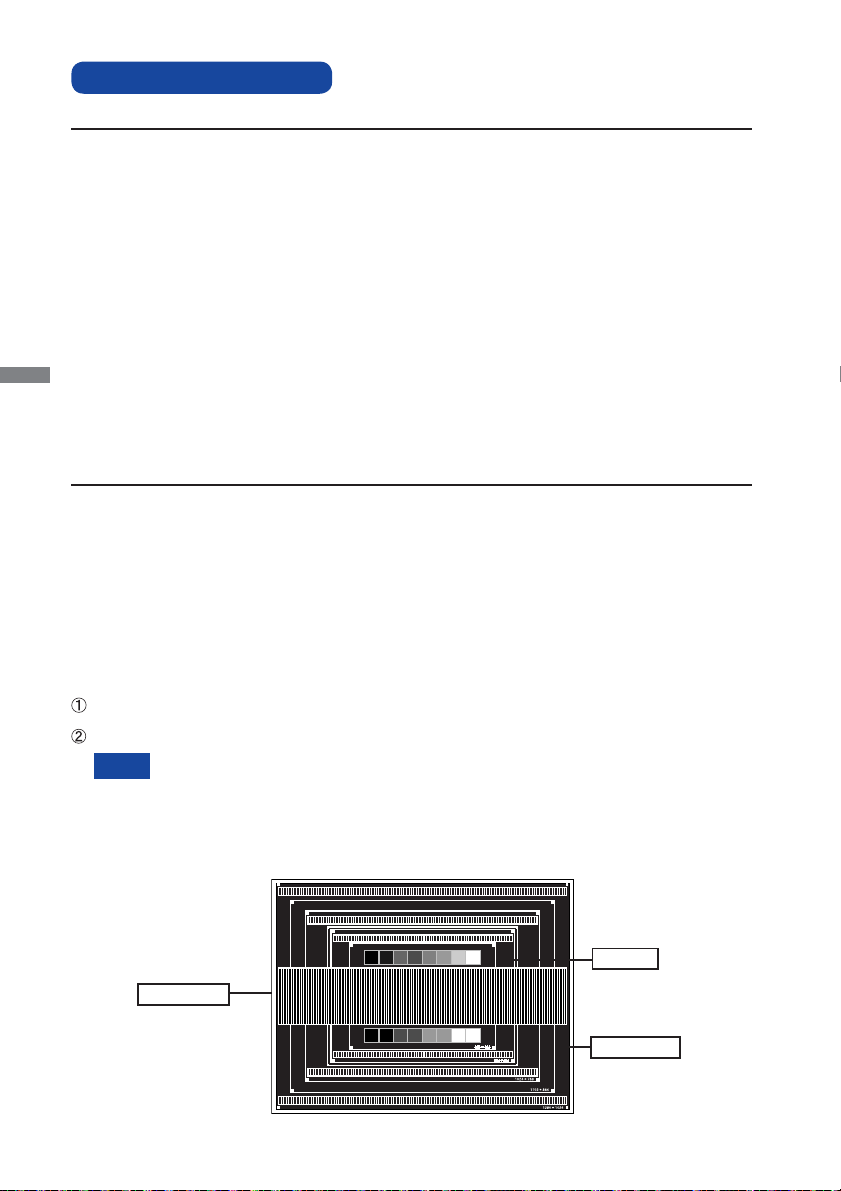

COMPUTER SETTING ...................................................................8

ADJUSTING THE VIEWING ANGLE ............................................. 9

OPERATING THE MONITOR .............................................................10

ADJUSTMENT MENU CONTENTS .............................................. 11

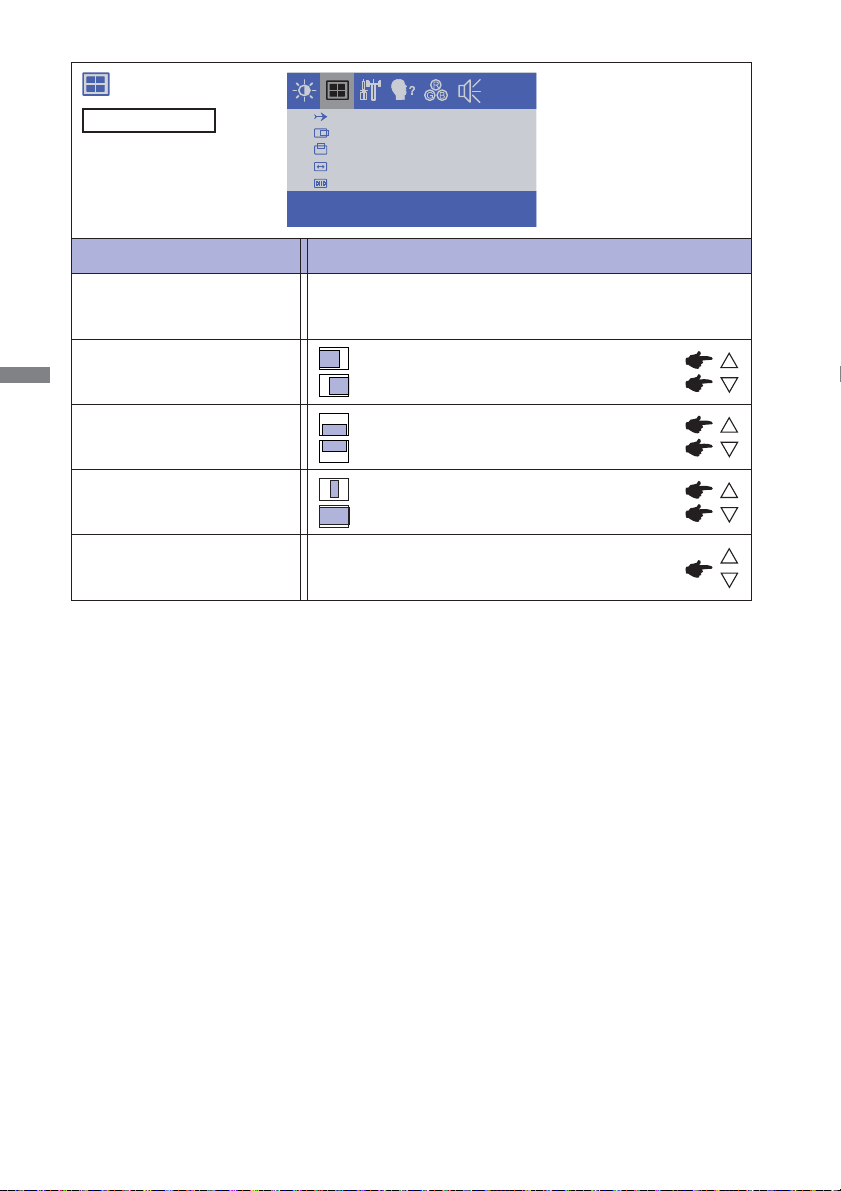

SCREEN ADJUSTMENTS ............................................................16

POWER MANAGEMENT FEATURE .............................................19

TROUBLE SHOOTING ......................................................................20

RECYCLING INFORMATION .............................................................21

APPENDIX ........................................................................................22

SPECIFICATIONS : ProLite T1532MSC .......................................22

SPECIFICATIONS : ProLite T1732MSC .......................................25

SPECIFICATIONS : ProLite T1932MSC .......................................27

DIMENSIONS : ProLite T1532MSC .............................................. 30

DIMENSIONS : ProLite T1732MSC .............................................. 30

DIMENSIONS : ProLite T1932MSC .............................................. 30

COMPLIANT TIMING ....................................................................31

FOR YOUR SAFETY

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerous and can cause fi re or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fi re or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fi re, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric
shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will
cause malfunction and may cause fi re or electric shock.

ENGLISH

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fi re or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.

FOR YOUR SAFETY 1

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the
sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause

ENGLISH

fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the
cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re
or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft
material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to
avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable
itself as this may cause fi re or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.

REMARK FOR 24/7 USAGE

This product is not specifi cally designed for 24/7 usage in all environments.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.

2 FOR YOUR SAFETY

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.

When you first turn on the LCD monitor, the picture may not fit in the display area

NOTE



because of the type of computer that is used. In this case, adjust the picture position to
the correct position.
You may find slightly uneven brightness on the screen depending on the desktop



pattern you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may remain



after switching the image, when the same image is displayed for hours. In this case, the
screen is recovered slowly by changing the image or turning off the Power Switch for
hours.
Contact your dealer or iiyama service center for the backlight replacement when the



screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.

CUSTOMER SERVICE

The fl uorescent light used in the LCD monitor may have to be periodically replaced. For

NOTE



the warranty coverage on this component, please check with local iiyama service center.
If you have to return your unit for service and the original packaging has been



discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.

CLEANING

ENGLISH

WARNING

NOTE

CABINET

TOUCH
SCREEN

If you drop any materials or liquids such as water into the monitor when cleaning,



unplug the power cable immediately and contact your dealer or iiyama service center.

To protect the Touch screen surface, do not scratch or rub the screen with a hard



object.
Never use any of the following strong solvents. These will damage the cabinet and



the Touch screen surface.

Abrasive cleaner Wax Solvent

Touching the cabinet with any product made from rubber or plastic for a long time



may cause degeneration or loss of paint on the cabinet.

Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.

Touch screen surface may be cleaned using a soft clean cloth moistened with mild
window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.

FOR YOUR SAFETY 3

BEFORE YOU OPERATE THE MONITOR

FEATURES

Supports Resolutions up to 1024 × 768 : ProLite T1532MSC



Supports Resolutions up to 1280 × 1024 : ProLite T1732MSC / ProLite



T1932MSC

2

High Contrast 500:1 (Typical) / Brightness 225cd/m



: ProLite T1532MSC

High Contrast 700:1 (Typical) / Brightness 330cd/m



: ProLite T1532MSC-B3X

High Contrast 700:1 (Typical) / Brightness 315cd/m



ENGLISH

: ProLite T1532MSC-B3AG

High Contrast 1000:1 (Typical) / Brightness 225cd/m



panel) : ProLite T1732MSC-B1 / ProLite T1732MSC-B1X

High Contrast 1000:1 (Typical) / Brightness 215cd/m



: ProLite T1732MSC-B1AG / ProLite T1732MSC-W1AG / ProLite T1932MSC­B2AG / ProLite T1932MSC-W2AG

High Contrast 800:1 (Typical) / Brightness 225cd/m



: ProLite T1932MSC-B1 / ProLite T1932MSC-B1X

High Contrast 1000:1 (Typical) / Brightness 225cd/m



panel) : ProLite T1932MSC-B2X

Digital Character Smoothing



Automatic Set-up



Stereo Speakers



2 × 1W Stereo Speakers

Plug & Play VESA DDC2B Compliant



Windows

Power Management (VESA DPMS Compliant)



VESA Mounting Standard (100mm×100mm) Compliant



Keyhole for Security Lock



IP54 Standard Compliant (Only front face)



Glass with AG coating :



®

XP/Vista/7/8/8.1/10 Compliant

ProLite T1532MSC-B1AG / ProLite T1532MSC-B3AG / ProLite T1732MSC-B1AG /
ProLite T1732MSC-W1AG / ProLite T1932MSC-B2AG / ProLite T1932MSC-W2AG

(Typical: with Touch panel)

2

(Typical: with Touch panel)

2

(Typical: with Touch panel)

2

(Typical: with Touch

2

(Typical: with Touch panel)

2

(Typical: with Touch panel)

2

(Typical: with Touch

Windows8/8.1/10 touch environment



Basic touch operations can be performed under Windows 8/8.1/10.
However, please be informed that full touch functionality and normal operational performance are
not guaranteed.

4 BEFORE YOU OPERATE THE MONITOR

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyama offi ce.

Power Cable*



USB Cable



Touch Panel Driver Disk (CD-ROM)*



Quick Start Guide 



CAUTION

1



1

The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using

*

VGA(D-sub) Signal Cable  DVI-D Cable

Audio Cable



2

Screw (M3x6mm)



Safety Guide



a power supply higher than this rating, then a power cable with a rating of 10A/250V
must be used. However, all guarantees and warranties are void for any problems or

damage caused by a power cable not supplied by iiyama.
*2 This CD-ROM contains the touch screen driver software.
Install the Touch Panel Driver Disk after connecting the computer to the monitor

with USB Cable. For the details, see Readme fi le in the Touch Panel Driver Disk.

SPECIAL NOTES ON TOUCH PANEL

Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch.
This could invalidate any remaining warranty.
We recommend to use a plastic stylus (tip R0.8 or over) or fi nger.

ENGLISH

WALL MOUNTING

WARNING

When you use with the wall mounting, in
consideration of thickness of the mounting stage,
tighten the M4 Screw with washer which “L” length
is 8mm to fasten the monitor. Using the screw
longer than this may cause electric shock or
damage because it may contact with the electrical
parts inside the monitor.

BUILT-IN EQUIPMENT

WARNING

This product is not designed for the purpose of being used in high temperature
environment.
If the product is placed in an external cabinet, you need to design cooling fans
and vents to keep the temperature low enough to fit in the product temperature
specifi cation.

Mounting Stage

L

BEFORE YOU OPERATE THE MONITOR 5

Screw

Chassis

CONTROLS AND CONNECTORS

Screw (accessory)

ENGLISH

<Front> <Back>

Menu Button ( )
Scroll Up / Brightness Button ( )
Scroll Down / Mute Button ( )
Select Button ( )
Power Switch ( )
Keyhole for Security Lock

You can fasten a security lock and cable to prevent the monitor from being removed

NOTE

without your permission.
Speakers
USB Connector
Audio Connector
VGA(D-sub) mini 15pin Connector
DVI-D 24pin Connector
AC Connector

( : Alternating current)

[Fitting and Removal of Cable Cover]

● Removal

Press and hold of the Cable Cover and
remove the Cable Cover.

● Fitting

Place the Cable Cover.

Fix the Monitor with the Cable Cover by the

screw fi rmly.

6 BEFORE YOU OPERATE THE MONITOR

Cable Cover

CONNECTING YOUR MONITOR

Ensure that both the computer and the monitor are switched off .
Connect the computer to the monitor with the signal cable.
Connect the computer to the monitor with the USB Cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the

audio features.
Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor and computer.

NOTE

The signal cables used for connecting the computer and monitor may vary with the



type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regional iiyama offi ce.

For connection to Macintosh computers, contact your local iiyama dealer or regional



iiyama offi ce for a suitable adaptor.

Make sure you tighten the fi nger screws at each end of the Signal Cable.



Don't connect the USB cable to the computer at the same time. And cannot use those at



the same time.

[Example of Connection]

<Back>

ENGLISH

Power Cable (Accessory)

[Collect Cables]

Put the cables through the cable holder and holes.
Collect cables at the back of the stand.

Cable Holder

USB Cable (Accessory)

Audio Cable (Accessory)

VGA(D-sub) Signal Cable

DVI-D Signal Cable (Accessory)

(Accessory)

BEFORE YOU OPERATE THE MONITOR 7

Computer

Cable Holes

COMPUTER SETTING

Signal Timing



Change to the desired signal timing listed on page 31: COMPLIANT TIMING.

Windows XP/Vista/7/8/8.1/10 Plug & Play



The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs

on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied.

For installation on Windows XP: The monitor Information File for iiyama monitors may be

necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com

NOTE

ENGLISH

For additional information on how to download the driver for your touch screen monitor,



please access the internet site noted above.

Monitor Drivers are not required in most cases for Macintosh or Unix operating systems.



For further information, please contact your computer dealer fi rst for advice.

Procedure for turning ON the Power Switch



Turn ON the monitor fi rst, and then the computer.

Touch screen driver software



Touch screen driver software and system may not start when you start your computer while

touching he screen.

Touch screen driver software may not run due to the power saving function depending on the

BIOS of your computer. In this case, set the power saving function to off .

TOUCH support operation system



Microsoft Windows XP (64 bit and 32 bit) Microsoft Windows Vista (64 bit and 32 bit)
Microsoft Windows 7 (64 bit and 32 bit) Microsoft Windows 8 / 8.1 / 10 (64 bit and 32 bit)
Microsoft Windows CE 2.13 / 3.0, net 6.0 Mac OS9.x, OS X V10.4/10.5/10.6 & above
Linux (Kernel2.4, 2.6x) & above Not support earlier versions.

Windows8/8.1/10 Windows7*5Windows7*
Default mouse*
Touch digitizer*

Windows7 gestures*

Default mouse*
Touch digitizer*

Windows7 gestures*

*1 Default mouse (click, drag, double-click and right-click)

2

Touch digitizer (click, drag /selection, double-click, right-click, fl ick and visual feedback)

*

3

Digitizer with Windows7 touch gestures

*

4

*

Windows 7 - Starter and Home Basic version

5

Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions

*

1

2

3

1

2

2K Windows CE XP Embedded Mac OS9,OSX Linux

3

4

Vista XP

8 BEFORE YOU OPERATE THE MONITOR

ADJUSTING THE VIEWING ANGLE

For optimal viewing it is recommended to look at the full



face of the monitor.

Hold the panel so that the monitor does not topple when



you change the monitor’s angle.

You are able to adjust the monitor’s angle up to 90



degrees upward, 5 degrees downward.

Do not touch the LCD screen when you change



NOTE

the angle. It may cause damage or break the
LCD screen.

Careful attention is required not to catch your



fi ngers or hands when you change the angle.

90°

ENGLISH

5°

BEFORE YOU OPERATE THE MONITOR 9

OPERATING THE MONITOR

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 31. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS.

Press the Button to start the On Screen Display feature. There are additional Menu items
which can be switched by using the / Buttons.

CONTRAST
BRIGHTNESS

ENGLISH

Select the Menu item which contains the adjustment icon relating to the adjustment you

1280x1024

FH: 63KHz FV: 59.9Hz

want to make. Use the Buttons to highlight the desired adjustment icon.
Use the / Buttons to make the appropriate adjustment or setting.
Press the Button to leave the menu, and the settings you just made would be
automatically saved.

For example, to correct for vertical position, select Menu item of . Then, select V-POSITION
by using the Buttons.
Use the / Buttons to change the vertical position settings. The vertical position of the overall
display should be changing accordingly while you are doing this.

AUTO ADJUST
H-POSITION

V-POSITION

H-SIZE
FINE

100

Press the Button lastly, it ends, any changes are saved in the memory.

NOTE

When button operations are aborted during adjustment, On-Screen Display disappears when the



time set for the OSD TIMEOUT has passed.

button can be used to return previous menu item.



Any changes are automatically saved in the memory when the On Screen Display



Turning off the power should be avoided while using the Menu.
Adjustments for H/V-POSITION, H-SIZE and FINE are saved for each signal timing. Except for



these adjustments, all other adjustments have only one setting which applies to all signal timings.

disappears.

10 OPERATING THE MONITOR

ADJUSTMENT MENU CONTENTS

Direct

Direct

Direct

CONTRAST
BRIGHTNESS

1280x1024

FH: 63KHz FV: 59.9Hz

Adjustment Item Problem / Option Button to Press

CONTRAST

BRIGHTNESS *

Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too

*

Too dull
Too intense

Too dark
Too bright

bright.

You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

BRIGHTNESS: Press the Button when the Menu is not displayed.



LOCK MODE:



Simultaneously press the

button and the button when an image is displayed through VGA or
DVI.
* The OSD menu is not displayed when the OSD is locked. Press the

button and the button

simultaneously again.

The following OSD menu is displayed.

Adjustment Item Problem / Option

POWER

OSD

TOUCH FANCTION DISABLE:



LOCK
UNLOCK
LOCK
UNLOCK

The POWER SWITCH is Locked.
The POWER SWITCH is Unlocked.
The OSD menu is Locked.
The OSD menu is Unlocked.

ON: Pressing and holding of the Button and the Button at the same time when the Menu is

not displayed, massage "TOUCH DISABLE" will appear on the top right corner.

OFF: Pressing and holding of the Button and the Button at the same time for about 5

seconds when the Menu is not displayed, till "TOUCH DISABLE" disappears.

OPERATING THE MONITOR 11

ENGLISH

Only Analog Input

AUTO ADJUST
H-POSITION
V-POSITION
H-SIZE
FINE

Adjustment Item Problem / Option Button to Press

AUTO ADJUST *

1

ENGLISH

H-POSITION

V-POSITION

2

H-SIZE *

2

FINE *

1

For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 16 for

*

SCREEN ADJUSTMENTS.

2

See page 16 for SCREEN ADJUSTMENTS.

*

Adjust H/V-POSITION, H-SIZE and FINE automatically.

Too left
Too right

Too low
Too high

Too narrow
Too wide

To correct fl ickering text or lines

12 OPERATING THE MONITOR

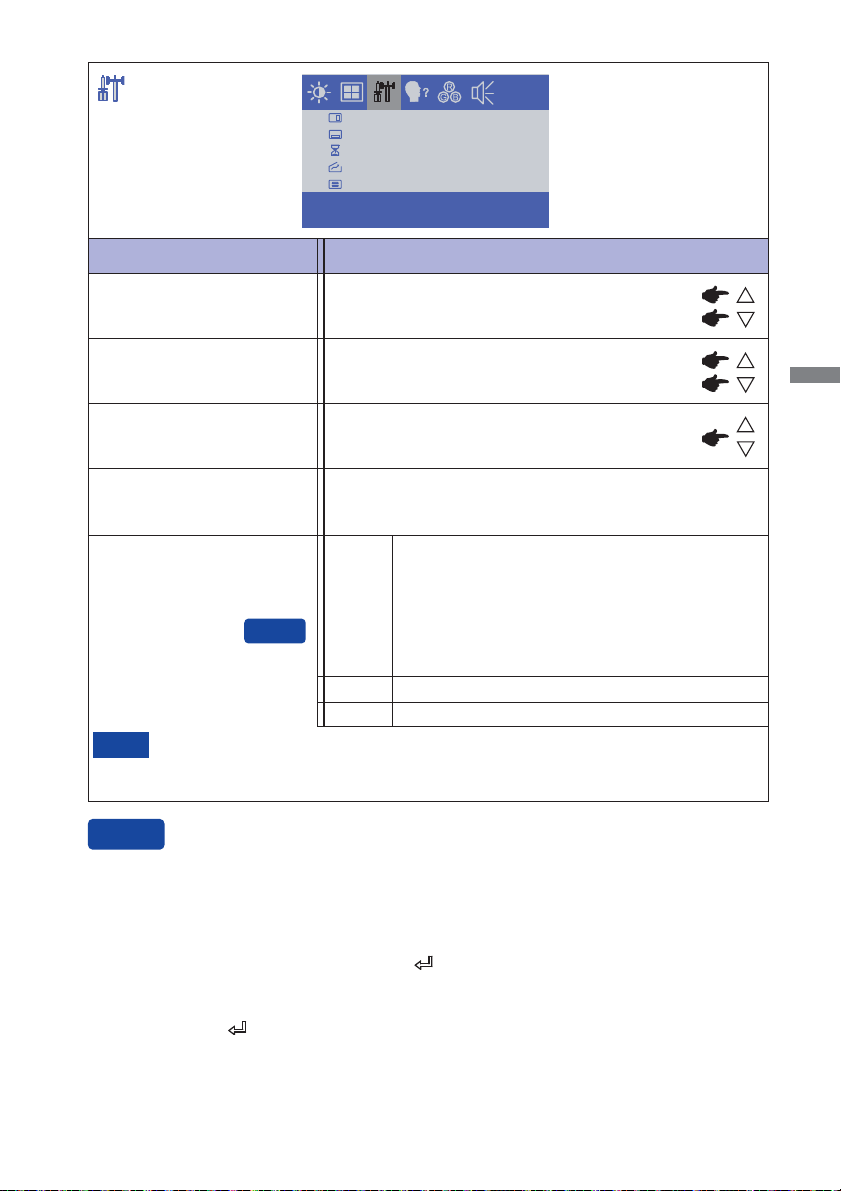

OSD H-POSITION

Direct

Direct

OSD V-POSITION
OSD TIMEOUT
RESET
INPUT SELECT

Adjustment Item Problem / Option Button to Press

OSD H-POSITION

OSD V-POSITION

OSD TIMEOUT

OSD is too left
OSD is too right

OSD is too low
OSD is too high

You can set the OSD display duration time
between 5 and 60 seconds.

RESET Factory-preset data is restored.

Search for an available input source and select
automatically. Available for ProLite T1532MSC-B1X,
ProLite T1532MSC-B3X, ProLite T1532MSC-B3AG,

AUTO

INPUT SELECT

ProLite T1732MSC-B1X, ProLite T1732MSC-B1AG,
ProLite T1732MSC-W1AG, ProLite T1932MSC-B1X,
ProLite T1932MSC-B2X, ProLite T1932MSC-B2AG

and ProLite T1932MSC-W2AG only.
VGA
DVI

However it will automatically be selected when just one source is using.

NOTE

Select the analog input.

Select the digital input.

In Power Management Mode input switching is disabled.
Input source is fi xed, not selected automatically when VGA and DVI which are selected.

Available for

ProLite T1532MSC-B1X, ProLite T1532MSC-B3X, ProLite T1532MSC­B3AG, ProLite T1732MSC-B1X, ProLite T1732MSC-B1AG, ProLite T1732MSC­W1AG, ProLite T1932MSC-B1X, ProLite T1932MSC-B2X, ProLite T1932MSC-B2AG
and ProLite T1932MSC-W2AG only.

You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

INPUT SELECT: Pressing and holding of the



Button for about 5 seconds when the Menu
is not displayed. When both VGA and DVI signal inputs are connected to a
signal source, you can switch between them by successively pressing the

Button.

ENGLISH

OPERATING THE MONITOR 13

ENGLISH

ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO

ESPAÑOL

Adjustment Item Problem / Option Button to Press

ESPAÑOL Spanish

Japanese
Traditional Chinese

Simplifi ed Chinese

94

90

100

OSD LANGUAGE

ENGLISH

English
FRANÇAIS French
DEUTSCH

German
ITALIANO Italian

9300

RED

6500

GREEN

5500

BLUE

7500
USER

Adjustment Item Problem / Option Button to Press

Bluish white9300
Reddish white
Greenish white

Yellowish white

RED

GREEN

BLUE

Too weak
Too strong

COLOR TEMP.

14 OPERATING THE MONITOR

6500

5500
7500

USER

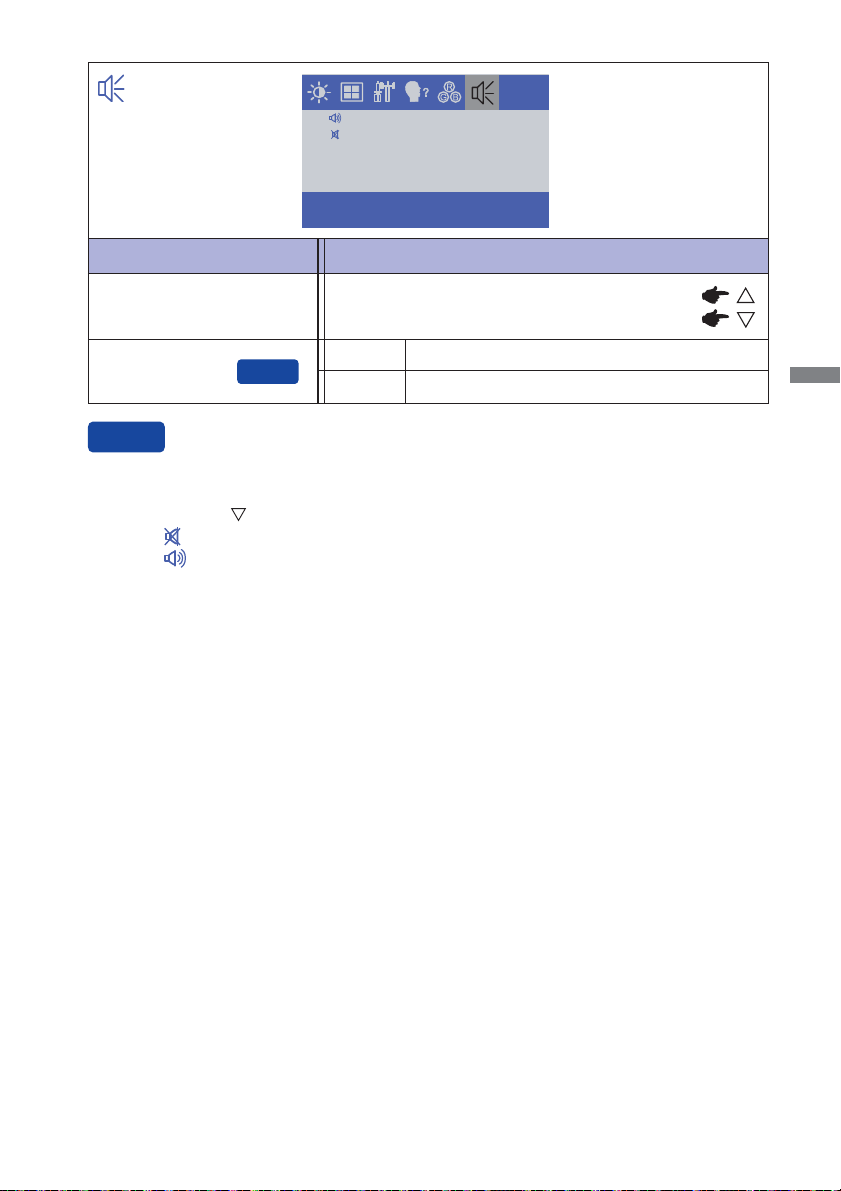

VOLUME

Direct

Direct

MUTE

Adjustment Item Problem / Option Button to Press

VOLUME

MUTE

Too soft
Too loud

ON

OFF

Turn off the sound temporarily.

Return the sound volume to the previous level.

You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

MUTE : Press the Button when the Menu is not displayed.



: MUTE ON
: MUTE OFF

ENGLISH

OPERATING THE MONITOR 15

SCREEN ADJUSTMENTS

Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

The screen adjustments described in this manual are designed to set image position and minimize



fl icker or blur for the particular computer in use.
ProLite T1532MSC is designed to provide the best performance at resolution of 1024 × 768, but can



not provide the best at resolutions of less than 1024 × 768 because the picture is automatically
stretched to fi t the full screen. It is recommended to operate at resolution of 1024 × 768 in normal use.

ProLite T1732MSC and ProLite T1932MSC are designed to provide the best performance at



resolution of 1280 × 1024, but can not provide the best at resolutions of less than 1280 × 1024
because the picture is automatically stretched to fi t the full screen. It is recommended to operate at
resolution of 1280 × 1024 in normal use.

Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to



the screen enlargement process.

ENGLISH

It is preferable to adjust the image position and frequency with the monitor controls, rather than



the computer software or utilities.

Perform adjustments after a warm-up period of at least thirty minutes.



Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.



The Auto Adjust may not work correctly when displaying the picture other than the screen



adjustment pattern. In this case, manual adjustments are required.

There are two ways to adjust the screen. One way is automatic adjustment for H/V-POSITION,
H-SIZE and FINE. The other way is performing each adjustment manually.
Perform the Auto Adjust fi rst when the monitor is connected to a new computer, or resolution is
changed. If the screen has a flicker or blur, or the picture does not fit in the display area after
performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by
using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.
com).

Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows

Display the picture at the optimum resolution.

Enter the Test.bmp (screen adjustment pattern) to wallpaper.

NOTE

Consult the appropriate documentation for doing this.



Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in



the wallpaper setting dialogue box. If you use Microsoft
setting of “Stretch desktop wallpaper to fi t the screen”.

[Adjustment pattern]

®

OS.

®

PLUS! 95/98 cancel the

Zebra pattern

16 OPERATING THE MONITOR

Color bar

Picture frame

Press the

Adjust the image manually by following procedure below when the screen has a fl icker or

Button. (AUTO ADJUST)

blur, or the picture does not fi t in the display area after performing the Auto Adjust.

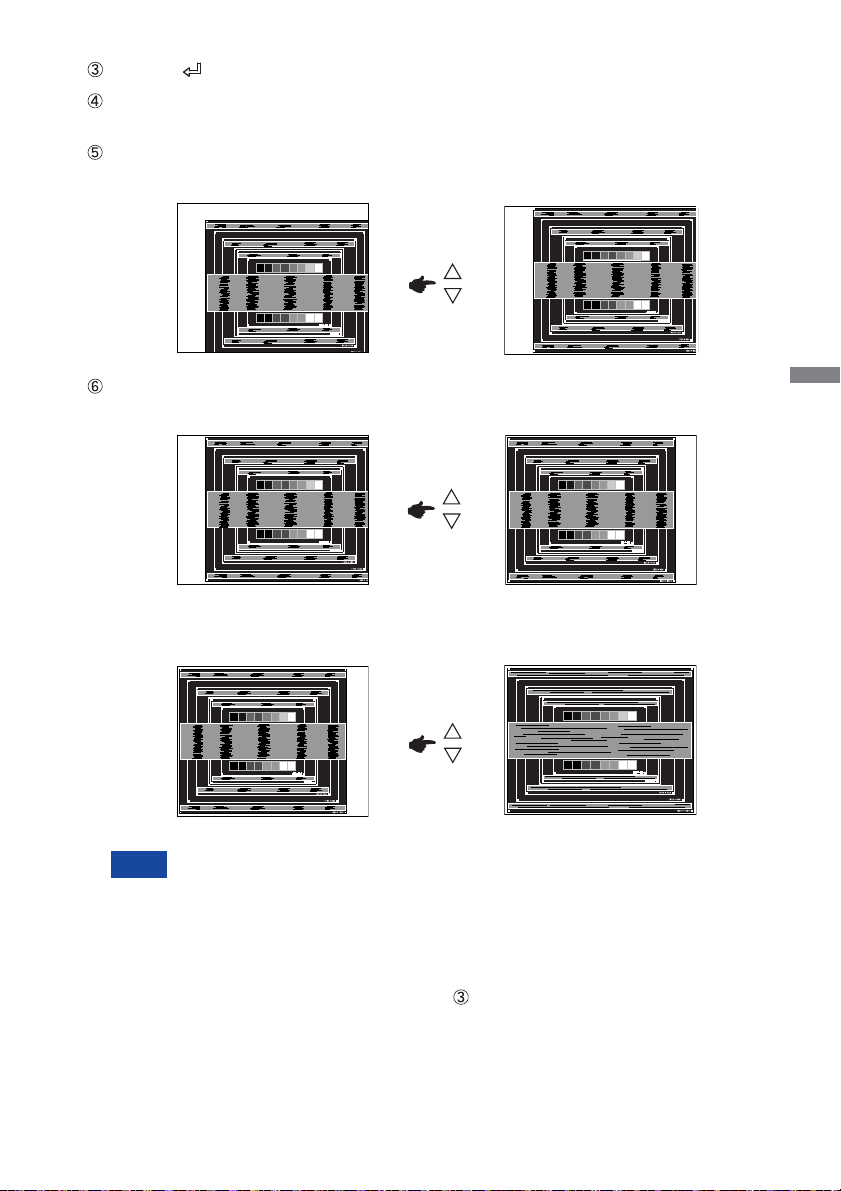

Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the

display area.

1) Adjust the H-POSITION so that the left side of the picture frame will move to the left
edge of the display area.

2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the H-SIZE.

ENGLISH

NOTE

When the left side of the picture frame moves apart from the left edge of the display



area during the H-SIZE adjustment, adjust steps 1) and 2).

Another way to make the H-SIZE adjustment is to correct the vertical wavy lines in



the zebra pattern.

The picture may fl icker during the H-SIZE, H/V-POSITION adjustment.



In case the picture frame is bigger or smaller than the data display area after the



H-SIZE adjustment, repeat steps from

.

OPERATING THE MONITOR 17

Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern.

In case the strong fl icker or blurs remain on a part of the screen, repeat steps



NOTE

and

because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still

remain, set the refresh rate of computer to low (60Hz) and repeat steps from

ENGLISH

again.

Adjust the H-POSITION after the FINE adjustment if the horizontal position moves



during the adjustment.

Adjust the Brightness and Color to get the desired picture after you complete the H-SIZE
and FINE adjustments.

Put back your favorite wallpaper.

18 OPERATING THE MONITOR

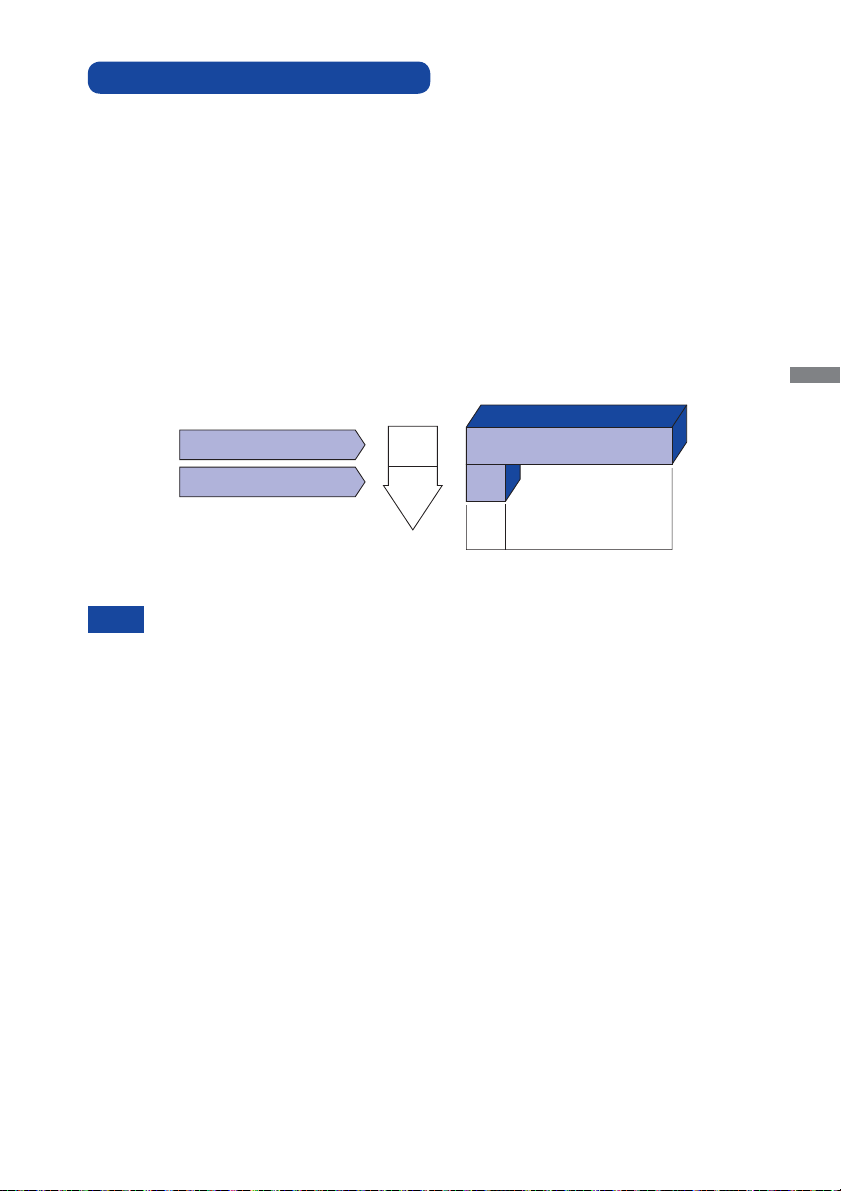

POWER MANAGEMENT FEATURE

0 2W 100%

POWER
CONSUMPTION

NORMAL MODE

POWER MANAGEMENT MODE

The power management feature of this product complies with power saving requirement of VESA
DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor
when your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
There is a power management step the monitor takes as described below. The power management
function, including any timer settings is confi gured by the operating system. Check your operating
system manual for information on how this can be confi gured.

Power Management Mode



When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the
monitor enters into Power Management Mode which reduces the power consumption to less than
2W. The screen becomes dark. From Power Management Mode, the image reappears in several
seconds when either the keyboard or the mouse are touched again.

Even when using the power management mode, the monitor consumes electricity. Turn



NOTE

off the Power Switch whenever the monitor is not in use, during the night and weekends,
to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync



signal is missing. In this instance, the POWER MANAGEMENT feature may not work
properly.

ENGLISH

OPERATING THE MONITOR 19

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem
you have. If the monitor does not get a picture, skip to 2.

2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.
If you are experiencing a problem which is not described below or you cannot correct the problem,

3.
discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

The Power Cable is fi rmly seated in the socket.

The picture does

not appear.

ENGLISH

The screen is not

synchronized.

The screen

position is not in
the center.

The screen is too

bright or too dark.

The screen is

shaking.



The Power Switch is turned ON.



The AC socket is live. Please check with another piece of equipment.



If the blank screen saver is in active mode, touch the keyboard or the mouse.



Increase the Contrast and/or Brightness.



The computer is ON.



The Signal Cable is properly connected.



The signal timing of the computer is within the specifi cation of the monitor.



If the monitor is in power management mode, touch the keyboard or the mouse.



The Signal Cable is properly connected.



The signal timing of the computer is within the specifi cation of the monitor.



The video output level of the computer is within the specifi cation of the monitor.



The signal timing of the computer is within the specifi cation of the monitor.



The video output level of the computer is within the specifi cation of the



monitor.

The power voltage is within the specifi cation of the monitor.



The signal timing of the computer is within the specifi cation of the monitor.



No sound.

The sound is too

loud or too quiet.

A strange noise is

heard.

The touch

screen shows no
response.

The touch position

does not deviate.

20 TROUBLE SHOOTING

The audio equipment (computer etc.) is ON.



The Audio Cable is properly connected.



The Volume is turned up.



The Mute is OFF.



The audio output level of the audio equipment is within the specifi cation of



the monitor.
The audio output level of the audio equipment is within the specifi cation of



the monitor.
The Audio Cable is properly connected.



The USB Cable is fi rmly seated in the socket.



Touch screen driver software is installed.



The calibration function set up correctly.



RECYCLING INFORMATION

For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.

ENGLISH

RECYCLING INFORMATION 21

APPENDIX

Design and specifi cations are subject to change without prior notice.

SPECIFICATIONS : ProLite T1532MSC

Model Name ProLite T1532MSC-B1 ProLite T1532MSC-B1AG

Touch
Screen

Light transmission 90%
Communication system

USB

Size Category 15"

Technology Projected capacitive 2pt touch

ENGLISH

LCD
Panel

Panel technology
Size Diagonal: 15" (38cm)
Pixel pitch 0.297mm H × 0.297mm V

Brightness

TN

250cd/m
225cd/m

2

(Typical: without Touch panel),

2

(Typical: with Touch panel)
Contrast ratio 500 : 1 (Typical)
Viewable angle Horizontal : 140 degrees, Vertical: 125 degrees (Typical)
Response time 8ms (Black, White, Black Typical)

Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-60.0kHz, Vertical: 56-75Hz
Maximum Resolution 1024 × 768, 0.8 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75

Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 304.0mm W × 228.0mm H / 12.0" W × 9.0" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

20W typical, Power management mode: 2W maximum

351.0 × 306.5 × 202.0mm / 13.8 × 12.1 × 7.9" (W×H×D)

4.5kg / 9.9lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Environmental Considerations

Operating:

Storage:

Temperature
Humidity
Temperature
Humidity

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

Projected capacitive 10pt touch

Positive



0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

2

NOTE

22 APPENDIX

1

*

2

*

USB peripherals / Audio equipment are not connected.
IP54 Standard Compliant : Only front face

Model Name ProLite T1532MSC-B1X

Technology Projected capacitive 10pt touch
Touch
Screen

Light transmission 90%

Communication system

USB

Size Category 15"

Panel technology

TN

Size Diagonal: 15" (38cm)

LCD
Panel

Pixel pitch 0.297mm H × 0.297mm V

Brightness

250cd/m
225cd/m

2

(Typical: without Touch panel),

2

(Typical: with Touch panel)
Contrast ratio 500 : 1 (Typical)
Viewable angle Horizontal : 140 degrees, Vertical: 125 degrees (Typical)

Response time 8ms (Black, White, Black Typical)

Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-60.0kHz, Vertical: 56-75Hz
Maximum Resolution 1024 × 768, 0.8 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance



Positive

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 304.0mm W × 228.0mm H / 12.0" W × 9.0" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

20W typical, Power management mode: 2W maximum

351.0 × 306.5 × 202.0mm / 13.8 × 12.1 × 7.9" (W×H×D)

4.5kg / 9.9lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Environmental Considerations

Operating:

Storage:

Temperature
Humidity
Temperature
Humidity

0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

*

IP54 Standard Compliant : Only front face

ENGLISH

2

APPENDIX 23

Model Name ProLite T1532MSC-B3X ProLite T1532MSC-B3AG

Technology Projected capacitive 10pt touch
Touch
Screen

Light transmission 90% 85%

Communication system

USB

Size Category 15"

Panel technology

TN
Size Diagonal: 15" (38cm)
Pixel pitch 0.297mm H × 0.297mm V

2

LCD
Panel

ENGLISH

Brightness

370cd/m

330cd/m

panel)

(Typical: without Touch panel)

2

(Typical: with Touch

315cd/m2 (Typical: with Touch

panel + AG coating)
Contrast ratio 700 : 1 (Typical)
Viewable angle Horizontal : 170 degrees, Vertical: 160 degrees (Typical)
Response time 8ms (Black, White, Black Typical)

Display Colors Approx.16.2M
Sync Frequency Horizontal: 31.4-60.0kHz, Vertical: 56-75Hz
Maximum Resolution 1024 × 768, 0.8 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance



Positive

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 304.0mm W × 228.0mm H / 12.0" W × 9.0" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

16W typical, Power management mode: 2W maximum

351.0 × 306.5 × 202.0mm / 13.8 × 12.1 × 7.9" (W×H×D)

4.5kg / 9.9lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Temperature
Humidity
Temperature
Humidity

Environmental Considerations

Operating:

Storage:

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

IP54 Standard Compliant : Only front face

*

0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

2

24 APPENDIX

SPECIFICATIONS : ProLite T1732MSC

Model Name ProLite T1732MSC-B1

Technology Projected capacitive 2pt touch
Touch
Screen

Light transmission 90% 85%

Communication system

USB

ProLite T1732MSC-B1AG /

ProLite T1732MSC-W1AG

Projected capacitive 10pt touch

Size Category 17"

Panel technology

TN
Size Diagonal: 17" (43cm)
Pixel pitch 0.264mm H × 0.264mm V

2

LCD
Panel

Brightness

250cd/m

225cd/m

panel)

(Typical: without Touch panel)

2

(Typical: with Touch

215cd/m2 (Typical: with Touch

panel + AG coating)
Contrast ratio 1000 : 1 (Typical)
Viewable angle Horizontal : 160 degrees, Vertical: 160 degrees (Typical)
Response time 5ms (Black, White, Black Typical)

Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-80.0kHz, Vertical: 56-75Hz
Maximum Resolution 1280 × 1024, 1.3 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance



Positive

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 338.0mm W × 270.5mm H / 13.3" W × 10.6" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

20W typical, Power management mode: 2W maximum

387.0 × 342.0 × 202.0mm / 15.2 × 13.5 × 7.9" (W×H×D)

5.6kg / 12.3lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Environmental Considerations

Operating:

Storage:

Temperature
Humidity
Temperature
Humidity

0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

*

IP54 Standard Compliant : Only front face

ENGLISH

2

APPENDIX 25

Model Name ProLite T1732MSC-B1X

Technology Projected capacitive 10pt touch
Touch
Screen

Light transmission 90%

Communication system

USB

Size Category 17"

Panel technology

TN

Size Diagonal: 17" (43cm)

LCD
Panel

ENGLISH

Pixel pitch 0.264mm H × 0.264mm V

Brightness

Contrast ratio 1000 : 1 (Typical)

250cd/m
225cd/m

2

(Typical: without Touch panel),

2

(Typical: with Touch panel)

Viewable angle Horizontal : 170 degrees, Vertical: 160 degrees (Typical)

Response time 5ms (Black, White, Black Typical)
Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-80.0kHz, Vertical: 56-75Hz
Maximum Resolution 1280 × 1024, 1.3 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance



Positive

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 338.0mm W × 270.5mm H / 13.3" W × 10.6" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

20W typical, Power management mode: 2W maximum

387.0 × 342.0 × 202.0mm / 15.2 × 13.5 × 7.9" (W×H×D)

5.6kg / 12.3lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

Environmental Considerations

Operating:

Storage:

Temperature
Humidity
Temperature
Humidity

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

*

IP54 Standard Compliant : Only front face

2

26 APPENDIX

SPECIFICATIONS : ProLite T1932MSC

Model Name ProLite T1932MSC-B1 ProLite T1932MSC-B1X

Touch
Screen

Light transmission 90%
Communication system

USB

Size Category 19"

Technology Projected capacitive 2pt touch

Panel technology

TN

Size Diagonal: 19" (48cm)

LCD
Panel

Pixel pitch 0.294mm H × 0.294mm V

Brightness

250cd/m
225cd/m

2

(Typical: without Touch panel),

2

(Typical: with Touch panel)
Contrast ratio 800 : 1 (Typical)
Viewable angle Horizontal : 170 degrees, Vertical: 160 degrees (Typical)
Response time 5ms (Black, White, Black Typical)

Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-80.0kHz, Vertical: 56-75Hz
Maximum Resolution 1280 × 1024, 1.3 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75

Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 376.5mm W × 301.1mm H / 14.8" W × 11.9" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

25W typical, Power management mode: 2W maximum

432.0 × 391.0 × 219.0mm / 17.0 × 15.4 × 8.6" (W×H×D)

6.9kg / 15.2lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Environmental Considerations

Operating:

Storage:

Temperature
Humidity
Temperature
Humidity

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

IP54 Standard Compliant : Only front face

*

Projected capacitive 10pt touch

Positive



0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

2

ENGLISH

APPENDIX 27

Model Name ProLite T1932MSC-B2AG / ProLite T1932MSC-W2AG

Technology Projected capacitive 10pt touch
Touch
Screen

Light transmission 85%

Communication system

USB

Size Category 19"

Panel technology

IPS

Size Diagonal: 19" (48cm)

LCD
Panel

ENGLISH

Pixel pitch 0.294mm H × 0.294mm V

Brightness

Contrast ratio 1000 : 1 (Typical)

250cd/m
215cd/m

2

(Typical: without Touch panel),

2

(Typical: with Touch panel + AG coating)

Viewable angle Horizontal : 170 degrees, Vertical: 160 degrees (Typical)

Response time 5ms (Black, White, Black Typical)
Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-80.0kHz, Vertical: 56-75Hz
Maximum Resolution 1280 × 1024, 1.3 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance



Positive

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 376.5mm W × 301.1mm H / 14.8" W × 11.9" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

25W typical, Power management mode: 2W maximum

432.0 × 391.0 × 219.0mm / 17.0 × 15.4 × 8.6" (W×H×D)

6.9kg / 15.2lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Operating:

Environmental Considerations

Storage:

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

IP54 Standard Compliant : Only front face

*

Temperature
Humidity
Temperature
Humidity

0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

2

28 APPENDIX

Model Name ProLite T1932MSC-B2X

Technology Projected capacitive 10pt touch
Touch
Screen

Light transmission 90%

Communication system

USB

Size Category 19"

Panel technology

IPS

Size Diagonal: 19" (48cm)

LCD
Panel

Pixel pitch 0.294mm H × 0.294mm V

Brightness

250cd/m
225cd/m

2

(Typical: without Touch panel),

2

(Typical: with Touch panel)
Contrast ratio 1000 : 1 (Typical)
Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
Response time 14ms (Black, White, Black Typical)

Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-80.0kHz, Vertical: 56-75Hz
Maximum Resolution 1280 × 1024, 1.3 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B

TM

Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance



Positive

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 1.0Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 376.5mm W × 301.1mm H / 14.8" W × 11.9" H
Power Source 100-240VAC, 50/60Hz, 1A
Power Consumption*

1

Dimensions / Net Weight

20W typical, Power management mode: 2W maximum

432.0 × 391.0 × 219.0mm / 17.0 × 15.4 × 8.6" (W×H×D)

6.9kg / 15.2lbs

Tilt Angle Upward: 90 degrees Downward: 5 degrees

Environmental Considerations

Operating:

Storage:

Temperature
Humidity
Temperature
Humidity

0 to 40°C / 32 to 104°F
20 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)

Approvals CB, CE, TÜV-Bauart, CU, cULus, VCCI, IP54*

1

*

NOTE

USB peripherals / Audio equipment are not connected.

2

IP54 Standard Compliant : Only front face

*

ENGLISH

2

APPENDIX 29

DIMENSIONS : ProLite T1532MSC

351.0mm/13.8”

305.0mm/12.0”

229.0mm/9.0”

276.0mm/10.9”

222.5mm/8.7”

ENGLISH

DIMENSIONS : ProLite T1732MSC

387.0mm/15.2”

339.0mm/13.3”

271.5mm/10.7”

320.0mm/12.6”

222.5mm/8.7”

54.5mm/2.1”

54.5mm/2.1”

306.5mm/12.1”

342.0mm/13.5”

202.0mm/7.9”

202.0mm/7.9”

DIMENSIONS : ProLite T1932MSC

432.0mm/17.0”

377.5mm/14.9”

302.0mm/11.9”

358.0mm/14.1”

249.5mm/9.8”

30 APPENDIX

54.5mm/2.1”

391.0mm/15.4”

219.0mm/8.6”

COMPLIANT TIMING

VESA

NOTE

Video Mode

VGA 640 × 480

SVGA 800 × 600

XGA 1024 × 768

SXGA 1280 × 1024

*

Not compliant to ProLite T1532MSC.

Horizontal

Frequency

Vertical

Frequency

Dot Clock

31.469kHz 59.940Hz 25.175MHz

37.500kHz 75.000Hz 31.500MHz

37.861kHz 72.809Hz 31.500MHz

35.156kHz 56.250Hz 36.000MHz

37.879kHz 60.317Hz 40.000MHz

46.875kHz 75.000Hz 49.500MHz

48.077kHz 72.188Hz 50.000MHz

48.363kHz 60.004Hz 65.000MHz

56.476kHz 70.069Hz 75.000MHz

60.023kHz 75.029Hz 78.750MHz

63.981kHz 60.020Hz 108.000MHz *

79.976kHz 75.025Hz 135.000MHz *

ENGLISH

APPENDIX 31

M103T21
