USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

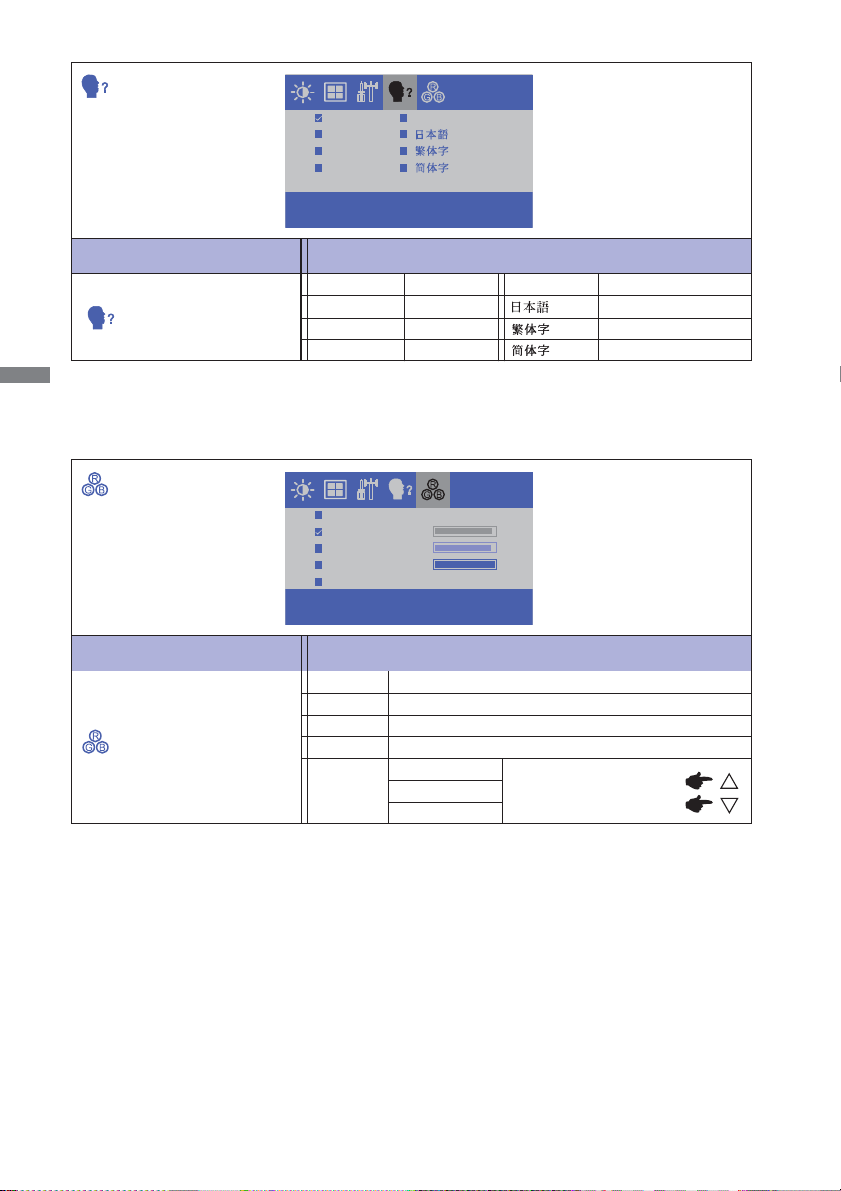

ENGLISH
ENGLISH
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC
Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
Model No. : PLC1634
ENGLISH
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the
address: http://www.iiyama.com
You can access the Web page of diff erent countries from there.
We reserve the right to change specifi cations without notice.
All trademarks used in this user manual are the property of their respective owners.
ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY ............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS .........................................3
CUSTOMER SERVICE ................................................................... 3
CLEANING ......................................................................................3
BEFORE YOU OPERATE THE MONITOR ..........................................4
FEATURES......................................................................................4
CHECKING THE CONTENTS OF THE PACKAGE ........................4
WALL MOUNTING .......................................................................... 5
BUILT-IN EQUIPMENT ....................................................................5
CONTROLS AND CONNECTORS .................................................6
CONNECTING YOUR MONITOR ...................................................7
COMPUTER SETTING ...................................................................8
ADJUSTING THE VIEWING ANGLE ............................................. 9
OPERATING THE MONITOR .............................................................10

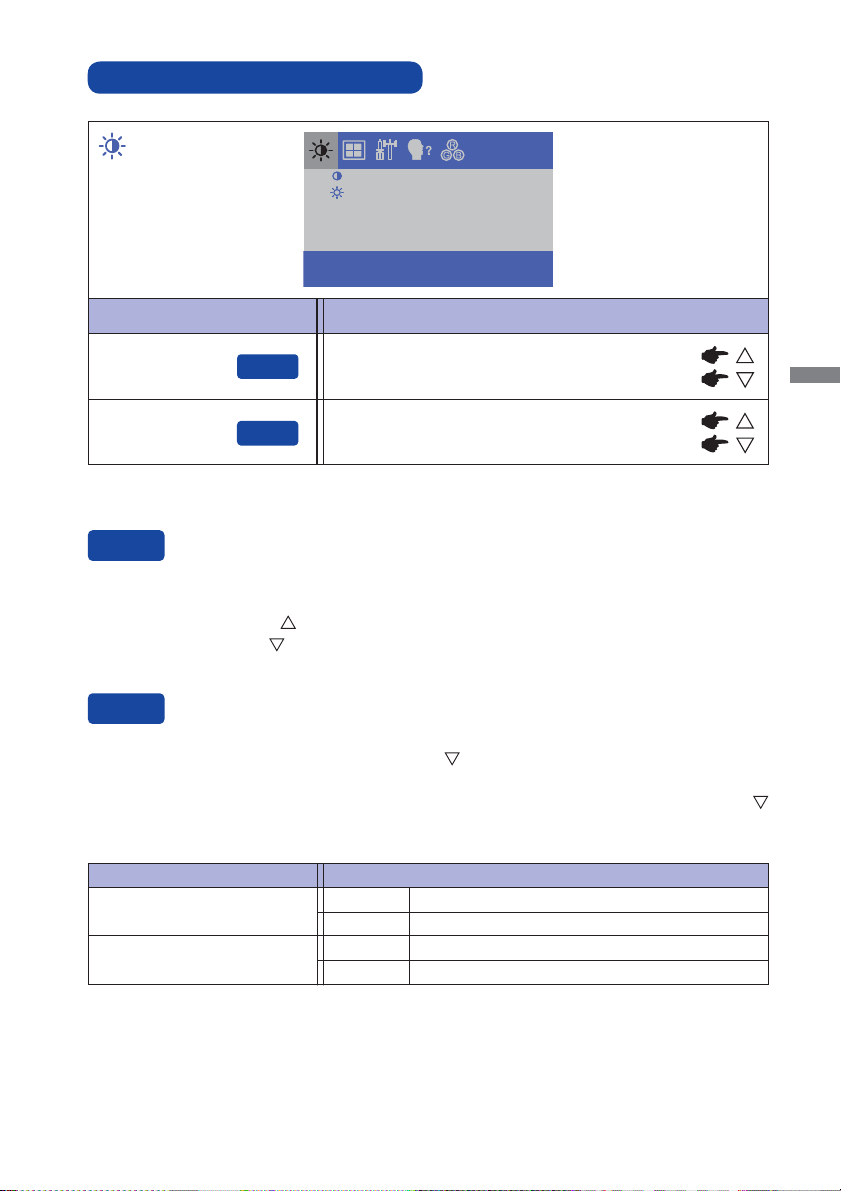

ADJUSTMENT MENU CONTENTS .............................................. 11
SCREEN ADJUSTMENTS ............................................................15
POWER MANAGEMENT FEATURE .............................................18
TROUBLE SHOOTING ......................................................................19
RECYCLING INFORMATION .............................................................20
APPENDIX ........................................................................................21
SPECIFICATIONS : ProLite T1634MC-B3X ..................................21
SPECIFICATIONS : ProLite T1634MC-B4X ..................................22

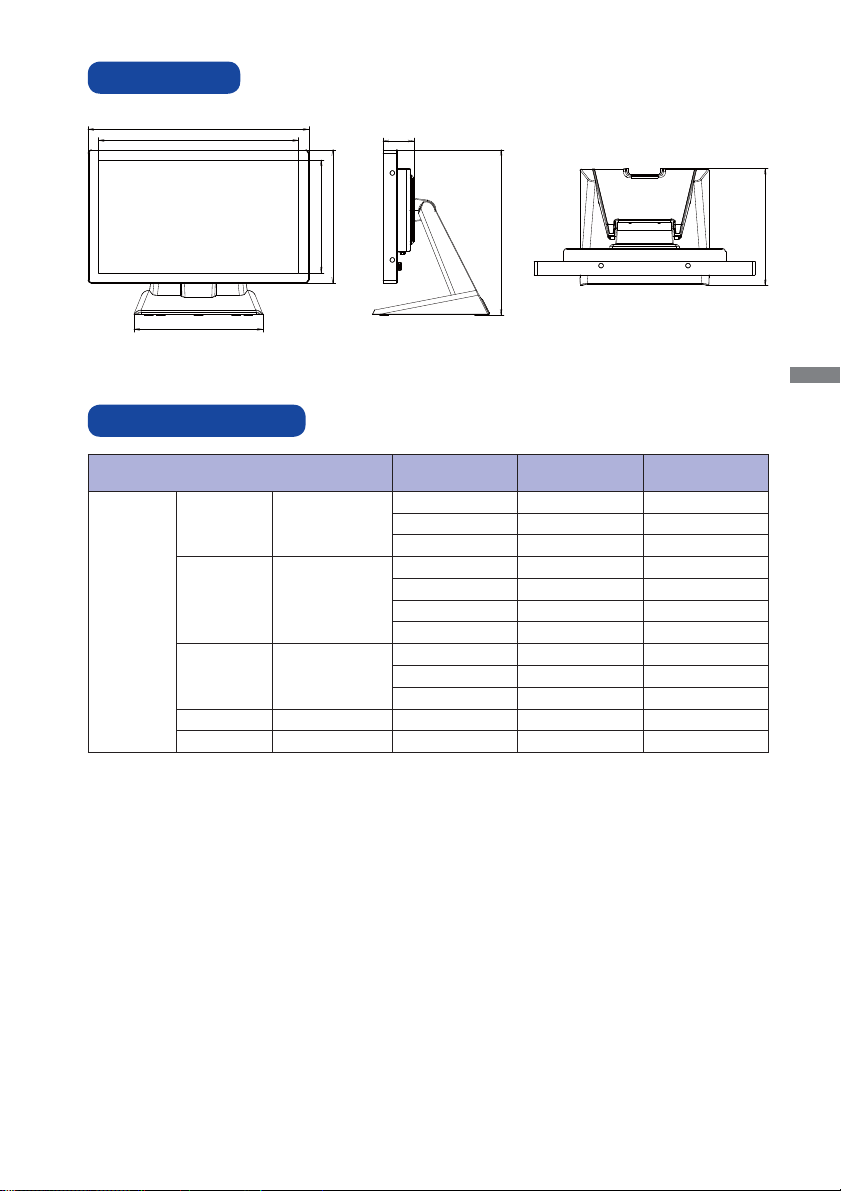

DIMENSIONS ................................................................................23
COMPLIANT TIMING ....................................................................23
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fi re or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will
cause malfunction and may cause fi re or electric shock.
ENGLISH
CORRECT USE OF THE AC ADAPTER
Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of
adapter may result in damage to the accessory and the monitor by fi re or electric shock.
DO NOT DISASSEMBLE THE AC ADAPTER
Disassembling the AC Adapter may expose you to the danger of fi re or electric shock.
PROTECT THE CABLES
Do not pull or bend the AC adapter, the power cable and signal cable. Do not place the monitor or
any other heavy objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
FOR YOUR SAFETY 1
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
ENGLISH
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the
cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re
or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft
material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the AC adapter, the power cable or signal cable, always pull it by the plug. Never pull
on the cable itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
CARE TO A HAND AND FINGERS!
Careful attention is required not to catch your fi ngers or hands when you change the height or the angle.
Injury can occur if care is not taken to avoid fi nger contact with the displays base when adjusting
the height. (Just for height adjustable model.)
REMARK FOR 24/7 USAGE
This product is not specifi cally designed for 24/7 usage in all environments.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
2 FOR YOUR SAFETY
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE
When you fi rst turn on the LCD monitor, the picture may not fi t in the display area
because of the type of computer that is used. In this case, adjust the picture position
to the correct position.
You may fi nd slightly uneven brightness on the screen depending on the desktop
pattern you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may
remain after switching the image, when the same image is displayed for hours. In
this case, the screen is recovered slowly by changing the image or turning off the
Power Switch for some hours.

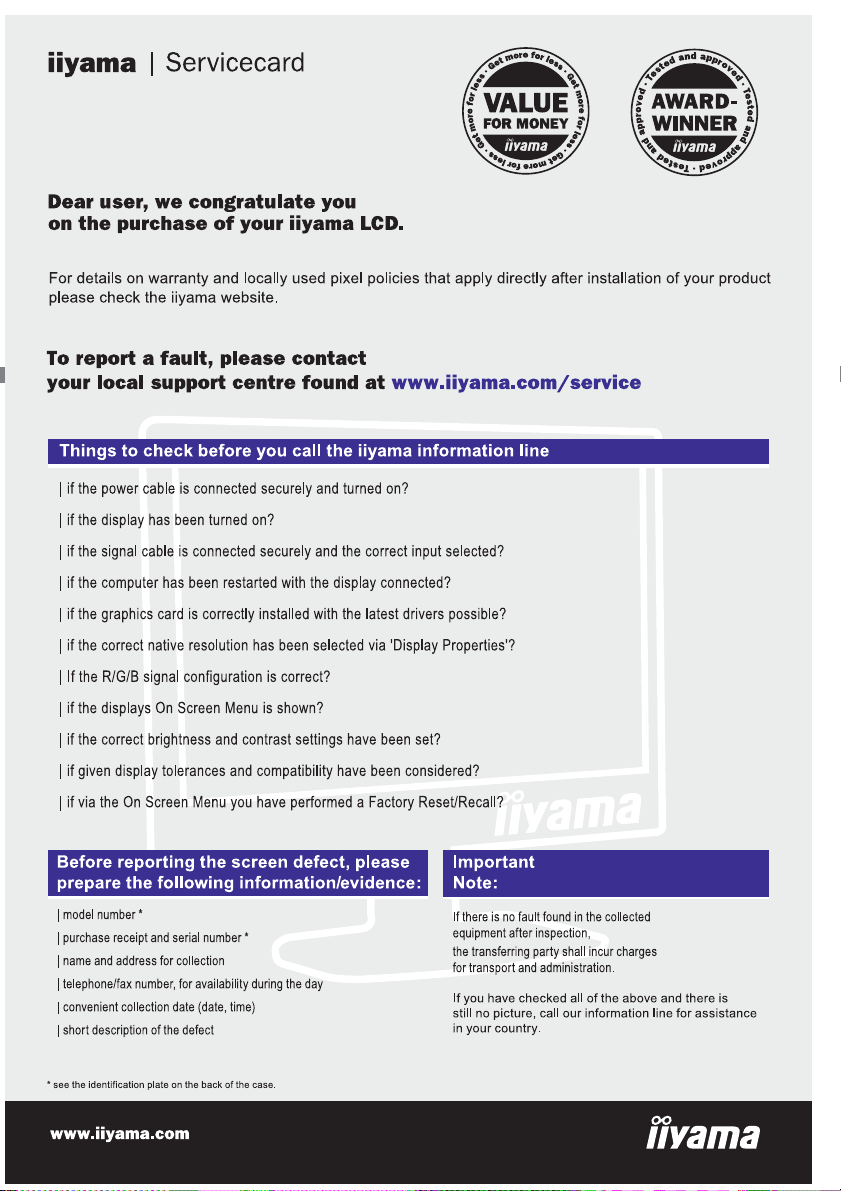

CUSTOMER SERVICE
ENGLISH
NOTE
CLEANING
WARNING
NOTE
CABINET
TOUCH
SCREEN
If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.
If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
To protect the Touch screen surface, do not scratch or rub the screen with a hard
object.
Never use any of the following strong solvents. These will damage the cabinet and
the Touch screen surface.
Abrasive cleaner Wax Solvent
Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
Touch screen surface may be cleaned using a soft clean cloth moistened with mild
window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
FOR YOUR SAFETY 3
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 1366 × 768
2
High Contrast 500:1 (Typical: with Touch panel) / Brightness 270cd/m
with Touch panel) : ProLite T1634MC-B3X
High Contrast 500:1 (Typical: with Touch panel) / Brightness 360cd/m
with Touch panel) : ProLite T1634MC-B4X
Digital Character Smoothing
Automatic Set-up
Plug & Play VESA DDC2B Compliant
ENGLISH
Windows
Power Management (VESA DPMS Compliant)
VESA Mounting Standard (100mm×100mm) Compliant
IP54 Standard Compliant (Only front face)
Windows8/8,1/10 touch environment
Basic touch operations can be performed under Windows 8/8,1/10.
However, please be informed that full touch functionality and normal operational performance are
not guaranteed.
®
XP/Vista/7/8/8,1/10 Compliant
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyama offi ce.
Power Cable*
DVI-D Signal Cable
Touch Panel Driver Disk (CD-ROM)*
Quick Start Guide
CAUTION
1
1
1. TO USERS IN 120V AREA
*
The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are
using a power supply higher than this rating, then a power cable with a rating of
10A/250V must be used. However, all guarantees and warranties are void for any
problems or damage caused by a power cable or AC adapter not supplied by
iiyama.
2. Applicable AC Adapter
AC Adapter Type Name : ADP-50YH B (DELTA ELECTRONICS, INC.)
2
*
This CD-ROM contains the touch screen driver software.
Install the Touch Panel Driver Disk after connecting the computer to the monitor
with USB Cable. For the details, see Readme fi le in the Touch Panel Driver Disk.
AC Adapter*
USB Cable
1
2
VGA(D-sub) Signal Cable
Safety Guide
(Typical:
2
(Typical:
4 BEFORE YOU OPERATE THE MONITOR
WALL MOUNTING
WARNING
When you use with the wall mounting, in consideration of thickness of the mounting
stage, tighten the M4 Screw with washer which “L” length is 8mm to fasten the
monitor. Using the screw longer than this may cause electric shock or damage
because it may contact with the electrical parts inside the monitor.
BUILT-IN EQUIPMENT
WARNING
This product is not designed for the purpose of being used in high temperature
environment.
If the product is placed in an external cabinet, you need to design cooling fans
and vents to keep the temperature low enough to fit in the product temperature
specifi cation.
Mounting Stage
Screw
ENGLISH
L
Chassis
BEFORE YOU OPERATE THE MONITOR 5
CONTROLS AND CONNECTORS
ENGLISH
<Front> <Back>
Menu Button (MENU)*
Scroll Up / Brightness Button ( )*
Scroll Down / Contrast Button ( )*
Select Button (SELECT)*
Power Switch ( )*
VGA(D-sub) mini 15pin Connector
DVI-D 24pin Connector
Remote Control Touch V01 Connector
USB Connector
Connector for AC Adapter
Power Indicator
Green: Normal operation
NOTE
Orange: Power Management
AC Adapter fastening
Remote Control Touch V01 is optional.
*
Remote Control
Touch V01*
6 BEFORE YOU OPERATE THE MONITOR
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off .
Connect the computer to the monitor with the signal cable.
Connect the computer to the monitor with the USB Cable.
Connect the monitor cable to the Remote Control Touch V01 (option), if necessary.
Connect the AC Adapter to the monitor and the Power Cable to the AC Adapter fi rst and then
connect to the power supply.
Turn on your monitor and computer.
NOTE
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regional iiyama offi ce.
For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama offi ce for a suitable adaptor.
Make sure you tighten the fi nger screws at each end of the Signal Cable.
[Example of Connection]
<Back>
Remote
Control
Touch V01
(option)
ENGLISH
Power Cable
(Accessory)
[Collect Cables]
Put the cables through the cable holes.
Collect cables at the back of the stand.
AC Adapter
(Accessory)
VGA(D-sub) Signal Cable
(Accessory)
DVI-D Signal Cable (Accessory)
USB Cable (Accessory)
AC adapter
fastening
BEFORE YOU OPERATE THE MONITOR 7
Computer
Cable Hole
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 23: COMPLIANT TIMING.
Windows XP/Vista/7/8/8,1/10 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs
on Windows XP/Vista/7/8/8,1/10 by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied.
For installation on Windows XP: The monitor Information File for iiyama monitors may be
necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com
NOTE
ENGLISH
Procedure for turning ON the Power Switch
Turn ON the monitor fi rst, and then the computer.
Touch screen driver software
Touch screen driver software and system may not start when you start your computer while
touching the screen.
Touch screen driver software may not run due to the power saving function depending on the
BIOS of your computer. In this case, set the power saving function to off .
TOUCH support operation system
Microsoft Windows XP (64 bit and 32 bit) Microsoft Windows Vista (64 bit and 32 bit)
Microsoft Windows 7 (64 bit and 32 bit) Microsoft Windows 8 / 8.1 / 10 (64 bit and 32 bit)
Microsoft Windows CE 2.13 / 3.0, net 6.0 Mac OS9.x, OS X V10.4/10.5/10.6 & above
Linux (Kernel2.4, 2.6x) & above Not support earlier versions.
Default mouse*
Touch digitizer*
Windows7 gestures*
For additional information on how to download the driver for your touch screen monitor,
please access the internet site noted above.
Monitor Drivers are not required in most cases for Macintosh or Unix operating
systems. For further information, please contact your computer dealer fi rst for advice.
Windows8/8.1/10 Windows7*5Windows7*
1
2
3
4
Vista XP
Default mouse*
Touch digitizer*
Windows7 gestures*
*1 Default mouse (click, drag, double-click and right-click)
2
*
Touch digitizer (click, drag /selection, double-click, right-click, fl ick and visual feedback)
3
Digitizer with Windows7 touch gestures
*
4
Windows 7 - Starter and Home Basic version
*
5
Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions
*
8 BEFORE YOU OPERATE THE MONITOR
1
2
2K Windows CE XP Embedded Mac OS9,OSX Linux
3
ADJUSTING THE VIEWING ANGLE
For optimal viewing it is recommended to look at the full
face of the monitor.
Hold the panel so that the monitor does not topple when
you change the monitor’s angle.
You are able to adjust the monitor’s angle up to 90
degrees upward, 5 degrees downward.
Do not touch the LCD screen when you change
NOTE
the angle. It may cause damage or break the
LCD screen.
Careful attention is required not to catch your
fi ngers or hands when you change the angle.
90°
ENGLISH
5°
BEFORE YOU OPERATE THE MONITOR 9
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 23. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 15 for SCREEN ADJUSTMENTS.
Press the MENU Button to start the On Screen Display feature. There are additional
Menu items which can be switched by using the
CONTRAST
BRIGHTNESS
/ Buttons.
ENGLISH
Select the Menu item which contains the adjustment icon relating to the adjustment
1280x1024
FH: 63KHz FV: 59.9Hz
you want to make. Use the SELECT Button to highlight the desired adjustment icon.
Use the / Buttons to make the appropriate adjustment or setting.
Press the MENU Button to leave the menu, and the settings you just made would be
automatically saved.
For example, to correct for vertical position, select Menu item of . Then, select V-POSITION
by using the SELECT Button.
Use the
/ Buttons to change the vertical position settings. The vertical position of the
overall display should be changing accordingly while you are doing this.
AUTO ADJUST
H-POSITION
V-POSITION
H-SIZE
FINE
100
Press the MENU Button lastly, it ends, all changes are saved in the memory.
NOTE
When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the OSD TIMEOUT has passed.
MENU button can be used to return previous menu item.
Any changes are automatically saved in the memory when the On Screen Display
Turning off the power should be avoided while using the Menu.
Adjustments for H/V-POSITION, H-SIZE and FINE are saved for each signal timing. Except for
these adjustments, all other adjustments have only one setting which applies to all signal timings.
disappears.
10 OPERATING THE MONITOR
ADJUSTMENT MENU CONTENTS
Direct
Direct
Direct
Direct
CONTRAST
BRIGHTNESS
1280x1024
FH: 63KHz FV: 59.9Hz
Adjustment Item Problem / Option Button to Press
CONTRAST
BRIGHTNESS *
Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
*
Too dull
Too intense
Too dark
Too bright
bright.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
BRIGHTNESS: Press the Button when the Menu is not displayed.
CONTRAST: Press the
LOCK MODE:
Simultaneously press the MENU button and the
Button when the Menu is not displayed.
button when an image is displayed through
VGA or DVI.
* The OSD menu is not displayed when the OSD is locked. Press the MENU button and the
button simultaneously again.
The following OSD menu is displayed.
Adjustment Item Problem / Option
POWER
OSD
LOCK
UNLOCK
LOCK
UNLOCK
The POWER SWITCH is Locked.
The POWER SWITCH is Unlocked.
The OSD menu is Locked.
The OSD menu is Unlocked.
ENGLISH
TOUCH FANCTION DISABLE:
ON: Pressing and holding of the MENU Button and the SELECT Button at the same time when
the Menu is not displayed, massage "TOUCH DISABLE" will appear on the top right corner.
OFF: Pressing and holding of the MENU Button and the SELECT Button at the same time for
about 5 seconds when the Menu is not displayed, till "TOUCH DISABLE" disappears.
OPERATING THE MONITOR 11
Only Analog Input
AUTO ADJUST
H-POSITION
V-POSITION
H-SIZE
FINE
Adjustment Item Problem / Option Button to Press
AUTO ADJUST *
ENGLISH
H-POSITION
V-POSITION
2
H-SIZE *
2
FINE *
1
For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 15 for
*
SCREEN ADJUSTMENTS.
2
See page 15 for SCREEN ADJUSTMENTS.
*
1
Adjust H/V-POSITION, H-SIZE and FINE automatically.
Too left
Too right
Too low
Too high
Too narrow
Too wide
To correct fl ickering text or lines
12 OPERATING THE MONITOR
OSD H-POSITION
Direct
Direct
OSD V-POSITION
OSD TIMEOUT
RESET
INPUT SELECT
Adjustment Item Problem / Option Button to Press
OSD H-POSITION
OSD V-POSITION
OSD TIMEOUT
OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time
between 5 and 60 seconds.
RESET Factory-preset data is restored.
Auto
INPUT SELECT
VGA
DVI
However it will automatically be selected when just one source is using.
NOTE
Search for an available input source and select
automatically.
Select the analog input.
Select the digital input.
In Power Management Mode input switching is disabled.
Input source is fi xed, not selected automatically when VGA and DVI which are selected.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
INPUT SELECT: Pressing and holding of the SELECT Button for about 5 seconds when the
Menu is not displayed. When both VGA and DVI signal inputs are connected
to a signal source, you can switch between them by successively pressing the
SELECT Button.
ENGLISH
OPERATING THE MONITOR 13
ENGLISH
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL
Adjustment Item Problem / Option Button to Press
ESPAÑOL Spanish
Japanese
Traditional Chinese
Simplifi ed Chinese
94
90
100
OSD LANGUAGE
ENGLISH
English
FRANÇAIS French
DEUTSCH
German
ITALIANO Italian
9300
RED
6500
GREEN
5500
BLUE
7500
USER
Adjustment Item Problem / Option Button to Press
Bluish white9300
Reddish white
Greenish white
Yellowish white
RED
GREEN
BLUE
Too weak
Too strong
COLOR TEMP.
6500
5500
7500
USER
14 OPERATING THE MONITOR
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
The screen adjustments described in this manual are designed to set image position and minimize
fl icker or blur for the particular computer in use.
The monitor is designed to provide the best performance at resolution of 1366 × 768, but can not
provide the best at resolutions of less than 1366 × 768 because the picture is automatically stretched
to fi t the full screen. It is recommended to operate at resolution of 1366 × 768 in normal use.
Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than
the computer software or utilities.
Perform adjustments after a warm-up period of at least thirty minutes.
Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
The Auto Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for H/V-POSITION, H-SIZE
and FINE. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is
changed. If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing
the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the
screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows
Display the picture at the optimum resolution.
Enter the Test.bmp (screen adjustment pattern) to wallpaper.
NOTE
Consult the appropriate documentation for doing this.
Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in
the wallpaper setting dialogue box. If you use Microsoft
setting of “Stretch desktop wallpaper to fi t the screen”.
[Adjustment pattern]
®
OS.
®
PLUS! 95/98 cancel the
ENGLISH
Zebra pattern
Color bar
Picture frame
OPERATING THE MONITOR 15
Press the SELECT Button. (AUTO ADJUST)
Adjust the image manually by following procedure below when the screen has a fl icker or
blur, or the picture does not fi t in the display area after performing the Auto Adjust.
Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the
display area.
ENGLISH
1) Adjust the H-POSITION so that the left side of the picture frame will move to the left
edge of the display area.
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the H-SIZE.
NOTE
When the left side of the picture frame moves apart from the left edge of the display
area during the H-SIZE adjustment, adjust steps 1) and 2).
Another way to make the H-SIZE adjustment is to correct the vertical wavy lines in
the zebra pattern.
The picture may fl icker during the H-SIZE, H/V-POSITION adjustment.
In case the picture frame is bigger or smaller than the data display area after the
H-SIZE adjustment, repeat steps from
16 OPERATING THE MONITOR
.
Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern.
NOTE
because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still
and
In case the strong fl icker or blurs remain on a part of the screen, repeat steps
remain, set the refresh rate of computer to low (60Hz) and repeat steps from
again.
Adjust the H-POSITION after the FINE adjustment if the horizontal position moves
during the adjustment.
Adjust the Brightness and Color to get the desired picture after you complete the H-SIZE
and FINE adjustments.
Put back your favorite wallpaper.
ENGLISH
OPERATING THE MONITOR 17
POWER MANAGEMENT FEATURE
0 2W 100%
POWER
CONSUMPTION
NORMAL MODE
POWER MANAGEMENT MODE
When your computer is not in use, the power management feature will automatically reduce the
power consumption of your monitor.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
There is a power management step the monitor takes as described below. The power management
function, including any timer settings is confi gured by the operating system. Check your operating
system manual for information on how this can be confi gured.
Power Management Mode
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off , the
monitor enters into Power Management Mode which reduces the power consumption to less than
2W. The screen becomes dark. From Power Management Mode, the image reappears in several
seconds when either the keyboard or the mouse are touched again.
ENGLISH
Even when using the power management mode, the monitor consumes electricity. Turn
NOTE
off the Power Switch whenever the monitor is not in use, during the night and weekends,
to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync
signal is missing. In this instance, the POWER MANAGEMENT feature may not work
properly.
18 OPERATING THE MONITOR
TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem
you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.
If you are experiencing a problem which is not described below or you cannot correct the problem,
3.
discontinue using the monitor and contact your dealer or iiyama service center for further assistance.
Problem Check
The AC Adapter is fi rmly seated in the connector.
The picture does
not appear.
The screen is not
synchronized.
The screen
position is not in
the center.
The screen is too
bright or too dark.
The screen is
shaking.
The touch
screen shows no
response.
The touch position
does not deviate.
The Power Cable is fi rmly seated in the socket of the AC Adapter.
The Power Cable is fi rmly seated in the socket.
The Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.
If the blank screen saver is in active mode, touch the keyboard or the mouse.
Increase the Contrast and/or Brightness.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
If the monitor is in power management mode, touch the keyboard or the mouse.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The video output level of the computer is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
The video output level of the computer is within the specifi cation of the
monitor.
The power voltage is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
The USB Cable is fi rmly seated in the socket.
Touch screen driver software is installed.
The calibration function set up correctly.
ENGLISH
TROUBLE SHOOTING 19
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
ENGLISH
20 Recycling information
APPENDIX
Design and specifi cations are subject to change without prior notice.
SPECIFICATIONS : ProLite T1634MC-B3X
Touch
Screen
Light transmission
Communication system
90%
USB
Size Category 15.6"
Technology Projected capacitive 10pt touch
Panel technology
TN
Size Diagonal: 15.6" (39.5cm)
Pixel pitch 0.252mm H × 0.252mm V
LCD
Panel
Brightness 300cd/m
2
(Typical), 270cd/m2 (with Touch panel)
Contrast ratio 500 : 1 (Typical: with Touch panel)
Viewable angle Horizontal : 170 degrees, Vertical: 160 degrees (Typical)
Response time 8ms (Typical)
Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-60.3kHz, Vertical: 56-75Hz
Maximum Resolution 1366 × 768, 1.0 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B
TM
Input Sync Signal Separate sync: TTL, Positive or Negative
Input Video Signal
Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Positive
Maximum Screen Size 344.2mm W × 193.5mm H / 13.6" W × 7.6" H
Power Source 12VDC, 4.16A
AC Adapter (accessory) Input: 100-240VAC, 50/60Hz
Power Consumption*
1
Dimensions / Net Weight
16W typical, Power management mode: 2W maximum
381.0 × 285.5 × 202.0mm / 15.0 × 11.2 × 8.0" (W×H×D)
4.4kg / 9.7lbs (Excluding the AC Adapter)
Tilt Angle Upward: 90 degrees Downward: 5 degrees
Operating:
Environmental Considerations
Storage:
Approvals CE, TÜV-Bauart, cULus, VCCI, CU, IP54*
1
*
NOTE
USB peripherals is not connected.
2
*
IP54 Standard Compliant : Only front face
Temperature
Humidity
Temperature
Humidity
0 to 40°C / 32 to 104°F
20 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)
2
ENGLISH
APPENDIX 21
SPECIFICATIONS : ProLite T1634MC-B4X
Touch
Screen
Light transmission
Communication system
90%
USB
Size Category 15.6"
Technology Projected capacitive 10pt touch
Panel technology
TN
Size Diagonal: 15.6" (39.5cm)
Pixel pitch 0.252mm H × 0.252mm V
LCD
Panel
Brightness 400cd/m
2
(Typical), 360cd/m2 (with Touch panel)
Contrast ratio 500 : 1 (Typical: with Touch panel)
ENGLISH
Viewable angle Horizontal : 170 degrees, Vertical: 160 degrees (Typical)
Response time 8ms (Typical)
Display Colors Approx.16.7M
Sync Frequency Horizontal: 31.4-60.3kHz, Vertical: 56-75Hz
Maximum Resolution 1366 × 768, 1.0 MegaPixels
Input Connector VGA(D-sub) mini 15 pin, DVI-D 24 pin
Plug & Play VESA DDC2B
TM
Input Sync Signal Separate sync: TTL, Positive or Negative
Input Video Signal
Analog: 0.7Vp-p (Standard), 75
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Maximum Screen Size 344.2mm W × 193.5mm H / 13.6" W × 7.6" H
Power Source 12VDC, 4.16A
AC Adapter (accessory) Input: 100-240VAC, 50/60Hz
Power Consumption*
1
Dimensions / Net Weight
16W typical, Power management mode: 2W maximum
381.0 × 285.5 × 202.0mm / 15.0 × 11.2 × 8.0" (W×H×D)
4.4kg / 9.7lbs (Excluding the AC Adapter)
Tilt Angle Upward: 90 degrees Downward: 5 degrees
Environmental Considerations
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
0 to 40°C / 32 to 104°F
20 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
10 to 90% (No condensation)
Approvals CE, TÜV-Bauart, cULus, VCCI, CU, IP54*
1
*
NOTE
USB peripherals is not connected.
2
IP54 Standard Compliant : Only front face
*
Positive
2
22 APPENDIX
DIMENSIONS
381.0mm/15.0”
345.0mm/13.6”
222.5mm/8.8”
COMPLIANT TIMING
Video Mode
VGA 640 × 480
SVGA 800 × 600
VESA
XGA 1024 × 768
53.0mm/2.1”
194.5mm/7.7”
230.5mm/9.1”
Horizontal
Frequency
285.5mm/11.2”
Vertical
Frequency
Dot Clock
31.469kHz 59.940Hz 25.175MHz
37.500kHz 75.000Hz 31.500MHz
37.861kHz 72.809Hz 31.500MHz
35.156kHz 56.250Hz 36.000MHz
37.879kHz 60.317Hz 40.000MHz
46.875kHz 75.000Hz 49.500MHz
48.077kHz 72.188Hz 50.000MHz
48.363kHz 60.004Hz 65.000MHz
56.476kHz 70.069Hz 75.000MHz
60.023kHz 75.029Hz 78.750MHz
1280 × 768 47.776kHz 59.870Hz 79.500MHz
1366 × 768 47.712kHz 59.790Hz 85.500MHz
202.0mm/8.0”
ENGLISH
APPENDIX 23
M104R21
Loading...
