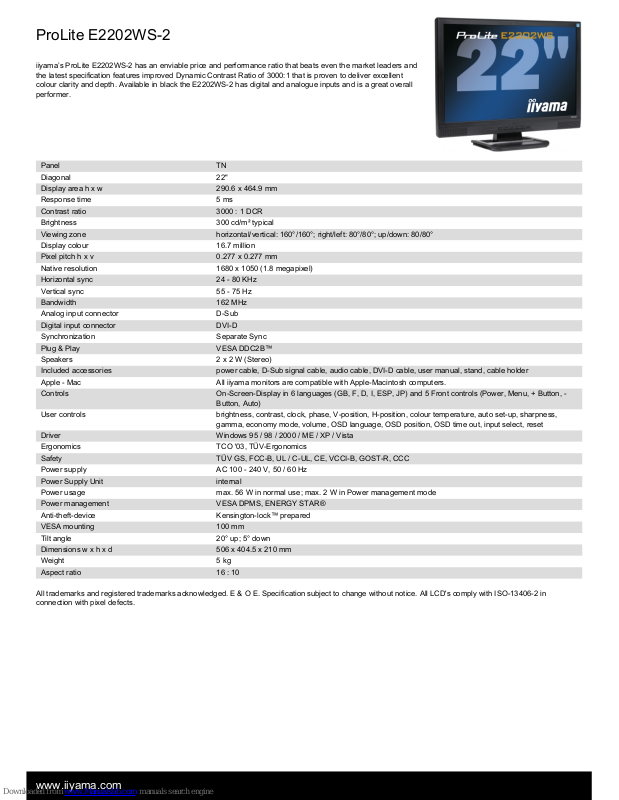

Iiyama Pro Lite E2202WS-2 Specifications

ProLite E2202WS-2

iiyama’s ProLite E2202WS-2 has an enviable price and performance ratio that beats even the market leaders and
the latest specification features improved Dynamic Contrast Ratio of 3000:1 that is proven to deliver excellent
colour clarity and depth. Available in black the E2202WS-2 has digital and analogue inputs and is a great overall
performer.

Panel TN
Diagonal 22"
Display area h x w 290.6 x 464.9 mm
Response time 5 ms
Contrast ratio 3000 : 1 DCR
Brightness 300 cd/m² typical
Viewing zone horizontal/vertical: 160°/160°; right/left: 80°/80°; up/down: 80/80°
Display colour 16.7 million
Pixel pitch h x v 0.277 x 0.277 mm
Native resolution 1680 x 1050 (1.8 megapixel)
Horizontal sync 24 - 80 KHz
Vertical sync 55 - 75 Hz
Bandwidth 162 MHz
Analog input connector D-Sub
Digital input connector DVI-D
Synchronization Separate Sync
Plug & Play VESA DDC2B™
Speakers 2 x 2 W (Stereo)
Included accessories power cable, D-Sub signal cable, audio cable, DVI-D cable, user manual, stand, cable holder
Apple - Mac All iiyama monitors are compatible with Apple-Macintosh computers.
Controls On-Screen-Display in 6 languages (GB, F, D, I, ESP, JP) and 5 Front controls (Power, Menu, + Button, -

Button, Auto)

User controls brightness, contrast, clock, phase, V-position, H-position, colour temperature, auto set-up, sharpness,

gamma, economy mode, volume, OSD language, OSD position, OSD time out, input select, reset
Driver Windows 95 / 98 / 2000 / ME / XP / Vista
Ergonomics TCO '03, TÜV-Ergonomics
Safety TÜV GS, FCC-B, UL / C-UL, CE, VCCI-B, GOST-R, CCC
Power supply AC 100 - 240 V, 50 / 60 Hz
Power Supply Unit internal
Power usage max. 56 W in normal use; max. 2 W in Power management mode
Power management VESA DPMS, ENERGY STAR®
Anti-theft-device Kensington-lock™ prepared
VESA mounting 100 mm
Tilt angle 20° up; 5° down
Dimensions w x h x d 506 x 404.5 x 210 mm
Weight 5 kg
Aspect ratio 16 : 10

All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD's comply with ISO-13406-2 in
connection with pixel defects.
