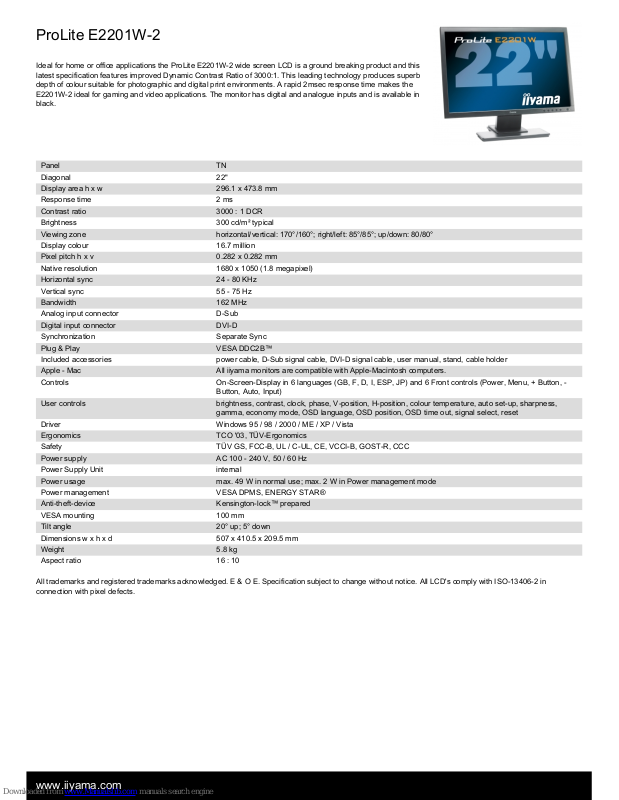

ProLite E2201W-2
Ideal for home or office applications the ProLite E2201W-2 wide screen LCD is a ground breaking product and this
latest specification features improved Dynamic Contrast Ratio of 3000:1. This leading technology produces superb
depth of colour suitable for photographic and digital print environments. A rapid 2msec response time makes the
E2201W-2 ideal for gaming and video applications. The monitor has digital and analogue inputs and is available in
black.
Panel TN
Diagonal 22"
Display area h x w 296.1 x 473.8 mm
Response time 2 ms
Contrast ratio 3000 : 1 DCR
Brightness 300 cd/m² typical
Viewing zone horizontal/vertical: 170°/160°; right/left: 85°/85°; up/down: 80/80°
Display colour 16.7 million
Pixel pitch h x v 0.282 x 0.282 mm
Native resolution 1680 x 1050 (1.8 megapixel)
Horizontal sync 24 - 80 KHz
Vertical sync 55 - 75 Hz
Bandwidth 162 MHz
Analog input connector D-Sub
Digital input connector DVI-D
Synchronization Separate Sync
Plug & Play VESA DDC2B™
Included accessories power cable, D-Sub signal cable, DVI-D signal cable, user manual, stand, cable holder
Apple - Mac All iiyama monitors are compatible with Apple-Macintosh computers.
Controls On-Screen-Display in 6 languages (GB, F, D, I, ESP, JP) and 6 Front controls (Power, Menu, + Button, -
Button, Auto, Input)
User controls brightness, contrast, clock, phase, V-position, H-position, colour temperature, auto set-up, sharpness,
gamma, economy mode, OSD language, OSD position, OSD time out, signal select, reset
Driver Windows 95 / 98 / 2000 / ME / XP / Vista
Ergonomics TCO '03, TÜV-Ergonomics
Safety TÜV GS, FCC-B, UL / C-UL, CE, VCCI-B, GOST-R, CCC
Power supply AC 100 - 240 V, 50 / 60 Hz
Power Supply Unit internal
Power usage max. 49 W in normal use; max. 2 W in Power management mode
Power management VESA DPMS, ENERGY STAR®
Anti-theft-device Kensington-lock™ prepared
VESA mounting 100 mm
Tilt angle 20° up; 5° down
Dimensions w x h x d 507 x 410.5 x 209.5 mm
Weight 5.8 kg
Aspect ratio 16 : 10
All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD's comply with ISO-13406-2 in
connection with pixel defects.
