Iiyama Pro Lite E1702S-2 Specifications

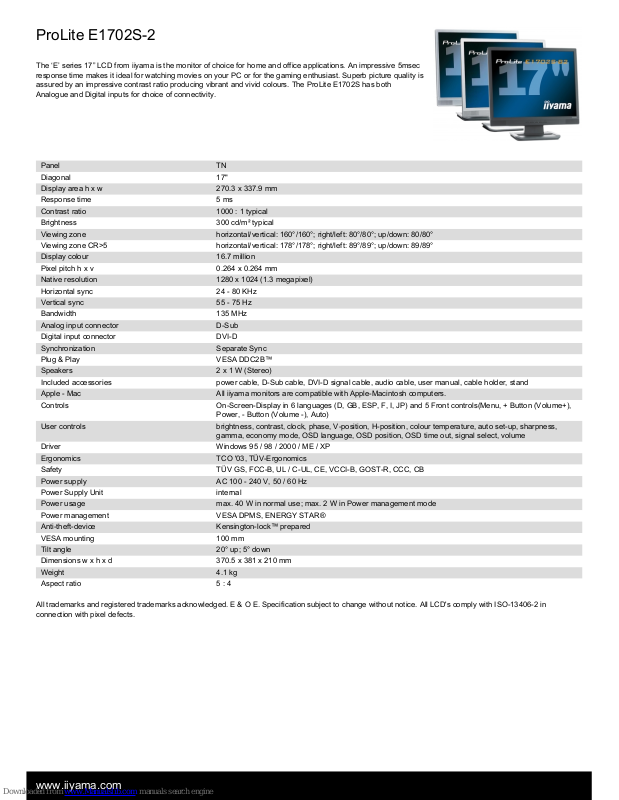

ProLite E1702S-2

The ‘E’ series 17” LCD from iiyama is the monitor of choice for home and office applications. An impressive 5msec
response time makes it ideal for watching movies on your PC or for the gaming enthusiast. Superb picture quality is
assured by an impressive contrast ratio producing vibrant and vivid colours. The ProLite E1702S has both
Analogue and Digital inputs for choice of connectivity.

Panel TN
Diagonal 17"
Display area h x w 270.3 x 337.9 mm
Response time 5 ms
Contrast ratio 1000 : 1 typical
Brightness 300 cd/m² typical
Viewing zone horizontal/vertical: 160°/160°; right/left: 80°/80°; up/down: 80/80°
Viewing zone CR>5 horizontal/vertical: 178°/178°; right/left: 89°/89°; up/down: 89/89°
Display colour 16.7 million
Pixel pitch h x v 0.264 x 0.264 mm
Native resolution 1280 x 1024 (1.3 megapixel)
Horizontal sync 24 - 80 KHz
Vertical sync 55 - 75 Hz
Bandwidth 135 MHz
Analog input connector D-Sub
Digital input connector DVI-D
Synchronization Separate Sync
Plug & Play VESA DDC2B™
Speakers 2 x 1 W (Stereo)
Included accessories power cable, D-Sub cable, DVI-D signal cable, audio cable, user manual, cable holder, stand
Apple - Mac All iiyama monitors are compatible with Apple-Macintosh computers.
Controls On-Screen-Display in 6 languages (D, GB, ESP, F, I, JP) and 5 Front controls(Menu, + Button (Volume+),

Power, - Button (Volume -), Auto)

User controls brightness, contrast, clock, phase, V-position, H-position, colour temperature, auto set-up, sharpness,

gamma, economy mode, OSD language, OSD position, OSD time out, signal select, volume
Driver Windows 95 / 98 / 2000 / ME / XP
Ergonomics TCO '03, TÜV-Ergonomics
Safety TÜV GS, FCC-B, UL / C-UL, CE, VCCI-B, GOST-R, CCC, CB
Power supply AC 100 - 240 V, 50 / 60 Hz
Power Supply Unit internal
Power usage max. 40 W in normal use; max. 2 W in Power management mode
Power management VESA DPMS, ENERGY STAR®
Anti-theft-device Kensington-lock™ prepared
VESA mounting 100 mm
Tilt angle 20° up; 5° down
Dimensions w x h x d 370.5 x 381 x 210 mm
Weight 4.1 kg
Aspect ratio 5 : 4

All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD's comply with ISO-13406-2 in
connection with pixel defects.
