Iiyama B2712HDS-1 User Guide

USER MANUAL
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
POLSKI
ENGLISH
Congratulations, Your display is designed for both you and the planet!
This display carries the TCO Certified label. This ensures that the display is designed for minimal impact on the climate and natural environment, while offering all the performance expected from top of the line electronic products. TCO Certifi ed is a third party verifi ed program, where every product model is tested by an accredited independent test laboratory. TCO Certified represents one of the toughest certifi cations for displays worldwide.
Some of the Usability features of the TCO Displays 5.0 requirements:
Visual Ergonomics
Good visual ergonomics in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are:
Light levels without color tint, Uniform color and luminance, Wide color gamut
Calibrated color temperature and gamma curve
Wide luminance level, Dark black levels, Low monitor blur
Electrical Safety
Product ful lls rigorous safety standards
ENGLISH
Emissions
Low alternating electric and magnetic elds emissions
Low acoustic noise emissions
Some of the environmental features of the TCO Displays 5.0 requirements:
The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO14001)
Very low energy consumption both in on- and standby mode
Restrictions on chlorinated and brominated ame retardants, plasticizers and polymers
Restrictions on heavy metals such as cadmium, mercury and lead (RoHS compliance)
Both product and product packaging is prepared for recycling
The brand owner offers take-back options
The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and IT­manufacturers all over the world.
For more information, please visit: www.tcodevelopment.com
Technology for you and the planet
A certifi ed power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certifi ed power supply cord not lighter than ordinary polyvinyl chloride fl exible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm
2
or H05VVH2-F2 3G 0.75mm according to IEC 60245 (designation H05RR-F 3G 0.75mm
) shall be used. Alternative a fl exible cord be of synthetic rubber
2
) shall be used.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC Directive 2004/108/EC “EMC Directive” , 2006/95/EC “Low Voltage Directive” and 2005/32/EC “EuP Directive”. The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.
ENGLISH
2
We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
We reserve the right to change specifi cations without notice.
All trademarks used in this user manual are the property of their respective owners.
As an ENERGY STAR® Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines for energy
effi ciency.
TABLE OF CONTENTS
FOR YOUR SAFETY .............................................................................................. 1
SAFETY PRECAUTIONS ................................................................................ 1
SPECIAL NOTES ON LCD MONITORS .......................................................... 3
CUSTOMER SERVICE .................................................................................... 3
CLEANING ....................................................................................................... 3
BEFORE YOU OPERATE THE MONITOR ............................................................ 4
FEATURES ...................................................................................................... 4
CHECKING THE CONTENTS OF THE PACKAGE ......................................... 4
CONTROLS AND CONNECTORS .................................................................. 5
CONNECTING YOUR MONITOR .................................................................... 6
COMPUTER SETTING .................................................................................... 7
ADJUSTING THE HEIGHT AND THE THE VIEWING ANGLE ........................ 7
OPERATING THE MONITOR ................................................................................. 8
ADJUSTMENT MENU CONTENTS ................................................................ 9
SCREEN ADJUSTMENTS ............................................................................... 15
POWER MANAGEMENT FEATURE ............................................................... 18
TROUBLE SHOOTING .......................................................................................... 19
RECYCLING INFORMATION ................................................................................. 20
APPENDIX ............................................................................................................ 20
SPECIFICATIONS .......................................................................................... 20
DIMENSIONS .................................................................................................. 21
COMPLIANT TIMING ....................................................................................... 21
ENGLISH
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fi re
ENGLISH
or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will cause malfunction and may cause fi re or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.
1 FOR YOUR SAFETY
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.
ENGLISH
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.
DO NOT PUT FLOPPY DISKS NEAR THE SPEAKERS
Magnetically recorded data, such as on a fl oppy disk, may become corrupted by the magnetic fi eld produced by the speakers if the disks are placed on or near the speakers.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.
FOR YOUR SAFETY 2
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
When you fi rst turn on the LCD monitor, the picture may not fi t in the display area
NOTE
ENGLISH
because of the type of computer that is used. In this case, adjust the picture position to the correct position. Due to the nature of the backlight, the screen may fl icker during initial use. Turn off
the Power Switch and then turn it on again to make sure the fl icker disappears. You may fi nd slightly uneven brightness on the screen depending on the desktop
pattern you use. Due to the nature of the LCD screen, an afterimage of the previous screen may
remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the
screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.
CUSTOMER SERVICE
NOTE
CLEANING
WARNING
CAUTION
NOTE
The fl uorescent light used in the LCD monitor may have to be periodically replaced.
For the warranty coverage on this component, please check with local iiyama service center. If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or replacement packaging.
If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
For safety reasons, turn off the power switch and unplug the monitor before you clean
it.
To protect the LCD panel, do not scratch or rub the screen with a hard object.
Never use any of the following strong solvents. These will damage the cabinet and the
LCD screen.
Thinner Benzine Abrasive cleaner
Spray-type cleaner Wax Acid or Alkaline solvent
Touching the cabinet with any product made from rubber or plastic for a long time may
cause degeneration or loss of paint on the cabinet.
CABINET
LCD
SCREEN
3 FOR YOUR SAFETY
Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.
Periodic cleaning with a soft dry cloth is recommended. Don't use tissue paper etc. because these will damage the LCD screen.
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1000:1 (Typical), ACR Function Available / Brightness 400cd/m
(Typical), Quick Response Time 5ms (Black, White, Black)
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
2 × 1.5W Stereo Speakers
Plug & Play VESA DDC2B Compliant
Windows
Power Management (ENERGY STAR
Ergonomic Design TCO 5.0
®
95/98/2000/Me/XP/Vista/7 Compliant
®
VESA DPMS Compliant)
2
ENGLISH
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
CHEKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
Power Cable*
Audio Cable
CAUTION
<Stopper>
Stand the display upright pointing towards you. Remove
the transportation restraint by pulling to the right while
keeping a constant pressure to the top of the display.
Please remember not to place any pressure onto the
LCD itself but only on the surrounding bezel. Care must
be taken as the displays base is sprung loaded and can
expand quickly if not handled correctly.
The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
* a power supply higher than this rating, then a power cable with a rating of 10A/ 250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.
D-Sub Signal Cable Quick Start Guide
DVI-D Cable
Stopper
BEFORE YOU OPERATE THE MONITOR 4
CONTROLS AND CONNECTORS
ENGLISH
<Front> <Back>
Power Indicator
Blue: Normal operation
NOTE
Orange: Power Management The monitor enters into power management mode which reduces the power
consumption to less than 1W when receiving no horizontal and/or vertical sync signal.
Power Switch ( ) Menu / Select Button (MENU)
Scroll Up / Volune Button ( / ) Scroll Down / ECO Mode Button* ( / ) Auto Button (AUTO) Speakers D-SUB mini 15pin Connector (VGA IN)
DVI-D 24pin Connector (DVI-D IN)
HDMI Connector (HDMI)
Keyhole for Security Lock
NOTE
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
Audio Connector (AUDIO IN)
AC Connector (AC IN)
* You can skip the Menu items and display an adjustment scale directly.
5 BEFORE YOU OPERATE THE MONITOR
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable. Connect the monitor to the audio equipment with the Audio Cable for computer when using the audio features. Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor and computer.
NOTE  The signal cables used for connecting the computer and monitor may vary with the type of
computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.
For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama
offi ce for a suitable adaptor.
ENGLISH
Make sure you tighten the fi nger screws at each end of the signal cable.
[Example of Connection]
<Back>
D-Sub Signal Cable
Power Cable
(Accessory)
DVI-D Cable (Accessory)
Audio Cable (Accessory)
HDMI Cable (Not Included)
(Accessory)
Computer
AV Equipment
BEFORE YOU OPERATE THE MONITOR 6
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 21: COMPLIANT TIMING.
Windows 95/98/2000/Me/XP/Vista/7 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on
Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.
For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors
may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com
NOTE
ENGLISH
For additional information on how to download the driver for your touch screen monitor,
please access the internet site noted above.
Monitor Drivers are not required in most cases for Macintosh or Unix operating systems.
For further information, please contact your computer dealer fi rst for advice.

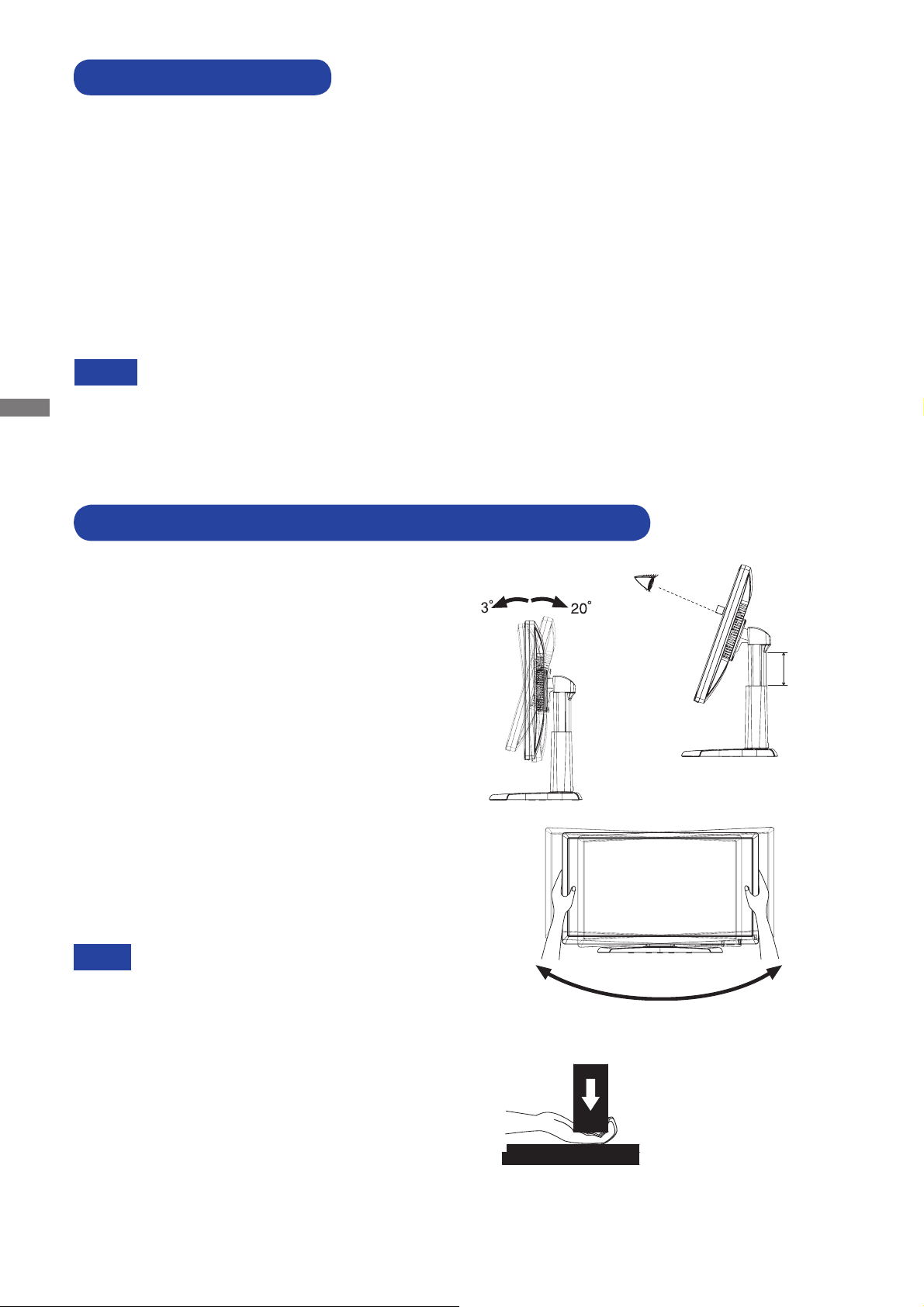

ADJUSTING THE HEIGHT AND THE VIEWING ANGLE
For optimal viewing it is recommended to position
yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.
Hold the panel so that the monitor does not topple
when you change the monitor’s height or angle.
You are able to adjust the monitor's height up to
85mm, angle up to 30 degrees right and left, 20 degrees upward, 3 degrees downward.
In order to ensure a healthy and relaxed body
position when using the monitor at visual display workstations, it is recommended that the adjusted tilt angle should not exceed 10 degrees. Adjust the monitor’s angle to your own preference.
85mm
NOTE
change the height or the angle. It may cause damage or break the LCD screen.
your fi ngers or hands when you change the height or the angle.
avoid fi nger contact with the displays
base when adjusting the height.
7 BEFORE YOU OPERATE THE MONITOR
Do not touch the LCD screen when you
Careful attention is required not to catch
Injury can occur if care is not taken to
30°
30°
Monitor
Stand
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory
with the COMPLIANT TIMING shown on page 21. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 15 for SCREEN ADJUSTMENTS.
Press the MENU Button to start the On Screen Display feature. There are
additional Menu items which can be switched by using the / Buttons.
OSD
Display
Audio Settings
Miscellaneous
Information
Brightness
Contrast
H.Position
V.Position
Phase
Clock
Color Temp
Auto Adjust
6500
90
80
50
50
41
50
1920x1080
Select the Menu item which contains the adjustment icon relating to the
adjustment you want to make. Press the MENU Button. Then, use the / Buttons to highlight the desired adjustment icon.
Press the MENU Button again. Use the / Buttons to make the appropriate
adjustment or setting.
ENGLISH
Press the AUTO Button to leave the menu, and the settings you just made would
be automatically saved.
For example, to correct for vertical position, select Menu item of Picture and then press the MENU Button. Then, select V.Position by using the / Buttons. An adjustment page appears after you press the MENU Button. Then, use the / Buttons to
change the vertical position settings. The vertical position of the overall display should be changing accordingly while you are doing this. Press the AUTO Button lastly, it ends, any changes are saved in the memory.
OSD
Display
Audio Settings
Miscellaneous
Information
Brightness
Contrast
H.Position
V.Position
Phase
Clock
Color Temp
Auto Adjust
6500
NOTE
When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the OSD Timeout has passed. Also, press the AUTO button to quickly turn off the On­Screen Display.
90
80
50
50
41
50
1920x1080
Any changes are automatically saved in the memory when the On Screen Display
disappears.
Turning off the power should be avoided while using the Menu. Adjustments for H. / V. Position, Clock and Phase are saved for each signal timing. Except for these
adjustments, all other adjustments have only one setting which applies to all signal timings.
OPERATING THE MONITOR 8
ADJUSTMENT MENU CONTENTS
ENGLISH
Brightness*
Contrast
H. Position*
V. Position*
OSD
Display
Audio Settings
Miscellaneous
Information
Brightness
Contrast
H.Position
V.Position
Phase
Clock
Color Temp
Auto Adjust
6500
Adjustment Item Problem / Option Button to Press
1
Too dark Too bright
Too dull Too intense
3
Too left Too right
3
Too low Too high
90
80
50
50
41
50
1920x1080
Phase*
Clock*
2,3
2,3
Color Temp.
Auto Adjust*
1
Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.
*
2
*
See page 15 for SCREEN ADJUSTMENTS.
3
Only Analog Input.
*
4
*
For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 15 for
3,4
Direct
To correct fl ickering text or lines
Too narrow Too wide
9300 7500 6500
User
Bluish white Yellowish white Reddish white
Red Green
Blue
Too weak Too strong
Adjust H. / V. Position, Clock and Phase automatically.
SCREEN ADJUSTMENTS.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
Auto Adjust: Press the Auto Button when the Menu is not displayed.
9 OPERATING THE MONITOR
OSD
OSD
Display
Audio Settings
Miscellaneous
Information
H.Position
V.Position
OSD Timeout
Adjustment Item Problem / Option Button to Press
90
10
10
1920x1080
H.Position
V.Position
OSD Timeout
OSD is too left OSD is too right
ENGLISH
OSD is too low OSD is too high
You can set the OSD display duration time between 5 and 30 seconds.
OPERATING THE MONITOR 10
Display
OSD
Display
Audio Settings
Miscellaneous
Information
Display Mode
Opticolor
ACR
ECO
Sharpness
OD
Adjustment Item Problem / Option Button to Press
Full
Standard
OFF
OFF
50
0
1920x1080
Display Mode
ENGLISH
Opticolor
ACR*
ECO
Sharpness
OD
Direct
Aspect
Full
Standard
Offi ce
Movie Game Scenery
ON
OFF
ON
OFF
Expansion display of Aspect
Expansion display For general windows environment and monitor
default setting. For text editing and viewing in a word processing
environment. For movie and video environment.
For PC game environment. For displaying outdoor scenery images
Increased Contrast Ratio
Typical Contrast Ratio
Brightness of back-light is reduced.
Normal
Too soft Too sharp
It will improve the gray level response time of the LCD panel. A higher level results in a faster response time.
* Contrast, Brightness, ECO and Opticolor cannot be adjusted and selected while ACR is active.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
ECO: Press the Button when the Menu is not displayed.
11 OPERATING THE MONITOR
Audio Settings
OSD
Display
Audio Settings
Miscellaneous
Information
Volume
Mute
Audio Input
OFF
Line in
Adjustment Item Problem / Option Button to Press
50
1920x1080
Volume
Direct
Too soft Too loud
ON
Turn off the sound temporarily.
Mute
OFF
Line in
Return the sound volume to the previous level.
Select the LINE IN input.
Audio Input*
HDMI
Select the HDMI input.
* Suitable for HDMI input only.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
Volume: Press the Button when the Menu is not displayed.
ENGLISH
OPERATING THE MONITOR 12
Miscellaneous
OSD
Display
Audio Settings
Miscellaneous
Information
Language
Input Select
Reset
Adjustment Item Problem / Option Button to Press
English
Auto
1920x1080
ESPAÑOL Spanish FRANÇAIS French DEUTSCH
German
Traditional Chinese
Language
ENGLISH
ENGLISH
English Japanese
Simplifi ed Chinese ITALIANO Italian Auto Select the signal input automatically.
Input Select
Direct
VGA DVI
Select the D-SUB input.
Select the DVI-D input.
Select the HDMI input. HDMI
NOTE
However it will automatically be selected when just one source is using. In Power Management Mode input switching is disabled. Input source is fixed, not selected automatically when VGA, DVI and HDMI which are selected.
Reset
Factory-preset data is restored.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
Input Select: Pressing and holding of the AUTO Button for 5 seconds when the Menu is not
displayed.
13 OPERATING THE MONITOR
Information
Adjustment Item Problem / Option Button to Press
Information
OSD
Display
Audio Settings
Miscellaneous
Information
1920x1080
H:67kHz V:60Hz
Auto
SN: xxxxxxxxxxxxx
1920x1080
Displays information regarding the current input signal coming from the graphic card in your computer.
NOTE
See your graphic card user guide for more information about changing the resolution and refresh.
ENGLISH
OPERATING THE MONITOR 14
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
The screen adjustments described in this manual are designed to set image position and minimize
icker or blur for the particular computer in use.
The monitor is designed to provide the best performance at resolution of 1920 × 1080, but can not
provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched to fi t the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use.
Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than the
computer software or utilities.
ENGLISH
Perform adjustments after a warm-up period of at least thirty minutes.
Additional adjustments may be required after the Auto Adjust depending on the resolution or signal
timing.
The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment
pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock and Phase. The other way is performing each adjustment manually. Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com).
Adjust the image by following the procedure below to get the desired picture. This manual explains adjustment under Windows 95/98/2000/Me/XP/Vista/7.
Display the picture at the optimum resolution.
Enter the Test.bmp (screen adjustment pattern) to wallpaper.
NOTE
NOTE
Consult the appropriate documentation for doing this.
Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the
wallpaper setting dialogue box. If you use Microsoft
®
PLUS! 95/98 cancel the setting of
“Stretch desktop wallpaper to fi t the screen”.
[Adjustment pattern]
Zebra pattern
15 OPERATING THE MONITOR
Color bar
Picture frame
Press the Auto Button. (Auto Adjust)
Adjust the image manually by following procedure below when the screen has a fl icker or
blur, or the picture does not fi t in the display area after performing the Auto Adjust.
Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display
area.
1) Adjust the H.Position so that the left side of the picture frame will move to the left edge of
the display area.
ENGLISH
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the Clock.
When the left side of the picture frame moves apart from the left edge of the display
NOTE
NOTE
area during the Clock adjustment, adjust steps 1) and 2).
Another way to make the Clock adjustment is to correct the vertical wavy lines in the
zebra pattern.
The picture may fl icker during the Clock, H.Position and V.Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the Clock
adjustment, repeat steps from
.
OPERATING THE MONITOR 16
Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.
NOTE
NOTE
In case the strong fl icker or blurs remain on a part of the screen, repeat steps
because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set
ENGLISH
the refresh rate of computer to low (60Hz) and repeat steps from
Adjust the H.Position after the Phase adjustment if the horizontal position moves during
again.
the adjustment.
Adjust the Brightness and Color to get the desired picture after you complete the Clock and
Phase adjustments.
Put back your favorite wallpaper.
and
17 OPERATING THE MONITOR
POWER MANAGEMENT FEATURE
The power management feature of this product complies with power saving requirement of ENERGY
®
STAR the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be confi gured.
and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of
Power Management Mode When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 1W. The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.
Power Indicator
ENGLISH
NOTE
NORMAL MODE
POWER MANAGEMENT MODE
Even when using the power management mode, the monitor consumes electricity. Turn
Blue
Orange
POWER CONSUMPTION
0 1W 100%
off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption. It is possible that the video signal from the computer may be on while the H or V sync
signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.
OPERATING THE MONITOR 18
TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
1.
Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
If you are experiencing a problem which is not described below or you cannot correct the problem,
3. discontinue using the monitor and contact your dealer or iiyama service center for further assistance.
Problem Check
The picture does not appear.
ENGLISH
(Power indicator does not light up.)
(Power indicator is blue.)
(Power indicator is orange.)
The screen is not synchronized.
The screen position is not in the center.
The Power Cable is fi rmly seated in the socket.
The Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.
If the blank screen saver is in active mode, touch the keyboard or the mouse.
Increase the Contrast and/or Brightness.
The computer is ON.
 
The Signal Cable is properly connected. The signal timing of the computer is within the specifi cation of the monitor.
If the monitor is in power management mode, touch the keyboard or the mouse.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The Signal Cable is properly connected.
The signal timing of the computer is within the specifi cation of the monitor.
The video output level of the computer is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
The screen is too bright or too dark.
The screen is shaking.
No sound.
The sound is too loud or too quiet.
A strange noise is heard.
19 TROUBLE SHOOTING
The video output level of the computer is within the specification of the
monitor.
The power voltage is within the specifi cation of the monitor.
The signal timing of the computer is within the specifi cation of the monitor.
The audio equipment (computer etc.) is ON.
The Audio Cable is properly connected.
The Volume is turned up.
The Mute is OFF.
 
The audio output level of the audio equipment is within the specifi cation of the monitor.
The audio output level of the audio equipment is within the specifi cation of
the monitor.
The Audio Cable is properly connected.
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
APPENDIX
SPECIFICATIONS
Size Category 27" LCD Panel Driving system
Pixel pitch Brightness Contrast ratio Viewable angle
Response time Display Colors Sync Frequency Maximum Resolution Input Connector
Plug & Play VESA DDC2B
Input Sync Signal Separate sync: TTL, Positive or Negative Input Video Signal
Input Audio Connector ø 3.5mm mini jack (Stereo)
a-Si TFT Active Matrix
Diagonal: 27" (68.6cm)Size
0.31125mm H × 0.31125mm V 400cd/m 1000 : 1 (Typical), ACR Function Available Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical)
5ms (Black, White, Black), 2ms (Gray to Gray) Approx.16.7M Horizontal: 31.0-80.0kHz, Vertical: 56-75Hz 1920 × 1080, 2.1 MegaPixels D-Sub mini 15 pin, DVI-D 24 pin, HDMI
Analog: 0.7Vp-p (Standard), 75 Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance Digital: HDMI(Ver. 1.3)
2
(Typical)
TM
Positive
Ω,
ENGLISH
Input Audio Signal 0.5Vrms maximum Speakers 1.5W × 2 (Stereo speakers) Maximum Screen Size 597.60mm W × 336.15mm H / 23.53" W × 13.23" H Power Source 100-240VAC, 50/60Hz, 1.1A
45W typical, Power management mode: 1W maximum*Power Consumption
Dimensions / Net Weight 644.0× 422.5 - 507.5 × 263.0mm / 25.4 × 16.6 - 20.0 × 10.4" (W×H×D)
8.8kg / 19.4lbs
Tilt Angle
Environmental Considerations
Approvals
NOTE
* Audio equipment is not connected.
Upward: 20 degrees Downward: 3 degrees Right / Left : 30 degrees each
Operating: Temperature
Humidity
Storage:
TCO5.0, CE, PSE, TÜV-GS, Energy Star
Temperature Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
-20 to 60°C / -4 to 140°F 5 to 85% (No condensation)
RECYCLING INFORMATION / APPENDIX 20
DIMENSIONS
644.0mm/25.4"
599.5mm/23.6"
410.0mm/16.1"
ENGLISH
COMPLIANT TIMING
Video Mode
VGA
SVGA
VESA
XGA 1024 × 768
SXGA
WXGA+ WSXGA+ Full HD
640 × 480
800 × 600
1280 × 1024
1440 × 900 1680 × 1050 1920 × 1080
55.5mm/2.19"
391.5mm/15.4"
338.0mm/13.3"
Horizontal
Frequency 31,469kHz 37,500kHz 37,861kHz 35,156kHz 37,879kHz 46,875kHz 48,077kHz 48,363kHz 56,476kHz 60,023kHz 63,981kHz 79,976kHz 55,935kHz 65,290kHz 67,500kHz
(507.5mm/20.0")
422.5mm/17.4"
Vertical
Frequency
59,940Hz 75,000Hz 72,809Hz 56,250Hz 60,317Hz 75,000Hz 72,188Hz 60,004Hz 70,069Hz 75,029Hz 60,020Hz 75,025Hz 59,887Hz 59,954Hz 60,000Hz
263.0mm/10.4"
Dot Clock
25,175MHz 31,500MHz 31,500MHz 36,000MHz 40,000MHz 49,500MHz 50,000MHz 65,000MHz 75,000MHz
78,750MHz 108,000MHz 135,000MHz 106,500MHz 146,250MHz 148,500MHz
21 APPENDIX
M053A02
Loading...
