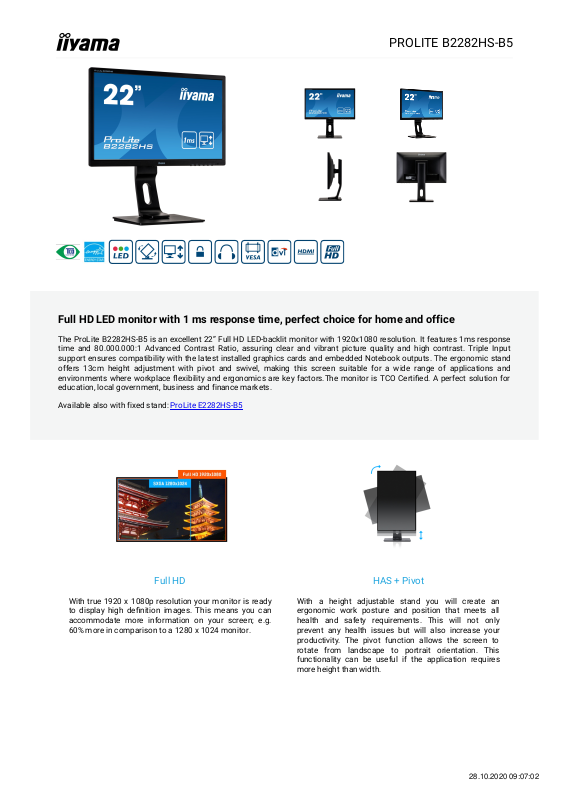

Iiyama B2282HS-B5 Product Data Sheet

Full HD LED monitor with 1 ms response time, perfect choice for home and office

The ProLite B2282HS-B5 is an excellent 22” Full HD LED-backlit monitor with 1920x1080 resolution. It features 1ms response
time and 80.000.000:1 Advanced Contrast Ratio, assuring clear and vibrant picture quality and high contrast. Triple Input
support ensures compatibility with the latest installed graphics cards and embedded Notebook outputs. The ergonomic stand
offers 13cm height adjustment with pivot and swivel, making this screen suitable for a wide range of applications and
environments where workplace flexibility and ergonomics are key factors.The monitor is TCO Certified. A perfect solution for
education, local government, business and finance markets.

Available also with fixed stand: ProLite E2282HS-B5

PROLITE B2282HS-B5

Full HD

With true 1920 x 1080p resolution your monitor is ready
to display high definition images. This means you can
accommodate more information on your screen; e.g.
60% more in comparison to a 1280 x 1024 monitor.

HAS + Pivot

With a height adjustable stand you will create an
ergonomic work posture and position that meets all
health and safety requirements. This will not only
prevent any health issues but will also increase your
productivity. The pivot function allows the screen to
rotate from landscape to portrait orientation. This
functionality can be useful if the application requires
more height than width.

28.10.2020 09:07:02

Diagonal 21.5", 54.7cm

Panel TN LED, matte finish

Native resolution 1920 x 1080 @75Hz (1920 x 1080, 2.1 megapixel)

Aspect ratio 16:9

Brightness 250 cd/m² typical

Static contrast 1000:1 typical

Advanced contrast 80M:1

Response time (GTG) 1ms

Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°

Colour support 16.7mln (sRGB: 99%; NTSC: 72%)

Horizontal Sync 30 - 85kHz

Vertical Sync 55 - 75Hz

Viewable area W x H 476.6 x 268.1mm

Pixel pitch 0.248mm

Colour matte, black

Signal input VGA x1 (1920 x1080 @ 60Hz)

DVI x1 (1920 x1080 @ 60Hz)
HDMI x1 (1920 x1080 @ 75Hz)

HDCP yes

Headphone connector yes

Blue light reducer yes

Flicker free yes

OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons Power, Menu/ Select, Scroll up/ Volume, Scroll down/ ECO, Exit / i-Style colour,

Input

User controls auto adjust, picture adjust (brightness, contrast, ECO, Blue Light Reducer, ACR,

OD), geometry (H. position, V. position, pixel clock, phase), colour settings (colour
temp., user preset, i-Style colour), OSD (H. position, V. position, rotate, OSD time),
language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo,
display information), input select, audio settings (volume, mute, audio input)

Speakers 2 x 1W

Convenience Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX

Display position adjustments height, pivot (rotation), swivel, tilt

Height adjustment 130mm

Rotation (PIVOT function) 90°

Swivel stand 90°; 45° left; 45° right

Tilt angle 22° up; 5° down

VESA mounting 100 x 100mm

DISPLAY CHARACTERISTICS01

INTERFACES / CONNECTORS / CONTROLS02

FEATURES03

MECHANICAL04

ACCESSORIES INCLUDED05

28.10.2020 09:07:02

Cables power, DVI, Audio

Other quick start guide, safety guide

Power supply unit internal

Power supply AC 100 - 240V, 50/60Hz

Power usage 16W typical, 0.5W stand by, 0.5W off mode

Regulations

TCO, CE, TÜV-GS, EAC, VCCI-B, RoHS support, ErP, ENERGY STAR®, WEEE, REACH

Energy efficiency class A+

Product dimensions W x H x D 504.5 x 362.5 (492.5) x 210mm

Box dimensions W x H x D 677 x 379 x 190mm

Weight (without box) 4.7kg

EAN code 4948570117574

Manufacturer iiyama

Model ProLite B2282HS-B5

Energy efficiency class A+

Visible screen diagonal 55cm; 21.5"; (22" segment)

POWER MANAGEMENT06

SUSTAINABILITY07

DIMENSIONS / WEIGHT08

EU ENERGY EFFICIENCY LABEL09

28.10.2020 09:07:02

ON mode power consumption 13.5W

Annual energy consumption 20kWh/annum*

Power in Standby 0.5W stand by

Power in OFF Mode 0.24W off mode

Resolution 1920 x 1080

This is information under Regulation (EU) No 1062/ 2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD's comply with ISO-9241­307:2008 in connection with pixel defects.

© IIYAMA CORPORATION. ALL RIGHTS RESERVED
