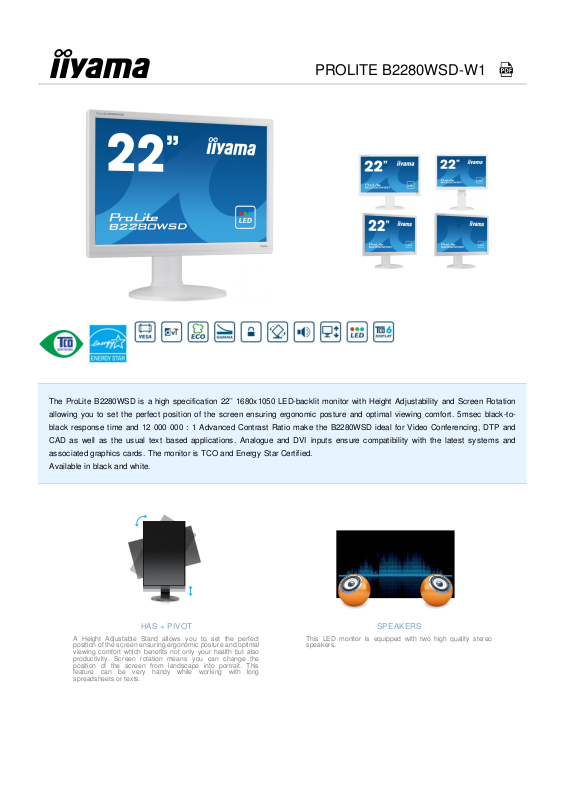

Iiyama B2280WSD-W1 Datasheet

PROLITE B2280WSD-W1

HAS + PIVOT

A Height Adjustable Stand allows you to set the perfect
position of the screen ensuring ergonomic posture and optimal
viewing comfort which benefits not only your health but also
productivity. Screen rotation means you can change the
position of the sc reen from landscape into portrait. This
feature can be very handy while working with long
spreadsheets or texts .

SPEAKERS

This LED monitor is equipped with two high quality stereo
speakers.

The ProLite B2280WSD is a high specification 22’’ 1680x1050 LED-backlit monitor with Height Adjustability and Screen Rotation

allowing you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort. 5msec black-to-

black response time and 12 000 000 : 1 Advanced Contrast Ratio make the B2280WSD ideal for Video Conferencing, DTP and

CAD as well as the usual text based applications. Analogue and DVI inputs ensure compatibility with the latest systems and

associated graphics cards. The monitor is TCO and Energy Star Certified.

Available in black and white.

1. DISPLAY CHARACTERISTICS

DIAGONAL 22"; 56cm

PANEL TN LED-back lit

DISPLAY AREA H X W 296.1 x 473.7 mm; 11.7" x 18.6"

RESPONSE TIME 5 ms

CONTRAST 1000 : 1 typical

CONTRAST 12 000 000 : 1 ACR

BRIGHTNESS 250 cd/m² typical

VIEWING ZONE horizontal/vertical: 178°/ 170°; right/left: 89°/ 89°; up/down: 85°/ 85°

DISPLAY COLOUR 16.7 million

PIXEL PITCH H X V 0.282 x 0.282 mm

NATIVE RESOLUTION 1680 x 1050 ( 1.8 megapixel)

HORIZONTAL SYNC 24 - 80 KHz

VERTICAL SYNC 55 - 75 Hz

SYNCHRONIZATIO N Separate Sync

ASPECT RATIO 16 : 10

2. INTERFACES & CONNECTORS

ANALOG INPUT CO NNECTOR VGA

DIGITAL INPUT CO NNECTOR DVI-D

HDCP yes

3. SPECIAL FEATURES

APPLE - MAC All iiyama monitors are compatible with Apple-Macintosh computers.

CONTROLS

On-Screen-Display in 9 languages (EN, DE, FR, ES, IT, PT, Chinese, RU, JP) and 5 front controls

(Power, Menu, +/ Volume, -/ ECO, Auto)

USER CONTRO LS

luminance (contrast, brightness, ECO, i-Style Colour, Adv. Contrast), image setup (clock, phase, H.

position, V. position, aspect), colour temperature (gamma, colour temperature), OSD setup (H. position,

V. position, timeout, language), others (res et, signal select, information), volume, auto adjust

SPEAKERS 2 x 2 W (Stereo)

ANTI-THEFT -DEVICE Kensington-lock™ prepared

SAFETY CE, TUV-GS, TCO 6, CU

HEIGHT ADJUSTABLE STAND Yes

HEIGHT ADJUSTMENT 130 mm

ROTATIO N (PIVOT FUNCTIO N) 90°

SWIVEL STAND 320°; 160° left; 160° right

TILT ANGLE 22° up; 5° down

VESA MOUNTING 100 x 100 mm
