Table of Contents
Table of Contents..................................................................................................................................... 1
Preface ..................................................................................................................................................... 1
Chapter 1 Installation.............................................................................................................................. 2
Unpacking........................................................................................................................................................ 2
Connecting the LCD Monitor and Base........................................................................................................... 2
Viewing Angle Adjustment.............................................................................................................................. 2
Detaching LCD Monitor from Its Stand........................................................................................................... 3
Interface for Arm Applications ........................................................................................................................ 3
Connecting the Display.................................................................................................................................... 3
Connecting the AC Power................................................................................................................................ 3
Connecting the Audio Cable............................................................................................................................ 3
Setting Up the LCD Monitor ........................................................................................................................... 3
Power Management System............................................................................................................................. 3
Chapter 2 Display Controls..................................................................................................................... 4
User Controls................................................................................................................................................... 4
Adjusting the Monitor's Display ...................................................................................................................... 4
Function Description........................................................................................................................................ 5
Chapter 3 Technical Information........................................................................................................... 7
Specifications................................................................................................................................................... 7
Standard Timing Table .................................................................................................................................... 9
Troubleshooting............................................................................................................................................. 10
Preface
This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has been
carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this
document is subject to change without notice. This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior
written permission of the manufacturer.
FCC Class B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the
instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reposition or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced monitor technician for help.
The device complies with Parts 15 of the FCC Rule. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference; and (2) this device must accept any interference received,
including interference that may cause undesired operations.
Canadian DOC Notice
CE Notice (European Union)
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B repecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the
Member States relating to Electromagnetic Compatibility Directive 89/336/EEC, Amended by 92/31/EEC and
93/68/EEC and Low Voltage Directive 73/23/EEC. For the evaluation regarding the Electromagnetic Compatibility,
the Following standards are applied:
LVD: EN60950_1
EMC: EN55022, EN55024, EN61000-3-2, EN61000-3-3
1
Important Safety Instructions
Please read the following instructions carefully. This manual should be retained for future use.
1. To clean LCD Monitor screen;
-- Power off LCD Monitor and unplug the AC Cord.
-- Spray a non-solvent cleaning solution onto a rag.
-- Gently clean the screen with dampened rag.
2. Do not place the LCD Monitor near a window. Exposing the monitor to rain water, moisture or sunlight can
severely damage it.
3. Do not apply pressure to the LCD screen. Excess pressure may cause permanent damage to the display.
4. Do not remove the cover or attempt to service this unit by yourself. Servicing of any nature should be
performed by an authorized technician.
5. Store LCD Monitor in a room with a room temperature of -20° ~ 60°C (or -4° ~ 140°F). Storing the LCD
Monitor outside this range could result in permanent damage.
6. If any of the following occurs, immediately unplug your monitor and call an authorized technician.
* Monitor to PC signal cable is frayed or damaged.
* Liquid spilled into LCD Monitor or the monitor has been exposed to rain.
* LCD display or the case is damaged.
7. Only use the supplied main power cable to connect the monitor. For a nominal current up to 6A and a device
weight above 3 kg, a line not lighter than H05VV-F, 3G, 0.75 mm
2
must be used.
Lamp Disposal
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF
ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE
ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG
INFORMATION CHECK WWW.LAMPRECYCLE.ORG
. FOR LAMP SPECIFIC DISPOSAL
.
Chapter 1 Installation
Unpacking
Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a
stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for
sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the
Monitor does not become too hot.
After you unpack the LCD Monitor, make sure that the following items were included in the box:
* LCD Monitor * User's Manual * Base
* Monitor-to-PC VGA Cable * Stereo Jack Audio Cable
* Monitor-to-PC DVI-D Cable (optional) * Power Cord
If you find that any of these items is missing or appears damaged, contact your dealer immediately.
Connecting the LCD Monitor and Base
When you open the box to take the base and put on
the desk first. Then connect the LCD Monitor and
base please.(See fig.1-1 )
You will hear a firm click once the monitor is correctly
attached to the base.
-5°
Figure 1-1
+20°
Figure 1-2
Viewing Angle Adjustment
The LCD Monitor is designed to allow users to have a
comfortable viewing angle. The viewing angle can be
adjusted from -5°to +20°.(See fig. 1-2)
Warning
Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attempting this will result in
damaging the Monitor and Monitor stand.
2
A
A
Detaching LCD Monitor from Its Stand
Unscrew screws n the swivel base support column and pull downo
the hinge to release.
Interface for Arm Applications
Before installing to mounting device, please refer to Fig.1-3.
The rear of this LCD display has four integrated 4 mm, 0.7 pitches
threaded nuts, as well as four 5 mm access holes in the plastic covering as
illustrated in Figure 1-4. These specifications meet the VESA Flat Panel
Monitor Physical Mounting Interface Standard (paragraphs 2.1 and
2.1.3, version 1, dated 13 November 1997).
Note :Please using M 4mm x 10mm (L) screw for this
application.
Connecting the Display
1. Power off your computer.
2. Connect one end of either the VGA or DVI cable from the PC to
the LCD Monitor’s matching VGA or DVI port (see fig 1-5)
3. Make sure connections are secure.
Connecting the AC Power
1. Connect the power cord to the LCD Monitor.(See Fig. 1-6)
2. Connect the power cord to an AC power source.
DVI-D
2
DVI-D
4mm ,0.7pitch
threaded holes x4
DVI-D
DVI Port
DVI-D
1
100mm x 100mm
Screw Mounting Options
100mm
100mm
VGA Port
Figure 1-3
Figure 1-4
Figure 1-5
C Power Jack
Power Cord
Figure 1-6
Connecting the Audio Cable
Connect the audio cable to the "LINE OUT" jack on your PC's
1.
audio card or to the front panel's “AUDIO OUT” jack of your CD
ROM drive. (See Fig. 1-7)
DVI-D
2. Connect the other end of the audio cable to the LCD Monitor's
"LINE IN" jack.
udio Jack
Figure 1-7
Setting Up the LCD Monitor
1. Make sure the AC power cord is connected to the LCD Monitor.
2. Turn on the LCD Monitor's power switch, located on the bezel of the monitor.
Power Management System
This LCD Monitor complies with the VESA DPMS (version 1.0) Power Management guidelines. The VESA DPMS provides
four power saving modes through detecting a horizontal or vertical sync. signal.
When the LCD Monitor is in power saving mode, the monitor screen will be blank and the power LED indicator will light
yellow.
3
Chapter 2 Display Controls
User Controls
A brief description and the location of all LCD Monitor functions controls and indicators:
13245
Figure 2-1
1
Power LED will be blue when monitor is on, be yellow when in power saving mode, be dark when monitor
in off mode. Power ON/OFF switch for push to ON and push to OFF (Toggle switch)
Menu / Function select (clockwise)
2
Auto Sync / Function select (counter-clockwise)
3
Audio Volume Function / Adjustment increase
4
Audio Mute ON-OFF Selection / Adjustment decrease
5
Adjusting the Monitor's Display
The monitor has four function control buttons to select among functions shown on OSD menu, designed for easy user-viewing
environments.
OSD Function Menu
To access OSD Main menu, simply press one of the Function
Select control buttons, and the menu diagram will pop up on the
screen as shown on Fig. 2-2:
Continue pressing the Function Select buttons to scroll through
the entire menu then press Adjustment Control buttons to adjust
content of selected item.
Figure 2-2
Attention
Firmware revision may have been updated into a latest version while the version number shown on all OSD menus in this
manual will stay as Ver. 1.00.
4
Function Description
Icon Function Function Description
Brightness
Contrast Scales of contrast are available to choose from (0 to 100).
H. Position
V. Position
Sharpness
OSD Transparency
Phase
Clock
Color Temperature
OSD H. Position
OSD V. Position
Graph / Text
Recall
Language
Auto and Input Select
Exit
Icon Function Description
9300
7500
6500
User
CIE coordinated Color Temperature of 9300°K
CIE coordinated Color Temperature of 7500°K
CIE coordinated Color Temperature of 6500°K
Three colors (Red, Green, Blue) can be
adjusted from the OSD menu
Scales of brightness are available to choose from (0 to 100).
This function let's you adjust the display's horizontal position
This function let's you adjust the display's vertical position.
This function let's you select the images sharpness. Five selections are available. A
smoother setting is more suitable for pictures, while a sharper setting is more
suitable for text.
This function let's you set the transparency of the OSD menu. The transparency is
adjustable from 0 to 3. 4 scales are available.
Adjusts the focus and clarity of the display.
This function carries a frequency-tracking feature that offers users better stability
and clarity. The adjustable range can be variable in different modes. This function
records the deviated number of clock period between input timing and supported
timing. The clock value may not be”0” after Auto Sync when the input timing is
different from supported timing.
Push the (+/-) button to select a different color temperature. Please see the diagram
below for function and description.
This function moves the OSD menu window horizontally.
This function moves the OSD menu window vertically.
Because the H and V-Frequencies of both 640 x 400 70Hz, and 720 x 400 70Hz,
are the same, this function let's you manually select either 640 x 400 (graphics
mode), or 720 x 400 (text mode).
The recall function will return all adjusted parameters to factory preset values.
Nine OSD language options are available:
English, German, French, Spanish, Italian, Japan, Russian, Simplified Chinese and
Traditional Chinese.
Press the left or right adjustment control button to select other language.
Press ◄ button (+/-) to activate the selected function, Auto Adjustment, Use
Analog Input or Use Digital Input.
The Auto Adjustment function let you adjust the display size, clock and phase to
obtain the best viewing settings. This process will take 3 ~ 5 seconds to complete.
Attention: After Auto Adjustment, the display might display wrong position or
size, if it has received a pattern which has no screen border. You may select either
Analog or Digital Input video when VGA input or/and DVI Input is/are available.
Saves the values of this setting and exits the OSD menu function.
Sets the CIE coordinate color temperature to 9300°K
Sets the CIE coordinate color temperature to 7500°K
Sets the CIE coordinate color temperature to 6500°K
Sets the settings to a by user defined CIE Temperature.
5
Notice:
“OSD Lock Out” Function:
When monitor is in normal display, you can enable the “OSD Lock Out” function.
* How to enter “OSD Lock Out” function =>
Step 1:
The monitor is displaying after power on.
Step 2:
To press the buttons “VAL –“ and “FUN >” at the same time for 3 seconds or more.
Step 3:
Monitor will show an “OSD Lock Out” message for 5~10 seconds and the message will disappear automatically.
While the monitor is in the state of “OSD Lock Out”, if press OSD button, “OSD Lock Out” message will appear
for 5~10 seconds.
*
How to exit “OSD Lock Out” function =>
Step 1:
When the monitor is in the state of “OSD Lock Out” .
Step 2:
To press the buttons “VAL –“ and “FUN >” at the same time for 3 seconds or more.
Step 3:
Display will show main OSD menu. (Now the monitor already has escaped from “OSD Lock Out” function.)
6
f
Chapter 3 Technical Information
Specifications
LCD Panel
Size 19" (48cm)
Display Type Active matrix color TFT LCD
Resolution 1280 x 1024
0.294“ x 0.294“
Display Area (mm) 14.82” x 11.85”(H x V)
Display Colors
Video
Input Signal
Input Impedance
Polarity
Amplitude
Multi-mode Supported
Control
Power switch (hard and soft types) On/Off switch with LED indicator
AUDIO
INPUT
OUTPUT
OSD
Brightness
Contrast
Horizontal Position
Vertical Position
Phase
Clock
OSD Format
Power Management
Soft switch off 2 W maximum 240 VAC Dark
Disconnected 2 W maximum 240 VAC
* Meeting VESA DPMS requirements measured from AC Input end of AC power cord.
Sync Input
Signal
Polarity Positive and negative
0.294“ x 0.294“
16.2M with FRC or Dithering
Analog RGB 0.7Vp-p.
75 Ohm ± 2%
Positive, Negative
0 - 0.7 ± 0.05 Vp
Horizontal Frequency: 24 ~ 80 kHz
Vertical Frequency: 56 ~ 75 Hz
500m Vrms
0.5W + 0.5W
Digital
Digital
Digital
Digital
Digital
Digital
26 characters x 15 rows
Mode Power Consumption* AC Input LED Color
On 55 W maximum 240 VAC Blue
Off 2 W maximum 240 VAC Yellow
Yellow: Standby, Suspend, Off
Dark: DC Power of
Analog Digital
Separate TTL compatible horizontal and
vertical synchronization
Digital TMDS
TMDS
24~80KHz
56~75 Hz
TMDS
--
Plug & Play
Supports VESA DDC2B functions
External Connection
Power Input (AC input)
Video Cable
Audio Cable
AC socket
15-pin D-sub connector/Monitor-to-PC DVI-D Cable (optional)
Stereo Jack
Environment
Operating Condition:
Temperature 5°C to 40°C/41°F to 104°F
7
6
Storage Condition:
Power Supply (AC Input)
Input Voltage
Input Current
Size and Weight
Dimensions
Net Weight
Gross Weight

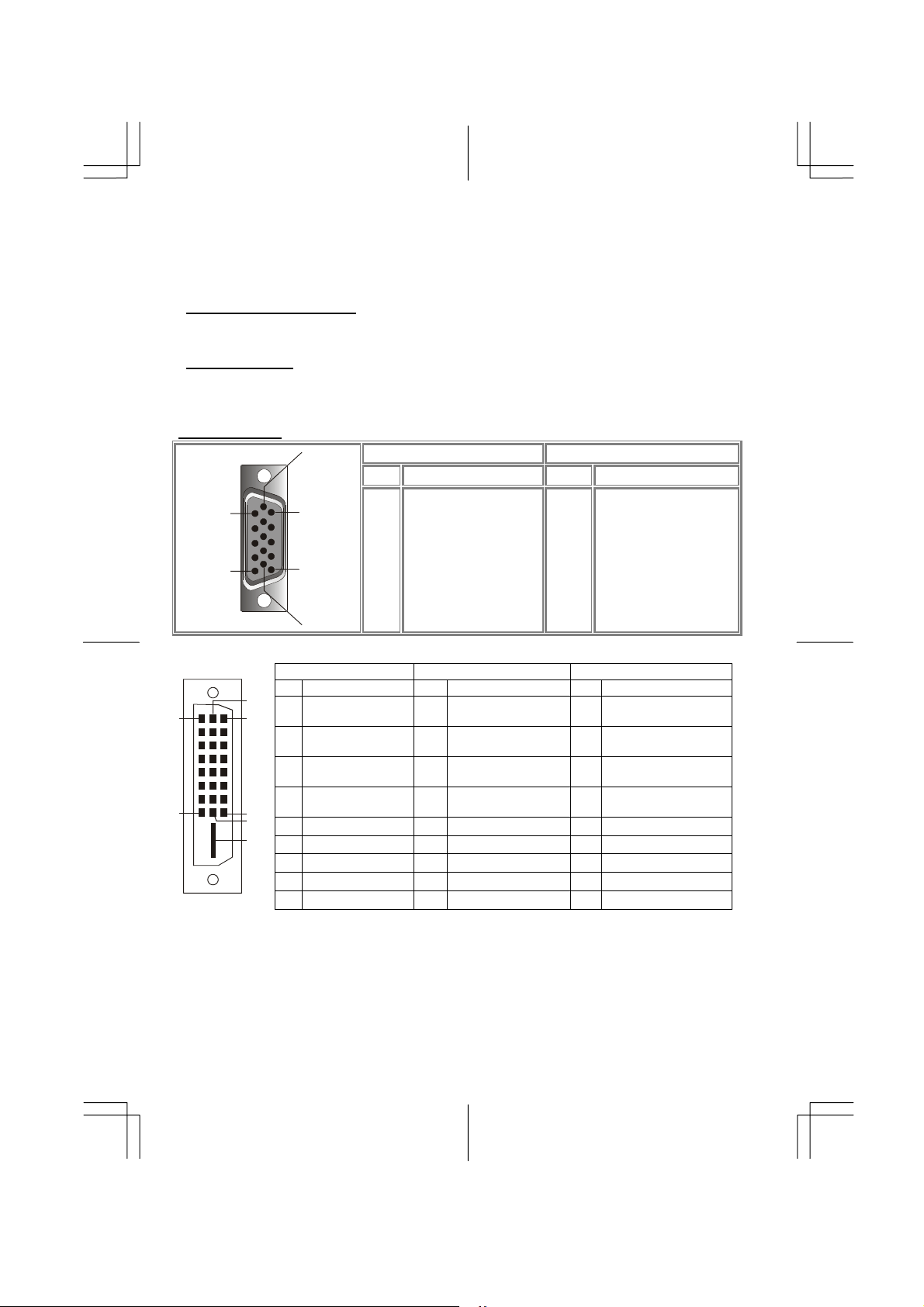

Pin Assignment
6
1
5
11
15
10
For Digital DVI-D connector
Signal Signal Signal
PIN Description PIN Description PIN Description
9
1 RX2- 10 RX1+ 19
1
8
17
2 RX2+ 11
Shield for TMDS
3
4 NC 13 NC 22
24
16
5 NC 14 +5V 23 RXC+
C5/C
6 SCL 15 Hot Plug Detect 24 RXC-
Channel 2
7 SDA 16 HPD C5 NC
8 NC 17 RX0- C6 NC
9 RX1- 18 RX0+
Relative Humidity 20% to 80%
Temperature -20°C to 60° C/-4°F to140° F
Relative Humidity 5% to 85%
Single phase, 100 ~ 240VAC, 50 / 60 Hz
1.2 A maximum
16.6” (W) x 16.8”(H) x 8.7” (D) mm
20.9 lbs.
24.2 lbs.
Signal Signal
PIN Description PIN Description
1
2
3
4
5
6
7
8
Red
Green
Blue
Digital GND
Digital GND
Red Rtn
Green Rtn
Blue Rtn
9
10
11
12
13
14
15
+5V
Hot Plug Detect
NC
SDA
H. Sync.
V. Sync.
SCL
Shield for TMDS
Channel 0
Shield for TMDS
Channel 1
20 NC
12 NC 21 NC
Shield for TMDS
Channel clock
8
Standard Timing Table
If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing.
TIMING FH(kHZ) SYNC TOTAL ACTIVE SYNC FRONT BACK PIXEL
FV(HZ) WIDTH PORCH PORCH
640x350 31.469 + 800 640 96 16 48 25.175
VGA-350 70.087 – 449 350 2 37 60
640x400 24.83 – 848 640 64 64 80 21.05
NEC PC9801 56.42 – 440 400 8 7 25
640x400 31.469 – 800 640 96 16 48 25.175
VGA-GRAPH 70.087 + 449 400 2 12 35
640x400 31.5 – 800 640 64 16 80 25.197
NEC PC9821 70.15 – 449 400 2 13 34
640X480 31.469 - 800 640 96 16 48 25.175
VESA-PAL 50.030 - 629 480 2 62 85
640x480 31.469 – 800 640 96 16 48 25.175
VGA-480 59.94 – 525 480 2 10 33
640x480 35.00 – 864 640 64 64 96 30.24
APPLE MAC-480 66.67 – 525 480 3 3 39
640x480 37.861 – 832 640 40 16 120 31.5
VESA-480-72Hz 72.809 – 520 480 3 1 20
640x480 37.5 – 840 640 64 16 120 31.5
VESA-480-75Hz 75 – 500 480 3 1 16
720x400 31.469 – 900 720 108 18 54 28.322
VGA-400-TEXT 70.087 + 449 400 2 12 35
832x624 APPLE 49.725 – 1152 832 64 32 224 57.2832
MAC-800 74.55 – 667 624 3 1 39
800x600 35.156 + 1024 800 72 24 128 36
SVGA 56.25 + 625 600 2 1 22
800x600 37.879 + 1056 800 128 40 88 40
VESA-600-60Hz 60.317 + 628 600 4 1 23
800x600 48.077 + 1040 800 120 56 64 50
VESA-600-72Hz 72.188 + 666 600 6 37 23
800x600 46.875 + 1056 800 80 16 160 49.5
VESA-600-75Hz 75 + 625 600 3 1 21
1024x768 48.363 – 1344 1024 136 24 160 65
XGA 60.004 – 806 768 6 3 29
1024x768 53.964 + 1328 1024 176 16 112 71.664
COMPAQ-XGA 66.132 + 816 768 4 8 36
1024x768 56.476 – 1328 1024 136 24 144 75
VESA-768-70Hz 70.069 – 806 768 6 3 29
1024x768 60.023 + 1312 1024 96 16 176 78.75
VESA-768-75Hz 75.029 + 800 768 3 1 28
1024x768 60.24 – 1328 1024 96 32 176 80
APPLE MAC-768 75.02 – 803 768 3 3 29
1152x864 54.054 + 1480 1152 96 40 192 80
(60Hz) 59.270 + 912 864 3 13 32
1152x864 63.851 + 1480 1152 96 32 200 94.499
(70Hz) 70.012 + 912 864 3 1 44
1152x864 67.50 + 1600 1152 128 64 256 108.00
(75Hz) 75.00 + 900 864 2 2 32
1280x960 60.00 + 1800 1280 112 96 312 108.00
(60Hz) 60.00 + 1000 960 3 1 36
1280x960 70.00 + 1800 1280 112 96 312 126.00
(70Hz) 70.00 + 1000 960 3 1 36
1280x960 75.00 + 1800 1280 112 96 312 135.00
(75Hz) 75.00 + 1000 960 3 1 36
1024-60Hz
1024-75Hz
Note: Mode 640x350, 640x400 and 720x400 will locate on middle position but cannot be expanded to full screen
on vertical direction.
POLARITY (DOT/
64 + 1688 1280 112 48 248 108 1280x1024VESA60 + 1066 1024 3 1 38
80 + 1688 1280 144 16 248 135 1280x1024VESA75 + 1066 1024 3 1 38
LINE)
(DOT/
LINE) (DOT/LINE) (DOT/LINE) (DOT/LINE)
FOREQ
(MHZ)
9
Troubleshooting
This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various
VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new
VGA card is selected.
Attention
This LCD Monitor Supports Multiple VGA Modes.
Refer to the Standard Timing Table for a listing of modes supported by this LCD Monitor.
PROBLEM Picture is unclear and unstable
The picture is unclear and unstable, please perform the following steps:
1. Enter PC to “Shut Down Windows” status while you’re in MS-Windows environment.
2. Check the screen to see if there’s any black vertical stripes appear. If there are, take advantage of the “Clock”
function in OSD menu and adjust (by increment or decrement numbers) until those bars disappear.
3. Move to “Phase” function in OSD menu again and adjust the monitor screen to its most clear display.
4. Click “No” on “Shut Down Windows” and back to the normal PC operating environment.
PROBLEM There is no picture on LCD Monitor
If there’s no picture on the LCD Monitor, please perform the following steps:
1. Make sure the power indicator on the LCD Monitor is ON, all connections are secured, and the system is running on
the correct timing. Refer to Chapter 3 for information on timing.
2. Turn off the LCD Monitor and then turn it back on again. If there is still no picture, press the Adjustment Control
button several times.
3. If step 2 doesn’t work, connect your PC system to another external CRT. If your PC system Functions properly with a
CRT Monitor but it does not function with the LCD Monitor, the output timing of the VGA card may be out of the
LCD’s synchronous range. Please change to an alternative mode listed in the Standard Timing Table or replace the
VGA card, and then repeat steps 1 and 2.
PROBLEM There is no picture on LCD Monitor
If you have chosen an output timing that is outside of the LCD Monitor’s synchronous range (Horizontal: 24 ~ 80 kHz
and Vertical: 56 ~ 75 Hz), the OSD will display a “Out of Range” message. Choose a mode that is supported by your
LCD Monitor.
Also, if the signal cable is not connected to LCD monitor at all or properly, the monitor screen will display a message
“No Input Signal”.
10
Loading...
