Page 1
IHSE GmbH
Maybachstrasse 11
88094 Oberteuringen
Germany
[email protected]
www.ihse.de
Tel. +49 7546-9248-0
Fax +49 7546-9248-48
User Manual
Edition: 2013-03-12
Draco
KVM Extender
Model:
474 Series
Page 2
Draco KVM Extender
2 2013-03-12
Copyright
© 2013. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.
Information in this document is subject to change without notice.
Trademarks
All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.
Disclaimer
While every precaution has been taken during preparation of this manual,
the manufacturer assumes no liability for errors or omissions. Neither does
the manufacturer assume any liability for damages resulting from the use
of the information contained herein.
The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.
The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.
Page 3
Contents
2013-03-12 3
Contents
1 About This Manual ....................................................................... 7
1.1 Scope.................................................................................. 7
1.2 Validity ................................................................................ 7
1.3 Cautions and Notes ............................................................ 7
2 Safety Instructions....................................................................... 8
3 Description ................................................................................... 9
3.1 Application .......................................................................... 9
3.2 System Overview .............................................................. 10
3.3 Product Range .................................................................. 11
3.3.1 Part Numbers ...................................................... 11
3.3.2 Chassis ............................................................... 11
3.3.3 KVM-Extender Modules ...................................... 12
3.3.4 Upgrade Modules................................................ 12
3.3.5 Complete Units ................................................... 13
3.4 Accessories Upgrade Kits ................................................. 16
3.5 Accessories....................................................................... 17
3.6 Device Views .................................................................... 18

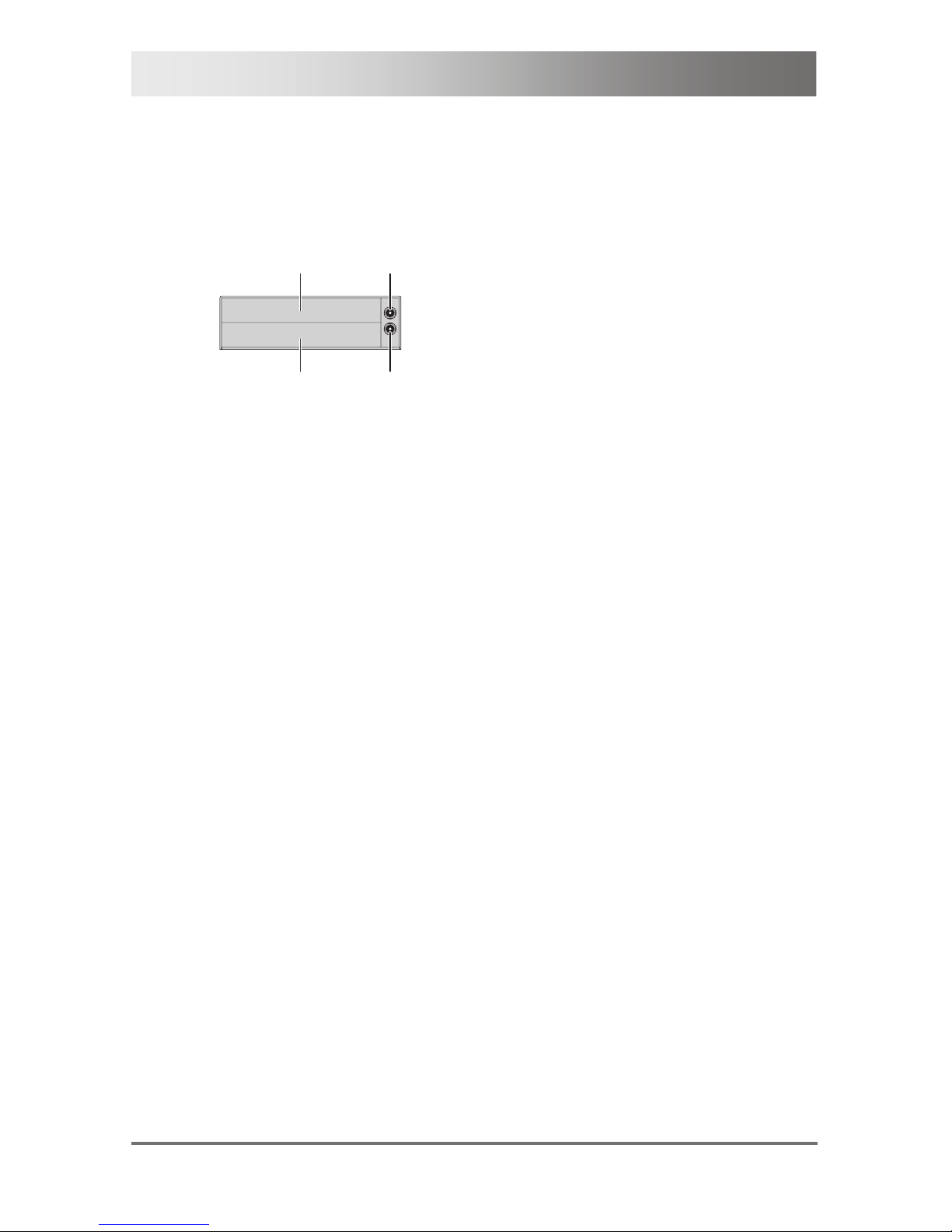

3.6.1 2-fold Vario Chassis 474-BODY2/2R .................. 18
3.6.2 2-fold Vario Chassis 474-BODY2N ..................... 19

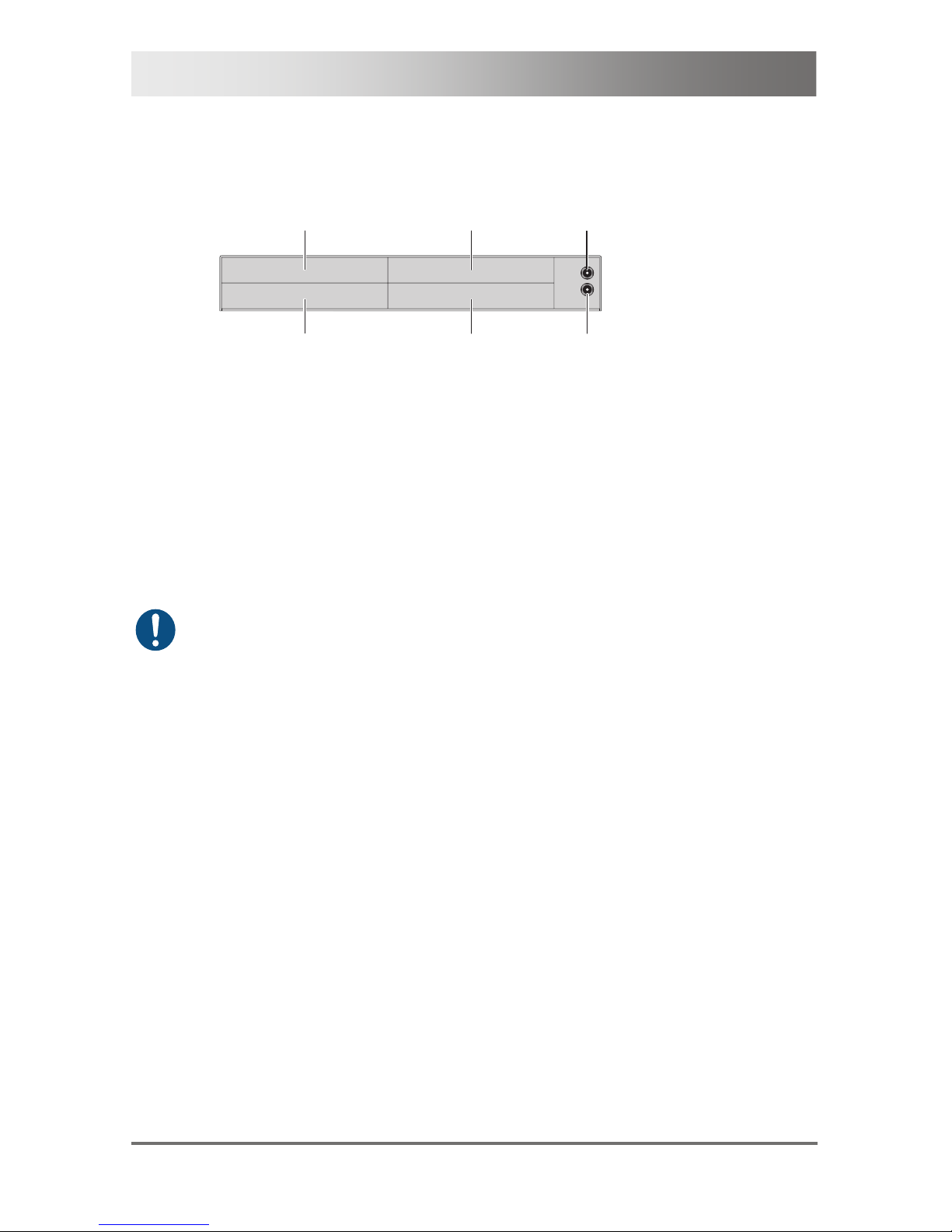

3.6.3 4-fold Vario Chassis 474-BODY4/4R .................. 20
3.6.4 6-fold Vario Chassis 474-BODY6R ..................... 21

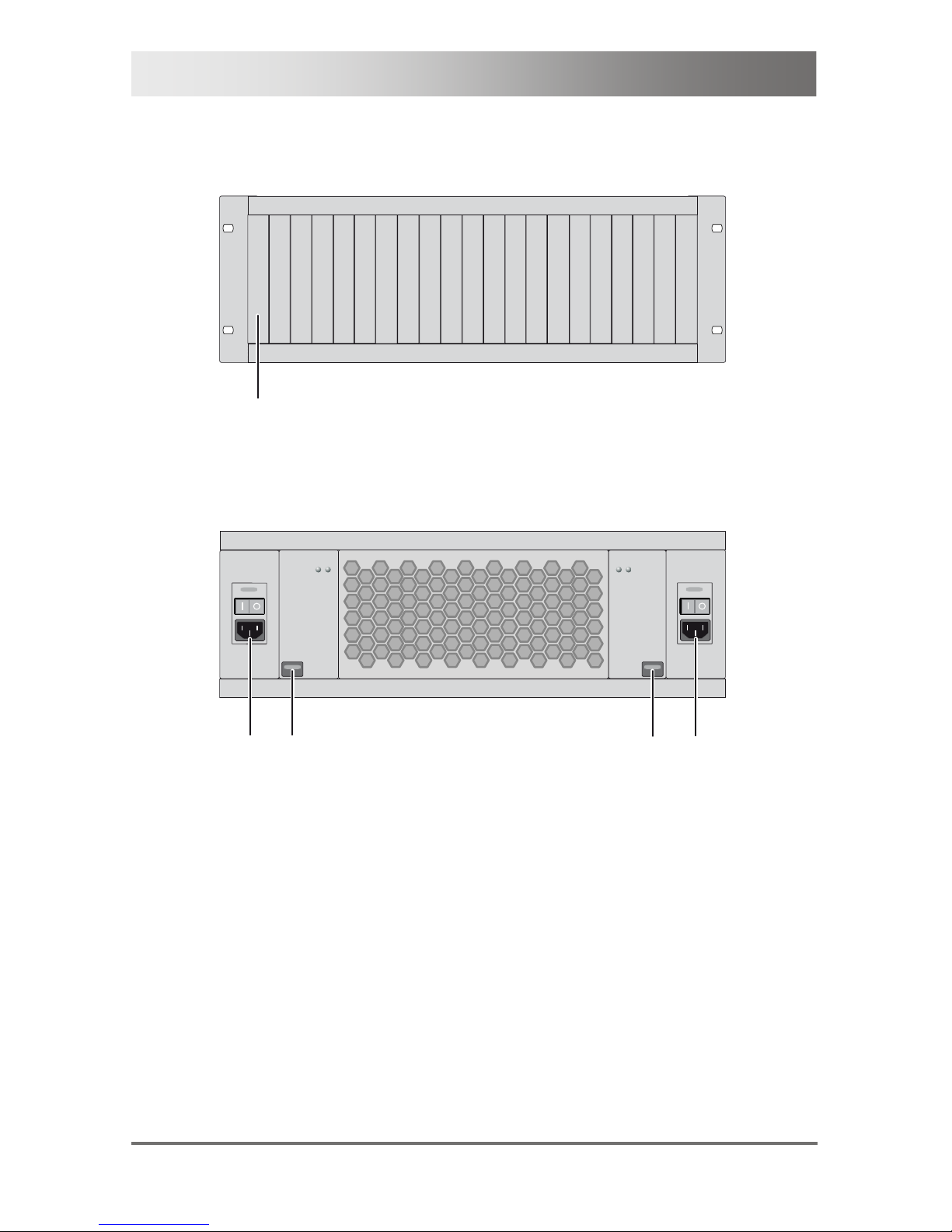

3.6.5 21-fold Vario Chassis 474-BODY21R ................. 22
3.6.6 Model L- / R474-BSHC ....................................... 23
3.6.7 Model L- / R474-BSHS / -BSHX.......................... 23
3.6.8 Model L- / R474-BSHC-RED............................... 24
3.6.9 Model L- / R474-BSHS-RED............................... 24
3.6.10 Model L- / R474-BSHCV..................................... 25
3.6.11 Model L- / R474-BSHSV / -BSHXV..................... 25
3.6.12 Model L- / R474-BXH.......................................... 26
3.6.13 Model L- / R474-BXE .......................................... 26
Page 4
Draco KVM Extender
4 2013-03-12
3.6.14 Model L- / R474-BUE.......................................... 26
3.6.15 Model L- / R474-BAX .......................................... 27
3.6.16 Model L- / R474-BAP .......................................... 27
3.6.17 Model L- / R474-BXP .......................................... 28
3.6.18 Model L- / R474-BDX.......................................... 28
3.6.19 Model L- / R474-BAH.......................................... 29
3.6.20 Model L- / R474-BDH.......................................... 29
3.6.21 Model L- / R474-BAE .......................................... 30
3.6.22 Model L- / R474-BDE.......................................... 30
3.6.23 Model L- / R474-BSX .......................................... 30
3.6.24 Model L- / R474-BDD.......................................... 31
3.6.25 Modell L- / R474-BDA ......................................... 31
3.6.26 Modell L- / R474-BXTC....................................... 32
3.6.27 Modell L- / R474-BXTS ....................................... 32

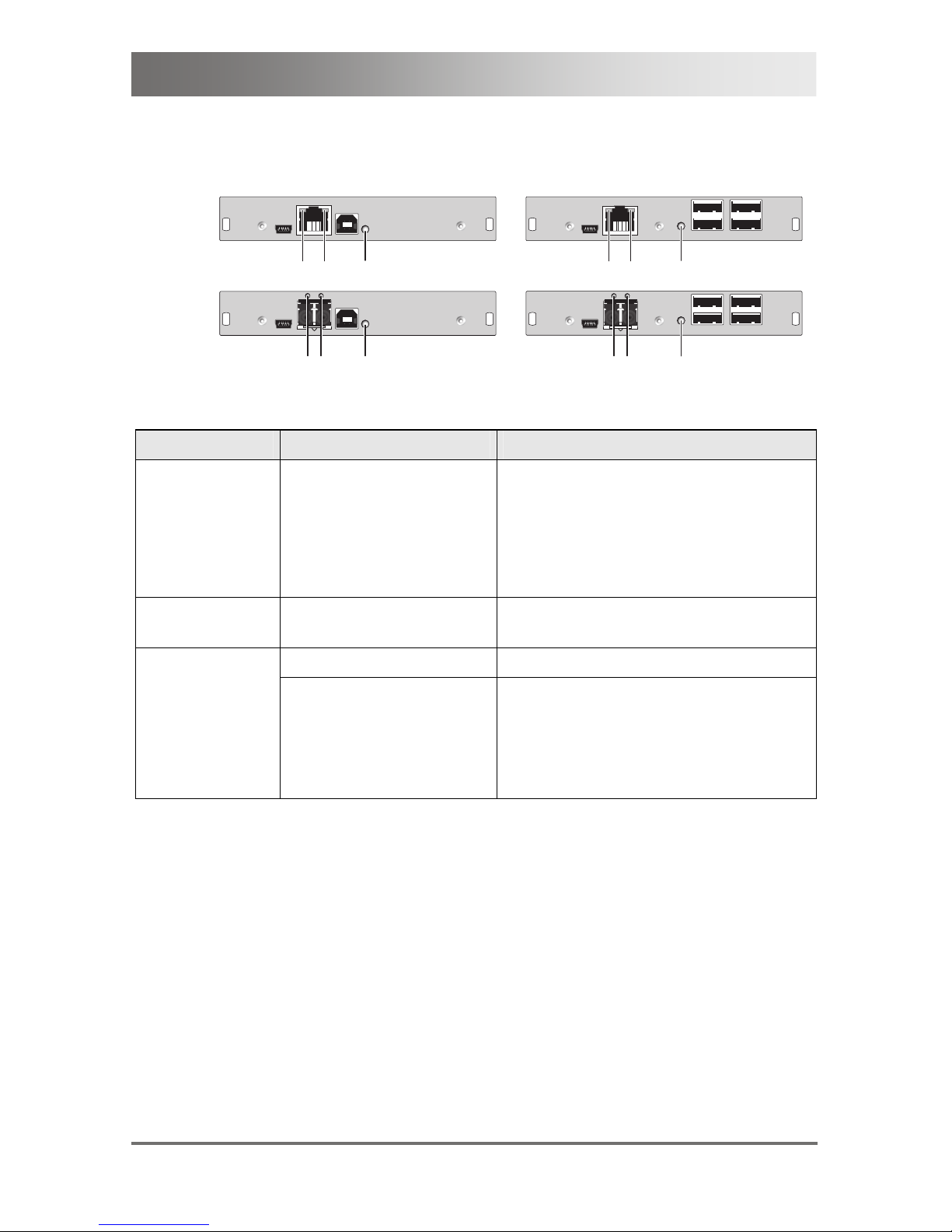

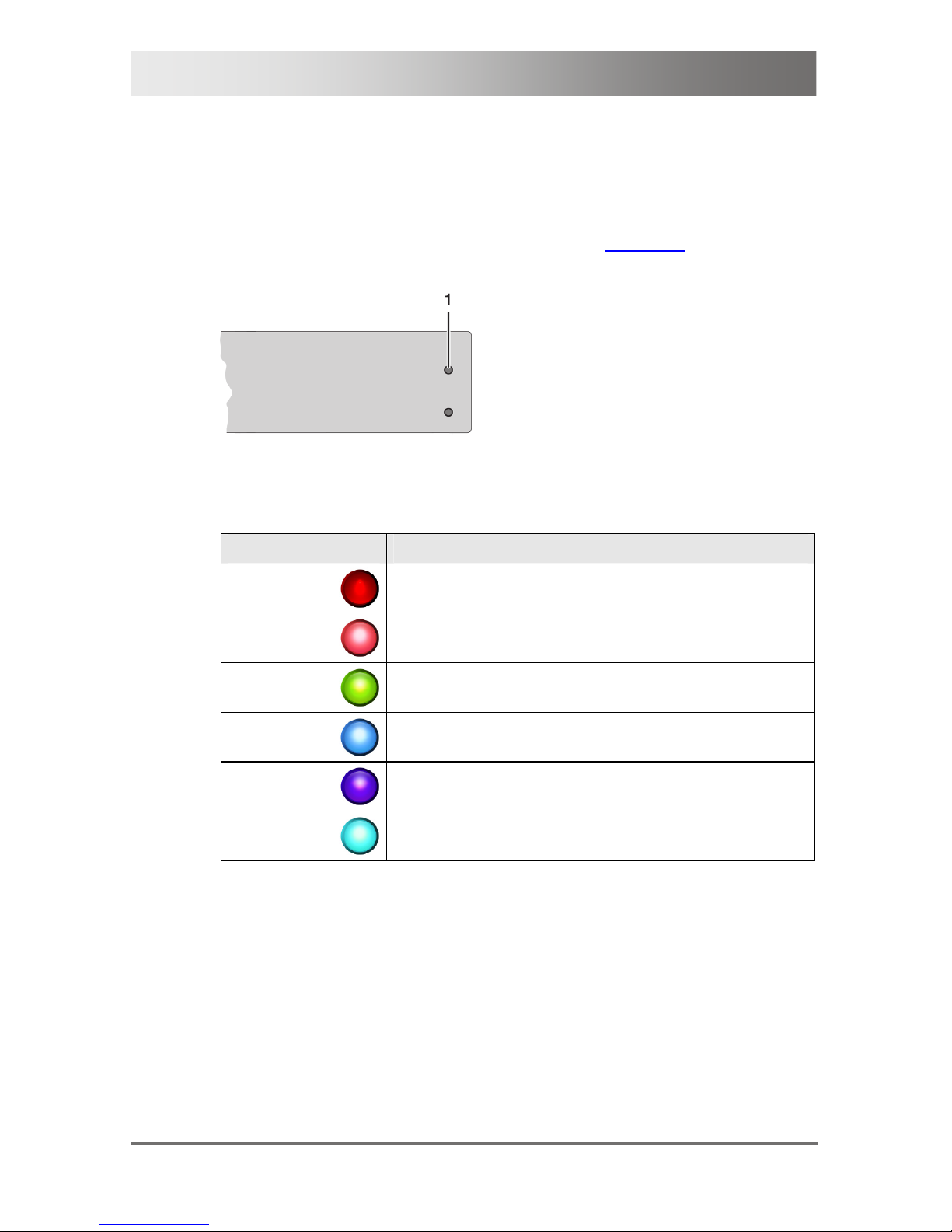

3.7 Status LEDs ...................................................................... 33
3.7.1 Status KVM-Extender Module............................. 33
3.7.2 Status KVM-Extender Module VGA / DVI-I ......... 34

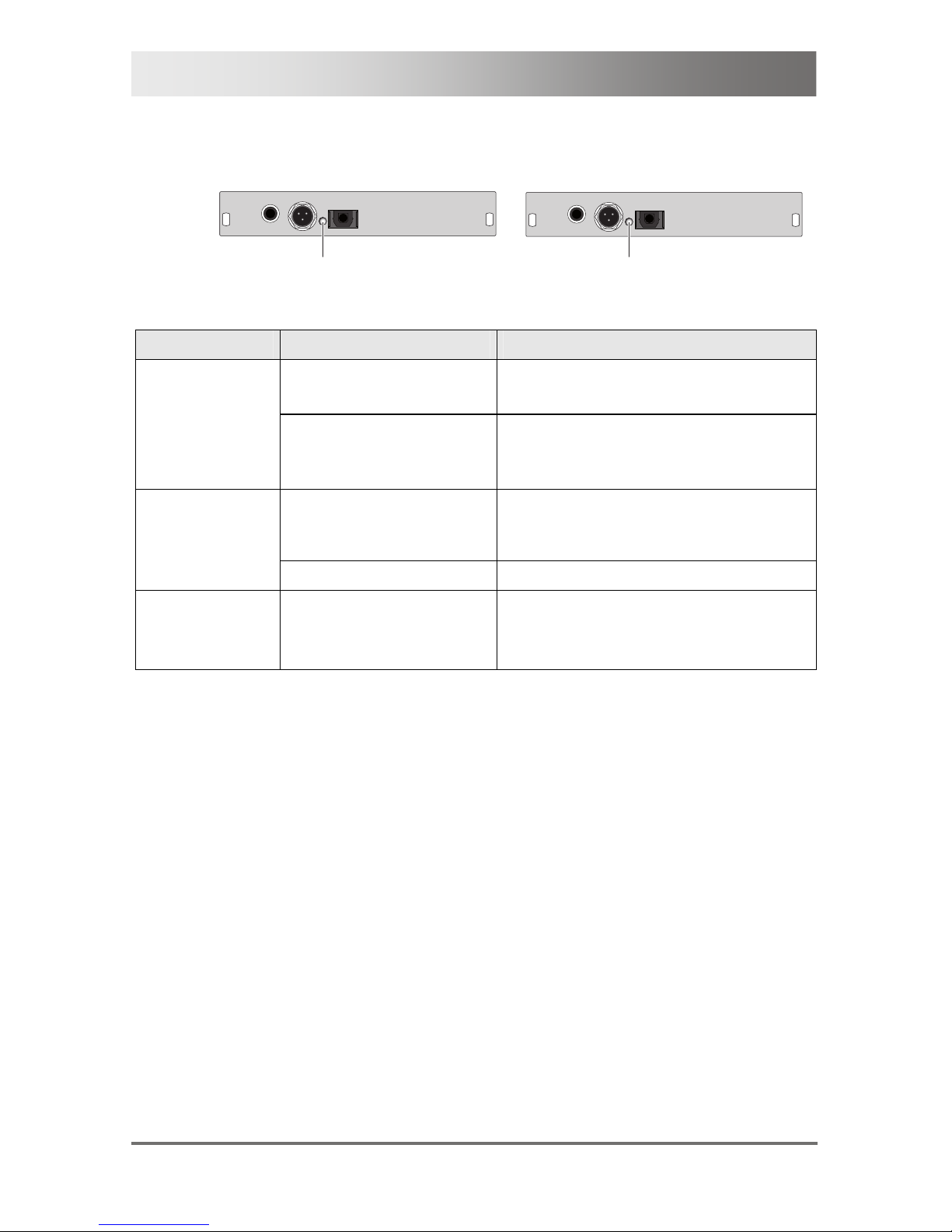

3.7.3 Status Upgrade Module Digital Audio ................. 35
3.7.4 Status Upgrade Module USB-HID....................... 36
3.7.5 Status Upgrade module USB 2.0 embedded ...... 37
3.7.6 Status Upgrade Module USB 2.0 ........................ 38
4 Installation .................................................................................. 39
4.1 Package Contents............................................................. 39
4.2 System Setup.................................................................... 41
4.2.1 KVM-Extender Setup .......................................... 41
4.2.2 Setup of Upgrade Modules ................................. 42

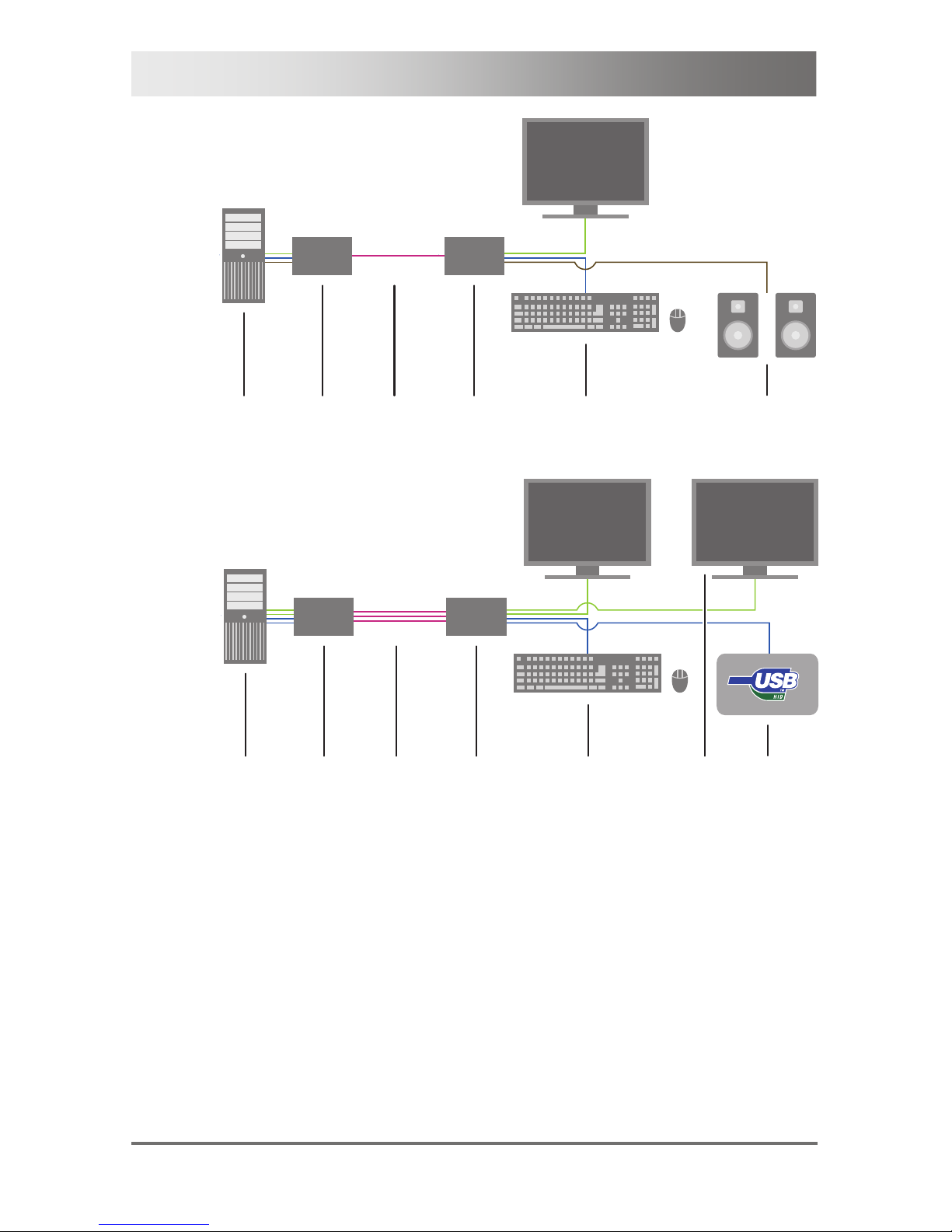

4.3 Example Applications........................................................ 43
5 Configuration.............................................................................. 45
5.1 Transmission Parameters ................................................. 45
5.2 DDC Settings .................................................................... 45
5.3 Command Mode ............................................................... 46
5.4 USB-HID Ghosting............................................................ 48
Page 5
Contents
2013-03-12 5
5.5 Configuration File.............................................................. 49
6 Operation .................................................................................... 50
6.1 Download of DDC Information .......................................... 50
7 Specifications............................................................................. 51
7.1 Interfaces .......................................................................... 51
7.1.1 DVI-D Single Link................................................ 51
7.1.2 DVI-I Single Link ................................................. 51
7.1.3 USB-HID ............................................................. 51
7.1.4 PS/2 .................................................................... 52
7.1.5 USB 2.0 (transparent) ......................................... 52
7.1.6 RJ45 (Interconnect) ............................................ 52
7.1.7 Fiber SFP Type LC (Interconnect) ...................... 53
7.1.8 Serial Interface.................................................... 53
7.1.9 Analog Audio Interface........................................ 54
7.1.10 Serial Interface RS422........................................ 55
7.1.11 Digital Audio Interface......................................... 56
7.2 Interconnect Cable............................................................ 57
7.2.1 Cat X ................................................................... 57
7.2.2 Fiber.................................................................... 59
7.3 Supported Peripherals ...................................................... 60
7.3.1 USB-HID Devices ............................................... 60
7.3.2 USB 2.0 Devices ................................................. 60

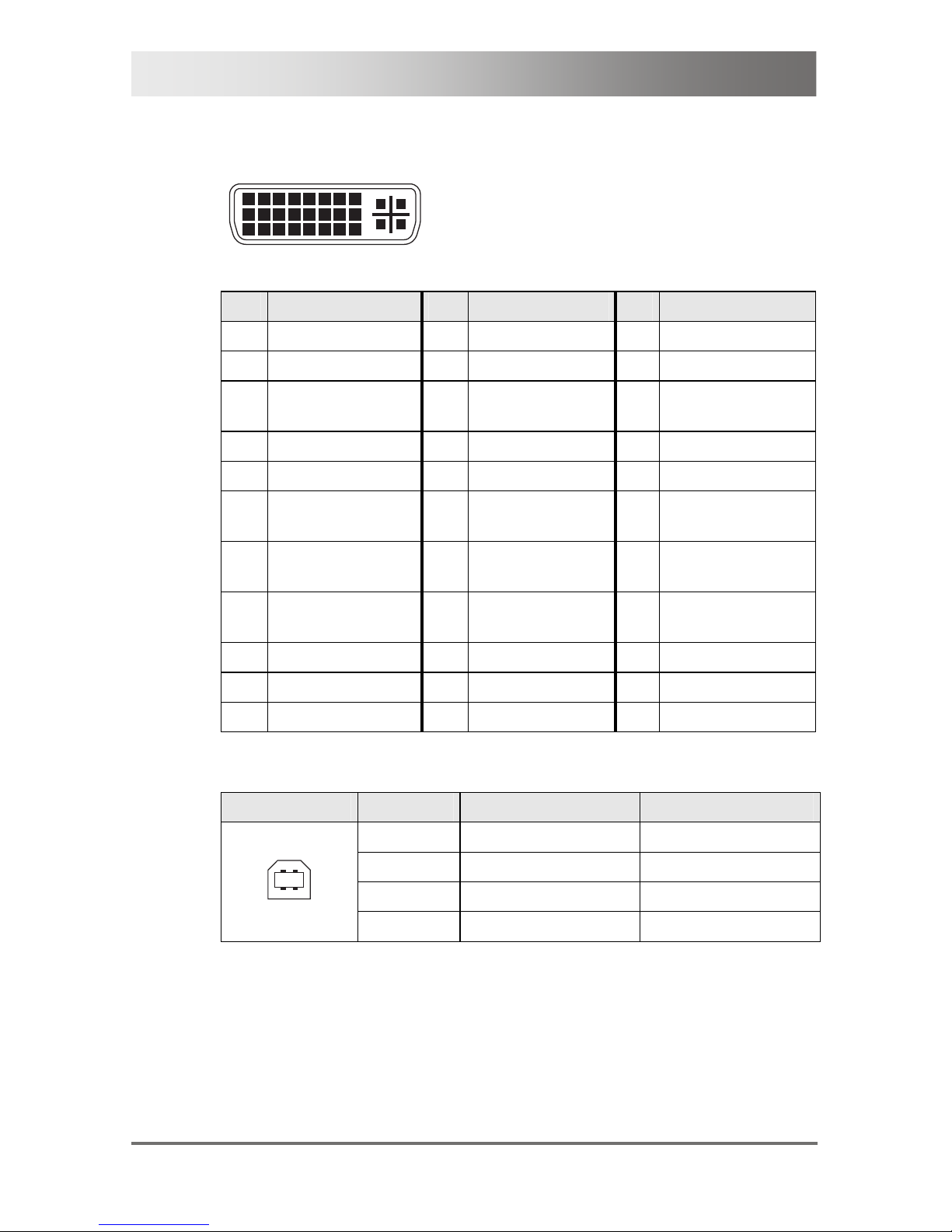

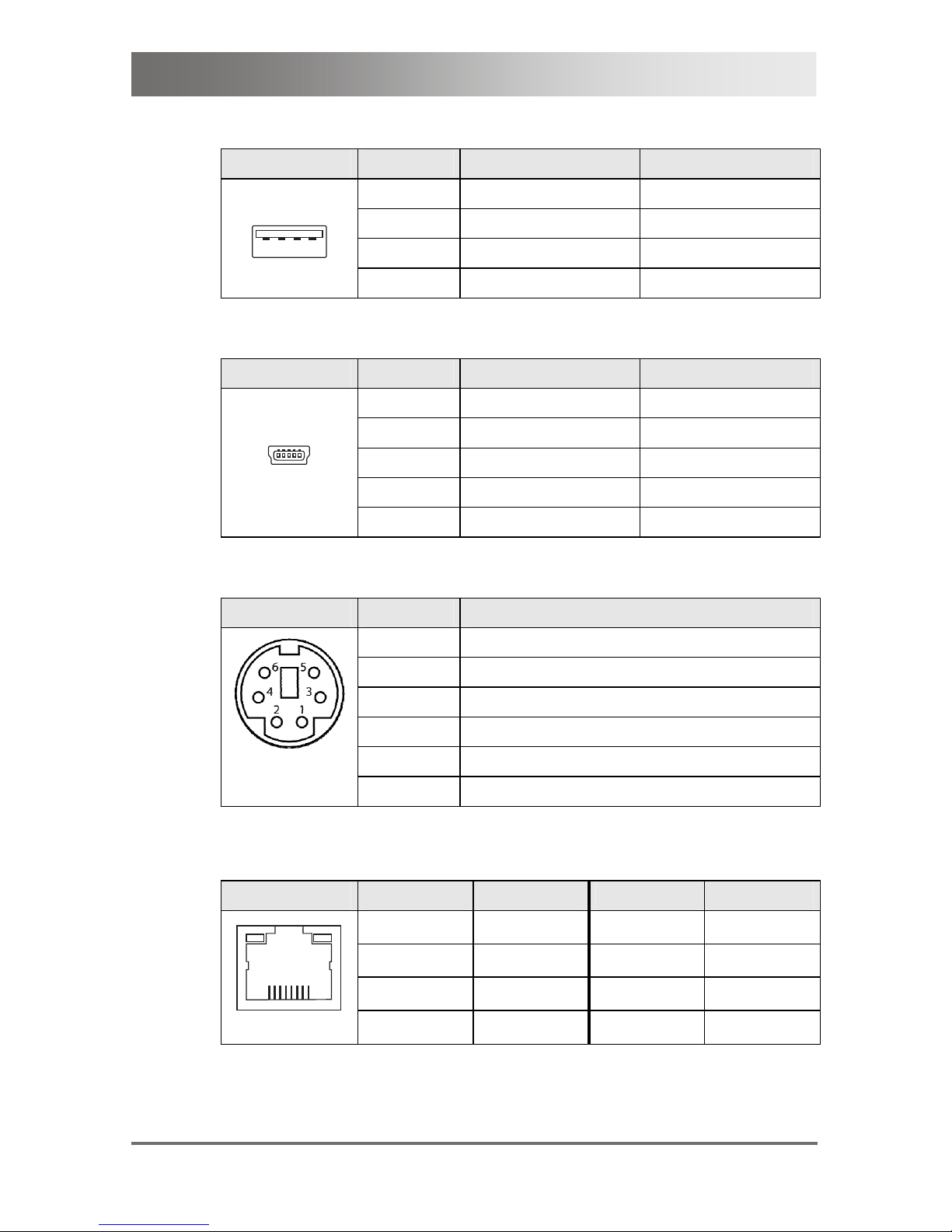

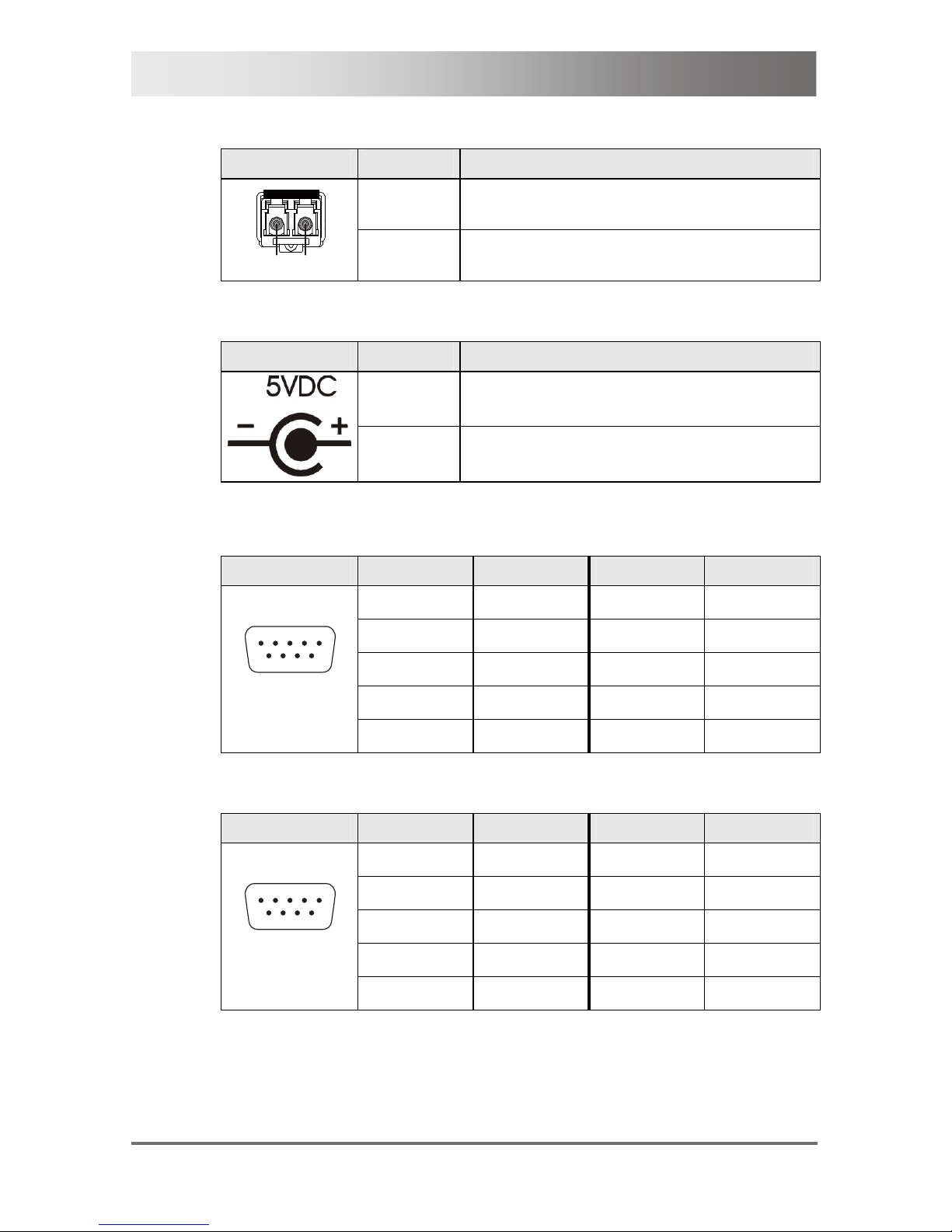

7.4 Connector Pinouts ............................................................ 61
7.5 Power Supply.................................................................... 66
7.6 Environmental Conditions ................................................. 67
7.7 Size................................................................................... 67
7.8 Shipping Weight................................................................ 68
8 Troubleshooting......................................................................... 69
8.1 Blank Screen..................................................................... 69
8.2 USB-HID ........................................................................... 70
8.3 Serial Connection.............................................................. 71
8.4 Analog Audio..................................................................... 71
Page 6
Draco KVM Extender
6 2013-03-12
8.5 Digital Audio...................................................................... 72
8.6 Upgrade Module USB-HID................................................ 73
8.7 USB 2.0 embedded........................................................... 74
8.8 USB 2.0............................................................................. 75
9 Technical Support ...................................................................... 76
9.1 Support Checklist.............................................................. 76
9.2 Shipping Checklist ............................................................ 76
10 Certificates.................................................................................. 77
10.1 CE Declaration Of Conformity........................................... 77
10.2 North American Regulatory Compliance ........................... 78
10.3 WEEE ............................................................................... 78
10.4 RoHS/RoHS 2................................................................... 78
11 Glossary...................................................................................... 79
Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu di esem Handbuch @ 5\mod_1278 573163276_6.doc @ 41510 @ 1222 @ 1
Page 7
About This Manual
2013-03-12 7
1 About This Manual
1.1 Scope
This manual describes how to install your KVM Extender, how to operate it
and how to perform trouble shooting.
1.2 Validity
This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.
1.3 Cautions and Notes
The following symbols are used in this manual:
This symbol indicates an important operating instruction that should be
followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.
This symbol indicates important information to help you make the best use
of this product.
This symbol indicates best practice information to show recommended
and optimal ways to use this product in an efficient way.
Pos: 2 /806-IHSE/Sicherheitshinweis e/ATB_Sicherheits hinweise @ 5\mod_127857332 1245_6.doc @ 41528 @ 1 @ 1
Page 8
Draco KVM Extender
8 2013-03-12
2 Safety Instructions
To ensure reliable and safe long-term operation of your KVM Extender
please note the following guidelines:
Installation
Only use in dry, indoor environments.
The KVM Extender and the power supply units can get warm. Do not
situate them in an enclosed space without any airflow.
Do not place the power supply directly on top of the device.
Do not obscure ventilation holes.
Only use power supplies originally supplied with the product or
manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged chassis.
Connect all power supplies to grounded outlets. In each case, ensure
that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.
Do not connect the link interface to any other equipment, particularly
network or telecommunications equipment.
Take any required ESD precautions.
In order to disconnect the device completely from the electric circuit, all
power cables have to be removed.
Repair
Do not attempt to open or repair a power supply unit.
Do not attempt to open or repair the KVM Extender. There are no
user serviceable parts inside.
Please contact your dealer or manufacturer if there is a fault.
Pos: 3 /806-IHSE/Beschreibung/UEB_Besc hreibung @ 5\mod_1278 573379151_6.doc @ 41546 @ 1 @ 1
Page 9
Description
2013-03-12 9
3 Description
Pos: 4 /806-IHSE/Beschreibung/Verwen dungszweck/474-xx @ 6\ mod_1304579672848_6. doc @ 50785 @ @ 1
3.1 Application
The KVM Extender is used to increase the distance between a source
(computer, CPU) and its console (keyboard, mouse, and other peripheral
devices).
The KVM Extender is designed for use with Cat X (Twisted Pair)
interconnect cables or fiber interconnect cables.
The KVM Extender with Cat X interconnect cables is unsuitable for
connection between buildings where a fiber optic based product should be
used instead.
The KVM Extender with fiber interconnect cables can also be used with
applications in environments which are difficult in electromagnetical
aspects. Electromagnetical interference can limit the maximum distance
und reliability.
Pos: 5 /806-IHSE/Beschreibung/Syste m-Übersicht /474-xx @ 6\ mod_1304579735410_6. doc @ 50803 @ @ 1
Page 10
Draco KVM Extender
10 2013-03-12

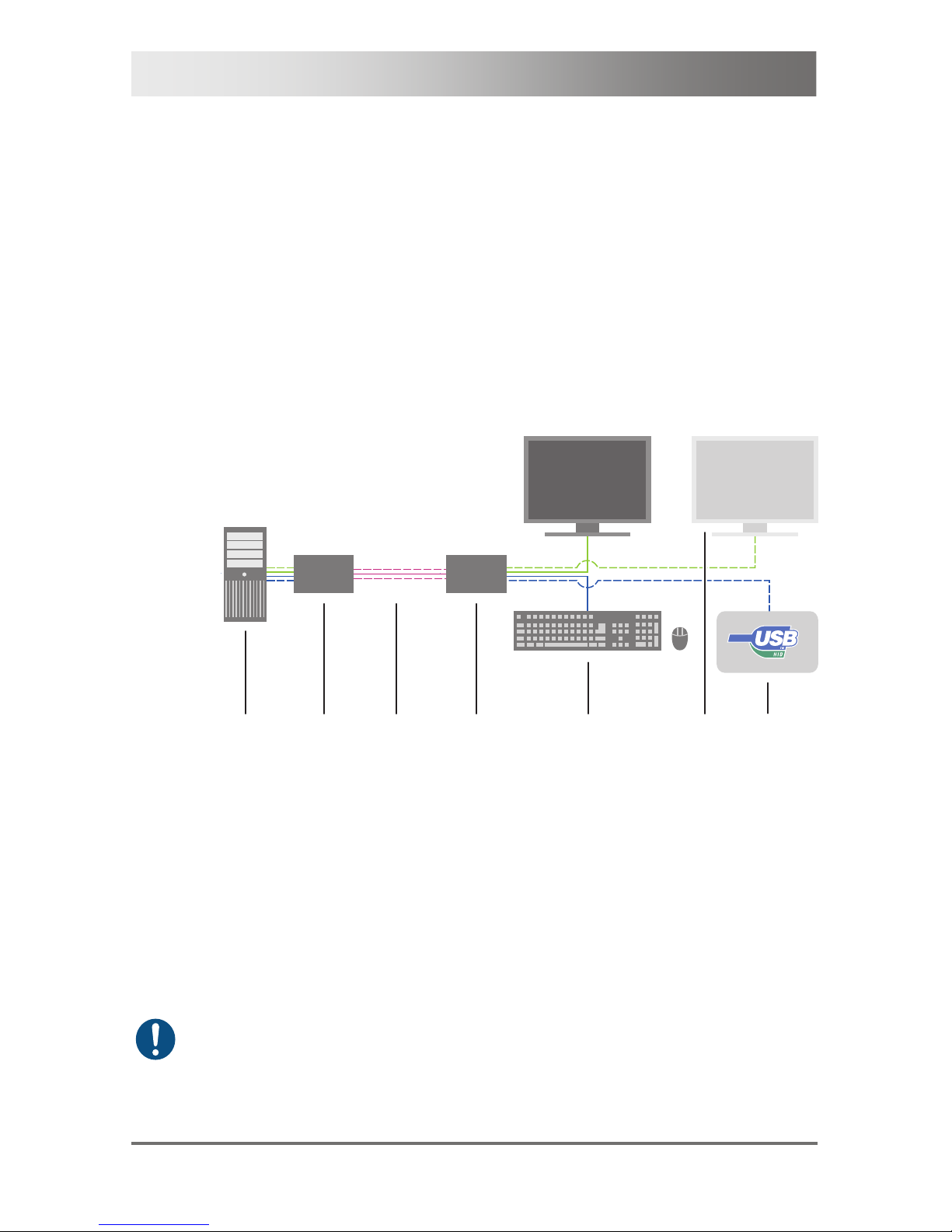

3.2 System Overview
The KVM Extender consists of at least one CPU module and one
CON module. The various modules are summarized respectively in a
vario chassis (2-fold, 4-fold or 6-fold) at CPU site and CON site (CPU and
CON unit).
The CPU module is connected directly to the source (computer, CPU)
using the supplied cables.
The CON module is connected to the console (monitor, keyboard and
mouse).
The CPU Unit and the CON modules communicate with each other
through the interconnect cables.
1
2
4
5
7
6
3

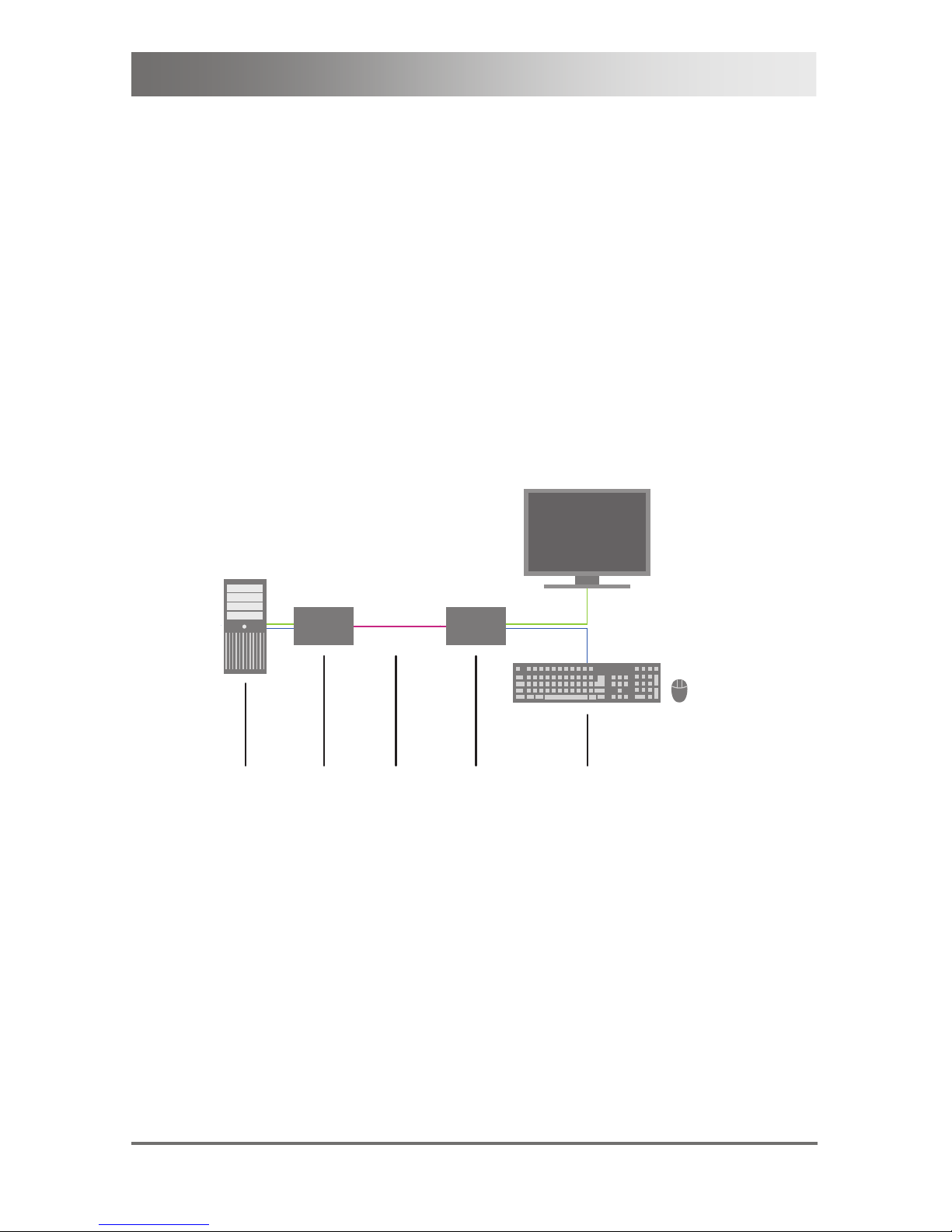

System Overview
1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB-HID devices (option, only with 4x USB-HID devices)
See Chapter 4.3, Page 43 for installation examples.
Pos: 6 /806-IHSE/Beschreibung/Geräte typen/474-xx @ 6\mod_1 304579897770_6.doc @ 50821 @ 2333333 @ 1
Page 11
Description
2013-03-12 11
3.3 Product Range
3.3.1 Part Numbers
Part numbers for Connections via Cat X or Fiber Cable
All mentioned devices are available in the following versions:
Connection via Cat X cable (x = "C")
Connection via Single-mode fiber cable (x = "S")
High speed connection (3.125 Gbit/s) via Single-mode fiber cable
(x = "X")
Fiber devices can be used with Multi-mode and Single-mode cables (see
Chapter 7.2.2, Page 59).
Part numbers for CPU Unit and CON Unit
The part numbers for the CPU Unit and the CON Unit can be derived from
the part number of the complete device.
CPU Unit: L474
CON Unit: R474
All devices of the K474 series are technically compatible to the devices of
the K477 series.
3.3.2 Chassis
Model Description
474-BODY2
Empty chassis for up to 2 boards, 1x external power
supply unit
474-BODY2R
Empty chassis for up to 2 boards, 1x external power
supply unit, preparation for redundancy for a second
power supply unit (external)
474-BODY2N
Empty chassis for up to 2 boards, 1x internal power
supply unit, preparation for redundancy for a second
power supply unit (external)
474-BODY4
Empty chassis for up to 4 boards, 1x external power
supply unit
474-BODY4R
Empty chassis for up to 4 boards, 1x external power
supply unit, preparation for redundancy for a second
power supply unit (external)
Page 12
Draco KVM Extender
12 2013-03-12
Model Description
474-BODY6R
Empty chassis for up to 6 boards, 1x internal power
supply unit, preparation for redundancy for a second
power supply unit (external)
474BODY21R
Empty chassis for up to 21 boards, 1x internal power
supply unit, preparation for redundancy for a second
power supply unit (internal)
3.3.3 KVM Extender Modules
Model Description
L474-BSHx
R474-BSHx
Single-Head module for 1x DVI-D Single Link
(up to 1920x1200) with 2x USB-HID
L474-BSHxR
R474-BSHxR
Single-Head module for 1x DVI-D Single Link
(up to 1920x1200) with 2x USB-HID and redundant
connector for interconnect cables
L474-BSHxV
R474-BSHxV
Single-Head module for 1x DVI-I (VGA / DVI) Single
Link (up to 1920x1200) with 2x USB-HID
3.3.4 Upgrade Modules
Model Description
L474-BXH
R474-BXH
Upgrade module with 2x USB-HID
L474-BXE
R474-BXE
Upgrade module with 2x USB 2.0
L474-BAX
R474-BAX
Upgrade module with Analog Audio / Serial
(bidirectional)
L474-BAP
R474-BAP
Upgrade module with Analog Audio / Serial
(bidirectional) and PS/2
L474-BSX
R474-BSX
Upgrade module with serial connector (RS422)
L474-BXP
R474-BXP
Upgrade module with PS/2 (only available with upgrade
module Analog Audio / Serial)
L474-BDX
R474-BDX
Upgrade module with Digital Audio (unidirectional)
Page 13
Description
2013-03-12 13
Model Description
L474-BAH
R474-BAH
Upgrade module with Analog Audio / Serial
(bidirectional) and 2x USB-HID
L474-BUE
R474-BUE
Upgrade module with Analog Audio (bidirectional) and
2x USB 2.0
L474-BAE
R474-BAE
Upgrade module with Analog Audio / Serial
(bidirectional) and 2x USB 2.0
L474-BDH
R474-BDH
Upgrade module with Digital Audio (unidirectional) and
2x USB-HID
L474-BDE
R474-BDE
Upgrade module with Digital Audio (unidirectional) and
2x USB 2.0
L474-BDD
R474-BDD
Upgrade module with Digital Audio (bidirectional)
L474-BDA
R474-BDA
Upgrade module with Digital Audio (unidirectional) and
Analog Audio / Serial (bidirectional)
L474-BXTx
R474-BXTx
USB 2.0 upgrade module with 4x USB 2.0
3.3.5 Complete Units
Model Description
K474-1SHx
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID
K474-1SHx-
RED
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID, redundant connector for
interconnect cable
K474-1SEx
Single-Head-KVM Extender for 1x DVi-D Single Link (up
to 1920x1200) with 2x USB-HID and 2x USB 2.0
K474-1SHxV
Single-Head-KVM Extender for 1x DVI-I (VGA / DVI)
Single Link (up to 1920x1200), 2x USB-HID
K474-1SHxA
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID and Analog Audio / Serial
option
K474-1SExA
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200) with 2x USB-HID, 2x USB 2.0 and
Analog Audio / Serial option
Page 14
Draco KVM Extender
14 2013-03-12
Model Description
K474-1SHxD
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID and Digital Audio Option
K474-1SExD
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200) with 2x USB-HID, 2x USB 2.0 and Digital
Audio option
K474-1S4x
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 4x USB-HID
K474-1S4xA
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 4x USB-HID and Analog Audio / Serial
option
K474-1S4xD
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 4x USB-HID and Digital Audio option
K474-1STx
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID and 4x USB 2.0
K474-1STxA
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID, Analog Audio / Serial
option and 4x USB 2.0
K474-1STxD
Single-Head-KVM Extender for 1x DVI-D Single Link (up
to 1920x1200), 2x USB-HID, Digital Audio option and 4x
USB 2.0
K474-2S4x
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200), 4x USB-HID
K474-2SEx
Dual-Head-KVM Extender for 2x DVI-D Single Link (up
to 1920x1200) with 4x USB-HID and 2x USB 2.0
K474-2S4xA
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200), 4x USB-HID and Analog Audio /
Serial option
K474-2SExA
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200) with 4x USB-HID, 2x USB 2.0 and
Analog Audio / Serial option
K474-2S4xD
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200), 4x USB-HID and Digital Audio option
K474-2SExD
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200) with 4x USB-HID, 2x USB 2.0 and
Digital Audio option
K474-2STx
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200), 4x USB-HID and 4x USB 2.0
Page 15
Description
2013-03-12 15
Model Description
K474-2STxA
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200), 4x USB-HID, Analog Audio / Serial
option and 4x USB 2.0
K474-2STxD
Dual-Head-KVM Extender for 2x DVI-D Single Link
(up to 1920x1200), 4x USB-HID, Digital Audio option
and 4x USB 2.0
K474-4S8x
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200), 8x USB-HID
K474-4SEx
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200) with 8x USB-HID and 2x USB 2.0
K474-4S8xA
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200), 8x USB-HID and Analog Audio /
Serial option
K474-4SExA
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200) with 8x USB-HID, 2x USB 2.0 and
Analog Audio / Serial option
K474-4S8xD
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200), 8x USB-HID and Digital Audio option
K474-4SExD
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200) with 8x USB-HID, 2x USB 2.0 and
Digital Audio option
K474-4STx
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200), 8x USB-HID and 4x USB 2.0
K474-4STxA
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200), 8x USB-HID, Analog Audio / Serial
option and 4x USB 2.0
K474-4STxD
Quad-Head-KVM Extender for 4x DVI-D Single Link
(up to 1920x1200), 8x USB-HID, Digital Audio option
and 4x USB 2.0
Devices for free configuration
Model Description
DRACO
VARIO 2
Draco extender for free configuration in a 2-slot vario
chassis, external power supply unit
DRACO
VARIO 2R
Draco extender for free configuration in a 2-slot vario
chassis, external power supply unit, preparation for
redundancy for a second external power supply unit
Page 16
Draco KVM Extender
16 2013-03-12
Model Description
DRACO
VARIO 2N
Draco extender for free configuration in a 2-slot vario
chassis, internal power supply unit, preparation for
redundancy of an external power supply unit
DRACO
VARIO 4
Draco extender for free configuration in a 4-slot vario
chassis, external power supply unit
DRACO
VARIO 4R
Draco extender for free configuration in a 4-slot vario
chassis, external power supply unit, preparation for
redundancy of a second external power supply unit
DRACO
VARIO 6R
Draco extender for free configuration in a 6-slot vario
chassis, internal power supply unit, preparation for
redundancy of an external power supply unit
DRACO
VARIO 21R
Draco extender for free configuration in a 21-slot vario
chassis, internal power supply unit, preparation for
redundancy for a second external power supply unit
When using redundant power supply units, there will be a load sharing.
Pos: 7 /806-IHSE/Beschreibung/Einbauop tionen/474-xx @ 6\mod_1 304580008551_6.doc @ 50839 @ 2 @ 1
3.4 Accessories Upgrade Kits
Model Description
474-2RMK 19"/1U rack mount kit for 2-fold chassis
474-
2NRMK
19"/1U rack mount kit for 2-fold chassis with internal PSU
474-4RMK 19"/1U rack mount kit for 4-fold chassis
474-6RMK 19"/1U rack mount kit for 6-fold chassis
474-
VPLATE
Fastening strips for screw or snap on for 2-, 4- and 6-fold
chassis
474OPTRED
Retrofitting for redundant power supply option (without
power supply) for 2- and 4-fold chassis
474-PSU2 Power supply for 2-fold chassis (spare or redundancy)
474-PSU4 Power supply for 4-fold chassis (spare or redundancy)
474-PSU6 Power supply for 6-fold chassis (spare or redundancy)
474-PSU21 Power supply for 6-fold-chassis (spare or redundancy)
474-BLND1 Blind plate 3U/4HP for 2-, 4- and 6-fold chassis
474-BLND2 Blind plate 3U/8HP for 2-, 4- and 6-fold chassis
Page 17
Description
2013-03-12 17
The KVM Extenders and the provided power supply units can get warm,
for this reason an installation in closed rooms without air circulation is not
allowed. Please note that you will need at least 0.5 U (height unit) for the
ventilation above the extenders, if you mount them into racks.
Pos: 8 /806-IHSE/Beschreibung/Zubehör/ 477-xx_COMP @ 5\mod_12 91120662750_6.doc @ 44582 @ 2 @ 1

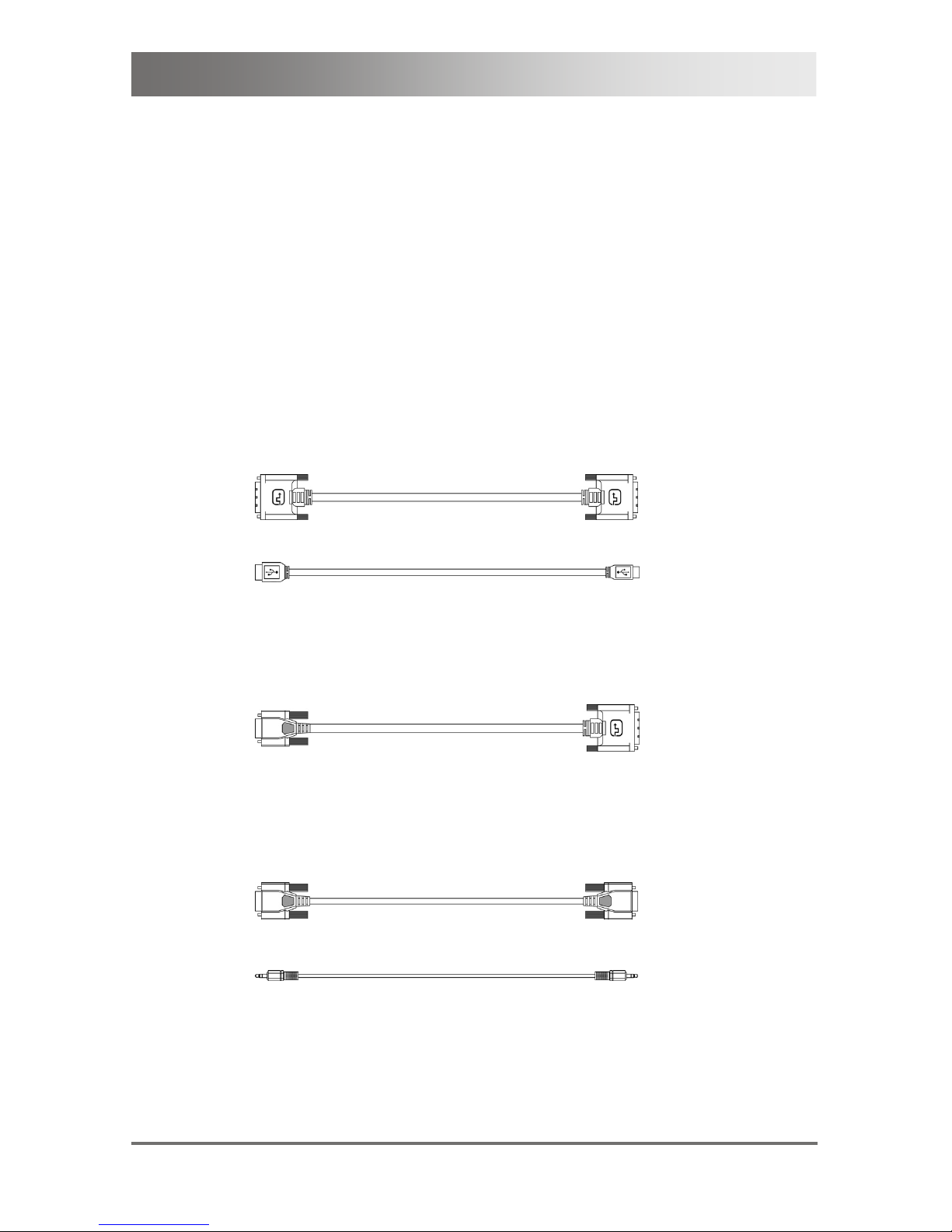

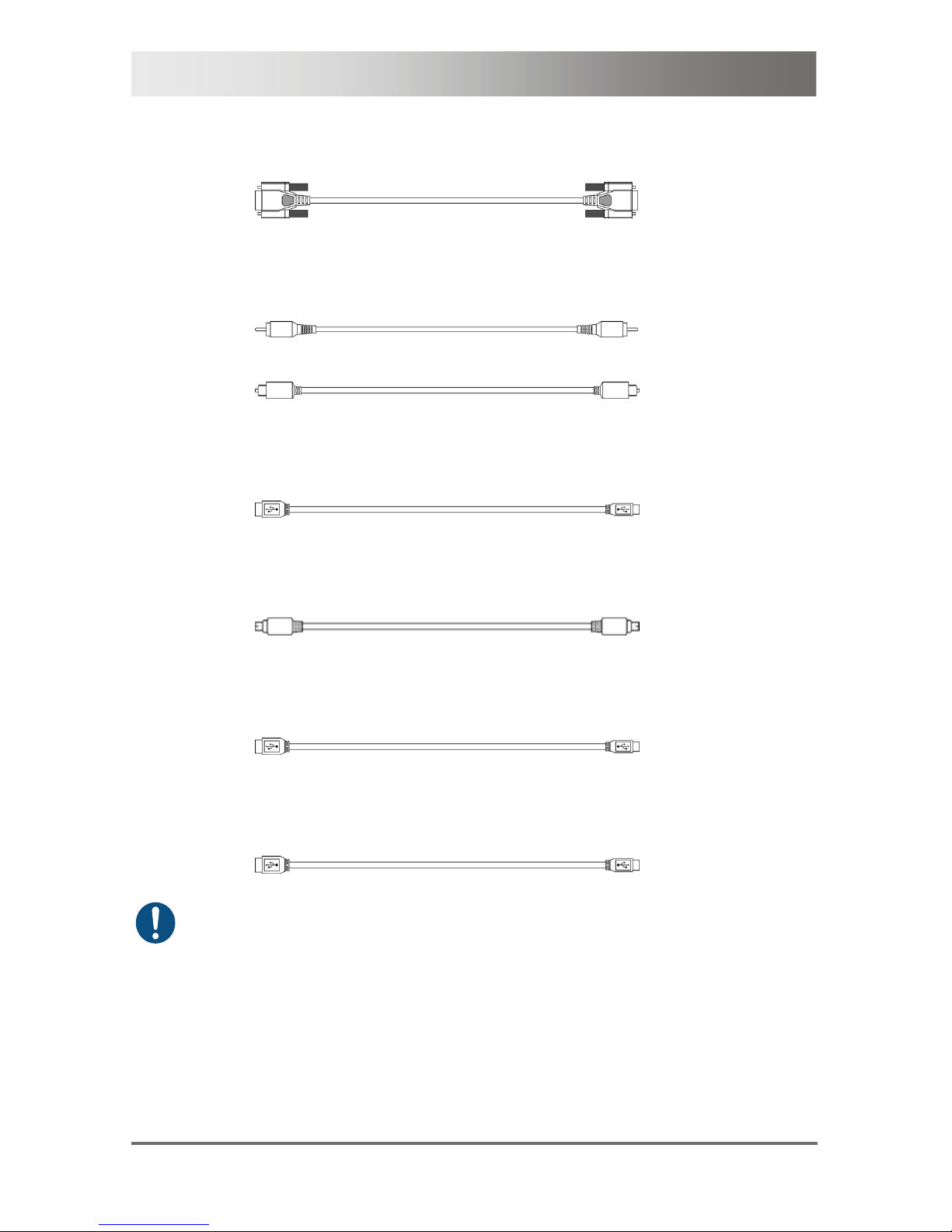

3.5 Accessories
Model Description
026-2A Serial cable 1.8 m (RS232)
247-U1 USB cable 1.8 m (Type A to B)
260-5G International power supply unit 100...240VAC / 5VDC / 3 A
260-5U International power supply unit 100...240VAC / 5VDC / 4 A
436-AA VGA cable 1.8 m (VGA to DVI-I)
436-ID DVI-D cable 1.8 m (DVI-D)
445-2H DVI-D splitter cable
455-CK Stereo jack cable 1.6 m (3.5 mm Stereo)
455-CR RCA cable 2.5 m (Cinch male connector)
455-CT TOSLINK cable 1.8 m (F05 male connector)
455-CX Mini-XLR cable 1.8 m (3 pole)
Pos: 9 /806-IHSE/Beschreibung/Gerätean sichten/UEB_Ger äteansichten @ 5\mod_127 8573737808_6.doc @ 41654 @ 2 @ 1
Page 18
Draco KVM Extender
18 2013-03-12
3.6 Device Views
Pos: 10 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/2-fach Vario- Gehäuse 474-BODY2/2R @ 6\mod_1 304580280566_6.doc @ 508 58 @ 3 @ 1
3.6.1 2-fold Vario Chassis 474-BODY2/2R
CPU and CON Unit
1
2
3
4
Rear View
1 Slot for modules #1
2 Connect to 5VDC power supply (standard)
3 Slot for modules #2
4 Connect to 5VDC power supply (redundancy, optional)
Pos: 11 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/2-fach Vario- Gehäuse 474-BODY2N @ 8\mod_13485 78478411_6.doc @ 6938 0 @ 3 @ 1
Page 19
Description
2013-03-12 19

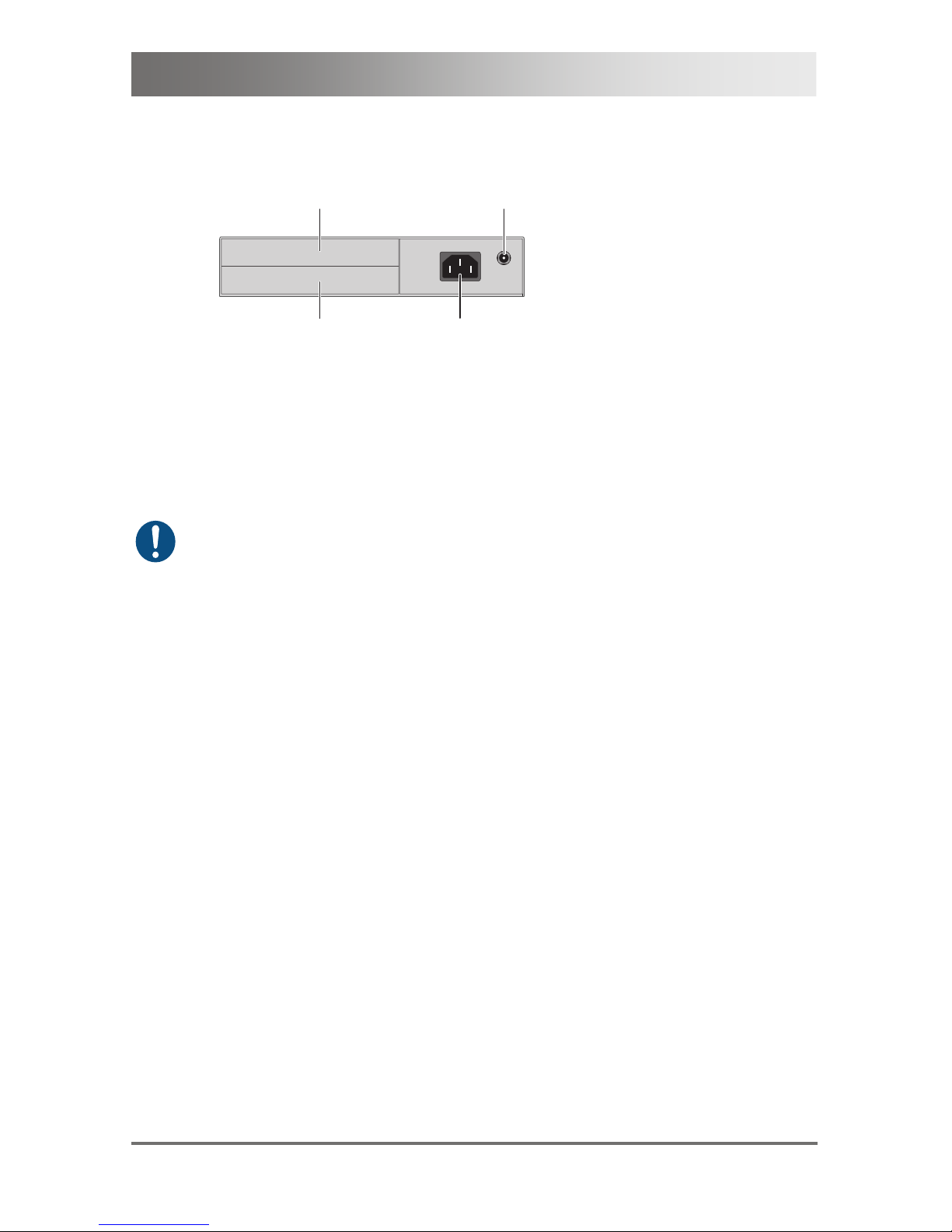

3.6.2 2-fold Vario Chassis 474-BODY2N
CPU and CON Unit
1
2
3
4
Rear View
1 Slot for modules #1
2 Connect to power supply (standard)
3 Slot for modules #2
4 Connect to 5VDC power supply (redundancy)
The 2-fold vario chassis with an internal power supply is not equipped with
a fuse on primary side. Therefore the protection against excessive
currents has to be provided by the electrical installation of the building.
Pos: 12 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 20
Draco KVM Extender
20 2013-03-12
Pos: 13 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/4-fach Vario- Gehäuse 474-BODY4/4R @ 6\mod_1 304580359098_6.doc @ 508 76 @ 3 @ 1
3.6.3 4-fold Vario Chassis 474-BODY4/4R
CPU and CON Unit
3
4
5
1
2
6
Rear View
1 Slot for modules #3
2 Slot for modules #1
3 Connect to 5VDC power supply (standard)
4 Slot for modules #4
5 Slot for modules #2
6 Connect to 5VDC power supply (redundancy, optional)
For operation with three KVM Extender CON modules and a USB 2.0
CON module in a 4-fold vario chassis, an external power supply unit at the
second 5VDC connector is explicitly necessary. In this case, redundancy
is inapplicable.
Pos: 14 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 21
Description
2013-03-12 21
Pos: 15 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/6-fach Vario- Gehäuse 474-BODY6R @ 6\mod_13045 80442488_6.doc @ 5089 4 @ 3 @ 1

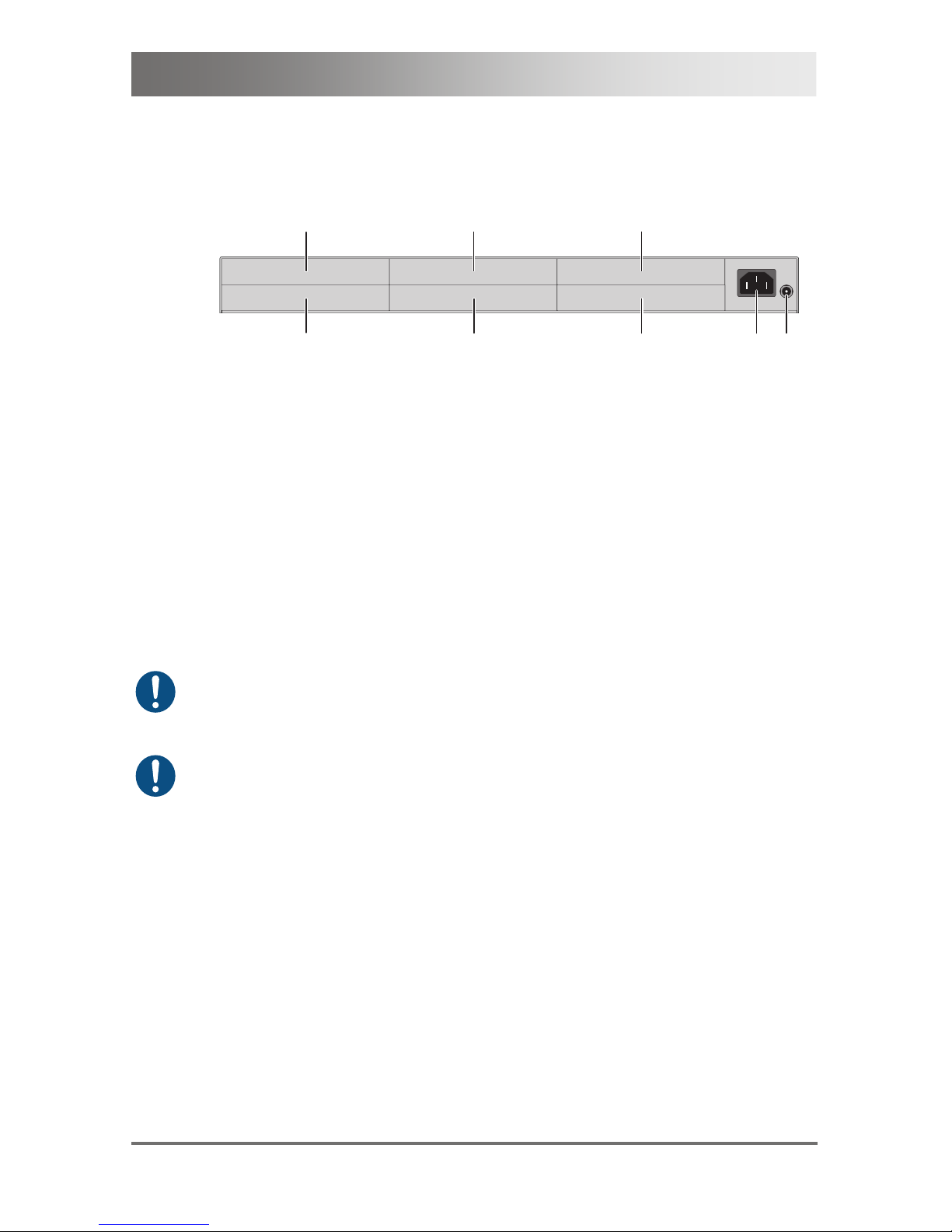

3.6.4 6-fold Vario Chassis 474-BODY6R
CPU and CON Unit
3
4
5
1
2
6
8
7
Rear View
1 Slot for modules #5
2 Slot for modules #3
3 Slot for modules #1
4 Connect to power supply (standard)
5 Connect to 5VDC power supply (standard)
6 Slot for modules #6
7 Slot for modules #4
8 Slot for modules #2
For operation with KVM Extender modules in a 6-fold vario chassis, an
external power supply unit at the 5VDC connector is explicitly necessary.
In this case, redundancy is inapplicable.
The 6-fold vario chassis is not equipped with a fuse on primary side.
Therefore the protection against excessive currents has to be provided by
the electrical installation of the building.
Pos: 16 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 22
Draco KVM Extender
22 2013-03-12
Pos: 17 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/21-fach Vario- Gehäuse 474-BODY21R @ 8\mod_134 8579151346_6.doc @ 69400 @ @ 1
3.6.5 21-fold Vario Chassis 474-BODY21R
CPU and CON Unit
1
Front View
1 Slots for modules #1 - #21
1
2
3
4
Rear View
1 Connect to power supply 2
2 Locking for power supply 2 (redundancy)
3 Locking for power supply 1 (standard)
4 Connect to power supply 1
Pos: 18 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 23
Description
2013-03-12 23
Pos: 19 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BSHC @ 6\mod_1304 580479441_6.doc @ 50912 @ 3 @ 1

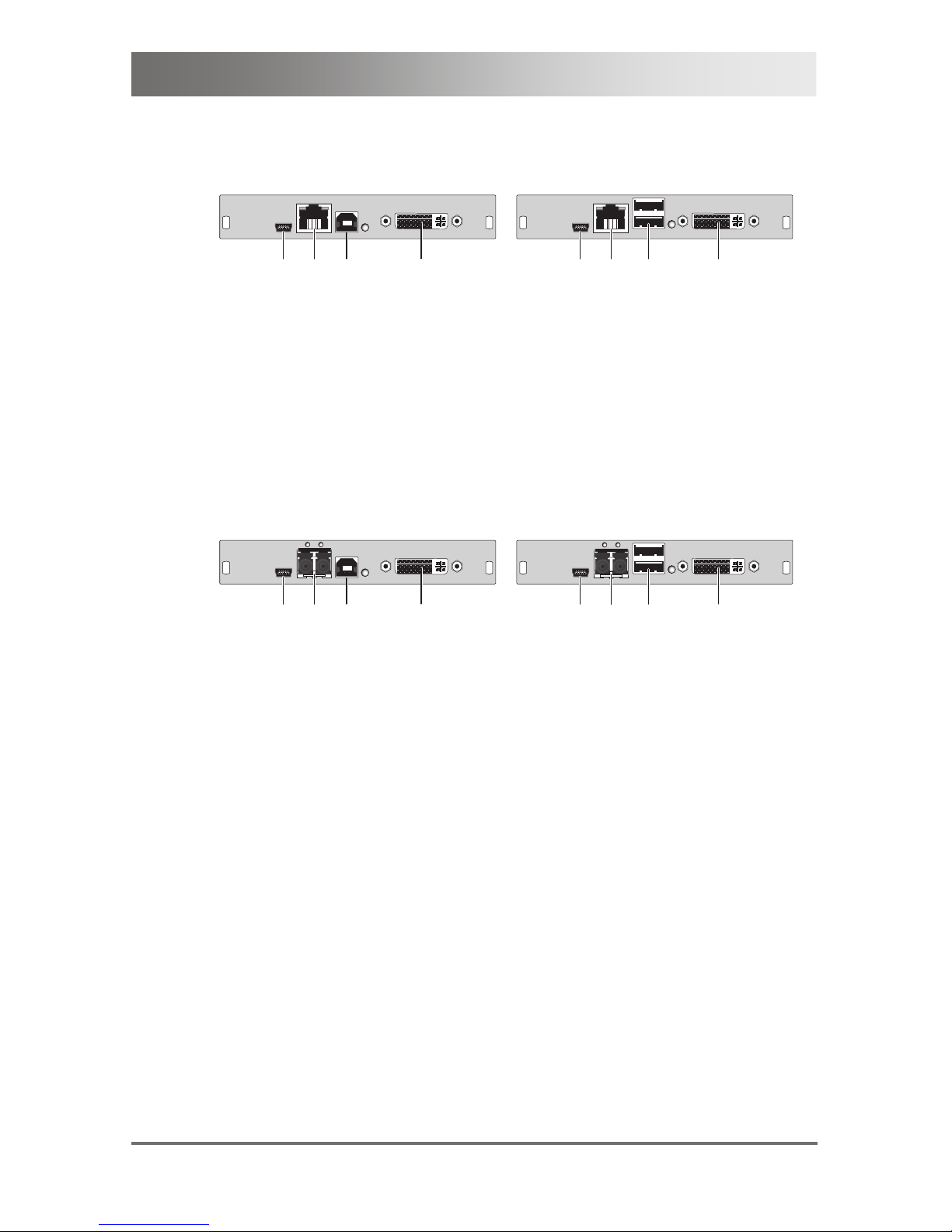

3.6.6 Model L- / R474-BSHC
CPU Module CON Module
12
3
4
12
3
4
Rear View Rear View
1 Service port
2 Connect to interconnect cable
3 To CPU: USB-HID
4 To CPU: DVI-D
1 Service port
2 Connect to interconnect cable
3 Connect to USB-HID devices
4 Connect to DVI monitor
Pos: 20 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BSHS / -B SHX @ 6\mod_1304580536098_6.doc @ 50930 @ 3 @ 1
3.6.7 Model L- / R474-BSHS / -BSHX
CPU Module CON Module
12
3
4
12
3
4
Rear View Rear View
1 Service port
2 Connect to interconnect cable
3 To CPU: USB-HID
4 To CPU: DVI-D
1 Service port
2 Connect to interconnect cable
3 Connect to USB-HID devices
4 Connect to DVI monitor
Pos: 21 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 24
Draco KVM Extender
24 2013-03-12
Pos: 22 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BSHC-RED @ 9\mod_1 362471988604_6.doc @ 71210 @ 3 @ 4

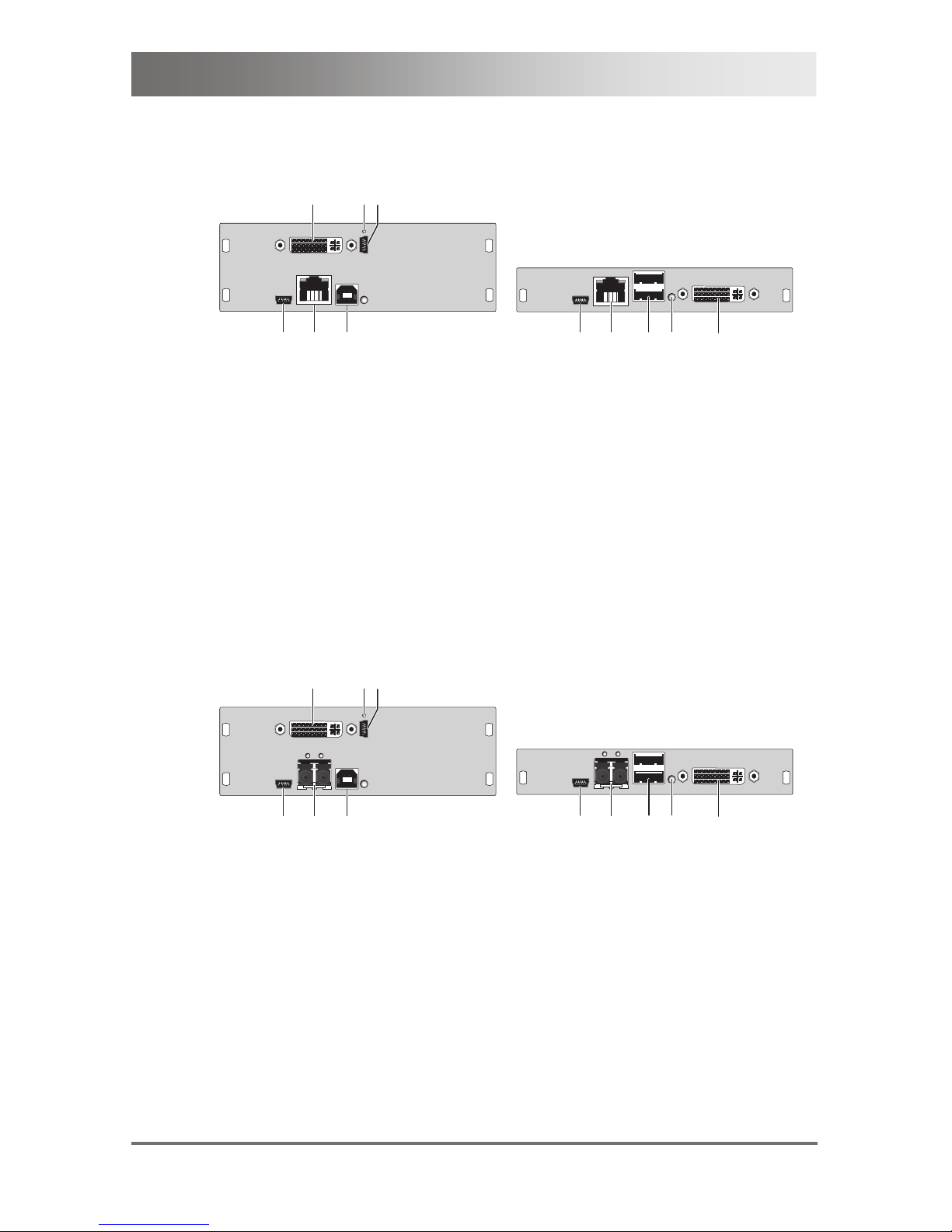

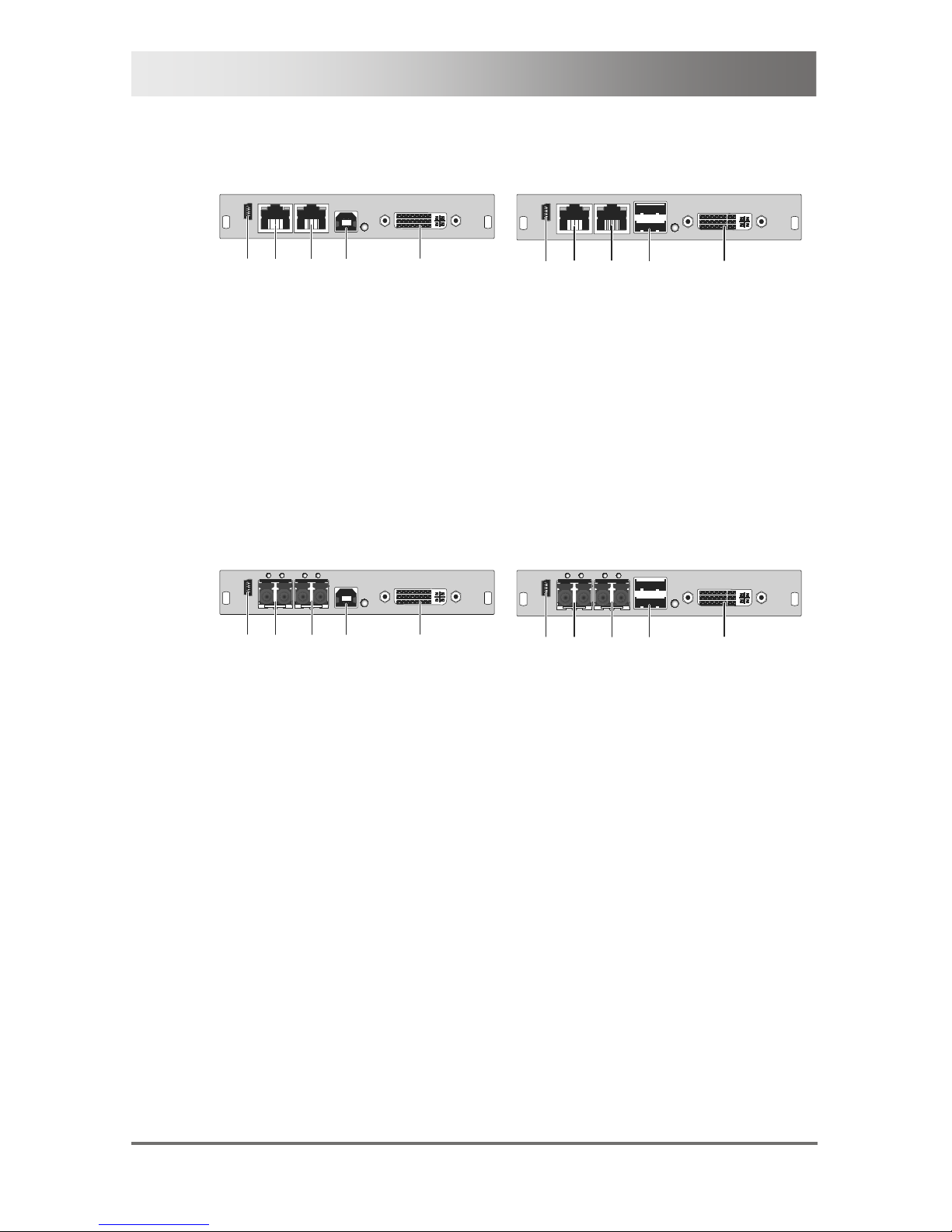

3.6.8 Model L- / R474-BSHCR
CPU Module CON Module
3
4
15
2
15432
Rear View Rear View
1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2
4 To CPU: USB-HID
5 To CPU: DVI-D
1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2
4 Connect to USB-HID devices
5 Connect to DVI monitor
Pos: 23 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BSHS-RED @ 9\mod_1 362471995312_6.doc @ 71230 @ 3 @ 4
3.6.9 Model L- / R474-BSHSR
CPU Module CON Module
3
4
15
2
3
15
2
4
Rear View Rear View
1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2
4 To CPU: USB-HID
5 To CPU: DVI-D
1 Service port
2 Connect to interconnect cable 1
3 Connect to interconnect cable 2
4 Connect to USB-HID devices
5 Connect to DVI monitor
Pos: 24 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BSHCV @ 6\mod_130 4583420910_6.doc @ 50948 @ 3 @ 1
Page 25
Description
2013-03-12 25
3.6.10 Model L- / R474-BSHCV
CPU Module CON Module
12 3
4
56
12
3
4
5
Rear View Rear View
1 Service port (KVM)
2 Connect to interconnect cable
3 To CPU: USB-HID
4 To CPU: DVI-I (VGA / DVI)
5 IR receiver for remote control
6 Service port (DVI-I)
1 Service port
2 Connect to interconnect cable
3 Connect to USB-HID devices
4 IR receiver for remote control
5 Connect to DVI monitor
Pos: 25 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BSHSV / - BSHXV @ 6\mod_1304583459332_6. doc @ 50966 @ 3 @ 1
3.6.11 Model L- / R474-BSHSV / -BSHXV
CPU Module CON Module
12 3
4
5 6
12
3
4
5
Rear View Rear View
1 Service port (KVM)
2 Connect to interconnect cable
3 To CPU: USB-HID
4 To CPU: DVI-I (VGA / DVI)
5 IR receiver for remote control
6 Service port (DVI-I)
1 Service port
2 Connect to interconnect cable
3 Connect to USB-HID devices
4 IR receiver for remote control
5 Connect to DVI monitor
Pos: 26 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BXH @ 6\mod_1304 583507645_6.doc @ 50984 @ 3 @ 1
Page 26
Draco KVM Extender
26 2013-03-12

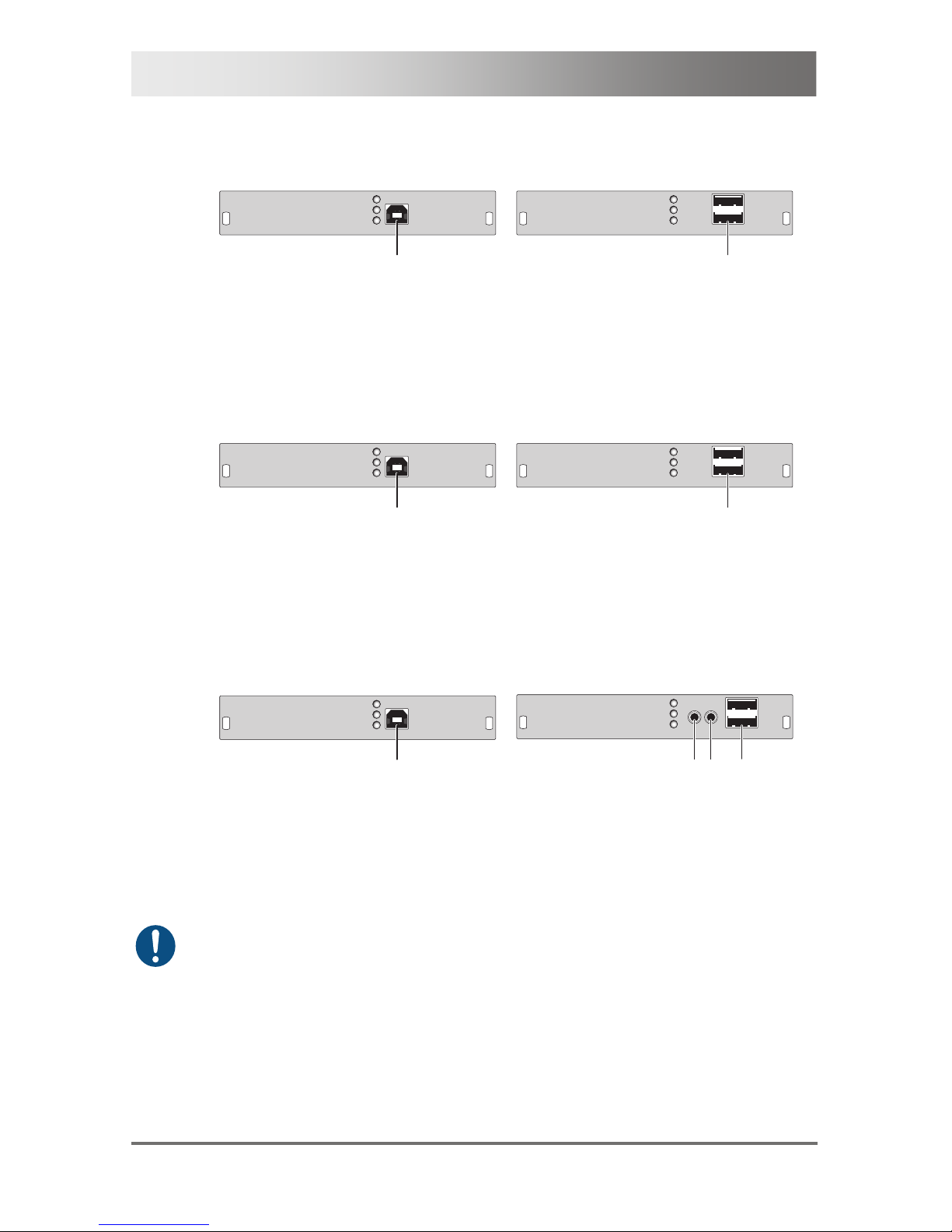

3.6.12 Model L- / R474-BXH
CPU Module CON Module
1
1
Rear View Rear View
1 To CPU: USB-HID 1 Connect to USB-HID devices
Pos: 27 /806-IHSE/Beschreibung/Geräteansi chten/474-xx/Typ L- / R474-BXE @ 7\mod_13317988962 75_6.doc @ 58110 @ 3 @ 1
3.6.13 Model L- / R474-BXE
CPU Module CON Module
1
1
Rear View Rear View
1 To CPU: USB 2.0 1 Connect to USB 2.0 devices
Pos: 28 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BUE @ 7\mod_1331 799038717_6.doc @ 58130 @ 3 @ 1
3.6.14 Model L- / R474-BUE
CPU Module CON Module
1
1
23
Rear View Rear View
1 To CPU: USB 2.0 1 Audio IN
2 Audio OUT
3 Connect to USB 2.0 devices
When using USB audio within a KVM matrix, instant switching is not
possible due to the deregistration and registration process of the USB.
Pos: 29 /806-IHSE/Beschreibung/Geräteansi chten/474-xx/Typ L- / R474-BAX @ 6\mod_13045835402 85_6.doc @ 51002 @ 3 @ 1
Page 27
Description
2013-03-12 27

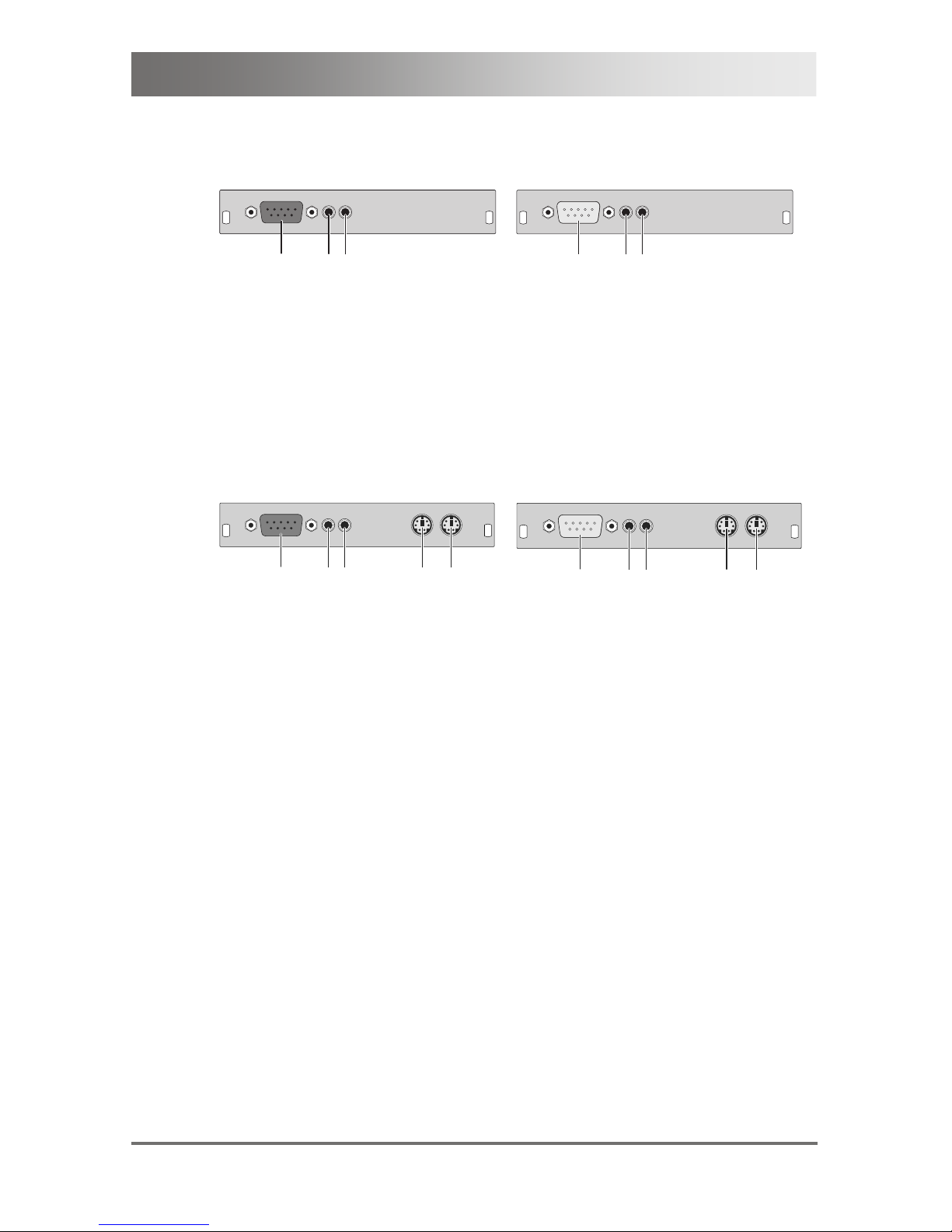

3.6.15 Model L- / R474-BAX
CPU Module CON Module
1
2
3
123
Rear View Rear View
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
Pos: 30 /806-IHSE/Beschreibung/Geräteansi chten/474-xx/Typ L- / R474-BAP @ 9\mod_13624726484 39_6.doc @ 71250 @ 3 @ 4
3.6.16 Model L- / R474-BAP
CPU Module CON Module
1
2
3
45
123
45
Rear View Rear View
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 To CPU: PS/2 mouse
5 To CPU: PS/2 keyboard
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 Connect to PS/2 mouse
5 Connect to PS/2 keyboard
Pos: 31 /806-IHSE/Beschreibung/Geräteansi chten/474-xx/Typ L- / R474-BXP @ 8\mod_13485797973 58_6.doc @ 69420 @ 3 @ 1
Page 28
Draco KVM Extender
28 2013-03-12

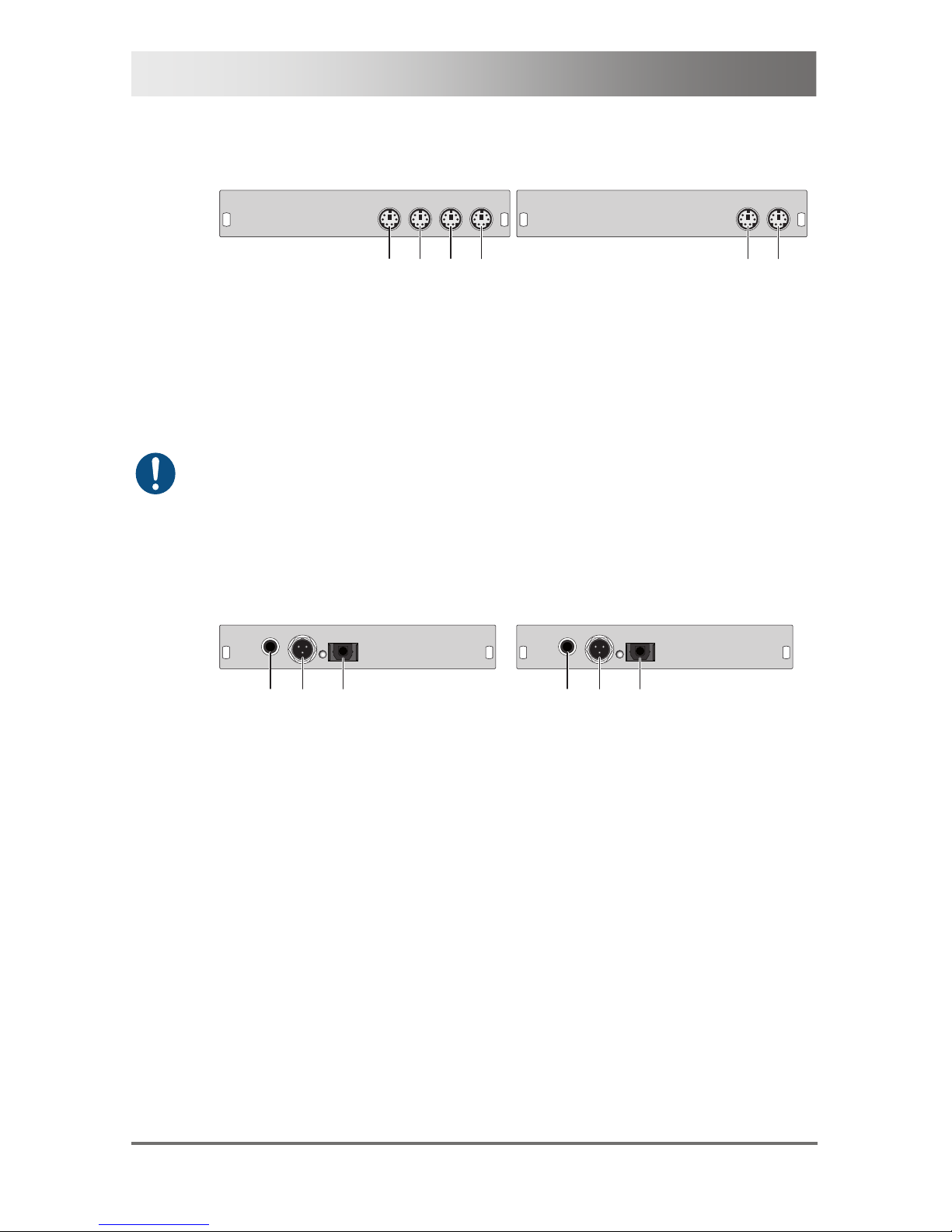

3.6.17 Model L- / R474-BXP
CPU Module CON Module
1
234
1
2
Rear View Rear View
1 Connect to local PS/2 mouse
2 Connect to local PS/2 keyboard
3 To CPU: PS/2 mouse
4 To CPU: PS/2 keyboard
1 Connect to PS/2 mouse
2 Connect to PS/2 keyboard
The upgrade module L- / R474-BXP is only available in combination with
the upgrade modules L- / R474-BAX and –BAH. A separate slot is
required for each module.
Pos: 32 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Pos: 33 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BDX @ 6\mod_1304 583577801_6.doc @ 51020 @ 3 @ 1

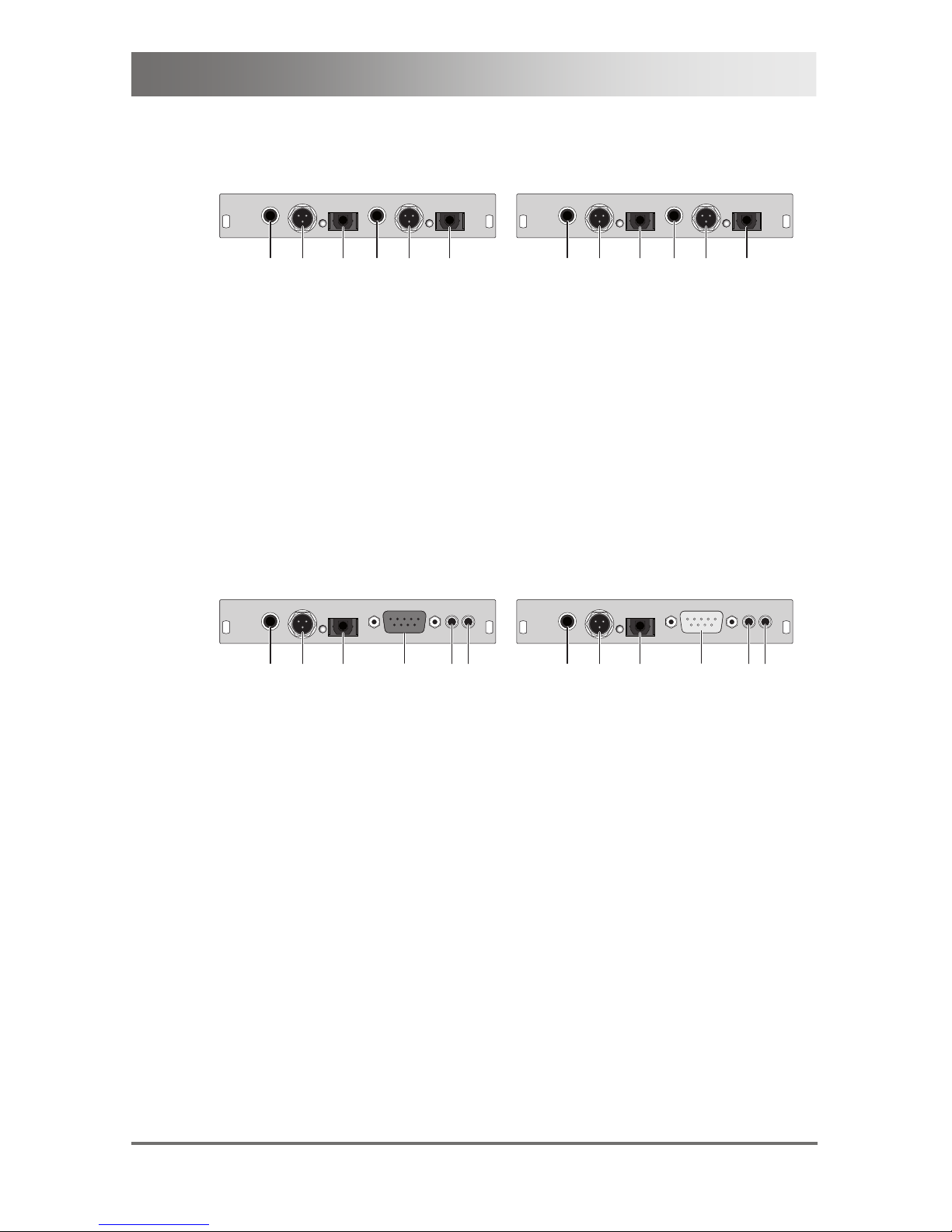

3.6.18 Model L- / R474-BDX
CPU Module CON Module
1
3
2
1
3
2
Rear View Rear View
1 S/PDIF input (RCA)
2 AES/EBU input (Mini-XLR)
3 S/PDIF input (TOSLINK)
1 S/PDIF output (RCA)
2 AES/EBU output (Mini-XLR)
3 S/PDIF output (TOSLINK)
Pos: 34 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BAH @ 6\mod_1304 583611785_6.doc @ 51038 @ 3 @ 1
Page 29
Description
2013-03-12 29

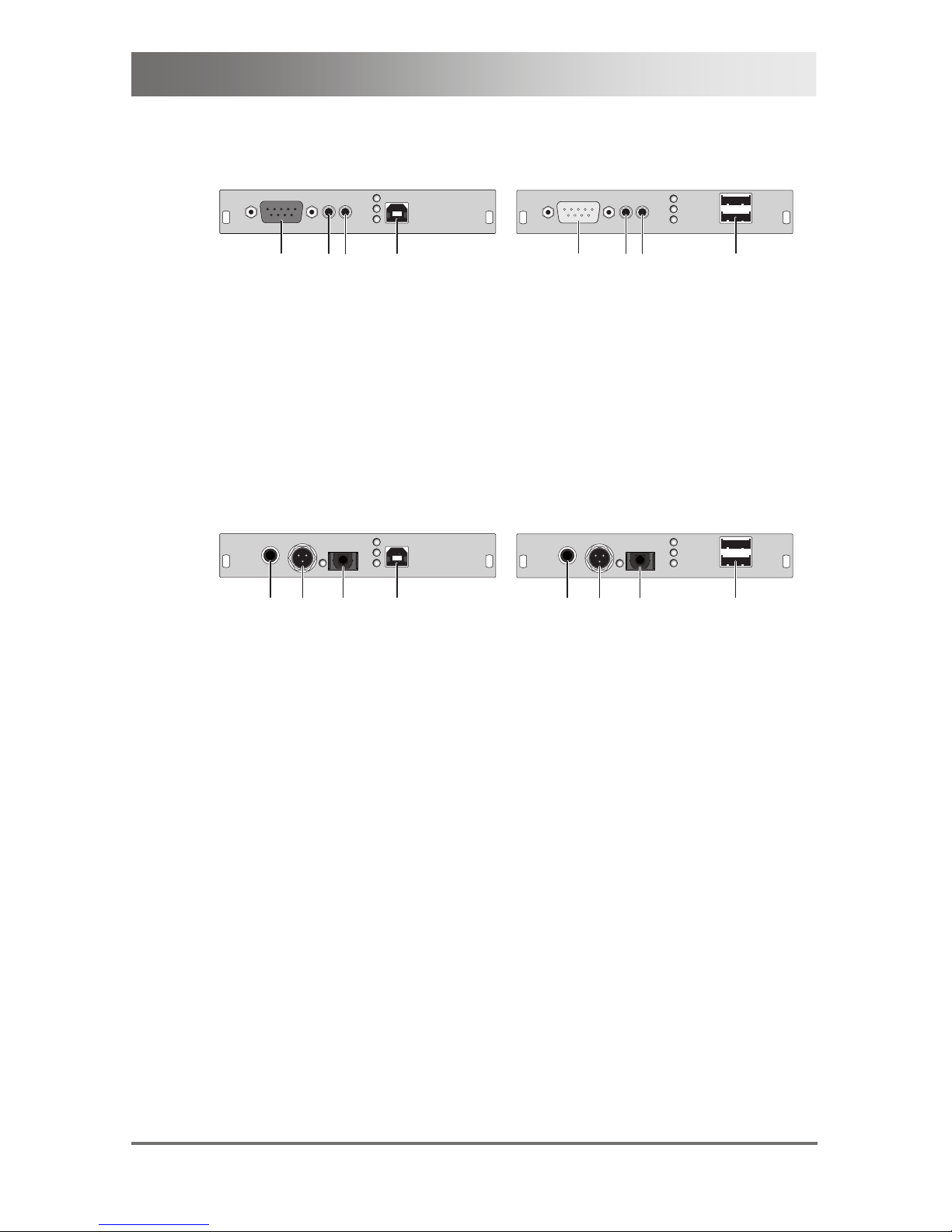

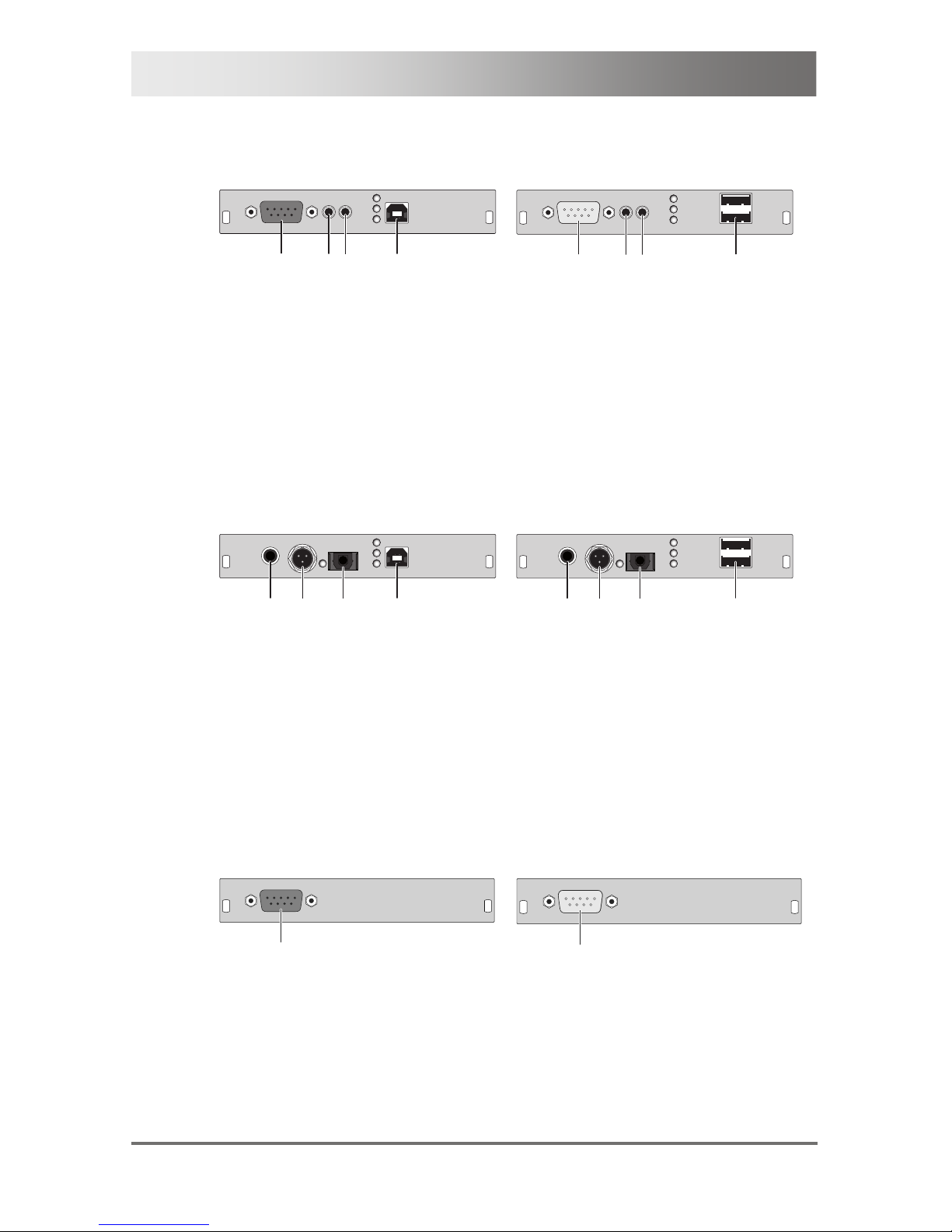

3.6.19 Model L- / R474-BAH
CPU Module CON Module
1
2
3
4
123
4
Rear View Rear View
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 To CPU: USB-HID
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 Connect to USB-HID devices
Pos: 35 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BDH @ 6\mod_1304 583646457_6.doc @ 51056 @ 3 @ 1
3.6.20 Model L- / R474-BDH
CPU Module CON Module
1
3
4
2
1
3
2
4
Rear View Rear View
1 S/PDIF input (RCA)
2 AES/EBU input (Mini-XLR)
3 S/PDIF input (TOSLINK)
4 To CPU: USB-HID
1 S/PDIF output (RCA)
2 AES/EBU output (Mini-XLR)
3 S/PDIF output (TOSLINK)
4 Connect to USB-HID devices
Pos: 36 /806-IHSE/Beschreibung/Geräteansi chten/474-xx/Typ L- / R474-BAE @ 7\mod_13317991649 39_6.doc @ 58150 @ 3 @ 1
Page 30
Draco KVM Extender
30 2013-03-12
3.6.21 Model L- / R474-BAE
CPU Module CON Module
1
2
3
4
123
4
Rear View Rear View
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 To CPU: USB 2.0
1 Connect to serial (D-Sub 9)
2 Audio IN
3 Audio OUT
4 Connect to USB 2.0 devices
Pos: 37 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BDE @ 8\mod_1348 580272466_6.doc @ 69440 @ 3 @ 1
3.6.22 Model L- / R474-BDE
CPU Module CON Module
1
3
4
2
1
3
2
4
Rear View Rear View
1 S/PDIF input (RCA)
2 AES/EBU input (Mini-XLR)
3 S/PDIF input (TOSLINK)
4 To CPU: USB 2.0
1 S/PDIF output (RCA)
2 AES/EBU output (Mini-XLR)
3 S/PDIF output (TOSLINK)
4 Connect to USB 2.0 devices
Pos: 38 /806-IHSE/Beschreibung/Geräteansi chten/474-xx/Typ L- / R474-BSX @ 9\mod_13624729132 67_6.doc @ 71270 @ 3 @ 4
3.6.23 Model L- / R474-BSX
CPU Module CON Module
1
1
Rear View Rear View
1 Connect to serial (D-Sub 9) 1 Connect to serial (D-Sub 9)
Pos: 39 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 31
Description
2013-03-12 31
Pos: 40 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BDD @ 6\mod_1304 583696426_6.doc @ 51074 @ 3 @ 1
3.6.24 Model L- / R474-BDD
CPU Module CON Module
1
3
2
4
5
6
1
3
2
4
5
6
Rear View Rear View
1 S/PDIF input (RCA)
2 AES/EBU input (Mini-XLR)
3 S/PDIF input (TOSLINK)
4 S/PDIF output (RCA)
5 AES/EBU output (Mini-XLR)
6 S/PDIF output (TOSLINK)
1 S/PDIF output (RCA)
2 AES/EBU output (Mini-XLR)
3 S/PDIF output (TOSLINK)
4 S/PDIF input (RCA)
5 AES/EBU input (Mini-XLR)
6 S/PDIF input (TOSLINK)
Pos: 41 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BDA @ 6\mod_1304 583753426_6.doc @ 51092 @ 3 @ 1
3.6.25 Modell L- / R474-BDA
CPU Module CON Module
1
3
2
4
5
6
1
3
2
4
5
6
Rear View Rear View
1 S/PDIF input (RCA)
2 AES/EBU input (Mini-XLR)
3 S/PDIF input (TOSLINK)
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT
1 S/PDIF output (RCA)
2 AES/EBU output (Mini-XLR)
3 S/PDIF output (TOSLINK)
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT
Pos: 42 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 32
Draco KVM Extender
32 2013-03-12
Pos: 43 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BXTC @ 6\mod_130 4583784582_6.doc @ 51110 @ 3 @ 1

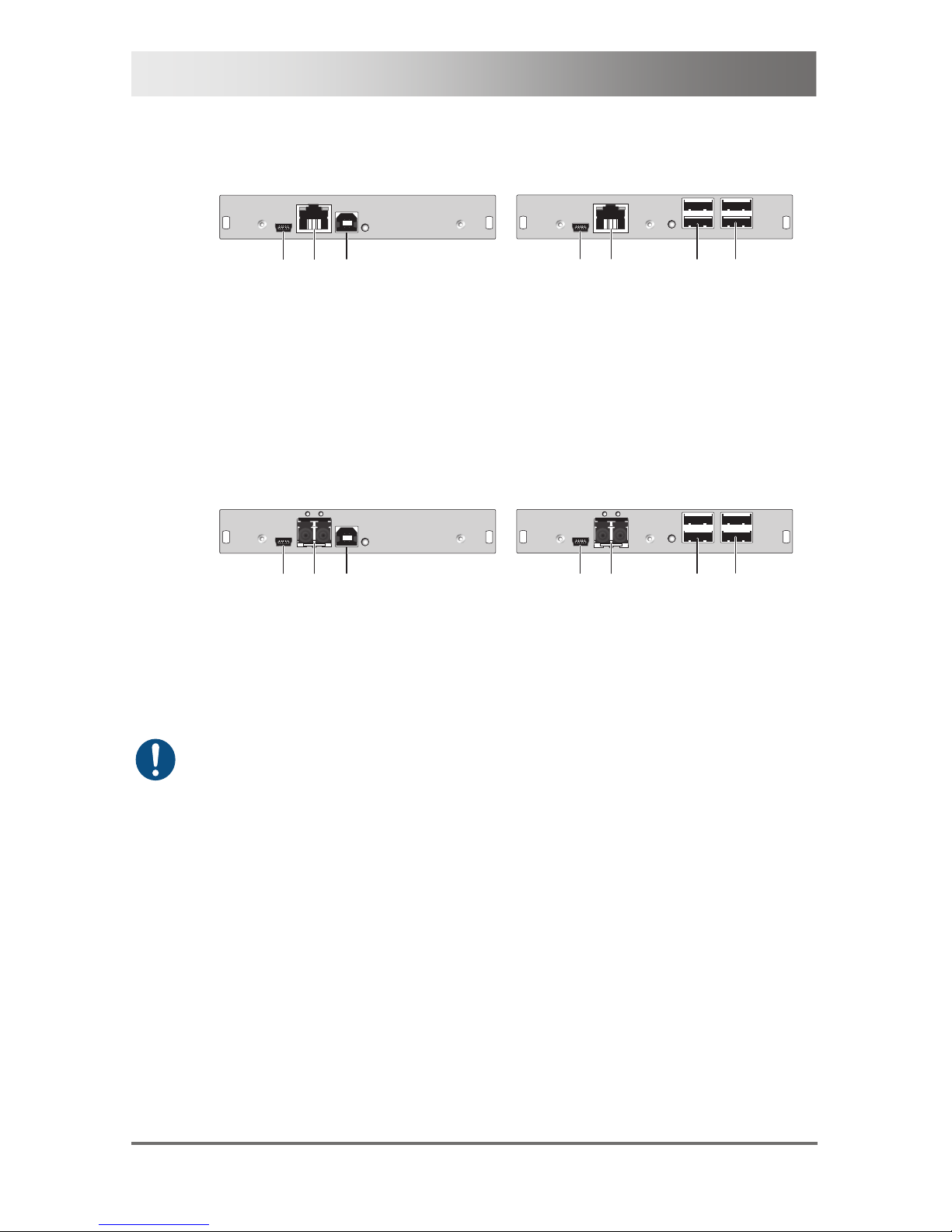

3.6.26 Modell L- / R474-BXTC
CPU Module CON Module
12
3
12
3
4
Rear View Rear View
1 Service port
2 Connect to interconnect cable
3 To CPU: USB 2.0
1 Service port
2 Connect to interconnect cable
3 Connect to USB 2.0 devices
Pos: 44 /806-IHSE/Beschreibung/Gerätea nsichten/474- xx/Typ L- / R474-BXTS @ 6\mod_130 4583818676_6.doc @ 51128 @ 3 @ 1
3.6.27 Modell L- / R474-BXTS
CPU Module CON Module
12
3
12
3
4
Rear View Rear View
1 Service port
2 Connect to interconnect cable
3 To CPU: USB 2.0
1 Service port
2 Connect to interconnect cable
3 Connect to USB 2.0 devices
It is only allowed to use one USB 2.0 CON module per chassis.
Pos: 45 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 33
Description
2013-03-12 33
Pos: 46 /806-IHSE/Beschreibung/Diagnos e LEDs/UEB_Diagnose_LE Ds @ 6\mod_13045840047 23_6.doc @ 51146 @ @ 1
3.7 Status LEDs
Pos: 47 /806-IHSE/Beschreibung/Diagnos e LEDs/474-xx/Dia gnose KVM-Extender-Mo dul @ 6\mod_13045840919 41_6.doc @ 51165 @ 3 @ 1

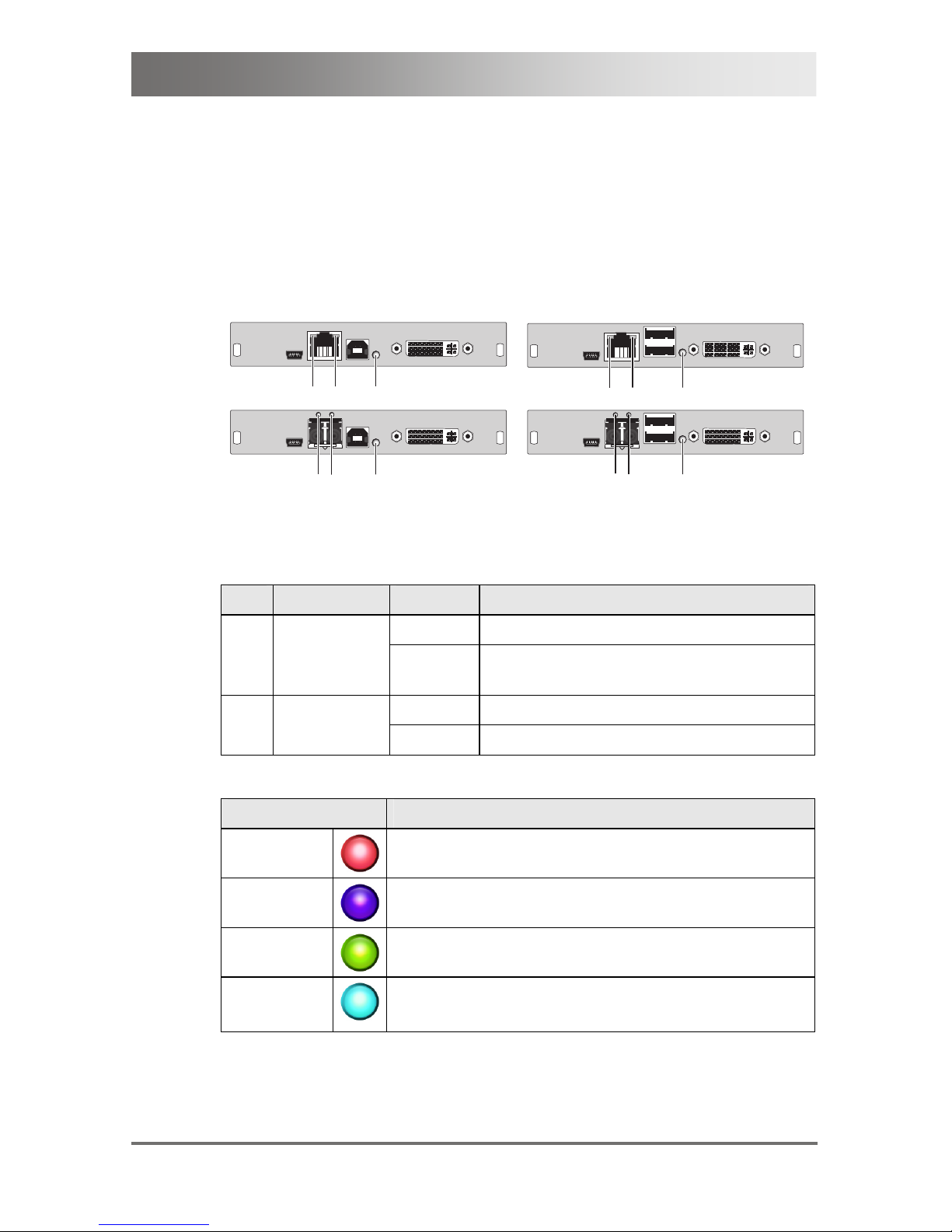

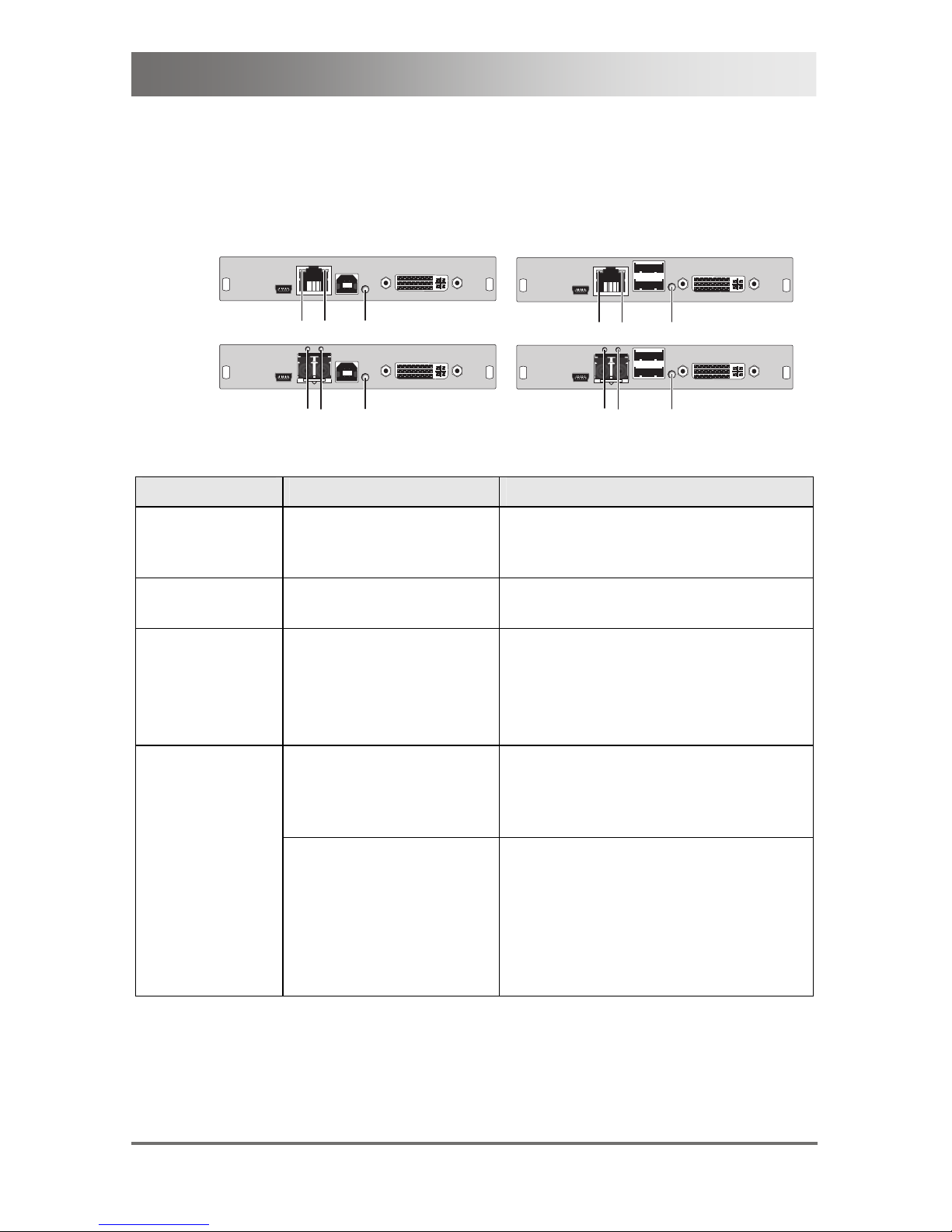

3.7.1 Status KVM Extender Module
The KVM Extender module is fitted with a multi color LED on both sides
for overall status indication and with two further LEDs on the back side for
indication of the connection status.
CPU Module CON Module
2
3
1
12
3
231
2
3
1
Rear View Rear View
LED 1 and 2: Connection Status
Pos. LED Status Description
Off Connection available 1
Failure LED
(green)
On or
Flashing
Connection failure (flashing for about
20 s following a connection failure)
Flashing No connection via interconnect cable 2
Status LED
(green)
On Connection available
LED 3: USB and Video Status
LED color Description
Red Device ready
Violet
Connection and USB signal (interconnect) available
Green Connection and video signal available
Light Blue
Connection, USB and video signal available
(operating status)
Pos: 48 /806-IHSE/Beschreibung/Diagnos e LEDs/474-xx/Dia gnose KVM-Extender-Mo dul VGA / DVI-I @ 6\mod_13045841 32098_6.doc @ 51183 @ 3 @ 1
Page 34
Draco KVM Extender
34 2013-03-12
3.7.2 Status KVM Extender Module VGA / DVI-I
The KVM Extender module with VGA / DVI-I input is fitted with a multicolor LED on the front side of the CPU Unit for indication of connection
status. Further information is available via on screen display (OSD) (see
manual for the Media / DVI Converter K238-5V (Download)).
CPU Module
Front View
LED 1: Connection Status VGA / DVI-I
LED color Description
Dark Red No video signal; monitor not detected
Red Video signal not supported; monitor not detected
Green Video signal supported; monitor not detected
Blue No video signal; monitor detected
Violet Video signal not supported; monitor detected
Light Blue Video signal supported; monitor detected
Pos: 49 /806-IHSE/Beschreibung/Diagnos e LEDs/474-xx/Dia gnose Zusatzmodul Digi tal-Audio @ 6\mod_130458 4173301_6.doc @ 51201 @ 3 @ 1
Page 35
Description
2013-03-12 35

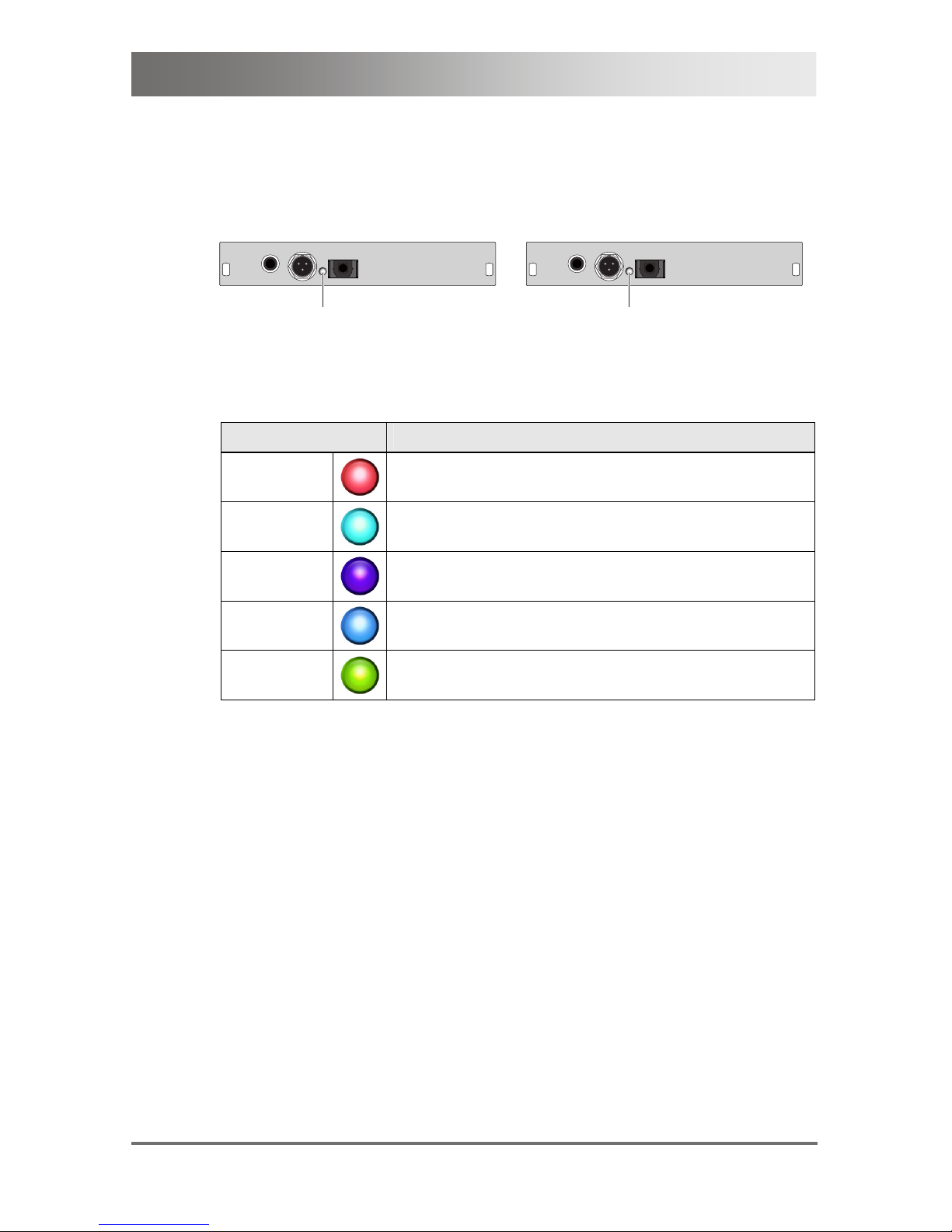

3.7.3 Status Upgrade Module Digital Audio
The upgrade module digital audio is fitted with a further multi-color LED on
the rear side for indication of the connection status:
CPU Module CON Module
1
1
Rear View Rear View
LED 1: Digital Audio Status
LED color Description
Red No signal
Light Blue CPU Unit: S/PDIF signal (RCA) available
Violet CPU Unit: AES/EBU signal (Mini-XLR) available
Blue CPU Unit: S/PDIF signal (TOSLINK) available
Green CON Unit: Signal available
Pos: 50 /806-IHSE/Beschreibung/Diagnos e LEDs/474-xx/Dia gnose Zusatzmodul USB- HID @ 6\mod_1304584220145_ 6.doc @ 51219 @ 3 @ 1
Page 36
Draco KVM Extender
36 2013-03-12

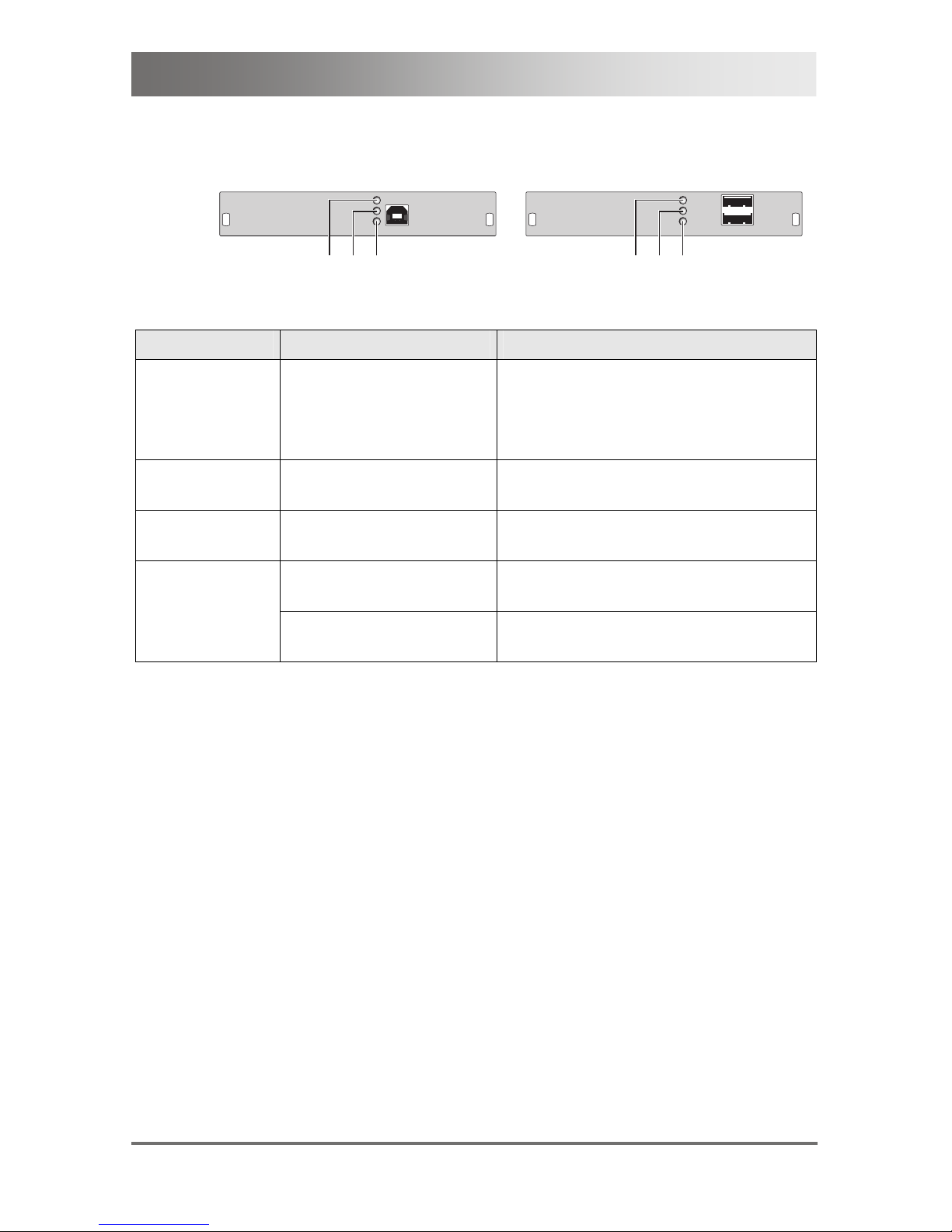

3.7.4 Status Upgrade Module USB-HID
The upgrade module USB-HID is fitted with three further LEDs on the rear
side for indication of the connection status:
CPU Module CON Module
1
23
1
23
Rear View Rear View
Pos. LED Status Description
Off
No USB-HID device or not supported
USB device connected
Flashing
fast
USB-HID device active
1, 2
Device LED
(orange)
On
USB-HID device ready or KVM
Extender in command mode
Off No power supply voltage
CPU Unit: KVM Extender in
command mode or no connection
CON Unit: Keyboard in command
mode
Flashing
slowly
CON Unit: KVM Extender in command
mode or no connection
3
Status LED
(orange)
Flashing
fast
Operating status
Pos: 51 /806-IHSE/Beschreibung/Diagnos e LEDs/474-xx/Dia gnose Zusatzmodul USB 2.0 emb edded @ 7\mod_1331803265 129_6.doc @ 58231 @ 3 @ 1
Page 37
Description
2013-03-12 37

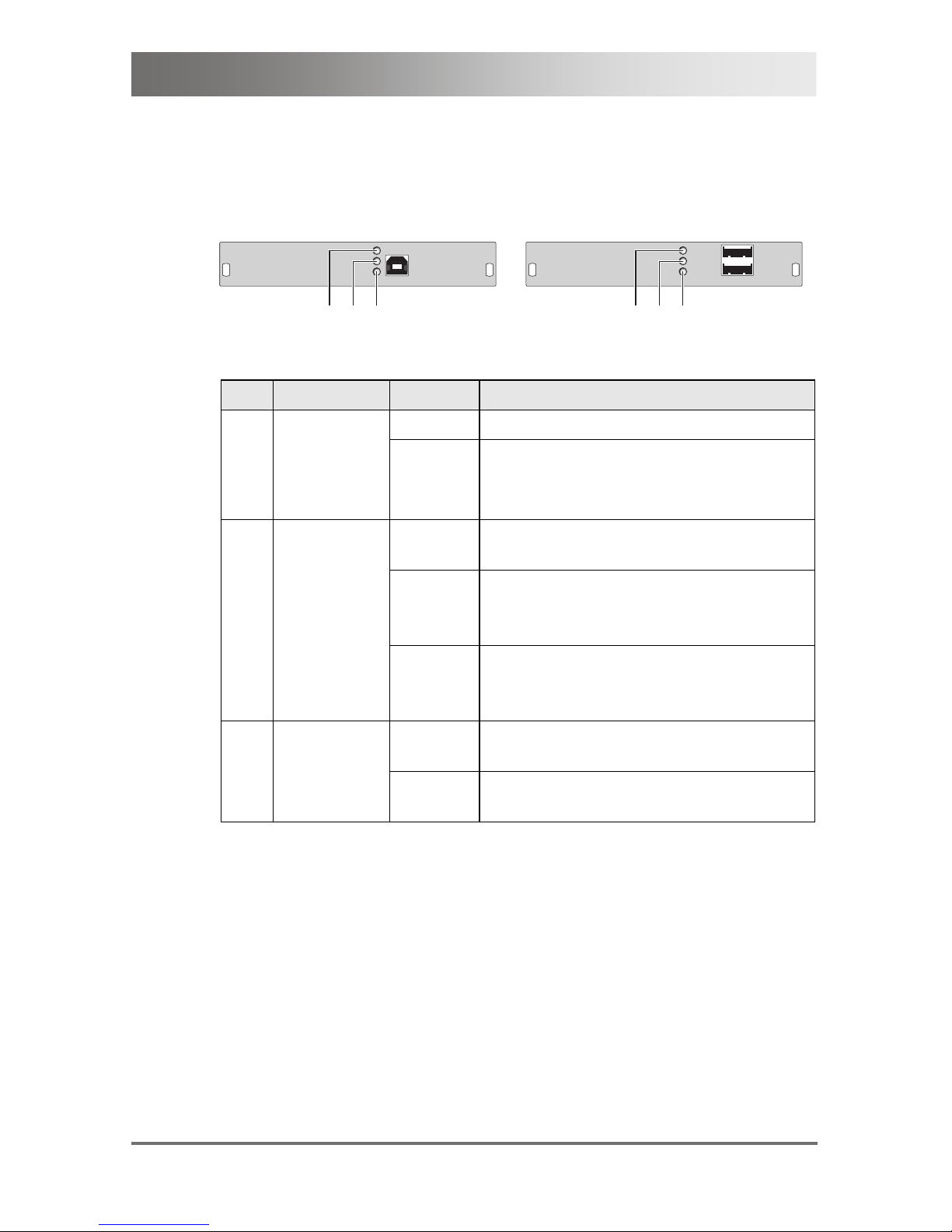

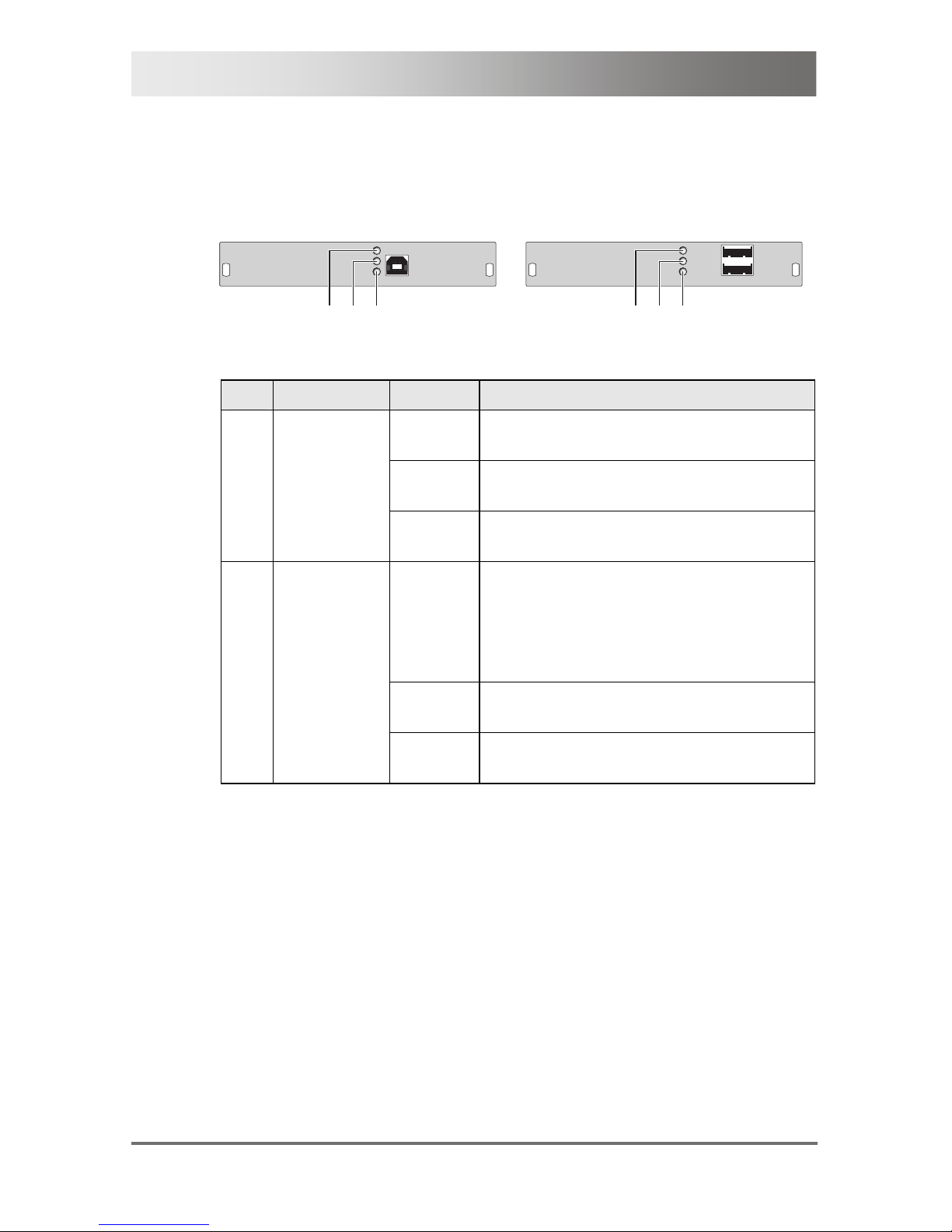

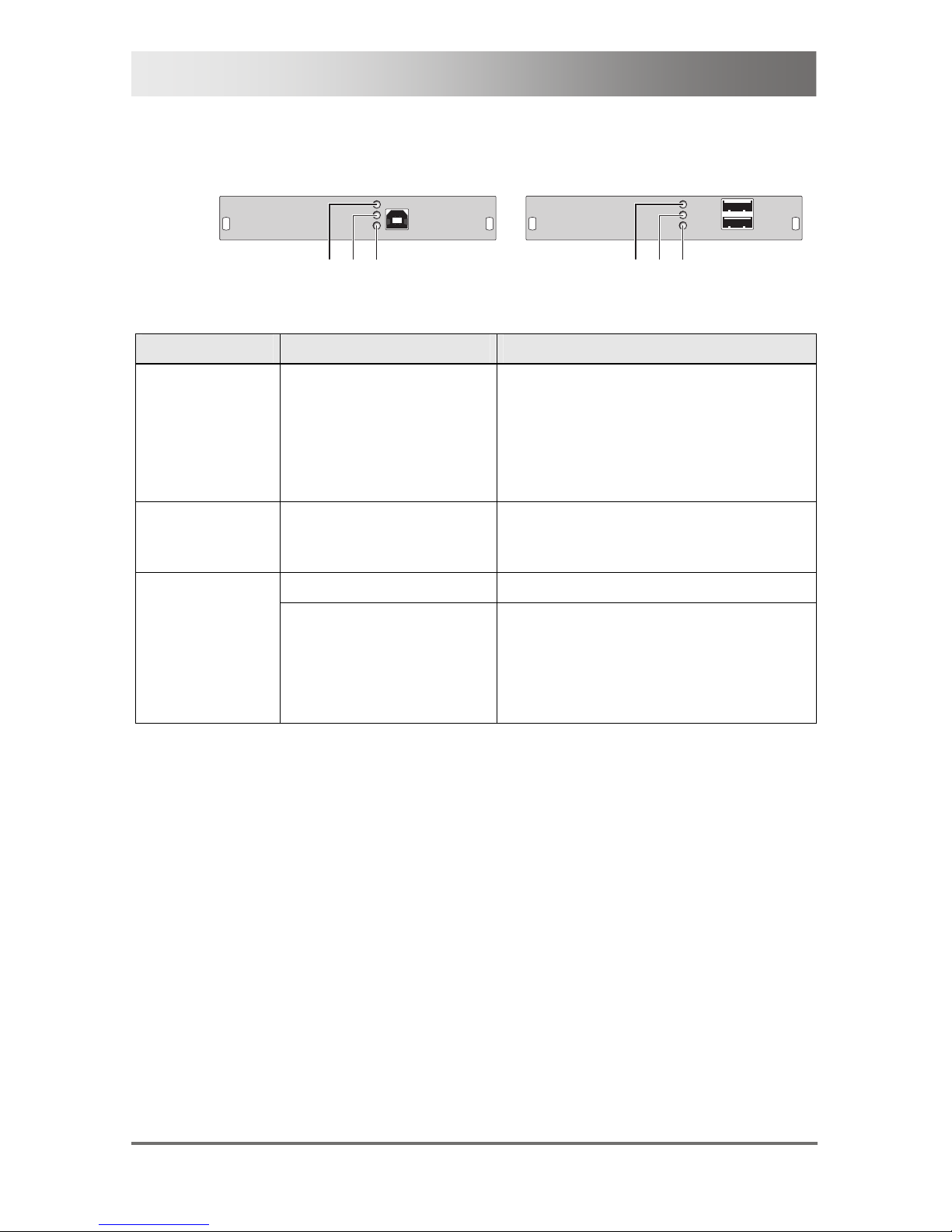

3.7.5 Status Upgrade module USB 2.0 embedded
The upgrade module USB 2.0 embedded is fitted with three further LEDs
on the rear side for indication of the connection status:
CPU Module CON Module
1
23
1
23
Rear View Rear View
Pos. LED Status Description
Off No USB 2.0 device connected 1
Status LED
(green)
Flashing
slowly
USB 2.0 device connected
Off
No connection to source (computer,
CPU) available
Flashing
slowly
Connection to source (computer,
CPU) available
No USB 2.0 device connected
2
Status LED
(green)
On
Connection to source (computer,
CPU) available
USB 2.0 device(s) connected
Off
No connection between CON and CPU
module
3
Status LED
(green)
On
Connection between CON and CPU
module available
Pos: 52 /806-IHSE/Beschreibung/Diagnos e LEDs/474-xx/Dia gnose Zusatzmodul USB 2.0 @ 6\mod_1304584254816_6.doc @ 51237 @ 3 @ 1
Page 38
Draco KVM Extender
38 2013-03-12

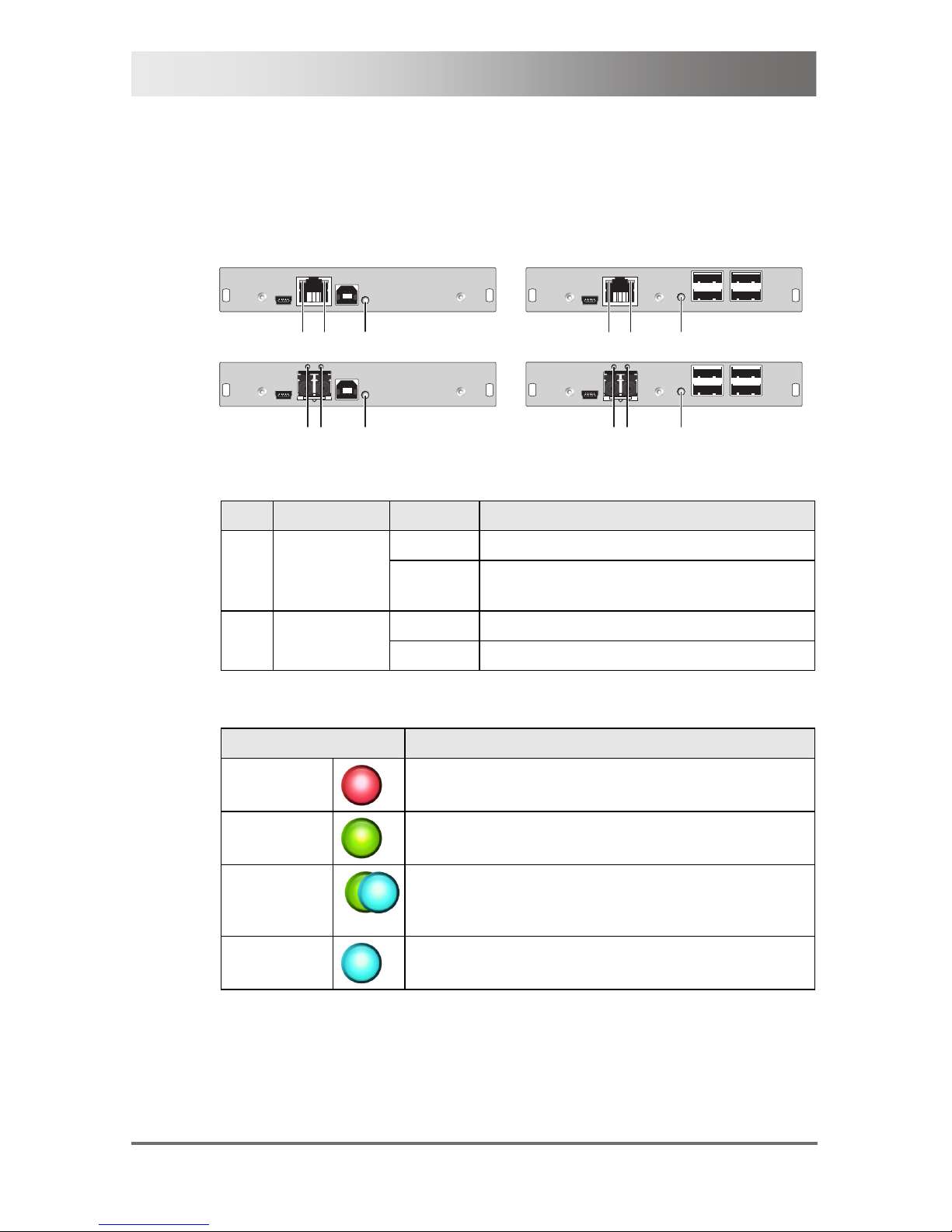

3.7.6 Status Upgrade Module USB 2.0
The upgrade module USB 2.0 is fitted with a multi color LED on both sides
for overall status indication and with two further LEDs on the back side for
indication of the connection status.
CPU Module CON Module
12
3
12
3
12
3
12
3
Rear View Rear View
Pos. LED Status Description
Off Connection available 1
Failure LED
(green)
On or
Flashing
Connection failure (flashing for about
20 s following a connection failure)
Off No connection via interconnect cable 2
Status LED
(green)
On Connection available
LED 3: USB 2.0 Status
LED color Description
Red
Device ready
Green
Only connection available, no USB 2.0 signal
Green /
light blue
flashing
Connection available, no USB 2.0 device
connected
Light blue
Connection and USB 2.0 signal available
(operating status)
Pos: 53 /806-IHSE/Installation/UEB_I nstallation @ 5\mod_12 78574971589_6.doc @ 41768 @ 1 @ 1
Page 39
Installation
2013-03-12 39
4 Installation
Pos: 54 /806-IHSE/Installation/Liefer umfang prüfen/47 4-xx @ 6\mod_1304584334 582_6.doc @ 51255 @ 2 @ 1
4.1 Package Contents
Your extender package contains the following items:
KVM Extender:
KVM Extender pair (CPU Unit and CON Unit) in the vario chassis
1x (redundancy 2x) 5VDC international power supply unit per KVM
Extender unit
1x (redundancy 2x) country specific power cord
Quick Setup
DVI video cable (1.8 m, DVI-D male-to-male)
USB cable (1.8 m, type A to type B)
Additional content for KVM Extender module VGA (replaces DVI-D
cable):
VGA cable (1.8 m, VGA male to DVI-I male)
Infrared remote control
Additional content for upgrade module Analog Audio / Serial:
Serial cable (1.8 m, D-Sub 9 male connector)
Stereo jack cable (1.6 m, 3.5 mm male connector)
Page 40
Draco KVM Extender
40 2013-03-12
Additional content for upgrade module serial (RS422):
Serial cable (1.8 m, D-Sub 9 male connector)
Additional content for upgrade module Digital Audio:
RCA cable (2.5 m, Cinch male connector)
TOSLINK cable (1.8 m, F05 male connector)
Additional content for upgrade module USB-HID:
USB cable (1.8 m, USB type A to type B)
Additional content for upgrade module PS/2:
2x PS/2 cable (1.8 m, 6-pole connector)
Additional content for upgrade module USB 2.0 embedded:
USB cable (1.8 m, USB type A to type B)
Additional content for upgrade module USB 2.0:
USB cable (1.8 m, USB type A to type B)
If anything is missing, contact your dealer.
Pos: 55 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 41
Installation
2013-03-12 41
Pos: 56 /806-IHSE/Installation/Syst em anschließen/474- xx @ 6\mod_1304584542160_6. doc @ 51273 @ 233 @ 1
4.2 System Setup
First time users are recommended to setup the system with the CPU Unit
and the CON Unit in the same room as a test setup. This will allow you to
identify and solve any cabling problems, and experiment with your system
more conveniently.
Please verify that interconnect cables, interfaces, and handling of the
devices comply with the requirements (see Chapter 7, Page 51).
4.2.1 KVM Extender Setup
1. Switch off all devices.
CON Unit Installation
2. Connect your monitor(s), keyboard and mouse to the CON Unit.
3. Connect the CON Unit with the interconnect cable(s).
4. Connect the 5VDC power supply to the CON Unit.
CPU Unit Installation
5. Connect the source (computer, CPU) with the supplied cables to the
CPU Unit. Please ensure the cables are not strained.
6. Connect the CPU Unit to the interconnect cable(s).
7. Connect the 5VDC power supply to the CPU Unit.
8. Power up the system.
To power up the system, the following sequence is recommended:
Monitor – CON Unit – CPU Unit – source.
The basic module with VGA / DVI-I input is connected as mentioned
above. For a complete and detailed description of the setup and
configuration of the VGA option, see the manual of the Media- / DVIConverter K238-5V (Download
).
Page 42
Draco KVM Extender
42 2013-03-12
4.2.2 Setup of Upgrade Modules
The modules can be hot plugged.
Upgrade Module Analog Audio / Serial:
1. Connect the audio source with the CPU Unit (e.g. CPU audio output
with audio input, CPU audio input with audio output).
2. Connect the audio output at the CON Unit with headphones or
suitable speakers.
3. Connect the audio input at the CON Unit with a suitable microphone.
Upgrade Module Serial RS422:
1. Connect the CPU to the CPU Unit by using the serial cable.
2. Connect the CON Unit to the serial connector of the input device.
Upgrade Module Digital Audio:
1. Connect the digital audio source with the suitable audio input of the
CPU Unit.
2. Connect the audio output of the CON Unit with suitable speakers or
audio amplifiers.
If several active sources are connected, Mini-XLR input takes priority.
The audio signal is available at all outputs.
Upgrade Module USB-HID:
1. Connect the CPU with the CPU Unit (USB-HID 2).
2. Connect the USB-HID devices with the CON Unit (Connect to
USB-HID devices 2).
Upgrade Module PS/2:
1. Connect the CPU to a CPU unit via proved PS/2 cables for PS/2
devices.
2. Connect the PS/2 devices to the CON unit (Connector to PS/2
devices).
Page 43
Installation
2013-03-12 43
Upgrade Module USB 2.0 Embedded:
1. Connect the CPU with the CPU Unit (USB 2.0).
2. Connect the USB 2.0 devices with the CON Unit (Connect to
USB 2.0 devices).
Upgrade Module USB 2.0:
1. Connect the CPU with the CPU Unit (USB 2.0).
2. Connect the USB 2.0 devices with the CON Unit (Connect to
USB 2.0 devices).
Pos: 57 /806-IHSE/Installation/Ins tallationsbeispi ele/UEB_Installati onsbeispiele @ 5\ mod_1278581564870_6. doc @ 42759 @ 2 @ 1
4.3 Example Applications
This section illustrates typical installations of KVM Extenders:
Pos: 58 /806-IHSE/Installation/Ins tallationsbeispi ele/477-xx_COMP @ 5\ mod_1291124264328_6.d oc @ 44767 @ @ 1
1
2
4
5
3
KVM Extender (Single-Head)
Page 44
Draco KVM Extender
44 2013-03-12
1
2
4
5
8
3
KVM Extender (Single-Head with Digital / Analog Audio)
1
2
4
5
7
6
3
KVM Extender (Dual-Head with 4x USB-HID)
1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with 2x USB 2.0 devices)
8 Audio sink (optional, only with devices with Analog Audio / Serial
option or Digital Audio option)
Page 45
Configuration
2013-03-12 45
5 Configuration
Pos: 60 /806-IHSE/Konfiguration/ Übertragungsparameter /477-xx @ 5\mod_127893700 2401_6.doc @ 43075 @ @ 1
5.1 Transmission Parameters
The device operates with a proprietary compression method.
In default configuration, the device adapts dynamically to monitor
resolution and image content. This configuration is suitable for almost all
conditions and should only be modified if image quality is not fully
satisfactory.
In exceptional cases there can appear detached "frame droppings" (loss
of single pictures) or color effects.
Pos: 61 /806-IHSE/Konfiguration/DDC-Ei nstellungen/477- xx @ 5\mod_1278937107542_6. doc @ 43093 @ 2 @ 1
5.2 DDC Settings
By default, the device transmits the factory preset DDC information to the
CPU. This information is suitable in most cases.
The download of the DDC information of the console monitor can be
performed during normal operation (see Chapter 6.1, Page 50).
Fo
r special requirements, DDC information can be retrieved and uploaded
as a binary file at both the CPU Unit and the CON Unit.
Connect your computer with a USB mini cable to the service port of the
CPU Unit or CON Unit.
The data area of the unit is now accessible as a flash drive "Extender".
Uploading DDC Information
Copy the binary file containing your specific DDC information to the flash
drive of the CPU Unit or CON Unit.
The current DDC information is replaced.
Retrieving DDC Information
Copy the file "DDC-EDID.bin" on the flash drive of the CPU Unit to your
computer.
To open the binary file, you have to install a suitable software, e.g.
WinDDCwrite (Download
), on your computer.
Reset to Factory DDC Information
Delete the file called "DDC-EDID.bin" on the flash drive of the CPU Unit.
By deleting this file, the factory DDC Information is restored.
Page 46
Draco KVM Extender
46 2013-03-12
Pos: 62 /806-IHSE/Konfiguration/Ko mmando-Modus/474- xx @ 6\mod_1304585026863_6. doc @ 51291 @ 2 @ 1
5.3 Command Mode
During normal use, the console keyboard functions in the usual manner.
However, for all KVM Extenders with USB-HID support, you can set the
keyboard into a Command Mode by using a specific 'Hot Key' sequence.
While in Command Mode, several functions are performed via keyboard
commands. To exit Command Mode, press <Esc>.
While in Command Mode, the LEDs Shift and Scroll on the console
keyboard will flash.
In Command Mode normal keyboard and mouse operation will cease.
Only selected keyboard commands are available.
If there is no keyboard command executed within 10 s after activating
Command Mode, it will be automatically deactivated.
The following table lists the keyboard commands to enter and to exit
Command Mode and to change the 'Hot Key' sequence:
Function Keyboard Command
Enter Command Mode (default) 2x <Left Shift> / ('Hot Key')
Exit Command Mode <Esc>
Change 'Hot Key' sequence <current 'Hot Key'>, <c>,
<new 'Hot Key' code>, <Enter>
Until 2011-30-09:
<Left Ctrl> + <Left Shift> + <c>,
<'Hot Key' Code>, <Enter>
<Key> + <Key> Press keys simultaneously
<Key>, <Key> Press keys successively
2x <Key> Press key quickly, twice in a row
(similar to a mouse double-click)
Page 47
Configuration
2013-03-12 47
The 'Hot Key' sequence to enter Command Mode can be changed. The
following table lists the 'Hot Key' Codes for the available key sequences:
'Hot Key' Code 'Hot Key'
0 Freely selectable (from 2012-01-12)
2 2x <Scroll>
3 2x <Left Shift>
4 2x <Left Ctrl>
5 2x <Left Alt>
6 2x <Right Shift>
7 2x <Right Ctrl>
8 2x <Right Alt>
Set freely selectable 'Hot Key' (exemplary)
In order to set a freely selectable 'Hot Key' (e.g. 2x <Space>), use the
following keyboard sequence:
<current 'Hot Key'>, <c>, <0>, <Space>, <Enter>
Reset 'Hot Key'
In order to set a 'Hot Key' back to default settings of the extender, press
the key combination <Right Shift> + <Del> within 5 s after switching on the
CON unit or plugging in a keyboard.
Pos: 63 /806-IHSE/Konfiguration/ USB-HID-Ghosting/K477_ USB-HID-Ghosting @ 9\ mod_1362404683851_6. doc @ 71192 @ 2 @ 4
Page 48
Draco KVM Extender
48 2013-03-12
5.4 USB-HID Ghosting
This function allows storing the specific keyboard and mice descriptors
(device descriptions) into the CPU unit. This permanent storage prevents
the registration and deregistration process of keyboard and mouse on an
operating system each time, if there is a shared use of a source
(computer, CPU) by two or more consoles within a KVM matrix.
The following table lists the keyboard commands for the configuration of
USB-HID Ghosting:
Function Keyboard Command
Writing the device descriptions of
the input devices connected to the
CON Unit into the CPU Unit.
Activating the emulation in the
CPU Unit.
<'Hot Key'>, <h>, <w>, <Enter>
Activating the emulation of
already stored device descriptions
in the CPU Unit
<'Hot Key'>, <h>, <e>, <Enter>
Deactivating the emulation of
active device descriptions in the
CPU Unit. The input devices
connected to the CON Unit will be
now passed transparently to the
source (computer, CPU).
<'Hot Key', <h>, <d>, <Enter>
Deactivating the emulation of
active device descriptions in the
CPU Unit. Deleting the
descriptions out of the CPU Unit.
The input devices connected to
the CON Unit will be now passed
transparently to the source
(computer, CPU).
<'Hot Key', <h>, <r>, <Enter>
Pos: 64 /806-IHSE/Konfiguration/474 _Konfigurationsdat ei/474-xx @ 7\mod_133 1801555639_6.doc @ 58172 @ 2 @ 1
Page 49
Configuration
2013-03-12 49
5.5 Configuration File
The KVM Extender contains a configuration file (Config.txt) to set specific
parameters and to read out device and video information. You can find it
on the flash drive of the KVM Extender. The flash drive can be opened by
a mini USB connection to a computer.
The configuration file can be edited with all common text editors.
The individual settings of the parameters are described in the respective
chapters.
Pos: 65 /806-IHSE/Betrieb/UEB_Betri eb @ 5\mod_1278577614980_6. doc @ 41970 @ 1 @ 1
Page 50
Draco KVM Extender
50 2013-03-12
6 Operation
Pos: 66 /806-IHSE/Betrieb/Laden von DDC-Inf ormationen/477-xx @ 5\mod_127 8937455136_6.doc @ 43130 @ 2 @ 1
6.1 Download of DDC Information
By default, data from the internal DDC list is reported to the source
(computer, CPU). If these settings do not lead to a satisfying result, the
DDC information of the console monitor can be downloaded and stored
internally. The devices have to be configured accordingly (see
Chapter 5.2, Page 45).
On all KVM Extenders with USB-HID support, the user can load the DDC
information of the console monitor via keyboard command under operating
conditions.
1. Enter Command Mode with the 'Hot Key' (see Chapter 5.2, Page 45).
2.
Press the ke
y <a> to download the DDC information of the console
monitor.
The screen goes black for a short time.
At the same time Command Mode is closed and the keyboard LEDs
return to previous status.
The video mode has been readjusted. Screen quality should be
optimal. The CPU should now show the console monitor as the
current screen, together with the available video resolutions.
The DDC information of the console monitor was loaded once.
Reloading is possible by repeating the operation.
Pos: 67 /806-IHSE/Technische Daten/UEB_ Technische Daten @ 5\mod_12 78578165261_6.doc @ 42096 @ 1 @ 1
Page 51
Specifications
2013-03-12 51
7 Specifications
Pos: 68 /806-IHSE/Technische Daten/Sc hnittstellen/UEB_Sc hnittstellen @ 5\mod_12 78578201870_6.doc @ 42114 @ 2 @ 1
7.1 Interfaces
Pos: 69 /806-IHSE/Technische Daten/Sc hnittstellen/DVI- D-Single-Link @ 5\mod_127 8578254058_6.doc @ 42132 @ 3 @ 1
7.1.1 DVI-D Single Link
The video interface supports the DVI-D protocol. All signals that comply to
DVI-D Single Link norm can be transmitted. This includes e.g. monitor
resolutions such as 1920x1200@60Hz, Full HD (1080p) or 2K HD (up to
2048x1152). Data rate is limited to 165 MPixel/s.
Pos: 70 /806-IHSE/Technische Daten/Sc hnittstellen/DVI- I-Single-Link @ 5\ mod_1291127308328_6.doc @ 44809 @ @ 1
7.1.2 DVI-I Single Link
The video interface supports the DVI-I protocol. All analog (VGA) or digital
(DVI) signals that comply to DVI-I Single Link norm can be transmitted.
This includes e.g. monitor resolutions such as 1920x1200@60Hz, Full HD
(1080p) or 2K HD (up to 2048x1152). Data rate is limited to 165 MPixel/s.
Pos: 71 /806-IHSE/Technische Daten/Sc hnittstellen/USB- HID @ 5\mod_1278578292214_ 6.doc @ 42150 @ 3 @ 1
7.1.3 USB-HID
Our devices with USB-HID interface support a maximum of two devices
with USB-HID protocol. Each USB-HID port provides a maximum current
of 100 mA.
Keyboard
Compatible with most USB keyboards. Certain keyboards with additional
functions may require custom firmware to operate. Keyboards with an
integral USB Hub (Mac keyboards e.g.) are also supported.
Mouse
Compatible with most 2-button, 3-button and scroll mice.
Page 52
Draco KVM Extender
52 2013-03-12
Other USB-HID devices
The proprietary USB emulation also supports certain other USB-HID
devices, such as specific touch screens, graphic tablets, barcode
scanners or special keyboards. Support cannot be guaranteed, however,
for every USB-HID device.
Only two USB-HID devices are supported concurrently, such as keyboard
and mouse or keyboard and touch screen. A hub is allowed, but it does
not increase the number of HID devices allowed.
To support other USB 'non-HID' devices, such as scanners, web cams or
memory devices, choose our devices with transparent USB support.
Pos: 72 /806-IHSE/Technische Daten/Sc hnittstellen/PS/2 @ 9\mod_1362475419529_6.doc @ 71291 @ 3 @ 4
7.1.4 PS/2
Our devices with PS/2 interface support the use of a PS/2 keyboard and
mouse.
Keyboard
Compatible with most PS/2 keyboards, even with various special
keyboards. Certain keyboards with additional functions can be run with
special firmware.
Mouse
Compatible with most 2-button, 3-button and scroll mice.
Pos: 73 /806-IHSE/Technische Daten/Sc hnittstellen/474- xx (USB 2.0 (transparent) ) @ 7\mod_1331801757497 _6.doc @ 58190 @ 3 @ 1
7.1.5 USB 2.0 (transparent)
KVM Extender models with transparent USB 2.0 support allow the
connection of all types of USB 2.0 devices (without restriction). USB 2.0
data transfer is supported, depending on the upgrade module, with USB
high speed (max. 480 Mbit/s) or USB Full Speed (max. 12 Mbits).
Each USB 2.0 port provides a maximum current of 500 mA (high power).
Pos: 74 /806-IHSE/Technische Daten/Sc hnittstellen/RJ45 (G erätekommunikation) @ 5\mod_1278578339308 _6.doc @ 42186 @ 3 @ 1
7.1.6 RJ45 (Interconnect)
The communication of the Cat X devices requires a 1000BASE-T
connection.
Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with
RJ45 connectors at both ends. All four cable wire pairs are used.
Pos: 75 /806-IHSE/Technische Daten/Sc hnittstellen/Glasf aser SFP Typ LC @ 5\mod_127893 7700855_6.doc @ 43149 @ 3 @ 1
Page 53
Specifications
2013-03-12 53
7.1.7 Fiber SFP Type LC (Interconnect)
The communication of fiber devices is performed via Gigabit SFPs that
have to be connected to suitable fibers fitted with connectors type LC ().
The correct function of the device can only be guaranteed with SFPs
provided by the manufacturer.
SFP modules can be damaged by electrostatic discharge (ESD).
Please consider ESD handling specifications.
Pos: 76 /806-IHSE/Technische Daten/Sc hnittstellen/Seri elle Schnittstelle @ 5\ mod_1291127444390_6. doc @ 44828 @ @ 1
7.1.8 Serial Interface
The serial interface option supports a full-duplex transmission with a real
hardware handshake up to a Baud rate of 19,200 Baud.
The CON Unit is cabled as DTE (Data Terminal Equipment, like CPU
output) and can be connected directly to DCE devices (Data
Communication Equipment).
A touch screen can be connected directly to the CON Unit.
To connect to a serial printer (or any other DTE instead of DCE
device), you need a null modem cable (crossed cable) between CON
Unit and the device.
Operation of several devices:
The serial interface transmits 6 signals (3 for each direction). Normally,
4 of the 6 signals are handshake signals (in addition to RxD and TxD).
The following configurations, however, can be realized using special
adapter splitting cables:
Three single 2-wire transmissions
Two transmissions with a handshake signal
A serial mouse and a single 2-wire transmission.
In this case, choose X-ON / X-OFF software handshake for traffic control
at printer and PC.
Page 54
Draco KVM Extender
54 2013-03-12
Connection Format
DTE (Data Terminal Equipment)
Speed
Up to 19,200 Baud
Data Format
Format independent
Data Transmission
RxD (Receive Data)
TxD (Transmit Data)
Traffic Control
The following signals are transmitted
(hardware handshake):
RTS (Request To Send)
CTS (Clear To Send)
DTR (Data Terminal Ready)
DSR (Data Set Ready)
Pos: 77 /806-IHSE/Technische Daten/Sc hnittstellen/474- xx (Analoge Audio-Schni ttstelle) @ 7\mod_13 32491046975_6.doc @ 58270 @ 3 @ 1
7.1.9 Analog Audio Interface
The analog audio option supports a bidirectional stereo audio
transmission, in nearly CD quality.
The audio interface is a 'line level' interface and it is designed to transmit
the signals of a sound card (or another 'line level' device) as well as to
allow the connection of active speakers to the CON Unit.
Stereo audio can be transmitted bidirectionally at the same time.
Connection of a microphone:
Connect the microphone to the 'audio' input of the CON Unit. There are
two ways to establish this connection:
The output of the CPU Unit is connected with the microphone input of
the sound card (red). Adjust the sound card to provide an additional
amplification (20 dB).
The output of the CPU Unit is connected to the audio input of the
sound card (blue). Choose this connection if the microphone has its
own pre-amplifier.
The CON Unit can do the pre-amplification of the microphone as well.
Open the CON Unit, locate the 'MIC' jumper on the audio board and close
the pins.
Page 55
Specifications
2013-03-12 55
Specifications Analog Audio
Transmission Format Digitized virtually CD quality audio
(16 bit, 38.4 KHz)
Signal Level
Line-Level (5 Volt Pk-Pk maximum)
Input Impedance
47 KOhm
Connections CPU Unit 2x 3.5 mm stereo jack plug
(audio in & audio out)
Connections CON Unit 2x 3.5 mm stereo jack plug
(audio in & audio out)
Specifications Analog Audio USB 2.0
Transmission Format Digitized virtually CD quality audio, 16 bit
(8, 11.025, 16, 22.05, 32, 44.1, 48 KHz)
Signal Level
Line-Level (5 Volt Pk-Pk maximum)
Input Impedance
20 KOhm
Connections CPU Unit
1x USB type B female connector
Connections CON Unit 2x 3.5 mm stereo jack plug
(audio in & audio out)
Pos: 78 /806-IHSE/Technische Daten/Sc hnittstellen/Seri elle Schnittstelle RS422 @ 9\mod_1362475591209 _6.doc @ 71309 @ 3 @ 4
7.1.10 Serial Interface RS422
KVM Extenders with a serial interface RS422 (D-Sub 9) support a
differential full duplex transmission up to a Baud rate of 115,200 Baud.
The CPU unit is designed as controlling device and so can be for example
connected directly to video or media servers.
The CON unit is designed as a controlled device and so can be connected
directly to remote controllers.
Connection Format
Sony Standard
Speed
Up to 115,200 Baud
Data Format
Format independent
Data Transmission
Rx + (Receive Data)
Rx – (Receive Data)
Tx + (Transmit Data)
Tx – (Transmit Data)
Pos: 79 /806-IHSE/Technische Daten/Sc hnittstellen/474- xx (Digital Audio-Sc hnittstellen) @ 6\ mod_1304585776832_6.doc @ 51309 @ 3 @ 1
Page 56
Draco KVM Extender
56 2013-03-12
7.1.11 Digital Audio Interface
The digital audio option supports the unidirectional transmission of digital
audio data.
Up to three sources can be connected to the CPU Unit. The active source
is transmitted. If several sources are active, the XLR signal takes priority,
otherwise the first active signal.
The three connectors on the CON Unit all concurrently provide digital
audio.
KVM Extender with digital audio option include an inbuilt sample rate
converter that allows to provide predefined sample frequencies at the
output of the CON unit.
The user can set directly the following parameters by using a configuration
file:
Activate or deactivate sample rate converter in the Config.txt file on
the flash drive of the KVM Extender.
If the sample rate converter is activated, the following characteristics
are valid:
140 dB dynamic range and -120 dB total harmonic distortion + noise.
Set sample frequency of the sample rate converter by writing the
parameter in a new line. The following sample frequencies are
available:
– 32.0 kHz (write SRC32000 in Config.txt file of the CPU unit)
– 44.1 kHz (write SRC44100 in Config.txt file of the CPU unit)
– 48.0 kHz (write SRC48000 in Config.txt file of the CPU unit)
– 96.0 kHz (write SRC96000 in Config.txt file of the CPU unit)
To deactivate the sample rate converter, write SRC_NONE in the
Config.txt file of the CPU unit.
Page 57
Specifications
2013-03-12 57
Compatibility
AES/EBU, S/PDIF, EIAJ CP1201,
IEC 60958
Standards
Dolby Digital, DTS, PCM
Bit Depth
24 bit
Sample Rate
32 to 96 kHz
CPU Unit (Inputs) Mini-XLR (AES/EBU; symmetrical,
lockable)
Coaxial (S/PDIF; RCA, Cinch)
Optical (S/PDIF; TOSLINK)
CON Unit (Outputs) Mini-XLR (AES/EBU; symmetrical,
lockable)
Coaxial (S/PDIF; RCA, Cinch)
Optical (S/PDIF; TOSLINK)
Pos: 80 /806-IHSE/Technische Daten/Verbi ndungskabel/UEB_V erbindungskabel @ 5\ mod_1279191107845_6.d oc @ 43870 @ 2 @ 1
7.2 Interconnect Cable
Pos: 81 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (Cat X) @ 5\ mod_1278578406026_6.doc @ 42205 @ 3 @ 1
7.2.1 Cat X
A point-to-point connection is required. Operation with several patch fields
is possible. Routing over an active network component, such as an
Ethernet Hub, Router or Matrix, is not allowed.
Avoid routing Cat X cables along power cables.
If the site has 3-phase AC power, try to ensure that CPU Unit and
CON Unit are on the same phase.
To maintain regulatory EMC compliance, correctly installed shielded Cat X
cable must be used throughout the interconnection link.
To maintain regulatory EMC compliance, all Cat X cables need to carry
ferrites on both cable ends close to the device.
Page 58
Draco KVM Extender
58 2013-03-12
Type of Interconnect Cable
The KVM Extender requires interconnect cabling specified for Gigabit
Ethernet (1000BASE-T). The use of solid-core (AWG24), shielded, Cat 5e
(or better) is recommended.
Cat X Solid-Core Cable
AWG24
S/UTP (Cat 5e) cable according to EIA/TIA568-B. Four pairs of wires AWG24.
Connection according to EIA/TIA-568-B
(1000BASE-T).
Cat X Patch Cable
AWG26/8
S/UTP (Cat 5e) cable according to EIA/TIA568-B. Four pairs of wires AWG26/8.
Connection according to EIA/TIA-568-B
(1000BASE-T).
The use of flexible cables (patch cables) type AWG26/8 is possible,
however the maximum possible extension distance is halved.
Pos: 82 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (Cat X)_Kab ellänge 477- xx @ 5\mod_1278937761105_6. doc @ 43167 @ @ 1
Maximum Acceptable Cable Length
Cat X Installation Cable
AWG24
140 m (400 ft)
Cat X Patch Cable
AWG26/8
70 m (200 ft)
Pos: 83 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_134858182051 6_0.doc @ 69462 @ @ 1
Page 59
Specifications
2013-03-12 59
Pos: 84 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (LW L) @ 5\mod_1278937967667_6. doc @ 43186 @ @ 1
7.2.2 Fiber
A point-to-point connection is necessary. Operation with multiple patch
panels is allowed. Routing over active network components, such as
Ethernet Hubs, Switches or Routers, is not allowed.
Type of Interconnect Cable
(Cable notations according to VDE)
Type of cable Specifications
Single-mode 9μm Two fibers 9μm
I-V(ZN)H 2E9 (in-house patch cable)
I-V(ZN)HH 2E9 (in-house breakout cable)
I/AD(ZN)H 4E9 (in-house or outdoor
breakout cable, resistant)
A/DQ(ZN)B2Y 4G9 (outdoor cable, with
protection against rodents)
Multi-mode 50μm Two fibers 50μm
I-V(ZN)H 2G50 (in-house patch cable)
I/AD(ZN)H 4G50 (in-house or outdoor
breakout cable, resistant)
Multi-mode 62.5μm Two fibers 62.5μm
I-V(ZN)HH 2G62,5 (in-house breakout
cable)
A/DQ(ZN)B2Y 4G62,5 (outdoor cable,
with protection against rodents)
Maximum Acceptable Cable Length
Type of cable Maximum Acceptable Cable Length
Single-mode 9μm 10,000 m (32,800 ft)
Multi-mode 50μm (OM3) 1,000 m (3,280 ft)
Multi-mode 50μm 400 m (1,300 ft)
Multi-mode 62.5μm 200 m (650 ft)
If you use single-mode SFPs with multi-mode fibers, you normally can
double the maximum acceptable cable length.
Pos: 85 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (LW L)_Steckverbinder 477- xx @ 5\mod_1278954447542 _6.doc @ 43740 @ @ 1
Type of Connector
Connector
LC Connector
Pos: 86 /806-IHSE/Technische Daten/Un terstützte Peripher ie/UEB_Unterstütz te Peripherie @ 5\mod_127 8578478761_6.doc @ 42242 @ 2 @ 1
Page 60
Draco KVM Extender
60 2013-03-12
7.3 Supported Peripherals
Pos: 87 /806-IHSE/Technische Daten/Un terstützte Peripher ie/USB-HID-Geräte @ 5\ mod_1278578523558_6. doc @ 42260 @ @ 1
7.3.1 USB-HID Devices
The KVM Extender will support most USB-HID devices, including the vast
majority of keyboards and mice currently on the market. Many other kinds
of HID devices such as bar-code scanners and touch screens may also be
compatible
It is not possible to guarantee support for all available USB-HID devices.
In certain cases, custom firmware may be required.
USB-HID (and other) devices that are not supported as standard will
normally operate with our devices featuring transparent USB support.
Please note that concurrent operation of more than two USB-HID devices
is not possible even if you use a USB hub.
Pos: 88 /806-IHSE/Technische Daten/Un terstützte Peripher ie/USB-2.0-Geräte @ 5\ mod_1278578553933_6. doc @ 42278 @ @ 1
7.3.2 USB 2.0 Devices
KVM Extender models featuring a transparent USB 2.0 connection use
Extreme USB Technology from Icron Technologies.
This technology supports all types of USB 2.0 devices, however the
manufacturer cannot guarantee compatibility with every device on the
market. Please contact your dealer if any issues are found.
Pos: 89 /806-IHSE/Technische Daten/Pinbe legungen/UEB_Pinb elegungen @ 5\mod_12785 78683636_6.doc @ 42315 @ 2 @ 1
Page 61
Specifications
2013-03-12 61
7.4 Connector Pinouts
Pos: 90 /806-IHSE/Technische Daten/Pinbe legungen/Buchse DVI -D Single-Link @ 5\mod_12 78578723073_6.doc @ 42333 @ @ 1

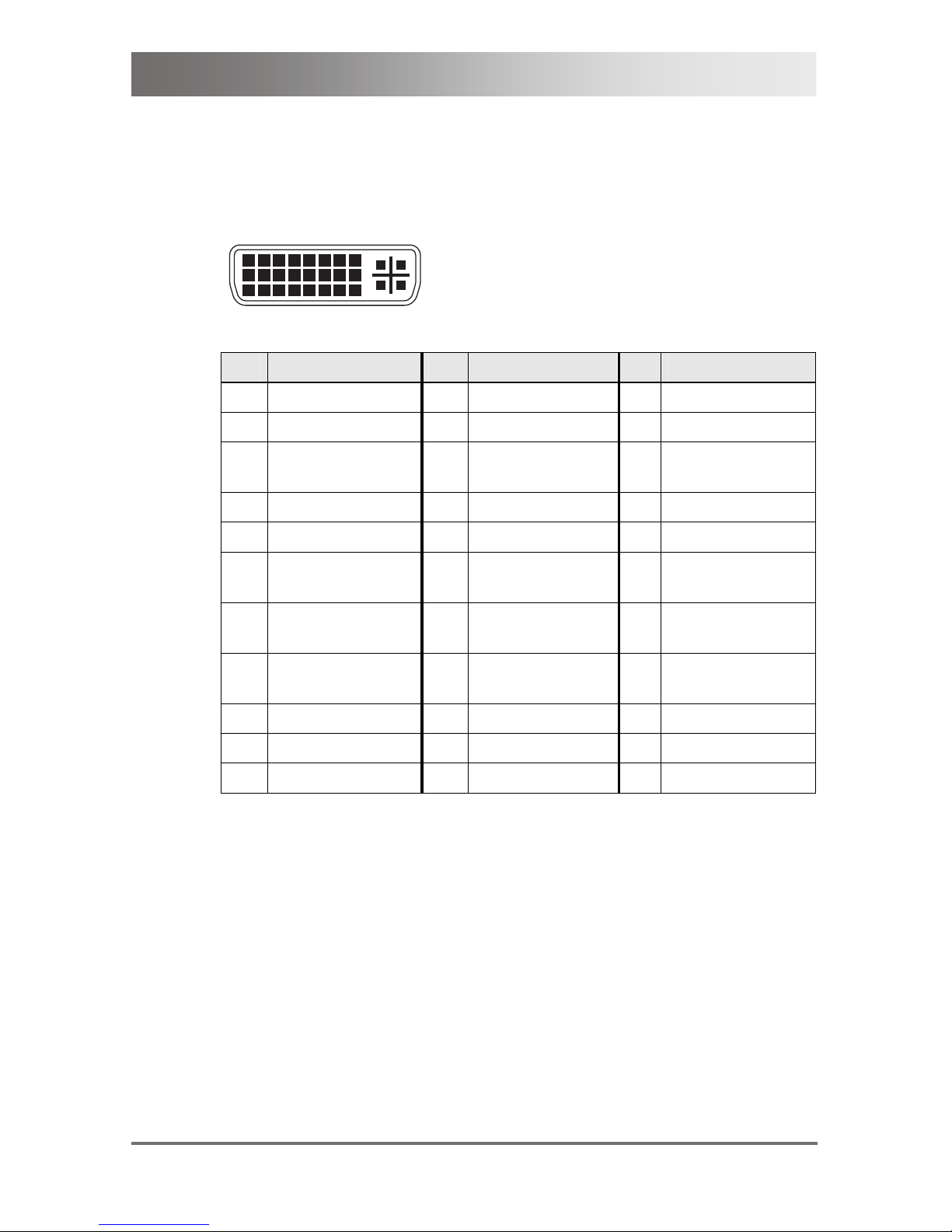

Connector DVI-D Single-Link
1.............................8 C1 C2
C5
17...........................24
C3 C4
Pin Signal Pin Signal Pin Signal
1 T.M.D.S data 2 – 9 T.M.D.S data 1 – 17 T.M.D.S data 0 –
2 T.M.D.S data 2 + 10 T.M.D.S data 1 + 18 T.M.D.S data 0 +
3
T.M.D.S data 2
GND
11
T.M.D.S data 1
GND
19
T.M.D.S data 0
GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14
+5VDC high
impedance
22
T.M.D.S clock
GND
7
DDC Output
(SDA)
15 GND 23 T.M.D.S clock +
8 Internal use 16
Hot Plug
recognition
24 T.M.D.S clock –
C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use
Pos: 91 /806-IHSE/Technische Daten/Pinbe legungen/Buchse DVI -I Single-Link @ 5\mod_129 1134800734_6.doc @ 45577 @ @ 1
Page 62
Draco KVM Extender
62 2013-03-12
Connector DVI-I Single-Link
1.............................8 C1 C2
C5
17...........................24
C3 C4
Pin Signal Pin Signal Pin Signal
1 T.M.D.S data 2– 9 T.M.D.S data 1– 17 T.M.D.S data 0–
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+
3
T.M.D.S data 2
GND
11
T.M.D.S data 1
GND
19
T.M.D.S data 0
GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14
+5VDC high
impedance
22
T.M.D.S clock
GND
7
DDC Output
(SDA)
15 GND 23 T.M.D.S clock+
8 V-sync 16
Hot Plug
recognition
24 T.M.D.S clock–
C1 Red signal C3 Blue signal
C2 Green signal C5 GND C4 H-sync
Pos: 92 /806-IHSE/Technische Daten/Pinbe legungen/Buchse USB Typ B @ 5\mod_1278578750464 _6.doc @ 42351 @ @ 1
Connector USB Type B
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
132
4
4 GND Black
Pos: 93 /806-IHSE/Technische Daten/Pinbe legungen/Buchse USB Typ A @ 5\mod_1278578771214_ 6.doc @ 42369 @ @ 1
Page 63
Specifications
2013-03-12 63
Connector USB Type A
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
1
3
2 4
4 GND Black
Pos: 94 /806-IHSE/Technische Daten/Pinbe legungen/Buchse Mini-USB Typ B @ 5\mod_127857879 4167_6.doc @ 42387 @ @ 1
Connector Mini USB Type B
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –
....5
1
5 GND Black
Pos: 95 /806-IHSE/Technische Daten/Pinbe legungen/Buchse PS/ 2 @ 9\mod_1362476953272_ 6.doc @ 71329 @ @ 4
Connector PS/2
Picture Pin Signal
1 DATA
2 GND
3 VCC (+ 5VDC)
4 CLK
5 n.c.
6 n.c.
Pos: 96 /806-IHSE/Technische Daten/Pinbe legungen/RJ45 @ 5\mod_1 278578820011_6.doc @ 42405 @ @ 1
RJ45
Picture Pin Signal Pin Signal
1 D1+ 5 D3–
2 D1– 6 D2–
3 D2+ 7 D4+
8..........1
4 D3+ 8 D4–
Pos: 97 /806-IHSE/Technische Daten/Pinbe legungen/Glasfaser SFP Typ LC @ 5\mod_127893850 1151_6.doc @ 43210 @ @ 1
Page 64
Draco KVM Extender
64 2013-03-12

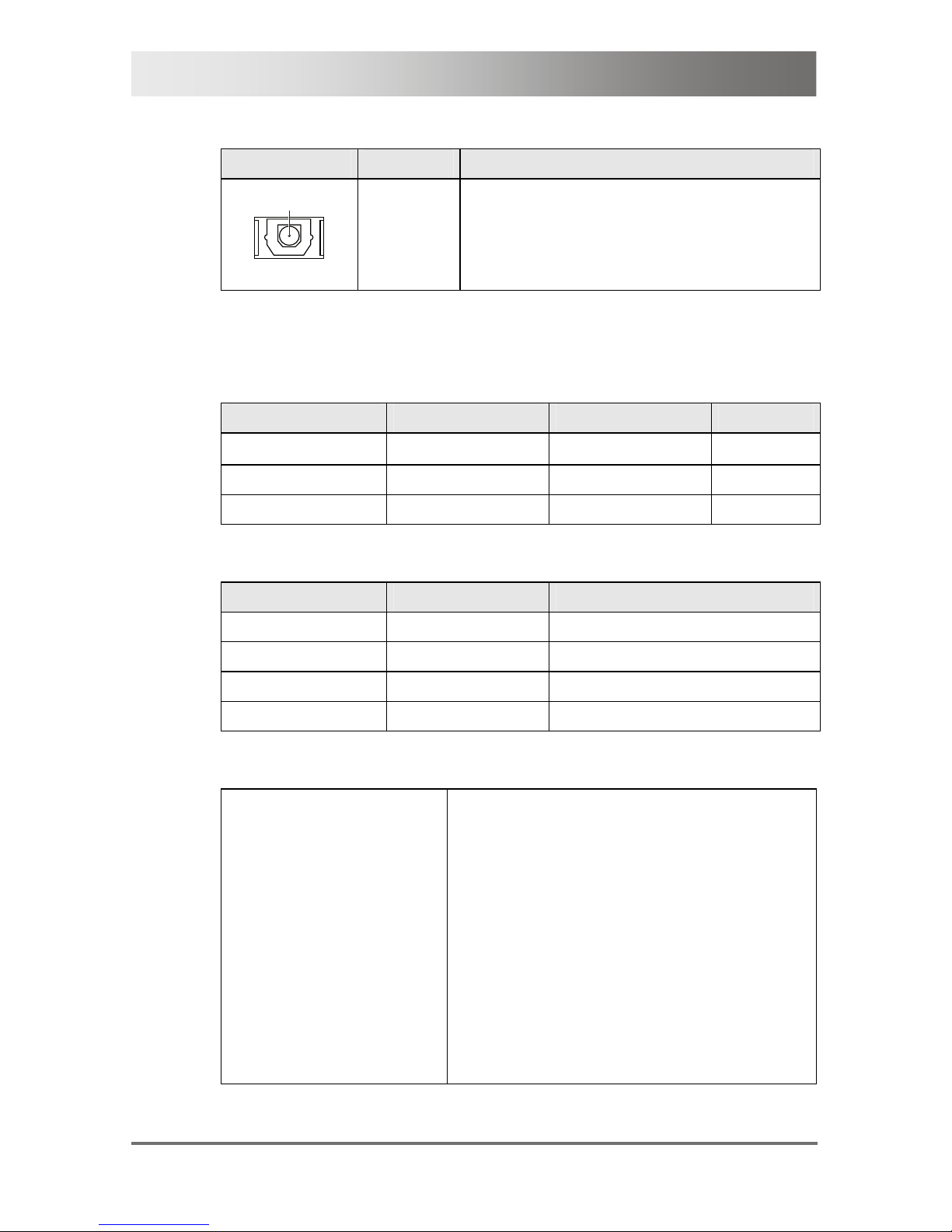

Fiber SFP Typ LC
Picture Diode Signal
1 Data OUT
12
2 Data IN
Pos: 98 /806-IHSE/Technische Daten/Pinbe legungen/Strom versorgung @ 5\mod_127857884 9183_6.doc @ 42423 @ @ 1
Power Supply
Picture Pin Signal
Inside VCC (+5VDC)
Outside GND
Pos: 99 /806-IHSE/Technische Daten/Pinbe legungen/D-Sub 9 ( Seriell) @ 5\mod_1291128 631437_6.doc @ 44882 @ @ 1
D-Sub 9 (Serial) RS232
Picture Pin Signal Pin Signal
1 n.c. 6 DSR
2 RxD 7 RTS
3 TxD 8 CTS
4 DTR 9 n.c.
1.................5
6...........9
5 GND
Pos: 100 /806-IHSE/Technische Daten/Pinb elegungen/D-Sub 9 ( Seriell) RS422 Control led Device @ 9\mod_1362477 200520_6.doc @ 71349 @ @ 4
D-Sub 9 (Serial) RS422 Controlled Device
Picture Pin Signal Pin Signal
1 GND 6 Rx-GND
2 RxA 7 RxB
3 TxB 8 TxA
4 Tx-GND 9 n.c.
1.................5
6...........9
5 n.c
Pos: 101 /806-IHSE/Technische Daten/Pinb elegungen/D-Sub 9 ( Seriell) RS422 Control ling Device @ 9\mod_13624772 02220_6.doc @ 71369 @ @ 4
Page 65
Specifications
2013-03-12 65

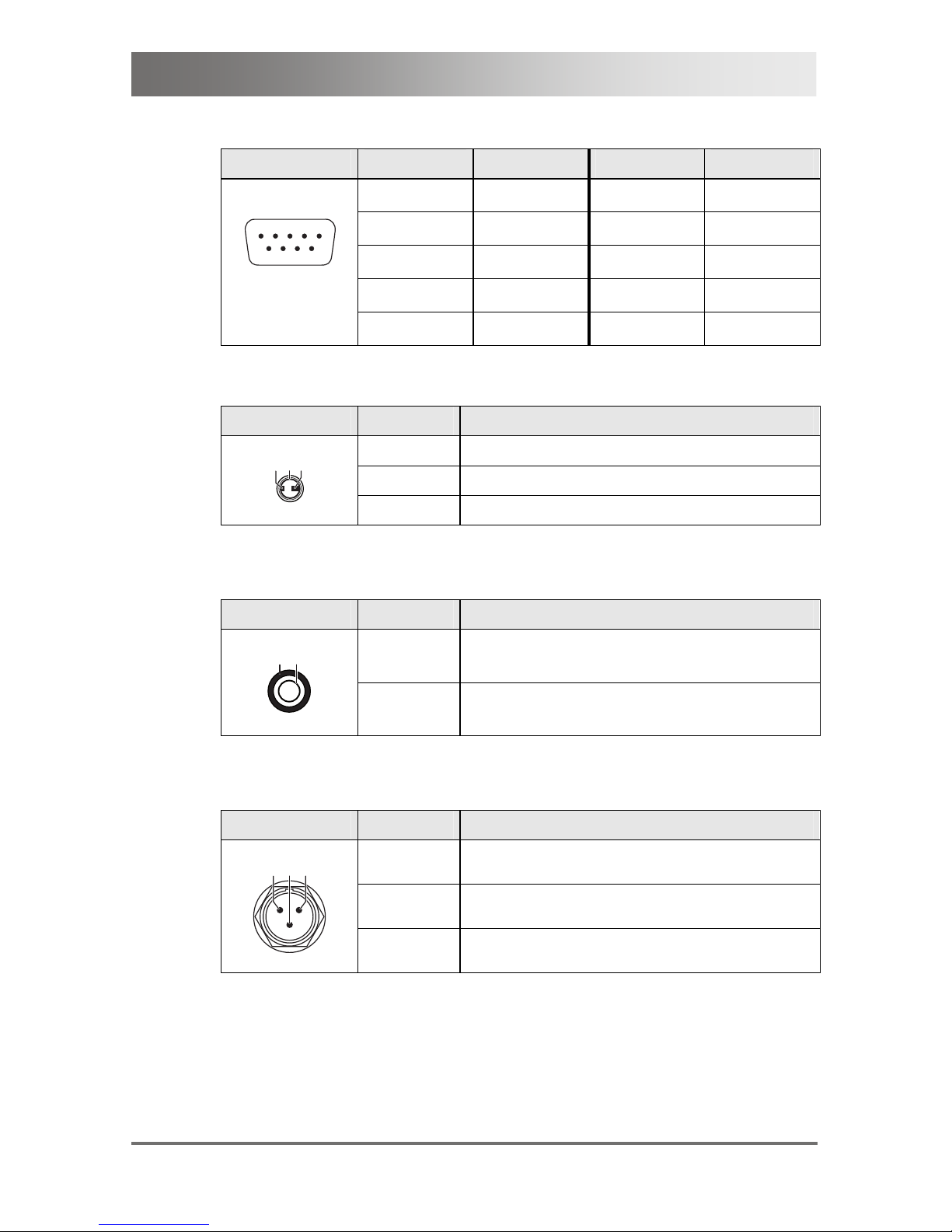

D-Sub 9 (Serial) RS422 Controlling Device
Picture Pin Signal Pin Signal
1 GND 6 Tx-GND
2 TxA 7 TxB
3 RxB 8 RxA
4 Rx-GND 9 n.c.
1.................5
6...........9
5 n.c.
Pos: 102 /806-IHSE/Technische Daten/Pinb elegungen/Stereo- Klinkenbuchse 3,5 m m @ 5\mod_1291128765156_6.d oc @ 44901 @ @ 1
3.5 mm Stereo Jack Plug
Picture Pin Signal
1 GND
2 Audio IN / OUT L
12 3
3 Audio IN / OUT R
Pos: 103 /806-IHSE/Technische Daten/Pinb elegungen/RCA (Ci nch) @ 5\mod_129112887759 3_6.doc @ 44920 @ @ 1
RCA (Cinch)
Picture Pin Signal
1 GND
1 2
2 Data IN / OUT
Pos: 104 /806-IHSE/Technische Daten/Pinb elegungen/Mini- XLR @ 5\mod_129112899848 4_6.doc @ 44939 @ @ 1
Mini-XLR
Picture Pin Signal
1 GND
2 Data +
132
3 Data –
Pos: 105 /806-IHSE/Technische Daten/Pinb elegungen/TOSLI NK @ 5\mod_1291129073656_6. doc @ 44958 @ @ 1
Page 66
Draco KVM Extender
66 2013-03-12
TOSLINK
Picture Diode Signal
1
1 Data IN / OUT
Pos: 106 /806-IHSE/Technische Daten/S tromversorgung/474- xx @ 6\mod_130458628419 1_6.doc @ 51327 @ 2 @ 1
7.5 Power Supply
AC Power Supply
Model Nominal Current Nominal Voltage Frequency
474-BODY2N 700 mA max. 100-240 V 50/60 Hz
474-BODY6R 1,400 mA max. 100-240 V 47-63 Hz
474-BODY21/4U 4,000 mA max. 2x 100-240 V 50/60 Hz
DC Power Supply
Model Nominal Current Nominal Voltage
474-BODY2/2R 3,000 mA 5 VDC
474-BODY2N 5,000 mA 5 VDC
474-BODY4/4R 5,000 mA 5 VDC
474-BODY6R 8,000 mA 5 VDC
Power Requirement
Power Requirement
(per Unit)
KVM Extender:
Single-Head devices: max. 800 mA
VGA: max. 900 mA
Upgrade Modules:
Analog Audio / Serial: max. 300 mA
Serial(RS422): max. 150 mA
Digital Audio: max. 300 mA
USB-HID: max. 300 mA
PS/2: max. 650 mA
USB 2.0 embedded: max. 1,100 mA
USB 2.0: max. 2,500 mA
Pos: 107 /806-IHSE/Technische Daten/Eins atzbedingungen/A TB_Einsatzbedingun gen @ 5\mod_127857898002 6_6.doc @ 42480 @ 2 @ 1
Page 67
Specifications
2013-03-12 67
7.6 Environmental Conditions
Operating Temperature
41 to 113°F (5 to 45°C)
Storage Temperature
–13 to 140°F (–25 to 60°C)
Relative Humidity
Max. 80% non-condensing
Pos: 108 /806-IHSE/Technische Daten/Ab messungen/474-xx @ 6\mo d_1304586358176_6.doc @ 51345 @ 2 @ 1
7.7 Size
Devices in the 2-fold Vario Chassis 1
CPU Unit / CON Unit
145 x 147 x 41 mm (5.7" x 5.8" x 1.7")
Shipping Box
210 x 140 x 165 mm (8.3" x 5.5" x 6.5")
Devices in the 2-fold Vario Chassis 2
CPU Unit / CON Unit
221 x 147 x 41 mm (8.7" x 5.8" x 1.7")
Shipping Box
550 x 365 x 115 mm (21.7" x 14.4" x 4.5")
Devices in the 4-fold Vario Chassis
CPU Unit / CON Unit
293 x 147 x 41 mm (11.5" x 5.8" x 1.7")
Shipping Box
550 x 365 x 115 mm (21.7" x 14.4" x 4.5")
Devices in the 6-fold Vario Chassis
CPU Unit / CON Unit
442 x 147 x 41 mm (17.4" x 5.8" x 1.7")
Shipping Box
760 x 365 x 115 mm (29.9" x 14.4" x 4.5")
Devices in the 21-fold Vario Chassis
CPU Unit / CON Unit
482 x 462 x 176 mm (19.0" x 18.2" x 6.3")
Shipping Box
645 x 574 x 368 mm (25.4" x 22.6" x 14.5")
Pos: 109 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_13485818205 16_0.doc @ 69462 @ @ 1
Page 68
Draco KVM Extender
68 2013-03-12
Pos: 110 /806-IHSE/Technische Daten/Trans portgewicht /474- xx @ 6\mod_1304586413879 _6.doc @ 51363 @ 2 @ 1
7.8 Shipping Weight
Devices in the 2-fold Vario Chassis 1
CPU Unit / CON Unit
0.4 kg (0.9 lb)
Shipping Box
2.2 kg (4.9 lb)
Devices in the 2-fold Vario Chassis 2
CPU Unit / CON Unit
0.8 kg (1.8 lb)
Shipping Box
2.6 kg (5.7 lb)
Devices in the 4-fold Vario Chassis
CPU Unit / CON Unit
0.9 kg (2.0 lb)
Shipping Box
3.4 kg (7.5 lb)
Devices in the 6-fold Vario Chassis
CPU Unit / CON Unit
1.4 kg (3.1 lb)
Shipping Box
4.6 kg (10.1 lb)
Devices in the 21-fold Vario Chassis
CPU Unit / CON Unit
10.0 kg (22.1 lb)
Shipping Box
14.5 kg (32.0 lb)
Pos: 111 /806-IHSE/Hilfe im Problemfall/ UEB_Hilfe im Problemfal l @ 5\mod_1278579113839 _6.doc @ 42536 @ 1 @ 1
Page 69
Troubleshooting
2013-03-12 69
8 Troubleshooting
Pos: 112 /806-IHSE/Hilfe im Problemfall/Bi ldausfall/474- xx @ 6\mod_1304586526379_ 6.doc @ 51381 @ 2 @ 1
8.1 Blank Screen
CPU Module CON Module
231
12
3
231
2
3
1
Rear View Rear View
Diagnosis Possible Reason Measure
LED 3 off
Power supply
Check power supply units and
the connection to the power
network.
LED 1 on or
LED 2 off
Connection between
CON Unit and CPU Unit
Check interconnect cables and
connections.
CPU Unit:
LED 3 red or
yellow
No video signal detected
by source (computer,
CPU)
Check DVI-D cable to CPU
Download DDC information from
console monitors (see
Chapter 6.1, Page 50).
Reb
oot CPU if necess
ary.
No monitor detected
Check connection, length and
quality of the DVI-D cable to
monitor, tighten cable
thumbscrews.
CON Unit:
LED 3 red or
yellow
No video signal detected
from CPU Unit
Check connection, length and
quality of interconnect cables
between the units.
Download DDC information from
console monitors (see
Chapter 6.1, Page 50).
Reboot CPU if necess
ary.
Pos: 113 /806-IHSE/Hilfe im Problemfall/S törung am USB-HID-Ansc hluss/474-xx @ 6\mod_ 1304586621613_6.doc @ 51399 @ @ 1
Page 70
Draco KVM Extender
70 2013-03-12

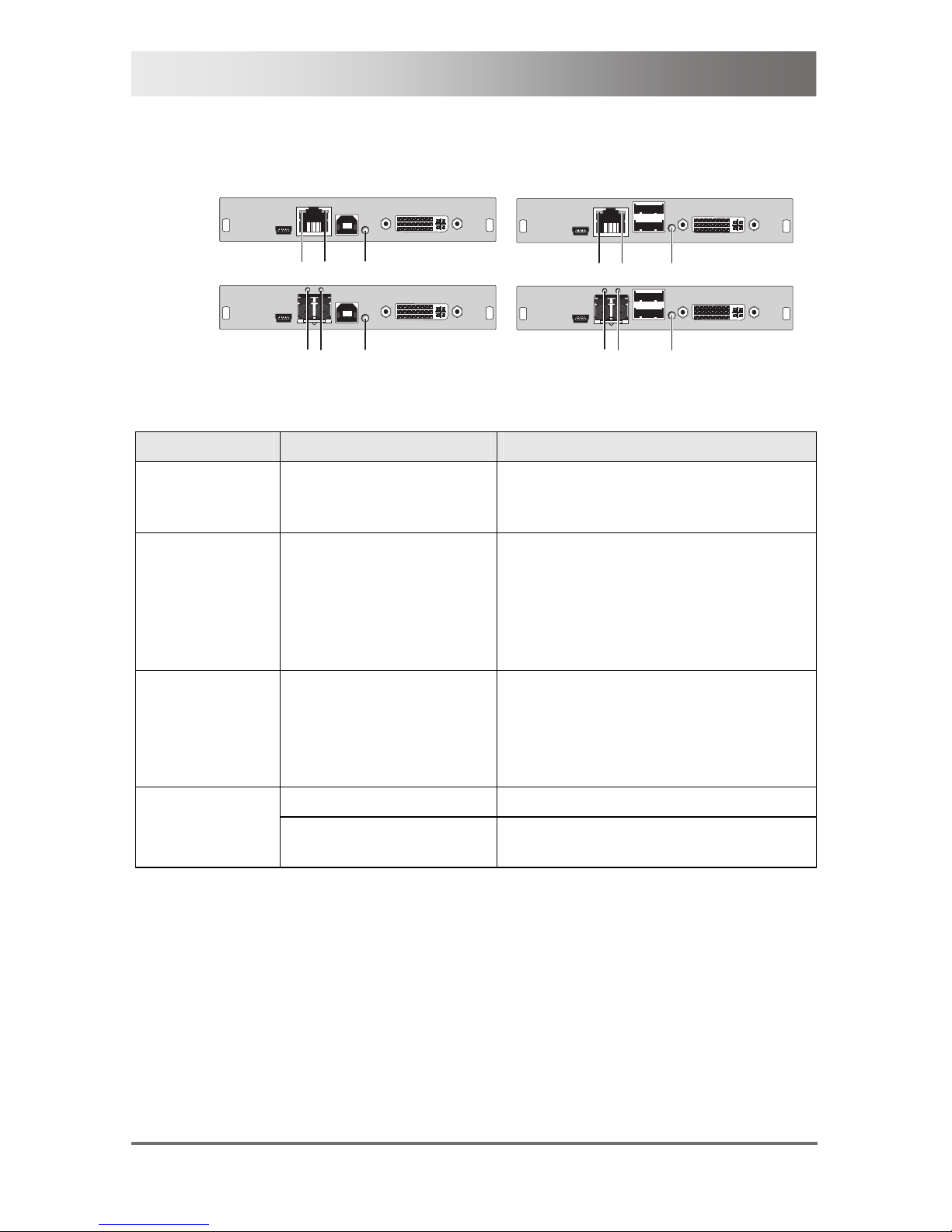

8.2 USB-HID
CPU Module CON Module
231
12
3
231
2
3
1
Rear View Rear View
Diagnosis Possible Reason Measure
Keyboard LEDs
Shift and Scroll
are blinking
Keyboard in Command
Mode
Press <Esc> to leave Command
Mode.
CPU Unit:
LED 3 green or
violet
No USB connection to
CPU
Check connection of USB cable
to CPU; select another USB port
if necessary.
Remove USB and power cable
and restart CPU. Connect power
cable first.
CON Unit:
LED 3 green or
violet
Problems with USB
connection
Check connection of USB cable
to USB-HID device.
Remove DVI and power cable
and restart CON Unit. Connect
power cable first.
No USB-HID device Connect USB-HID device.
USB device
without function
USB-HID device is not
supported
Contact dealer if necessary.
Pos: 114 /806-IHSE/Hilfe im Problemfall/S törung am seriellen Ansc hluss/474-xx @ 6\mod_1 304586713332_6.doc @ 51418 @ @ 1
Page 71
Troubleshooting
2013-03-12 71
8.3 Serial Connection
Diagnosis Possible Reason Measure
Settings of the serial
interface
Check Baud rate and general
settings.
No serial connection to
CPU
Check connection via serial
cable.
Serial device
not operational
No serial connection to
end device (e.g. touch
screen, keyboard)
Connect serial end device and
switch it on.
Check connection via serial
cable.
Touch screen
not operational
Hardware handshake
Adjust serial interface to X-ON /
X-OFF software handshake.
Pos: 115 /806-IHSE/Hilfe im Problemfall/S törung am Analog-Audio- Anschluss/474- xx @ 6\mod_1304586773051 _6.doc @ 51437 @ @ 1
8.4 Analog Audio
Diagnosis Possible Reason Measure
No audio connection to
CPU / audio source
Connect analog audio source.
Check audio cable.
No Signal Switch analog audio source on.
Activate analog output at CPU /
audio source.
CON Unit:
No signal at
audio output
No audio connection to
audio sink
(e.g. speakers)
Connect analog audio sink and
switch it on.
Check connection of audio cable.
No audio connection to
audio source
(microphone)
Connect analog audio source
(microphone).
Check connection of audio cable.
No signal Switch analog audio source on.
Activate analog output at audio
source.
CPU Unit:
No signal at
audio output
(microphone)
No audio connection to
audio sink (e.g. CPU)
Check connection to CPU.
Check connection of audio cable.
Check audio configuration.
Pos: 116 /806-IHSE/Hilfe im Problemfall/S törung am Digital-Audi o-Anschluss/474- xx @ 6\mod_13045868533 79_6.doc @ 51456 @ @ 1
Page 72
Draco KVM Extender
72 2013-03-12
8.5 Digital Audio
CPU Module CON Module
1
1
Rear View Rear View
Diagnosis Possible Reason Measure
No audio connection to
CPU / audio source
Connect digital audio source.
Check connection of audio cable.
CPU Unit:
LED 1 red
No signal Switch digital audio source on.
Activate digital output at CPU /
audio source.
No audio connection to
audio sink
(e.g. speakers)
Connect digital audio sink.
Check connection of audio cable.
CON Unit:
LED 1 red
No signal Check signal at CPU Unit.
No signal /
LEDs 1 OK
Digital Silence at active
audio source
Check LEDs at CPU Unit.
Check audio format.
Change audio input.
Pos: 117 /806-IHSE/Hilfe im Problemfall/S törung am USB-HID-Mod ul-Anschluss/474- xx @ 6\mod_13045869060 04_6.doc @ 51475 @ @ 1
Page 73
Troubleshooting
2013-03-12 73
8.6 Upgrade Module USB-HID
CPU Module CON Module
1
23
1
23
Rear View Rear View
Diagnosis Possible Reason Measure
LED 1 / 2 off Device at higher / lower
USB-HID port not
detected
Check connection of USB cable
to USB-HID device.
Connect USB-HID device.
Contact dealer if necessary.
CPU Unit:
LED 3 off
Connection between
CON Unit and CPU Unit
Check interconnect cable and
connectors.
CON Unit:
LED 3 off
Keyboard in Command
Mode
Press <Esc> to leave Command
Mode.
Connection between
CON Unit and CPU Unit
Check interconnect cable and
connections.
CON Unit:
LED 3 flashing
slowly
Keyboard in Command
Mode
Press <Esc> to leave Command
Mode.
Pos: 118 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_13485818205 16_0.doc @ 69462 @ @ 1
Page 74
Draco KVM Extender
74 2013-03-12
Pos: 119 /806-IHSE/Hilfe im Problemfall/S törung am USB-2.0-Embed ded-Anschluss/474- xx @ 7\mod_1331802913522 _6.doc @ 58211 @ 2 @ 1
8.7 USB 2.0 embedded
CPU Module CON Module
1
23
1
23
Rear View Rear View
Diagnosis Possible Reason Measure
CPU & CON
Unit:
LED 3 off
No connection to CPU
Check connection USB cable to
CPU; select another USB port if
necessary.
Remove USB and power cable
and restart CPU. Connect power
cable first.
CPU & CON
Unit:
LED 2 off
No connection between
CON Unit and CPU Unit
Check interconnect cable and
connectors.
No USB 2.0 device Connect USB 2.0 device.
CPU & CON
Unit:
LED 2 off and
USB 2.0 device
without function
USB 2.0 device is not
supported
Check installation at the CPU,
also the necessary drivers.
New connection of the USB 2.0
device.
Contact dealer if necessary.
Pos: 120 /806-IHSE/zz_Layout/Seitenu mbruch @ 8\mod_13485818205 16_0.doc @ 69462 @ @ 1
Page 75
Troubleshooting
2013-03-12 75
Pos: 121 /806-IHSE/Hilfe im Problemfall/S törung am USB-2.0-Ansc hluss/474-xx @ 6\mod_13 04586956738_6.doc @ 51494 @ 2 @ 1
8.8 USB 2.0
CPU Module CON Module
12
3
12
3
12
3
12
3
Rear View Rear View
Diagnosis Possible Reason Measure
CPU Unit:
All LEDs off
No connection to CPU
Check connection USB cable to
CPU; select another USB port if
necessary.
Remove USB and power cable
and restart CPU. Connect power
cable first.
CON Unit:
LED 3 red
Connection between
CON Unit and CPU Unit
Check interconnect cable and
connectors.
No USB 2.0 device Connect USB 2.0 device.
CON Unit:
LED 3 flashing
green / light
blue and
USB 2.0 device
without function
USB 2.0 device is not
supported
Check installation at the CPU,
also the necessary drivers.
New connection of the USB 2.0
device.
Contact dealer if necessary.
Pos: 122 /806-IHSE/Technische Unterstüt zung/ATB_Technisc he Unterstützung @ 5\mod_ 1278579487089_6.doc @ 42650 @ 122 @ 1
Page 76
Draco KVM Extender
76 2013-03-12
9 Technical Support
Prior to contacting support please ensure you have read this manual, and
then installed and set-up your KVM Extender as recommended.
9.1 Support Checklist
To efficiently handle your request it is necessary to complete our checklist
for support and problem cases (Download). Keep the following information
available before you call:
Company, name, phone number and email
Type and serial number of the device (see bottom of device)
Date and number of sales receipt, name of dealer if necessary
Issue date of the existing manual
Nature, circumstances and duration of the problem
Involved components (such as graphic source/CPU, OS, graphic
card, monitor, USB-HID/USB 2.0 devices, interconnect cable)
including manufacturer and model number
Results from any testing you have done
9.2 Shipping Checklist
1. To return your device, contact your dealer to obtain a RMA number
(Return-Material-Authorization).
2. Package your devices carefully, preferably using the original box.
Add all pieces which you received originally.
3. Note your RMA number visibly on your shipment.
Devices that are sent in without a RMA number cannot be accepted. The
shipment will be sent back without being opened, postage unpaid.
Pos: 123 /806-IHSE/Zertifikate/UEB_ Zertifikate @ 5\mod_1278 579534933_6.doc @ 42668 @ 1 @ 1
Page 77
Certificates
2013-03-12 77
10 Certificates
Pos: 124 /806-IHSE/Zertifikate/ATB_ Europäische Konfor mitätserklärung @ 5\mod_ 1278579640901_6.doc @ 42686 @ 2 @ 1
10.1 CE Declaration Of Conformity
The products listed below in the form as delivered comply with the
provisions of the following European Directives:
2004/108/EG Council Directive on the approximation of the laws of
the Member States relating to electromagnetic
compatibility
CE Marking 2009
Product list:
K474 Series
The products comply with the following harmonized standards for
Information Technology Equipment:
EN 55022:2006 + A1:2007 (Class A)
EN 55024:1998 + A1:2001 + A2:2003
This declaration certifies the conformity to the specified directives but
contains no assurance of properties. The safety instructions and
installation guidelines noted in this manual shall be considered in detail.
Compliance with the specifications for cable lengths and types is
mandatory.
Manufacturer:
IHSE GmbH
Maybachstrasse 11
88094 Oberteuringen
Deutschland
Oberteuringen, 26 January 2010
The Management
Use in a Domestic Environment
This is a Class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.
Page 78
Draco KVM Extender
78 2013-03-12
10.2 North American Regulatory Compliance
This equipment has been found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Shielded cables must be used with this equipment to maintain compliance
with radio frequency energy emission regulations and ensure a suitably
high level of immunity to electromagnetic disturbances.
All power supplies are certified to the relevant major international safety
standards.
Pos: 125 /806-IHSE/Zertifikate/ATB_WEEE @ 5\ mod_1278579673292_6.doc @ 42704 @ 2 @ 1
10.3 WEEE
The manufacturer complies with the EU Directive 2012/19/EU on the
prevention of waste electrical and electronic equipment (WEEE).
The device labels carry a respective marking.
Pos: 126 /806-IHSE/Zertifikate/ATB_ RoHS @ 5\mod_1278579714214_ 6.doc @ 42722 @ 2 @ 1
10.4 RoHS/RoHS 2
This device complies with the Directive 2011/65/EU of the European
Parliament and of the council of 8 June 2011 on the restriction of the use
of certain hazardous substances in electrical and electronic equipment
(RoHS 2, RoHS II).
The device labels carry a respective marking.
Pos: 127 /806-IHSE/Glossar/ATB_Gloss ar @ 5\mod_1278576825433 _6.doc @ 41890 @ 1 @ 1
Page 79
Glossary
2013-03-12 79
11 Glossary
The following terms are commonly used in this guide or in video and KVM
technology:
Term Explanation
AES/EBU
Digital audio standard that is officially known as
AES3 and that is used for carrying digital audio
signals between devices.
Cat X Any Cat 5e (Cat 6, Cat 7) cable
CGA
The Color Graphics Adapter (CGA) is an old analog
graphic standard with up to 16 displayable colors and
a maximum resolution of 640x400 pixels.
Component
Video
The Component Video (YPbPr) is a high-quality
video standard that consists of three independently
and separately transmittable video signals, the
luminance signal and two color difference signals.
Composite Video
The Composite Video is also called CVBS and it is
part of the PAL TV standard.
CON Unit
Component of a KVM Extender or Media Extender to
connect to the console (monitor(s), keyboard and
mouse; optionally also with USB 2.0 devices)
Console Keyboard, mouse and monitor
CPU Unit
Component of a KVM Extender or Media Extender to
connect to a source (computer, CPU)
CVBS
The analog color video baseband signal (CVBS) is
also called Composite Video and it is part of the PAL
TV standard.
DDC
The Display Data Channel (DDC) is a serial
communication interface between monitor and
source (computer, CPU). It allows a data exchange
via monitor cable and an automatic installation and
configuration of a monitor driver by the operating
system.
Dual Access
A system to operate a source (computer, CPU) from
two consoles
Dual Link
A DVI-D interface for resolutions up to 2560x2048 by
signal transmission of up to 330 MPixel/s (24-bit)
Dual-Head A system with two video connections
Page 80
Draco KVM Extender
80 2013-03-12
Term Explanation
DVI
Digital video standard, introduced by the Digital
Display Working Group (http://www.ddwg.org
). Single
Link and Dual Link standard are distinguished. The
signals have TMDS level.
DVI-I
A combined signal (digital and analog) that allows
running a VGA monitor at a DVI-I port – in contrast to
DVI-D (see DVI).
EGA
The Enhanced Graphics Adapter (EGA) is an old
analog graphic standard, introduced by IBM in 1984.
A D-Sub 9 connector is used for connection.
Fiber Single-mode or multi-mode fiber cables
HDMI
An interface for an all-digital transmission of audio
and video data. It is differentiated between the HDMI
standards 1.0 to 1.4a.
The signals have TMDS level.
KVM Keyboard, video and mouse
Mini-XLR
Industrial standard for electrical plug connections
(3 pole) for the transmission of digital audio and
control signals
Multi-mode
62.5µ multi-mode fiber cable or 50µ multi-mode fiber
cable
OSD
The On-Screen-Display is used to display information
or to operate a device.
Quad-Head A system with four video connections
RCA (Cinch)
A not standardized plug connection for transmission
of electrical audio and video signals, especially with
coaxial cables
S/PDIF
A digital audio interconnect that is used in consumer
audio equipment over relatively short distances.
SFP
SFPs (Small Form Factor Pluggable) are pluggable
interface modules for Gigabit connections. SFP
modules are available for Cat X and fiber
interconnect cables.
Single Link
A DVI-D interface for resolutions up to 1920x1200 by
signal transmission of up to 165 MPixel/s (24-bit).
Alternative frequencies are Full HD (1080p), 2K HD
(2048x1080) and 2048x1152.
Single-Head A system with one video connection
Single-mode 9µ single-mode fiber cable
Page 81
Glossary
2013-03-12 81
Term Explanation
S-Video (Y/C)
The S-Video (Y/C) is a video format transmitting
luminance and chrominance signals separately.
Thereby it has a higher quality standard than CVBS.
TOSLINK
Standardized fiber connection system for digital
transmission of audio signals (F05 plug connection)
Triple-Head A system with three video connections
USB-HID
USB-HID devices (Human Interface Device) allow for
data input.
There is no need for a special driver during
installation; "New USB-HID device found" is reported.
Typical HID devices include keyboards, mice,
graphics tablets and touch screens. Storage, video
and audio devices are not HID.
VGA
Video Graphics Array (VGA) is a computer graphics
standard with a typical resolution of 640x480 pixels
and up to 262,144 colors. It can be seen as a
follower of the graphics standards MDA, CGA and
EGA.
=== Ende der Liste für Textmarke Inhalt ===
