Ihse K473-SSH, K473-DSH, K473-SST, K473-DST User Manual

IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Germany

[email protected]
www.ihse.de

Tel. [phone]
Fax [phone]

User Manual

Edition: 2011-02-23

DSXi

KVM Extender

Model:

K473-SSH
K473-DSH
K473-SST
K473-DST

DSXi KVM Extender

2 2011-02-23

Copyright

© 2011. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.

Information in this document is subject to change without notice.

Trademarks

All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.

Disclaimer

While every precaution has been taken during preparation of this manual,
the manufacturer assumes no liability for errors or omissions. Neither do es
the manufacturer assume any liability for damages resulting from the use
of the information contained herein.

The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.

Contents

2011-02-23 3

Contents

1 About This Manual....................................................................... 5

1.1 Scope..................................................................................5

1.2 Validity ................................................................................5

1.3 Cautions and Notes ............................................................ 5

2 Safety Instructions....................................................................... 6

3 Description ................................................................................... 7

3.1 Application ..........................................................................7

3.2 System Overview................................................................8

3.3 Product Range....................................................................9

3.4 Rack Mount Kits.................................................................. 9

3.5 Accessories......................................................................... 9

3.6 Device Views ....................................................................10

3.6.1 Model K473-SSH (Single-Head) ......................... 10

3.6.2 Model K473-DSH (Dual-Head)............................ 11

3.6.3 Model K473-SST (Single-Head).......................... 13

3.6.4 Model K473-DST (Dual-Head)............................ 14

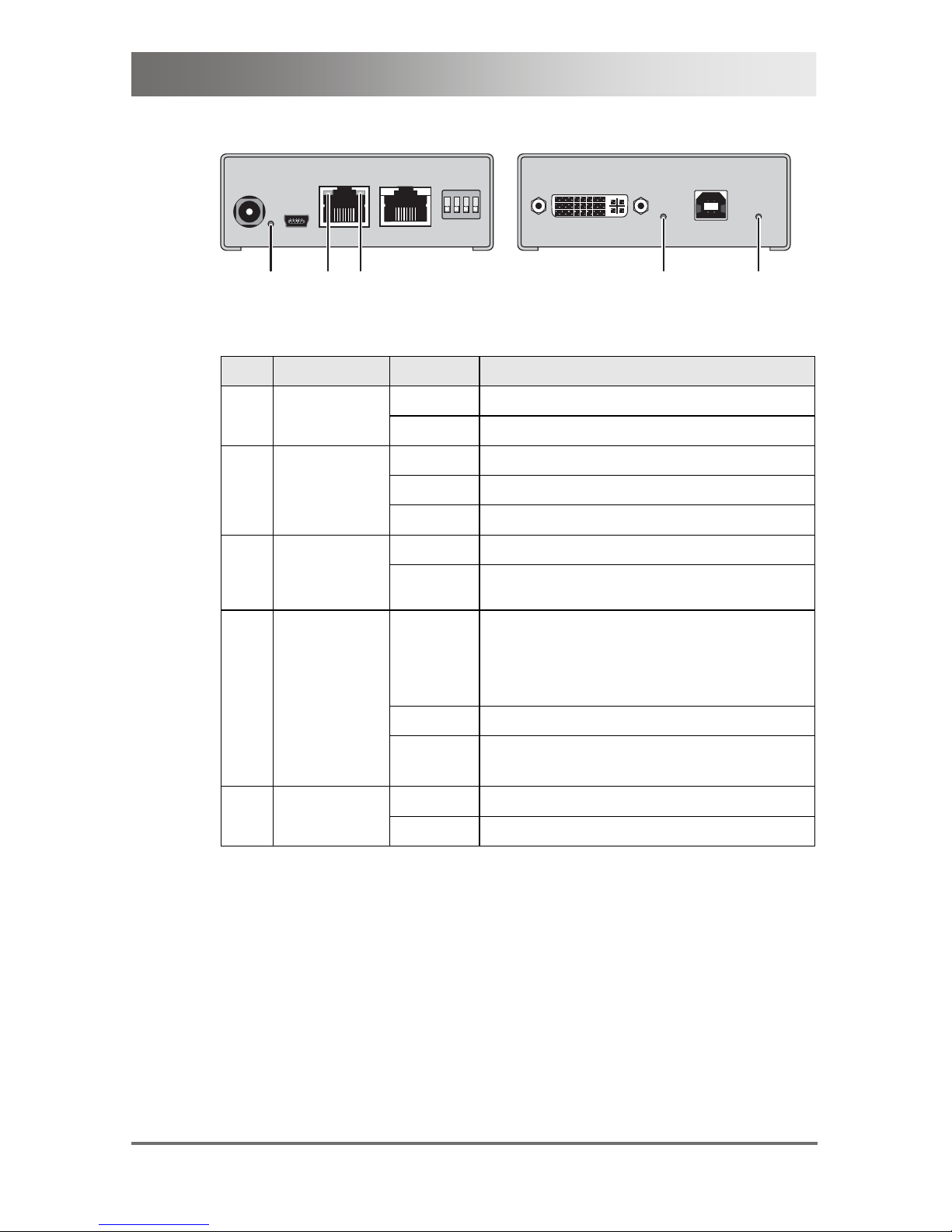

3.7 Diagnostics ....................................................................... 16

4 Installation .................................................................................. 18

4.1 Package Contents............................................................. 18

4.2 System Setup.................................................................... 19

4.3 Example Applications........................................................ 20

5 Configuration.............................................................................. 22

5.1 Transmission Parameters................................................. 22

5.1.1 Adjustment of Video Resolution.......................... 22

5.1.2 Adjustment of Cable Length................................ 23

5.2 DDC Settings.................................................................... 24

5.3 Selection of Operation Mode............................................. 25

5.4 Command Mode ............................................................... 26

6 Operation .................................................................................... 27

6.1 Readjustment of Transmission Parameters (Auto-Adjust) 27

6.2 Download of DDC Information .......................................... 27

DSXi KVM Extender

4 2011-02-23

6.2.1 Download DDC via Keyboard Command............ 28

6.2.2 Download DDC via DVI Cable ............................ 28

7 Specifications............................................................................. 29

7.1 Interfaces.......................................................................... 29

7.1.1 DVI-D Single Link................................................ 29

7.1.2 USB-HID.............................................................29

7.1.3 USB 2.0 (transparent).........................................30

7.1.4 RJ45 (Interconnect) ............................................30

7.2 Interconnect Cable............................................................ 31

7.2.1 Cat X...................................................................31

7.3 Supported Peripherals ...................................................... 32

7.3.1 USB-HID Devices ............................................... 32

7.3.2 USB 2.0 Devices.................................................32

7.3.3 Interconnect Cable (Cat X).................................. 32

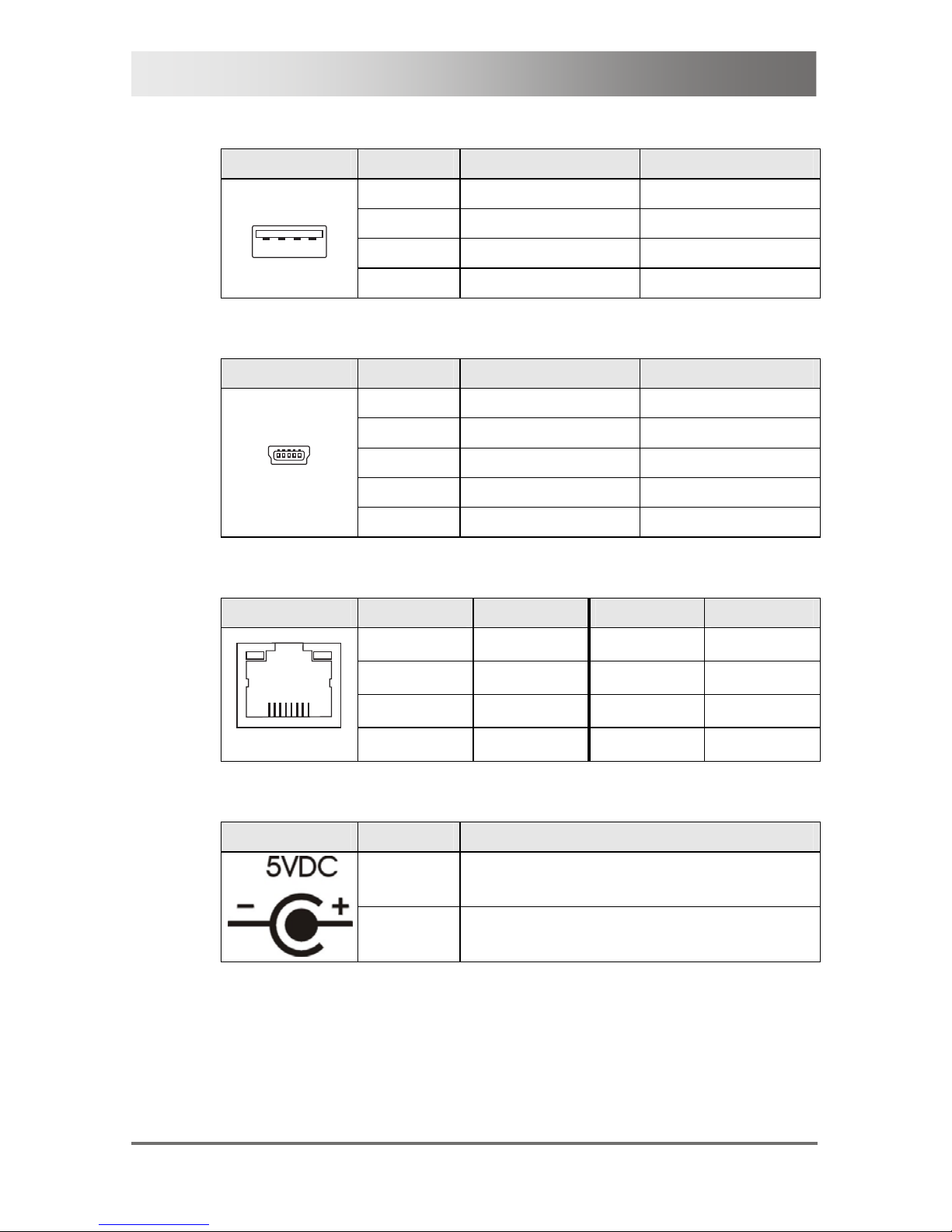

7.4 Connector Pinouts ............................................................ 33

7.5 Power Supply.................................................................... 35

7.6 Environmental Conditions................................................. 35

7.7 Size................................................................................... 35

7.8 Shipping Weight................................................................ 36

8 Troubleshooting......................................................................... 37

8.1 Blank Screen..................................................................... 37

8.2 Video Jitter........................................................................38

8.3 USB-HID Failure ............................................................... 38

8.4 USB 2.0 Failure................................................................. 39

9 Technical Support......................................................................40

9.1 Support Checklist.............................................................. 40

9.2 Shipping Checklist ............................................................ 40

10 Regulatory and Standards Compliance ................................... 41

10.1 CE Declaration Of Conformity........................................... 41

10.2 North American Regulatory Compliance........................... 42

10.3 WEEE ...............................................................................42

10.4 RoHS ................................................................................42

11 Glossary...................................................................................... 43

Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu di esem Handbuch @ 5\mod_1278573163276_6.doc @ 41510 @ 1222

About This Manual

2011-02-23 5

1 About This Manual

1.1 Scope

This manual describes how to install your KVM Extender, how to operate it
and how to perform trouble shooting.

1.2 Validity

This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.

1.3 Cautions and Notes

The following symbols are used in this manual:
This symbol indicates an important operating instruction that should be

followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.

This symbol indicates important information to help you make the best use
of this product.

Pos: 2 /806-IHSE/Sicherheitshinweis e/ ATB_Sicherheitshinweise @ 5\mod_12785 7332 1245_6.doc @ 41528 @ 1

DSXi KVM Extender

6 2011-02-23

2 Safety Instructions

To ensure reliable and safe long-term operation of your KVM Extender
please note the following guidelines:

Installation

 Only use in dry, indoor environments.
 The KVM Extender and the power supply units can get warm. Do not

situate them in an enclosed space without any airflow.

 Do not place the power supply directly on top of the device.
 Do not obscure ventilation holes.
 Only use power supplies originally supplied with the product or

manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged case.

 Connect all power supplies to grounded outlets. In each case, ensure

that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.

 Do not connect the link interface to any other equipment, particularly

network or telecommunications equipment.

 Take any required ESD precautions.

Repair

 Do not attempt to open or repair a power supply unit.
 Do not attempt to open or repair the KVM Extender. There are no

user serviceable parts inside.

 Please contact your dealer or manufacturer if there is a fault.

Pos: 3 /806-IHSE/Beschreibung/UEB_Besc hreibung @ 5\mod_1278573379151_6.doc @ 41546 @ 1

Description

2011-02-23 7

3 Description

Pos: 4 /806-IHSE/Beschreibung/Verwen dun gszweck/VAR_KVM_Cat X @ 5\mod_127857341615 1_6.doc @ 41564 @ 2

3.1 Application

The KVM Extender is used to increase the distance between a source
(computer, CPU) and its console (keyboard, mouse, and other periphera l
devices).

The KVM Extender is designed for use with Cat X (Twisted Pair)
interconnect cables.

The KVM Extender is unsuitable for connection between bui ldings where a
fiber optic based product should be used instead.

Pos: 5 /806-IHSE/Beschreibung/Syste m-Übersicht /VAR_KVM_Single-/Dual- He ad_ USB 2.0 @ 5\mod_1278573552245_6.doc @ 41582 @ 2

DSXi KVM Extender

8 2011-02-23

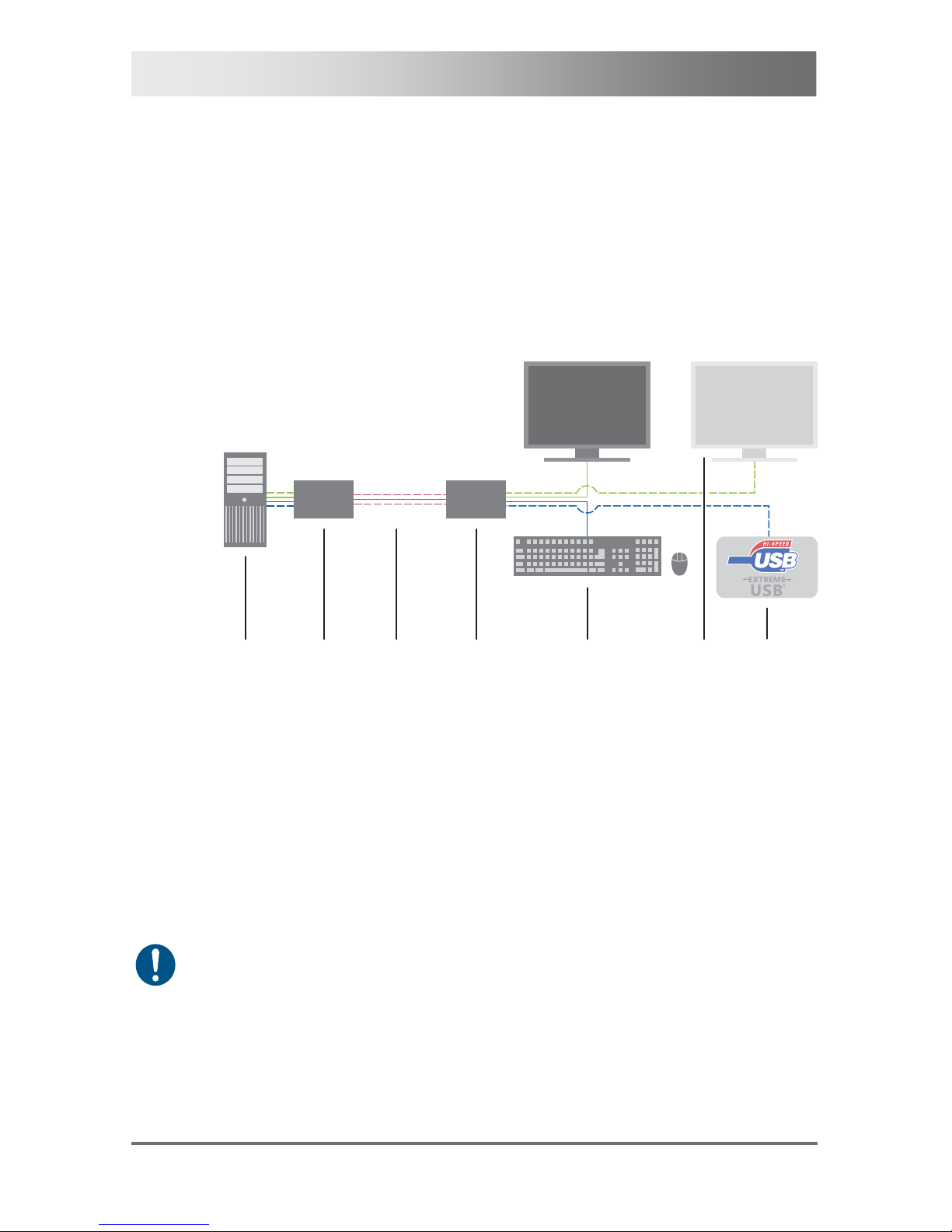

3.2 System Overview

The KVM Extender consists of a CPU Unit and a console unit (CON Unit).
The CPU Unit is connected directly to the source (computer, CPU) using

the supplied cables.
The CON Unit is connected to the console (monitor, keyboard and

mouse).
The CPU Unit and the CON Unit communicate with each other through the

interconnect cables.

1

2

4

5

7

6

3

System overview

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with USB 2.0 devices)

See Chapter 4.3, Page 20 for installation examples.

Pos: 6 /806-IHSE/Beschreibung/Geräte typen/473-xx @ 5\mod_1278573628448_6.doc @ 41600 @ 2

Description

2011-02-23 9

3.3 Product Range

Model Description

K473-SSH

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse)

K473-DSH

Dual-Head KVM Extender for 2x DVI Single Link (up
to 1920x1200), 4x USB-HID (keyboard / mouse)

K473-SST

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB 2.0 (transparent)

K473-DST

Dual-Head KVM Extender for 2x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse),
4x USB 2.0 (transparent)

Pos: 7 /806-IHSE/Beschreibung/Einbauop tionen/473-xx @ 5\mod_1278573668448_6. doc @ 41618 @ 2

3.4 Rack Mount Kits

Model Description

473-5G

19"/1U rack mount kit to mount up to 5 Single-Head devices
or up to 2 Dual-Head CON Units

473-DG

19"/1U rack mount kit to mount up to 5 Dual-Head
CPU Units

473-1K

Mounting plate to mount by screws
(Single-Head units and Dual-Head CPU Units)

473-2K

Mounting plate to mount by snap on
(Single-Head units und Dual-Head CPU Units)

473-1G

Mounting plate to mount by screws
(Dual-Head CON Units)

473-2G

Mounting plate to mount by snap on
(Dual-Head CON Units)

Pos: 8 /806-IHSE/Beschreibung/Zubehör/ 473-xx @ 5\mod_1278573699433_6.doc @ 41636 @ 2

3.5 Accessories

Model Description

260-5U International power supply unit 100...240VAC / 5VDC / 4 A
445-2X DVI-D splitter cabl e
473-S30 Cat 5e simplex cable; Leoni Kerpen; length 30 m
473-S40 Cat 5e simplex cable; Leoni Kerpen; length 40 m
473-S50 Cat 5e simplex cable; Leoni Kerpen; length 50 m

Pos: 9 /806-IHSE/Beschreibung/Gerätean sichten/UEB_Geräteansichten @ 5\mod_ 1278573737808_6.doc @ 41654 @ 2

DSXi KVM Extender

10 2011-02-23

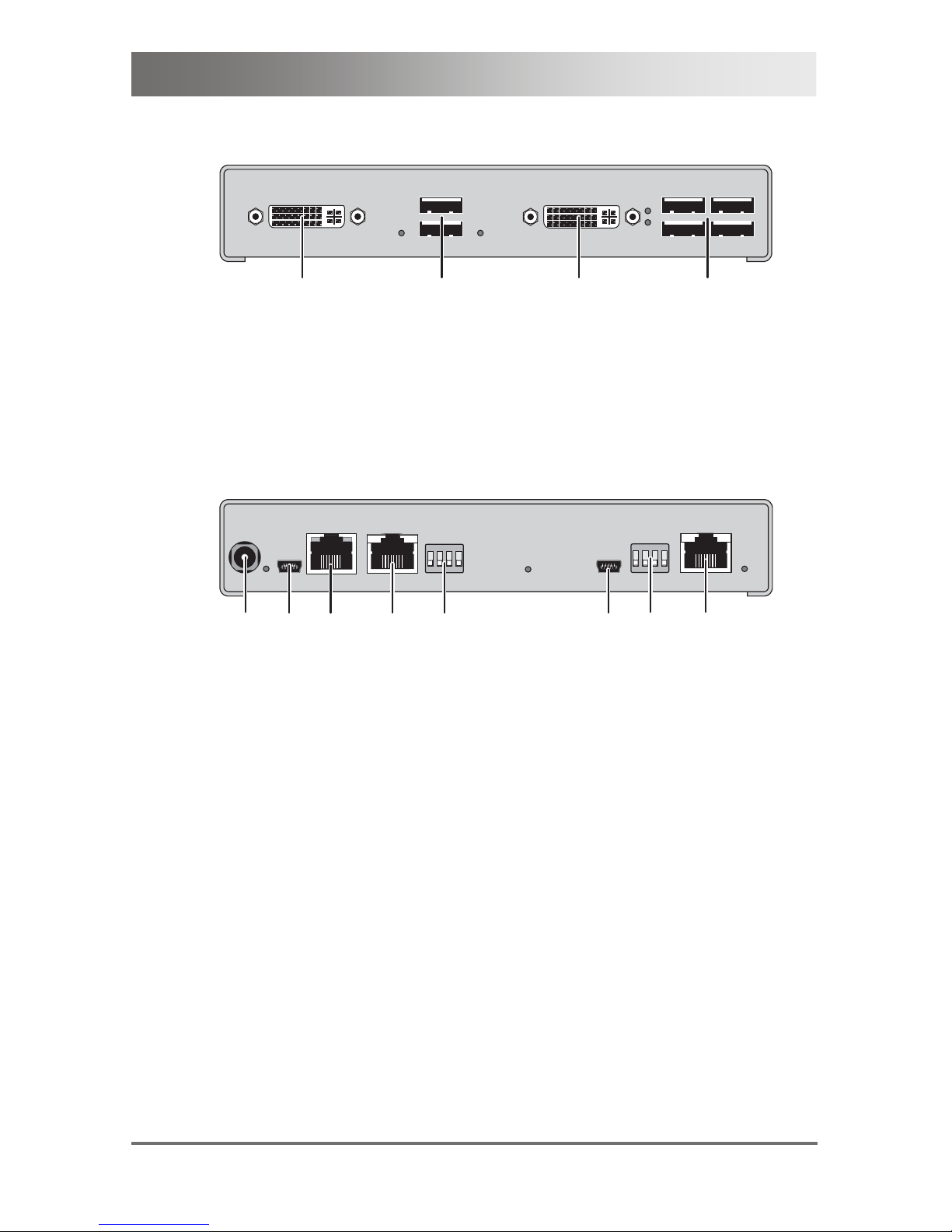

3.6 Device Views

Pos: 10 /806-IHSE/Beschreibung/Gerätea nsichten/473-xx/Typ K473-SSH (Single- Head) @ 5\mod_1278573803667_6.doc @ 41672 @ 3

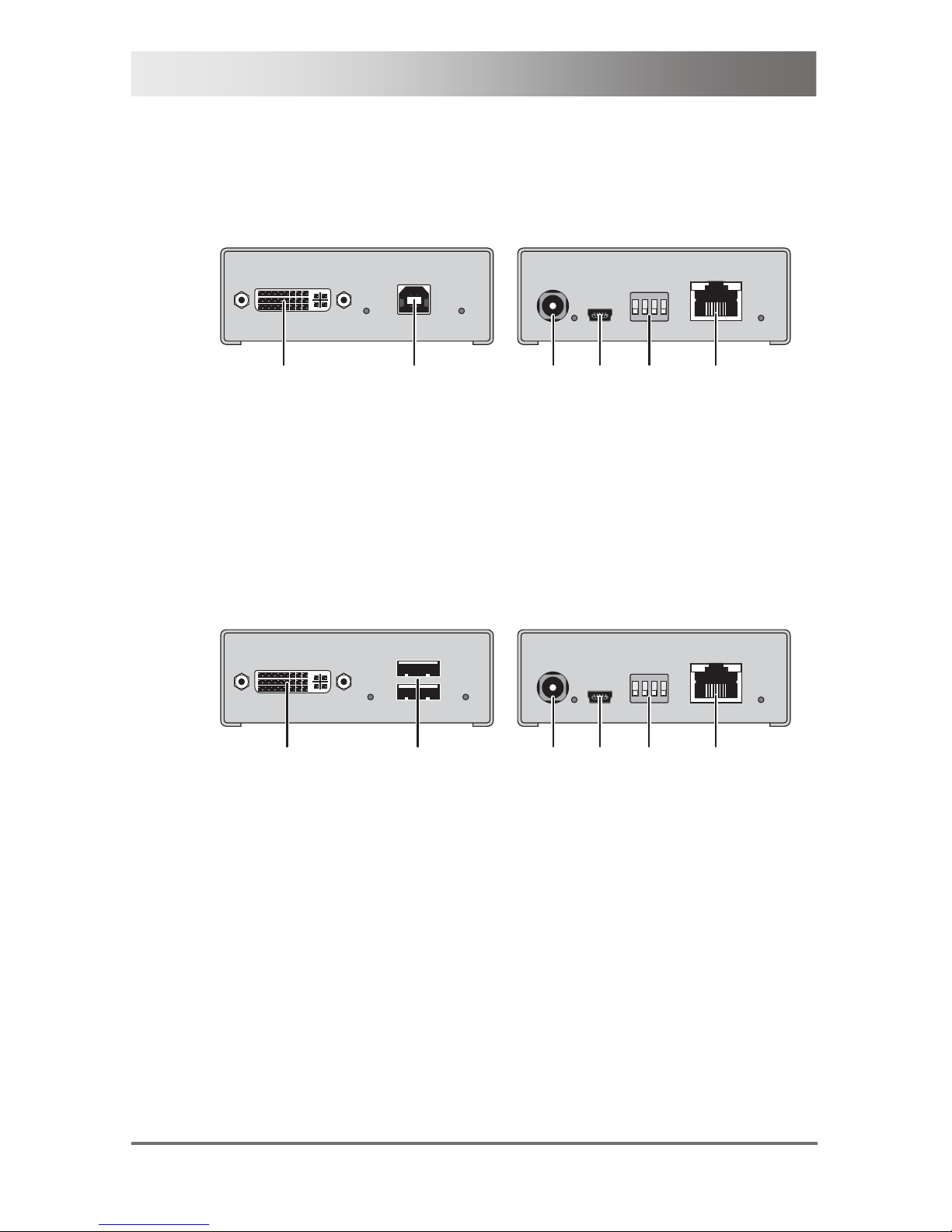

3.6.1 Model K473-SSH (Single-Head)

CPU Unit

12

1

2

3

4

Front View Rear View

1 To CPU: DVI-D
2 To CPU: USB-HID

1 Connect to 5VDC power supply
2 Service port
3 Configuration DIP switches
4 Connect to interconnect cable

CON Unit

12

1

2

3

4

Front View Rear View

1 Connect to DVI monitor
2 Connect to USB-HID devices

1 Connect to 5VDC power supply
2 Service port
3 Configuration DIP switches
4 Connect to interconnect cable

Pos: 11 /806-IHSE/Beschreibung/Gerätea nsichten/473-xx/Typ K473-DSH (Dual- Head) @ 5\mod_1278573827339_6.doc @ 41690 @ 3

Description

2011-02-23 11

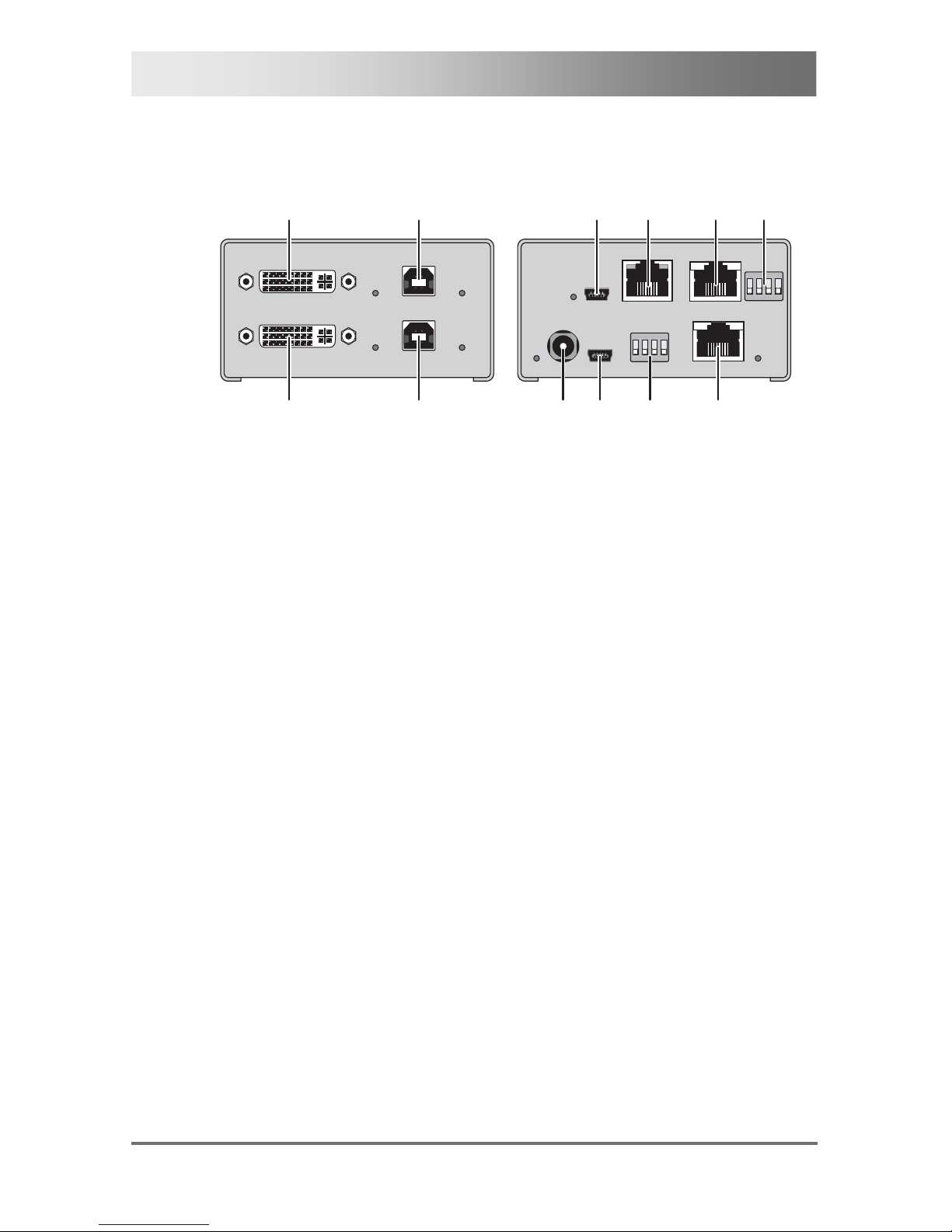

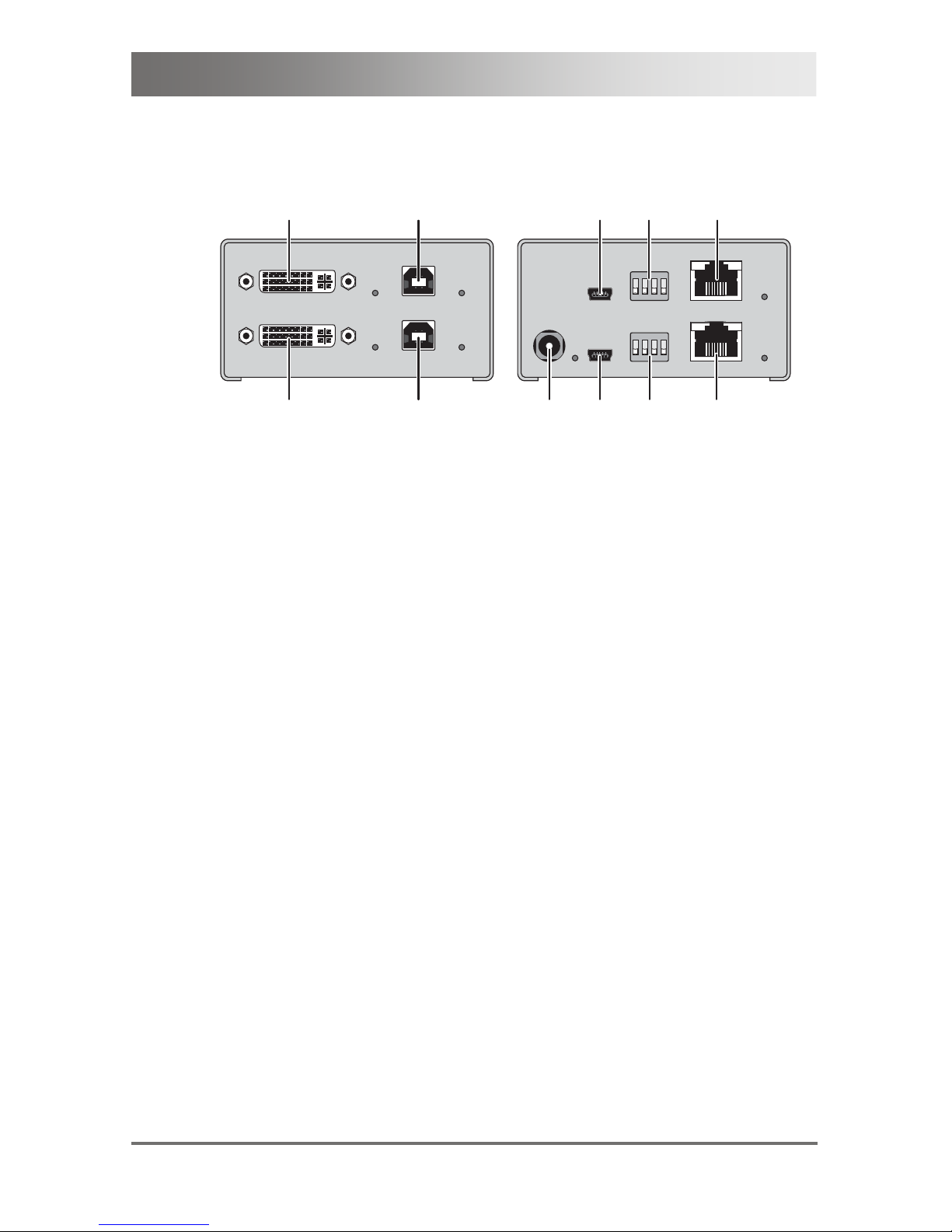

3.6.2 Model K473-DSH (Dual-Head)

CPU Unit

3

4

1

2

65

7

1

2

3

4

Front View Rear View

1 To CPU: DVI-D 1
2 To CPU: USB-HID 1
3 To CPU: DVI-D 2
4 To CPU: USB-HID 2

1 Connect to 5VDC power supply
2 Service port 1
3 Configuration DIP switches 1
4 Connect to interconnect cable 1
5 Service port 2
6 Configuration DIP switches 2
7 Connect to interconnect cable 2

DSXi KVM Extender

12 2011-02-23

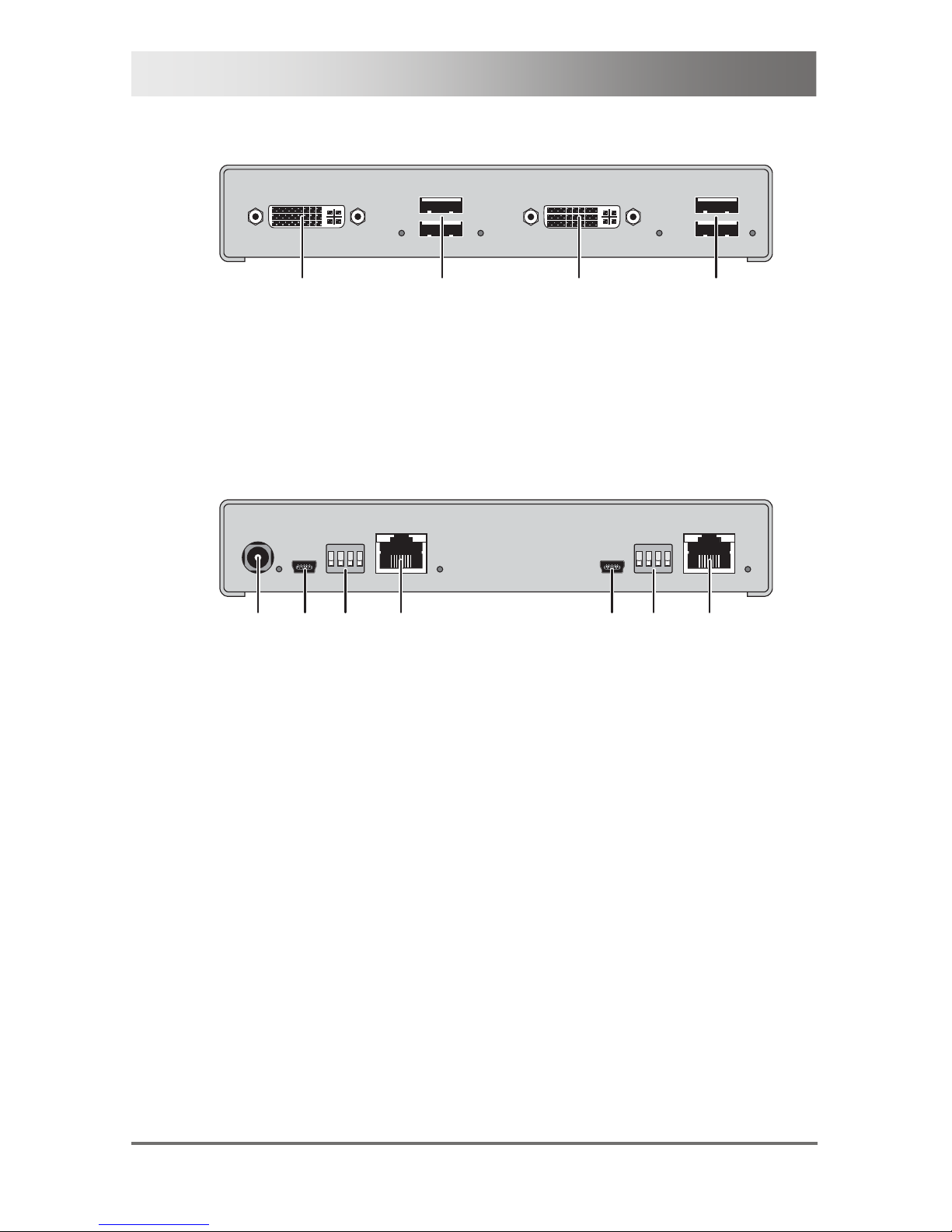

CON Unit

1 2

3

4

Front View

1 Connect to DVI monitor 1
2 Connect to USB-HID devices 1
3 Connect to DVI monitor 2
4 Connect to USB-HID devices 2

12

56

7

3

4

Rear View

1 Connect to 5VDC power supply
2 Service port 2
3 Configuration DIP switches 2
4 Connect to interconnect cable 2
5 Service port 1
6 Configuration DIP switches 1
7 Connect to interconnect cable 1

Pos: 12 /806-IHSE/Beschreibung/Gerätea nsichten/473-xx/Typ K473-SST (Singl e-Head) @ 5\mod_1278574466386_6.doc @ 41710 @ 3

Description

2011-02-23 13

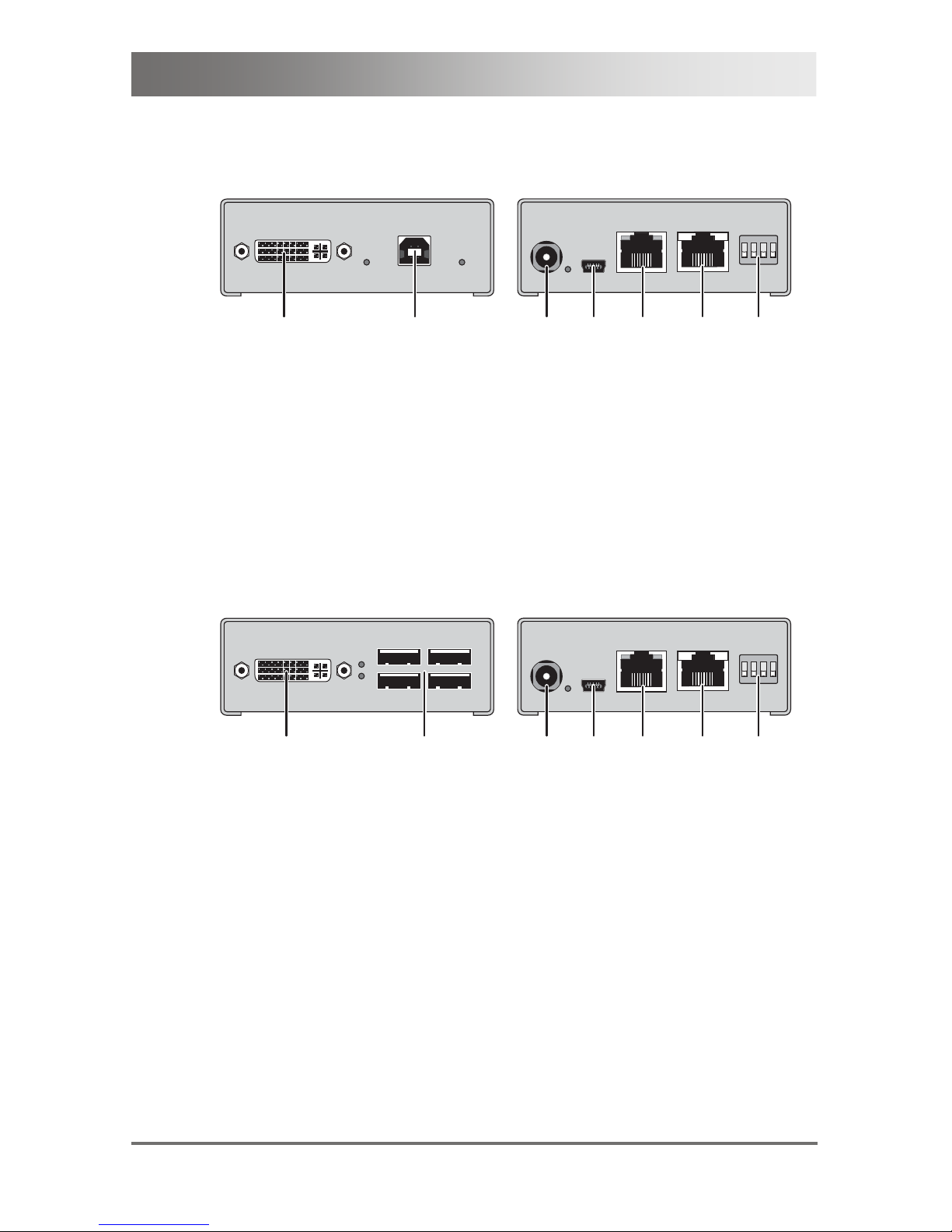

3.6.3 Model K473-SST (Single-Head)

CPU Unit

12

1

2

3

4

5

Front View Rear View

1 To CPU: DVI-D
2 To CPU: USB 2.0

1 Connect to 5VDC power supply
2 Service port
3 Connect to interconnect cable U
4 Connect to interconnect cable 1
5 Configuration DIP switches

CON Unit

1 2

1

2

3

4

5

Front View Rear View

1 Connect to DVI monitor
2 Connect to USB 2.0 devices

1 Connect to 5VDC power supply
2 Service port
3 Connect to interconnect cable U
4 Connect to interconnect cable 1
5 Configuration DIP switches

Pos: 13 /806-IHSE/Beschreibung/Gerätea nsichten/473-xx/Typ K473-DST (Dual- Head) @ 5\mod_1278574579964_6.doc @ 41728 @ 3

DSXi KVM Extender

14 2011-02-23

3.6.4 Model K473-DST (Dual-Head)

CPU Unit

3

4

1

2

6

5

7

8

1 2

3

4

Front View Rear View

1 To CPU: DVI-D 1
2 To CPU: USB-HID
3 To CPU: DVI-D 2
4 To CPU: USB 2.0

1 Connect to 5VDC power supply
2 Service port 1
3 Configuration DIP switches 1
4 Connect to interconnect cable 1
5 Service port 2
6 Connect to interconnect cable U
7 Connect to interconnect cable 2
8 Configuration DIP switches 2

Description

2011-02-23 15

CON Unit

1 2

3

4

Front View

1 Connect to DVI monitor 1
2 Connect to USB-HID devices 1
3 Connect to DVI monitor 2
4 Connect to USB 2.0 devices

1

2

3

6

7

85

4

Rear View

1 Connect to 5VDC power supply
2 Service port 2
3 Connect to interconnect cable U
4 Connect to interconnect cable 2
5 Configuration DIP switches 2
6 Service port 1
7 Configuration DIP switches 1
8 Connect to interconnect cable 1

Pos: 14 /806-IHSE/Beschreibung/Diagnos e-LEDs/473-xx @ 5\mod_1278574921511_6. d oc @ 41750 @ 2

DSXi KVM Extender

16 2011-02-23

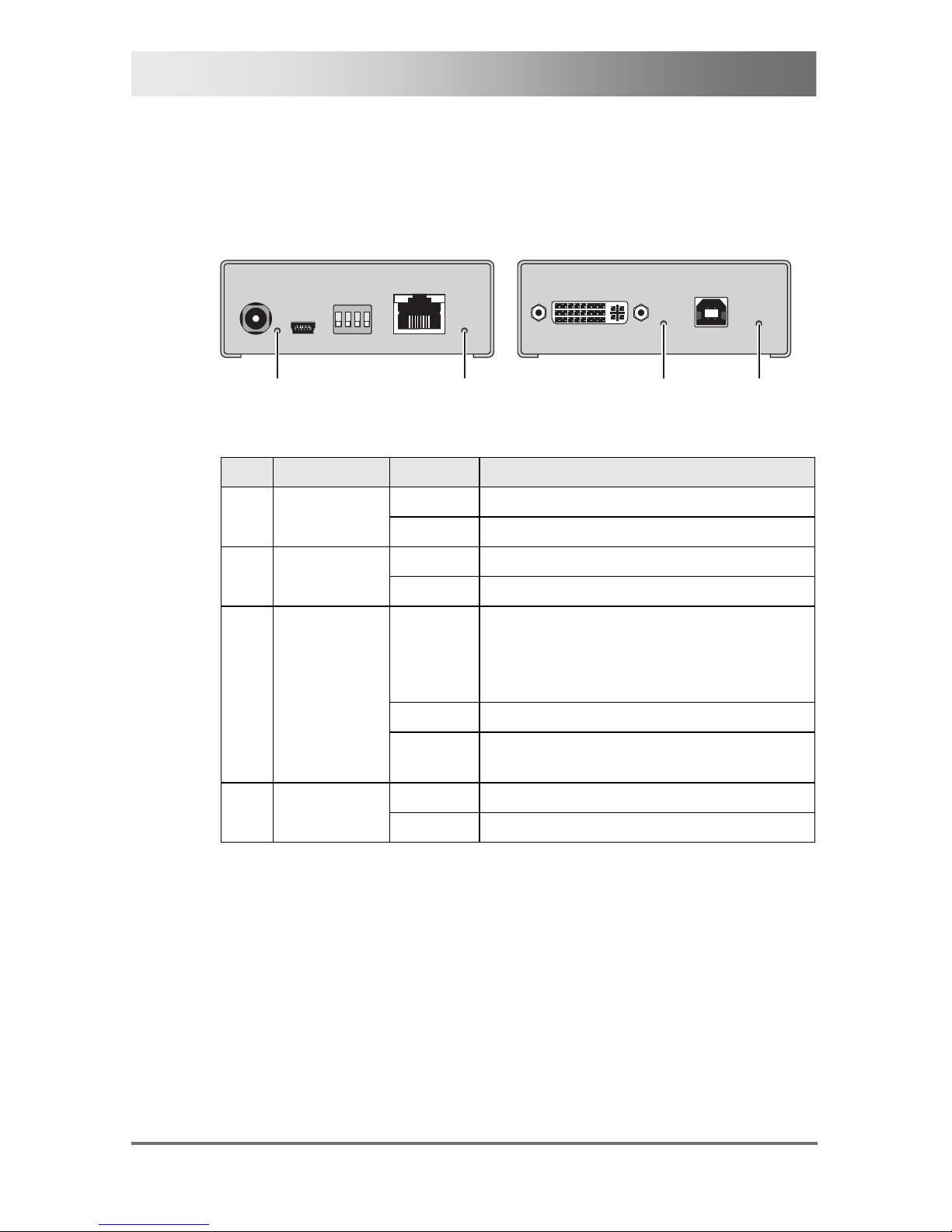

3.7 Diagnostics

The KVM Extender is fitted with the following LEDs for status indication at
CPU Unit and CON Unit:

Devices with USB-HID (CPU Unit and CON Unit)

1

2

3

4

Rear View Front View

Pos. LED Status Diagnostics

off Device not ready 1

Power

(red)

on Device ready
off No connection via interconnect cable 2

Link Status

(green)

on Connection available
off

 CPU Unit: No DVI signal from video

source (computer, CPU) detected

 CON Unit: No DVI signal from

CPU Unit or no monitor detected

on DVI signal from video source available

3

Video OK

(green)

flashing

Monitor DDC is being transmitted from
the console monitor

off No USB connection 4

USB Status

(green)

on USB connection available

Description

2011-02-23 17

Devices with USB 2.0 (CPU Unit and CON Unit)

1

2

3

45

Rear View Front View

Pos. LED Status Diagnostics

off Device not ready 1

Power

(red)

on Device ready
off No connection via interconnect cable
on Connection available

2

Link Status
USB

(green)

flashing No USB host found
off No connection via interconnect cable 3

Link Status
Video

(green)

on Connection via interconnect cable

off

 CPU Unit: No DVI signal from video

source (computer, CPU) detected

 CON Unit: No DVI signal from

CPU Unit or no monitor detected

on DVI signal from video source available

4

Video OK

(green)

flashing

Monitor DDC is being transmitted from
the console monitor

off No USB connection 5

USB Status

(green)

on USB connection available

Pos: 15 /806-IHSE/Installation/UEB_I nstallation @ 5\mod_1278574971589_6.doc @ 41768 @ 1

DSXi KVM Extender

18 2011-02-23

4 Installation

Pos: 16 /806-IHSE/Installation/Liefer umfang prüfen/473-xx @ 5\mod_1278575025 589_6.doc @ 41786 @ 2

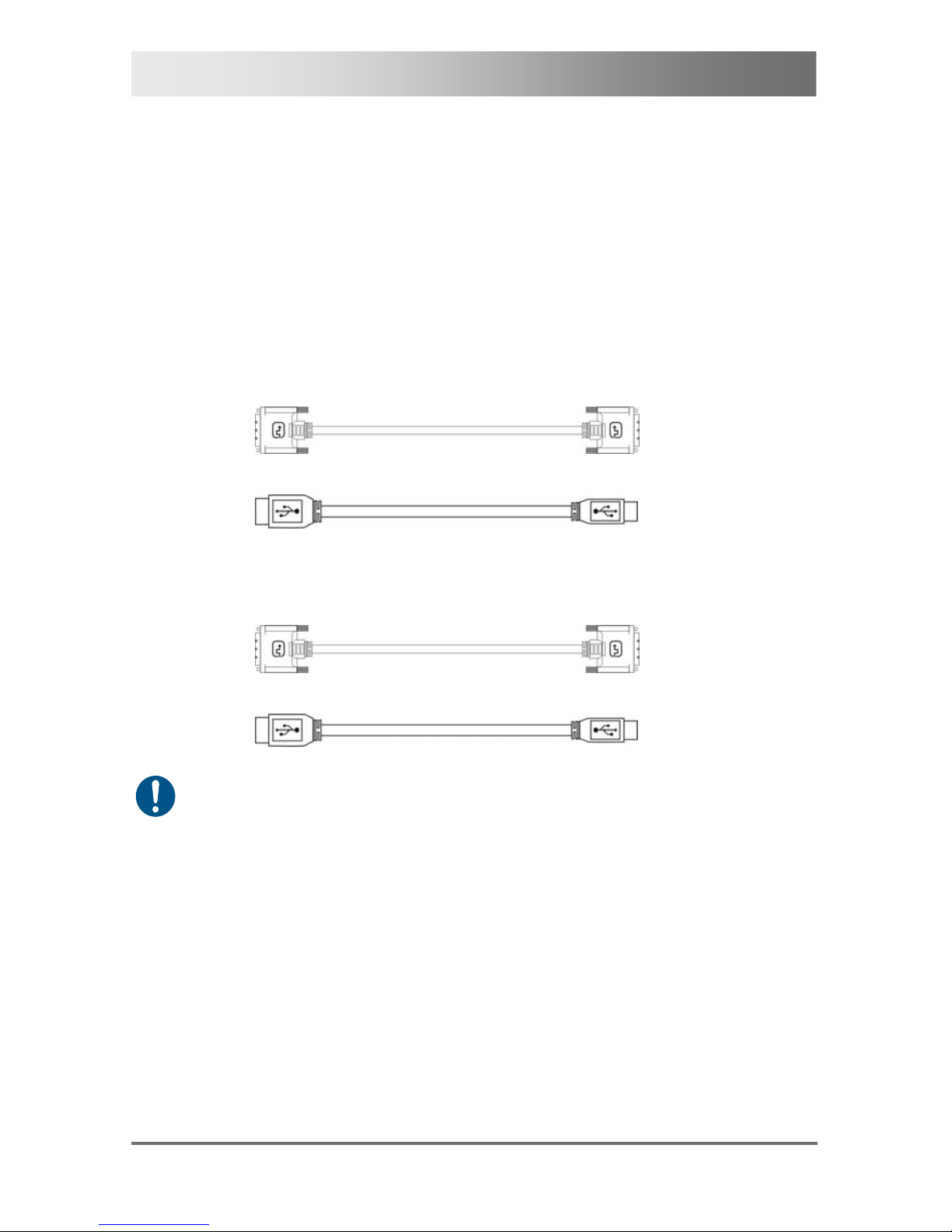

4.1 Package Contents

You should receive the following items in your extender package:

 KVM Extender pair (CPU Unit and CON Unit)
 2x 5VDC international power supply unit
 2x country specific power cord
 Quick Setup
 DVI video cable (1,8 m, DVI-D male-to-male)

 USB cable (1,8 m, USB type A to type B)

Additional content for Dual-Head devices:

 DVI video cable (1,8 m, DVI-D male-to-male)

 USB cable (1,8 m, USB type A to type B)

If anything is missing, contact your dealer.

Pos: 17 /806-IHSE/Installation/Syst em anschließen/VAR_KVM @ 5\mod_127857541358 9_6.doc @ 41810 @ 2

Installation

2011-02-23 19

4.2 System Setup

First time users are recommended to setup the system with the CPU Unit
and the CON Unit in the same room as a test setup. This will allow you to
identify and solve any cabling problems, and experiment with your system
more conveniently.

 Please verify that interconnect cables, interfaces, and handling of the

devices comply with the requirements (see Chapter 7, Page 29).

1. Switch off all devices.

CON Unit Installation

2. Connect your monitor(s), keyboard and mouse to the CON Unit.

3. Connect the CON Unit with the interconnect cable(s).

4. Connect the 5VDC power supply to the CON Unit.

CPU Unit Installation

5. Connect the source (computer, CPU) with the supplied cables to the
CPU Unit. Please ensure the cables are not strained.

6. Connect the CPU Unit to the interconnect cable(s).

7. Connect the 5VDC power supply to the CPU Unit.

8. Power up the system.

To power up the system, the following sequence is recommended:
Monitor – CON Unit – CPU Unit – source.

Pos: 18 /806-IHSE/Installation/Ins ta llationsbeispiele/UEB_Install ati o nsbeispiele @ 5\mod_1278581564870_6. doc @ 42759 @ 2

DSXi KVM Extender

20 2011-02-23

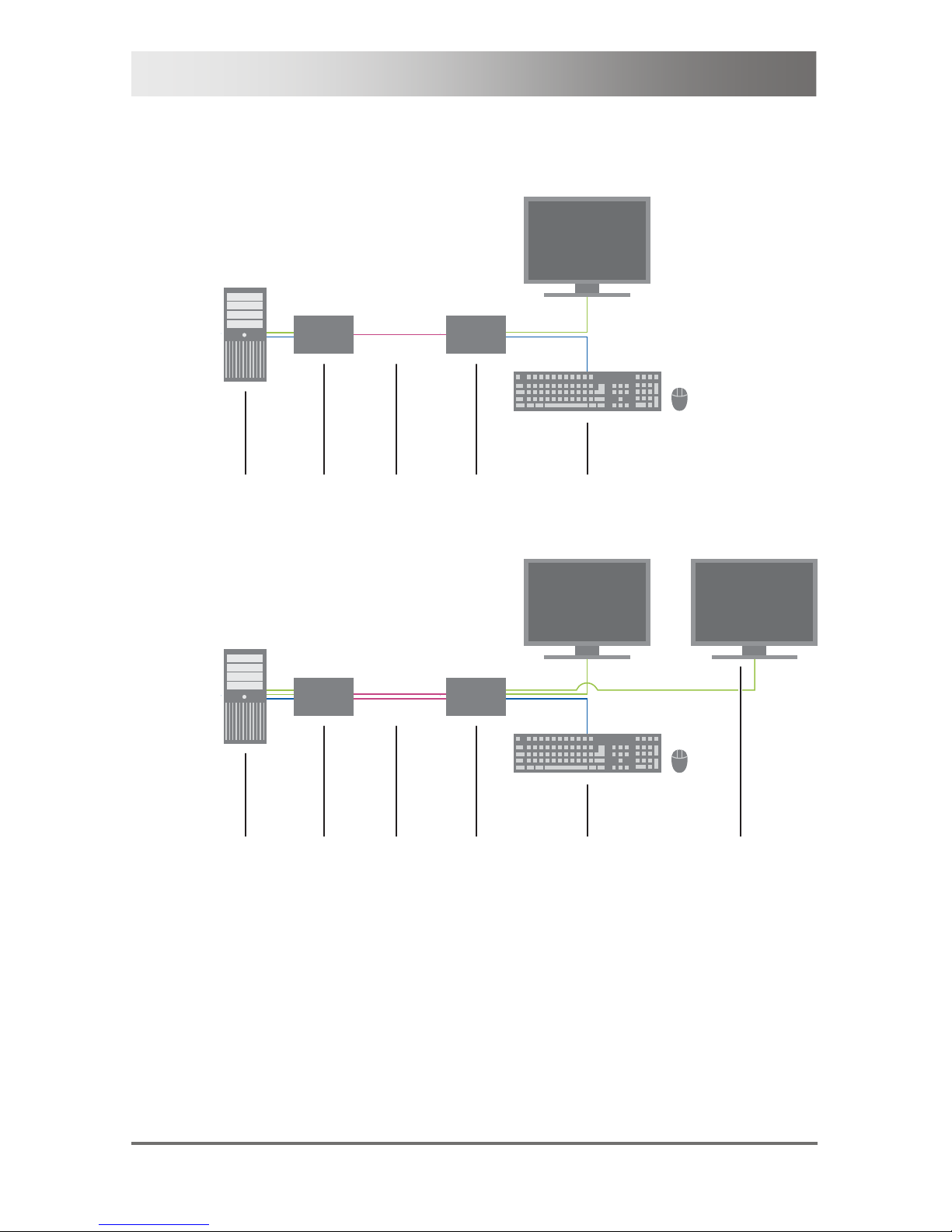

4.3 Example Applications

This section illustrates typical installations of KVM Extenders:

Pos: 19 /806-IHSE/Installation/Ins ta llationsbeispiele/VAR_KVM_Singl e-/Dual-Head_USB 2.0 @ 5\mod_1278575500636_ 6.doc @ 41828 @

1

2

4

5

3

KVM Extender (Single-Head)

1

2

4

5

6

3

KVM Extender (Dual-Head)

Installation

2011-02-23 21

1

2

4

5

7

3

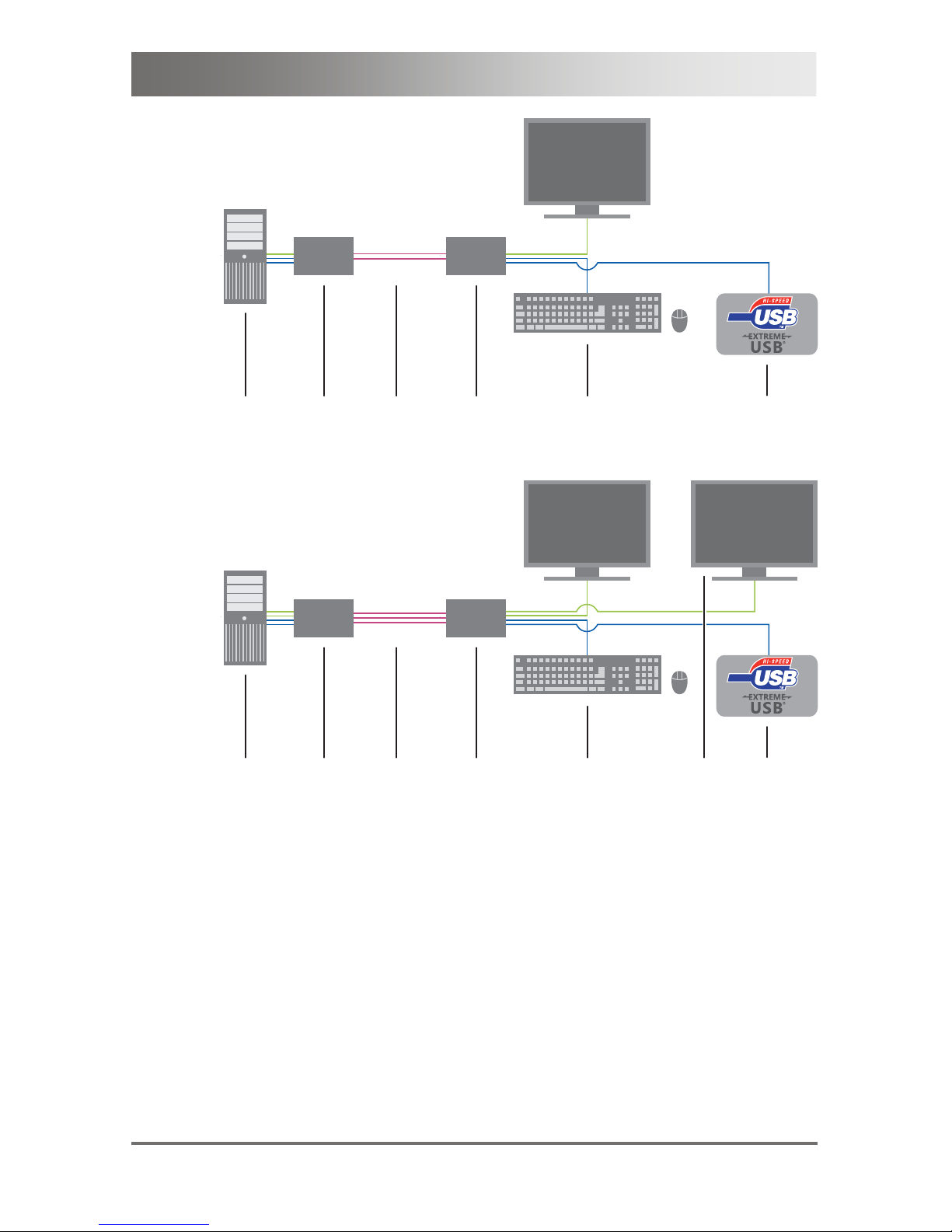

KVM Extender (Single-Head with USB 2.0)

1

2

4

5

7

6

3

KVM Extender (Dual-Head with USB 2.0)

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with USB 2.0 devices)

Pos: 20 /806-IHSE/Konfiguration/ UEB_Ko nfiguration @ 5\mod_1278575517073_6.doc @ 41846 @ 1

DSXi KVM Extender

22 2011-02-23

5 Configuration

Pos: 21 /806-IHSE/Konfiguration/ Übertr agungsparameter/73-xx @ 5\mod_1278575 636042_6.doc @ 41864 @ 233

5.1 Transmission Parameters

By default, the device will automatically adapt to optimize video quality.
This configuration is suitable for almost all conditions and should only be
modified if video quality is not satisfactory.

In case of video interference, an automatic readjustment can be initiated
by entering a keyboard command (see Chapter 6.1, Page 27). Please
note that this feature is n

ot available on model K473-SST.

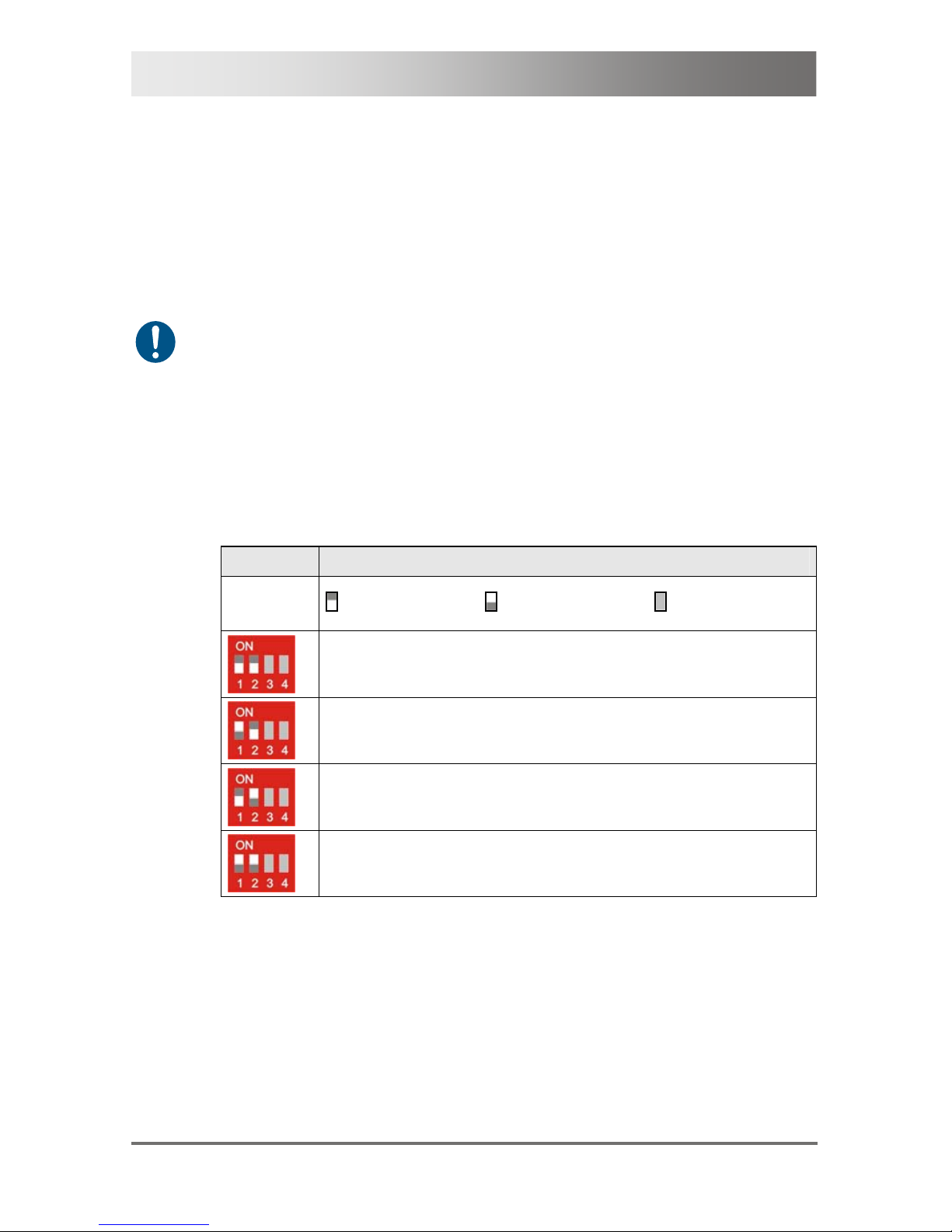

5.1.1 Adjustment of Video Resolution

The CPU Unit can be adjusted for the video resolution used with the
following DIP switch settings:

CPU Unit

DIP Function
Switch

Position

Switch down S witch up Not used

Automatic adjustment (default)

Resolution up to 1280x1024

Resolution greater than 1280x1024

Configuration for maximum distance transmission,
independent of monitor resolution

Configuration

2011-02-23 23

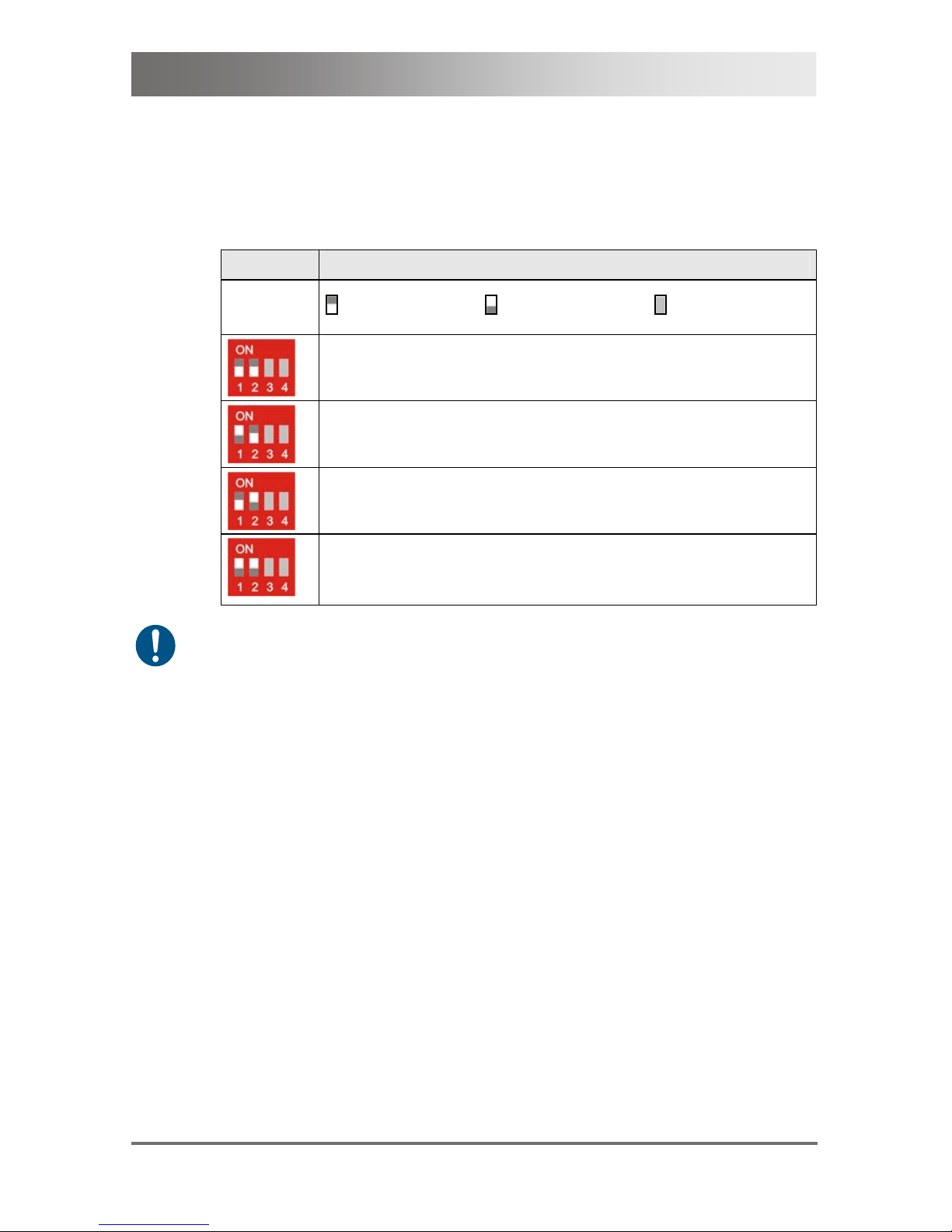

5.1.2 Adjustment of Cable Length

The CON Unit can be adapted for the current interconnect cable length
with the following DIP switch settings:

CON Unit

DIP Function
Switch

Position

Switch down S witch up Not used

Automatic adjustment (default)

Cable length exceeds 10 m

Cable length exceeds 20 m

Maximum cable length: Use this setting if you are exceeding
the maximum recommended cable length or if the video
quality is not acceptable with automatic adjustment.

Cable lengths refer to Cat X solid-core cable type AWG24.
Using flexible stranded cables (patch cables) of type AWG26/8 is possible,

however the maximum possible extension distance is halved.
 Change your DIP switch settings.

Pos: 22 /806-IHSE/Konfiguration/DDC-Ei nstellungen/473-xx @ 5\mod_1278577797886_6. doc @ 41988 @ 2

DSXi KVM Extender

24 2011-02-23

5.2 DDC Settings

By default, the device sends the factory preset DDC information to the
CPU. This information is sufficient in most cases.

CPU Unit and CON Unit offer the following DIP switch settings to control
the administration of the DDC information:

CPU Unit

DIP Function
Switch

Position

Switch down S witch up Not used

Send stored DDC information to CPU (default: factory preset
DDC information).

Allow reading of DDC information from the attached monitor.
Reset and only ever send the factory default

DDC information

CON Unit

DIP Function
Switch

Position

Switch down S witch up Not used

Prevent reading of DDC information from the attached
monitor

Allow reading of DDC information from the attached monitor

Reading of DDC information is performed during operation ( s ee
Chapter 6.2, Page 27).

If DIP switch 3 on the CPU Unit is in upper position the CPU will only ever
be sent the factory preset DDC information.

Pos: 23 /806-IHSE/Konfiguration/Be tr iebsart wählen/473-xx @ 5\mod_127857784 2120 _6.doc @ 42006 @ 2

Configuration

2011-02-23 25

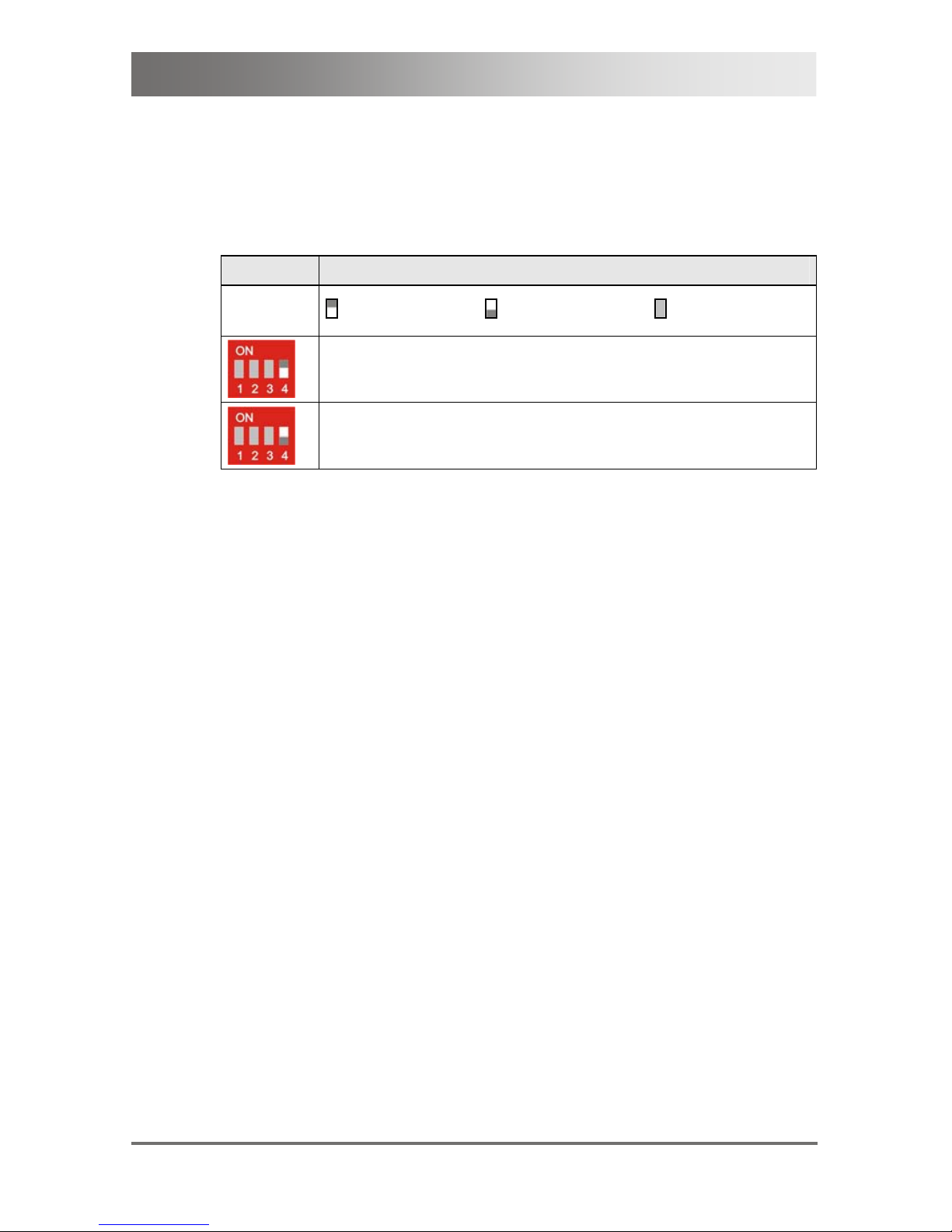

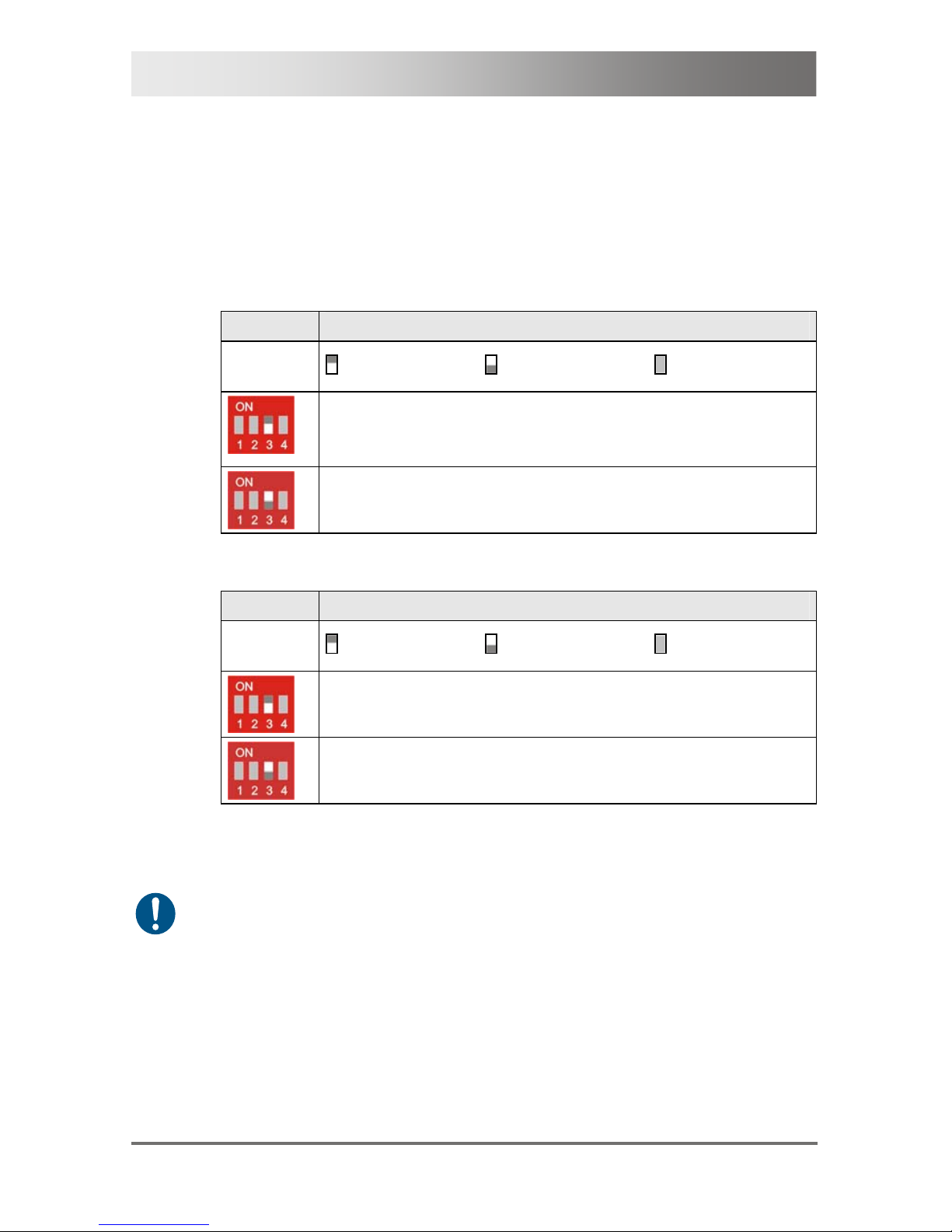

5.3 Selection of Operation Mode

At CPU Unit and CON Unit you can select the operation mode with the
following DIP switch settings:

CPU Unit and CON Unit

DIP Function
Switch

Position

Switch down S witch up No used

Standard operation (default)

Test mode
Devices before 2010: Update mode activated

During standard operation, DIP switch 4 must stay in the down position.

Pos: 24 /806-IHSE/Konfiguration/Ko m mand o- Modus/VAR_KVM_USB-HID @ 5\mod_12785779 4398 0_6.doc @ 42024 @ 2

DSXi KVM Extender

26 2011-02-23

5.4 Command Mode

During normal use, the console keyboard functions in the us ual manner.
However, for all KVM Extenders with USB-HID support, you can set the
keyboard into a Command Mode by using a specific 'Hot Key' sequence.
While in Command Mode, several functions are performed via keybo ard
commands. To exit Command Mode, press <Esc>.

While in Command Mode, the LEDs Shift and Scroll on the console
keyboard will flash.

In Command Mode normal keyboard and mouse operation will cease.
Only selected keyboard commands are available.

The following table lists the keyboard commands to enter and to exit
Command Mode and to change the 'Hot Key' sequence:

Function Keyboard Command

Enter Command Mode
(default)

2x <Left Shift> ('Hot Key')

Exit Command Mode <Esc>
Change 'Hot Key' sequence

<Left Ctrl> + <Left Shift> + <c>,
<'Hot Key' Code>, <Enter>

<Key> + <Key> Press keys simultaneously
<Key>, <Key> Press keys successively
2x <Key> Press key quickly, twice in a row

(similar to a mouse double-click)
The 'Hot Key' sequence to enter Command Mode can be changed. The

following table lists the 'Hot Key' Codes for the available key sequences:

'Hot Key' Code 'Hot Key'

1 <Left Ctrl> + <Left Shift> + <i>
2 2x <Scroll>
3 2x <Left Shift>
4 2x <Left Ctrl>
5 2x <Left Alt>
6 2x <Right Shift>
7 2x <Right Ctrl>
8 2x <Right Alt>

Pos: 25 /806-IHSE/Betrieb/UEB_Betri eb @ 5\mod_1278577614980_6.doc @ 41970 @ 1

Operation

2011-02-23 27

6 Operation

Pos: 26 /806-IHSE/Betrieb/Übertragun gsp arameter neu bestimmen (Auto-Adjust)/ 473-xx @ 5\mod_1278578041089_6.doc @ 42060 @ 2

6.1 Readjustment of Transmission Parameters
(Auto-Adjust)

On KVM Extenders with USB-HID support (not for model K473-SST), the
user can initiate an automatic readjustment of transmission parameters.
The KVM Extender will automatically optimize video quality.

1. Enter Command Mode (default: 2x <Left Shift>; see Chapter 5.4,

Page 26).

2.

Press the <a> key to start Auto-Adjust.
The screen will blank for a short time.
The KVM Extender will exit Command Mode.
Transmission parameters have been readjusted. Video quality should

be optimal.

Pos: 27 /806-IHSE/Betrieb/Laden von DDC-Inf ormationen/473-xx @ 5\mod_1278578094526_6.doc @ 42078 @ 233

6.2 Download of DDC Information

By default, the factory preset DDC information is sent to the source
(computer, CPU). In some cases the factory preset DDC information may
not be appropriate, so the option exits to read the actual DDC information
from the attached monitor. The DIP switches have to be set correctly (see
Chapter 5.2, Page 24).

There are two ways to read DDC information from the attached monitor:
 Via keyboard command during operation (see Chapter 6.2.1,

Page 28).



Reconnecting the monitor cable at the CON Unit (see Chapter 6.2.2,
Page 28).

DSXi KVM Extender

28 2011-02-23

6.2.1 Download DDC via Keyboard Command

Use the following command sequence to read DDC information from the
attached monitor (except for model K473-SST).

1. Enter Command Mode (default: 2x <Left Shift>; see Chapter 5.4,

Page 26).

2.

Press the keys <2>, <Enter> to read the DDC information from the
console monitor.

The screen will blank for a short time.
The KVM Extender will exit Command Mode.
The CPU will now be able to read the actual monitor DDC information

and so allow the required video resolution to be selected.

3. Enter Command Mode (default: 2x <Left Shift>).

4. Press the keys <1>, <Enter>.

The KVM Extender will exit Command Mode.
The DDC information has been updated once. Further updates are

only possible by repeating all the steps listed above or by re- attaching
the monitor cable (see Chapter 6.2.2, Page 28).

6.2.2 Download DDC via DVI Cable

1. Move DIP switch 3 on the CON Unit to the upper position.

2. Please make sure that the monitor is on (both monitors in case of

Dual-Head devices).

3. Disconnect the monitor cable from the CON Unit and connect the

monitor cable again (In the case of Dual-Head devices, disconnect
and connect monitor cables successively).

The DDC information will be read from the console monitor,
transmitted to the CPU Unit and stored there internally.

To show successful reprogramming the LED Video OK flashes at
both CON Unit and CPU Unit for about one second.

The CPU will now be able to read the actual monitor DDC information
and so allow the required video resolution to be selected.

4. Move DIP switch 3 on the CON Unit to the down position.

Accidental download of DDC information can thus be avoided.

Pos: 28 /806-IHSE/Technische Daten/UEB_ Technische Daten @ 5\mod_1278578165261_6.doc @ 42096 @ 1

Specifications

2011-02-23 29

7 Specifications

Pos: 29 /806-IHSE/Technische Daten/Sc hni ttstellen/UEB_Schnittstellen @ 5\mo d_12 78578201870_6.doc @ 42114 @ 2

7.1 Interfaces

Pos: 30 /806-IHSE/Technische Daten/Sc hni ttstellen/DVI-D-Single-Link @ 5\ mod _127 8578254058_6.doc @ 42132 @ 3

7.1.1 DVI-D Single Link

The video interface supports the DVI-D protocol. All signals that comply to
DVI-D Single Link norm can be transmitted. This includes e.g. monitor
resolutions such as 1920x1200@60Hz, Full HD (1080p) or 2K HD (up to
2048x1152). Data rate is limited to 165 MPixel/s.

Pos: 31 /806-IHSE/Technische Daten/Sc hni ttstellen/DVI-x-Single-Link_HI_I nterlaced @ 5\mod_1278928206636_6.doc @ 42780 @

Transmission of interlaced video signals, such as 1920x1080i, cannot be
guaranteed.

Pos: 32 /806-IHSE/Technische Daten/Sc hni ttstellen/USB-HID @ 5\mod_1278578292214_ 6.doc @ 42150 @ 3

7.1.2 USB-HID

Our devices with an USB-HID interface support a maximum of two devices
compliant with the USB-HID protocol. Each USB-HID port provides a
maximum current of 100 mA.

Keyboard

Compatible with most USB keyboards. Certain keyboards with addition al
functions may require custom firmware to operate. Keyboards with an
integral USB Hub (Mac keyboards e.g.) are also supported.

Mouse

Compatible with most 2-button, 3-button and scroll mice.

Other USB-HID devices

The proprietary USB emulation also supports certain other USB-HID
devices, such as specific touch screens, graphic tablets, barcode
scanners or special keyboards. Support cannot be guaranteed, however,
for every USB-HID device.

Only two USB-HID devices are supported concurrently, such as keyboard
and mouse or keyboard and touch screen. A hub is allowed, but it does
not increase the number of HID devices allowed.

To support other USB 'non-HID' devices, such as scanners, web cams or
memory devices, choose our devices with transparent USB support.

DSXi KVM Extender

30 2011-02-23

Pos: 33 /806-IHSE/Technische Daten/Sc hni ttstellen/USB 2.0 (transparent) @ 5\ mod_ 1278 578316386_6.doc @ 42168 @ 3

7.1.3 USB 2.0 (transparent)

KVM Extender models with transparent USB 2.0 support allow the
connection of all types of USB 2.0 devices (without restriction). USB 2.0
data transfer is supported with USB high speed (max. 480 Mbit/s).

Each USB 2.0 port provides a maximum current of 500 mA (high power).

Pos: 34 /806-IHSE/Technische Daten/Sc hni ttstellen/RJ45 (Gerätekommunikation) @ 5\mod_1278578339308_6.doc @ 42186 @ 3

7.1.4 RJ45 (Interconnect)

The communication of the Cat X devices requires a 1000BASE-T
connection.

Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with
RJ45 connectors at both ends. All four cable wire pairs are used.

Pos: 35 /806-IHSE/Technische Daten/Verbi ndungskabel/UEB_Verbindungskabe l @ 5\mod_1279191107845_6.doc @ 43870 @ 2

Specifications

2011-02-23 31

7.2 Interconnect Cable

Pos: 36 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbindungskabel (Cat X) @ 5\mod_1278578406026_6.doc @ 42205 @ 3

7.2.1 Cat X

A point-to-point connection is required. Operation with several patch fields
is possible. Routing over an active network component, such as an
Ethernet Hub, Router or Switch, is not allowed.

 Avoid routing Cat X cables along power cables.
 If the site has 3-phase AC power, try to ensure that CPU Unit and

CON Unit are on the same phase.

To maintain regulatory EMC compliance, correctly installed shielded Cat X
cable must be used throughout the interconnection link.

To maintain regulatory EMC compliance, all Cat X cables need to carry
ferrites on both cable ends close to the device.

Type of Interconnect Cable

The KVM Extender requires interconnect cabling specified for Gigabit
Ethernet (1000BASE-T). The use of solid-core (AWG24), shielded, Cat 5e
(or better) is recommended.

Cat X Solid-Core Cable
AWG24

S/UTP (Cat 5e) cable according to EIA/TIA­568-B. Four pairs of wires AWG24.
Connection according to EIA/TIA-568-B
(1000BASE-T).

Cat X Patch Cable
AWG26/8

S/UTP (Cat 5e) cable according to EIA/TIA­568-B. Four pairs of wires AWG26/8.
Connection according to EIA/TIA-568-B
(1000BASE-T).

The use of flexible cables (patch cables) type AWG26/8 is possibl e,
however the maximum possible extension distance is halved.

Pos: 37 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbindungskabel (Cat X) _Kabellänge 473-xx @ 5\mod_1278928498808_ 6.doc @ 42798 @

Maximum Acceptable Cable Length

Cat X Solid-Core Cable
AWG24

40 m (120 ft) at 1920x1200 and 1600x1200
50 m (150 ft) at 1280x1024 and less

Cat X Patch Cable
AWG26/8

20 m (60 ft) at 1920x1200 and 1600x1200
30 m (90 ft) at 1280x1024 and less

See Chapter 7.3.3, Page 32 for a list of specifically tested cables with an
optimum range.

Pos: 38 /806-IHSE/Technische Daten/Getes tete Peripherie/UEB_Getestete Peri pher ie @ 5\mod_1278578478761_6.doc @ 42242 @ 2

DSXi KVM Extender

32 2011-02-23

7.3 Supported Peripherals

Pos: 39 /806-IHSE/Technische Daten/Getes tete Peripherie/USB-HID-Geräte @ 5\mod_12 78578523558_6.doc @ 42260 @ 3

7.3.1 USB-HID Devices

The KVM Extender will support most USB-HID devices, including the vast
majority of keyboards and mice currently on the market. Many other kinds
of HID device such as bar-code scanners and touch screens may also be
compatible

It is not possible to guarantee support for all available USB-HID devices.
In certain cases, custom firmware may be required.

USB-HID (and other) devices that are not supported as standard will
normally operate with our devices featuring transparent USB support.

Please note that concurrent operation of more than two USB-HID devices
is not possible even if you use a USB hub.

Pos: 40 /806-IHSE/Technische Daten/Getes tete Peripherie/USB-2.0-Geräte @ 5\ mod_1278578553933_6.doc @ 42278 @ 3

7.3.2 USB 2.0 Devices

KVM Extender models featuring a transparent USB 2.0 connection use
Extreme USB Technology from Icron Technologies.

This technology supports all types of USB 2.0 devices, however the
manufacturer cannot guarantee compatibility with every device on the
market. Please contact your dealer if any issues are found.

Pos: 41 /806-IHSE/Technische Daten/Getes tete Peripherie/Verbindungskabe l (Cat X) @ 5\mod_1278578615355_6.doc @ 42296 @ 3

7.3.3 Interconnect Cable (Cat X)

KVM Extenders should be used with cables as described in Chapter 7.2.1,
Page 31.

Internal tests showed that certain cables or cable types allow longer cable
lengths.

Enhanced performance is specified using the following cables:

Resolution (at 60 Hz) Cable Type Cable Length

1920x1200 and
1600x1200

Leoni Kerpen Megaline
AWG24

>50 m (>150 ft)

1920x1200 and
1600x1200

Leoni Kerpen Megaline
AWG23

>60 m
(>180 ft)

The specified cables should be available through your dealer. Other
cables on the market may support operation at extended distances but
such operation cannot be guaranteed.

Pos: 42 /806-IHSE/Technische Daten/Pinbe legungen/UEB_Pinbelegungen @ 5\mod_1 2785 78683636_6.doc @ 42315 @ 2

Specifications

2011-02-23 33

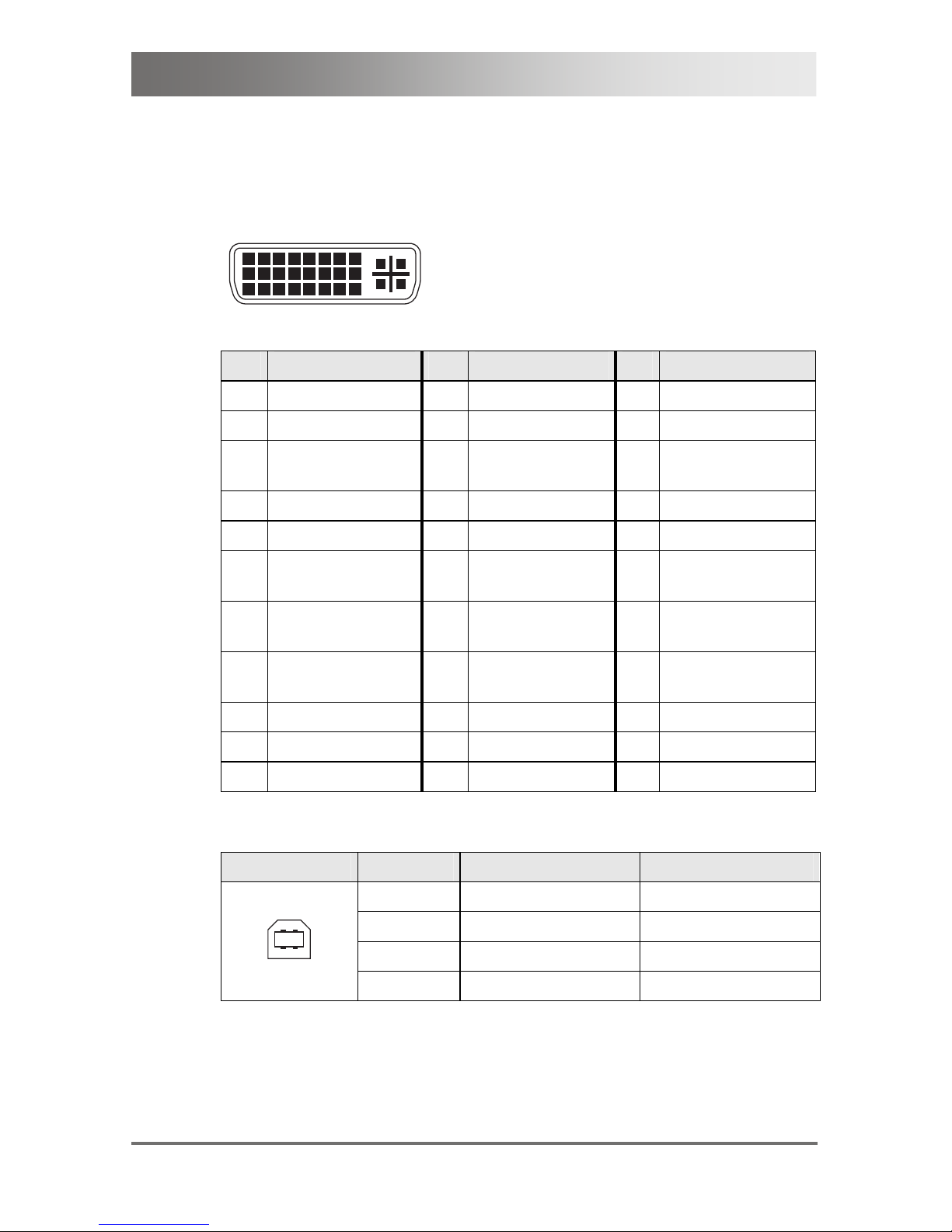

7.4 Connector Pinouts

Pos: 43 /806-IHSE/Technische Daten/Pinbe legungen/Buchse DVI-D Single-Link @ 5\mo d_12 78578723073_6.doc @ 42333 @

Connector DVI-D Single-Link

1.............................8 C1 C2

C5

17...........................24

C3 C4

Pin Signal Pin Signal Pin Signal

1 T.M.D.S data 2– 9 T.M.D.S data 1– 17 T.M.D.S data 0–
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+
3

T.M.D.S data 2
GND

11

T.M.D.S data 1
GND

19

T.M.D.S data 0

GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14

+5VDC high
impedance

22

T.M.D.S clock

GND
7

DDC Output
(SDA)

15 GND 23 T.M.D.S clock +

8 Internal use 16

Hot Plug
recognition

24 T.M.D.S clock –

C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use

Pos: 44 /806-IHSE/Technische Daten/Pinbe legungen/Buchse USB Typ B @ 5\mod_1278578750464 _6.doc @ 42351 @

Connector USB Type B

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green

132

4

4 GND Black

Pos: 45 /806-IHSE/Technische Daten/Pinbe legungen/Buchse USB Typ A @ 5\mod_1278578771214_ 6.doc @ 42369 @

DSXi KVM Extender

34 2011-02-23

Connector USB Type A

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green

1

3

2 4

4 GND Black

Pos: 46 /806-IHSE/Technische Daten/Pinbe legungen/Buchse Mini-USB Typ B @ 5\mod_12785 7879 4167_6.doc @ 42387 @

Connector Mini USB Type B

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –

....5

1

5 GND Black

Pos: 47 /806-IHSE/Technische Daten/Pinbe legungen/RJ45 @ 5\mod_1278578820011_6.doc @ 42405 @

RJ45

Picture Pin Signal Pin Signal

1 D1+ 5 D3–
2 D1– 6 D2–
3 D2+ 7 D4+

8..........1

4 D3+ 8 D4-

Pos: 48 /806-IHSE/Technische Daten/Pinbe legungen/Stromversorgung @ 5\mod_12785 78849183_6.doc @ 42423 @

Power Supply

Picture Pin Signal

Inside VCC (+5VDC)

Outside GND

Pos: 49 /806-IHSE/Technische Daten/Stro mversorgung/473-xx @ 5\mod_1278578937151 _6.doc @ 42460 @ 2

Specifications

2011-02-23 35

7.5 Power Supply

Single-Head Devices

Voltage

5VDC

Power Requirement  K473-SSH (CPU Unit and CON Unit):

5VDC / 800 mA

 K473-SST (CPU Unit):

5VDC / 800 mA

 K473-SST (CON Unit):

5VDC / 2.500 mA

Dual-Head Devices

Voltage

5VDC

Power Requirement  K473-DSH (CPU Unit and CON Unit):

5VDC / 1.600 mA

 K473-DST (CPU Unit):

5VDC / 1.600 mA

 K473-DST (CON Unit):

5VDC / 3.300 mA

Pos: 50 /806-IHSE/Technische Daten/Einsa tzbedingungen/ATB_Einsatzbedin gung en @ 5\mod_1278578980026_6.doc @ 42480 @ 2

7.6 Environmental Conditions

Operating Temperature

41 to 113°F (5 to 45°C)

Storage Temperature

–13 to 140°F (–25 to 60°C)

Relative Humidity

Max. 80% non-condensing

Pos: 51 /806-IHSE/Technische Daten/Ab mes sun gen/473-xx @ 5\mod_1278579027355_6.doc @ 42499 @ 2

7.7 Size

Single-Head Devices

CPU Unit / CON Unit

80 x 110 x 29 mm (3.1" x 4.3" x 1.1")

Shipping Box

210 x 140 x 165 mm (8.3" x 5.5" x 6.5")

Dual-Head Devices

CPU Unit

80 x 110 x 42 mm (3.1" x 4.3" x 1.7")

CON Unit

161 x 110 x 29 mm (6.3" x 4.3" x 1.1")

Shipping Box

460 x 250 x 120 mm (18.1" x 9.8" x 4.7")

Pos: 52 /806-IHSE/Technische Daten/Transp ortgewicht /473-xx @ 5\mod_12785790759 80_6.doc @ 42518 @ 2

DSXi KVM Extender

36 2011-02-23

7.8 Shipping Weight

Single-Head Devices

CPU Unit / CON Unit

0,2 kg (0.4 lb)

Shipping Box

1,7 kg (3.8 lb)

Dual-Head Devices

CPU Unit / CON Unit

0,3 kg (0.7 lb)

Shipping Box

2,2 kg (4.9 lb)

Pos: 53 /806-IHSE/Hilfe im Problemfall/ UEB_Hilfe im Problemfall @ 5\mod_1278579113 839_ 6.doc @ 42536 @ 1

Troubleshooting

2011-02-23 37

8 Troubleshooting

Pos: 54 /806-IHSE/Hilfe im Problemfall/Bi ldausfall/473-xx @ 5\mod_127857920918 3_6.doc @ 42555 @ 2

8.1 Blank Screen

Diagnosis

Possible Reason Measure

LED Power off

Power supply

 Check power supply units and

the connection to the mains.

LED Link
Status off

Connection between
CON Unit and CPU Unit

 Check interconnect cable and

connections.

CPU Unit: LED
Video OK off

No video signal detected
by source (computer,
CPU)

 Check DVI-D cable to CPU.
 Download DDC information from

console monitor (see Chapter

6.2, Page 27).
Reb

oot CPU if necessary.

No monitor detected

 Check connection, length and

quality of the DVI-D cable to
monitor, tighten cable
thumbscrews.

No video signal detected
from CPU Unit

 Check connection, length and

quality of interconnect cable
between the units.

 Download DDC information from

console monitors (see Chapter

6.2, Page 27).
Reb

oot CPU if necessary.

CON Unit: LED
Video OK off

Suboptimal transmission
parameters

 Execute Auto-Adjust (see

Chapter 6.1, Page 27).



If necessary, manually adjust
parameters for monitor
resolution (see Chapter 5.1.1,
Page 22) and cable length (see
Chapter 5.1.2, Page 23).

Pos: 55 /806-IHSE/Hilfe im Problemfall/Bi ldstörung/473-xx @ 5\mod_1278579260 964_ 6.doc @ 42574 @ 2

DSXi KVM Extender

38 2011-02-23

8.2 Video Jitter

Diagnosis

Possible Reason Measure

Cable connection
interrupted

 Check connection, length and

quality of DVI-D cable to CPU
and to monitor, tighten cable
thumbscrews.

 Check connection, length and

quality of interconnect cables
between the units.

Incorrect video
display

Suboptimal transmission
parameters

 Execute Auto-Adjust (see

Chapter 6.1, Page 27).



If necessary, manually adjust
parameters for monitor resolution
(see Chapter 5.1.1, Page 22) and
cabl

e length (see Chapter 5.1.2,

Page 23).

Pos: 56 /806-IHSE/Hilfe im Problemfall/S törung am USB-HID-Anschluss/473-xx @ 5\mod_1 278579309355_6.doc @ 42593 @ 2

8.3 USB-HID Failure

Diagnosis

Possible Reason Measure

Keyboard LEDs
Shift and Scroll
are flashing

Keyboard in Command
Mode

 Press <Esc> to leave Command

Mode.

CPU Unit:
LED USB
Status off

No USB connection to
CPU

 Check connection of USB cable

to CPU, select another USB port
if necessary.

 Remove USB and power cable

and restart CPU. Connect power
cable first.

CON Unit:
LED USB
Status off

Problems with USB
connection

 Check connection of USB cable

to USB-HID device.

 Remove DVI and power cable

and restart CON Unit. Connect
power cable first.

No USB-HID device  Connect USB-HID device.

USB device
without function

USB-HID device is not
supported

 Contact dealer if necessary.

Pos: 57 /806-IHSE/Hilfe im Problemfall/S törung am USB-2.0-Anschluss/473-xx @ 5\ mod _127 8579392698_6.doc @ 42630 @ 2

Troubleshooting

2011-02-23 39

8.4 USB 2.0 Failure

Diagnosis

Possible Reason Measure

Connection U between
CON Unit and CPU Unit

 Check interconnect cable U and

connections.

LED Link
Status USB off

USB controller
(CON Unit)

 Check LED USB Status at

CON Unit.

Source (computer, CPU)

 Check status (standby, sleep

mode).

LED Link
Status USB is
flashing

USB controller
(CON Unit)

 Check LED USB Status at

CON Unit.

CPU Unit: LED
USB Status off

No USB connection to
CPU

 Check connection of USB cable

to CPU, select another USB port
if necessary.

 Remove USB and power cable

and restart CPU Unit. Connect
power cable first.

CON Unit: LED
USB Status off

Problem with USB
connection

 Check connection of USB cable

to USB-HID device.

 Remove DVI and power cables

and restart CON Unit. Connect
power cable first.

USB device
without function

Device not detected by
CPU

 Check installation including

required drivers.

 Reconnect USB device.
 Contact dealer if necessary.

Pos: 58 /806-IHSE/Technische Unterstütz ung/ATB_Technische Unterstützung @ 5\mo d_1 278579487089_6.doc @ 42650 @ 122

DSXi KVM Extender

40 2011-02-23

9 Technical Support

Prior to contacting support please ensure you have read this manual, and
then installed and set-up your KVM Extender as recommended.

9.1 Support Checklist

To efficiently handle your request it is necessary to complete our checklist
for support and problem cases (Download). Keep the following information
available before you call:

 Company, name, phone number and email
 Type and serial number of the device (see bottom of device)
 Date and number of sales receipt, name of dealer if necessary
 Issue date of the existing manual
 Nature, circumstances and duration of the problem
 Involved components (such as graphic source/CPU, OS, graphic

card, monitor, USB-HID/USB 2.0 devices, interconnect cable)
including manufacturer and model number

 Results from any testing you have done

9.2 Shipping Checklist

1. To return your device, contact your dealer to obtain a RMA number
(Return-Material-Authorization).

2. Package your devices carefully, preferably using the original box.
Add all pieces which you received origi nally.

3. Note your RMA number visib ly on your shipment.

Devices that are sent in without a RMA number cannot be accepted. The
shipment will be sent back without being opened, postage unpaid.

Pos: 59 /806-IHSE/Zertifikate/UEB_ Zer tifikate @ 5\mod_1278579534933_6.doc @ 42668 @ 1

Regulatory and Standards Compliance

2011-02-23 41

10 Regulatory and Standards Compliance

Pos: 60 /806-IHSE/Zertifikate/ATB_E ur opäische Konformitätserklärung @ 5\mod_1 278579640901_6.doc @ 42686 @ 2

10.1 CE Declaration Of Conformity

The products listed below in the form as delivered comply with the
provisions of the following European Directives:

2004/108/EG Council Directive on the approximation of the laws of
the Member States relating to electromagnetic
compatibility

CE Marking 2009
Product list:
K473-SSH, K473-DSH, K473-SST, K473-DST

The products comply with the following harmonized standards for
Information Technology Equipment:

 EN 55022:2006 + A1:2007 (Class A)
 EN 55024:1998 + A1:2001 + A2:2003

This declaration certifies the conformity to the specified directives but
contains no assurance of properties. The safety instructions and
installation guidelines noted in this manual shall be considered in detail.
Compliance with the specifications for cable lengths and types is
mandatory.

Manufacturer:
IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Deutschland

Oberteuringen, 26 January 2010
The Management

Use in a Domestic Environment

This is a Class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.

Pos: 61 /806-IHSE/Zertifikate/ATB_ Nor th American Regulatory Compliance_NUR in E N @ 5\mod_1280395355750_6.doc @ 43979 @ 2

DSXi KVM Extender

42 2011-02-23

10.2 North American Regulatory Compliance

This equipment has been found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energ y and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interferenc e in
which case the user will be required to correct the interference at his own
expense.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

Shielded cables must be used with this equipment to maintain compliance
with radio frequency energy emission regulations and ensure a suitably
high level of immunity to electromagnetic disturbances.

All power supplies are certified to the relevant major international safety
standards.

Pos: 62 /806-IHSE/Zertifikate/ATB_WEEE @ 5\mod_1 2785 79673292_6.doc @ 42704 @ 2

10.3 WEEE

The manufacturer complies with the EC Directive 2002/96/EG on the
prevention of waste electrical and electronic equipment (WEEE).

The device labels carry a respective marking.

Pos: 63 /806-IHSE/Zertifikate/ATB_ RoH S @ 5\ mod_1278579714214_6.doc @ 42722 @ 2

10.4 RoHS

This device complies with the EC Directive 2002/95/EG on the Restriction
of the use of certain Hazardous Substances in electrical and electronic
equipment (RoHS).

The device labels carry a respective marking.

Pos: 64 /806-IHSE/Glossar/ATB_Glossar @ 5\ mod_1278576825433_6.doc @ 41890 @ 1

Glossary

2011-02-23 43

11 Glossary

The following terms are commonly used in this guide or in video and KVM
technology:

Term Explanation

Cat X Any Cat 5e (Cat 6, Cat 7) cable
CGA

The Color Graphics Adapter (CGA) is an old analog
graphic standard with up to 16 displayable colors and
a maximum resolution of 640x400 pixels.

Component
Video

The Component Video (YPbPr) is a high-quality
video standard that consists of three independently
and separately transmittable video signals, the
luminance signal and two color difference signals.

Composite Video

The Composite Video is also called FBAS and it is
part of the PAL TV standard.

CON Unit

Component of a KVM Extender or Media Extender to
connect to the console (monitor(s), keyboard and
mouse; optionally also with USB 2.0 devices)

CPU Unit

Component of a KVM Extender or Media Extender to
connect to a source (computer, CPU)

DDC

The Display Data Channel (DDC) is a serial
communication interface between monitor and
source (computer, CPU. It allows a data exchange
via monitor cable and an automatic installation and
configuration of a monitor driver by the operating
system.

Dual Access

A system to operate a source (computer, CPU) from

two consoles
Dual-Head A system with two video connections
Dual-Link

A DVI-D interface for resolutions up to 2560x2048 by

signal transmission of up to 330 MPixel/s (24-bit)
DVI

Digital video standard, introduced by the Digital

Display Working Group (http://www.ddwg.org

). Single
Link and Dual Link standard are distinguished. T he
signals have TMDS level.

DVI-I

A combined signal (digital and analog) that allows
running a VGA monitor at a DVI-I port – in contrast to
DVI-D (see DVI).

Fiber Single-mode or multi-mode fiber cables

DSXi KVM Extender

44 2011-02-23

Term Explanation

EGA

The Enhanced Graphics Adapter (EGA) is an old
analog graphic standard, introduced by IBM in 1984.
A D-Sub 9 connector is used for connection.

FBAS

The analog color video baseband signal (FBAS) is
also called Composite Video and it is part of the PAL
TV standard.

Console Keyboard, mous e and monitor
KVM Keyboard, video and mouse
Mini-XLR

Industrial standard for electrical plug connections
(3 pole) for the transmission of digital audio and
control signals

Multi-mode

62.5µ multi-mode fiber cable or 50µ multi-mode fiber
cable

OSD

The On-Screen-Display is used to display information
or to operate a device.

Quad-Head A system with four video connections
RCA (Cinch)

A not standardized plug connection for transmission
of electrical audio and video signals, especially with
coaxial cables

SFP

SFPs (Small Form Factor Pluggable) are pluggable
interface modules for Gigabit connections. SFP
modules are available for Cat X and fiber
interconnect cables.

Single-Head A system with one video connection
Single Link

A DVI-D interface for resolutions up to 1920x1200 by
signal transmission of up to 165 MPixel/s (24-bit).

Alternative frequencies are Full HD (1080p), 2K HD
(2048x1080) and 2048x1152.

Single-mode 9µ single-mode fiber cable
S-Video (Y/C)

The S-Video (Y/C) is a video format transmitting
luminance and chrominance signals separately.
Thereby it has a higher quality standard than FBAS.

TOSLINK

Standardized fiber connection system for digital
transmission of audio signals (F05 plug connection)

Triple-Head A system with three video connections

Glossary

2011-02-23 45

Term Explanation

USB-HID

USB-HID devices (Human Interface Device) allow for
data input.

There is no need for a special driver during
installation; "New USB-HID device found" is reported.

Typical HID devices include keyboards, mice,
graphics tablets and touch screens. Storage, video
and audio devices are not HID.

VGA

Video Graphics Array (VGA) is a computer graphics
standard with a typical resolution of 640x480 pixels
and up to 262,144 colors. It can be seen as a
follower of the graphics standards MDA, CGA and
EGA.

=== Ende der Liste für Textmarke Inhalt ===
