Ihse K472-SSH, K472-SST, K472-SWH, K472-SSHA, K472-SSTA User Manual

IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Germany

[email protected]
www.ihse.de

Tel. [phone]
Fax [phone]

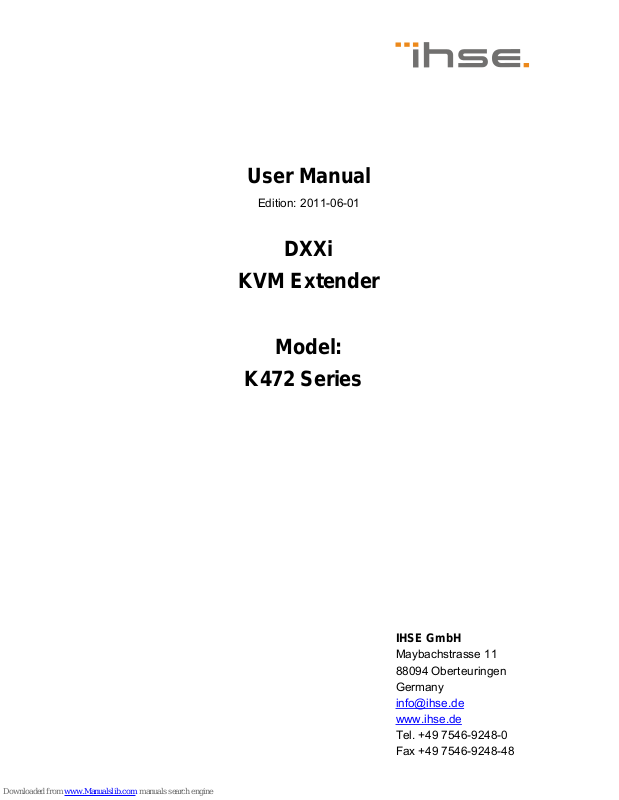

User Manual

Edition: 2011-06-01

DXXi

KVM Extender

Model:

K472 Series

DXXi KVM Extender

2 2011-06-01

Copyright

© 2011. All rights reserved. This information may not be reproduced in any
manner without the prior written consent of the manufacturer.

Information in this document is subject to change without notice.

Trademarks

All trademark and trade names mentioned in this document are
acknowledged to be the property of their respective owners.

Disclaimer

While every precaution has been taken during preparation of this manual,
the manufacturer assumes no liability for errors or omissions. Neither does
the manufacturer assume any liability for damages resulting from the use
of the information contained herein.

The manufacturer reserves the right to change specifications, functions, or
circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the
product or due to any other circumstances outside the manufacturer’s
control (whether environmental or installation related). The manufacturer
shall not be liable for any loss, damage, or injury arising directly, indirectly,
incidentally, or consequently from the use of this product.

Contents

2011-06-01 3

Contents

1 About This Manual....................................................................... 6

1.1 Scope.................................................................................. 6

1.2 Validity ................................................................................ 6

1.3 Cautions and Notes ............................................................ 6

2 Safety Instructions....................................................................... 7

3 Description ................................................................................... 8

3.1 Application .......................................................................... 8

3.2 System Overview ................................................................ 9

3.3 Product Range .................................................................. 10

3.4 Upgrade Kits ..................................................................... 11

3.5 Accessories....................................................................... 11

3.6 Device Views .................................................................... 12

3.6.1 Model K472-SSH ................................................ 12

3.6.2 Model K472-SWH ............................................... 13

3.6.3 Model K472-SSHA .............................................. 14

3.6.4 Model K472-SST................................................. 16

3.6.5 Model K472-SSTA .............................................. 17

3.6.6 Model K472-SDH ................................................ 19

3.6.7 Model K472-SDHA.............................................. 20

3.6.8 Model K472-SDT ................................................ 22

3.6.9 Model K472-SDTA .............................................. 23

3.6.10 Model K472-DWH ............................................... 25

3.6.11 Model K472-DSH ................................................ 26

3.6.12 Model K472-DSHA.............................................. 27

3.6.13 Model K472-DST ................................................ 29

3.6.14 Model K472-DSTA .............................................. 30

3.7 Status LEDs ...................................................................... 32

DXXi KVM Extender

4 2011-06-01

4 Installation .................................................................................. 34

4.1 Package Contents............................................................. 34

4.2 System Setup.................................................................... 35

4.3 Example Applications........................................................ 36

5 Configuration.............................................................................. 38

5.1 Transmission Parameters ................................................. 38

5.1.1 Device Settings................................................... 38

5.2 Command Mode ............................................................... 39

6 Operation .................................................................................... 40

6.1 Download of DDC Information .......................................... 40

6.2 Switchting Function (option).............................................. 40

7 Specifications............................................................................. 41

7.1 Interfaces .......................................................................... 41

7.1.1 DVI-D Single Link................................................ 41

7.1.2 DVI-D Dual Link .................................................. 41

7.1.3 USB-HID ............................................................. 41

7.1.4 USB 2.0 (transparent) ......................................... 42

7.1.5 Fiber Type SC (Interconnect).............................. 42

7.1.6 Serial Interface.................................................... 42

7.1.7 Analog Audio Interface........................................ 44

7.2 Interconnect Cable............................................................ 45

7.2.1 Fiber.................................................................... 45

7.3 Supported Peripherals ...................................................... 46

7.3.1 USB-HID Devices ............................................... 46

7.3.2 USB 2.0 Devices ................................................. 46

7.4 Connector Pinouts ............................................................ 47

7.5 Power Supply.................................................................... 50

7.6 Environmental Conditions ................................................. 50

7.7 Size................................................................................... 50

7.8 Shipping Weight................................................................ 51

Contents

2011-06-01 5

8 Troubleshooting......................................................................... 52

8.1 Blank Screen..................................................................... 52

8.2 Interference....................................................................... 53

8.3 USB-HID ........................................................................... 53

8.4 USB 2.0............................................................................. 54

9 Technical Support......................................................................55

9.1 Support Checklist.............................................................. 55

9.2 Shipping Checklist ............................................................ 55

10 Regulatory and Standards Compliance ................................... 56

10.1 CE Declaration Of Conformity........................................... 56

10.2 North American Regulatory Compliance........................... 57

10.3 WEEE ............................................................................... 57

10.4 RoHS ................................................................................ 57

11 Glossary...................................................................................... 58

Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu di esem Handbuch @ 5\mod_1278 573163276_6.doc @ 41510 @ 1222

DXXi KVM Extender

6 2011-06-01

1 About This Manual

1.1 Scope

This manual describes how to install your KVM Extender, how to operate it
and how to perform trouble shooting.

1.2 Validity

This manual is valid for all devices listed on the front page. The product
code is printed on the base of the devices.

1.3 Cautions and Notes

The following symbols are used in this manual:

This symbol indicates an important operating instruction that should be
followed to avoid any potential damage to hardware or property, loss of
data, or personal injury.

This symbol indicates important information to help you make the best use
of this product.

Pos: 2 /806-IHSE/Sicherheitshinweis e/ATB_Sicherheits hinweise @ 5\mod_127857332 1245_6.doc @ 41528 @ 1

Safety Instructions

2011-06-01 7

2 Safety Instructions

To ensure reliable and safe long-term operation of your KVM Extender
please note the following guidelines:

Installation

 Only use in dry, indoor environments.
 The KVM Extender and the power supply units can get warm. Do not

situate them in an enclosed space without any airflow.

 Do not place the power supply directly on top of the device.
 Do not obscure ventilation holes.
 Only use power supplies originally supplied with the product or

manufacturer-approved replacements. Do not use a power supply if it
appears to be defective or has a damaged case.

 Connect all power supplies to grounded outlets. In each case, ensure

that the ground connection is maintained from the outlet socket
through to the power supply's AC power input.

 Do not connect the link interface to any other equipment, particularly

network or telecommunications equipment.

 Take any required ESD precautions.

Repair

 Do not attempt to open or repair a power supply unit.
 Do not attempt to open or repair the KVM Extender. There are no

user serviceable parts inside.

 Please contact your dealer or manufacturer if there is a fault.

Pos: 3 /806-IHSE/Beschreibung/UEB_Besc hreibung @ 5\mod_1278 573379151_6.doc @ 41546 @ 1

DXXi KVM Extender

8 2011-06-01

3 Description

Pos: 4 /806-IHSE/Beschreibung/Verwen dungszweck/472-xx @ 6\ mod_1304492490586_6. doc @ 50109 @ 2

3.1 Application

The KVM Extender is used to increase the distance between a source
(computer, CPU) and its console (keyboard, mouse, and other peripheral
devices).

The KVM Extender is designed for use with Multi-mode (fiber)
interconnect cables.

Pos: 5 /806-IHSE/Beschreibung/Syste m-Übersicht /472-xx @ 6\ mod_1304492708618_6. doc @ 50127 @ 2

Description

2011-06-01 9

3.2 System Overview

The KVM Extender consists of a CPU Unit and a console unit (CON Unit).
The CPU Unit is connected directly to the source (computer, CPU) using

the supplied cables.
The CON Unit is connected to the console (monitor, keyboard and

mouse).
The CPU Unit and the CON Unit communicate with each other through the

interconnect cables.

1

2

4

5

7

6

3

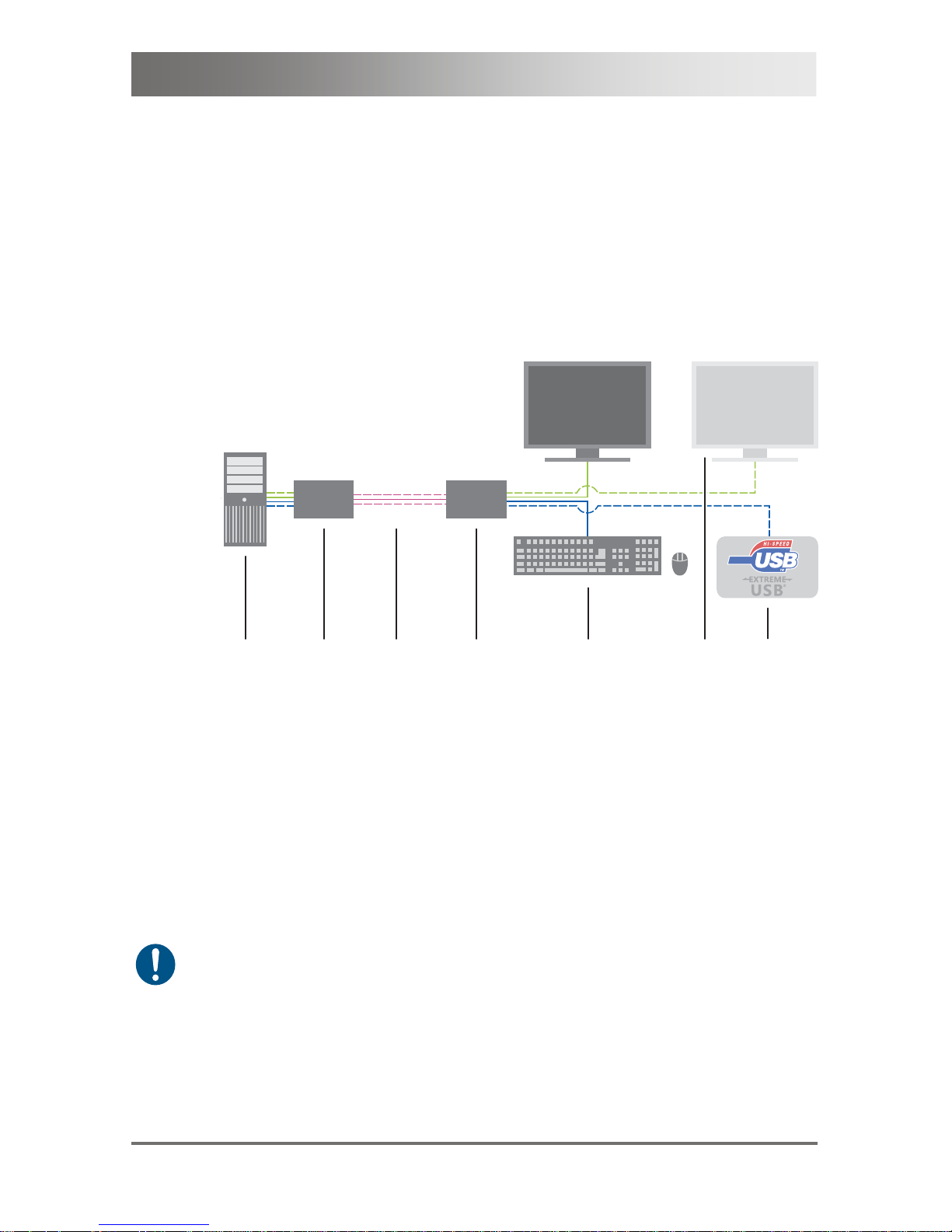

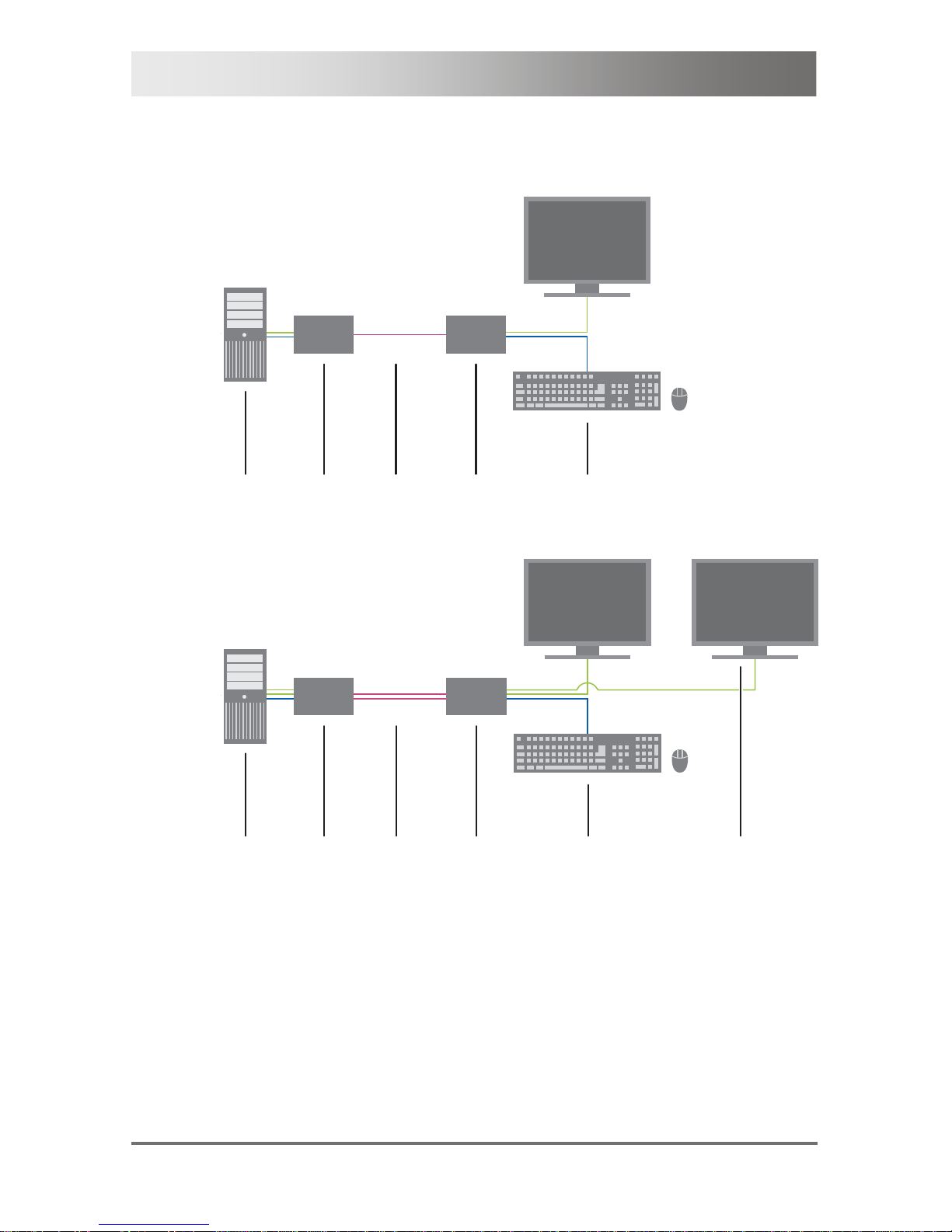

System overview

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with USB 2.0 devices)

See Chapter 4.3, Page 36 for installation examples.

Pos: 6 /806-IHSE/Beschreibung/Geräte typen/472-xx @ 6\mod_1 304492863836_6.doc @ 50145 @ 2

DXXi KVM Extender

10 2011-06-01

3.3 Product Range

Model Description

K472-SSH

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse)

K472-SWH

Single-Head KVM Extender for 2x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse) with
integrated switching function

K472-SSHA

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse) and
analog audio / serial option

K472-SST

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB 2.0

K472-SSTA

Single-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB 2.0 and analog audio / serial
option

K472-SDH

Single-Head-KVM Extender for 1x DVI Dual Link (up
to 2560x2048), 2x USB-HID (keyboard / mouse)

K472-SDHA

Single-Head-KVM Extender for 1x DVI Dual Link (up
to 2560x2048), 2x USB-HID (keyboard / mouse) and
analog audio / serial option

K472-SDT

Single-Head KVM Extender for 1x DVI Dual Link (up
to 2560x2048), 4x USB 2.0

K472-SDT

Single-Head KVM Extender for 1x DVI Dual Link (up
to 2560x2048), 4x USB 2.0 and analog audio / serial
option

K472-DWH

Single-Head KVM Extender for 2x DVI Dual Link (up
to 2560x2048), 2x USB-HID (keyboard / mouse) with
integrated switching function

K472-DSH

Dual-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB-HID (keyboard / mouse)

K472-DSHA

Dual-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 2x USB-HID (keyboard / mouse) and
analog audio / serial option

K472-DST

Dual-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB 2.0

K472-DST

Dual-Head KVM Extender for 1x DVI Single Link (up
to 1920x1200), 4x USB 2.0 and analog audio / serial
option

Pos: 7 /806-IHSE/Beschreibung/Einbauop tionen/472-xx @ 6\mod_1 304492926102_6.doc @ 50163 @ 2

Description

2011-06-01 11

3.4 Upgrade Kits

Model Description

437-1G

19"/1U rack mount kit to mount up to 3 Single-Head devices

(CPU Units / CON Units)
285-2K Mounting plate to mount by screws
286-2K Mounting plate to mount by snap on

Pos: 8 /806-IHSE/Beschreibung/Zubehör/ 472-xx @ 6\mod_1304503 895633_6.doc @ 50759 @ 2

3.5 Accessories

Model Description

260-5U International power supply unit 100...240VAC / 5VDC / 4 A
445-2X DVI-D splitter cable

Pos: 9 /806-IHSE/Beschreibung/Gerätean sichten/UEB_Ger äteansichten @ 5\mod_127 8573737808_6.doc @ 41654 @ 2

DXXi KVM Extender

12 2011-06-01

3.6 Device Views

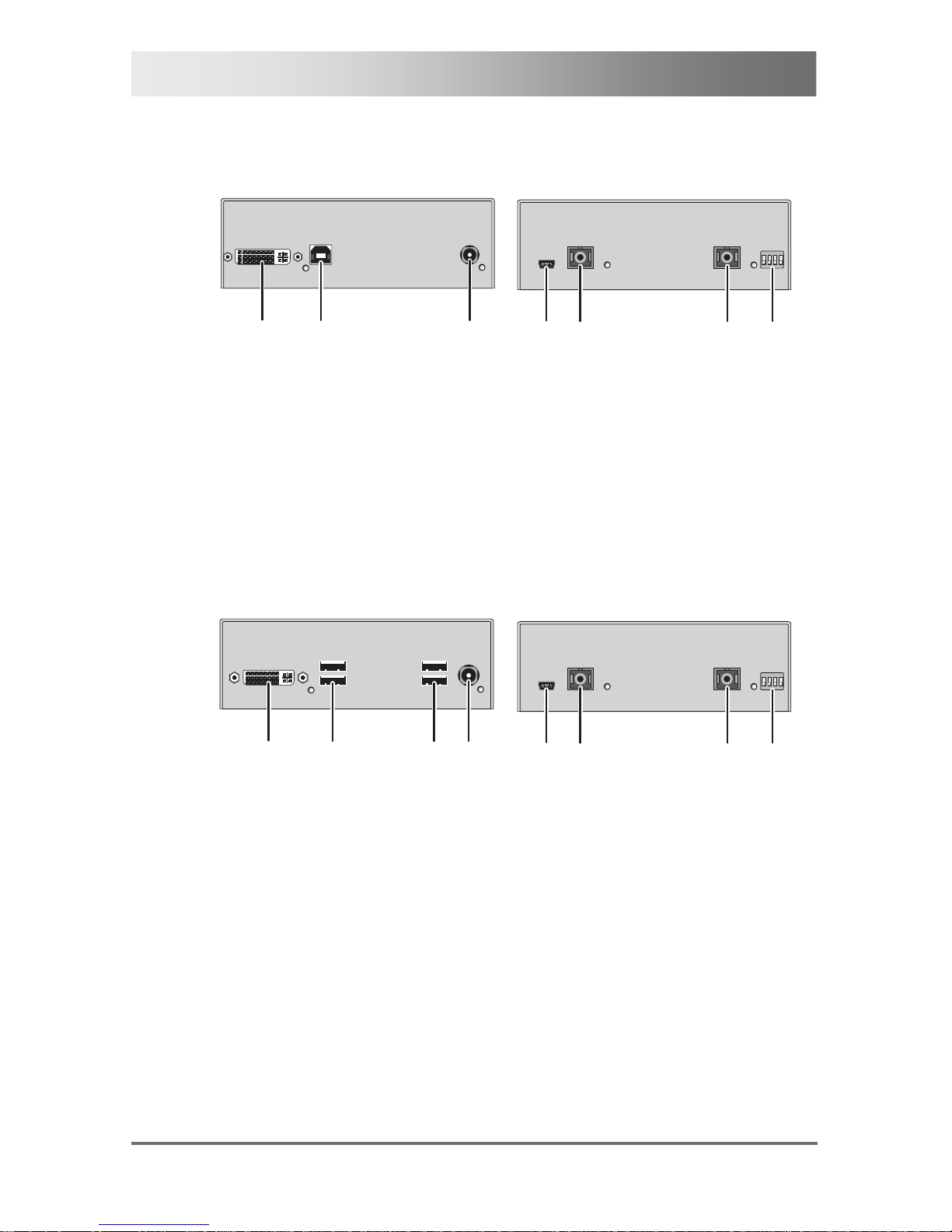

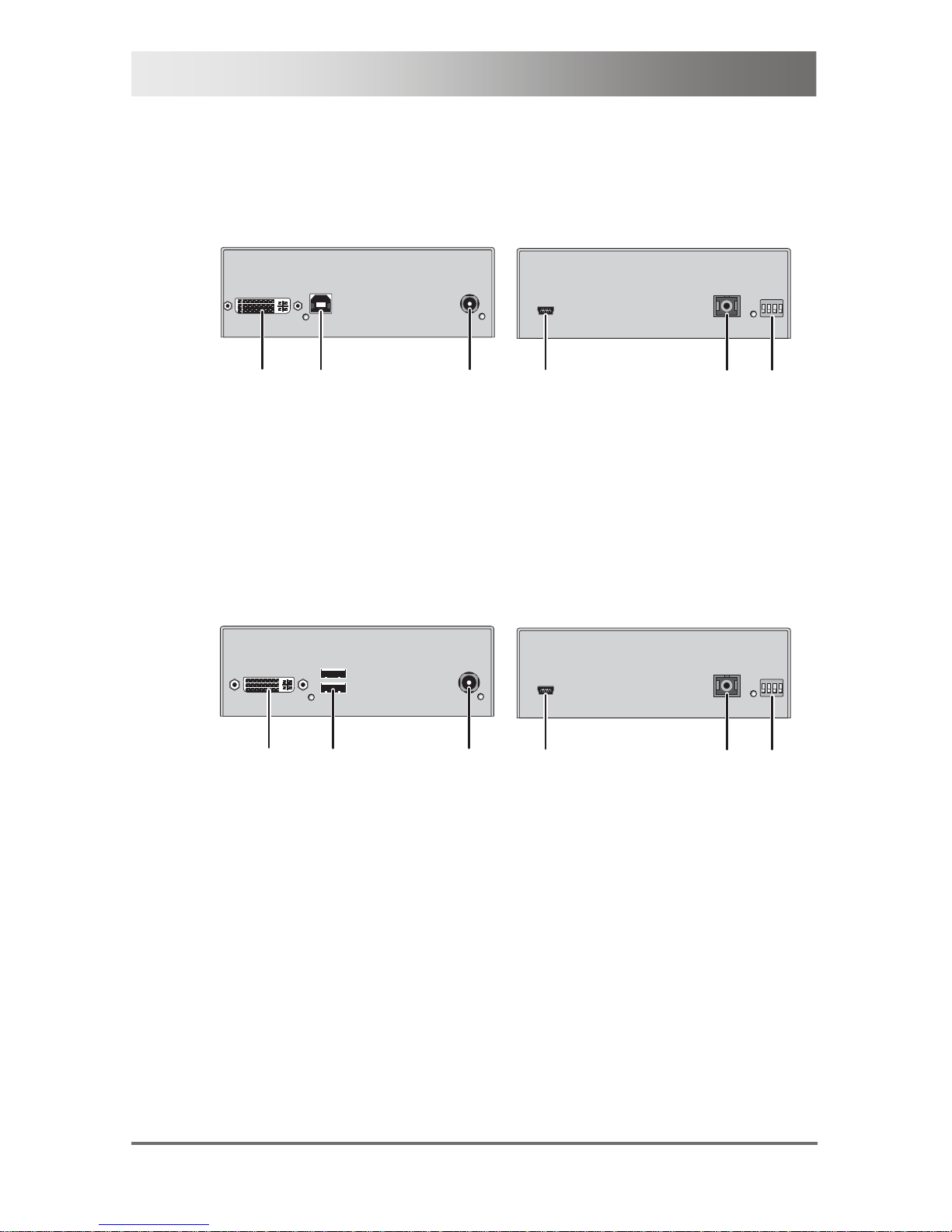

Pos: 10 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SSH @ 6\mod_130449 3048961_6.doc @ 50182 @ 3

3.6.1 Model K472-SSH

CPU Unit

1

23

12

3

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB-HID
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link C

3 Configuration DIP switches

CON Unit

1

23

12

3

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB-HID devices
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link C

3 Configuration DIP switches

Pos: 11 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SWH @ 6\mod_1304 493130243_6.doc @ 50200 @ 3

Description

2011-06-01 13

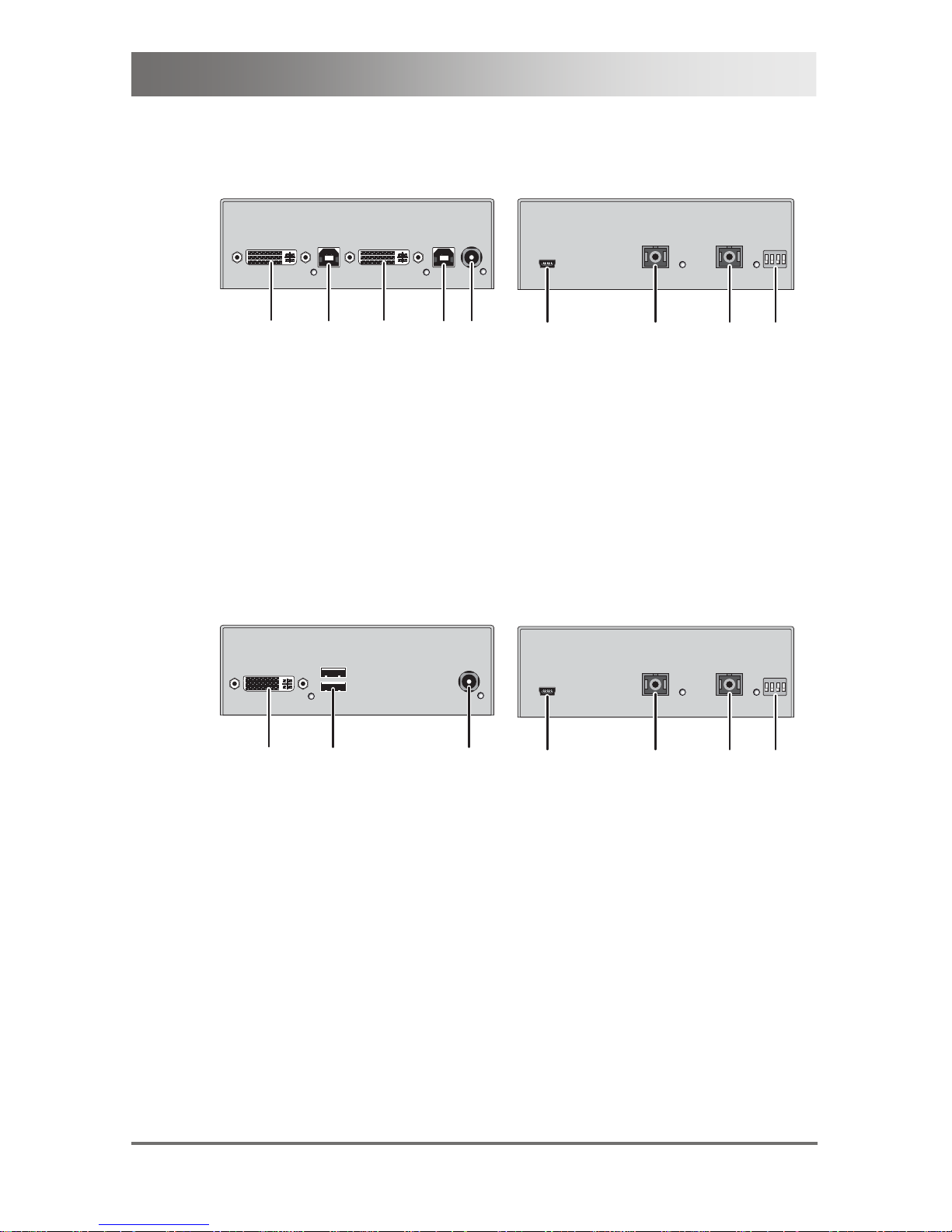

3.6.2 Model K472-SWH

CPU Unit

1 2

3

4

5

12

3

Rear View Front View

1 To CPU 1: DVI-D
2 To CPU 1: USB-HID
3 To CPU 2: DVI-D
4 To CPU 2: USB-HID
5 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link C

3 Configuration DIP switches

CON Unit

1

23

12

3

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB-HID devices
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link C

3 Configuration DIP switches

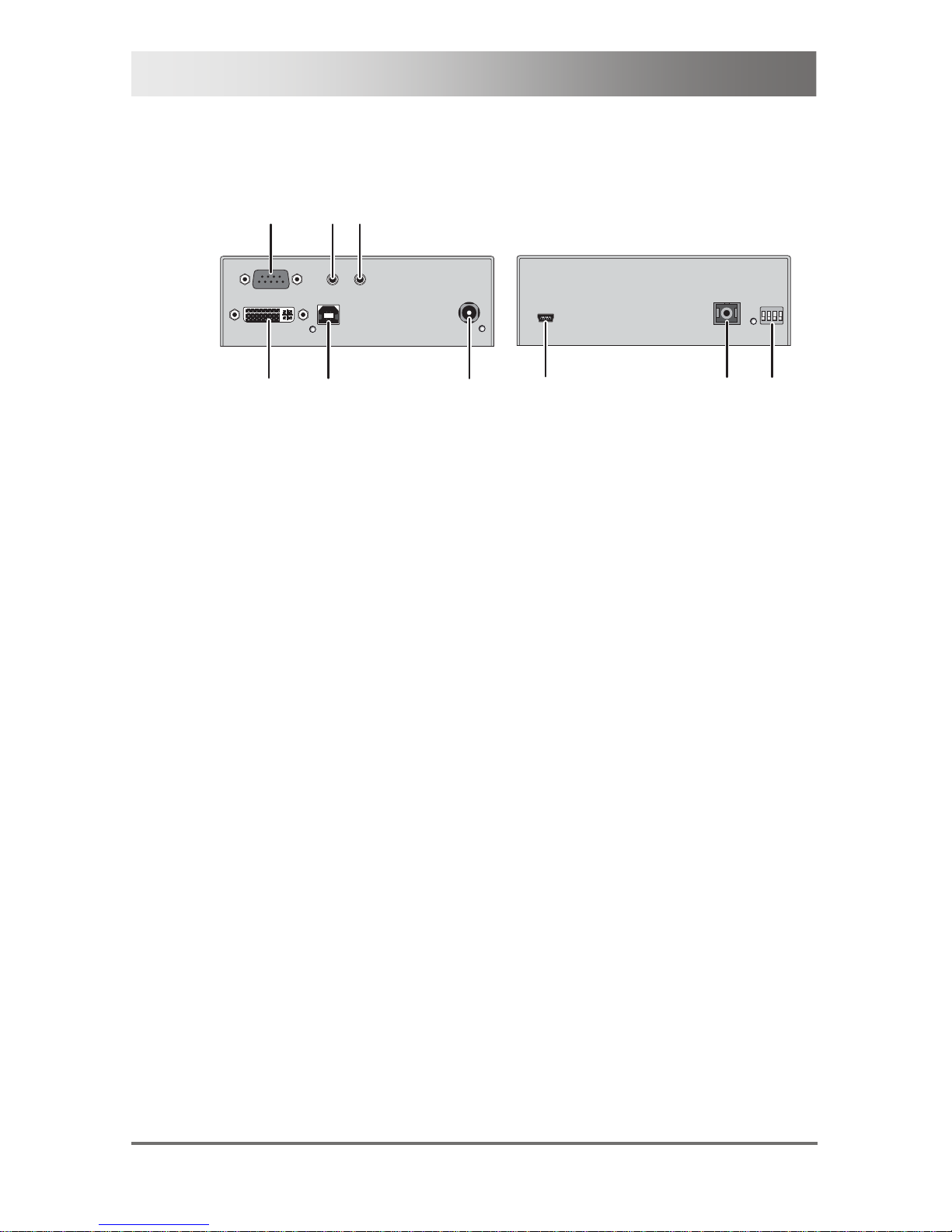

Pos: 12 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SSHA @ 6\mod_13 04493177415_6.doc @ 50218 @ 3

DXXi KVM Extender

14 2011-06-01

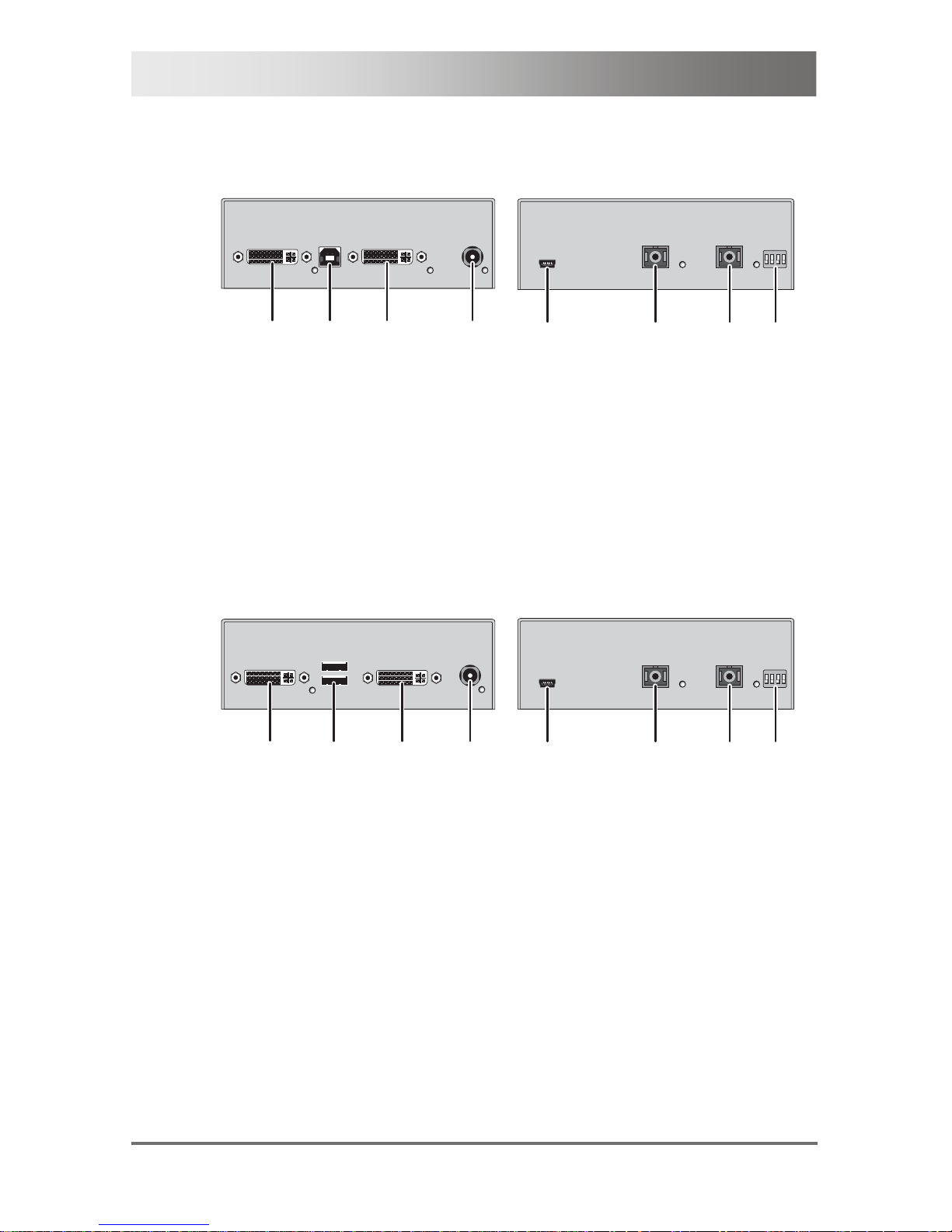

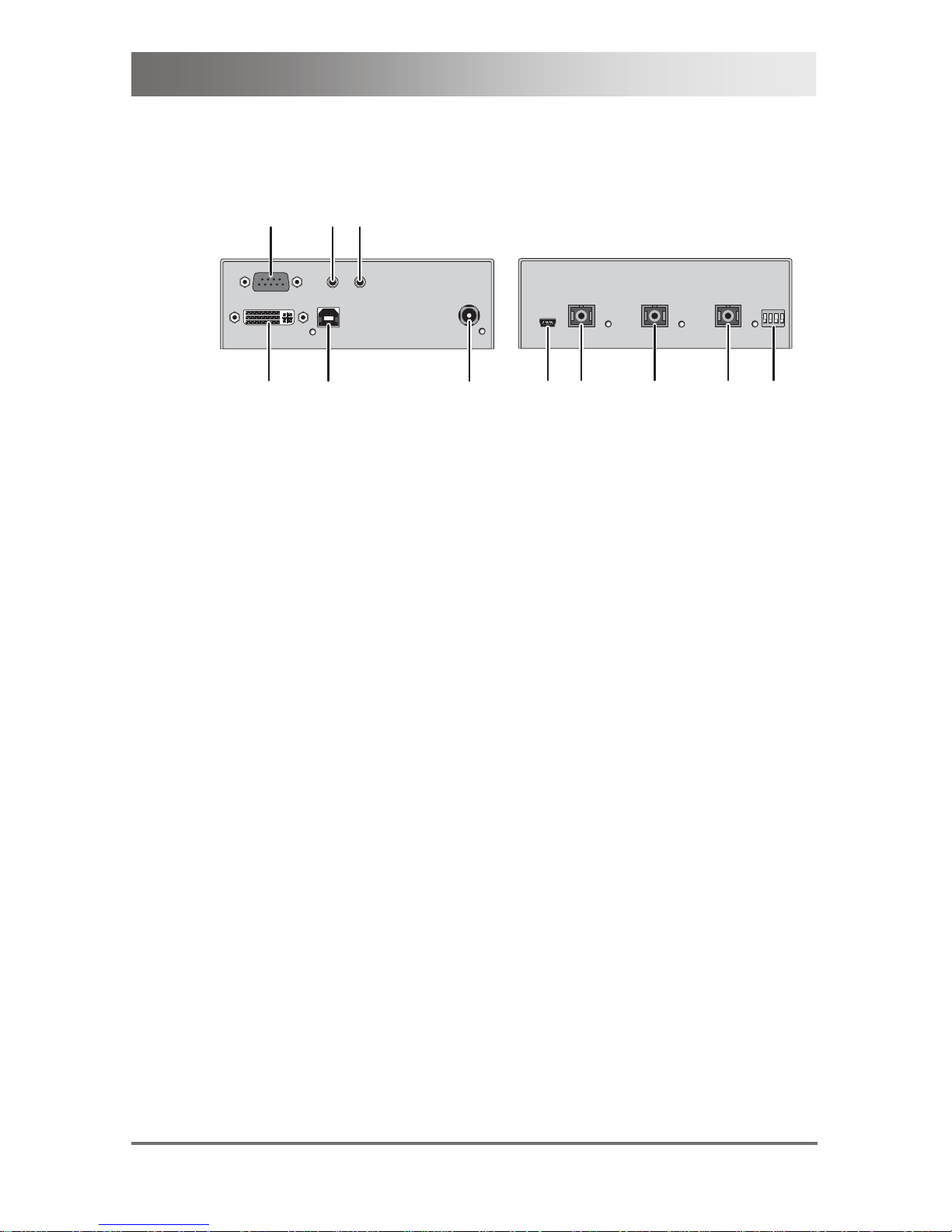

3.6.3 Model K472-SSHA

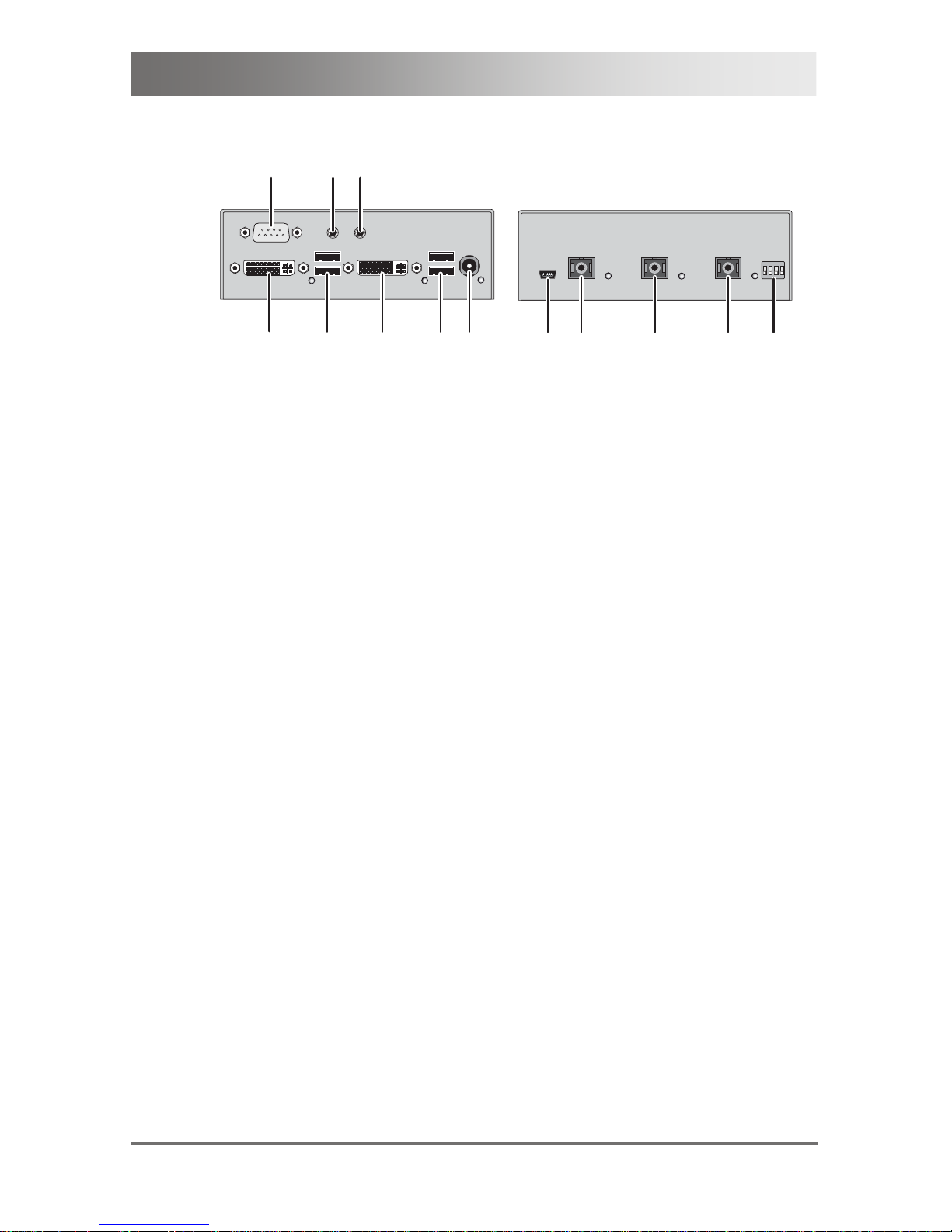

CPU Unit

5

6

1

23

4

12

3

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB-HID
3 Connect to 5VDC

power supply
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT

1 Service port
2 Connect to interconnect cable

Link C

3 Configuration DIP switches

Description

2011-06-01 15

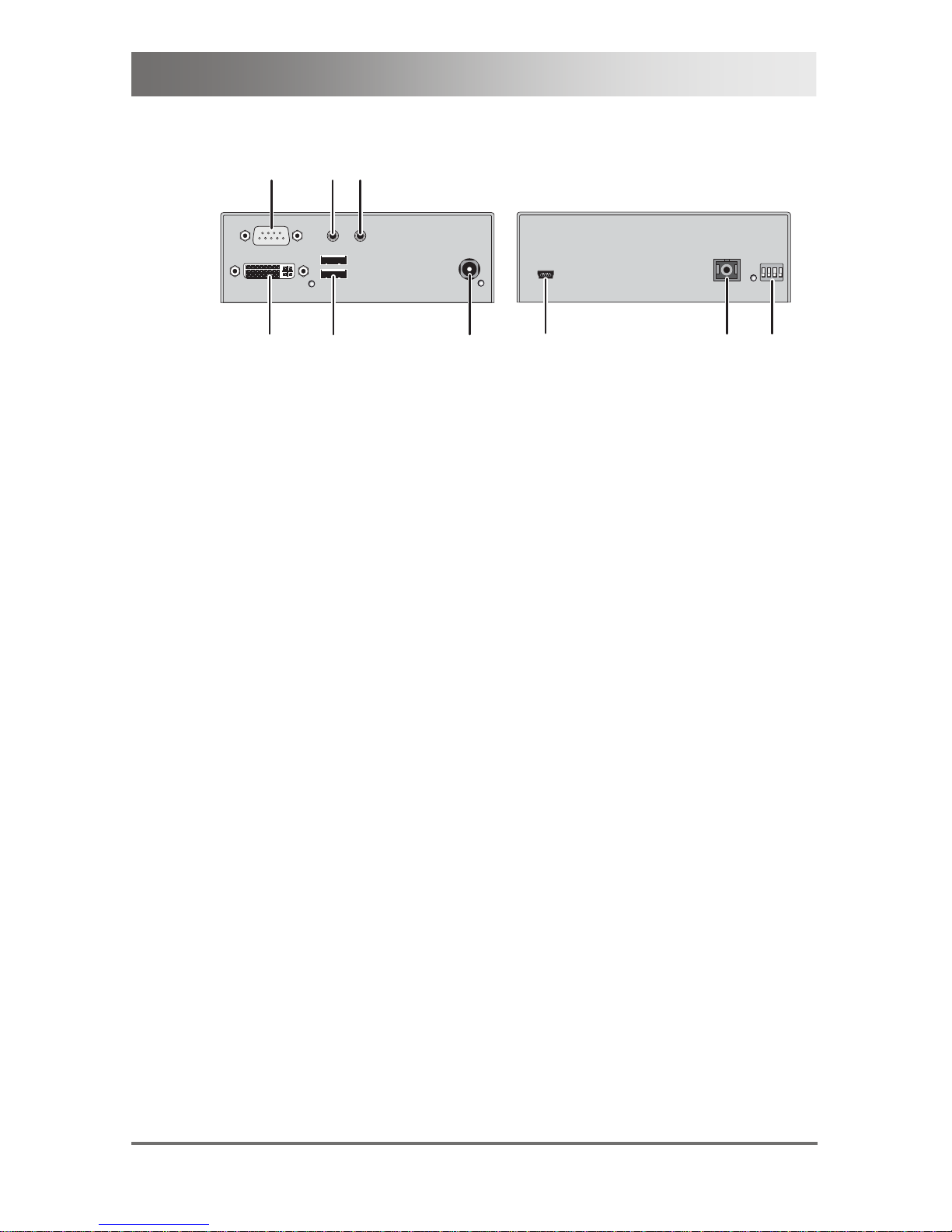

CON Unit

5

6

1

2

3

4

12

3

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB-HID devices
3 Connect to 5VDC

power supply
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT

1 Service port
2 Connect to interconnect cable

Link C

3 Configuration DIP switches

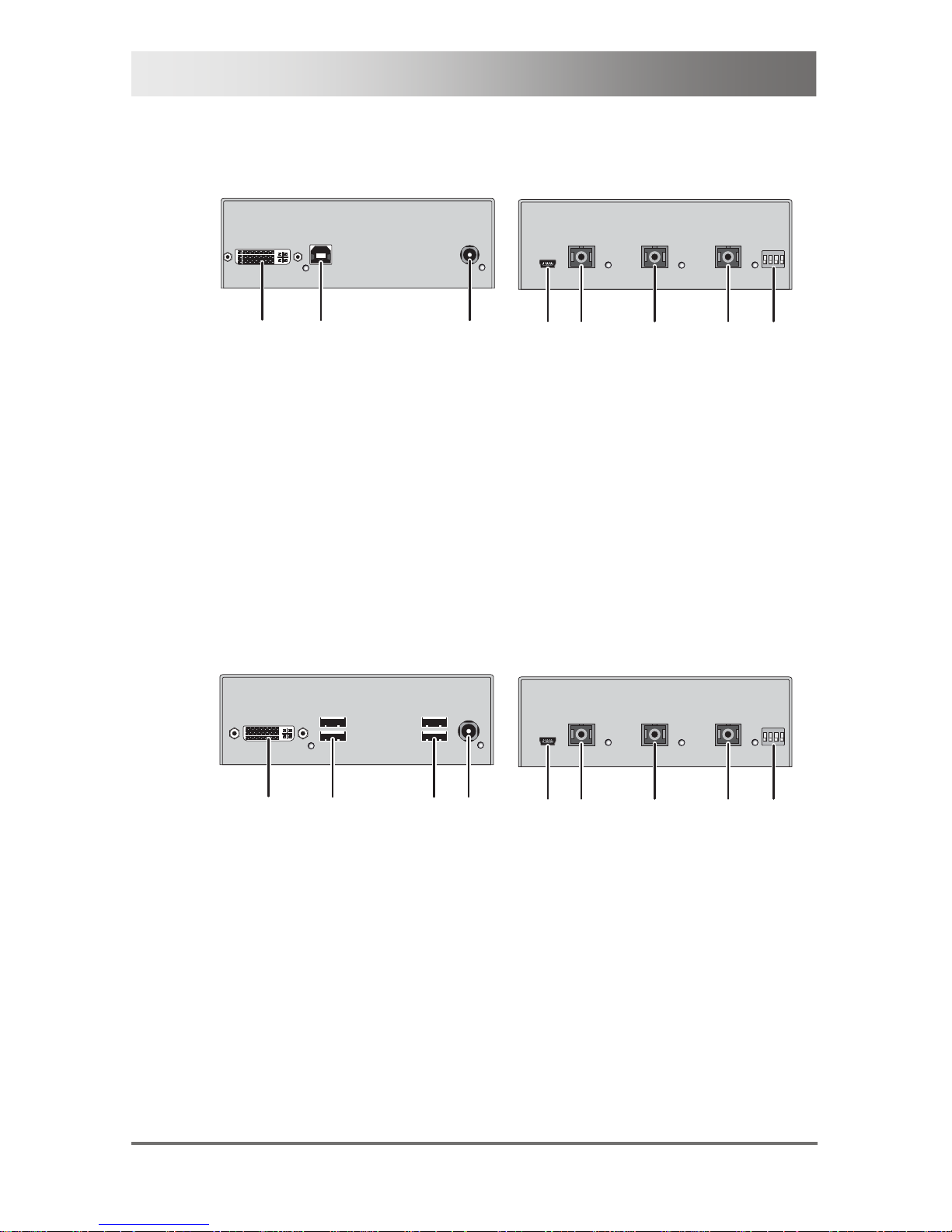

Pos: 13 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SST @ 6\mod_130449 3223368_6.doc @ 50236 @ 3

DXXi KVM Extender

16 2011-06-01

3.6.4 Model K472-SST

CPU Unit

1

23

1

234

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB 2.0
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

CON Unit

1

234

1

234

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB 2.0 devices 1
3 Connect to USB 2.0 devices 2
4 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

Pos: 14 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SSTA @ 6\mod_13044 93277899_6.doc @ 50254 @ 3

Description

2011-06-01 17

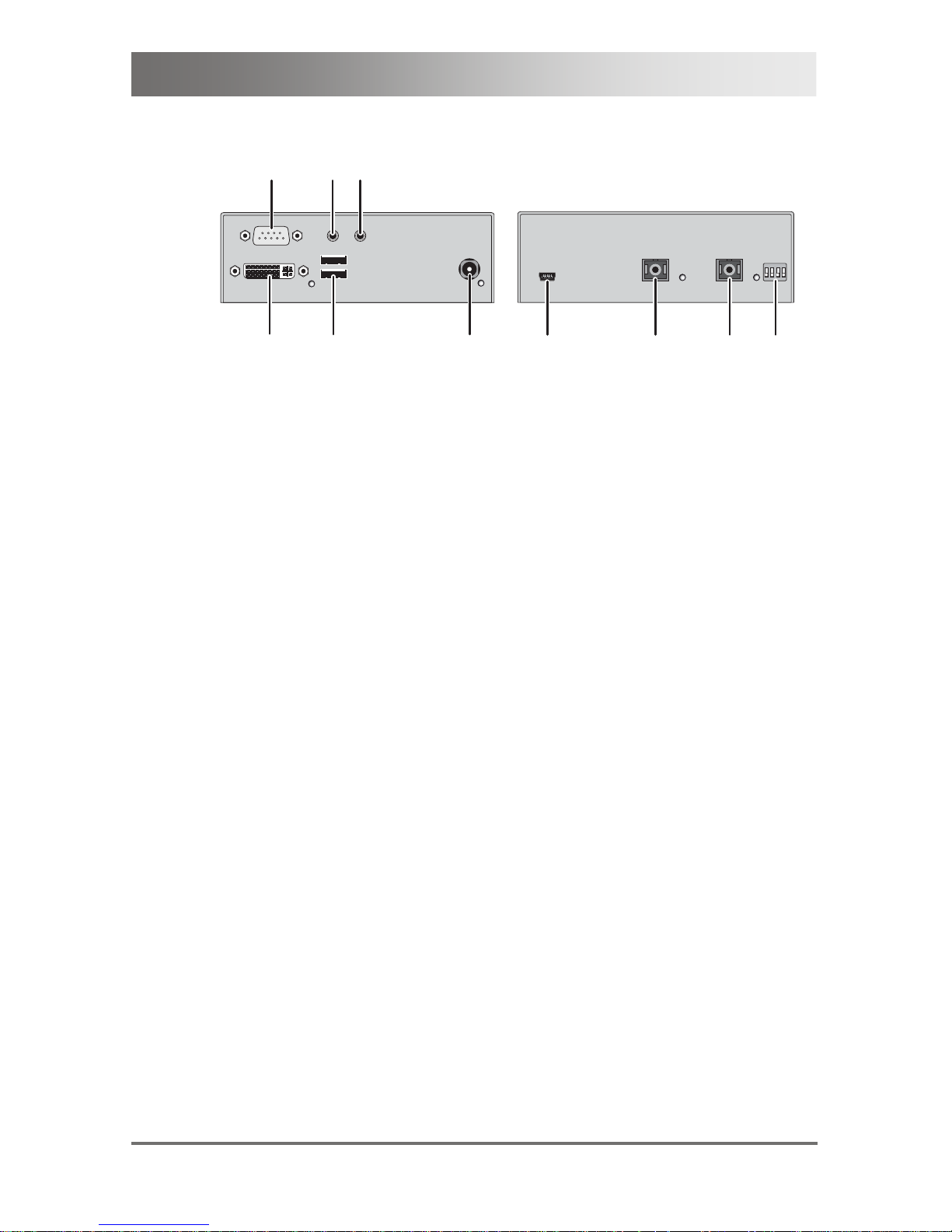

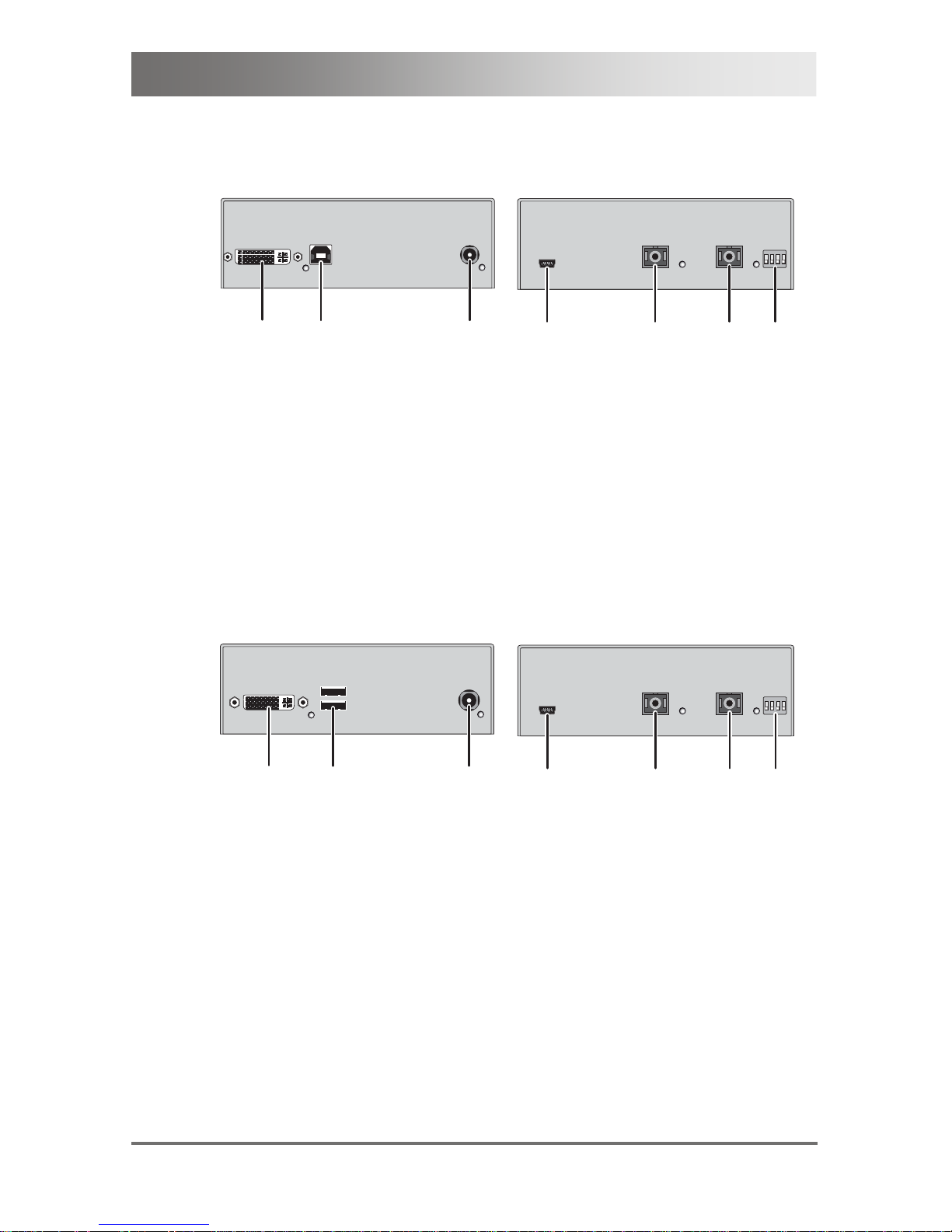

3.6.5 Model K472-SSTA

CPU Unit

5

6

1

23

4

1

234

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB 2.0
3 Connect to 5VDC

power supply
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

DXXi KVM Extender

18 2011-06-01

CON Unit

5

6

7

1

234

1

234

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB 2.0 devices 1
3 Connect to USB 2.0 devices 2
4 Connect to 5VDC

power supply
5 Connect to serial (D-Sub 9)
6 Audio IN
7 Audio OUT

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

Pos: 15 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SDH @ 6\mod_130449 3445040_6.doc @ 50272 @ 3

Description

2011-06-01 19

1234

3.6.6 Model K472-SDH

CPU Unit

1

23

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB-HID
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

CON Unit

1

23

1234

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB-HID devices
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

Pos: 16 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SDHA @ 6\mod_13 04493498821_6.doc @ 50290 @ 3

DXXi KVM Extender

20 2011-06-01

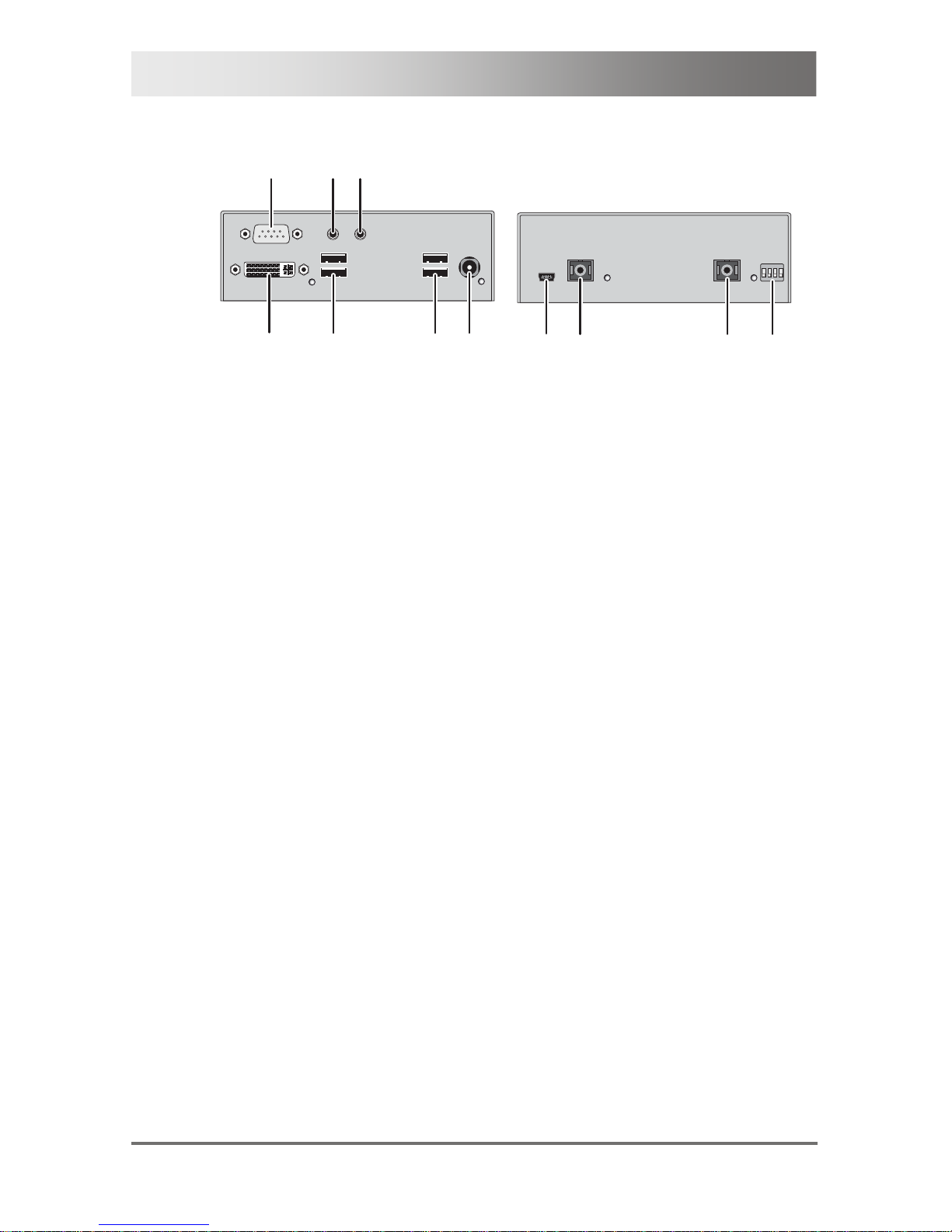

3.6.7 Model K472-SDHA

CPU Unit

5

6

1

23

4

1234

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB-HID
3 Connect to 5VDC

power supply
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

Description

2011-06-01 21

CON Unit

5

6

1

2

3

4

1234

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB-HID devices
3 Connect to 5VDC

power supply
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

Pos: 17 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SDT @ 6\mod_130449 3552305_6.doc @ 50308 @ 3

DXXi KVM Extender

22 2011-06-01

3.6.8 Model K472-SDT

CPU Unit

1

23

12

3

45

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB 2.0
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

CON Unit

1

234

12

3

45

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB 2.0 devices 1
3 Connect to USB 2.0 devices 2
4 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

LinkC

5 Configuration DIP switches

Description

2011-06-01 23

Pos: 18 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-SDTA @ 6\mod_130449 3869086_6.doc @ 50326 @ 3

3.6.9 Model K472-SDTA

CPU Unit

5

6

1

23

4

12

3

45

Rear View Front View

1 To CPU: DVI-D
2 To CPU: USB 2.0
3 Connect to 5VDC

power supply
4 Connect to serial (D-Sub 9)
5 Audio IN
6 Audio OUT

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

DXXi KVM Extender

24 2011-06-01

CON Unit

5

6

7

1

234

12

3

45

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB 2.0 devices 1
3 Connect to USB 2.0 devices 2
4 Connect to 5VDC

power supply
5 Connect to serial (D-Sub 9)
6 Audio IN
7 Audio OUT

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

Pos: 19 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-DWH @ 6\mod_1304 493911633_6.doc @ 50344 @ 3

Description

2011-06-01 25

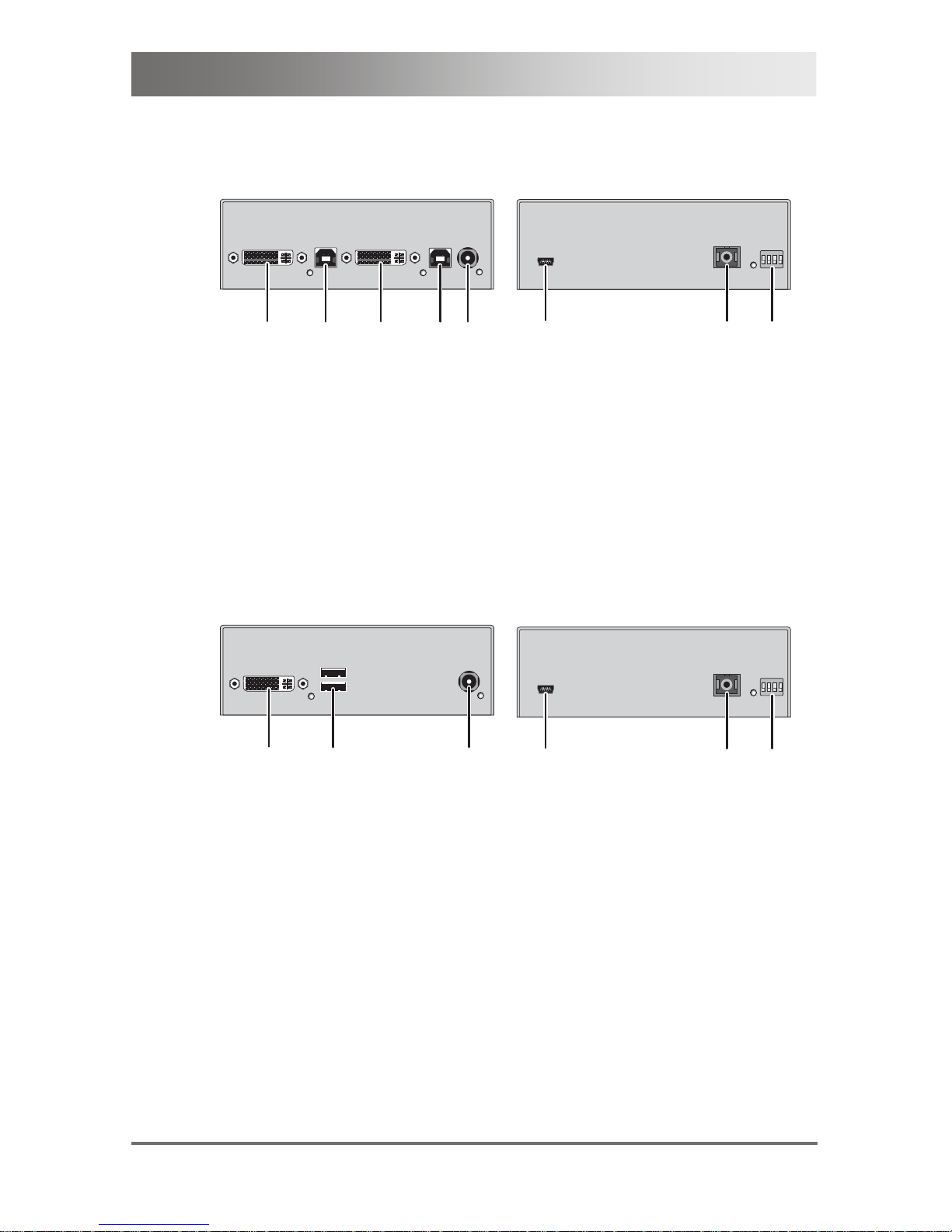

3.6.10 Model K472-DWH

CPU Unit

1

23 45

1234

Rear View Front View

1 To CPU 1: DVI-D
2 To CPU 1: USB-HID
3 To CPU 2: DVI-D
4 To CPU 2: USB-HID
5 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

CON Unit

1

23

1234

Rear View Front View

1 Connect to DVI monitor
2 Connect to USB-HID devices
3 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

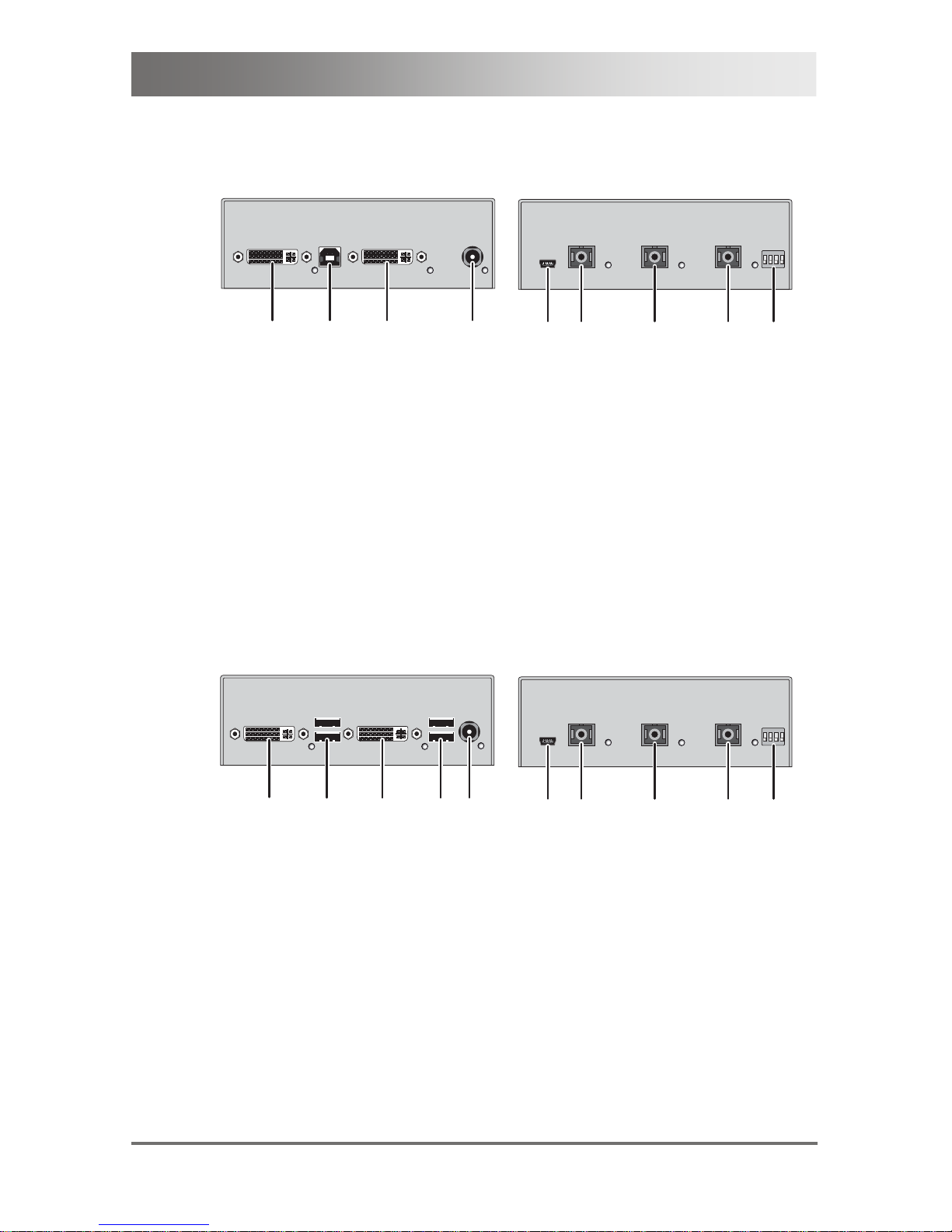

Pos: 20 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-DSH @ 6\mod_130449 3992618_6.doc @ 50362 @ 3

DXXi KVM Extender

26 2011-06-01

3.6.11 Model K472-DSH

CPU Unit

1

23 4

1234

Rear View Front View

1 To CPU: DVI-D 1
2 To CPU: USB-HID
3 To CPU: DVI-D 2
4 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

CON Unit

12 3 4

1234

Rear View Front View

1 Connect to DVI monitor 1
2 Connect to USB-HID devices
3 Connect to DVI monitor 2
4 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

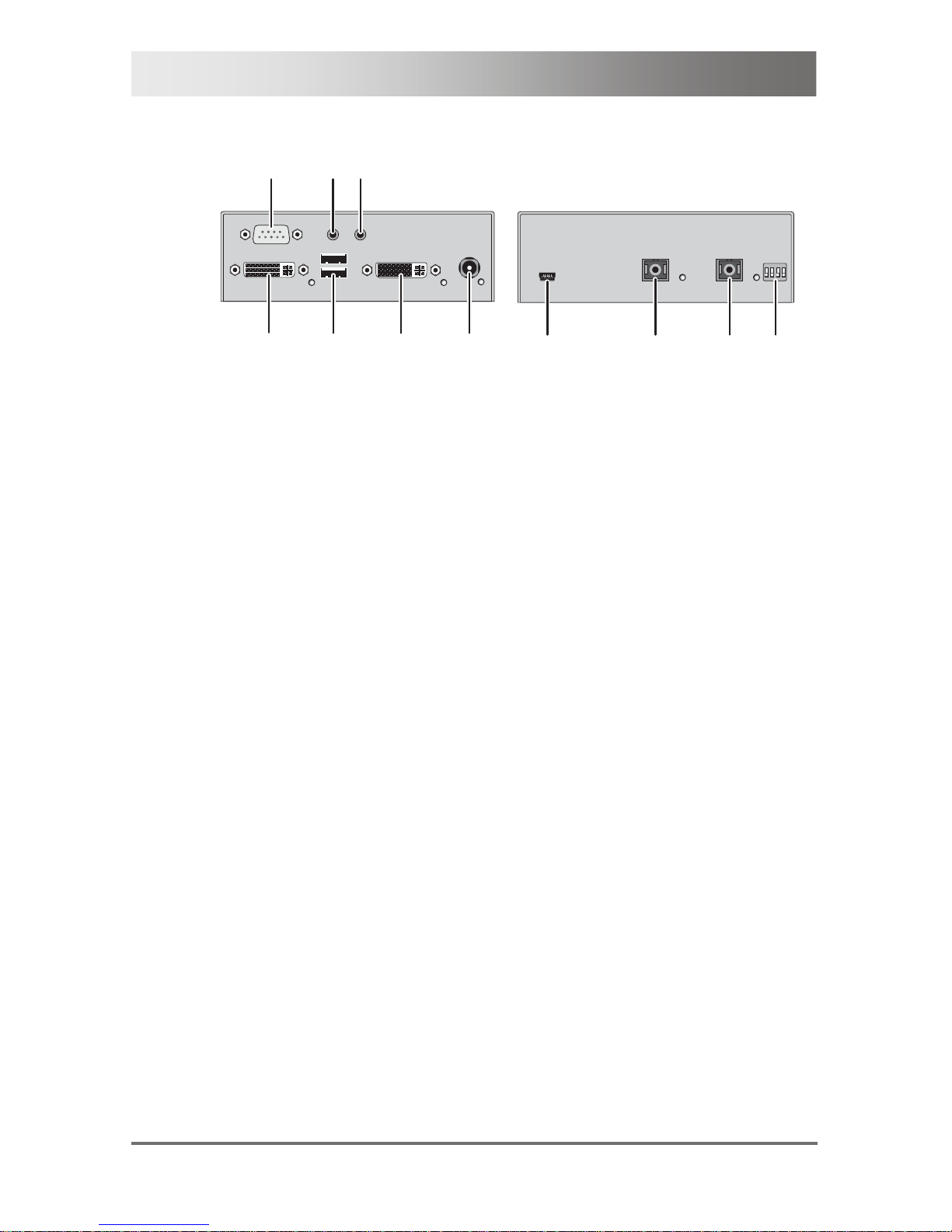

Pos: 21 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-DSHA @ 6\mod_13 04494061836_6.doc @ 50380 @ 3

Description

2011-06-01 27

3.6.12 Model K472-DSHA

CPU Unit

5

6

7

1

2 3 4

1234

Rear View Front View

1 To CPU: DVI-D 1
2 To CPU: USB-HID
3 To CPU: DVI-D 2
4 Connect to 5VDC

power supply
5 Connect to serial (D-Sub 9)
6 Audio IN
7 Audio OUT

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

DXXi KVM Extender

28 2011-06-01

CON Unit

5

6

7

1

2 3 4

1234

Rear View Front View

1 Connect to DVI monitor 1
2 Connect to USB-HID devices
3 Connect to DVI monitor 2
4 Connect to 5VDC

power supply
5 Connect to serial (D-Sub 9)
6 Audio IN
7 Audio OUT

1 Service port
2 Connect to interconnect cable

Link B

3 Connect to interconnect cable

Link C

4 Configuration DIP switches

Pos: 22 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-DST @ 6\mod_130449 4100915_6.doc @ 50398 @ 3

Description

2011-06-01 29

3.6.13 Model K472-DST

CPU Unit

1

23 4

12

3

45

Rear View Front View

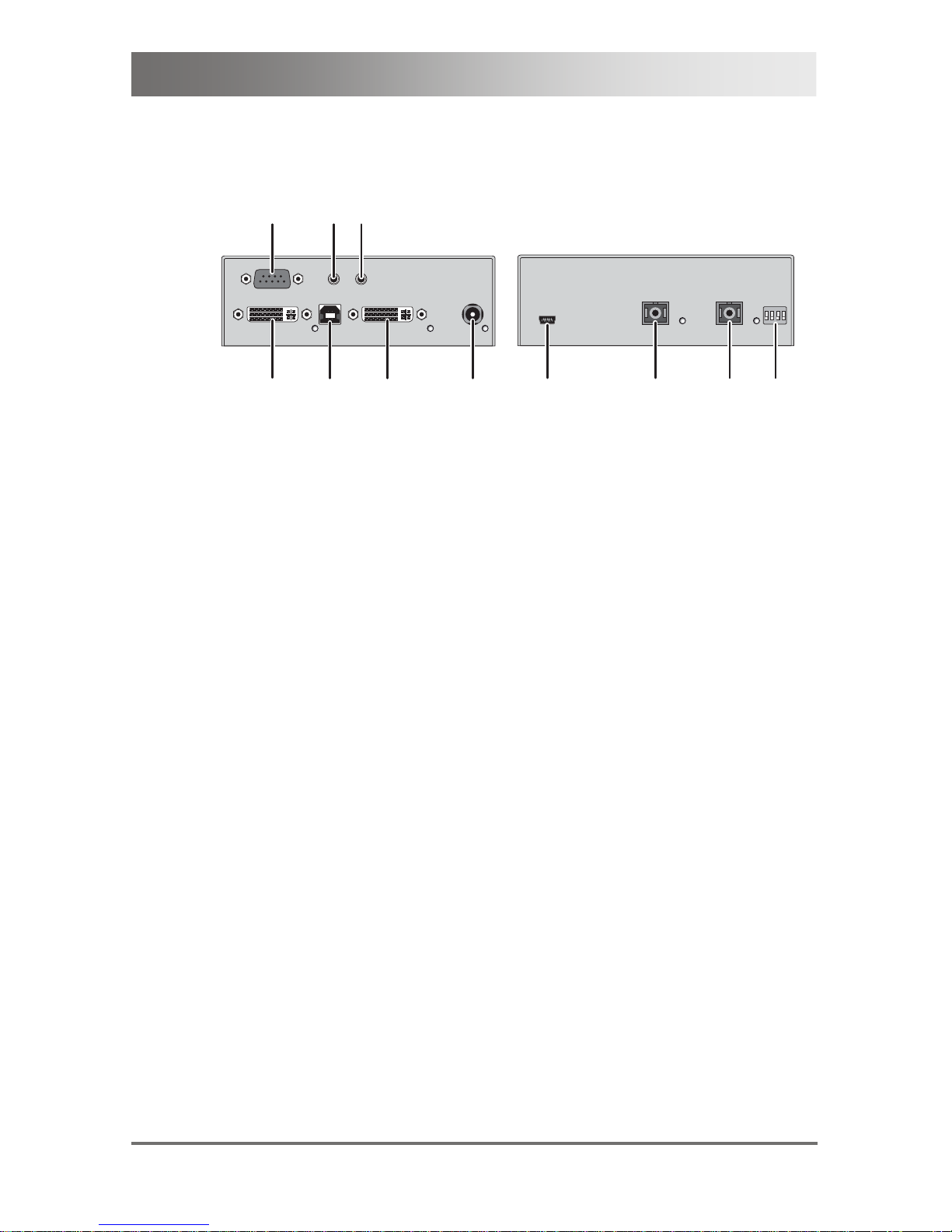

1 To CPU: DVI-D 1
2 To CPU: USB 2.0
3 To CPU: DVI-D 2
4 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

CON Unit

5

1

234

12

3

45

Rear View Front View

1 Connect to DVI monitor 1
2 Connect to USB 2.0 devices 1
3 Connect to DVI monitor 2
4 Connect to USB 2.0 devices 2
5 Connect to 5VDC

power supply

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

DXXi KVM Extender

30 2011-06-01

Pos: 23 /806-IHSE/Beschreibung/Gerätea nsichten/472- xx/Typ K472-DSTA @ 6\mod_130449 4134196_6.doc @ 50416 @ 3

3.6.14 Model K472-DSTA

CPU Unit

5

6

7

1

2 3 4

12

3

45

Rear View Front View

1 To CPU: DVI-D 1
2 To CPU: USB 2.0
3 To CPU: DVI-D 2
4 Connect to 5VDC

power supply
5 Connect to serial (D-Sub 9)
6 Audio IN
7 Audio OUT

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

Description

2011-06-01 31

CON Unit

5

6

7

8

1

234

12

3

45

Rear View Front View

1 Connect to DVI monitor 1
2 Connect to USB 2.0 devices 1
3 Connect to DVI monitor 2
4 Connect to USB 2.0 devices 2
5 Connect to 5VDC

power supply
6 Connect to serial (D-Sub 9)
7 Audio IN
8 Audio OUT

1 Service port
2 Connect to interconnect cable

Link A

3 Connect to interconnect cable

Link B

4 Connect to interconnect cable

Link C

5 Configuration DIP switches

Pos: 24 /806-IHSE/Beschreibung/Diagnos e LEDs/UEB_Diagnose_LE Ds @ 6\mod_13045840047 23_6.doc @ 51146 @ 2

DXXi KVM Extender

32 2011-06-01

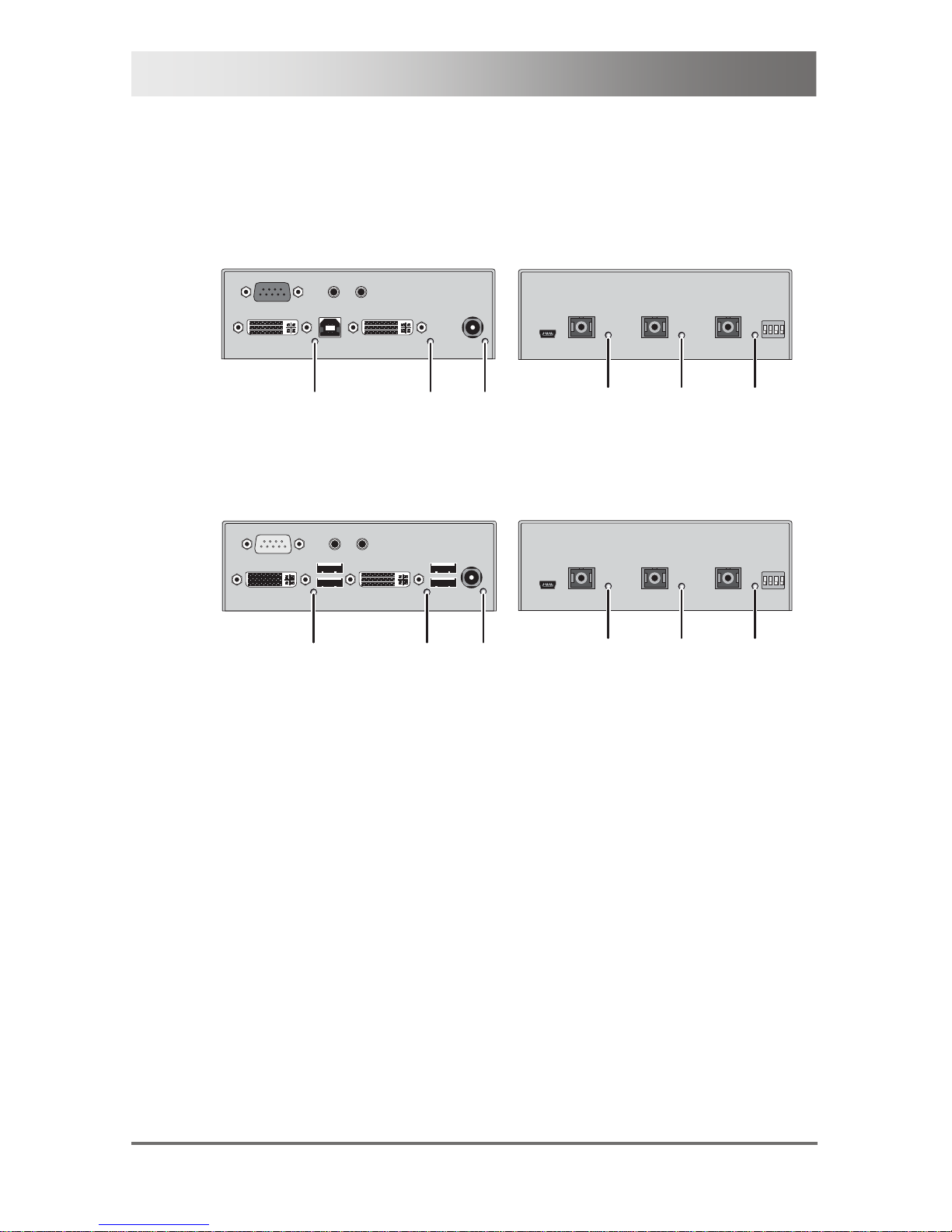

3.7 Status LEDs

Pos: 25 /806-IHSE/Beschreibung/Diagnos e LEDs/472-xx @ 6\mod_130 4494283852_6.doc @ 50434 @

The KVM Extender is fitted with the following LEDs for status indication at
CPU Unit and CON Unit:

CPU Unit CPU Unit

1

2 3

4

5

6

Rear View Front View

CON Unit CON Unit

1

2 3

4

5

6

Rear View Front View

Description

2011-06-01 33

Pos. LED Status Description

Off

 CPU Unit: No DVI signal from video

source (computer, CPU) detected

 CON Unit: No DVI signal from

CPU Unit or no monitor detected

Flashing

Monitor DDC is being transmitted from
the console monitor

1

Video OK 1

(red)

On DVI signal from video source available
Off

 No DVI signal from video source

(computer, CPU) detected

 CON Unit: No DVI signal from

CPU Unit or no monitor detected

Flashing

Monitor DDC is being transmitted from
the console monitor

2

Video OK 2

(red,
optional)

On DVI signal from video source available
Off Device not ready 3

Power

(red)

On Device ready
Off No connection via interconnect cable 4

Link A
Status USB

(green,
optional)

On Connection available

Off No connection via interconnect cable

Flashing Connection failing

5

Link B
Status
Video 2

(green,
optional)

On Connection available

Off No connection via interconnect cable

Flashing Connection failing

6

Link C
Status
Video 1

(green)

On Connection available

Pos: 26 /806-IHSE/Installation/UEB_I nstallation @ 5\mod_12 78574971589_6.doc @ 41768 @ 1

DXXi KVM Extender

34 2011-06-01

4 Installation

Pos: 27 /806-IHSE/Installation/Liefer umfang prüfen/47 2-xx @ 6\mod_1304494398 555_6.doc @ 50452 @ 2

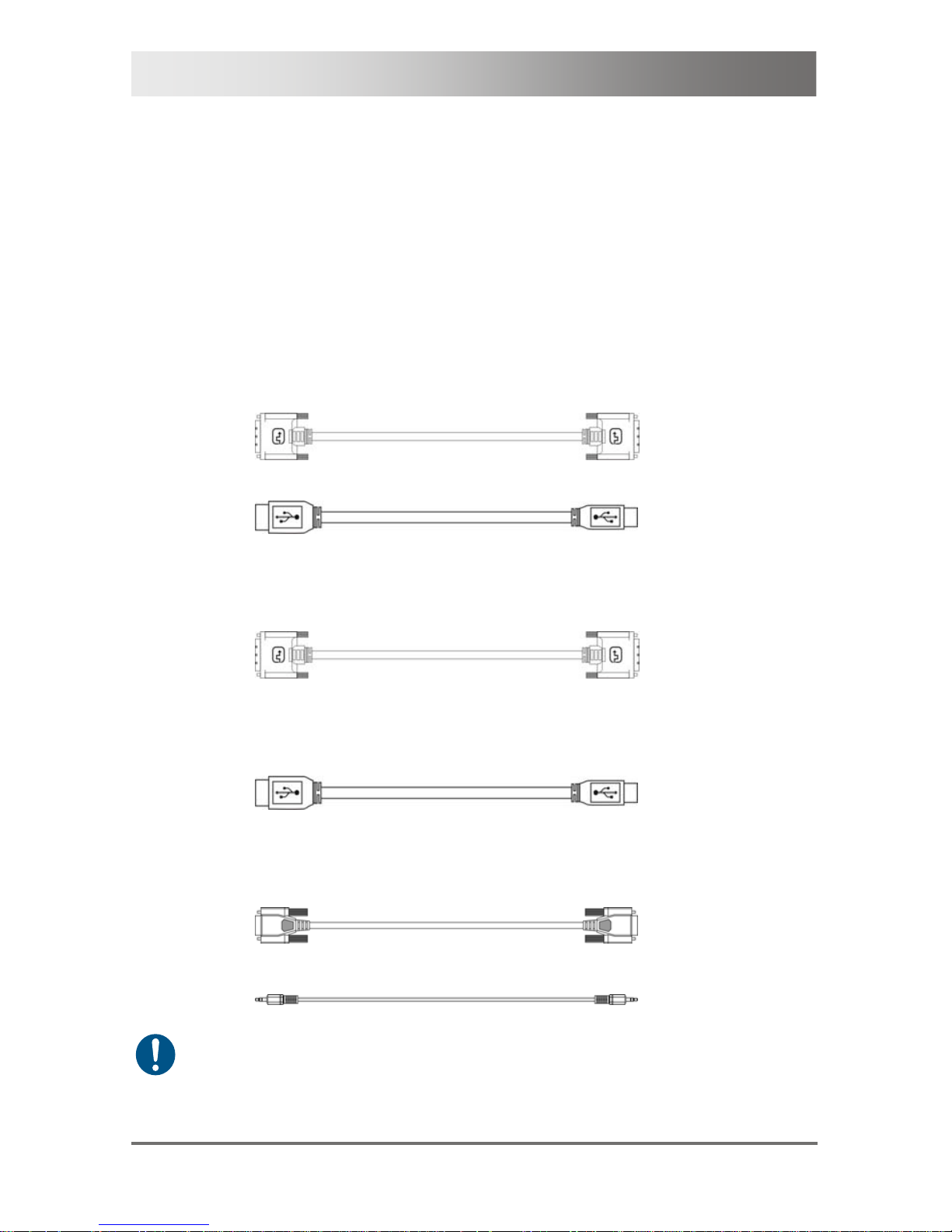

4.1 Package Contents

Your extender package contains the following items:

 KVM Extender pair (CPU Unit and CON Unit)
 2x 5VDC international power supply unit
 2x country specific power cord
 Quick Setup
 DVI video cable (1.8 m, DVI-D male-to-male)

 USB cable (1.8 m, type A to type B)

Additional content for Dual-Head devices:

 DVI video cable (1.8 m, DVI-D male-to-male)

Additional content for devices with integrated switching function:

 USB cable (1.8 m, type A to type B)

Additional content for Analog Audio / Serial option:

 Serial cable (1.8 m, RS232 male connector)

 Stereo jack cable (1.6 m, 3.5 mm male connector)

If anything is missing, contact your dealer.

Pos: 28 /806-IHSE/Installation/Syst em anschließen/VA R_KVM @ 5\mod_1278575413589_6. doc @ 41810 @ 2

Installation

2011-06-01 35

4.2 System Setup

First time users are recommended to setup the system with the CPU Unit
and the CON Unit in the same room as a test setup. This will allow you to
identify and solve any cabling problems, and experiment with your system
more conveniently.

 Please verify that interconnect cables, interfaces, and handling of the

devices comply with the requirements (see Chapter 7, Page 41).

1. Switch off all devices.

CON Unit Installation

2. Connect your monitor(s), keyboard and mouse to the CON Unit.

3. Connect the CON Unit with the interconnect cable(s).

4. Connect the 5VDC power supply to the CON Unit.

CPU Unit Installation

5. Connect the source (computer, CPU) with the supplied cables to the

CPU Unit. Please ensure the cables are not strained.

6. Connect the CPU Unit to the interconnect cable(s).

7. Connect the 5VDC power supply to the CPU Unit.

8. Power up the system.

To power up the system, the following sequence is recommended:
Monitor – CON Unit – CPU Unit – source.

Pos: 29 /806-IHSE/Installation/Ins tallationsbeispi ele/472-xx @ 6\mod_1304 494567383_6.doc @ 50470 @ 2

DXXi KVM Extender

36 2011-06-01

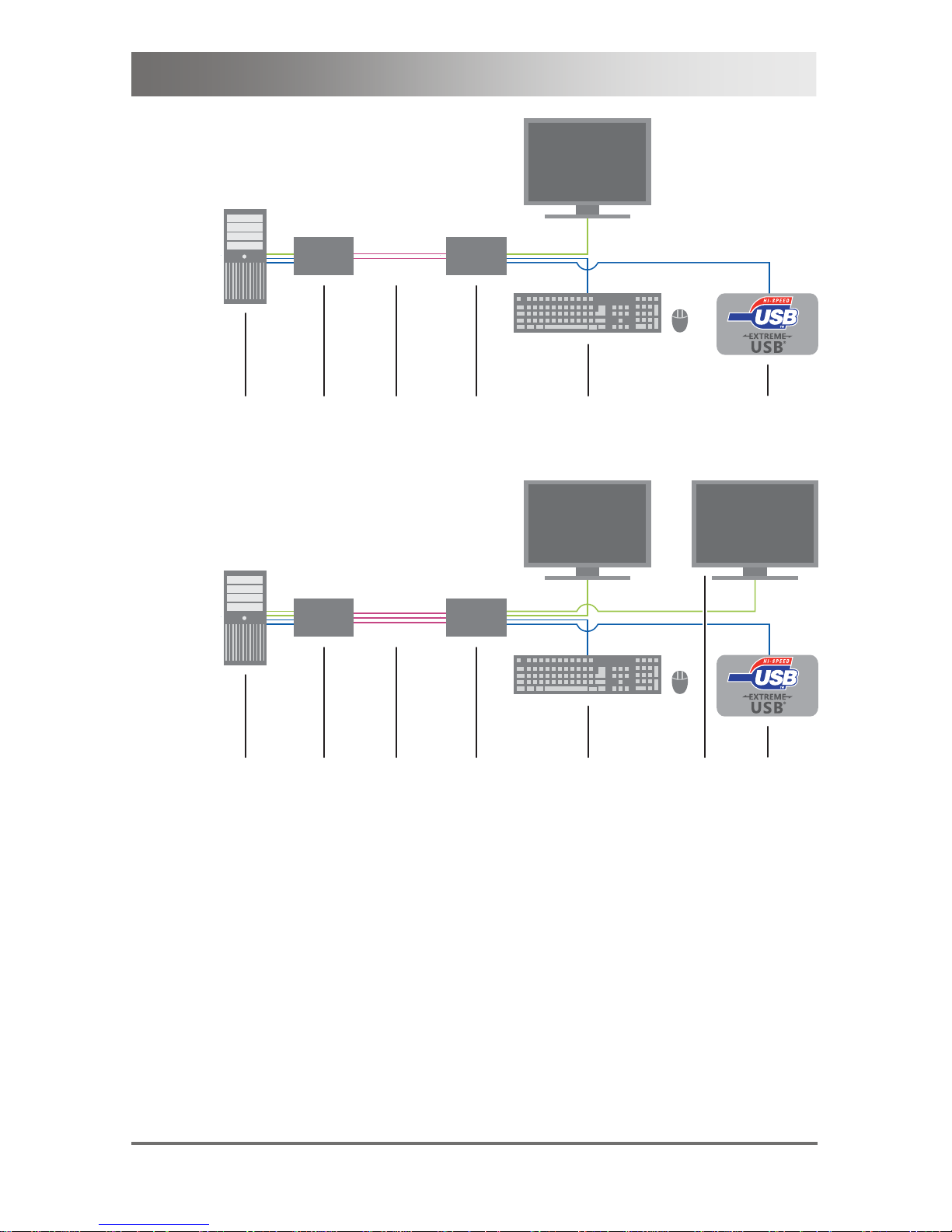

4.3 Example Applications

This section illustrates typical installations of KVM Extenders:

Pos: 19 /806-IHSE/Installation/Ins tallationsbeispi ele/VAR_KVM_Single- /Dual-Head_USB 2.0 @ 5\ mod_1278575500636_258. doc @ 41826 @

1

2

4

5

3

KVM Extender (Single-Head)

1

2

4

5

6

3

KVM Extender (Dual-Head)

Installation

2011-06-01 37

1

2

4

5

7

3

KVM Extender (Single-Head with USB 2.0)

1

2

4

5

7

6

3

KVM Extender (Dual-Head with USB 2.0)

1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with USB 2.0 devices)

Pos: 30 /806-IHSE/Konfiguration/ UEB_Konfiguration @ 5\mod_127 8575517073_6.doc @ 41846 @ 1

DXXi KVM Extender

38 2011-06-01

5 Configuration

Pos: 31 /806-IHSE/Konfiguration/ Übertragungsparameter /472-xx @ 6\mod_130449475 7555_6.doc @ 50488 @ 2

5.1 Transmission Parameters

In default configuration, the device adapts dynamically to monitor
resolution and image content. This configuration is suitable for almost all
conditions and should only be modified if image quality is not fully
satisfactory.

Pos: 32 /806-IHSE/Konfiguration/Ger äteeinstellungen/ 472-xx @ 6\mod_13050320 93070_6.doc @ 51594 @ 3

5.1.1 Device Settings

Both CPU unit and CON unit have four DIP switches that are used to set
the KVM Extender to the respective operation mode, depending from the
respective device.

DIP settings have to be performed both CPU and CON unit into the same
positions.

Only set DIP switches if the extender is not connected to power supply.

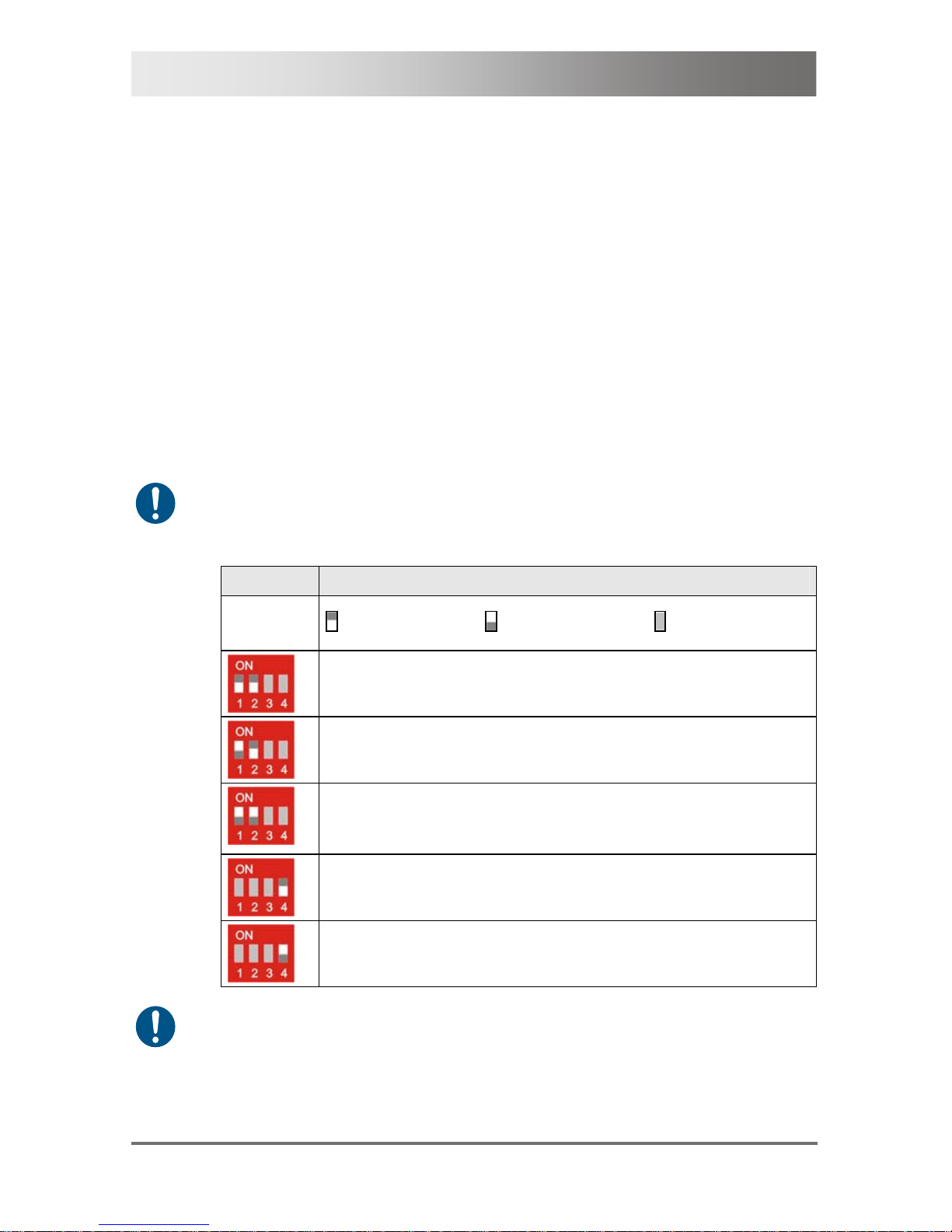

DIP Function
Switch

Position

Switch down Switch up Not used

Single Link mode
(default in combination with Single Link devices)

Dual Link mode
(default in combination with Dual Link devices)

Switch mode
(default in combination with models with integrated switching
function)

Standard mode, no HDCP possible (default in combination
with USB-HID / analog audio / serial devices)

HDCP mode, no USB-HID / analog audio / seriell possible
(default with USB 2.0 devices without analog audio / serial)

In HDCP mode, the transmission of USB-HID and analog audio signals is
blocked.

Pos: 33 /806-IHSE/Konfiguration/Ko mmando-Modus/472- xx @ 6\mod_1304494974336_6. doc @ 50524 @ 2

Configuration

2011-06-01 39

5.2 Command Mode

During normal use, the console keyboard functions in the usual manner.
However, for all KVM Extenders with switching function and USB-HID
support, you can set the keyboard into a Command Mode by using a
specific 'Hot Key' sequence. While in Command Mode, several functions
are performed via keyboard commands. To exit Command Mode, press
<Esc>.

While in Command Mode, the LEDs Shift and Scroll on the console
keyboard will flash.

In Command Mode normal keyboard and mouse operation will cease.
Only selected keyboard commands are available.

The following table lists the keyboard commands to enter and to exit
Command Mode and to change the 'Hot Key' sequence:

Function Keyboard Command

<Ctrl> + <Left Shift> + <i> ('Hot
Key') (until 20.11.2009)

Enter Command Mode (default)

2x <Left Shift> ('Hot Key')

(since 20.11.2009)
Exit Command Mode <Esc>
Change 'Hot Key' sequence

<Left Ctrl> + <Left Shift> + <c>,

<'Hot Key' Code>, <Enter>

The 'Hot Key' sequence to enter Command Mode can be changed. The
following table lists the 'Hot Key' Codes for the available key sequences:

'Hot Key'-Code 'Hot Key'

1 <Left Ctrl> + <Left Shift> + <i>
2 2x <Scroll>
3 2x <Left Shift>
4 2x <Left Ctrl>
5 2x <Left Alt>
6 2x <Right Shift>
7 2x <Right Ctrl>
8 2x <Right Alt>

Pos: 34 /806-IHSE/Betrieb/UEB_Betri eb @ 5\mod_1278577614980_6. doc @ 41970 @ 1

DXXi KVM Extender

40 2011-06-01

6 Operation

Pos: 35 /806-IHSE/Betrieb/Laden von DDC-Inf ormationen/472-xx @ 6\mod_130 4495057211_6.doc @ 50542 @ 2

6.1 Download of DDC Information

1. Please make sure that the monitor is on (both monitors in case of
Dual-Head devices).

2. Disconnect the monitor cable from the CON Unit and connect the
monitor cable again (In the case of Dual-Head devices, disconnect
and connect monitor cables successively).

The DDC information will be read from the console monitor,
transmitted to the CPU Unit and stored there internally.

To show successful reprogramming the LED Video OK flashes at
both CON Unit and CPU Unit for about one second.

The CPU will now be able to read the actual monitor DDC information
and so allow the required video resolution to be selected.

Pos: 36 /806-IHSE/Betrieb/Switchbetri eb/472-xx @ 6\mod_130 4495129258_6.doc @ 50561 @ 2

6.2 Switchting Function (option)

If your KVM Extender has a built in switching function as an option, two
sources (computer, CPU) can be connected to the CPU unit. You can
switch at the CON unit between two sources (Computer, CPU) via
keyboard command.

1. By executing the 'Hot Key', the KVM Extender is set into command
mode.

2. If you want to switch the console to of one of both CPUs that are
available, you will have to enter the port number of the respective
CPU (1 or 2). Afterwards you have to confirm the switching with the
<Enter> key. The console is now switched to the respective CPU.

Pos: 37 /806-IHSE/Technische Daten/UEB_ Technische Daten @ 5\mod_12 78578165261_6.doc @ 42096 @ 1

Specifications

2011-06-01 41

7 Specifications

Pos: 38 /806-IHSE/Technische Daten/Sc hnittstellen/UEB_Sc hnittstellen @ 5\mod_12 78578201870_6.doc @ 42114 @ 2

7.1 Interfaces

Pos: 39 /806-IHSE/Technische Daten/Sc hnittstellen/DVI- D-Single-Link @ 5\mod_127 8578254058_6.doc @ 42132 @ 3

7.1.1 DVI-D Single Link

The video interface supports the DVI-D protocol. All signals that comply to
DVI-D Single Link norm can be transmitted. This includes e.g. monitor
resolutions such as 1920x1200@60Hz, Full HD (1080p) or 2K HD (up to
2048x1152). Data rate is limited to 165 MPixel/s.

Pos: 40 /806-IHSE/Technische Daten/Sc hnittstellen/DVI- D-Dual-Link @ 6\mod_130 6496783354_6.doc @ 51660 @ 3

7.1.2 DVI-D Dual Link

The video interface supports the DVI-D protocol. All signals that comply to
DVI-D Dual Link norm can be transmitted. This includes e. g. monitor
resolutions such as 2560x2048@60Hz. Data rate is limited to
330 MPixel/s.

Pos: 41 /806-IHSE/Technische Daten/Sc hnittstellen/USB- HID @ 5\mod_1278578292214_ 6.doc @ 42150 @ 3

7.1.3 USB-HID

Our devices with an USB-HID interface support a maximum of two devices
compliant with the USB-HID protocol. Each USB-HID port provides a
maximum current of 100 mA.

Keyboard

Compatible with most USB keyboards. Certain keyboards with additional
functions may require custom firmware to operate. Keyboards with an
integral USB Hub (Mac keyboards e.g.) are also supported.

Mouse

Compatible with most 2-button, 3-button and scroll mice.

DXXi KVM Extender

42 2011-06-01

Other USB-HID devices

The proprietary USB emulation also supports certain other USB-HID
devices, such as specific touch screens, graphic tablets, barcode
scanners or special keyboards. Support cannot be guaranteed, however,
for every USB-HID device.

Only two USB-HID devices are supported concurrently, such as keyboard
and mouse or keyboard and touch screen. A hub is allowed, but it does
not increase the number of HID devices allowed.

To support other USB 'non-HID' devices, such as scanners, web cams or
memory devices, choose our devices with transparent USB support.

Pos: 42 /806-IHSE/Technische Daten/Sc hnittstellen/USB 2. 0 (transparent) @ 5\mod_1278 578316386_6.doc @ 42168 @ 3

7.1.4 USB 2.0 (transparent)

KVM Extender models with transparent USB 2.0 support allow the
connection of all types of USB 2.0 devices (without restriction). USB 2.0
data transfer is supported with USB high speed (max. 480 Mbit/s).

Each USB 2.0 port provides a maximum current of 500 mA (high power).

Pos: 43 /806-IHSE/Technische Daten/Sc hnittstellen/Glasf aser Typ SC @ 6\mod_13044982069 77_6.doc @ 50579 @ 3

7.1.5 Fiber Type SC (Interconnect)

The communication of fiber devices is performed via interfaces that have
to be connected by suitable fibers of connector type SC.

Pos: 44 /806-IHSE/Technische Daten/Sc hnittstellen/Seri elle Schnittstelle @ 5\ mod_1291127444390_6. doc @ 44828 @ 3

7.1.6 Serial Interface

The serial interface option supports a full-duplex transmission with a real
hardware handshake up to a Baud rate of 19,200 Baud.

The CON Unit is cabled as DTE (Data Terminal Equipment, like CPU
output) and can be connected directly to DCE devices (Data
Communication Equipment).

 A touch screen can be connected directly to the CON Unit.
 To connect to a serial printer (or any other DTE instead of DCE

device), you need a null modem cable (crossed cable) between CON
Unit and the device.

Specifications

2011-06-01 43

Operation of several devices:

The serial interface transmits 6 signals (3 for each direction). Normally,

4 of the 6 signals are handshake signals (in addition to RxD and TxD).

The following configurations, however, can be realized using special
adapter splitting cables:

 Three single 2-wire transmissions
 Two transmissions with a handshake signal
 A serial mouse and a single 2-wire transmission.

In this case, choose X-ON / X-OFF software handshake for traffic control
at printer and PC.

Connection Format

DTE (Data Terminal Equipment)

Speed

Up to 19,200 Baud

Data Format

Format independent

Data Transmission

 RxD (Receive Data)
 TxD (Transmit Data)

Traffic Control

The following signals are transmitted
(hardware handshake):

 RTS (Request To Send)
 CTS (Clear To Send)
 DTR (Data Terminal Ready)
 DSR (Data Set Ready)

Pos: 45 /806-IHSE/Technische Daten/Sc hnittstellen/Ana loge Audio-Schnittst elle @ 5\mod_1291127716734 _6.doc @ 44846 @ 3

DXXi KVM Extender

44 2011-06-01

7.1.7 Analog Audio Interface

The Analog Audio option supports a bidirectional stereo audio

transmission, in nearly CD quality.
The audio interface is a 'line level' interface and it is designed to transmit

the signals of a sound card (or another 'line level' device) as well as to
allow the connection of active speakers to the CON Unit.

Stereo audio can be transmitted bidirectionally at the same time.

Connection of a microphone:

Connect the microphone to the 'audio' input of the CON Unit. There are
two ways to establish this connection:

 The output of the CPU Unit is connected with the microphone input of

the sound card (red). Adjust the sound card to provide an additional
amplification (20 dB).

 The output of the CPU Unit is connected to the audio input of the

sound card (blue). Choose this connection if the microphone has its
own pre-amplifier.

The CON Unit can do the pre-amplification of the microphone as well.
Open the CON Unit, locate the 'MIC' jumper on the audio board and close
the pins.

Transmission Format Digitized virtually CD quality audio

(16 bit, 38.4 KHz)

Signal Level

Line-Level (5 Volt Pk-Pk maximum)

Input Impedance

47 KOhm

Connections CPU Unit 2x 3.5 mm stereo jack plug

(audio in & audio out)

Connections CON Unit 2x 3.5 mm stereo jack plug

(audio in & audio out)

Pos: 46 /806-IHSE/Technische Daten/Verbi ndungskabel/UEB_V erbindungskabel @ 5\ mod_1279191107845_6.d oc @ 43870 @ 2

Specifications

2011-06-01 45

7.2 Interconnect Cable

Pos: 47 /806-IHSE/Technische Daten/Verbi ndungskabel/Glasf aser @ 6\mod_1304498483 633_6.doc @ 50597 @ 3

7.2.1 Fiber

A point-to-point connection is necessary. Operation with multiple patch
panels is allowed. Routing over active network components, such as
Ethernet Hubs, Switches or Routers, is not allowed.

Type of Interconnect Cable

(Cable notations according to VDE)

Type of cable Specifications

Multi-Mode 50μm  One fiber 50μm

 I-V(ZN)H 2G50 (in-house patch cable)
 I/AD(ZN)H 4G50 (in-house or outdoor

breakout cable, resistant)

Multi-Mode 62.5μm  One fiber 62.5μm

 I-V(ZN)HH 2G62.5 (in-house breakout

cable)

 A/DQ(ZN)B2Y 4G62.5 (outdoor cable,

with protection against rodents)

Maximum Acceptable Cable Length

Type of cable Maximum Acceptable Cable Length

Multi-Mode 50μm (OM3) 1,000 m (3,280 ft)
Multi-Mode 50μm 400 m (1,300 ft)
Multi-Mode 62.5μm 200 m (650 ft)

Pos: 50 /806-IHSE/Technische Daten/Verbi ndungskabel/Verbi ndungskabel (LW L)_Steckverbinder 477- xx @ 5\mod_1278954447542 _258.doc @ 43738 @

Type of Connector

Connector

SC Connector

Pos: 48 /806-IHSE/Technische Daten/Getes tete Peripherie/ UEB_Getestete Peripher ie @ 5\mod_127857847876 1_6.doc @ 42242 @ 2

DXXi KVM Extender

46 2011-06-01

7.3 Supported Peripherals

Pos: 49 /806-IHSE/Technische Daten/Getes tete Peripherie/ USB-HID-Geräte @ 5\mod_12 78578523558_6.doc @ 42260 @ 3

7.3.1 USB-HID Devices

The KVM Extender will support most USB-HID devices, including the vast
majority of keyboards and mice currently on the market. Many other kinds
of HID devices such as bar-code scanners and touch screens may also be
compatible

It is not possible to guarantee support for all available USB-HID devices.
In certain cases, custom firmware may be required.

USB-HID (and other) devices that are not supported as standard will
normally operate with our devices featuring transparent USB support.

Please note that concurrent operation of more than two USB-HID devices
is not possible even if you use a USB hub.

Pos: 50 /806-IHSE/Technische Daten/Getes tete Peripherie/ USB-2.0-Geräte @ 5\mod_1278 578553933_6.doc @ 42278 @ 3

7.3.2 USB 2.0 Devices

KVM Extender models featuring a transparent USB 2.0 connection use
Extreme USB Technology from Icron Technologies.

This technology supports all types of USB 2.0 devices, however the
manufacturer cannot guarantee compatibility with every device on the
market. Please contact your dealer if any issues are found.

Pos: 51 /806-IHSE/Technische Daten/Pinbe legungen/UEB_Pinb elegungen @ 5\mod_12785 78683636_6.doc @ 42315 @ 2

Specifications

2011-06-01 47

7.4 Connector Pinouts

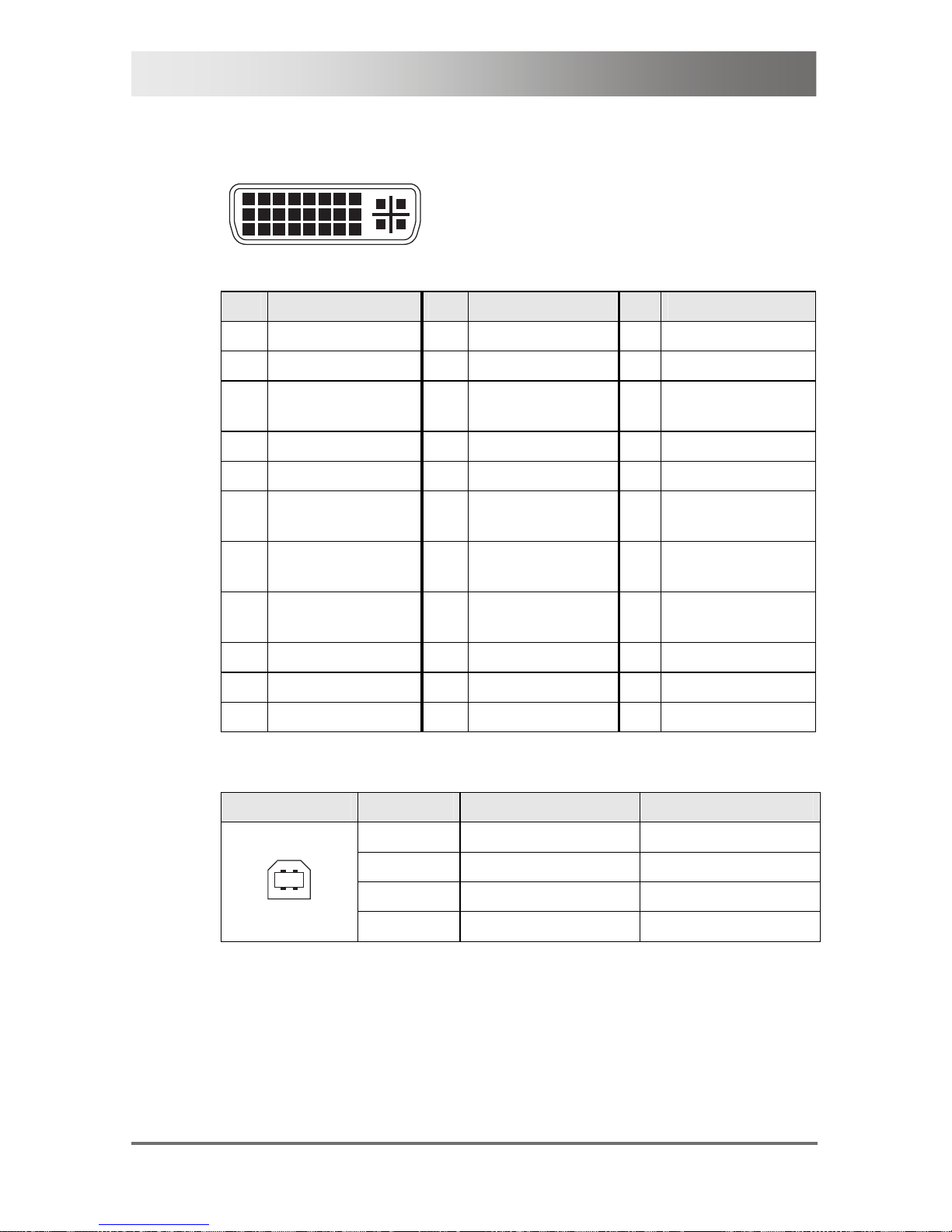

Pos: 52 /806-IHSE/Technische Daten/Pinbe legungen/Buchse DVI -D Single-Link @ 5\mod_12 78578723073_6.doc @ 42333 @

Connector DVI-D Single-Link

1.............................8 C1 C2

C5

17...........................24

C3 C4

Pin Signal Pin Signal Pin Signal

1 T.M.D.S data 2 – 9 T.M.D.S data 1 – 17 T.M.D.S data 0 –
2 T.M.D.S data 2 + 10 T.M.D.S data 1 + 18 T.M.D.S data 0 +
3

T.M.D.S data 2
GND

11

T.M.D.S data 1
GND

19

T.M.D.S data 0

GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14

+5VDC high
impedance

22

T.M.D.S clock

GND
7

DDC Output
(SDA)

15 GND 23 T.M.D.S clock +

8 Internal use 16

Hot Plug
recognition

24 T.M.D.S clock –

C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use

Pos: 53 /806-IHSE/Technische Daten/Pinbe legungen/Buchse DVI -D Dual-Link @ 6\mod_130649 7140385_6.doc @ 51697 @

DXXi KVM Extender

48 2011-06-01

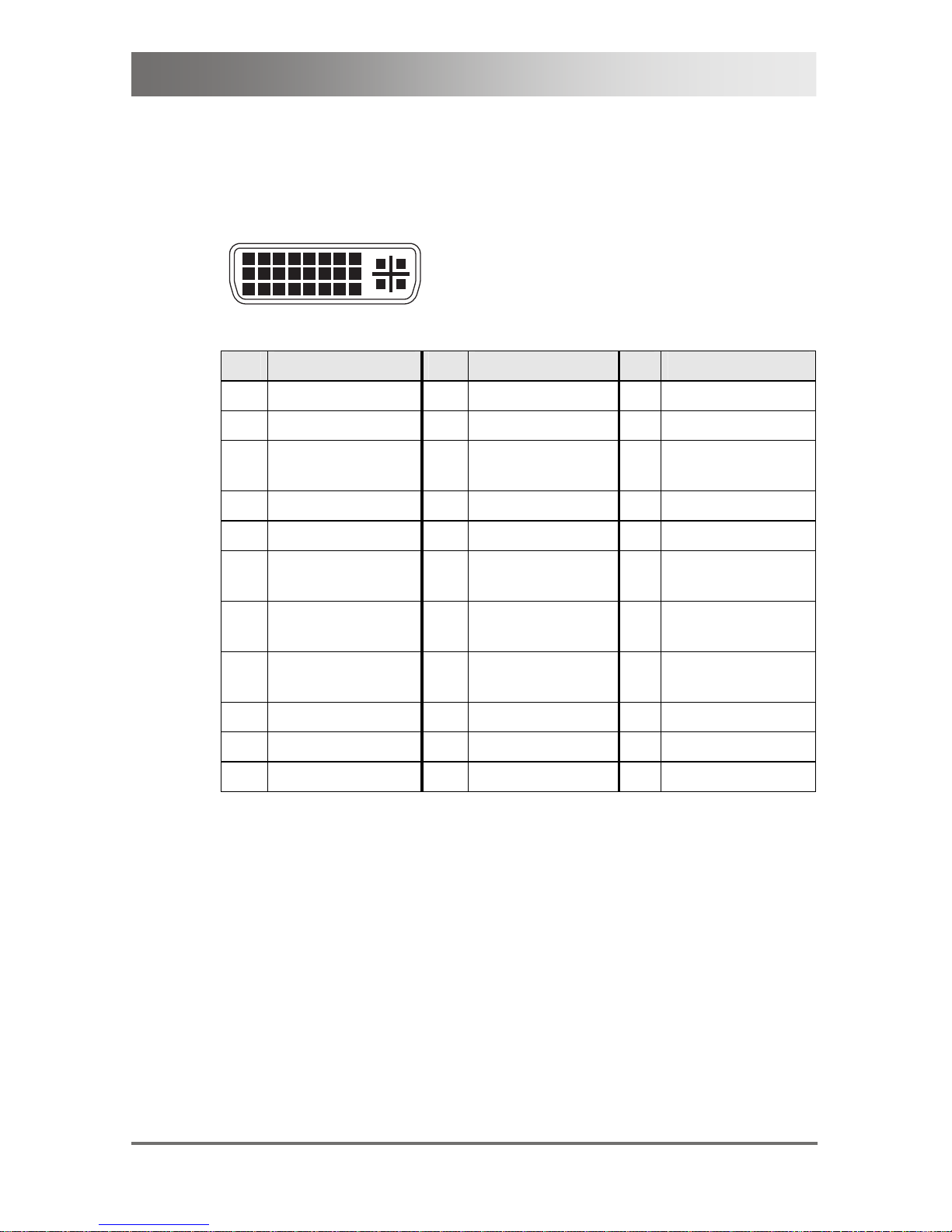

Connector DVI-D Dual Link

1.............................8 C1 C2

C5

17...........................24

C3 C4

Pin Signal Pin Signal Pin Signal

1 T.M.D.S data 2 – 9 T.M.D.S data 1 – 17 T.M.D.S data 0 –
2 T.M.D.S data 2 + 10 T.M.D.S data 1 + 18 T.M.D.S data 0 +
3

T.M.D.S data 2
GND

11

T.M.D.S data 1
GND

19

T.M.D.S data 0

GND
4 T.M.D.S data 4 – 12 T.M.D.S data 3 – 20 T.M.D.S data 5 –
5 T.M.D.S data 4 + 13 T.M.D.S data 3 + 21 T.M.D.S data 5 +
6 DDC Input (SCL) 14

+5VDC high
impedance

22

T.M.D.S clock

GND
7

DDC Output
(SDA)

15 GND 23 T.M.D.S clock +

8 Internal use 16

Hot Plug
recognition

24 T.M.D.S clock –

C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use

Pos: 54 /806-IHSE/Technische Daten/Pinbe legungen/Buchse USB Typ B @ 5\mod_1278578750464 _6.doc @ 42351 @

Connector USB Type B

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green

132

4

4 GND Black

Pos: 55 /806-IHSE/Technische Daten/Pinbe legungen/Buchse USB Typ A @ 5\mod_1278578771214_ 6.doc @ 42369 @

Specifications

2011-06-01 49

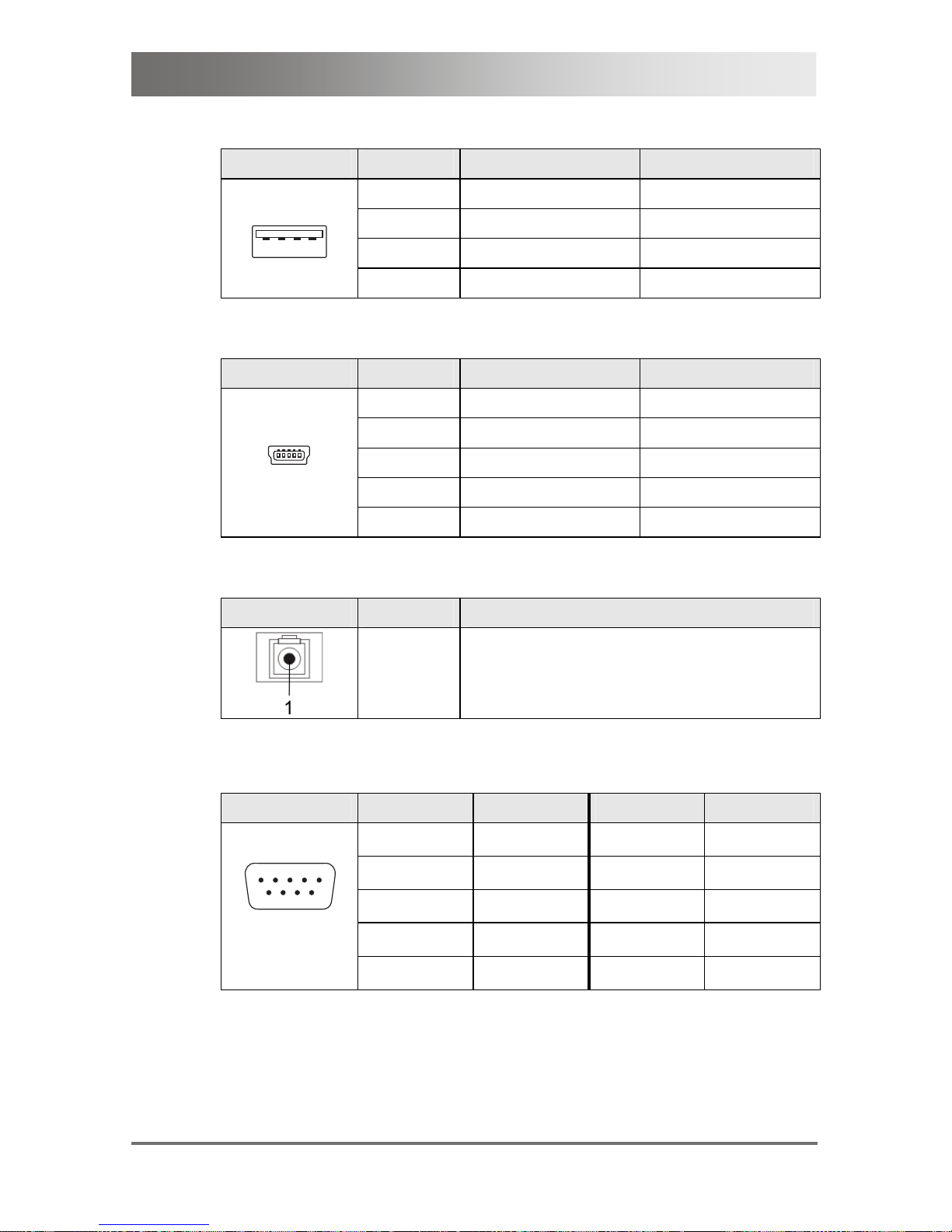

Connector USB Type A

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green

1

3

2 4

4 GND Black

Pos: 56 /806-IHSE/Technische Daten/Pinbe legungen/Buchse Mini-USB Typ B @ 5\mod_127857879 4167_6.doc @ 42387 @

Connector Mini USB Type B

Picture Pin Signal Color

1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –

....5

1

5 GND Black

Pos: 57 /806-IHSE/Technische Daten/Pinbe legungen/Glasfaser Typ SC @ 6\mod_1304499047 977_6.doc @ 50615 @

Fiber Type SC

Picture Diode Signal

1 Data IN / OUT

Pos: 58 /806-IHSE/Technische Daten/Pinbe legungen/D-Sub 9 ( Seriell) @ 5\mod_1291128 631437_6.doc @ 44882 @

D-Sub 9 (Serial)

Picture Pin Signal Pin Signal

1 n.c. 6 DTR

2 CTS 7 TxD

3 RTS 8 RxD

4 DSR 9 n.c.

1.................5

6...........9

5 GND

Pos: 59 /806-IHSE/Technische Daten/Pinbe legungen/Stereo- Klinkenbuchse 3,5 mm @ 5\ mod_1291128765156_6.doc @ 44901 @

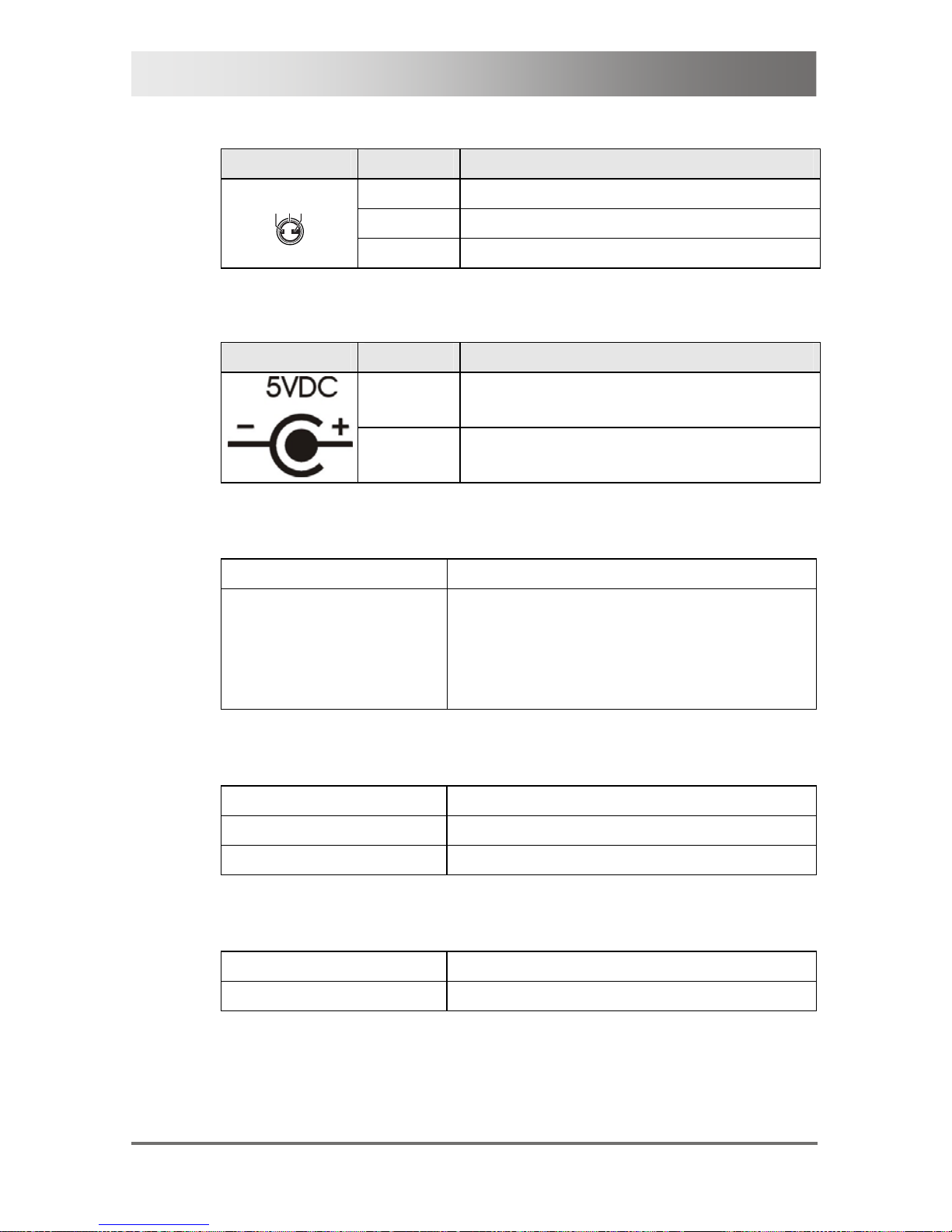

DXXi KVM Extender

50 2011-06-01

3.5 mm Stereo Jack Plug
Picture Pin Signal

1 GND
2 Audio IN / OUT L

12 3

3 Audio IN / OUT R

Pos: 60 /806-IHSE/Technische Daten/Pinbe legungen/Strom versorgung @ 5\mod_127857884 9183_6.doc @ 42423 @

Power Supply

Picture Pin Signal

Inside VCC (+5VDC)

Outside GND

Pos: 61 /806-IHSE/Technische Daten/Stro mversorgung/472- xx @ 6\mod_1304499174086 _6.doc @ 50633 @ 2

7.5 Power Supply

Voltage

5VDC

Power Requirement
(per unit)

 Single-Head devices: max. 800 mA
 Dual-Head devices: max. 950 mA
 USB 2.0 devices:

max. 1,500 mA (CPU)
max. 3,500 mA (CON)

Pos: 62 /806-IHSE/Technische Daten/Einsa tzbedingungen/A TB_Einsatzbedingung en @ 5\mod_1278578980026 _6.doc @ 42480 @ 2

7.6 Environmental Conditions

Operating Temperature

41 to 113°F (5 to 45°C)

Storage Temperature

–13 to 140°F (–25 to 60°C)

Relative Humidity

Max. 80% non-condensing

Pos: 63 /806-IHSE/Technische Daten/Ab messungen/472-xx @ 6\mod _1304499266696_6.doc @ 50651 @ 2

7.7 Size

CPU Unit / CON Unit

180 x 130 x 43 mm (7.1" x 5.1" x 1.7")

Shipping Box

290 x 200 x 140 mm (11.4" x 7.9" x 5.5")

Pos: 64 /806-IHSE/Technische Daten/Transp ortgewicht /472- xx @ 6\mod_1304499336118_ 6.doc @ 50669 @ 2

Specifications

2011-06-01 51

7.8 Shipping Weight

CPU Unit / CON Unit

0.8 kg (1.7 lb)

Shipping Box

3.4 kg (7.5 lb)

Pos: 65 /806-IHSE/Hilfe im Problemfall/ UEB_Hilfe im Problemfal l @ 5\mod_1278579113839_ 6.doc @ 42536 @ 1

DXXi KVM Extender

52 2011-06-01

8 Troubleshooting

Pos: 66 /806-IHSE/Hilfe im Problemfall/Bi ldausfall/472- xx @ 6\mod_1304499537868_6. doc @ 50687 @ 2

8.1 Blank Screen

Diagnosis Possible Reaso n Measure

LED Power off

Power supply

 Check power supply units and

the connection to the power
network.

LED Link B / C

Status
Video 1 / 2 off

Connection between
CON Unit and CPU Unit

 Check interconnect cables and

connections.

CPU unit: LED
Video OK off

No video signal detected
by source (computer,
CPU)

 Check DVI-D cable to CPU
 Download DDC information from

console monitors (see
Chapter 6.1, Page 40).
Reb

oot CPU if necessary.

No monitor detected

 Check connection, length and

quality of the DVI-D cable to
monitor, tighten cable
thumbscrews.

No video signal detected
from CPU Unit

 Check connection, length and

quality of interconnect cables
between the units.

 Download DDC information from

console monitors (see
Chapter 6.1, Page 40).
Reb

oot CPU if necessary.

CON unit: LED
Video OK off

Device configuration not
suitable for device

 Set DIP switches according to

device type.

Pos: 67 /806-IHSE/Hilfe im Problemfall/Bi ldstörung/472- xx @ 6\mod_1304499603118_ 6.doc @ 50705 @ 2

Troubleshooting

2011-06-01 53

8.2 Interference

Diagnosis Possible Reason Measure

Cable connection
disturbed

 Check connection, length and

quality of the DVI-D cable to
monitor, tighten cable
thumbscrews.

 Check connection, length and

quality of interconnect cables
between the units.

Incorrect video
display

Wrong DIP switch
settings in combination
with Dual Link
resolutions

 Select correct DIP switch settings

(see Chapter 5.1.1, Page 38).

Pos: 68 /806-IHSE/Hilfe im Problemfall/S törung am USB-HID-Ansch luss/472-xx @ 6\mod_1 304499779915_6.doc @ 50723 @ 2

8.3 USB-HID

Diagnosis Possible Reason Measure

Keyboard LEDs
Shift and Scroll
are flashing

Keyboard in Command
Mode

 Press <Esc> to leave Command

Mode.

No USB-HID device  Connect USB-HID device.
Problems with USB

connection

 Check connection of USB cable

to USB-HID device.

 Remove DVI and power cable

and restart CON Unit. Connect
power cable first.

USB device
without function

USB-HID device is not
supported

 Contact dealer if necessary.

Pos: 69 /806-IHSE/Hilfe im Problemfall/S törung am USB-2.0-Ansc hluss/472-xx @ 6\mod_130 4499836899_6.doc @ 50741 @ 2

DXXi KVM Extender

54 2011-06-01

8.4 USB 2.0

Diagnosis Possible Reason Measure
LED Link A

Status USB off

Connection between
CON Unit and CPU Unit

 Check interconnect cable and

connectors.

USB device
without function

USB 2.0 device is not
supported

 Check installation at the CPU,

also the necessary drivers.

 New connection of the USB 2.0

device.

 Contact dealer if necessary.

Pos: 70 /806-IHSE/Technische Unterstütz ung/ATB_Technisc he Unterstützung @ 5\mod_1 278579487089_6.doc @ 42650 @ 122

Technical Support

2011-06-01 55

9 Technical Support

Prior to contacting support please ensure you have read this manual, and
then installed and set-up your KVM Extender as recommended.

9.1 Support Checklist

To efficiently handle your request it is necessary to complete our checklist
for support and problem cases (Download). Keep the following information
available before you call:

 Company, name, phone number and email
 Type and serial number of the device (see bottom of device)
 Date and number of sales receipt, name of dealer if necessary
 Issue date of the existing manual
 Nature, circumstances and duration of the problem
 Involved components (such as graphic source/CPU, OS, graphic

card, monitor, USB-HID/USB 2.0 devices, interconnect cable)
including manufacturer and model number

 Results from any testing you have done

9.2 Shipping Checklist

1. To return your device, contact your dealer to obtain a RMA number

(Return-Material-Authorization).

2. Package your devices carefully, preferably using the original box.

Add all pieces which you received originally.

3. Note your RMA number visibly on your shipment.

Devices that are sent in without a RMA number cannot be accepted. The
shipment will be sent back without being opened, postage unpaid.

Pos: 71 /806-IHSE/Zertifikate/UEB_ Zertifikate @ 5\mod_12785 79534933_6.doc @ 42668 @ 1

DXXi KVM Extender

56 2011-06-01

10 Regulatory and St andards Compliance

Pos: 72 /806-IHSE/Zertifikate/ATB_E uropäische Konformi tätserklärung @ 5\mod_1 278579640901_6.doc @ 42686 @ 2

10.1 CE Declaration Of Conformity

The products listed below in the form as delivered comply with the
provisions of the following European Directives:

2004/108/EG Council Directive on the approximation of the laws of
the Member States relating to electromagnetic
compatibility

CE Marking 2009
Product list:
K472 Series

The products comply with the following harmonized standards for
Information Technology Equipment:

 EN 55022:2006 + A1:2007 (Class A)
 EN 55024:1998 + A1:2001 + A2:2003

This declaration certifies the conformity to the specified directives but
contains no assurance of properties. The safety instructions and
installation guidelines noted in this manual shall be considered in detail.
Compliance with the specifications for cable lengths and types is
mandatory.

Manufacturer:
IHSE GmbH

Maybachstrasse 11
88094 Oberteuringen
Deutschland

Oberteuringen, 26 January 2010
The Management

Use in a Domestic Environment

This is a Class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.

Pos: 73 /806-IHSE/Zertifikate/ATB_ North American Regulator y Compliance_NUR in E N @ 5\mod_1280395355750_6.d oc @ 43979 @ 2

Regulatory and Standards Compliance

2011-06-01 57

10.2 North American Regulatory Compliance

This equipment has been found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

Shielded cables must be used with this equipment to maintain compliance
with radio frequency energy emission regulations and ensure a suitably
high level of immunity to electromagnetic disturbances.

All power supplies are certified to the relevant major international safety
standards.

Pos: 74 /806-IHSE/Zertifikate/ATB_WEEE @ 5\mod_1 278579673292_6.doc @ 42704 @ 2

10.3 WEEE

The manufacturer complies with the EC Directive 2002/96/EG on the
prevention of waste electrical and electronic equipment (WEEE).

The device labels carry a respective marking.

Pos: 75 /806-IHSE/Zertifikate/ATB_ RoHS @ 5\mod_1278579714214_6. doc @ 42722 @ 2

10.4 RoHS

This device complies with the EC Directive 2002/95/EG on the Restriction
of the use of certain Hazardous Substances in electrical and electronic
equipment (RoHS).

The device labels carry a respective marking.

Pos: 76 /806-IHSE/Glossar/ATB_Glossar @ 5\mod_1278576825433_ 6.doc @ 41890 @ 1

DXXi KVM Extender

58 2011-06-01

11 Glossary

The following terms are commonly used in this guide or in video and KVM
technology:

Term Explanation

AES/EBU

Digital audio standard that is officially known as
AES3 and that is used for carrying digital audio

signals between devices.
Cat X Any Cat 5e (Cat 6, Cat 7) cable
CGA

The Color Graphics Adapter (CGA) is an old analog

graphic standard with up to 16 displayable colors and

a maximum resolution of 640x400 pixels.
Component

Video

The Component Video (YPbPr) is a high-quality

video standard that consists of three independently

and separately transmittable video signals, the

luminance signal and two color difference signals.
Composite Video

The Composite Video is also called FBAS and it is

part of the PAL TV standard.
CON Unit

Component of a KVM Extender or Media Extender to

connect to the console (monitor(s), keyboard and

mouse; optionally also with USB 2.0 devices)
CPU Unit

Component of a KVM Extender or Media Extender to

connect to a source (computer, CPU)
DDC

The Display Data Channel (DDC) is a serial

communication interface between monitor and

source (computer, CPU. It allows a data exchange

via monitor cable and an automatic installation and

configuration of a monitor driver by the operating

system.
Dual Access

A system to operate a source (computer, CPU) from

two consoles
Dual-Head A system with two video connections
Dual Link

A DVI-D interface for resolutions up to 2560x2048 by

signal transmission of up to 330 MPixel/s (24-bit)
DVI

Digital video standard, introduced by the Digital

Display Working Group (http://www.ddwg.org

). Single
Link and Dual Link standard are distinguished. The
signals have TMDS level.

Glossary

2011-06-01 59

Term Explanation

DVI-I

A combined signal (digital and analog) that allows
running a VGA monitor at a DVI-I port – in contrast to
DVI-D (see DVI).

Fiber Single-mode or multi-mode fiber cables
EGA

The Enhanced Graphics Adapter (EGA) is an old
analog graphic standard, introduced by IBM in 1984.
A D-Sub 9 connector is used for connection.

FBAS

The analog color video baseband signal (FBAS) is
also called Composite Video and it is part of the PAL
TV standard.

Console Keyboard, mouse and monitor
KVM Keyboard, video and mouse
Mini-XLR

Industrial standard for electrical plug connections
(3 pole) for the transmission of digital audio and
control signals

Multi-mode

62.5µ multi-mode fiber cable or 50µ multi-mode fiber
cable

OSD

The On-Screen-Display is used to display information
or to operate a device.

Quad-Head A system with four video connections
RCA (Cinch)

A not standardized plug connection for transmission
of electrical audio and video signals, especially with
coaxial cables

SFP

SFPs (Small Form Factor Pluggable) are pluggable
interface modules for Gigabit connections. SFP
modules are available for Cat X and fiber
interconnect cables.

S/PDIF

A digital audio interconnect that is used in consumer
audio equipment over relatively short distances.

Single-Head A system with one video connection
Single Link

A DVI-D interface for resolutions up to 1920x1200 by
signal transmission of up to 165 MPixel/s (24-bit).

Alternative frequencies are Full HD (1080p), 2K HD
(2048x1080) and 2048x1152.

Single-mode 9µ single-mode fiber cable
S-Video (Y/C)

The S-Video (Y/C) is a video format transmitting
luminance and chrominance signals separately.
Thereby it has a higher quality standard than FBAS.

DXXi KVM Extender

60 2011-06-01

Term Explanation

TOSLINK

Standardized fiber connection system for digital
transmission of audio signals (F05 plug connection)

Triple-Head A system with three video connections
USB-HID

USB-HID devices (Human Interface Device) allow for
data input.

There is no need for a special driver during
installation; "New USB-HID device found" is reported.

Typical HID devices include keyboards, mice,
graphics tablets and touch screens. Storage, video
and audio devices are not HID.

VGA

Video Graphics Array (VGA) is a computer graphics
standard with a typical resolution of 640x480 pixels
and up to 262,144 colors. It can be seen as a
follower of the graphics standards MDA, CGA and
EGA.

=== Ende der Liste für Textmarke Inhalt ===
