IHP GCB10DT/B10DM, GCB20DT/B20DM, GCB30DT/B30DM, GCB10DT/B10DMB, GCB20DT/B20DMB Owner's Manual

...

WARNING: This appliance is equipped for

Natural and Propane gas. Field conversion is not permitted.

WARNING: Do not attempt to access or

change the setting of the fuel selection means. Access to and adjustment of the fuel selection means must only be performed by a qualied

service person when connecting this appliance to a specied fuel supply at the time of installation.

Change of the selector setting to other than the fuel type specied at the time of installation could damage this appliance and render it inoperable.

The installer shall replace the access cover before completing the installation and operating this appli-

ance.

VENT-FREE BLUE FLAME

GAS WALL HEATER

MODEL #(C)(GC)B10DT/B10DM(B)

(C)(GC)B20DT/B20DM(B) (C)(GC)B30DT/B30DM(B)

ANS Z21.11.2-2013

Gas Fired Room Heaters

Volume II - Unvented Room Heaters

WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

- Do not store or use gasoline or other ammable vapors and Iiquids in vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the re department.

- Installation and service must be performed by a qualied installer, service agency or the

gas supplier.

This is an unvented gas-red heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air For Combustion and Ventilation section on page 8 of this manual.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with propane or natural gas. This appliance is equipped with a simple means to switch between propane and natural gas. Field conversion by any other means including the use of a kit is not permitted.

Questions, problems, missing parts? Before returning to your retailer, call our

customer service department at 1-800-655-2008 or nd us on the web at

www.SuperiorFireplaces.US.com

900269-02

TABLE OF CONTENTS

Dimensions (in.) ( H x W x D) (Height includes legs)

Important Safety Information ............................................................................................................3

Product Features .............................................................................................................................. 5

Air For Combustion and Ventilation .................................................................................................. 7

Installation ...................................................................................................................................... 10

Gas Conversion .............................................................................................................................. 11

Operation ........................................................................................................................................ 18

Care and Maintenance ................................................................................................................... 22

Troubleshooting .............................................................................................................................. 23

Replacement Parts ......................................................................................................................... 27

WARNING: Read the Installation & Operating Instructions before using this appliance.

IMPORTANT: Read all instructions and warnings carefully before starting installation.

Failure to follow these instructions may result in possible injury to persons or a re

hazard and will void the warranty.

PRODUCT SPECIFICATIONS

SERIES

MAX BTU 10,000 10,000 20,000 20,000

MIN BTU 5,000 8,000 10,000 16,000

Fuel Type Natural Gas Propane Natural Gas Propane

Ignition

Manifold Pressure 5 in. W.C. 10 in. W.C. 5 in. W.C. 10 in. W.C.

Inlet Gas Pressure

Maximum 14 in. W.C. 14 in. W.C. 14 in. W.C. 14 in. W.C.

*Minimum (*For purposes of input adjustment) 6 in. W.C. 11 in. W.C. 6 in. W.C. 11 in. W.C.

Weight (lbs.)

Fan Ratings (Select Models)

SERIES

MAX BTU 30,000 30,000

MIN BTU 15,000 24,000

Fuel Type Natural Gas Propane

Ignition

Manifold Pressure 5 in. W.C. 10 in. W.C.

Inlet Gas Pressure

Maximum 14 in. W.C. 14 in. W.C.

*Minimum (*For purposes of input adjustment) 6 in. W.C. 11 in. W.C.

B10DT/B10DM(B) B20DT/B20DM(B)

Electronic Push Button Electronic Push Button

19.8 in. x 17.0 in. x 8.9 in. 24.0 in. x 20.9 in. x 10.0 in.

120V/60Hz, 18W, 0.15A 120V/60Hz, 18W, 0.15A

B30DT/B30DM(B)

Electronic Push Button

Weight (lbs.)

Fan Ratings (Select Models)

24.0 in. x 27.8 in. x 10.0 in.

120V/60Hz, 18W, 0.15A

IMPORTANT SAFETY INFORMATION

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, re, explosion, electrical shock, and carbon monoxide poisoning.

Installation and repair should be done by a qualied service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Carefully supervise young children when they are in the room with the heater.

WARNING: Heater becomes very hot when operating. Children and adults should be alerted

to the hazard of high surface temperatures and should stay away to avoid burns or clothing

ignition Heater will remain hot for a time after shutoff. Allow surfaces to cool before touching.

WARNING: Make sure any panel, safety screen or guard removed for servicing an appliance

must be replaced prior to operating the heater

WARNING: Keep the appliance area clear and free from combustible materials, gasoline, and other ammable vapors and liquids.

WARNING: Do not place clothing or other ammable material on or near the appliance. Never place any objects on the heater.

WARNING: Due to high temperatures, locate this appliance out of trafc and away from furniture and draperies.

This appliance is intended for supplemental heating.

This appliance can be used with propane or natural gas. It is shipped from the factory adjusted for use with propane.

CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning resemble the u with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air immediately! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease, people who are anemic, those under the inuence of alcohol, and those living in high altitudes.

NATURAL AND PROPANE/LP GAS: Natural and Propane/LP gases are odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists. Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to operating this heater safely.

WARNING: Do not use any accessories not approved for use with this heater.

CALIFORNIA PROPOSITION 65

Fuels used in gas or oil red appliances and the products of combustion of such fuels contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. This product contains chemicals, including lead and lead compounds, known to the state of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

SAFETY INFORMATION

1. Do not place Propane/LP supply tank(s) inside any structure. Place Propane/LP supply tank(s)

outdoors.

2. Only the BF10 Series can be installed in a bedroom. When installing in a bedroom the heater MUST be mounted to the wall (See Wall Mounting, Page 13). All other models cannot be installed in a bedroom. These units are not approved for bathroom use.

3. This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 7 through 9. If heater keeps shutting off, see Troubleshooting, pages 23 through 26.

4. Keep all air openings in front, top and bottom of heater free of objects and debris to ensure adequate air for proper combustion.

5. If heater shuts off, do not relight until you have provided fresh, outside air. If heater keeps shutting off, have it serviced.

6. Do not run heater:

• Where ammable liquids or vapors are used or stored.

• Under dusty conditions.

7. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater and pilot off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

8. Do not use heater if any part has been under water. Immediately call a qualied service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

9. Turn off and unplug heater and let cool before servicing. Only a qualied service person should service and repair heater.

10. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.

11. WARNING: Do not allow fans to blow directly into the heater. Avoid any drafts that alter burner ame patterns.

12. WARNING: Do not operate heater if the tempered glass panel is not secured, broken, or missing. Only replace the tempered glass panel with parts and/or components provided by Innovative Hearth Products.

13. SAVE THESE INSTRUCTIONS.

PRODUCT FEATURES

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot shuts off the heater if there is not enough fresh air and cuts off main burner gas in the event of ame out.

DUAL FUEL CAPABILITY

Your heater is equipped to operate on either propane or natural gas. The heater is shipped from the factory ready for connecting to propane. The heater can easily be changed to natural gas by having your qualied installer follow the instructions on page 11 and the markings on the heater.

ELECTRONIC PUSH BUTTON IGNITION SYSTEM

This heater is equipped with an electronic push button ignition system. This system requires one AAA battery (provided).

LEG KIT

2 legs and 4 mounting screws are included for oor mounting the heater. See page 13.

PIEZO IGNITION SYSTEM (SELECT MODELS)

This heater is equipped with a piezo electric ignition system.

THERMOSTAT HEAT CONTROL(SELECT MODELS)

The control automatically cycles the burner on and off to maintain a desired room

temperature. See page 24.

FAN KIT(SELECT MODELS)

The fan kit helps to distribute the warmed air into the space more rapidly.

State of Massachusetts: The installation must be made by a licensed plumber or gas tter in the Commonwealth of Massachusetts. Sellers of unvented propane or natural gas-red supplemental room heaters shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

In the State of Massachusetts, unvented propane or natural gas-red space heaters shall be prohibited in bedrooms and bathrooms.

In the State of Massachusetts the gas cock must be a T-handle type. The State of Massachusetts requires that a exible appliance connector cannot exceed three feet in length.

LOCAL CODES

Install and use heater with care. The installation must conform with local codes or, in the absence of local codes, with the latest edition of The Nation Fuel Gas Code, ANSI Z223.1/NFPA 54

*Available from:

American National Standard Institute, Inc. National Fire Protection Association, Inc.

1430 Broadway 1 Batterymarch Park New York, NY 10018 Quincy, MA 02269-9101

This heater is designed for vent-free operation. State and local codes in some areas prohibit, restrict and or have special requirements for vent-free heaters.

PREPARING FOR INSTALLATION

Before beginning assembly or operation of the product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts.

UNPACKING

1. Remove heater from carton.

2. Remove all protective packaging applied to heater for shipping

3. Verify all contents are present.

Expansion Bracket x 4 Expansion Bracket Screw

(ST4.8*15-16) x 4

Spacer Screw

Wood Screw

(ST4.8*45-16) x 4

AAA Battery x 1 Expansion Bracket

Support Leg Screw (M4*15) x 4

Tool x 1

Wall Hanging

Spacer x 2

Support Leg x 2Wall Hanging

(M4*25) x 2

4. Check heater for any shipping damage. If heater is damaged, promptly inform dealer where you bought the heater.

WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS

Water vapor is a by-product of gas combustion. An unvented room heater produces approximately one (1) ounce (30 mL) of water for every 1,000 BTUs (.3 Kw) of gas input per hour. An unvented room heater is intended as a supplemental heater rather than a primary heat source. In most supplemental heat applications, the water vapor does not create a problem. In most applications, the water vapor enhances the low humidity atmosphere experienced during cold weather. The following steps will help ensure that water vapor does not become a problem:

1. Be sure the heater is the proper size for the application, including adequate combustion air and

circulation air.

2. If there is high humidity, a dehumidier may be used to help lower the water vapor content of the air.

3. Do not use an unvented room heater as the primary heat source.

PREPARING FOR INSTALLATION

AIR FOR COMBUSTION AND VENTILATION

CAUTION: This heater shall not be installed in a room or space unless the required volume of

indoor combustion air is provided by the method described in the National Fuel Gas Code, ANSI Z223.1/NFPA54, the International Fuel Gas Code, or applicable local codes.

PRODUCING ADEQUATE VENTILATION

All spaces in homes fall into one of the three following ventilation classications:

1. Unusually Tight Construction

2. Unconned Space

3. Conned Space The information on pages 7 through 9 will help you classify your space and provide adequate ventilation.

Conned and Unconned Space

A conned space as a space whose volume is less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw) of the aggregate input rating of all appliances installed in that space and an unconning space as a space whose volume is not less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms connecting directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconned space. This heater shall not be installed in a conned space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. * Adjoining rooms are connecting only if there are doorless passageways or ventilation grills between them.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air. Unusually tight construction is dened as construction where: a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of one perm (6x10-11kg per pa-sec-m2) or less with openings gasketed or sealed

and

b) weather stripping has been added on windows that can be opened and on doors and c) caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and oors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See “Ventilation Air From Outdoors” (page 9). If your home does not meet all of the three criteria above, proceed to “Determining Fresh-Air Flow For Heater Location”.

PREPARING FOR INSTALLATION

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Conned or Unconned Space

Use this worksheet to determine if you have a conned or unconned space.

Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space Length × Width × Height = cu. ft. (volume of space) Example: Space size 20 ft. (length) × 16 ft.(width) × 8 ft. (ceiling height) = 2560 cu. ft. (volume

of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cu. ft. to determine the maximum BTU/hr the space can support. _______ (volume of space) ÷ 50 cu. ft.= (Maximum BTU/hr the space can support) Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum BTU/hr the space

can support)

3. Add the BTU/hr of all fuel burning appliances in the space. Vent-free heater _________ BTU/hr Gas water heater* ________BTU/hr Gas furnace _____________BTU/hr Vented gas heater ________BTU/hr Example: Gas heater logs __________BTU/hr Gas water heater 30,000 BTU/hr Other gas appliances*+ ____BTU/hr Vent-free heater + 26,000 BTU/hr Total = ____BTU/hr Total = 56,000 BTU/hr *Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum BTU/hr the space can support with the actual amount of BTU/hr used. _______ BTU/hr (maximum the space can support) _______ BTU/hr (actual amount of BTU/hr used). Example : 51,200 BTU/hr (maximum the space can support) 56,000 BTU/hr (actual amount of BTU/hr used) The space in the above example is a conned space because the actual BTU/hr used is more than the maximum BTU/hr the space can support. You must provide additional fresh air. Your options are as follows: a) Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconned space, remove door to adjoining room or add ventilation grills between rooms. See “Ventilation Air From Inside Building,” page 9. b) Vent room directly to the outdoors. See “Ventilation Air From Outdoors”, page 9. c) Install a lower BTU/hr heater if lower BTU/hr size makes room unconned. If the actual BTU/hr used is less than the maximum BTU/hr the space can support, the space is an unconned space. You will need no additional fresh air ventilation.

PREPARING FOR INSTALLATION

Ventilation Air From Inside Building

This fresh air would come from adjoining unconned space. When ventilating to an adjoining unconned space, you must provide two permanent openings: one within 12 in. of the wall connecting the two spaces (see options 1 and 2,

Fig. 1). You can also remove door into adjoining room (see option 3, Fig. 1).

Follow the National Fuel Gas Code NFPA 54/ANS Z223.1. Air for Combustion and Ventilation for required size of

ventilation grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or duct. You must provide two permanent openings: one within 12 in. of the ceiling and one within 12 in. of the oor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code NFPA 54/ANS Z223.1. Air for Combustion and Ventilation for required size of ventilation

grills or ducts.

IMPORTANT: Do not provide openings for

inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent. Rework worksheet, adding the space of the adjoining unconned space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

INSTALLATION

MINIMUMCLEARANCETOCOMBUSTIBLES

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source.

WARNING: A qualied technician must install heater. Follow all local codes.

WARNING: Maintain the minimum clearances. If possible, provide greater clearances from the

oor, ceiling, and adjoining wall than required.

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, candles, cleaning uids, oil or kerosene lamps, etc.) in the air exist, may cause walls to discolor.

CLEARANCES TO COMBUSTIBLES

Carefully follow the instructions below. This heater can be mounted on the wall or on the oor using the legs.

WARNING: Maintain the minimum clearances shown in (See Fig. 3). If you can, provide greater clearances from oor, ceiling, and joining wall.

Fig. 3 - Mounting clearances as viewed from

front of heater (inches)

8 in.

Minimum

From Side of Heater

LEFT SIDE

36 in. Minimum from

Furniture and Draperies

FLOOR

*A Second Side Wall Must be at Least 18in.

Away from the Other Side of the Heater.

*LEFT/RIGHT TOP BOTTOM FRONT Rear

8in. 36in. 3in. 36in. 0in.toSpacer

CEILING

36 in.

Minimum

RIGHT SIDE

FRONT

3 in. Minimum to Top Surface of Carpeting,

Tile or Other Combustible Material

Topclearanceisfromtopofheatertoceiling,woodshelforothercombustiblematerial

Bottomclearanceisfrombottomofheatertosurfaceofcarpet,tileorothercombustiblematerial.

*A second side wall must be at least 18 in. away from the other side of the heater.

Always maintain a minimum of 36 in. clearance from furniture and draperies.

INSTALLATION

GAS SELECTION

WARNING: Gas selection should only be done by a qualied technician.

LP TO NG Conversion

1. Before gas conversion, remove screws and access panel for selector valve.

2. The gas selector valve should be in the LP position. Push and turn the selector knob counter clockwise until the knob locks into the NG position (See Fig. 4a). The selector valve must be locked in the NG position. DO NOT operate the heater between the locked positions.

3. Remove plug from the inlet of the NG regulator.

4. Using thread sealant to ensure there are no leaks, replace plug into the inlet of the LP regulator and tighten rmly (See Fig. 5a).

5. Replace selector valve access panel.

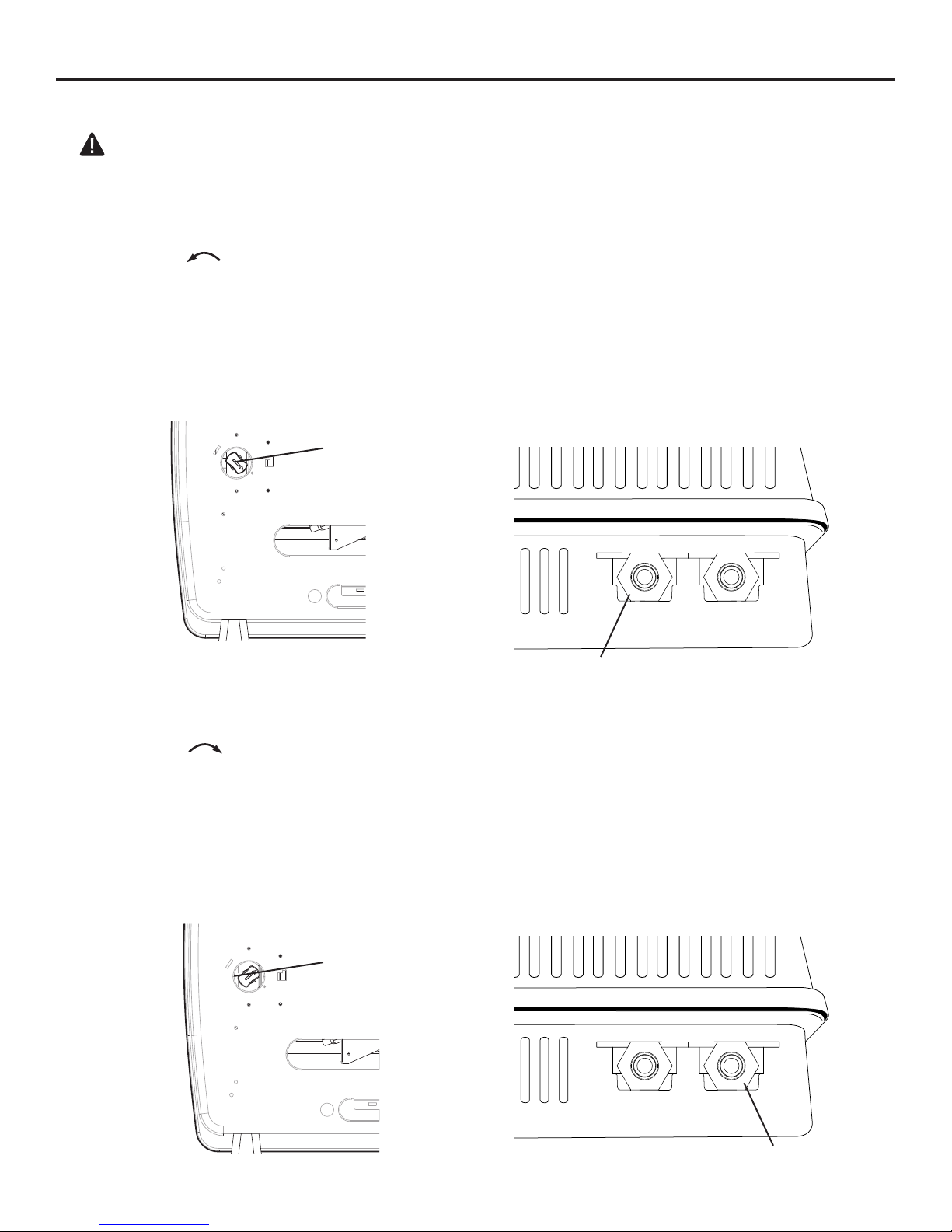

Fig. 4a - Selector Valve Positioning Fig. 5a - Switching Regulator Plug

Selector

Valve

Natural

Gas

NG TO LP CONVERSION

Propane

Plug

1. Before gas conversion, remove screws and access panel for selector valve.

2. The gas selector valve should be in the NG position. Push and turn the selector knob clockwise until the knob locks into the LP position (See Fig. 4b). The selector valve must be locked in the LP position. DO NOT operate the heater between the locked positions.

3. Remove plug from the inlet of the LP regulator.

4. Using thread sealant to ensure there are no leaks, replace plug into the inlet of the NG regulator and tighten rmly (See Fig. 5b).

5. Replace selector valve access panel.

Fig. 4b - Selector Valve Positioning

Selector

Valve

Fig. 5b - Switching Regulator Plug

Propane

Natural

Gas

Plug

INSTALLATION

GAS SELECTION

Fig. 6 - Checking Manifold

Pressure

IMPORTANT: Before proceeding with the installation, the qualied service technician converting the heater between gas supplies must verify correct manifold pressure. A reading can be taken using a pressure gauge and the appropriate pressure tap (See Fig. 6).

INSTALLING IGNITOR BATTERY

• Battery is included.

• Unscrew ignitor cap and insert included battery negative (at) side down (See Fig. 7). Replace Ignitor cap.

• Be sure to observe proper polarity (+/-) when installing or re placing the battery. Damage due to improper battery installa tion may void the warranty on the product.

• Install/replace the battery according to the type and quantity stated in table below.

• Remove battery when depleted.

• For long periods of non-operation, remove the battery from all

components for safety.

WARNING: Do not use rechargable silver oxide cell batteries.

Component Type of Battery Battery Qty.

Ignitor AAA 1

Do NOT dispose of batteries in re. Improper disposal may cause batteries to leak or explode.

INLET

OUTLET

Fig. 7 - Installing Ignitor Battery

Fig. 8 - Fan Electric Supply

INSTALLING FAN (OPTIONAL)

WARNING: Electrical Grounding Instructions

This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.

1. Wall mounted heater must be disconnected from gas supply and removed from wall before installing fan accessory. Contact a qualied service person to do this.

2. Remove fan access panel by removing 4 panel screws using a screwdriver (See Fig. 9). Attach Fan to the rear panel of the heater using the four screws provided. NOTE: Be sure the rocker switch is positioned in the upper right

corner. (See Fig. 10).

3. This fan is equipped with manual “MAN” and automatic “AUTO” settings (See Fig. 11 on page 13). Set the rocker switch to “MAN” for manual mode, allowing the fan to continuously run until the rocker switch is returned to the OFF “O” position. Set the rocker switch to “AUTO” for the automatic mode, which will turn the fan on and off based on ambient room temperature. It may take 5 to 10 minutes for the fan to come on when the unit is cold.

NOTE: If any of the original wire as supplied with the appliance must be replaced, it must be replaced with a wire of at least an equal temperature rating. Refer to Fig. 12 on page 13 for wiring diagram.

Grounded Three-Prong

Receptacle

Fig. 9 - Knock-out Panel

Fig. 10 - Attaching Fan

CAUTION: Label all wires prior to disconnection when servicing

controls. Wiring errors can cause improper and dangerous opera-

tion. Verify proper operation after servicing.

Rocker Switch

INSTALLATION

Fig. 11 - Operating Fan

Fig. 12- Fan Wiring Diagram

Fan Switch

MAN AUTO

Fan Rocker

Switch

MAN AUTO

LOCATING HEATER

This heater is designed to be mounted on a wall or on a oor, using the legs included with the heater. For convenience and efciency, install heater:

1. Where there is easy access for operation,

inspection, and service.

2. In the coldest part of room.

3. A minimum of 3' away from furniture and draperies.

FLOOR MOUNTING

Before installing legs to heater base, please make sure you have the following items:

(2) Support Legs

(4) Support Leg Screws (M4*20)

1. Set back of heater on table with the bottom of heater extending outside the table edge.

2. Fasten Legs to heater using Support Leg Screws (Fig.13)

Thermo-switch

110/115

VAC

Black

White Green

Fig. 13 - Attaching Legs

Support Leg

Screw

Fig. 14 - Securing Support Leg

Fan

Note: If the heater is to be installed directly on carpeting, tile or other combustible material, other than wood ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth of the appliance.

3. Once positioned, secure heater to the oor using screws and mounting holes found on Heater

Support Legs (See Fig. 14).

WALL MOUNTING

WARNING: Failure to position the parts in

accordance with these diagrams or failure to use only parts specically approved with this heater may result in

property damage or personal injury.

Mounting Bracket

The mounting bracket is located on back panel of heater (See Fig. 15). It has been taped there for shipping. Remove mounting bracket from back panel.

Support Leg

Fig. 15 - Mounting Bracket Location

Mounting Bracket

INSTALLATION

Methods For Attaching Mounting Bracket To Wall

Use only the last hole on each end of mounting bracket to attach bracket to wall. Attach mounting bracket to a wall only in one of two ways:

1. Attaching to wall stud: This method provides the strongest hold. Insert mounting screws through mounting bracket and into wall studs.

2. Attaching to wall anchor: This method allows you to attach mounting bracket to hollow walls (wall areas between studs) or to solid walls (concrete or masonry).

Decide which method better suits your needs. Either method will provide a secure hold for the mounting bracket.

Marking Screw Locations

1. Tape mounting bracket to wall where heater will be located. Make sure mounting bracket

is level.

2. Mark screw locations on wall (See Fig. 16). Note: Mark only last hole on each end of mounting bracket. Insert mounting screws through these holes only.

3. Remove tape and mounting bracket from wall.

Attaching Mounting Bracket To Wall

Note: Wall anchors, mounting screws, and spacers are in hardware package. The hardware package is provided with heater.

Attaching to Wall Stud Method

For attaching mounting bracket to wall studs:

1. Drill holes at marked locations using 9/64-inch drill bit.

Fig. 16 - Mounting Bracket

Clearances (inches)

Series B10D/20D

Series B30D

2. Place mounting bracket onto wall. Line up last hole on each end of bracket with holes drilled in wall.

3. Insert mounting screws through bracket and into wall

studs.

4. Tighten screws until mounting bracket is rmly fastened to wall studs.

5. Check that the bracket is secure before mounting heater!

INSTALLATION

Attaching to Wall Anchor Method

For attaching mounting bracket to hollow walls (wall areas between studs) or solid walls (concrete or masonry):

1. Drill holes at marked locations using 5/16-inch drill bit. For solid walls (concrete or masonry), drill at least 1 inch deep.

2. Fold wall anchor as shown in (See Fig. 17).

3. Insert wall anchor (wings rst) into hole. Tap anchor ush to wall.

4. For thin walls (1/2 inch or less), insert white key into wall anchor. Push white key to “pop” open anchor wings

(See Fig. 18).

IMPORTANT: Do not hammer anchor key! For thick walls (over 1/2 inch thick) or solid walls, do not pop open wings.

5. Place mounting bracket onto wall. Line up last hole on each end of bracket with wall anchors.

Fig. 17 - Folding Anchor

Fig. 18 - Popping Open Anchor

Wing For Thin Walls

Fig. 19a - Attaching Wall

Hanging Spacers to Heater

6. Insert mounting screws through bracket and into wall anchors.

7. Tighten screws until mounting bracket is rmly fastened to wall.

8. Check that the bracket is secure before mounting heater!

Attaching Wall Hanging Spacers to Heater

WARNING: Failure to properly install the wall hanging

spacers may result in property damage, personal injury

or even death.

1. Locate spacer mounting holes on the lower right/left sections of the heater back panel.

2. Secure (2) Wall Hanging Spacers to heater back panel using (2) Spacer Screws ST4.8*45 (See Fig. 19a).

Placing Heater On Mounting Bracket

Spacers

Fig. 19b - Mounting Heater

Onto Mounting Bracket

Horizontal Slots

1. Locate two horizontal slots on back panel of heater.

2. Place heater onto mounting bracket. Slide horizontal slots onto stand-out tabs on mounting bracket. Be sure spacers rest evenly against wall (See Fig. 19b).

INSTALLATION

CONNECTING TO GAS SUPPLY

WARNING: A qualied service technician must connect heater to gas supply. Follow all local

codes.

IMPORTANT: This appliance requires a 3/8-inch NPT (National Pipe Thread) inlet connection to the pressure regulator. Never connect the heater to private (non-utility) gas wells, commonly known as wellhead gas.

WARNING: Do not overtighten gas connections.

CAUTION: Use only new, black iron or steel pipe. Internally tinned copper tubing may be used

in certain areas. Check your local codes. Use pipe of 1/2-in. diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of pressure will occur.

CAUTION: Two gas line installations at the same time are prohibited. The access plate to the switching means shall not be opened while the heater is in operation.

CAUTION: Check your gas line pressure before connecting heater to gas line. Gas line pressure must be a minimum 6" WC for NG and 11" WC for LP with a max pressure of 14"WC. If gas line pressure is higher, heater regulator damage could occur.

CAUTION: Never connect heater directly to an LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and gas supply.

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting into gas piping and/or ttings.

CAUTION: Use pipe joint sealant that is resistant to gas (Propane or Natural Gas).

Typical Inlet Pipe Diameters

Use 3/8-inch black iron pipe or greater. Installation must include an equipment shutoff valve, union, and plugged 1/8-inch NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater

(see Fig. 20).

IMPORTANT: Install an equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

INSTALLATION

Install sediment trap in supply line as shown

Fig. 20 - Gas Connection

(See Fig. 20). Place sediment trap where it is within reach for cleaning. Place sediment trap where trapped matter is not likely to freeze. A

sediment trap traps moisture and contaminants.

This keeps them from going into heater controls.

If sediment trap is not installed or is installed

wrong, heater may not run properly.

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all

leaks immediately.

WARNING: Never use an open ame to check for a leak. Apply a 50/50 mixture of liquid soap and water to all joints. If bubbles form, there may be a leak. Correct all leaks immediately.

Pressure Testing Gas Supply Piping System Test Pressures In Excess Of 1/2 PSIG ( 3.5kPa )

The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3.5 kPa).

Pressure Testing Gas Supply Equal To or less than 1/2 PSIG ( 3.5kPa )

The appliance must be isolated from the gas supply piping system by closing its equipment shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½ psi (3.5 kPa).

Leak Testing Heater Gas Internal Connections

1. Open equipment shutoff valve (See Fig. 21).

2. Make sure control knob of heater is in the OFF position.

3. Open gas supply tank valve (LP systems).

4. Check all joints from equipment shutoff valve to control valve. Apply 50/50 mixture of liquid soap and water to gas joints. If bubbles form, there may be a leak.

5. Light heater (see Operation, page 18). Check all other internal joints for leaks.

6. Turn off heater (see "To Turn Off Gas to Appliance,"

page 19).

Fig. 21 - Equipment Shut -off Valve

OPERATION

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a re or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted using the electronic ignitor. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the oor because some gas is heavier than air and will settle on the oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don't try to repair it, call a qualied service technician. Forced or attempted repair may result in a re or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance and to replace any part of the control system and any gas control, which has been under water.

LIGHTING INSTRUCTIONS

MANUAL GAS CONTROL

1. STOP! Read the safety information above on this page.

2. Turn off all electric power to the appliance.

3. Push in gas control knob slightly and turn clockwise to OFF " " position. (See Fig. 22a) NOTE: Knob cannot be turned from PILOT " " to OFF " " unless knob is pushed in slightly. Do not force.

4. Wait (5) minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas, STOP! Follow “B” in the safety information above. If you don’t smell gas, go to the next step.

Fig. 22a

5. Push in gas control knob slightly and turn counterclockwise to the PILOT " " position. (See Fig. 23a) Depress control knob.

6. With control knob depressed, push down on the ignitor button until the pilot lights. The pilot is visible, centered below the main burner, behind the

glass panel. (See Fig. 24 on page 19)

7. Keep control depressed for (30) seconds after pilot lights. Release control knob.

Fig. 23a

OPERATION

LIGHTING INSTRUCTIONS

If the control knob does not pop up when released, stop and immediately and call your service technician or gas supplier.

8. Turn on all electric power to the appliance.

9. Turn control knob counter clockwise to the desired HIGH " " MED " " or LOW " " setting.

THERMOSTAT GAS CONTROL

1. STOP! Read the safety information on the previous page.

2. Turn off all electric power to the appliance.

3. Turn control knob clockwise to OFF " " position. (See Fig. 22b)

4. Wait (5) minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas, STOP! Follow “B” in the safety

Fig. 22b

information above. If you don’t smell gas, go to the next step.

5. Turn knob counterclockwise to the PILOT " " position. (See Fig. 23b) Depress control knob.

6. With control knob depressed, push down on the ignitor button until the pilot lights. The pilot is visible centered below the main burner, behind the glass panel. (See Fig. 24)

7. Keep control depressed for (30) seconds after pilot lights. Release

control knob.

Note: If pilot goes out repeat steps 3 through 7. Wait (1) minute before attempting to light pilot again. If after several tries the pilot still goes out, turn the gas control knob clockwise to the OFF " " position and call your service technician or gas supplier. If the control knob does not pop up when released, stop and immediately and call your service technician or gas supplier.

8. Turn on all electric power to the appliance.

9. Turn control knob counter clockwise to desired setting.

Fig. 24 - Pilot Flame Location

TO TURN OFF GAS TO APPLIANCE

Fig. 23b

1. Turn off all electric power to the appliance if service is to be performed.

2. Push in gas control knob slightly and turn clockwise to OFF " " position. DO NOT FORCE.

OPERATION

THERMOSTATIC CONTROL OPERATION (SELECT MODELS)

The control knob can be set to any comfort level between "HIGH" (5) and "LOW"(1) (See Fig. 25).The thermostat used on this heater senses the room temperature. At times the room may

ManualThermostatic

exceed the set temperature. When this begins to happen, the burner will begin to modulate the BtuH down until the unit meets the desired heat setting and shuts off. When the room temperature drops below the desired heat setting, the burner will cycle back on. The unit may start at a lower BtuH rate if the room is still warm.

MANUAL CONTROL OPERATION

Manual valves remain burning at the desired setting until manually turned to OFF " "(See Fig. 25).

Fig. 25 - Control

Knob Position

INSPECTING BURNERS

Check pilot ame pattern daily when in use and at least yearly by a qualied service agency.

PILOT FLAME PATTERN

Fig. 26 shows a correct pilot ame pattern. Fig. 27 shows an incorrect pilot ame pattern. The incorrect pilot ame is not touching the thermocouple. This will cause the thermocouple to cool, which shuts the heater off. If pilot ame pattern is incorrect:

• turn heater off (see “To Turn Off Gas to Appliance” on page 19)

• see Troubleshooting pages 23 through 26. NOTE: When operating the unit using Natural Gas (NG) it is normal for a very small amount of fuel to exit the Liquid Propane (LP) pilot, causing it to light.

Fig. 26 - Correct Pilot Flame Pattern Fig. 27 - Incorrect Pilot Flame Pattern

OPERATION

BURNER FLAME PATTERN

Fig. 28 shows a correct burner ame pattern. Fig. 29 shows an incorrect burner ame pattern with lifting, and excessive ame height. If burner ame is incorrect:

• turn heater off (see “To Turn Off Gas to Appliance”, page 19).

• see Troubleshooting, pages 23 through 26.

Fig. 28 - Correct Flame Pattern with Control Knob Set to High Flame (5)

1/2 Glass Height

Fig. 29 - Incorrect Flame Pattern with Control Knob Set to High Flame (5)

1/2 Glass Height

NOTE: Yellow colored fames may be caused by airborne dust, dander, pet hair, etc. Additionally, an excess amount of Mercaptane in the fuel can result in an orange or yellow colored ame.

CARE AND MAINTENANCE

NOTE: Before servicing you will need to remove the front panel of the

Fig. 30 - Front Panel Removal

heater. There are 4 Philips head screws, 2 on the left side and 2 on the right, securing the front panel to the heater (See Fig. 30). Always allow the unit to cool for at least thirty minutes before attempting to remove the

front panel.

WARNING: Turn off heater, unplug electrical cord and let cool before servicing.

CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualied service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting

and propery damage.

CLEANING ODS/PILOT AND BURNER

Use a vacuum cleaner, pressurized air, or a small, soft bristled brush to clean burner ports, orice and primary burner. Look into burner opening and ensure that it is clean.

CLEANING BURNER PILOT AIR INLET HOLE

We recommend that you clean the unit every three months or after 2,500 hours of operation. We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Remove 4 screws - 2 screws on each side of the front panel.

3. Pull front panel forward.

4. Blow air through the ports/slots and holes in the burner. Also clean the pilot assembly. A yellow tip on the pilot ame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot ame comes out of the pilot assembly (see Fig. 26 & 27 on page 20). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if air is not available.

5. Replace front panel when completed, using the screws removed.

CLEANING GLASS

Use mild soap and water. Avoid using abrasive cleaners which can scratch the glass. The tempered glass installed on this product contains a “Low E” coating on the interior surface. If the glass is removed, you must ensure the “Low E” coated side is installed on the interior side, facing the burner assembly.

CLEANING CABINET AIR PASSAGEWAYS

Use a vacuum cleaner or pressurized air to clean.

CLEANING FAN (SELECT MODELS)

Carefully use a vacuum cleaner or compressed air to keep fan compartment and blades free of dust and debris.

NOTE: The fan motor is pre-lubricated for extended bearing life and requires no further lubrication.

CLEANING EXTERIOR

Use a soft cloth dampened with a mild soap and water mixture. Wipe the cabinet to remove dust.

TROUBLESHOOTING

WARNING: If you smell gas:

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors.

WARNING: Make sure that power is turned off before proceeding.

WARNING: Turn off and let cool before servicing. Only a qualied service person should service

and repair heater.

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

When ignitor button is pressed in, there is no spark at ODS/

pilot.

Unit shuts off after running a few

minutes.

1. Ignitor electrode is

positioned wrong.

2. Ignitor electrode is broken.

3. Ignitor electrode is not

connected to ignitor cable.

4. Ignitor cable is pinched or wet.

5. Damaged ignitor cable.

6. Bad piezo ignitor or ignition

module.

7. Bad battery.

1. Gas supply is turned off or

equipment shutoff valve is

closed.

2. Control knob not fully pressed in while pressing ignitor button.

3. Air in gas lines when

installed.

4. ODS / pilot is clogged.

5. Gas regulator setting is not correct.

6. Control knob not in PILOT

position.

7. Depleted gas supply (propane).

8. Incorrect gas setting regulator or selector valve.

1. Replace ODS.

2. Replace ODS.

3. Replace ignitor cable

4. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry.

5. Replace ignitor cable.

6. Replace piezo ignitor or ignition module.

7. Replace the battery.

1. Turn on gas supply or open equipment shutoff valve.

2. Fully press in control knob while

pressing ignitor button.

3. Continue holding down control knob.

Repeat igniting operation until air is removed.

4. Clean ODS/pilot (see Care and

Maintenance, page 21) or replace

ODS/pilot assembly.

5. Replace gas regulator.

6. Turn control knob to PILOT position.

7. Contact local propane/LP gas company.

8. Call qualied service technician.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

ODS/pilot lights but ame goes out when control knob is

released.

Burner(s) does not

light afterODS/pilot

is lit.

Delayed ignition of

burner(s).

1. Control knob is not fully

pressed in.

2. Control knob is not pressed in long enough.

3. Equipment shutoff valve is

not fully open.

4. Thermocouple connection is

loose.

5. Thermocouple damaged.

6. Control valve damaged.

7. Bad thermal switch.

1. Thermostat setting too low.

2. Burner orice is clogged.

3. Burner orice diameter is

too small.

4. Inlet gas pressure is too low.

1. Manifold pressure is too low.

2. Burner orice is clogged.

1. Press in control knob fully.

2. After ODS/pilot lights, keep control knob pressed in 30-60 seconds.

3. Fully open equipment shutoff valve.

4. Hand tighten until snug, and then tighten ¼ turn more.

5. Replace thermocouple.

6. Contact customer service.

7. Replace thermal switch.

1. Turn thermostat knob to a higher setting.

2. Clean burner orice (see Care and

Maintenance, page 21) or contact customer service.

3. Contact customer service.

4. Contact your gas supplier.

1. Contact your gas supplier.

2. Clean burner (see Care and Maintenance, page 21) or contact customer

service.

Burner backring during combustion.

High yellow ame during burner combustion

Gas odor during

combustion.

Heater produces a

clicking/ticking noise just after burner is lit or shut off.

1. Burner orice is clogged or

damaged.

2. Burner is damaged.

3. Gas regulator is damaged.

1. Not enough air.

2. Gas regulator is defective.

3. Wrong gas type selected.

1. Foreign matter between control valve and burner.

2. Gas leak. (See Warning

Statement at top of page 23).

1. Metal is expanding while heating or contracting while cooling.

1. Clean burner orice (see Care and

Maintenance, page 21 or contact customer service.

2. Contact dealer or customer service.

3. Replace gas regulator.

1. Check burner for dirt and debris. If found, clean burner (see Care and Maintenance, page 21).

2. Replace gas regulator.

3. See Gas Selection, page 11.

1. Take apart gas tubing and remove foreign

matter.

2. Locate and correct all leaks (see “Checking Gas Connections,” page 17).

1. This is common with most heaters. If noise is excessive, contact qualied

service technician.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

White powder residue forming within burner box or on adjacent walls or

furniture.

Heater produces

unwanted odors.

Heater shuts off

in use (ODS operates).

Gas odor exists even when control knob is in OFF posi-

tion.

1. When heated, the vapors from furniture polish, wax,

carpet cleaners, etc., turn

into white powder residue.

1. Heater is burning vapors from paint, hair spray, glues,

etc. See IMPORTANT statement, page 22.

2. Gas leak. See Warning

Statement, page 23.

3. Low fuel supply.

1. Not enough fresh air is available.

2. Low line pressure.

3. ODS/pilot is partially clogged.

1. Gas leak. See Warning

Statement at top of page 22.

2. Control valve is

defective.

1. Turn heater off when using furniture polish, wax, carpet cleaner or similar

products.

1. Ventilate room. Stop using odor causing products while heater is

running.

2. Locate and correct all leaks (see “Checking Gas Connections,” page 17).

3. Rell supply tank (Propane /LP models).

1. Open window and/or door for

ventilation.

2. Contact local gas supplier.

3. Clean ODS/pilot (see Care and

Maintenance, page 22).

1. Locate and correct all leaks (see “Checking Gas Connections”, page 17).

2. Contact customer service.

Moisture/condensation noticed on

windows.

Slight smoke or

odor during initial operation

Heater produces

a whistling noise when burner is lit.

1. Not enough combustion/

ventilation air.

1. Residues from manufacturing process.

1. Turning control knob to high (5) position when burner is cold.

2. Air in gas line.

3. Air passageways on

heater are blocked.

4. Dirty or partially clogged

burner orice.

1. Refer to “Air for Combustion and Ventilation” requirements, page 7.

1. Problem will stop after a few hours of

operation.

1. Turn control knob to low (1) position and let warm up for a minute.

2. Operate burner until air is removed from line. Have gas line checked by local

propane/LP gas company.

3. Observe minimum installation

clearances (Fig. 3, page 10)

4. Clean burner (see Care and Maintenance,

page 22) or contact customer service.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Fan is not spinning.

Fan is making a

loud noise.

1. There is no power to the fan.

2. Fan is set to "AUTO".

3. Fan motor is bad.

1. Fan housing or blades

are dirty.

2. Fan rotation is blocked.

3. Defective fan.

1. Verify fan is plugged in and set to "MAN" or "AUTO".

2. Allow 5-10 minutes for fan to

engage.

3. Replace fan.

1. See "Cleaning Fan", page 22.

2. Verify wiring is not in fan path.

3. Replace fan.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-800-655-2008.

WARNING: Only use genuine replacement parts from Innovative Hearth Products. Using any parts other than the original replacement parts may result in property damage, personal injury or even death.

ITEM

No.

1 Front Panel 1 AQ000090 AQ000174* AQ000175*

2 Burner Assembly 1 AQ000165 AQ000149* AQ000181*

ODS Assembly (Complete)

3-1 ODS - (LP) Propane Pilot 1 AQ000031 AQ000031 AQ000031

3-2 ODS - (NG) Natural Gas Pilot 1 AQ000028 AQ000028 AQ000028

4 ODS Connector Wire 2 AQ000110 AQ000052 AQ000052

5 Thermostatic Gas Valve 1 AQ000025A AQ000025B AQ000025C

6 Manual Gas Valve 1 AQ000227 AQ000228 AQ000229

7 Overheat Limit Switch 1 AQ000042 AQ000042 AQ000042

8 Gas Selector Valve 1 AQ000172 AQ000156 AQ000182

9 Regulator Bracket 1 AQ000015 AQ000015 AQ000015

10-1 NG Regulator Assembly 1 AQ000073 AQ000073 AQ000073

10-2 LP Regulator Assembly 1 AQ000073A AQ000073A AQ000073A

11 Glass Panel 1 AQ000164 AQ000148* AQ000180*

12 Glass Panel Retention Bracket 1 AQ000163 AQ000147* AQ000179*

13 Wall Mounting Bracket 1 AQ000108 AQ000006* AQ000006*

14 Ignitor Module 1 AQ000045 AQ000045 AQ000045

15 Support Leg 2 AQ000038 AQ000038 AQ000038

16 Ignitor Bracket 1 AQ000019 AQ000019 AQ000019

17 Front Grille 1 AQ000099 AQ000063* AQ000023*

18 Fan Assembly (Select Models) 1 AQ000232 AQ000232 AQ000232

19 Hardware Pack 1 AQ000233* AQ000233* AQ000233*

Item/version not shown in exploded parts diagram

DESCRIPTION QTY

10-1

10-2

3-2

3-1

B10DT/B10DM B20DT/B20DM B30DT/B30DM

Manufactured For Innovative Hearth Products, 1508 Elm Hill Pike, Suite 108, Nashville, TN 37210 by GHP Group, Inc., Niles, IL

IHP GCB10DT/B10DM, GCB20DT/B20DM, GCB30DT/B30DM, GCB10DT/B10DMB, GCB20DT/B20DMB Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
