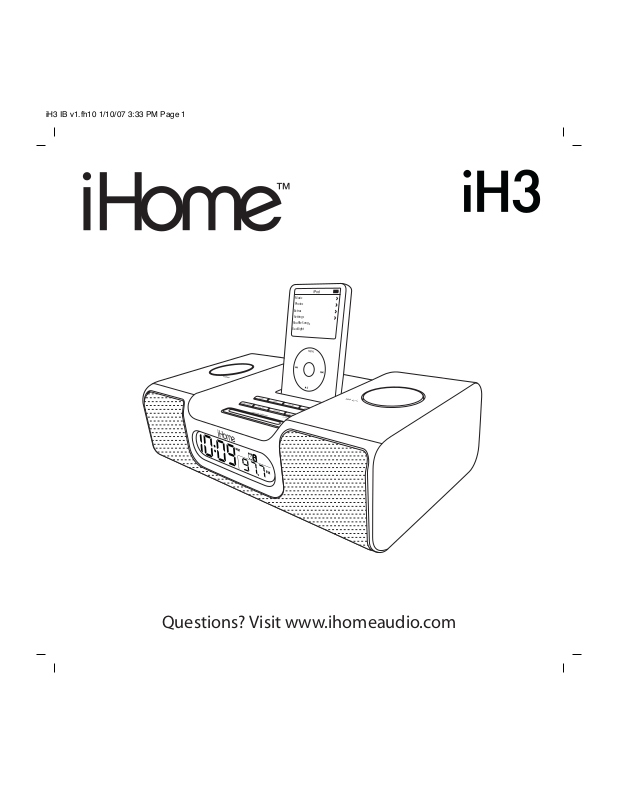

Page 1
Music
Photos
Extras
Settings
Shuffle Songs
Backlight
Questions? Visit www.ihomeaudio.com
Page 2
Table of Contents
Quick Start ........................................................................................................................................................................1
Controls and Indicators / iH3Display .............................................................................................................................2
Using the iH3 .................................................................................................................................................................3-4
Replacing iH3 Backup Batteries......................................................................................................................................5
Install/Replace Backup Battery
Batteries information
Using the Remote Control Unit.......................................................................................................................................5
A Consumer Guide to Product Safety............................................................................................................................6
Troubleshooting ...............................................................................................................................................................7
Solucionando problemas ................................................................................................................................................9
Warranty Information .....................................................................................................................................................11
A Consumer Guide to Product Safety
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference.
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits
provide reasonable protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference
you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s
warranty and void your FCC authorization to operate it.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should
be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner
or similar materials can damage the surface of the unit.
Page 3
quick start
D
C
1
5
V
1
1
0
0
m
A
ti
m
e
z
o
n
e
a
m
lin
e
o
u
t
D
C
1
5
V
1
1
0
0
m
A
tim
e
z
o
n
e
c
lo
c
k
a
a
m
a
n
t
e
n
n
a
line out
1:power 2:antenna 3:inserts
Attach AC adaptor cable to
jack on back of the iH3 and
plug the other end into a
wall socket.
Snap AM antenna into provided
stand, then plug antenna cable
into socket on back of iH3.
Move antenna 12” away.
Select the dock insert from
the chart below for your iPod®
model and place insert in dock.
Never dock an iPod without
an insert in place.
The iHome iH3 comes with inserts for
1st and 2nd generation iPod nanos, as
well as inserts for the iPod with video
(30GB, 60GB, 80GB). Inserts for other
iPods are available at
www.ihomeaudio.com
nano Insert (fits all iPod nanos) 5G iPod (with video)5G iPod (with video)
1st generation nano
iPod nano 1 GB
iPod nano 2 GB
iPod nano 4 GB
2nd generation nano
iPod nano 2 GB
iPod nano 4 GB
iPod nano 8 GB
iPod with video 60GB
iPod with video 80GB
4:time 5:iPod 6:radio
•Press & hold the Time Zone
button on back until it flashes
•Turn the Set Wheel to select
your time zone
•Press the Time Zone
button again.
• Move the DST switch on back
of unit to +1 or -1 (adds or
subtracts an hour)
Insert iPod into dock (iPod® must
not be in a “skin” or case). Press
iPod Button on iH3. iPod will
charge while docked.
1
Press the Radio button. Press
AM/FM button to select your
band. Turn the Set Wheel to
tune in a station.
iPod with video 30GB
Page 4
Controls and Indicators
AM/FM Select Button
Dock
Radio Button
Volume Wheel
iPod Button
Alarm On/Off Button
Alarm Set Button
Wake-To Button
AC Adaptor Jack
AM Loop Antenna socket
Snooze/Dimmer Button
Line Out Jack
volume
iPod radio am/fm sleep
alm. on/off alm. set wake-to alm. reset
Time Zone Button
DC 15V 1100mA
snooze/dimmer
time zone clock adj.
am antenna
iH3 Display
power off
Clock Adjust Button
DST
line inline out
+
-1
1
Sleep Button
Set Wheel
Alarm Reset/Power Off Button
DST Switch
Line in Jack
FM Antenna
Battery Low Indicator
Daylight Saving Time
Indicator
Time/Alarm Display
PM Indicator
2
Sleep Display
Alarm Armed
Wake To Indicator:
iPod, Radio, Buzzer,
iPod Indicator
Radio Frequency AM/FM Indicator
Page 5
Using the iH3
Connect iH3 to Power Source
a) Plug the AC adaptor cable into the AC Adaptor Jack and the other end into a standard 120v wall socket. The iH3 does not
operate on batteries.
Setting the Clock
a) Press and hold the Time Zone Button until the display flashes.
b) Turn the Set Wheel to select your time zone.
c) Press the Time Zone Button again. The clock will display the current time in your time zone.
d) To adjust the time for Daylight Saving Time, slide the
Slide to -1 to turn the clock back 1 hour.
To Set Clock Manually
a) Press and hold the
b) Turn the Set Wheel until the current time is displayed (a PM indicator appears when time is set to PM; there is no AM indicator).
c) Press the Clock Adjust Button to accept the time. The year display will flash.
d) Turn the Set Wheel to adjust the year and press the Clock Adjust Button. The date display will flash.
e) Turn the Set Wheel to adjust the date and press the Clock Adjust Button. Two beeps will indicate clock setting is complete.
Clock Adjust Button. The clock display will flash.
Using the Alarm
Setting the Alarm
a) Press and hold the
b) Turn the Set Wheel to set the alarm time (
c) Press Alarm Set again. Alarm is now armed, indicated by the alarm clock icon and alarm source icon.
d) At any time, press the
Arming and Disarming Alarm (Turn Alarm Function ON and OFF)
a) Press the
Resetting the Alarm to Come on the Next Day
a) When the alarm is sounding, press the Alarm Reset/Power Off Button to stop alarm and reset it to come on the following day.
Snooze
Press the Snooze/Dimmer Button after the alarm sounds. The alarm will be silenced and come on again 9 minutes later. Snooze
a)
can be pressed several times during the 1 hour alarm cycle.
Sure Alarm
The iH3 has a sure alarm feature so the buzzer alarm will still sound in the event of power failure, if backup batteries are installed.
Alarm On/Off Button to arm or disarm alarm function. When armed, alarm icon appears in display.
Alarm Set Button until the alarm time flashes.
a PM indicator appears when time is set to PM; there is no AM indicator).
Wake-To Button repeatedly to select an alarm source to wake to: iPod, radio or buzzer.
DST switch to +1 to advance the time 1 hour.
iPod
Playing and charging your iPod
a) Place proper insert for your iPod (see insert table on page 1) in Dock, then gently dock iPod. When docked, iPod will charge
until fully charged. The iPod will not overcharge.
b) Press the iPod Button to play iPod, and again to pause.
c) Turn Volume Wheel to adjust iH3 volume up or down
d) Press
Alarm Reset/Power Off Button to turn iH3 and iPod off.
3
Page 6
Using the iH3
Radio
Setting up Antennas
a) Snap AM loop antenna into provided stand, then plug antenna cable into
Move antenna 12” away from unit for best reception.
b) Extend
Tuning and Playing the Radio
a) Press the Radio Button to select radio play mode.
b) Press the
c) Turn the Set Wheel to tune radio to desired station.
d) Turn the Volume Wheel to adjust iH3 volume up or down.
e) Press
FM Antenna (on back of unit) fully for best reception. Do not strip, alter or attach to other antennas.
AM/FM Select Button to select AM or FM radio band.
Alarm Reset/Power Off Button to turn iH3 and iPod off.
Using the Line-in and Line-out Jacks
a) An audio patch cord comes with the iH3. Use it to play nondocking iPods or other audio devices through the iH3 Line-in Jack
(one end in the device’s line out or headphones jack, the other in the iH3 line in jack). Make sure there is no iPod docked in the
iH3 when using the line-in jack. Press the Ipod Button until AUX appears on the display.
b) Use the
The Volume Wheel of the iH3 does not control line-out volume (adjust on attached device instead).
Line Out Jack to connect the iH3 to the line-in jack of other audio devices such as a tape recorder or amplifier.
Using Sleep Mode
Sleep mode lets you sleep to your iPod or the radio, gradually lowering the volume until the unit shuts off at the selected time.
a) Press the
b) Turn the Volume Wheel to set the sleep volume (this volume setting is separate from your standard volume setting).
Sleep Button to select an amount of time before the iH3 will turn off: 120, 90, 60, 30 or 15 minutes.
Using Dimmer
a) Press the Snooze/Dimmer Button during normal operation to adjust brightness of LCD display.
AM Loop Antenna socket on back of unit.
4
Page 7
Replacing iH3 Backup Batteries
Install/Replace Backup Battery
The iH3 uses a backup battery system to provide continuous alarm operation and clock settings in the event of a power failure.
If the Battery Low Icon located on the left of the display is flashing, it is time to replace the backup
batteries.
Please make sure the AC adaptor is connected, otherwise all settings may be lost during battery
replacement.
Open the battery compartment cover located on the bottom of the unit. Insert 2 “AA” batteries
as indicated. We recommend the use of alkaline batteries for longer life.
AA
AA
Batteries information:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon -zinc) or rechargeable (nickel-cadmium) batteries.
Using The Remote Control Unit (available separately)
The optional Remote Control controls basic functions on the iH3 and certain iPod® functions when the iPod® is docked in the iH3.
For best results, aim the remote control towards the grill at the lower right-hand corner of the display.
Power On/Off Button .......................Turns iH3 ON or OFF or reset alarm when alarm is sounding
iPod Play/Pause Button...................Selects iPod and plays track. In play mode, press to pause
Button ........................................Skip to previous or next track when iPod is playing, or
Button
Volume + Button..............................Raises volume level
Volume _ Button..............................Lowers volume level
AM/FM Select Button ......................Selects AM or FM radio band
Radio Button ...................................Selects Radio function
Snooze/Dimmer Button ...................Snooze mode when alarm sounds, otherwise dims display
HOLD to scan current playing track. In radio mode, press
to tune stations. HOLD to scan radio stations.
Install/Replace the Remote Control Battery
The remote control battery is already installed at the factory. When the remote control stops
operating or its range seems reduced, replace the battery with a new one.
1. The battery door is located on the back end of the unit.
2. Squeeze notched tab A while pulling battery door latch B to release the battery door latch
and take out the battery holder.
3. Insert a “CR2032” 3-volt lithium battery. Make sure the polarity (the + and – side of the
battery) is correct.
4. Replace the battery holder back in the remote control.
NOTE: PLEASE DISCARD BATTERIES PROPERLY
5
A
Battery
door
latch
B
Page 8
A Consumer Guide to Product Safety
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety.
However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating
instructions carefully before installation and use, and keep these instructions handy for future reference. Take special
note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink,
laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation.
For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings.
Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of
air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances
(including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the
unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for
cleaning instructions.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any
openings or vents located on the product.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or
cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will
prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result
in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Antenna – Do not connect an external antenna to the unit (other than that provided).
13. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the
power cable should be unplugged from the unit to prevent damage or corrosion.
14. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating
instructions. Service methods not covered in the operating instructions should be referred to qualified service
personnel.
Questions? Visit www.ihomeaudio.com
6
Page 9
Troubleshooting
Symptom
iH3 does not turn on AC adaptor isn't plugged into a working wall socket
iH3 doesn’t respond
iPod does not dock
properly
Battery Low icon always
flashing
iPod does not respond
to the unit/iPod is
playing but no sound
comes out
Remote Control didn’t
work
iH3/iPod performance is
erratic
No sound from iH3 Volume is set too low on iH3 Make sure volume is turned up
iPod didn’t charge up iPod is not installed properly Remove your iPod from the dock and check for obstruction on the
No AM band radio
sound but others OK
AM band radio is very
noisy
or not plugged into the power supply jack on back
of the unit
iH3 requires a reset If unit is plugged in and doesn't respond, try resetting the unit by following
Using no or wrong iPod insert
iPod didn’t install properly Remove your iPod from the dock and check for obstruction on the
Batteries are weak Replace with new batteries
Batteries were not installed properly Check to make sure the polarity ( + and – ends) matches the diagram
iPod is not installed properly Remove your iPod from the dock and check for obstruction on the
Your iPod software is too old Upgrade software on your iPod. For details visit
iPod is locked up/plays but no sound
comes out
Using 1st or 2nd generation iPod, iPod Shuffle or
other devices.
Battery weak Replace current battery with new battery
Remote Control is not pointed toward the
iH3 remote sensor
The iH3 is reacting to external interference
iPod is locked up/ frozen
iPod battery has problem
AM loop antenna is not connected to the unit Plug the AM loop antenna connector to the jack on the back of the unit
AM loop antenna isn’t located properly
Possible Problem
Plug the AC adaptor into a working wall socket and plug the
connector into the supply jack on the unit
these steps:
a) remove iPod from dock
b) unplug unit from power source
c) remove back up batteries
d) wait 1 hour, then resume use
Make sure the dock insert is the proper fit for your iPod
(see chart on page 1)
connectors in the dock and on your iPod. Then reseat it in the dock.
in the battery compartment
connectors in the dock and on your iPod. Then reseat it in the dock.
http://www.apple.com/ipod/download
Check the volume setting. Make sure your iPod is working properly before
docking into the unit. Please refer to your iPod manual for details. See
above for software upgrade information.
You may need to reset your iPod. To do so:
1. Toggle the Hold switch to hold position, then off.
2. Press and hold the Menu and center Select buttons at the same time until
Apple logo appears. You may need to repeat this step.
iH3 cannot control those iPods or other devices.
Point the Remote Control toward the iH3 remote sensor (to right of clock
display), move within 10 feet of the unit.
Move unit away from potential sources of external interference such as
computers, modems, wireless devices (routers) or fluorescent light
connectors in the dock and on your iPod. Then reseat it in the dock.
Please make sure your iPod is working properly before docking into the
unit. Please refer to your iPod manual for details.
Move the AM loop antenna away from the main unit/iPod and rotate it
for best reception
Solution
7
Page 10
Troubleshooting
Symptom
Sound is distorted Volume level is set too high Decrease the volume
Sound source is distorted If the iPod original sound source (MP3) is old or of poor quality, distortion
Unit/adaptor gets warm
after extended play at
high volume
Can't hear
headphones/speakers
attached to line out jack
This is normal Turn unit off for awhile or lower volume
Line out jack is not meant for headphones.
Speakers need a power source
Possible Problem
and noise are easily noticed with high-power speakers. Try a different
audio source such as a music CD.
If you are using an external sound source like older generation of iPod
or iPod Shuffle, try reducing the output volume on the device itself. Also
try turning bass boost OFF.
The signal from the line out jack needs amplification. Use powered
speakers/monitors or other amplified audio device.
Solution
8
Page 11
Solucionando problemas
Síntoma
La unidad no
enciende
La unidad no
responde
El iPod no encastra
correctamente
El ícono de batería
baja está
destellando
El iPod no se
comunica con la
unidad
No sale sonido
de su iH3
El iPod no carga El iPod no está instalado correctamente Quite el iPod del encastre y retire la posible obstrucción del
La banda de AM no
suena pero las demás sí
El sonido sale
distorsionado
El control remoto
no funciona
El adaptador de corriente AC no está conectado a
un tomacorriente que funcione o no está conectado
en la parte posterior de la unidad
La unidad debe ser reprogramada Si la unidad está conectada y no responde, pruebe reprogramarla
No ha colocado el encastre del iPod, o está
utilizando el encastre incorrecto.
El iPod no encastra correctamente Quite el iPod del encastre y retire la posible obstrucción del
Las baterías están gastadas Reemplace las baterías
Las baterías no están instaladas
correctamente
El iPod no está instalado correctamente Quite el iPod del encastre y verifique posibles obstrucciones del
Su software es obsoleto Renueve su software. Para mayor información, diríjase a
El iPod no responde Verifique que su iPod funcione correctamente antes de conectarlo
Usted tiene un iPod de primera o segunda
generación, un Shuffle u otro tipo de aparato
El volumen del iH3 se encuentra muy bajo Asegúrese de subir el volumen
El iPod está trabado/no responde
La batería del iPod podría tener algún
inconveniente
La antena no está ubicada correctamente Aleje la antena de la unidad y gírela para mejorar la recepción
El volumen se encuentra muy alto Baje el volumen
El sonido sale distorsionado de la unidad
Las baterías están gastadas Reemplace las baterías por nuevas
No está apuntando el control remoto hacia el
iH3
Causa Solución
Conecte el adaptador de corriente a un tomacorriente que funcione
y a la parte posterior de la unidad
siguiendo estos pasos:
a) Quite el iPod de la base
b) Desconecte la unidad del tomacorriente
c) Quite las baterías auxiliares
d) Espere 1 hora y vuelva a probar
Verifique que el encastre sea el apropiado para su iPod
encastre o de su iPod. Vuelva a colocar el iPod dentro del encastre.
Verifique que la polaridad de las baterías (- y +) se encuentren
de acuerdo al diagrama del compartimiento de baterías.
encastre o de su iPod. Vuelva a colocar el iPod dentro del encastre.
http://www.apple.com/ipod/download
a la unidad. Refiérase al manual de su iPod para más detalles.
El iH3 no puede controlar estos otros aparatos
encastre o de su iPod. Vuelva a colocar el iPod dentro del encastre.
Por favor asegúrese de que su iPod funcione correctamente antes
de colocarlo en el encastre. Refiérase al manual de su iPod para
mayor información.
Si el sonido original de su iPod era de pobre calidad, las
distorsiones y ruidos se harán más notables con los
parlantes de alta potencia. Pruebe utilizar otra fuente de
audio como un CD.
Si está utilizando un iPod de primeras generaciones o un Shuffle,
intente bajar el volumen de su aparato. También intente apagar
el amplificador de bajos
Apunte el control remoto hacia el iH3 y manténgase a una distancia
máxima de 10 pies de la unidad.
9
Page 12
Solucionando problemas
Síntoma Causa Solución
La unidad recalienta
luego de largos
períodos de uso a
alto volumen
No puede
escuuchar los
auriculares/parlant
es que están
conectados a la
ficha de salida “line
out”
El funcionamiento
del iH3/iPod es
errático.
Esto es normal Apague la unidad o baje el volumen
La línea de salida no está diseñada para
auriculares. Los parlantes necesitan una fuente
de alimentación
El iH3 está reaccionando a interferencias
externas.
La señal de salida require amplificación. Utilice parlantes u otra
clase de aparto amplificado.
Aleje la unidad de Fuentes potenciales de interferencia externa
como computadoras, modems, ruteadores inalámbricos, luz
fluorescente, etc.
10
Page 13
Limited 90-Day Warranty Information
Home Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from
defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should
this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI Technologies
will repair or, at its discretion, replace this product without charge (except for a $10.00 charge for handling, packing, return UPS/postage,
and insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service
Center listed below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase
is $30.00.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries
are the most common cause of problems encountered.
If service is still required:
1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3. Enclose a check or money order payable to the order of SDI Technologies, for the sum of $10.00 ($30.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.
Consumer Repair Department
SDI Technologies Inc.
1330 Goodyear Dr.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which
have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized
persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes
(if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members
or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive
damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may
not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually
binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies product.
El Paso, TX 79936-6420
For operating instructions: 1-877-ihome01(1-877-446-6301) Toll Free
Questions? Visit www.ihomeaudio.com
For any other questions: 1-800-288-2792 Toll Free
© 2006 SDI Technologies, Inc. All Rights Reserved.
iHome is a trademark of SDI Technologies, Inc.
Colortunes is a registered trademark of SDI Technologies, Inc
iPod is a trademark of Apple Computer Inc.
registered in the U.S. and in other countries
iH3IBV2-022806-7 Printed in China
Loading...
