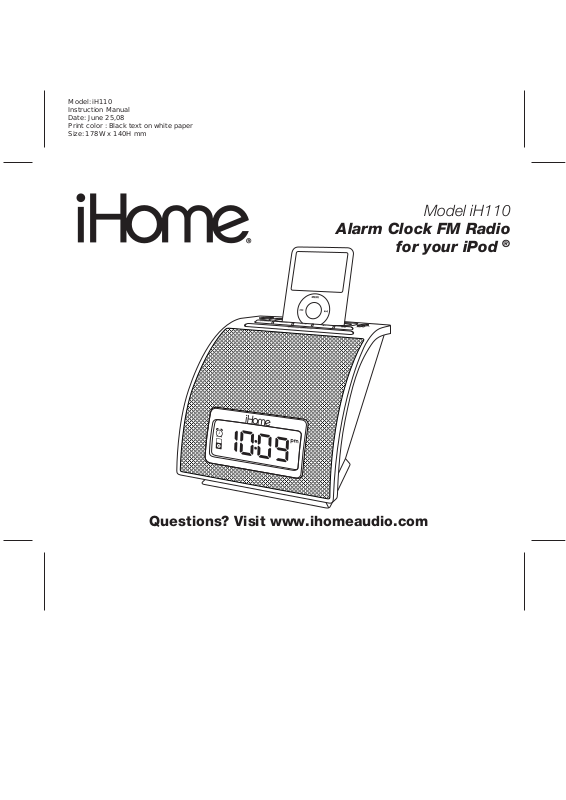

iHome iH110 User Manual

Model iH110

Alarm Clock FM Radio

for your iPod

Questions? Visit www.ihomeaudio.com

Table of Contents

Quick Start Controls and Indicators iH110 Display Install Clock Backup Battery Setting Up the iH110 Charging your iPod Listening to your iPod Listenng to FM Radio Listening to non-docking iPod or other portable audio device Alarm Operation Sleep Operation Snooze/Dimmer Operation A Consumer Guide to Product Safety Trouble Shooting Solución De Problemas Warranty Information

1 2 3 3 4 4 5 5 5 6 7 7 8

9 10 11

FCC Information

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the radio or TV.

• Use outlets on different electrical circuits for the equipment and the radio or TV. Consult your dealer or an experienced radio/television technician if the problem still exists. Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate

the system’s warranty and void your FCC authorization to operate it. This Class B digital apparatus complies with Canadian ICES-003.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner or similar materials can damage the surface of the unit.

Quick Start

1:power

RESET

TEST

dst

-1 +1 on o

DC 10Vline in clock adj.

Attach AC adaptor cable to jack on back of the iH110 and plug the other end into a wall socket.

Use this insert

For this iPod

NOTE: If the insert for your iPod isn’t listed, please visit an Apple store or www.ihomeaudio.com

iPod Touch insert 14

iPod Touch

4:time

2:inserts

Select the dock insert for your iPod model from the table below and place insert in dock.

Never dock an iPod without an insert in place.

3rd Gen nano insert 13

3rd Gen nano

to purchase the proper insert.

thin iPod with video (30 GB) Insert 9

thin (30 GB) iPod with video thin (80GB) iPod classic

3:iPod

Insert iPod into dock with proper insert (iPod must not be in a skin or case). iPod will charge while docked. Press iPod Button on iH110 to play iPod.

iPod with video (60,80 GB) Insert 10

thick (60, 80 GB) iPod with video thick (160 GB) iPod classic

• Move the DST switch on the back of the unit to +1 or -1 (adds or subtracts an hour to account for daylight saving time).

• Press & Hold the Clock adj. button on the back of the unit until the display flashes.

• Press the UP or DOWN buttons to set current time.

• Press the Clock Adj. button again to confirm time setting.

Controls and Indicators

Alarm Set /

Alarm On/Off Button

Power/

Alarm Reset Button

Snooze/Dimmer Button

Clock Adj. Button

DST Switch

Line-in Jack

Front Panel

iPod Dock

Back Panel

dst

-1 +1 on o

DC 10Vline in clock adj.

Mode/Wake-to Button

Sleep Set Button

FM Tune / Set / Adjust Up/Down Button

Volume + Button

Volume - Button

EXB Expanded Bass Switch

DC Jack
