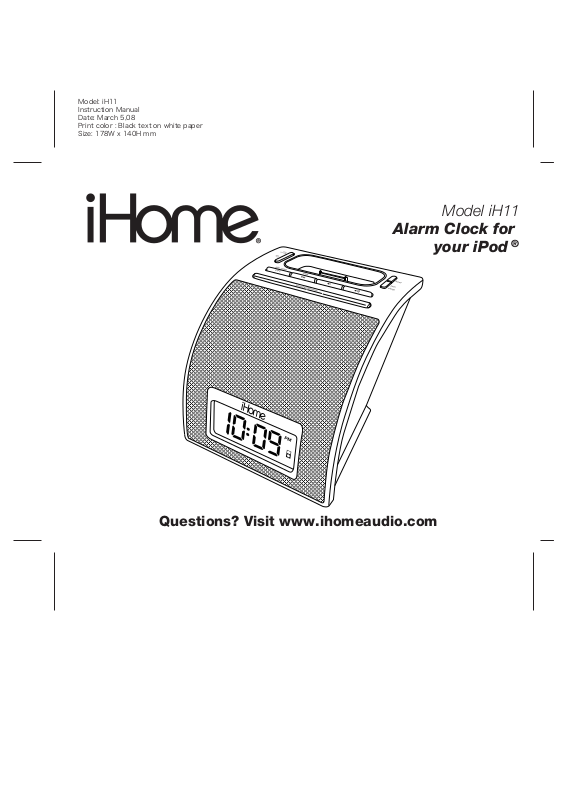

iHome iH11 User Manual
Model iH11
Alarm Clock for
your iPod
®
Questions? Visit www.ihomeaudio.com
Table of Contents
Quick Start
Controls and Indicators
iH11 Display
Install Clock Backup Battery
Using The Optional Remote Control
Install/Replace the Remote Control Battery
To check for iPod compatibility
Setting Up the iH11
Charging your iPod
Listening to your iPod
Listening to non-docking iPod or other portable audio devices
Alarm Operation
Sleep Operation
Snooze/Dimmer Operation
A Consumer Guide to Product Safety
Trouble Shooting
Solución De Problemas
Warranty Information
10
11
12
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material
should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner
or similar materials can damage the surface of the unit.
1
2
3
3
4
5
5
6
6
7
8
8
9
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SDI Technologies Inc.
1299 Main Street,
Rahway
NJ 07065
Tel. No.: (732) 574-9000
Quick Start
1:power
dst
-1 +1 on o
DC 10Vline in clock adj.
Attach AC adaptor cable to jack on
back of the iH11 and plug the other
end into a wall socket.
Use this insert
For this iPod
NOTE: If the insert for your iPod isn’t listed, please visit an Apple store or www.ihomeaudio.com
iPod Touch
insert 14
iPod Touch
4:time
2:inserts
Select the dock insert for your
iPod model from the table below
and place insert in dock.
Never dock an iPod without
an insert in place.
3rd Gen nano
insert 13
3rd Gen nano
to purchase the proper insert.
thin iPod with video (30 GB)
Insert 9
thin (30 GB) iPod with video
thin (80GB) iPod classic
3:iPod
Insert iPod into dock with proper
insert (iPod must not be in a skin or
case). iPod will charge while docked.
Press iPod Button on iH11 to play
iPod.
iPod with video (60,80 GB)
Insert 10
thick (60, 80 GB) iPod with video
thick (160 GB) iPod classic
• Move the DST switch on the back of the unit to +1 or -1 (adds or
subtracts an hour to account for daylight saving time).
• Press & Hold the Clock adj. button on the back of the unit until
the display flashes.
• Press the Hour Set / Minute buttons to set current time.
• Press the Clock Adj. button again to confirm time setting.
1
Controls and Indicators
Alarm On/Off Button
Alarm Set /
Power Off /
Alarm Reset Button
Snooze/Dimmer Button
Remote Sensor
Back Panel
Clock Adj. Button
DST Switch
Line-in Jack
Front Panel
iPod Dock
dst
-1 +1 on o
DC 10Vline in clock adj.
iPod Play/Pause Button
Hour Set Button
Sleep/Minute Set Button
Volume + Button
Volume - Button
EXB Expanded Bass Switch
DC Jack
2
