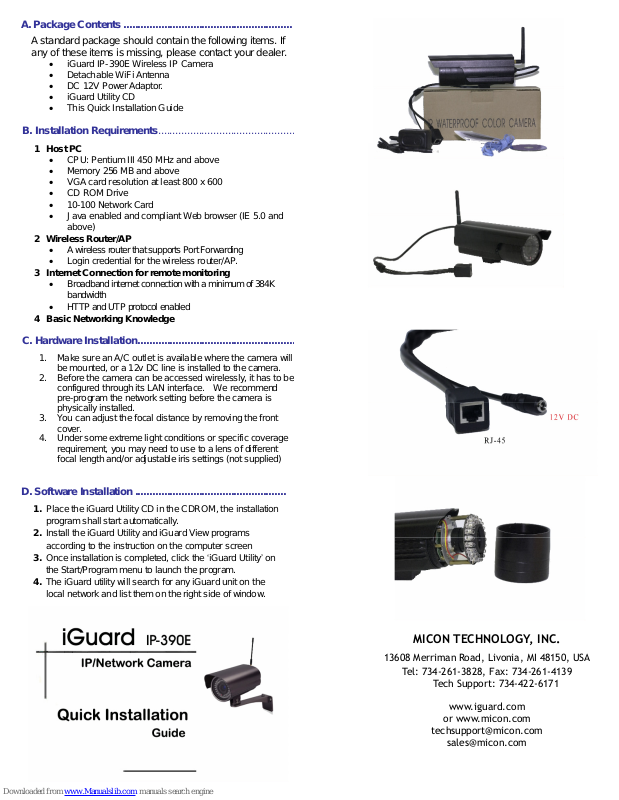

A. Package Contents..........................................................

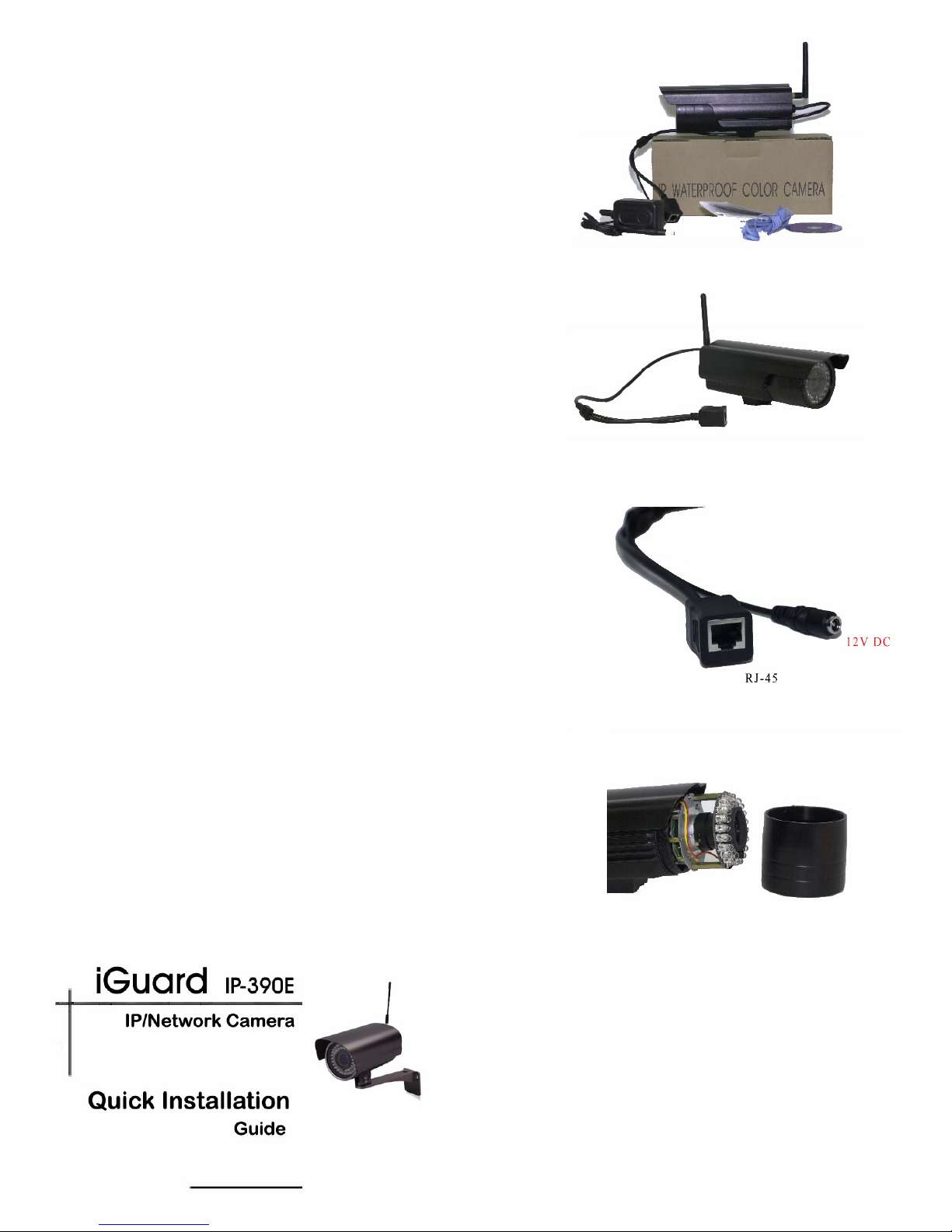

A standard package should contain the following items. If
...............
......................
Make sure an A/C outlet is available where the camera will
be
any of these items is missing, please contact your dealer.
iGuard IP-390E Wireless IP Camera
Detachable WiFi Antenna
DC 12V Power Adaptor.
iGuard Utility CD
This Quick Installation Guide
B. Installation Requirements................................
1 Host PC
CPU: Pentium III 450 MHz and above
Memory 256 MB and above
VGA card resolution at least 800 x 600
CD ROM Drive
10-100 Network Card
Java enabled and compliant Web browser (IE 5.0 and
above)
2 Wireless Router/AP
Awireless router that supports Port Forwarding
Login credential for the wireless router/AP.
3 Internet Connection for remote monitoring
Broadband internet connection with a minimum of 384K
bandwidth
HTTP and UTP protocol enabled
4 Basic Networking Knowledge
C. Hardware Installation................................
1.
be mounted, or a 12v DC line is installed to the camera.
2. Before the camera can be accessed wirelessly, it has to
configured through its LANinterface. We recommend
pre-program the network setting before the camera is
physically installed.
3. You can adjust the focal distance by removing the front
cover.
4. Under some extreme light conditions or specific coverage
requirement, you may need to use to a lens of different
focal length and/or adjustable iris settings (not supplied)
D. Software Installation....................................................
1. Place the iGuard Utility CD in the CDROM, the installation
program shall start automatically.
2. Install the iGuard Utility and iGuard View programs
according to theinstruction on the computer screen
3. Once installation is completed, click the ‘iGuard Utility’ on
the Start/Program menu to launch the program.
4. The iGuard utility will search for any iGuard unit on the
local network and list them on the right side of window.
MICON TECHNOLOGY, INC.
13608 Merriman Road, Livonia, MI 48150, USA
Tel: 734-261-3828, Fax: 734-261-4139
Tech Support: 734-422-6171
www.iguard.com
or www.micon.com
Page 2
5. If the camera is connected to a router with DHCP
.....
................................
................................
to the user’s manual on the utility CD for more information.
the user name maybe
defined as “admin”; the password is the
same as the master password which is on
the serial # la bel on the camera.
* The
host
PC and the camera must be on the same
You may be prompted to install an
his is your first
time visiting
click “OK” to
buttons are for the
optional second cameras that support PT
enabled, an IP will be assigned and displayed next to
the camera automatically.
6. If there is no DHCP on the network, then the camera
has to be manually assigned with an IP address* by
clicking on the “IP Configuration” button.
7. You can change the WEB Manger’s programming
(TCP) port and video streaming (UDP) port under the
Advanced tag to suit your specific lan requirement

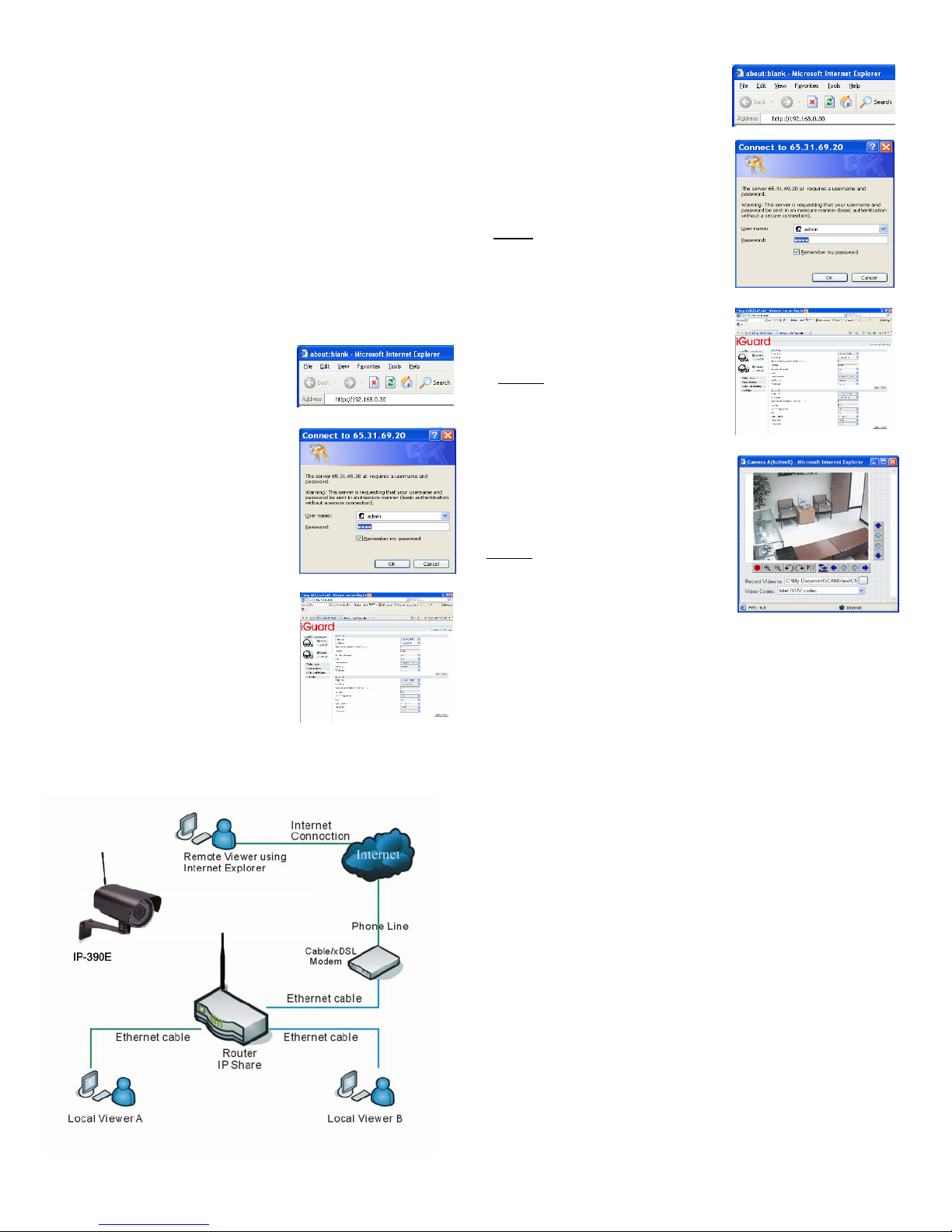

F. Local Monitoring (behind the router) ................................
1. Launch IE or any Java Enabled Browser;
enter the IP address that is assigned to
the IP-390E in Step. E
2. Enter your User Name and Password* to
login.
The default user ID and Password is not
defined. Press “Enter” twice or click on
“Apply” to login
subnet (behind the same router) for the PC to “see”
the camera..
. Network Configuration (Wired/Wireless)
1. You can access the camera’s web
manager by double click on the IP
displayed in iGuard Utility or just lick
on the “Launch iGuard” button.
2. Enter your User Name and
Password* to login.
Note: The default user ID and Password
is not defined. Press “Enter” twice or click
on “Apply” to login
3. You can configure the wired network
property by click on “Basic
Setting”/”Network Setting”
4. You can configure the wireless
network by click on “Basic
Setting”/”Wireless Setting”
Note: The wireless network will take
priority over wired network ie. The IP
assigned by the wireless router will
become the default IP for the web
manger once the camera is
successfully associated with a
wireless network.
NOTE:
* For some shipment,
3. Click on ‘ActiveX’ or ‘Sun Java’ on
Camera A or B to view the video,
based on the browser on your PC
NOTE:
Active-X component if t
the camera
proceed
4. Click on the Red round button to
record images to the destination
specified in the path.
NOTE:
The Pan/Tilt control
functions.
G. Remote Monitoring (From Internet)
1. If you have a Static Public IP…
Follow the same procedure in Step G above. All you have to do is
adjusted the TCP/IP property in the network section of iGuard’s web
control software to the assigned parameters.
2. If you have a Dynamic Public IP and you share your internet
connection through a router
This is a typical situation if you have a consumer grade broadband
service. There are three major issues that need to be addressed:
a. Port forwarding (Router Programming)
b. DDNS service (to keep track your IP address)
c. Firewall (to allow network traffic from remote PC to the camera)
If you are not familiar with these network terms, then you will probably
need a network technician to help to setup the iGuard. Please refer
