Ignis Firebox, LUNA, MAGNUM User's Manual & Installation Instructions

Firebox

User’s Manual

Installation Instructions

www.ignisproducts.com

What’s in the box:

Firebox 1pc
Burner 1pc
Control Tool 1pc
Glass 1pc
Glass Brackets 4pcs
Funnel 1pc
Lighter 1pc
User’s Manual 1pc

www.ignisproducts.com

Firebox - User’s Manual

Installation Instructions

1. Build a base for the Firebox to sit on. (use 2x3 studs)

2. Base may be built of any material.

3. Make sure base is level on all sides.

4. Insert your Firebox into the base.

5. Make sure the Firebox is centered.

Size “A” - should not be more than 3inches
Size “B” - Should be from 8-1/4 to 8-1/2 inches

www.ignisproducts.com

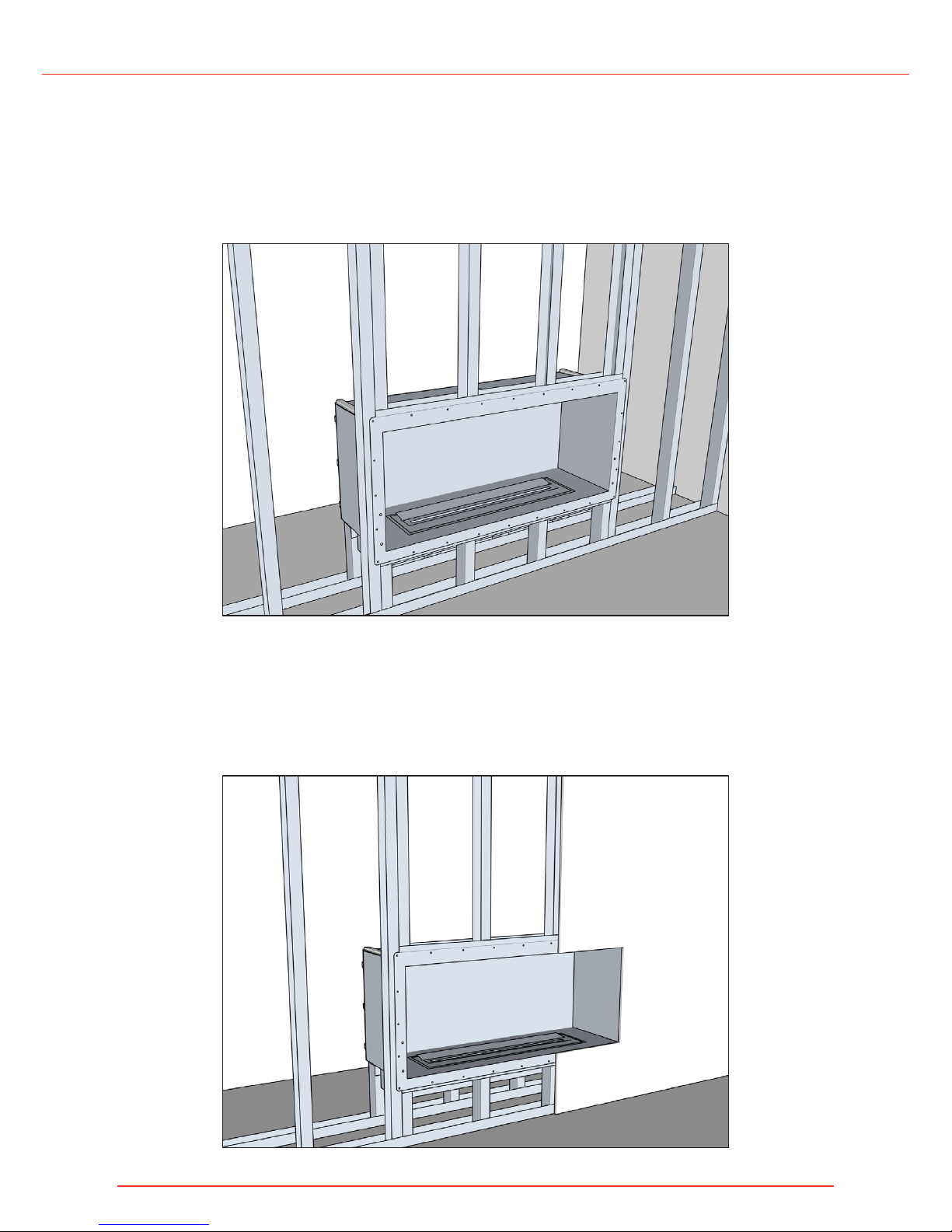

6. Continue building the wall.

7. First stud on either side of the Firebox must be flush with
the Firebox and flange.

8. Install a stud horizontally on top of the firebox to be able to
continue with the wall.

9. Screw the top horizontal stud directly to the Firebox bracket.
(use 0.5 inch metal zips)

Screw Here
(use 0.5 inch metal zips)
