Dear customer:
Thank you for buying your new fridge. To ensure that you get the best results from your new
fridge, please take tim e t o r ead t hr ough t hese simple instruct ions in this booklet.
Please ensure that the packaging material is disposed of in accordance with the current
environmental requirements.
If the fridge is visibly damaged, do not connect it to the power supply, Contact the store from
were you purchased the appliance.
CONTENTS
Warnings and important information………………………………………………………………..2
Important Safety Information ……………………………………………………………………….4
How to connect electricity ………………………………………………………………………… 4
About the control on the refriger at or …………………………………………………………….. 6
About the Refrigerator Features…………………………………………………………………….6
Care and Cleaning of the refrigerator………………………………………………………………7
Preparing to inst al l t he r ef r igerat or………………………………………………………………....8
Troublesho oting T ip s………………………………………………………………………………..12
How to dispose of the packing materials …………………………………………………………13
2
WARNINGS AND IMPORTANT INFORMATION
Always keep this instruction booklet together with the appliance for future
consultation.
In the event of resale of the appliance or change of ownership, ensure that the
instruction booklet is supplied with the appliance so that new owner is fully aware
of all instructions and warnings present in this document.
These warnings have been drawn up to ensure the safety of the user and others.
Therefore read all instructions carefully prior to appliance installation and use.
1、 Disconnect the mains plug before carrying out any cleaning or maintenance
operations (e.g. bulb replacement).
2、 This appliance has been designed to be used exclusively by adults. Ensure
that children do not play near or with the appliance.
3、 All modifications to the electrical mains to enable appliance installation must
be carried out by a qualified technician.
4、 Do not use an extension cord. On completion of installation, check that the
appliance is not standing on the power cable.
5、 Domestic refrigerators and/or freezers are designed exclusively to store
and/or freeze foodstuffs.
6、 During normal operation, the condenser and compressor, located at the rear
of the appliance can reach high temperatures. Ensure that installation is
carried out according to the instructions contained in this booklet. Insufficient
ventilation will impair operation and damage the appliance. Never cover or
obstruct the ventilation slats on the appliance.
7、 Never allow children to play with the appliance. Children must never be
allowed to sit on the drawers or hang on the appliance doors.
8、 If the appliance is transported in a horizontal position, the oil in the
compressor may flow into the refrigerant circuit.
9、 Leave the appliance standing vertically for at least two hours before switching
it on, to ensure that oil flows back into the compressor.
10、 All refrigerators and freezers have surfaces that are subject to the
formation of frost.
11、 Depending on the model, this frost can be removed automatically.
(Automatic defrosting) or manually when necessary. Never attempt to remove
frost with sharp objects as this may damage the evaporator and impair efficient
appliance operation. Let the frost thaw naturally; never use hot water.
12、 Never put sparkling drinks or bottles of water in the low temperature
compartments (freezer/cooler) as they can explode.
13、 We strongly advise against putting hot liquids or food in the refrigerator or
filling ridded containers to the maximum capacity.
14、 Never carry out any modifications to your appliance.
15、 Never attempt to repair the appliance alone. Repairs carried out by
unqualified persons can cause serious damage; always contact your nearest
Service Center and use original spare parts only.
16、 The refrigerant and insulation in this appliance do not contain any gases
3
harmful to the ozone or which contribute to the greenhouse effect. However,
disposal must be carried out in compliance with the relative standards
regarding protection of the environment.
17、 Never use the base, drawers, doors etc. to stand on or as supports.
Warning: Keep ventilation openings in the appliance enclosure or in the
built-in structure clear of obstruction.
Warning: Do not use mechanical devices or other means to accelerate
defrosting process, other than those recommended by the manufacturer.
Warning: Do not damage the refrigerant circuit.
Warning: Do not use electrical appliance inside the food storage
compartments of the appliance, unless they of the type recommended by the
manufacturer.
CAUTION: Please keep the products away from the fire or similar glowing
substance before you dispose the refrigerator.
DANGER: Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
Warning: If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in order to avoid a
hazard.
Warning: This appliance can not be used in camping.
Warning: This appliance can not be used in public transportations.
Warning: The appliance shall be used for indoor only.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory and mental capabilities, or lack of experience or
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
4
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS
BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner＇s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the
following:
This refrigerator must be properly installed and located in accordance with the Installation
Instructions before it is used.
Do not allow children to climb, stand or hang on the shelves in the refrigerator. They
could damage the refrigerator and seriously injure themselves.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
Before replacing a burned-out light bulb, the refrigerator should be unplugged in order to
avoid. Contact with a live wire filament. (A burned-out light bulb may break when being
replaced.)
Keep fingers out of the ¡°pinch point¡± areas; clearances between the doors and cabinet
are necessarily small. Be careful closing doors when children are in the area.
Unplug the refrigerator before cleaning and making repairs.
Do not support any servicing of the refrigerator.
Turning the temperature control dial to the OFF position stops cooling but does not shut
off power to the refrigerator
DANGER! RISK OF CHILD ENTRAPMENT PROPER DISPOSAL
OF THE REFRIGERATOR
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators are still dangerous... even if they will sit for just a few days. If you are getting rid
of your old refrigerator, please follow the instructions below to help prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer.
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
Refrigerants
All refrigeration products contain refrigerants, which under federal law must be removed prior
to product disposal. If you are getting rid of an old refrigeration product, check with the
company handling the disposal about what to do.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend
against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed,
3-wire grounding type appliance extension cord having a grounding type plug and outlet and
that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
5
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the
power cord. For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock
hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is
properly grounded.
If you have only a standard 2-prong wall outlet, it is your personal responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The refrigerator should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
Never unplug your refrigerator by puffing on the power cord. Always grip plug firmly and pull
straight out from the outlet.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
When moving the refrigerator away from the wall, be careful not to roll over or damage the
power cord.
USE OF ADAPTER PLUGS
Because of potential safety hazards under certain conditions, we strongly
recommend against the use of an adapter plug.
However, if you must use an adapter, where local codes permit, a temporary
connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed
adapter available at most local hardware stores.
The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide
proper polarity in the connection of the power cord.
When disconnecting the power cord from the adapter, always hold the adapter in place with
one hand while pulling the power cord plug with the other hand. If this is not done, the adapter
ground terminal is very likely to break with repeated use.
If the adapter ground terminal breaks, DO NOT USE the refrigerator until a proper ground has
been established.
Attaching the adapter ground terminal to a wall outlet cover screw does not ground the
appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded
through the house wiring. You should have the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
6
About the control on the refrigerator

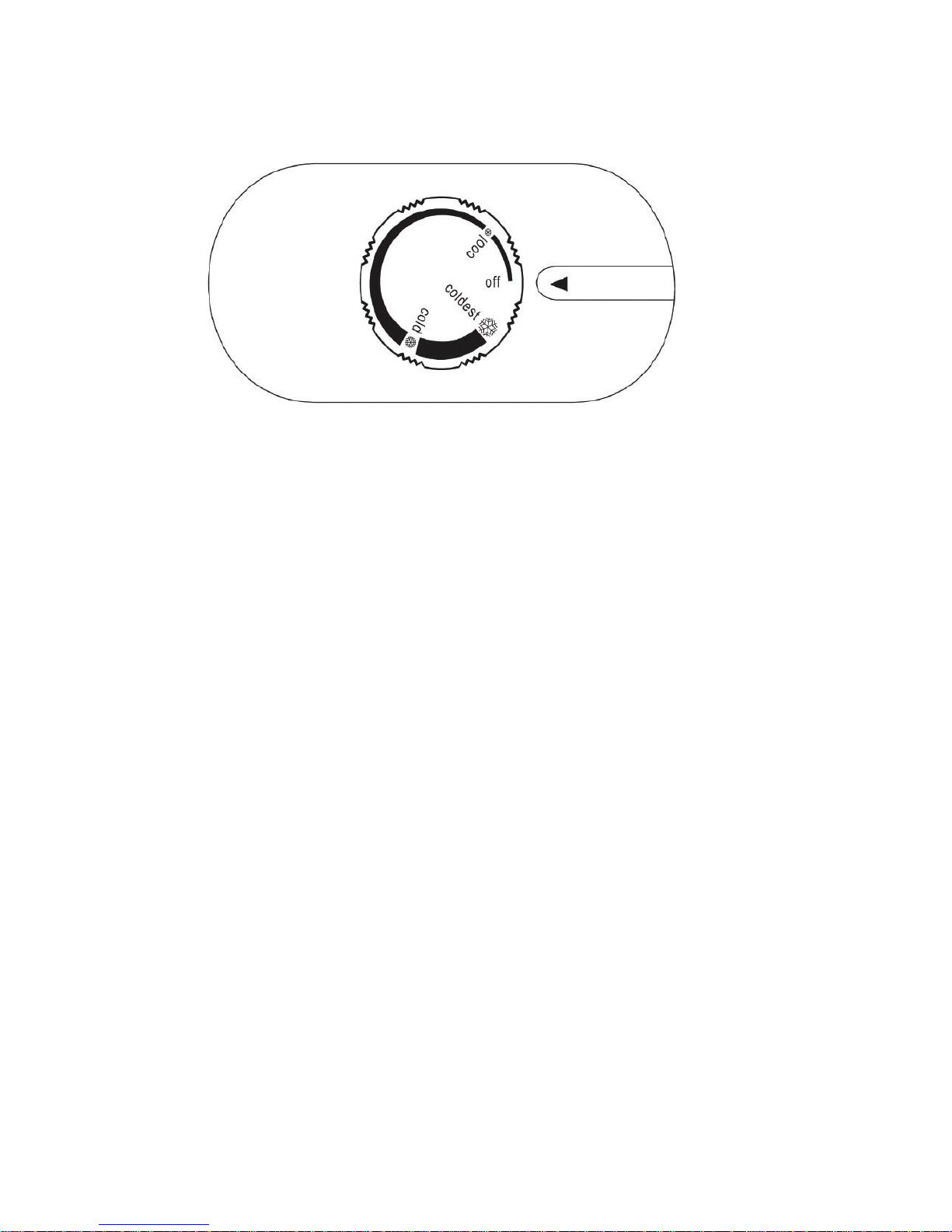

Control Settings
The temperature control maintains the temperature in the refrigerator. Setting the control
at Cool is the warmest setting. Setting the control at Coldest is the coldest setting. Initially
set the Control at Cold.
Allow 24 hours for the refrigerator to reach the operating temperature. If you want a colder or
warmer temperature, move the dial one setting at a time. Moving the control to Off stops
cooling but does not turn off the power to the refrigerator. Setting the control too high may
cause freezing in the refrigerator depending on the room temperature.
How To Test Temperatures
Use the milk test. Place a container of milk on a shelf and check it a day later. If the milk is too
warm or too cold, adjust the temperature control.
After changing the control, allow 24 hours for the refrigerator to reach the temperature you
have set.
About the refrigerator features.
Shelves
To remove a shelf, lift up the back slightly and pull forward. Some models have multi-position
shelves that can lie moved to different levels.
Ice Tray Compartment (on some models)
This compartment is designed for production of ice cubes and short-term storage (a few days
at most) of some commercially-frozen foods when in contact with the evaporator (cold
surface in compartment.)
Door Shelves
Shelves on the door provide convenient storage for frequently used items. Some models
have doors that are deep enough to store large bottles.
Key-Ejecting Lock (on some models)
The key for the spring-loaded lock is automatically ejected-key will not remain in lock in either
the open or closed position.
Keep the key out of reach of children and away from the refrigerator
7

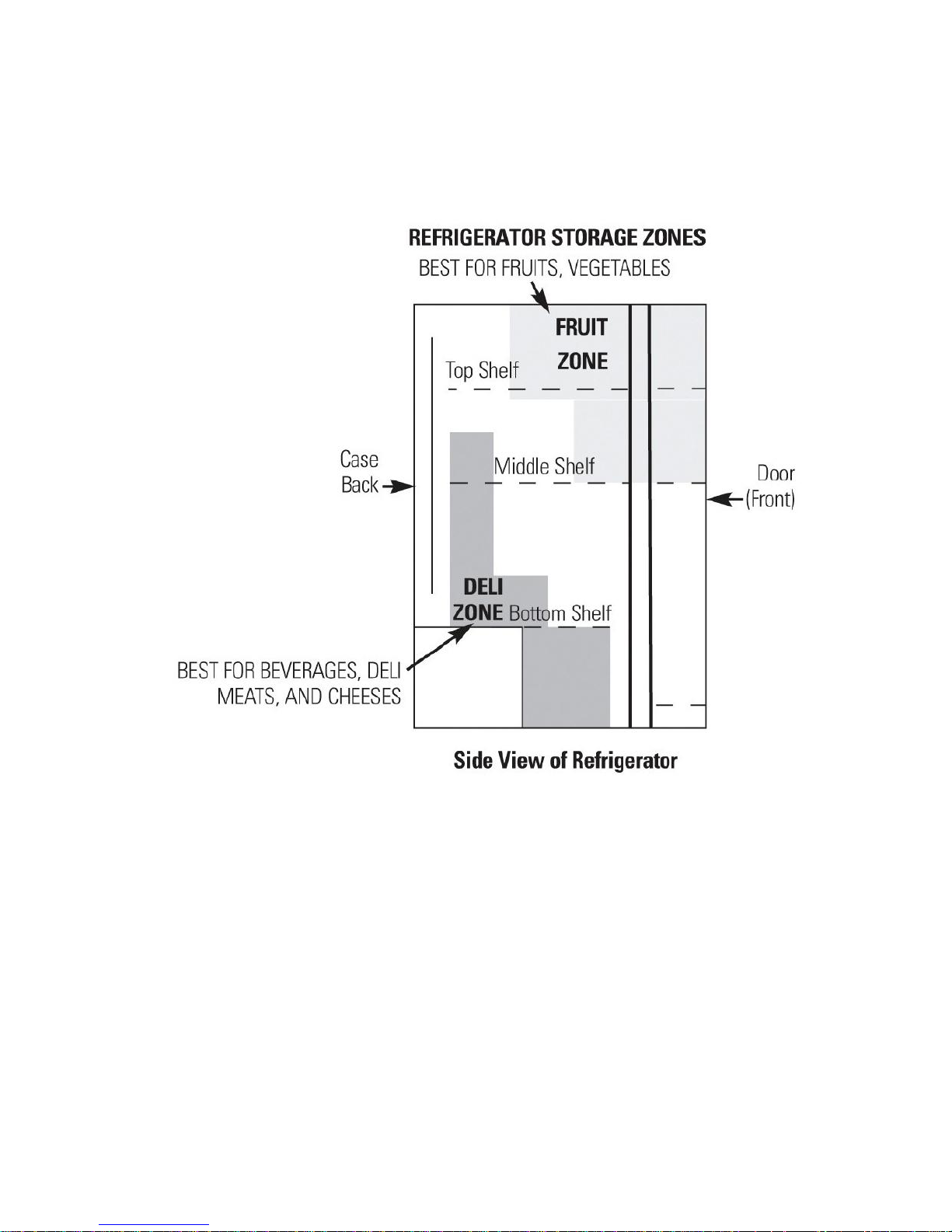

Refrigerator Storage Zones (on cycle defrost all-refrigerator models)
For best results follow the recommended storage zones:
The top and (front) middle shelf are best for storing fruits and vegetables.
The (rear) middle shelf and bottom shelf are best for storing beverages, deli meats and
cheeses.
Care and cleaning of the refrigerator.
Cleaning the Outside
Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance
wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue
that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners
containing bleach because these products can scratch and weaken the paint finish.
Protect the paint finish. The finish on the outside of the refrigerator is a high quality
baked-on paint finish. With proper care, it will stay new-looking and rust-free for years. Apply
a coat of kitchen! appliance wax when the refrigerator is new, and then at least twice a year.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda in the refrigerator.
Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of
8
sponge or cloth when cleaning around the control.
Use warm water and baking soda solution-about a tablespoon (15 ml) of baking soda to a
quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.
Other parts of the refrigerator-including door gaskets, fruit and vegetable drawers, and all
plastic parts-can be cleaned the same way
Do not wash any plastic refrigerator parts in the dishwasher.
Replacing the Light Bulb (on some models)
Unplug the refrigerator before replacing a burned-out bulb. Setting the controls to OFF does
not remove power to the light circuit.
The light bulb is located behind the temperature control housing and is visible through the
slots in the housing.
Reach up through the opening at the bottom of the control housing and gently unscrew the
light bulb. Replace with a bulb of the same or lower wattage.
Defrosting (on manual defrost models with freezer area)
Defrost whenever frost on the wall of the ice tray compartment becomes 1/4〃thick. Never use
a sharp or metallic instrument to remove frost as it may damage the cooling coils. (A
punctured cooling coil will cause serious problems and void the warranty.) We recommend
using a plastic scraper. Do not use any electrical device in defrosting your refrigerator.
To defrost
Remove foods and ice trays from the ice tray compartment.
Set the temperature control dial at OFF position.
On models without a drip tray, place a pan beneath the ice tray compartment to collect
water.
Defrosting usually takes a few hours. To defrost faster, keep the door open. Also, pouring
warm (not hot) water on the frosted part may speed defrosting. Do not use boiling water
－
it may damage plastic parts.
After defrosting
Empty water from the drip tray or from the pan placed beneath the ice tray compartment.
Wash the tray or pan with warm water.
Wipe the ice tray compartment with a damp cloth.
Turn the temperature control to the desired setting and return food and ice trays to the
refrigerator.
NOTE: If ice buildup is very thick, it may keep the ice tray compartment door from opening or
closing completely. Don’t try to force it open; after defrosting, the door will open and close
easily.
Defrosting (on cycle defrost all-refrigerator models)
Defrost whenever frost on the inside surfaces of the storage area becomes 1/8〃(3 mm)
thick. Never use a heater of any kind, scraper or sharp metallic instrument to remove
frost as it may damage the refrigerator or cooling coils. (A punctured cooling coil will
cause serious problems and void the warranty.)
9
To defrost, unplug the refrigerator or turn the temperature control dial to the OFF position.
Remove the contents and wipe inside surfaces and shelves with a clean towel. If frost does
not come off easily, allow the frost to melt somewhat and wipe off.
After defrosting, make sure inside surfaces are dry; then return the contents to the
refrigerator, plug unit back in and set the temperature control to the desired setting.
Preparing for Vacation
For long vacations or absences, remove food and unplug the refrigerator.
Move the control to the OFF position, and clean the interior with a baking soda solution of one
tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the door open.
Preparing to Move
Secure all loose items such as shelves and ice trays by taping them securely in place to
prevent damage.
Be sure the refrigerator stays in an upright position during moving.
Preparing to install the refrigerator.
Read these instructions completely and carefully.
Refrigerator Location
Do not install the refrigerator where the temperature will go below 50°F (10℃) because it
will not run often enough to maintain proper temperatures.
Install it on a floor strong enough to support it frilly loaded.
If the 2 cubic foot model is placed on a countertop or stand, the front surface of the door
should be 3〃or more back from the edge of the countertop or stand to avoid accidental
tipping of the appliance during normal use.
Do not install it closer than 5〃(13 cm) next to a range.
The following applies only to the 2,3 and 4 Cubic Foot Models:
Do not install it in a recessed area.
Do not build in the refrigerator.
Clearances
Allow the following clearances for ease of installation and proper air circulation.
2,3 and 4 Cubic Foot Models
6 Cubic Foot Model only
Sides
l/2〃(13 mm)
0〃(0 mm) *
Top
2〃(51 mm)
0〃(0 mm)
Back
2〃(51 mm) **
0〃(0 mm)
*l -1 /4〃(32 mm) for hinge side clearance
** From the rear cabinet surface to the wall
Leveling Legs (on some models)
Adjustable legs at the front corners of the refrigerator should be set so the refrigerator is
10
firmly positioned on the floor and the front is raised just
enough that the door closes easily when opened about
halfway.
To adjust the leveling legs, turn the legs
counterclockwise to raise the refrigerator,
clockwise to lower it.

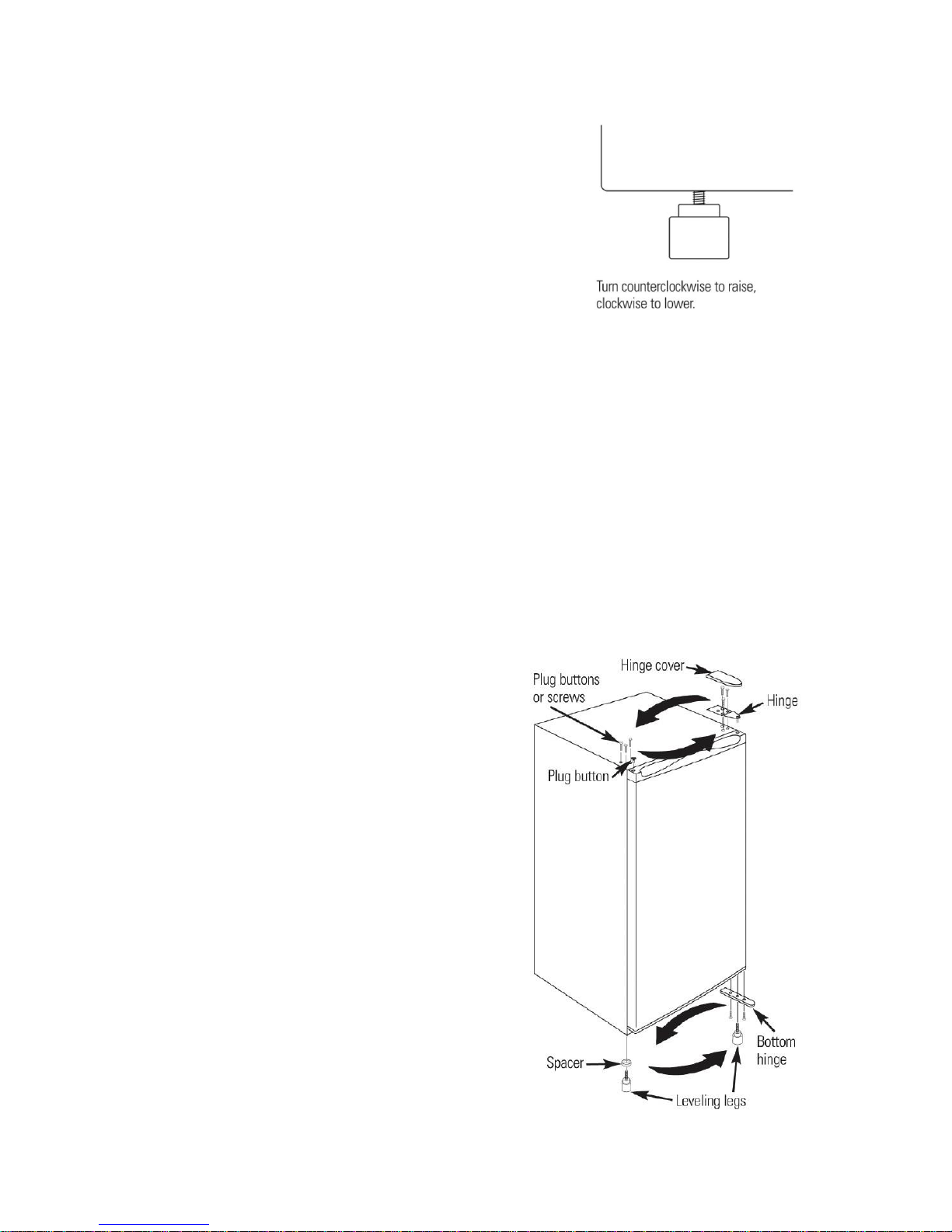

Door Reversal (on some models)
1. Remove the small plug button on the left side of the door top cap.
2. Remove the three plug buttons or screws on the left side on top of the cabinet.
3. Remove the plastic hinge cover by lifting it up by the front edge.
4. Remove the three screws from the top hinge.
5. Lift the door up and off the bottom hinge (right side).
6. Tilt the refrigerator cabinet back to remove the right leveling leg.
7. Remove the screws on the bottom hinge (right side) and the left leveling leg. Move
the bottom hinge to the left side and secure it with the screws and leveling leg.
IMPORTANT: The left leg has a spacer that must be moved to the right side leveling leg when
the door swing is reversed.
8. Screw the right leveling leg, with the spacer in place, back in place on the right side.
9. Position the door on the left bottom hinge. With the magnetic gasket holding the door
in place, secure the top hinge with screws.
10. Make sure the door is aligned with the
refrigerator cabinet before continuing.
11. Replace the hinge cover on top of the hinge.
12. Put the plug button in the hole on the right
side of the door cap.
13. Put the three plug buttons or screws on the
right side on top of the cabinet.
11

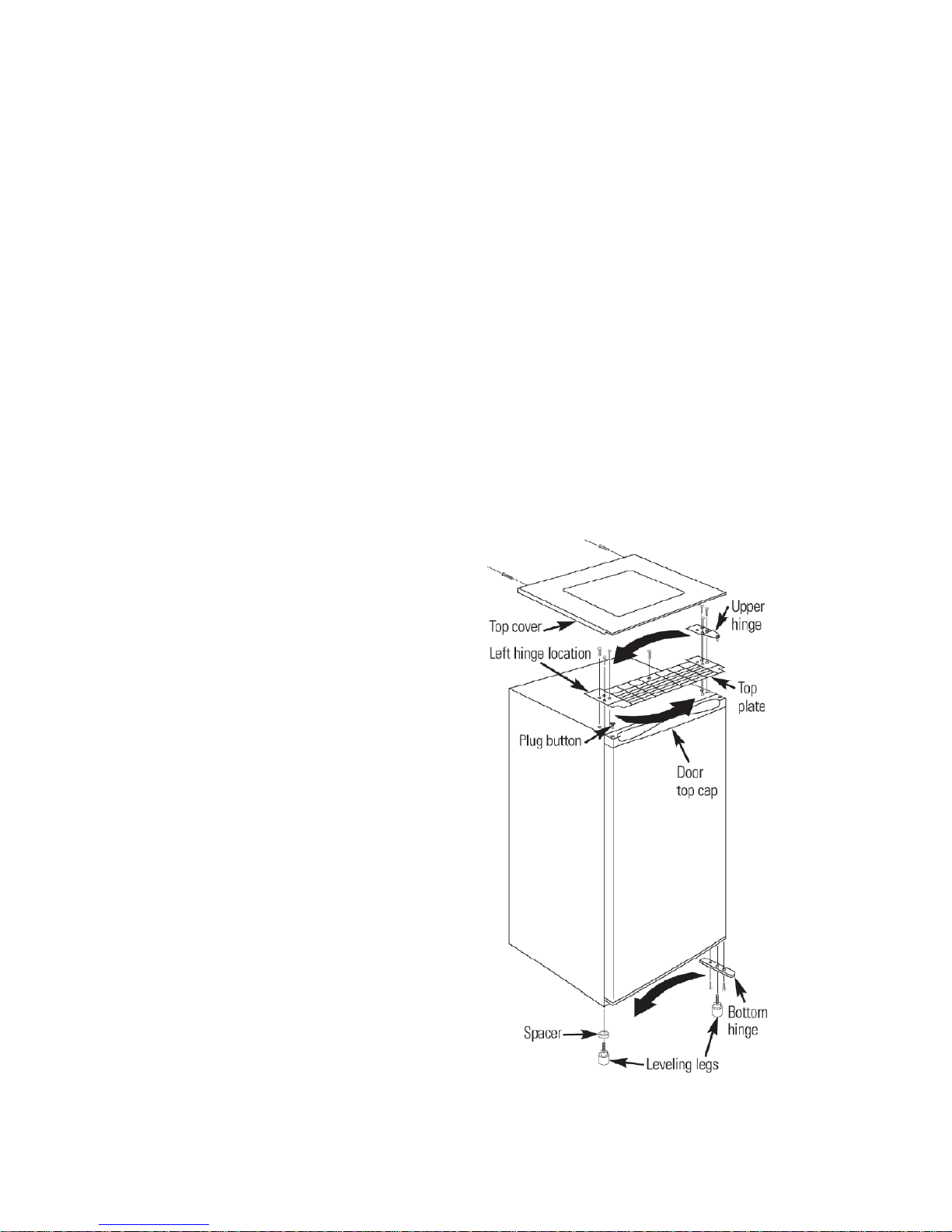

Door Reversal (on some models)
4 Cubic Foot Models
1. Remove the two screws at the back of the top cover.
2. Remove the top cover by lifting the hack up about 2〃and then sliding it forward.
3. Remove the small plug button on the left side of the door top cap.
4. Remove the three screws on the upper binge (right side). Remove the binge.
5. Remove the three screws at the left hinge location on the top plate.
6. Remove the screw in the middle of the top plate and remove the top plate.
7. Lift the door up and off the bottom hinge (right side).
8. Tilt the refrigerator cabinet hack to remove the right leveling leg.
9. Remove the screws on the bottom hinge (right side) and the left leveling leg. Move the
bottom binge to the left side and secure it with the screws and leveling leg.
IMPORTANT: The left leg has a spacer that must be moved to the right side leveling leg when
the door swing is reversed.
10. Screw the right leveling leg, with the spacer in place, back in place on the right side.
11. Position the door on the left bottom binge. With the magnetic gasket holding the door
in place, secure the top hinge with screws.
12. Make sure the door is aligned with the refrigerator cabinet before continuing.
13. Replace the top plate and screws.
14. Slide the top cover back in place and
replace the two screws.
15. Put the plug button in the hole on the
right side of the door top cap.
12
Troubleshooting tips.
Save time and money!
Problem
Possible Causes
What To Do
Refrigerator does
not operate
Control in OFF position.
Move the control to a
temperature setting.
Refrigerator is unplugged.
Push the plug completely into
the outlet.
The fuse is blown/circuit breaker is
tripped.
Replace fuse or reset the
breaker.
Vibration or rattling
(slight vibration is
normal)
Front leveling legs (on some
models) need adjusting.
See Leveling Legs.
Refrigerator is on an uneven
surface.
Use shims to level the
refrigerator.
Motor operates for long
periods or cycles
Normal when refrigerator is first
plugged in.
Wait 24 hours for the
refrigerator to completely cool
down.
Often occurs when large amounts
of food are placed in refrigerator.
This is normal.
Door left open.
Check to see if package is
holding door open.
Hot weather or frequent door
openings.
This is normal.
Temperature control set at the
coldest setting.
See About the control.
Not enough clearance from the
wall.
See Clearances in Preparing to
install the refrigerator.
Door will not open
Refrigerator is locked (lock is
available on some models).
Unlock the door with the keg.
Refrigerator too warm
Temperature control not set cold
enough.
See About the control.
13
Warm weather or frequent door
openings.
Set the temperature control one
step colder. See About the
control.
Door left open.
Check to see if package is
holding door open.
Cabinet sides are warm
(applies only to 2, 3 and
4 Cubic Foot Models).
This is normal for a hot wall type
condenser.
Refrigerator has odor
Foods transmitting odor to
refrigerator
Foods with strong odors should
be tightly wrapped. Keep an
open box of baking soda in the
refrigerator; replace ever three
months.
Interior needs cleaning.
See Care and cleaning.
Defrost water pan needs cleaning
(on some models).
See Care and cleaning.
Moisture forms on
outside of refrigerator
Not unusual during periods of high
humidity.
Wipe surface dry.
Moisture collects inside
(in humid weather, air
carries moisture into
refrigerator when door
is opened)
Too frequent or too long door
openings.
Refrigerator too cold
Temperature control set too cold.
See About the control.
HOW TO DISPOSE OF THE PACKING MATERIAL
The packing material is recyclable.
The following procedure is recommended:
- dispose of paper, card and carton in the relative containers;
- dispose of plastics in the relative containers.
- If you have no recycling bins in your area then you can put this material in the ordinary bins
and/or take it to the appropriate collection centers.
Loading...
