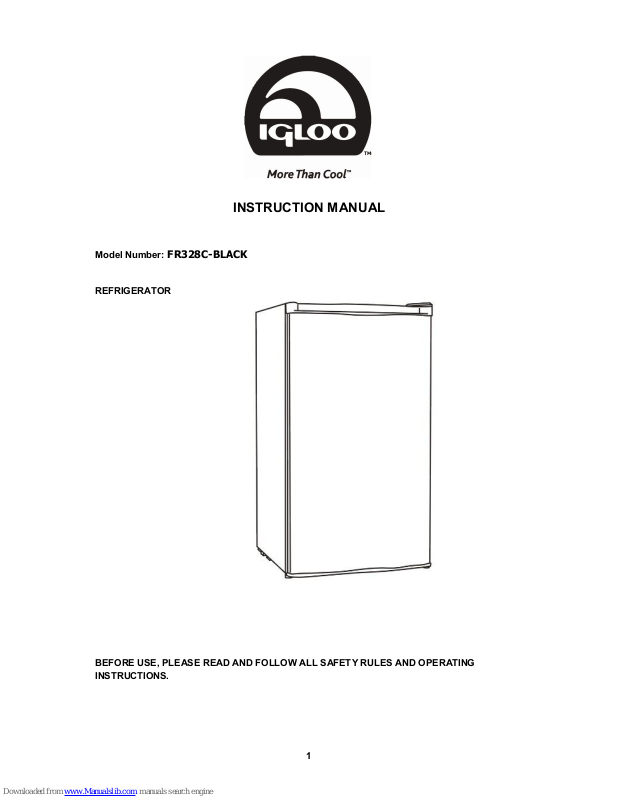

Igloo FR328C Instruction Manual

1

INSTRUCTION MANUAL

Model Number: FR328C-BLACK

REFRIGERATOR

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.

2

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that

can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words” DANGER”, “WARNING” or “CAUTION”.

Danger means that failure to heed this

safety statement may result in severe
personal injury or death.

Warning means that failure to heed this

safety statement may result in extensive
product damage, serious personal injury, or
death.

Caution means that failure to heed this

safety statement may result in minor or
moderate personal injury, property or
equipment damage.

All safety messages will alert to know what potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the refrigerator is used, it must be properly positioned and installed as

described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precaution,
including the following:

 Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and

do not use an extension cord.

 Replace all panels before operating.
 It is recommended that a separate circuit, serving only your refrigerator be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

 Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or

explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.

 Before proceeding with cleaning and maintenance operations, make sure the power line of the

unit is disconnected.

 Do not connect or disconnect the electric plug when your hands are wet.
 Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can

result in electrical shock or death.

 Do not attempt to repair or replace any part of your refrigerator unless it is specifically

recommended in this manual. All other servicing should be referred to a qualified technician.

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

 Use two or more people to move and install refrigerator. Failure to do so can result in back or

other injury.

 To ensure proper ventilation for your refrigerator, the front of the unit must be completely

3

unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.

 The refrigerator should not be located next to ovens, grills or other sources of high heat.
 The refrigerator must be installed with all electrical, water and drain connections in accordance

with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly
grounded in accordance with the National Electrical Code and local codes and ordinances is
required.

 Do not kink or pinch the power supply cord of refrigerator.
 The fuse (or circuit breaker) size should be 15 amperes.
 It is important for the refrigerator to be leveled in order to work properly. You may need to make

several adjustments to level it.

 All installation must be in accordance with local plumbing code requirements.
 Make certain that the pipes are not pinched or kinked or damaged during installations.
 Check for leaks after connection.
 Never allow children to operate, play with or crawl inside the refrigerator.
 If you use the drainage container, you MUST set the Drain Select switch to OFF or the water can

overflow from the drainage container

 Although the unit has been tested at the factory, due to long-term transit and storage, the first

batch of cubes must be discarded.

 Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may

damage or discolor the interior.

 Do not use this apparatus for other than its intended purpose.
 This appliance is not intended for use by persons (including children) with reduced physical，

sensory or mental capabilities，or lack of experience and knowledge， unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety.

 WARNING----Do not use mechanical devices or other means to accelerate the defrosting process,

other than those recommended by the manufacturer.

 WARNING----Do not damage the refrigerant circuit.
 WARNING---- Do not use electrical appliances inside the food storage compartments of

appliance,unless they are of the type recommended by the manufacturer.

REFRIGERANT GAS WARNINGS

DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.

DANGER - Risk of fire or explosion. Flammable refrigerant used.
To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing.

CAUTION - Risk of fire or explosion. Flammable refrigerant used.
Consult repair manual / owner’s guide before attempting to service
this product. All safety precautions must be followed.

CAUTION - Risk of fire or explosion. Dispose of property in accordance
with federal or local regulations. Flammable refrigerant used.

CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing;
Follow handling instructions carefully. Flammable refrigerant used.

4

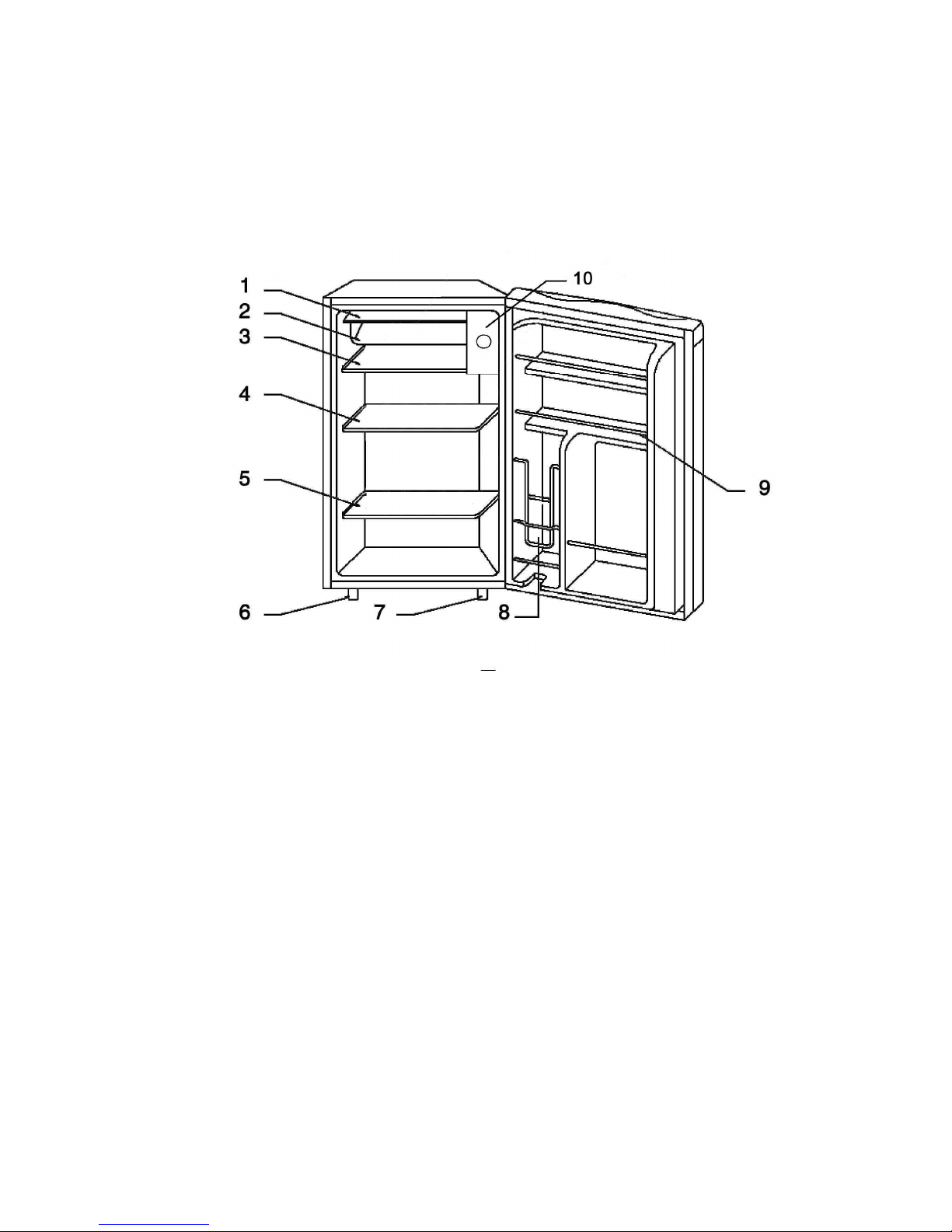

PARTS & FEATURES

1． Chiller compartment door
2． Chiller compartment
3． Drip tray
4． Removable shelf (Big)
5． Removable shelf (Small)
6． Front leg
7． Leveling leg
8． Can dispenser
9． Door bins
10． Thermostat

5

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:

 Read all instructions before using the refrigerator-freezer.
 DANGER or WARNING: Risk of child entrapment.

Child entrapment and suffocation are not problems of the past. Junked or
abandoned refrigerator-freezers are still dangerous. . . even if they will “just sit in the
garage a few days.”

 Before you throw away your old refrigerator-freezer: Take off the doors. Leave

the shelves in place so that children may not easily climb inside.

 Never allow children to operate, play with, or crawl inside the refrigerator-freezer.
 Never clean refrigerator-freezer parts with flammable fluids. The fumes can create a

fire hazard or explosion.

 Do not store or use gasoline or any other flammable vapors and liquids in the vicinity

of this or any other refrigerator-freezer. The fumes can create a fire hazard or
explosion.

-Save these instructions-

INSTALLATION INSTRUCTIONS

 Before Using Your Unit

 Remove the exterior and interior packing.
 Check to be sure you have all of the following parts:

 1 Water Drip Tray
 1 Ice Cube Tray
 1 Instruction Manual

 Before connecting the unit to the power source, let it stand upright for approximately 2 hours.

This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.

 Clean the interior surface with lukewarm water using a soft cloth.

 Installing Your Unit

 This appliance is designed to be free standing only, and should not be recessed or built-in.
 Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To

level your unit, adjust the leveling legs at the bottom of the unit.

 Allow 5 inches of space between the back and sides of the unit, which allows the proper air

circulation to cool the compressor and condenser.

 Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).

Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.

 Avoid locating the unit in moist areas.
 Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

 After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before

placing food in the refrigerator and freezer compartments.

6

 Electrical Connection

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a
three-prong plug which mates with standard three prong wall outlets to minimize the possibility of
electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.

This unit requires a standard 115/120 Volt AC ~/60Hz electrical outlet with three-prong ground. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the unit and not left exposed or dangling to prevent accidental
injury.

The unit should always be plugged into its own individual electrical outlet which has a voltage rating
that matches the rating label on the appliance. This provides the best performance and also prevent
overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the
unit by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion damage along its length or at either end. When moving
the unit, be careful not to damage the power cord.

 Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this unit. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10
amperes.

 SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge protector
needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.

 Reversing the Door Swing of Your Appliance
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side.
Following refrigerator pictures are for your reference only.



Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
