Igloo FR326-WHITE User Manual
Quality • Innovation • Style
Compact Refrigerator
User’s Manual
FR326-WHITE
SAFETY PRECAUTIONS
When using this appliance, always exercise basic safety precautions,
including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2)
This refrigerator must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
3)
Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly recom-
mend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors and leave the shelves in place. This will reduce the possibility of
danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the refrigerator compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9) This refrigerator should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
10) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
English
1
Thank you for using our
product. This easy-to-use manual
will guide you in getting the best
use of your refrigerator.
Remember to record the model and
serial number. They are on a label
in back of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
English
2
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or refrigerator, take off the doors. Leave the
shelves in place so that children may not easily climb inside.
Table Of Contents
PAGE
Safety Precautions ...................................................................... 1
Parts And Features ..................................................................... 4
Installing Your Refrigerator ....................................................... 5
Unpacking Your Refrigerator ............................................................. 5
Proper Air Circulation ....................................................................... 5
Electrical Requirements ..................................................................... 5
Use of Extension Cords ..................................................................... 6
Install Limitations .............................................................................. 6
Door Alignment ............................................................................... 7
Refrigerator Features And Use
.....................................................
8
Operating Your Refrigerator .............................................................. 8
General Features ............................................................................. 8
...............................................................................8
Defrosting And Draining ................................................................... 9
Normal Operating Sounds ................................................................ 9
Proper Refrigerator Care and Cleaning .................................10
Cleaning and Maintenance ...............................................................10
Power Interruptions .........................................................................11
Vacation and Moving Care .............................................................11
Troubleshooting ........................................................................12
English
3
Door Reversal................................................................................... 6
Specifications Model # FR326-WHITE
Electrical Shock Protection Class 1
Voltage 115V/60Hz
Rated Current 1.3 A
Refrigerant R134a/1.41 Oz.
Design Pressure
High Side 250 Psig
Low Side 88 Psig
Dimensions 17.5" x 18.7" x 31.5"
Weight 50.7 LBS
Eraser Board Use
Parts And Features
English
4

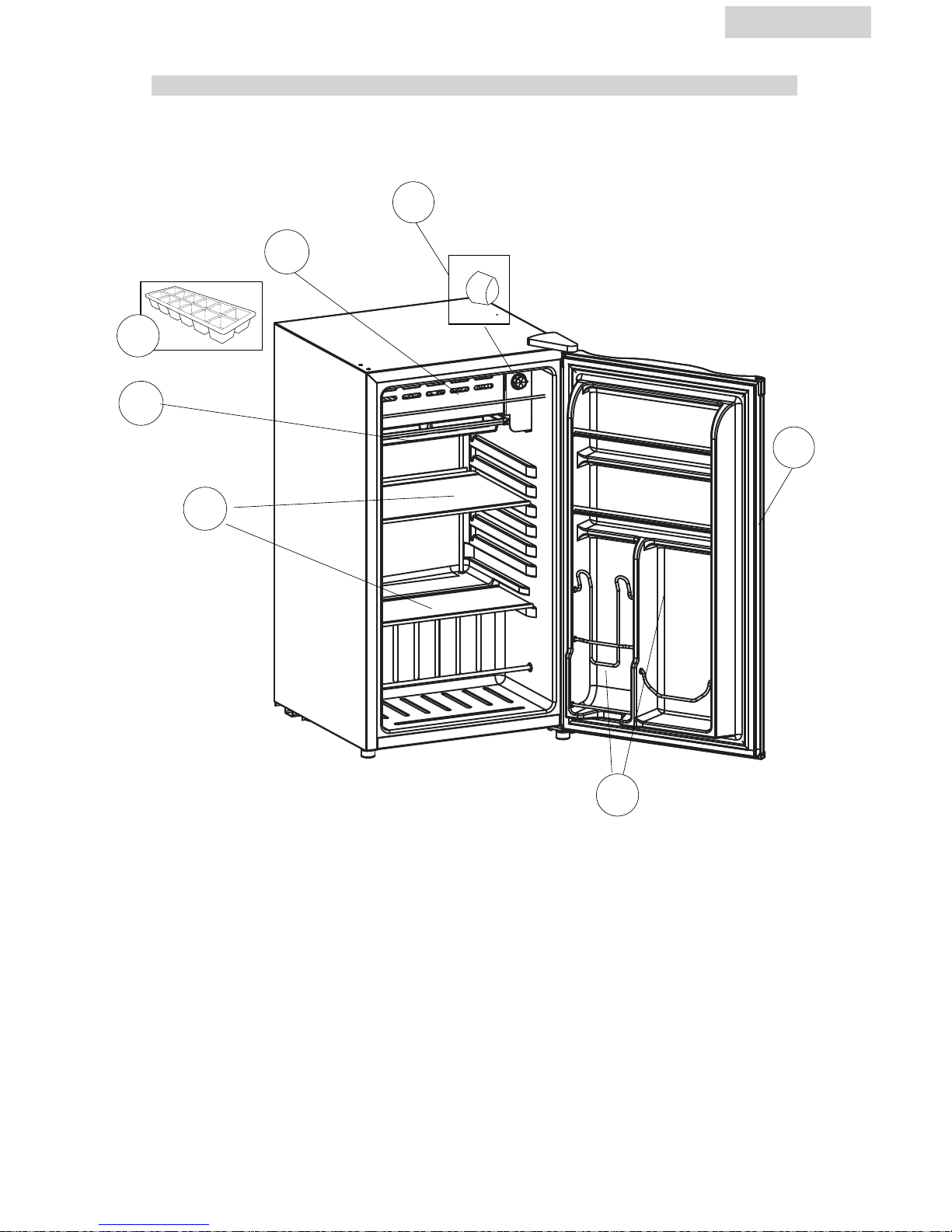

1. Freezer Compartment
2. Ice Cube Tray
3. Drip Tray
4. Full Width Shelf
5. 1 Full and 1 Half Door Storage
Width Shelf
6. Write Fridge Front
(See Notes On Page 8)
7. Temperature Control
7
1
2
3
4
6
5
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the refrigerator.
• To assure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper
air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides ……………3/4 “(19mm)
Top ....................2” (50mm)
Back ..................2” (50mm)
• Make sure there is a suitable power Outlet (115 volts, 15 amps out-
let) with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding
in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and
may result in shock hazard.
Installing Your Refrigerator
Unpacking Your Refrigerator
Proper Air Circulation
English
5
Electrical Requirements
• Avoid the use of an extension cord because of potential safety haz-
ards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating
of the extension cord must be equal to or greater than the electrical
rating of the appliance.
• Do not install your refrigerator in any location not properly insulated
or heated e.g. garage etc. Your refrigerator was not designed to
operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard
heaters, cooking appliances etc.
Install Limitations
English
6
Use of Extension Cord

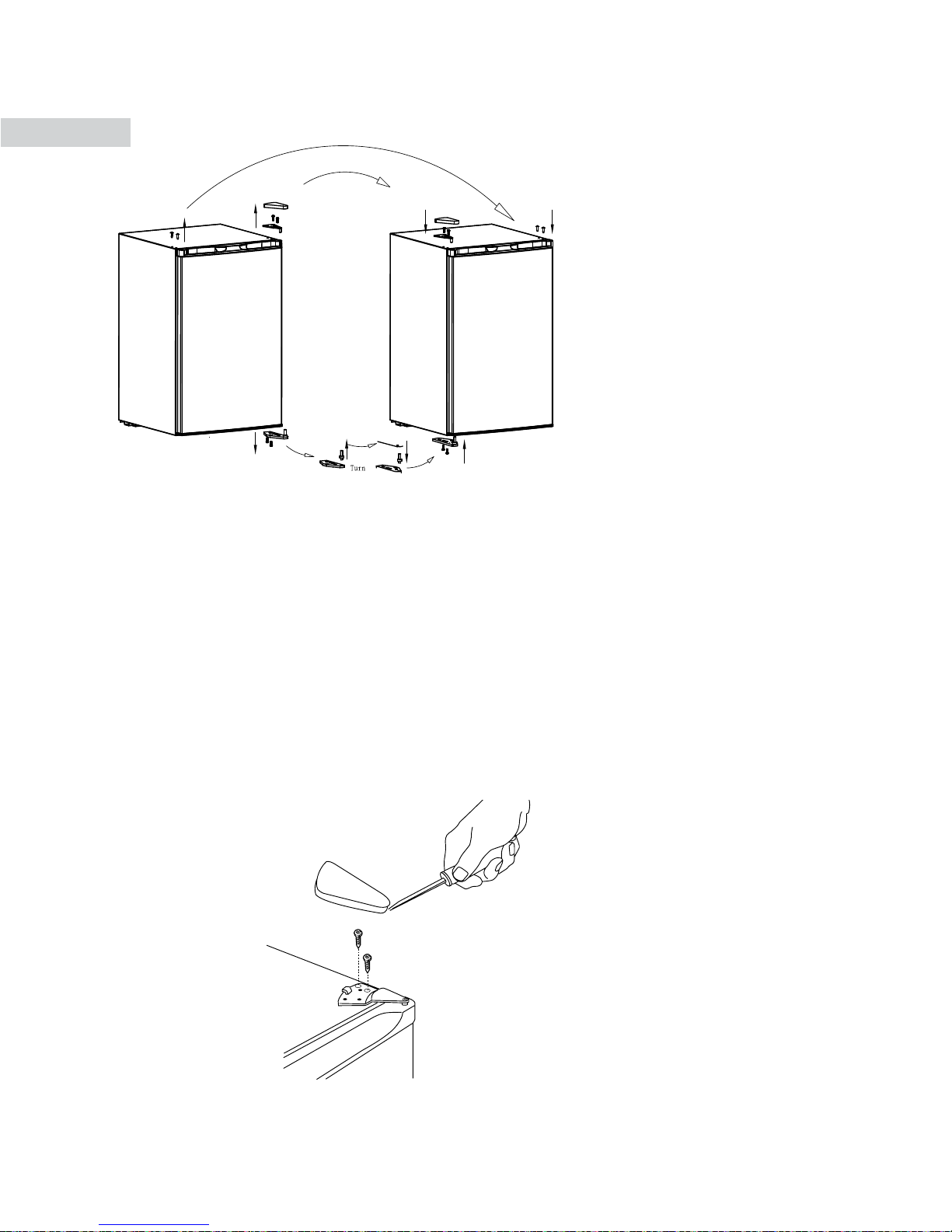

Reversing the Door Hinge
1. Remove the top hinge cover.
2. Using Phillips Head Screwdriver, loosen and remove the screws holding the
top hinge in place.
3. Remove top hinge and carefully lift off the door.
4. Remove the screw hole plugs from the opposite side and insert the plugs in
the screw hole openings of the just removed screws.
5. Remove any loose items in the refrigerator and carefully turn refrigerator on
its back and place in a secure area.
6. Loosen the screws holding the lower hinge bracket to the refrigerator and
remove screws and bracket.
7. Remove (2) screws from the other side and insert in the previously removed
screw holes.
8. Remove door pin by turning counter clockwise and reinsert to the underside
of the bracket and tighten.
9. Align bracket and insert (2) remaining screws into the holes provided .
10. Align hole in the door with the door pin and washer and gently push down
until firm.
11. Align upper hinge bracket with screw holes insert screws and partially
secure, check that door and cabinet are properly aligned and then secure
tightly.
12. Replace hinge cap.
1. Remove the top hinge cover by using a flathead screwdriver. Place
the head under the front edge of the cap and gently lift.
2. Loosen the top hinge screws using a Phillips head screw driver.
3. Adjust the door or put a spacer in between and tighten the screws.
4. Replace the top hinge cover by aligning the rear of the cover with
the rear of the hinge. Press firmly on the front of the cover until it
snaps in place.
Door Alignment
(see fig. #1)
fig. 1
NOTE: As the door gets pressed in during shipping, after reversing
the door, the gasket may have to be reset. This is done to
prevent the cool refrigerated air from escaping. If there is a
gap between the door gasket and the cabinet, set the gasket by
gently pulling it out to seal the gap.
English
7
