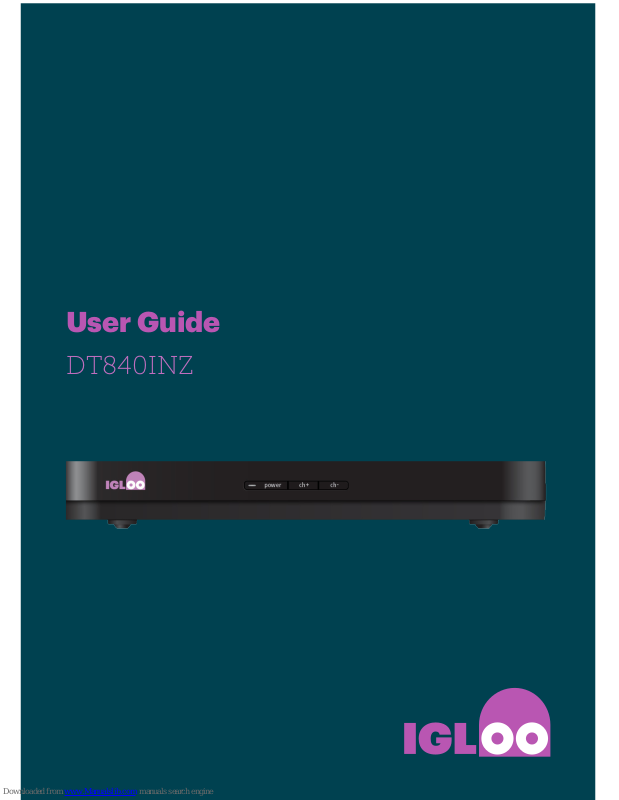

Igloo DT840INZ User Manual

User Guide

DT840INZ

2

FOR YOUR SAFETY

Your IGLOO has been manufactured to meet international safety standards. To obtain the best
results and operate safely it is important that you read the safety instructions below. The model
number, serial number and electrical rating of your IGLOO are on a label on its base.

If you have any doubts about the installation, operation or safety of your IGLOO, please consult
your service provider.

WARNING!

Remember that contact with 230V AC power can be lethal or can cause a severe electric shock. To
avoid this risk:

! Never attempt to open the 12V power supply adapter as there are high voltage parts inside.

There are no serviceable parts inside the 12V power supply adapter.

!

Never remove the top cover from your IGLOO as there are no serviceable parts inside.

! On the base of your IGLOO there is a tamper-evident label that states “Warranty void if broken

or removed”.

! Make sure that all electrical connections are safe and secure.

! Do not connect any of your equipment to the power supply until you have properly

connected all the other leads.

! Disconnect your IGLOO from the power supply (by switching o the power at the power point

and then disconnecting your IGLOO power lead from the power point on the wall) before you
disconnect any other equipment from its rear panel.

! Ensure that the mains plug of the 12V power supply remains accessible after installation.

! Never push anything into the holes, slots or other openings of your IGLOO’s case.

CAUTION!

4 To ensure a free flow of air around your IGLOO, allow at least 5cm of space above and around

it.

4 Use only a dry cloth to clean your IGLOO. Never use detergents etc.

8 Never stand your IGLOO on soft furnishings or carpets. Do not cover any ventilation slots.

8 Do not place your IGLOO in an unventilated cabinet or on top of a unit which emits heat (e.g.

an amplifier).

4 If your IGLOO is placed with other items of audio/video equipment in a cabinet, make sure all

items have sucient space all around them, to allow ventilation and prevent overheating.

8 Do not use or store your IGLOO in hot, cold, damp or dusty places.

8 Do not put anything on your IGLOO which might drip or spill into it. Never stand objects filled

with liquids, such as vases, on top of your IGLOO.

8 Never place naked flame sources, such as lighted candles, on or adjacent to your IGLOO.

8 To avoid possible damage to the IGLOO or internal components, do not pick up or otherwise

move your IGLOO while it is connected to the mains supply. If you want to move your
IGLOO, first put your IGLOO into standby and wait 60 seconds before disconnecting it. You
should handle your IGLOO carefully, as any damage you cause to the internal components
will invalidate your warranty.

4 If you move your IGLOO between dierent locations at dierent temperatures, allow it to

reach room temperature before you apply power to it.

3

ENVIRONMENTAL ISSUES

PACKAGING

When disposing of this product packaging, please ensure that it is recycled.
This will reduce the demand for virgin wood pulp, whilst diverting material that would

otherwise end up in landfill.

PRODUCT AND BATTERIES

Recycling - Do not dispose of this product or its remote-control batteries with your
domestic rubbish.

At the end of their useful lives, the product and batteries contain materials that,
when processed correctly, can be recovered and recycled. By participating in
the responsible recycling of the product and batteries, you will be reducing the
requirement for new raw materials and reducing the amount of material that would
otherwise end up in landfill. You will therefore help to prevent potential negative
consequences for the environment and human health.

If a battery contains levels of lead (Pb), mercury (Hg) or cadmium (Cd) greater than defined in the
Battery Directive (2006/66/EC), then symbols Pb, Hg, or Cd are printed beneath its crossed-out
wheelie bin symbol.

When you purchase a new, similar product your retailer may oer to take this old one from
you. Alternatively, you can take it to your local recycling centre. Your retailer or local municipal
authority will advise you of the collection facilities available in your area for waste electronic
products and batteries. Use of these services will be free to you.

Environmental policy

For more information about Pace’s environmental policy go to:

http://www.pace.com/corporate/home/index.asp and select About Pace > Policies.

4

YOUR IGLOO

1

2

3

6

5

4 7

8

9

❖ Unpacking the carton

Before you start installing your IGLOO, please check you have the following
supplied accessories:

1. A power lead with a 2-pin plug

2. A 12V power supply unit

3. An RF cable

4. A coaxial AV phono leads

5. An RF adapter

6. A remote control and two 1.5 V “AA” batteries

7. An ‘Important information’ guide

8. A ‘More important information’ guide

9. A quick start guide

5

YOUR IGLOO

❖ Front panel

S BUTTON & LIGHT

To switch your IGLOO into
or out of standby

Lights up red when it is in
standby

Lights up green when it is
out of standby (switched on)

CH+ AND CH BUTTONS

To change channel by
stepping through them

IR RECEIVE LIGHT

Flashes red when your
IGLOO receives a signal
from your remote control

❖ Rear panel

POWER IN

To connect to the 12V power
supply

Always disconnect the
plug from the power supply
before you remove the
power connector from your
IGLOO

USB 2.0
connector

COMPONENT
VIDEO OUT

To connect to your
HD TV’s component
video (Y Pb Pr) inputs
(not recommended)

ETHERNET

To connect to your
Internet router

HDMI

To connect to your
HD TV’s HDMI

®

input

(recommended)

DIGITAL AUDIO OUT

To connect to a digital­audio (S/PDIF) input
on your home cinema,
TV or stereo sound
equipment

AUDIO OUT
LEFT + RIGHT

To connect to the
left and right audio
phono (RCA) inputs
on your home
cinema, TV or stereo
sound equipment

VIDEO OUT

To connect to the
‘video in’ phono
(RCA) connector
on your TV or
home cinema

RF OUT

Connect RF cable
to your TV (or VCR)

TV AERIAL IN

Connect the cable
from the wall­socket

6

IGLOO On Demand

Access IGLOO’s catalogue of
movies and TV episodes for rent

YOUR IGLOO

❖ Remote control

Shhh

Turns the sound on and o

Menu

Go to the Main menu and

IGLOO homepage

Back

Go to previous screen or cancel

Vol + / -

Changes the volume up/down

Arrows

Use to navigate your screen,

like a mouse

Igloo Tick

Info on recommended content

Play buttons

Stop, pause, rewind and fast

forward when using Live Pause or

when viewing On Demand titles

Search

Programme search by

title or keyword

Standby

Power your IGLOO up or down
with this button

Guide

Go to program listings

Info

Find out more about a programme

CH +/-

Previous or next channel

OK

Confirm a choice or make a selection

My IGLOO

Purchase content or manage your details

Number buttons (09)

Use to change channel,
enter numbers and select
on-screen options

Live TV

Go straight to the last

channel viewed

More

Options such as purchasing content,
changing audio and subtitles

7

INSTALLATION

❖ Connecting your IGLOO

Before starting, choose a suitable position for your IGLOO, observing the
ventilation requirements set out on page 2.

Warning

Before you connect or disconnect your IGLOO to/from any other equipment,
make sure you disconnect all the equipment from the mains supply.

Connecting to a TV

If you have a TV with only a composite (CVBS) video input, use the supplied AV
phono leads (yellow, white, red cable) to connect your IGLOO (see page 8). Match
the colours of the connectors on your IGLOO and leads.

If your TV has component video (Y Pb Pr) inputs, you can connect your IGLOO
to your TV using a suitable lead (not supplied) as shown on page 8. This will give
a better quality picture on your TV for standard definition only. You also need to
connect the audio leads.

If your HDTV has HDMI inputs, you can connect your IGLOO to your TV using
a standard HDMI cable (not supplied) as shown on page 8. This will give you the
best picture and audio quality on your TV.

For the HDMI connection, you do not need to connect any additional audio
leads. (Limited to stereo audio only.)

Note

To view high-definition picture on your HDTV, you must connect your IGLOO
to your HDTV using a standard HDMI cable (not supplied).

Optional audio connections

You can obtain improved quality sound with optional audio connections.

You can connect to a home cinema or stereo audio equipment as shown on
page 8.

Note

If you connect to your TV, or other equipment via the COMPONENT VIDEO
OUT, VIDEO OUT connectors, you must also use an audio connection, in order
to hear sound.

8

INSTALLATION

Optional Broadband connection

If you want to connect your IGLOO to the Internet, set up a wireless

connection between your IGLOO and your WiFi router during the first
installation setup (see page 11). To set it up later, go to Menu > Settings >
Broadband and follow the on-screen instructions.

You can also use an Ethernet cable to connect your IGLOO to the Internet as

shown below. Connect the cable between your IGLOO and an Ethernet port
on your local network router.

HDMI

HDMI lead
(preferred)

Component video leads
(alternative)

TV

Coaxial digital audio
lead

Home cinema system

AV phono lead

Wall Socket

RF Cable

2

1

RF adapter

9

❖ Connecting to the power supply

◆ Plug the fixed lead on the 12V power supply unit into the socket labelled

POWER IN on your IGLOO’s rear panel.

◆ Plug the 2-way connector on the supplied power lead into the socket on

the 12V power supply unit.

◆ When all the connections are properly made, connect the mains plug from

the 12V power supply unit into a mains wall socket.

◆ Connect other equipment, such as your TV, to the mains supply.

Note

Ensure that the mains plug of the 12V power supply remains accessible after
installation.

1

3

2

INSTALLATION
