Operating instructions
Electronic temperature sensor
TN2511
80231574 / 00 10 / 2015
UK
2
1 Safety instructions �����������������������������������������������������������������������������������������������3
2 Functions and features ����������������������������������������������������������������������������������������3
3 Function ��������������������������������������������������������������������������������������������������������������� 3
3�1 Switching function ������������������������������������������������������������������������������������������ 4 3�2 Analogue function ������������������������������������������������������������������������������������������5
3�2�1 Current output ���������������������������������������������������������������������������������������5 3�2�2 Voltage output ���������������������������������������������������������������������������������������6

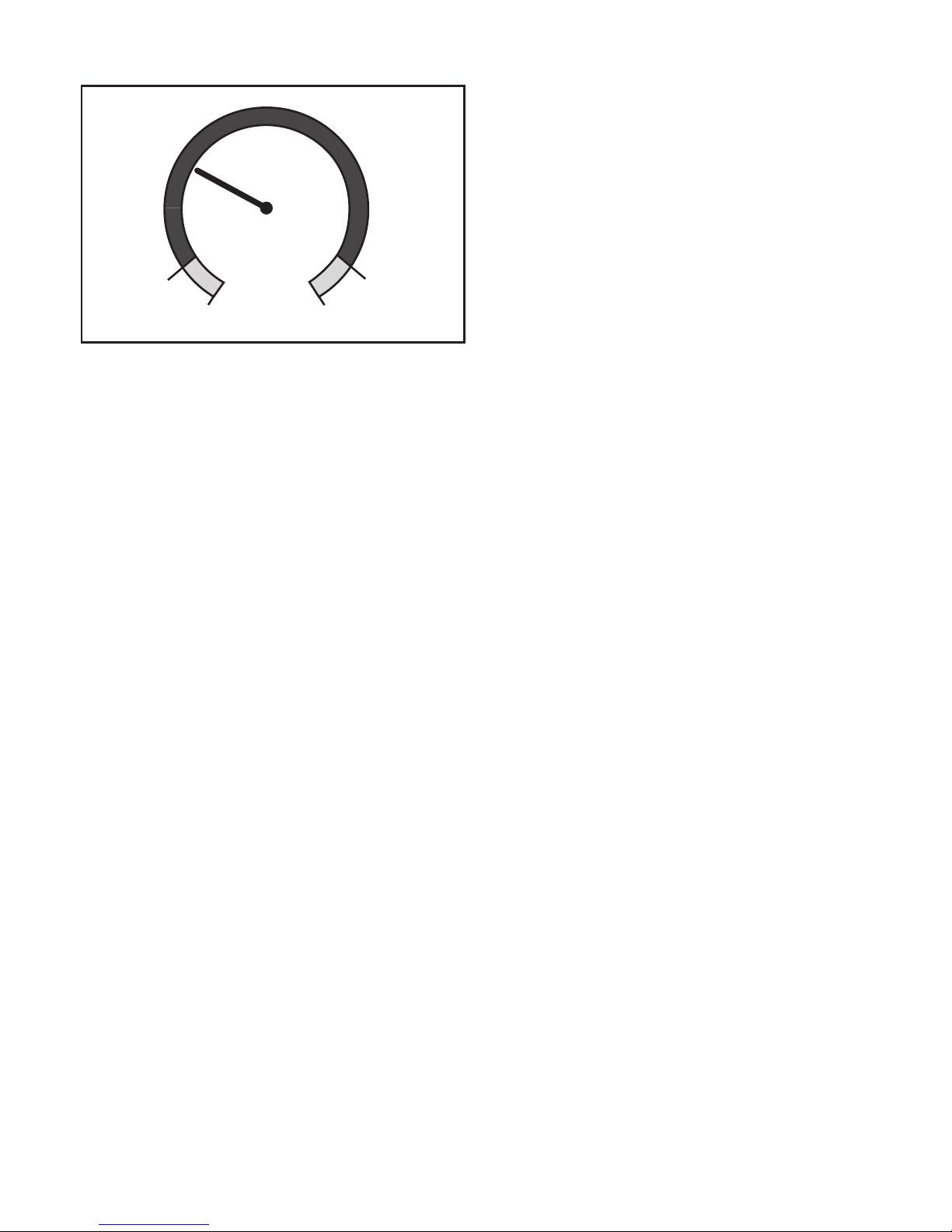

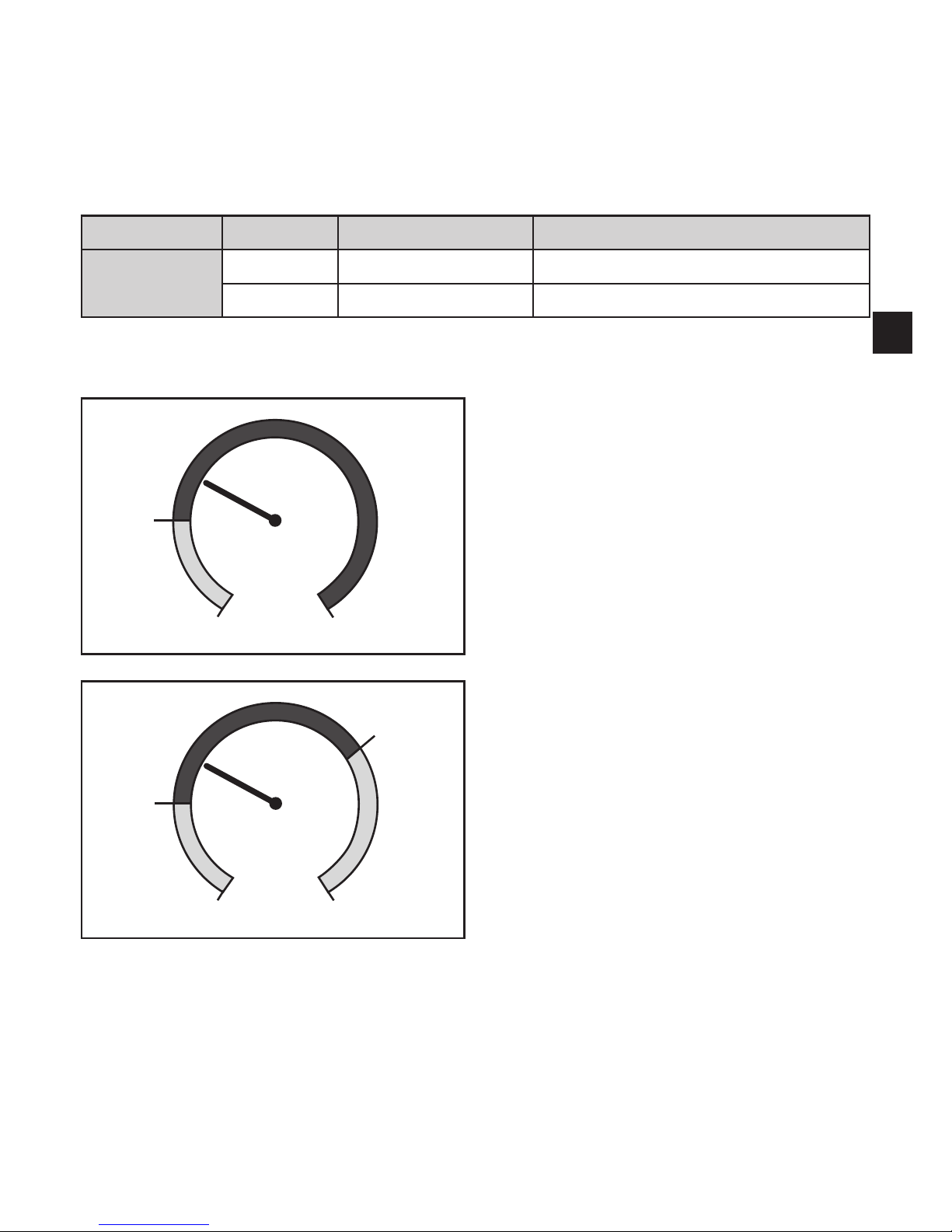

3�3 Display colour change �����������������������������������������������������������������������������������7
3�3�1 Parameter r1ou, G1ou �������������������������������������������������������������������������� 7 3�3�2 Parameter r-cF, G-cF ���������������������������������������������������������������������������� 8
3�4 IO-Link �����������������������������������������������������������������������������������������������������������8
3�4�1 General information ������������������������������������������������������������������������������8 3�4�2 Device-specific information �������������������������������������������������������������������8 3�4�3 Parameter setting tools �������������������������������������������������������������������������8
4 Installation������������������������������������������������������������������������������������������������������������8

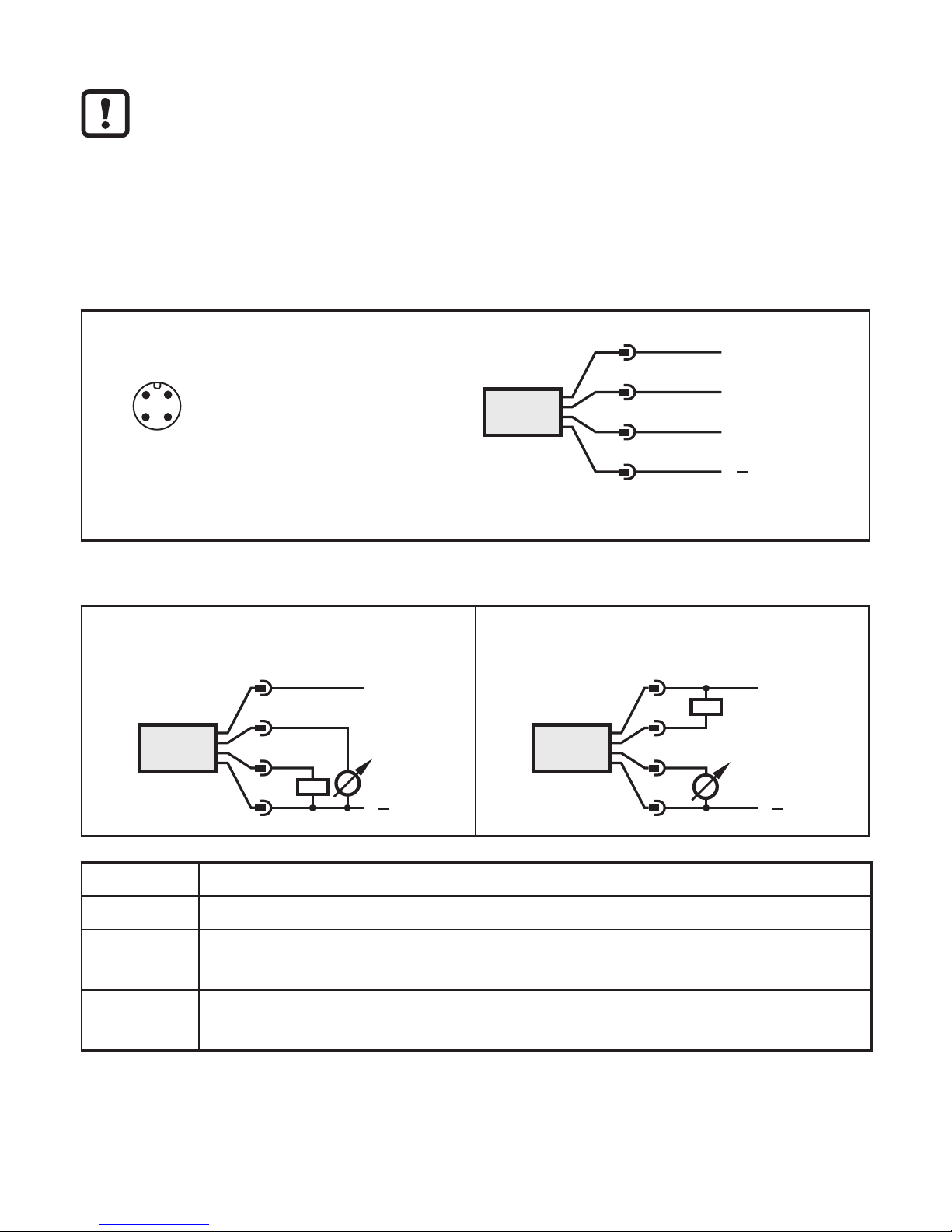

5 Electrical connection ������������������������������������������������������������������������������������������ 10

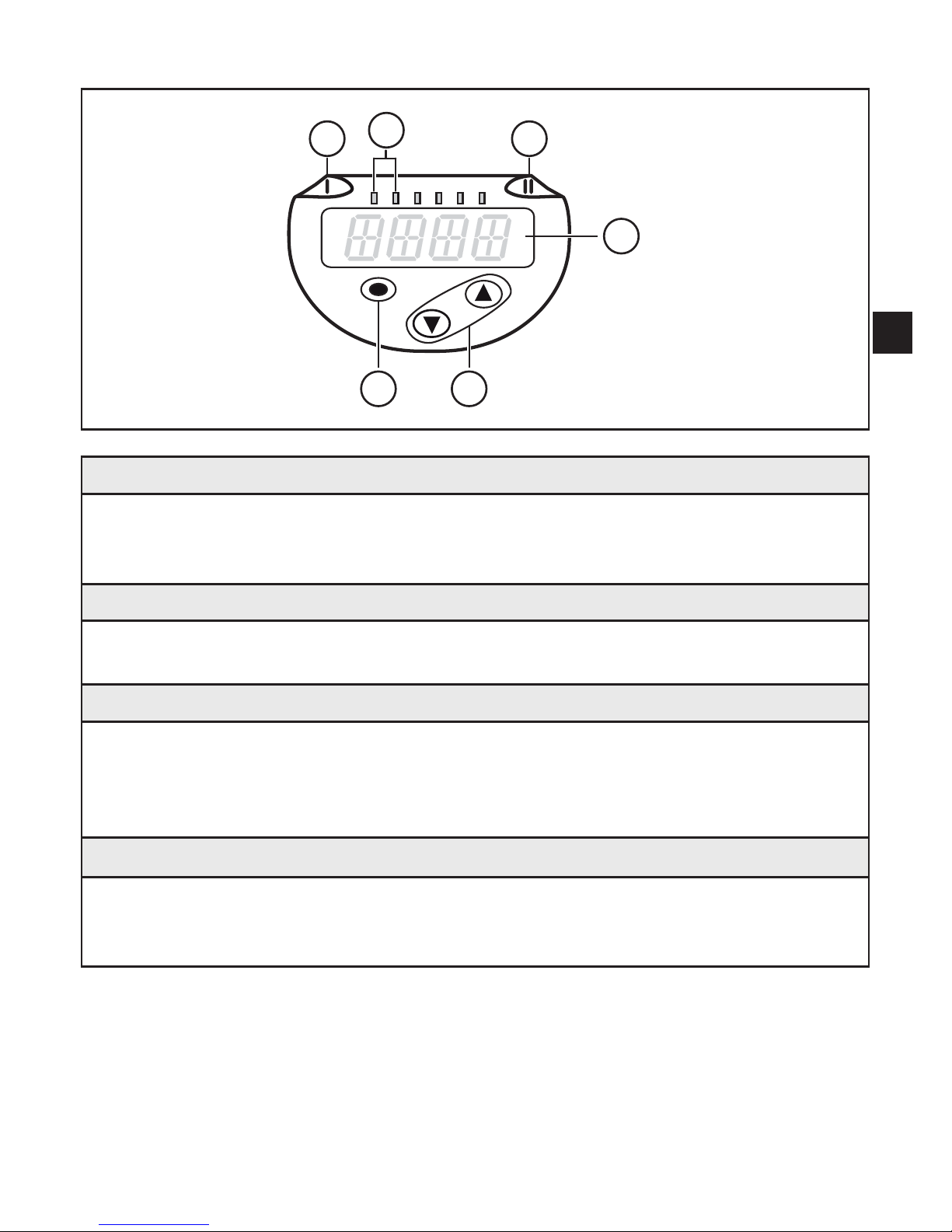

6 Operating and display elements ������������������������������������������������������������������������ 11
7 Menu ������������������������������������������������������������������������������������������������������������������ 12
7�1 Process value display (RUN) and menu structure ���������������������������������������12 7�2 Explanation of the menu ������������������������������������������������������������������������������ 13
8 Parameter setting ����������������������������������������������������������������������������������������������14
8�1 Parameter setting in general �����������������������������������������������������������������������15
8�1�1 Change between the menus ���������������������������������������������������������������15 8�1�2 Change to the process value display (RUN mode) ����������������������������15 8�1�3 Locking / Unlocking ����������������������������������������������������������������������������16 8�1�4 Timeout �����������������������������������������������������������������������������������������������16 8�1�5 Configure colour change display �������������������������������������������������������16 8�1�6 Setting of the limit values for colour change ��������������������������������������� 16 8�1�7 Read the min/max values �������������������������������������������������������������������17 8�1�8 Resetting all parameters to factory setting �����������������������������������������17
9 Operation ����������������������������������������������������������������������������������������������������������� 17
9�1 Reading of the set parameters ��������������������������������������������������������������������17
3
UK
1 Safety instructions
Please read this document prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�
If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property can occur�
Improper or non-intended use may lead to malfunctions of the unit or to unwan­ted effects in your application� That is why installation, electrical connection, set-up, operation and maintenance of the unit must only be carried out by qualified personnel authorised by the machine operator�
Check the compatibility of the product materials (→ Technical data) with the media to be measured in all applications�
The responsibility whether the measurement devices are suitable for the res­pective application lies with the operator� The manufacturer assumes no liability for consequences of misuse by the operator� Improper installation and use of the devices result in a loss of the warranty claims�
2 Functions and features
The unit monitors the system temperature in machinery and plants�
3 Function
The unit displays the current system temperature�
It features an IO-Link interface and is designed for full bidirectional communi­cation�
The unit generates 2 output signals according to the parameter setting:
- OUT1/IO-Link: Switching signal, limit values for temperature
- OUT2: Analogue signal for temperature
9�2 Error indications / self-diagnostics ��������������������������������������������������������������� 18
10 Technical data ��������������������������������������������������������������������������������������������������18
11 Factory setting �������������������������������������������������������������������������������������������������19
4
3.1 Switching function
OUT1 changes its switching status if it is above or below the set switching limits� Hysteresis or window function can be selected�
Hysteresis function Window function
SP1
rP1
FH1
FL1
T = Temperature SP1 = set point rP1 = reset point HY = hysteresis Hno = hysteresis NO (normally open) Hnc = hysteresis NC (normally closed)
T = Temperature FH1 = upper limit value FL1 = lower limit value FE = window Fno = window NO (normally open) Fnc = window NC (normally closed)
When the hysteresis function is set, the set point (SP1) is defined first and then the reset point (rP1) which must be of a lower value� If only the set point is changed, the reset point remains constant�
When set to the window function the upper limit value (FH1) and the lower limit value (FL1) have a fixed hysteresis of 0�25 % of the final value of the measuring range� This keeps the switching state of the output stable if the temperature varies slightly�
5
UK
3.2 Analogue function
The unit converts the measured signal into a temperature-proportional ana­logue signal� Depending on the parameter setting the output signal is at:
4���20 mA [ou2] = I 20���4 mA [ou2] = Ineg 0���10 V [ou2] = U 10���0 V [ou2] = Uneg
The analogue signal can be scaled, that means the limits of the measuring range for the lower output signal (ASP2 = analogue start point) and the upper output signal (AEP2 = analogue end point) can be set�
Minimum distance between [ASP2] and [AEP2] = 5 K�
3.2.1 Current output
Maximum measuring range at [ou2] = I Measuring range scaled at [ou2] = I
MAW MEW
20.5 20
4
3.8
T [°C/°F]
I [mA]
I [mA]
T [°C/°F]MEWMAW AEP2ASP2
20.5 20
4
3.8
MAW = initial value of the measuring range MEW = final value of the measuring range
ASP2 = analogue start point AEP2 = analogue end point
Within the measuring range the output signal is between 4 and 20 mA� If the temperature value (T) is outside the measuring range, the following output signal is displayed:
[ou2] = I [ou2] = Ineg
T < MAW (ASP2) 3�8���4 mA 20�5���20 mA
T > MEW (AEP2) 20���20�5 mA 4���3�8 mA
6
In case of internal fault, the output signal behaves according to the parameter set in [FOU2]:
[FOU2] = On [FOU2] = OFF
[ou2] = I 21 mA 3�5 mA
[ou2] = Ineg 3�5 mA 21 mA
3.2.2 Voltage output
Maximum measuring range at [ou2] = U Measuring range scaled at [ou2] = U
MAW MEW
10.3 10
T [°C/°F]
U [V]
U [V]
T [°C/°F]MEWMAW AEP2ASP2
10.3 10
MAW = initial value of the measuring range MEW = final value of the measuring range
ASP2 = analogue start point AEP2 = analogue end point
Within the measuring range the output signal is between 0 and 10 V� If the temperature value (T) is outside the measuring range, the following output signal is displayed:
[ou2] = U [ou2] = Uneg
T < MAW (ASP2) 0 V 10�3���10 V
T > MEW (AEP2) 10���10�3 V 0 V
In case of internal fault, the output signal behaves according to the parameter set in [FOU2]:
[FOU2] = On [FOU2] = OFF
[ou2] = U 10�6 V 0 V
[ou2] = Uneg 0 V 10�6 V
