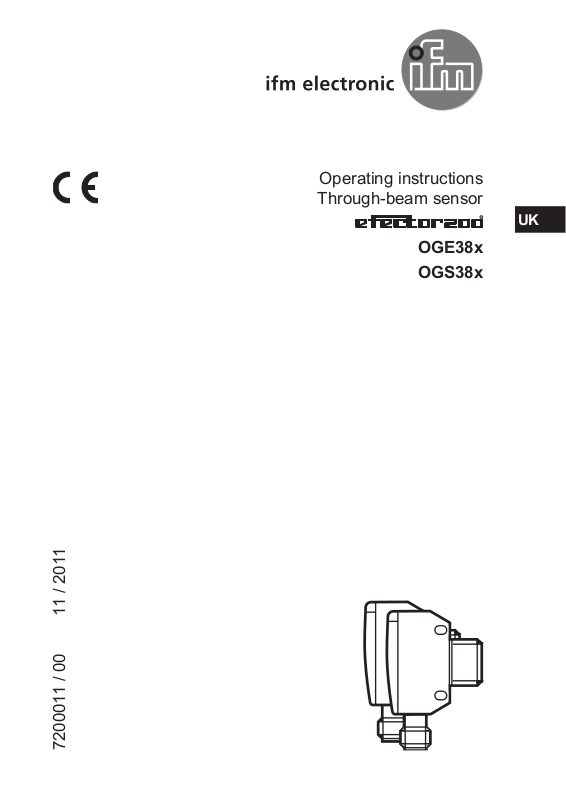

Page 1
Operating instructions
UK
Through-beam sensor
OGE38x
OGS38x
UK
7200011 / 00 11 / 2011
Page 2
1 Functions and features
The through-beam sensor detects objects and materials without contact and
indicates their presence by a switching signal.
For the range see the type label.
2 Installation
► Install the receiver (OGE38x) and secure it to a bracket.
► Align the transmitter (OGS38x) to the receiver and secure it also to a bracket.
> Maximum range only with accurate alignment.
3 Electrical connection
► Disconnect power.
► Connect the unit as follows.
3.1 Transmitter
1
3
+
L
L
pin 1 = L+ (10...30 V DC)
pin 3 = L(pin 4 = not connected)
(pin 2 = not connected)
2
Page 3

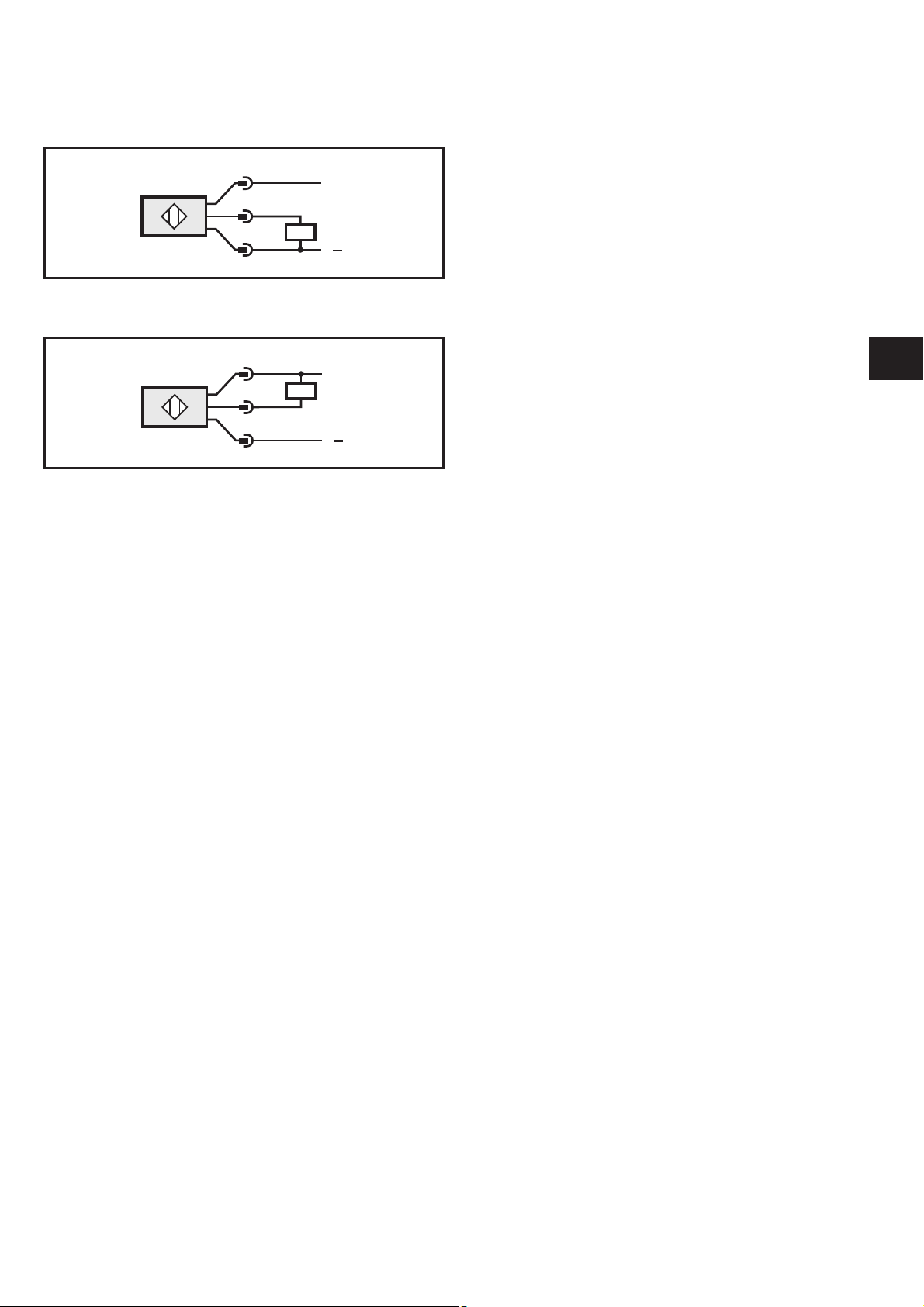

3 Receiver
PNP
1
4
3
+
L
L
pin 1 = L+ (10...30 V DC)
pin 3 = Lpin 4 = load (PNP, 200 mA)
(pin 2 = not connected)
NPN
1
4
3
+
L
L
pin 1 = L+ (10...30 V DC)
pin 3 = Lpin 4 = load (NPN, 200 mA)
(pin 2 = not connected)
UK
4 Operation
Check whether the sensor operates correctly.
• Receiver (OGE38x): The yellow LED is lit when the switching ouptut is switched. The green LED is lit when the sensor is ready for operation.
• Transmitter (OGS38x): The green LED is lit when the sensor is ready for
operation.
5 Maintenance
► Keep the lens of the sensor free from soiling.
► For cleaning do not use any solvents or cleaning agents which could damage
the plastic material.
3
