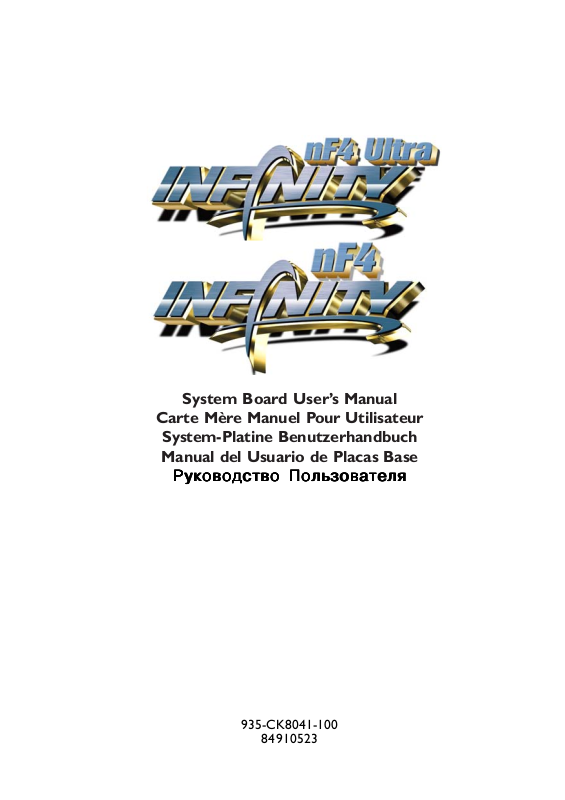

IFINITY nF4, nF4 Ultra User Manual

System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
Руководство ПользователяРуководство Пользователя
Руководство Пользователя
Руководство ПользователяРуководство Пользователя
935-CK8041-100
84910523
1
Quick Setup
Quick Setup Guide
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders. This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the
Guide
contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes. © 2005. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.
Caution
To avoid damage to the system, use the correct AC input voltage range To reduce the risk of electric shock, unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. Battery: 1. Danger of explosion if battery incorrectly replaced. 2. Replace only with the same or equivalent type recommend used batteries according to the battery manufacturer’s
Notice
The system board and accessories in the package may not come similar to the information stated in this manual. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard
package in your region, please contact your dealer or sales representative.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accord­ance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
2. Shielded interface cables must be used in order to comply with the emission
..
.
..
by the manufacturer. 3. Dispose of
instructions.
which the receiver is connected.
responsible for compliance could void the user's authority to operate the equipment.
limits.
Table of Contents
Quick Setup Guide
1
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français....................................................................
Chapter 4
Deutsch...............................................................................
Chapter 5
Español............................................................................
Chapter 6
Русский.......................................................................
15
19
22
26
29
4
Guide
Quick Setup
The user’s manual in the provided CD contains detailed information about the system board. If, in some cases, some information doesn’t match those shown in this manual, this manual should always be re­garded as the most updated version.
Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte de système. Si, en quelque cas, quelque renseignement n’appareille de ce que dit dans ce manuel, ce manuel doit toujours être considéré comme la plus nouvelle version.
Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die Hauptplatine. Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen dargestellt in diesem Handbuch entsprechen, soll dieses Handbuch als die meist aktualisierte Ausgabe gelten.
El uso explicativo contene información detalle sobre la sistema board en el CD preparativo. Si en algún caso, la información no es igual con el uso explicativo, necesita ver el uso explicativo, esque es más nuevo.
В руководстве пользователя на предоставляемом CD диске содержится подробная информация о материнской плате. Иногда напечатанное руководство может не совпадать руководством на CD, так как последнее наиболее часто обновляется и является самым свежим.
1
Quick Setup Guide
Chapter 1 - Quick Setup Guide
System Board Layout
Guide
Quick Setup
The illustration shown above is the NF4 ULTRA INFINITY system board which uses the NVIDIA nForce4 Ultra chip. NF4 INFINITY uses the NVIDIA nForce4 chip.
System Memory
Quick Setup Guide
DDR 4 Channel B DDR 3 Channel A DDR 2 Channel B DDR 1 Channel A
1
Guide
Quick Setup
Single Channel
Dual Channel
• DIMMs are on the same channel.
• DIMMs in a channel can be identical or
completely different. However, we highly recommend using identical DIMMs.
• Not all slots need to be populated.
• DIMMs of the same memory configura-
tion are on different channels.
Memory Configurations
The table below shows the DIMM sockets that must be populated with DIMMs for single or dual channel interface. We strongly recommend that you strictly follow the memory configurations below. Installing DDR DIMMs other than the recommended configurations may cause system boot failure.
Dual Channel
Dual Channel
Dual Channel
Single Channel
Single Channel
Single Channel
DDR 1
-
DDR 1
DDR 1
-
DDR 1
DDR 2
-
DDR 2
-
-
-
-
DDR 3
DDR 3
-
DDR 3
DDR 3
-
DDR 4
DDR 4
-
-
-
1
Quick Setup Guide
Jumpers
Clear CMOS Data
Guide
Quick Setup
PS/2 Power Select
JP2
X
JP7
X
1-2 On: 5V
1-2 On: Normal
(default)
(default)
Clear CMOS Data
312312
2-3 On: 5VSB
312312
2-3 On:
Important:
The 5VSB power source of your power supply must support
≥
720mA.
USB Power Select
Quick Setup Guide
1
USB 1-4
(JP5)
USB 5-10
(JP6)
X
3
2
X
1
(default)
1-2 On: 5V
(default)
2-3 On: 5VSB1-2 On: 5V
2-3 On: 5VSB
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5VSB power source of your power supply must support ≥2A.
Rear Panel I/O Ports
PS/2
Mouse
Parallel
1394_1
LAN
3
2
1
312312
Guide
Quick Setup
Line-in
PS/2
K/B
S/PDIF-in USB 1-2 USB 3-4
COM
S/PDIF-out
Line-out
Mic-in
1
Quick Setup Guide
I/O Connectors
S/PDIF-out/in and CD-in Connectors
Guide
Quick Setup
S/PDIF-out
S/PDIF-in
Left audio
channel Ground Ground
Right audio
channel
IEEE 1394
J3
W
+5V
W
1
Key
SPDIF out
GND
SPDIF in
W
4
CD-in
Note:
DO NOT use RCA S/PDIF and optical S/PDIF at the same time.
1394_1
W
Optical
S/PDIF
1
5
Ground
TPB-
+12V (fused)
TPA-
Ground
TPB+
Ground
+12V (fused)
10
Key
W
9
1394_2
2 1
TPA+
Universal Serial Bus Ports
USB 2 USB 1
USB 4
USB 3
W
W
FDD and IDE Connectors
USB 5-6
USB 7-8
Quick Setup Guide
USB 9-10
W
2 1
VCC
VCC
+Data
-Data
-Data
+Data
N. C.
Ground
10
9
Key
Ground
1
Guide
Quick Setup
34
33
21
FDD
X
40
X
21
IDE 2
39
40
21
39
IDE 1
1
Quick Setup Guide
Audio (Rear Audio and Front Audio)
Guide
Quick Setup
Rear audio
Line-in
Line-out
Mic-in
W
W
10
9
Front audio
AuD_L_Out
AuD_R_Out
MicGND
N. C.
Mic Power
1 2
Key
AuD_Vcc
AuD_L_Return
AuD_R_Return
Light Blue
Lime
Pink
PCI Express Slots
PCI Express x1 PCI Express x1
PCI Express x16
2-channel
Line-in
Line-out
Mic-in
4-channel
Rear R/L
Front R/L
Mic-in
6-channel
Rear R/L
Front R/L
Center/Subwoofer
10
