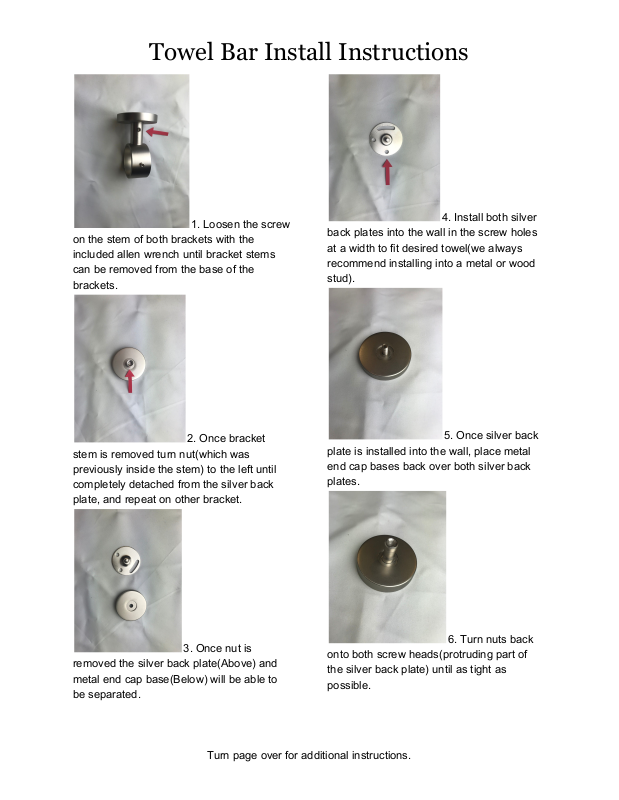

Towel Bar Install Instructions
1. Loosen the screw
on the stem of both brackets with the
included allen wrench until bracket stems
can be removed from the base of the
brackets.
2. Once bracket
stem is removed turn nut(which was
previously inside the stem) to the left until
completely detached from the silver back
plate, and repeat on other bracket.
3. Once nut is
removed the silver back plate(Above) and
metal end cap base(Below) will be able to
be separated.
4. Install both silver
back plates into the wall in the screw holes
at a width to fit desired towel(we always
recommend installing into a metal or wood
stud).
5. Once silver back
plate is installed into the wall, place metal
end cap bases back over both silver back
plates.
6. Turn nuts back
onto both screw heads(protruding part of
the silver back plate) until as tight as
possible.
Turn page over for additional instructions.
7. Slide bracket
stems back over nut and tighten the screws
on the stem(position the brackets and
tighten so that when the rod is inserted that
it will be in a horizontal position).
8. Loosen screw
located at the hole of the brackets where
the rod goes through.
9. Insert rod
through the hole in both brackets. Once rod
is in desired position, tighten the screws
located at the hole of both brackets.
10. Loosen the
screw on both end caps.
11. Slide an end
cap on each side of the rod and tighten the
screw.
