Http://www.ifarsys.com Mobile DVR Manual V6.0
1
MDVR MD704
4-Channel Industry-Grade 720P AHD Mobile DVR Integrating
V6.0
Special Attention: Images of this model is for reference only, and no
further notice will be given in case of any changes.
Http://www.ifarsys.com Mobile DVR Manual V6.0
2
Contents
1. Product Introduction............................................................................................................................3
1.1. Overview....................................................................................................................................3
1.2. Specifications.............................................................................................................................4
1.2.1. Specifications.....................................................................................................................4
1.2.2. Basic Working Parameters.................................................................................................6
1.3. Application.................................................................................................................................7
1.3.1. Environmental Adaptability...............................................................................................7
1.3.2. Precautions.........................................................................................................................7
1.3.3. Typical Applications.......................................................................................................... 8
1.4. Features...................................................................................................................................... 9
2. Appearance and Accessories......................................................................................................... 10
2.1. Front Panel Definitions............................................................................................................10
2.1.1. LED Indicator.................................................................................................................. 10
2.1.2. Other Definitions............................................................................................................. 10
2.2. Rear Panel Definitions.............................................................................................................11
2.3. Definitions of External Cables.................................................................................................11
2.3.1. Power Cable.....................................................................................................................11
2.3.2. Audio/Video Input/Output Cables...................................................................................12
2.3.3. GPS Module.....................................................................................................................13
2.3.4. 3G WiFi Antenna.............................................................................................................13
2.3.5. Extension Cables............................................................................................................. 13
2.4. Infrared Remote Controller......................................................................................................14
3. Description of Host Menus.............................................................................................................. 15
3.1. Menu Structure........................................................................................................................ 15
3.2. User Login............................................................................................................................... 15
3.3. Main Menu...............................................................................................................................16
3.4. Rec Query................................................................................................................................ 16
3.5. System Setup............................................................................................................................17
3.5.1. Basic Setup...................................................................................................................... 18
3.5.2. Record Setup....................................................................................................................19
3.5.3. Power Setup.....................................................................................................................21
3.5.4. Alarm Setup.....................................................................................................................22
3.5.5. Security Setup..................................................................................................................25
3.5.6. Network Setup................................................................................................................. 26
3.6. System Info..............................................................................................................................27
3.7. Management Tools...................................................................................................................28
3.7.1. Log Management.............................................................................................................29
3.7.2. Disk Management............................................................................................................30
3.7.3. Display Settings...............................................................................................................30
3.7.4. Peripherals Setting...........................................................................................................31
3.7.5. PTZ Management............................................................................................................ 31
3.7.6. Serial Port setting.............................................................................................................32
Http://www.ifarsys.com Mobile DVR Manual V6.0
3
3.7.7. System Upgrade...............................................................................................................33
3.7.8. Shortcuts...................................................................................... 33
4. Host Upgrading Instructions...........................................................................................................34
4.1. Upgrading Modes.................................................................................................................... 34
4.2. Upgrading Steps.......................................................................................................................34
4.2.1. Applications.....................................................................................................................34
4.2.2. Uboot/ Rootfs/Kernel.......................................................................................................34
4.2.3. SCM................................................................................................................................. 34
4.2.4. Viewing Version Number................................................................................................ 35
5. FAQs....................................................................................................................................................... 35
5.1. Questions on Recording....................................................................................................................35
5.2. Questions on Alarm.......................................................................................................................... 36
5.3. Others................................................................................................................................................ 36
1. Product Introduction
1.1. Overview
This MDVR is a high-end mobile hard drive DVR dedicated for mobile surveillance market.
Applying high-speed processor and embedded operating system and integrating various
state-of-the-art technologies of IT industry, such as audio/video codec technologies,
large-capacity hard drive storage technologies, stream media network technologies,
video/audio noise reduction technologies, mature damping technologies and wide voltage
design, it features concise appearance, flexible installation, powerful functions and safe and
reliable system.
Product picture:
.
....................................
Http://www.ifarsys.com Mobile DVR Manual V6.0
4
1.2. Specifications
1.2.1. Specifications
Item Description
OS Linux3.0
Graphics Operation Interface
System parameters can be set through external display and
remote controller
Security Management
2-level management for user password, administrator
password, supporting encrypted transmission
Video and
Preview
Video Input,
Output
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD
Character superposition function, information superposition
of time and date, device ID and GPS, etc.
Video
Compression
Format
Compression coding. Applying Hisilicon hi-performance
processor.
Dual-Stream Supported
Preview
Function
Preview of 1-channle, 4-image stitching, supporting full
screen triggered by event and switching of stitched images
Frame Rate
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC:
120 frames/s, up to 30 frames/s per channel
Resolution AHD 720P，D1, HD1 ,CIF 4channel
Quality Grade 1 to grade 8 for selection (1 is the best)
Http://www.ifarsys.com Mobile DVR Manual V6.0
5
Bit Rate
CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection
HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection
D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection
720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection
Audio
Audio Input,
Output
4-channel input, 1-channel output
Compression
Format
G.726 coding
Recording
Storage
Medium
Supporting one 2.5” hard drive and one SD card, which
supports up to 128G, supporting data redundancy storage
technology;
File Format/
System
Special file system
Video
Strategies
Recording at startup by default, supporting timed recording,
recording triggered by alarm and event, as well as manual
recording
Video Search
Searching by time, type, storage device and other
conditions
Video
Playback
Supporting playback on local device, supporting
synchronous playback of up to 4 channels and analysis on
vehicle information in the files
Supporting fast forward, fast backward, play and pause,
supporting fast forward and fast backward at 2x, 4x, 8x and
16x speed, supporting file play from selected time
Alarm
Alarm Input/
Output
8-channel on/off signal alarm input, 2-channel on/off signal
alarm output
Alarm
Recording
duration of recording after alarm can be adjusted from 10s ~
999S
Storage Space
Alarm
Supporting settings for alarm of storage space
Function Alarm
GPS overspeed alarm, acceleration alarm, motion detection
alarm
Communication Ports
485,RS232, RJ45 10M/100M self-adaptable network
interface
Wireless Transmission
(Optional)
Supporting Wi-Fi;
GPS (Optional)
Supporting external GPS
PTZ Control
Supporting PTZ control realized by local;
Parameter Configuration
Supporting parameter configuration functions for mobile
DVR coding channel;
G-Sensor
Embedded
System Upgrading
Supporting SD card, hard drive upgrading and remote
upgrading
Http://www.ifarsys.com Mobile DVR Manual V6.0
6
Power
Supply and
Power
Consumptio
n
Power Supply
1. ACC on/off
2. Hard drive lock on/off
3. Delayed shutdown
4. Timed on/off
Input Voltage
DC:+9V ~ +36V
Output Voltage
+12V@5*0.5A;
Power-off
Protection
With patented UPS power supply continuous working
technology, it can work for 3~5 seconds after external power
supply is cut so that the intactness of video data can be kept
upon sudden power failure
Power
Consumption
<10W in normal operation; <0.5W in standby mode
Operating
Environment
Temperature
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~
+60℃
Humidity
10% to 95%
Dimensions
160(W) x62(H) x200(D) mm.
Weight
Net: 2200g, Gross: 3500g
1.2.2. Basic Working Parameters
Item
Working
Parameters
Description
Power Supply Input
9 ~ 36V
Input voltage at +9V~+36V, the device will be
automatically turned off and enter the protection mode if
the voltage is lower than 8V for a long time; if the
voltage is higher than 36V for a long time, the voltage
protection device will block the power supply.
Output Voltage
12V
Output voltage12V (+/-0.2V), Max. current: 2.5A.
Vehicle Key Signal
≤6V
Vehicle key off.
≥7.5V
Vehicle key on.
Video Input
Impedance
75Ω
Impedance of 75Ω for each channel of video.
Video Output
1Vp-p
Outputting a 1Vp-p CVBS analog signal.
I/O Interface
0 ~ 2V
Low-level alarm.
Above 5V
Hi-level alarm.
RS232 Serial Ports
Standard
Interface
Supporting 1 RS232 ports ,1 RS485 port
GPS Antenna
Pedestal
External Antenna
Antenna interface with embedded GPS
Http://www.ifarsys.com Mobile DVR Manual V6.0
7
Ethernet Interface
Standard
Interface
Standard RJ45 interface, with indicator.
SD Card Interface
Standard
Interface
Compatible with commerciall avaiblable brands.
Working
Temperature
0℃~ +55℃
Hard drive heating -25℃ ~ +55℃
1.3. Application
1.3.1. Environmental Adaptability
Applicable to various applications, and the indexes are detailed as follows:
Item
Index
Upper limit of temperature for storage
65℃
Upper limit of temperature for operation
55℃
Lower limit of temperature for storage
-40℃
Lower limit of temperature for operation
0℃, or -25℃ with hard drive heating module
Working altitude
–300 ~ 3048m (10, 000 ft)
Transmission altitude
–300 ~ 12, 192m (40, 000 ft)
RH
20%~95%
Max. temperature gradient
20℃/h
Vibration threshold (Unpowered)
No greater than 5mm p-p (5 – 22Hz)
49m/s2 (5.0G) (22 – 500Hz)
Vibration threshold (Normal operation)
No greater than 1.0mm p-p (5 - 22Hz)
9.8 m/s2(1.0G) (22 – 500Hz)
Impact threshold (Unpowered)
No greater than 1200G, (11, 760m/s2)
(duration 1 ms, 1m height, semi sine wave)
Impact threshold (Normal operation)
No greater than 500G, (4, 900m/s2)
(duration 2 ms, semi sine wave)
IP of enclosure
IP54
1.3.2. Precautions
To ensure safe use, satisfactory performance and extended service life of the product,
please pay attention to the following when installing and operating the device:
1) During the installation and operation of the device, make sure to observe all criteria for
electronic products as well as requirements for vehicles and other connection devices;
2) Power supply and grounding:
a) The direct input range of the power supply of the device should be DC 8V to 36V,
avoid reverse connection or short circuit of output. Please pay attention to the
power supply capacity of the power cable.
b) Even if the device is turned off, there’s still electricity left inside it, please prevent
Http://www.ifarsys.com Mobile DVR Manual V6.0
8
short circuit. Before connecting to other external devices, please cut the
connection between the device and the power supply;
c) The output voltage of the device is 12V, only used for power supply of the camera,
please do not enclose any device that are not allowed to be used on the device;
d) The sensor input mode of the device is leveling, if the external voltage is less than
2V, it is regarded to be low level, and the voltage between 5V~30V is regarded to
be high level, and the voltage over 30V will cause abnormal data collected by the
device or damage of the device. The voltage higher than 2V and lower than 5V is
illegal.
e) Correctly connect the earth wire of the device to the earth wire of the vehicle to
constitute the circuit;
f) If the device is to be laid aside for a long time, it is better to completely cut the
power supply to extend the service life;
3) Humidity requirements:
a) The device should be installed in dry environment, avoiding humid, dripping and
spraying of water. Do not install the device at sunken locations with the possibility
of water accumulation or wet locations subject to liquid dripping;
b) Do not touch the device by wet hand or touch the device while standing in water
or other water sources, which may cause electric shock;
4) Installation locations:
a) To extend the service life of the device, try to install the device at locations on the
vehicle subject to slight vibration.
b) The device shall be installed in ventilating parts of the vehicle: when installed on
a level plane, the device shall be kept 6 inches (15cm) away from other objects to
facilitate ventilation and cooling; do not install the device in an enclosed space
(the trunk, for instance).
c) External cables of the device should be provide with sufficient spacing and
flame-retardant housing to prevent the cable from bending or abrasion due to
vibration and thus cause leakage of electricity;
d) Keep the device from heat source of the vehicle or sundries, it is strictly
prohibited to place anything on the device.
e) The device can only be installed horizontally or vertically sideways (please
consult the manufacturer if you need to install it along another direction),
installation at any other angle may damage the device and is strictly prohibited.
5) Device safety:
a) Prevent the driver or passenger from intervening or damaging parts, cameras,
cables and other accessories of the device, keep the device away from other
restricted vehicle parts;
b) Starting the vehicle while installing components, cameras, cables and other
accessories of the device may cause damage of the device, keep the vehicle still
during the installation and prevent it from dropping.
1.3.3. Typical Applications
Applications: bus, school bus/staff bus, logistic trucks, coach bus, taxies, train/metro/light
Http://www.ifarsys.com Mobile DVR Manual V6.0
9
rail, vessels.
1.4. Features
H.264 video code compression, dual stream output;
G.726 audio compression format, 4-channel audio input, 1-channel audio output.
Power-off protection in emergency, adopting special UPS technology which ensures the
device to work for 3-5 seconds after the external power supply is cut, thus ensure
complete video data and avoid file damage;
Real-time local recording, multiple formats for selection, supporting full screen of single
channel or multi-window stitching upon accidents;
Switch signal interface, 8-channel alarm input, 2-channel alarm output;
PTZ control;
Multiple recording modes: record upon startup, timed recording and triggered recording;
Special file system: can be played with Special playback software, supporting
1-channel or 4-channel or 8-channel synchronous playback;
Data storage, supporting a 2.5” hard drive and 1 SD card with the capacity up to 128G;
supporting dual-stream mirror image video recording, SD card recording upon loss of
hard drive, supporting hard drive heating, applying drawer-type hard drive box;
Wide voltage design, 9-36V DC wide voltage input, suitable for various vehicles; DC
12V/2.5A output;
Rapid startup, capable of entering normal working mode within 25 seconds after startup;
supporting on/off with key switch, timed on/off and delayed on/off, etc.;
Optional functions:
3G wireless transmission;
Wi-Fi wireless transmission;
GPS, G-sensor acceleration sensor, with precise time correction;
IP calling;
Dialing;
Http://www.ifarsys.com Mobile DVR Manual V6.0
10
2. Appearance and Accessories

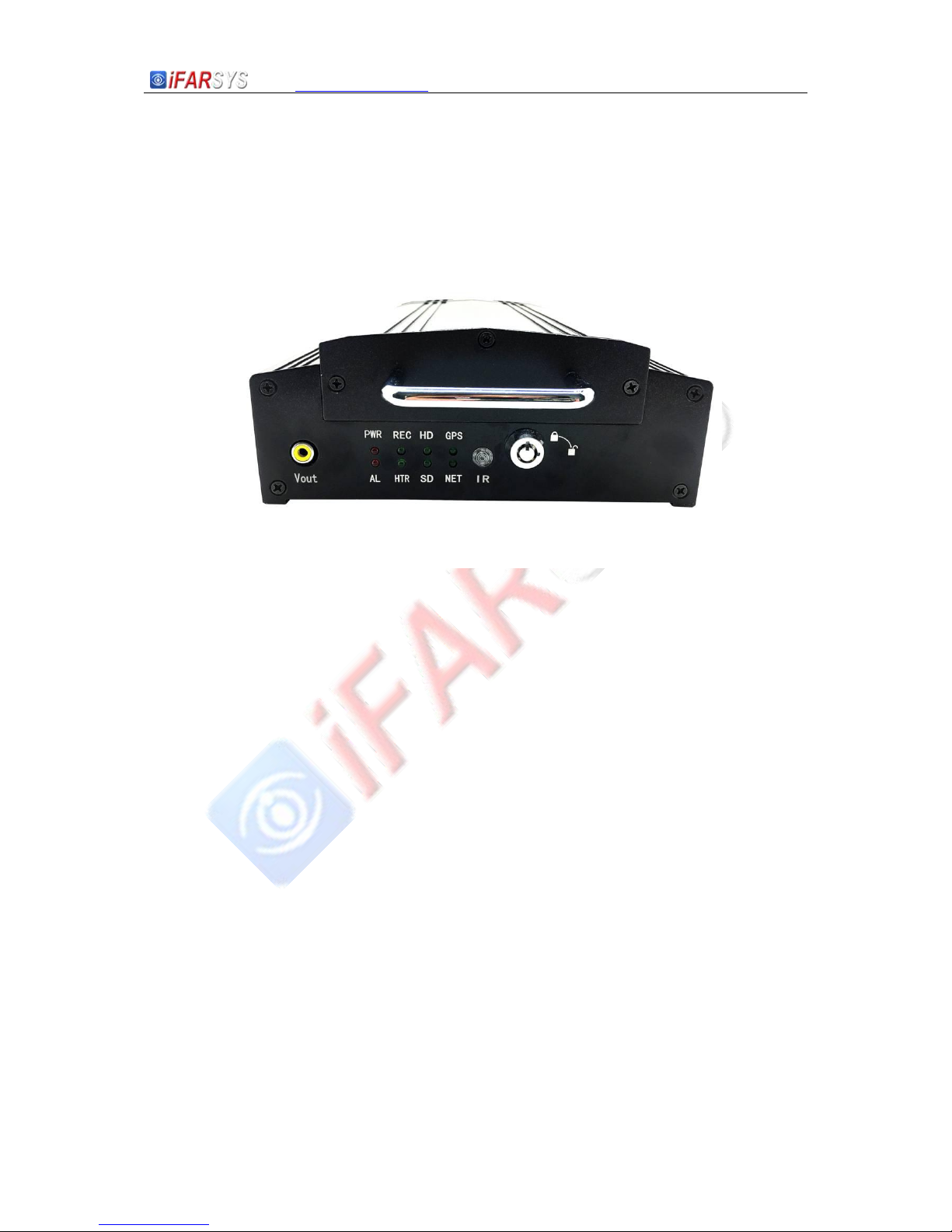

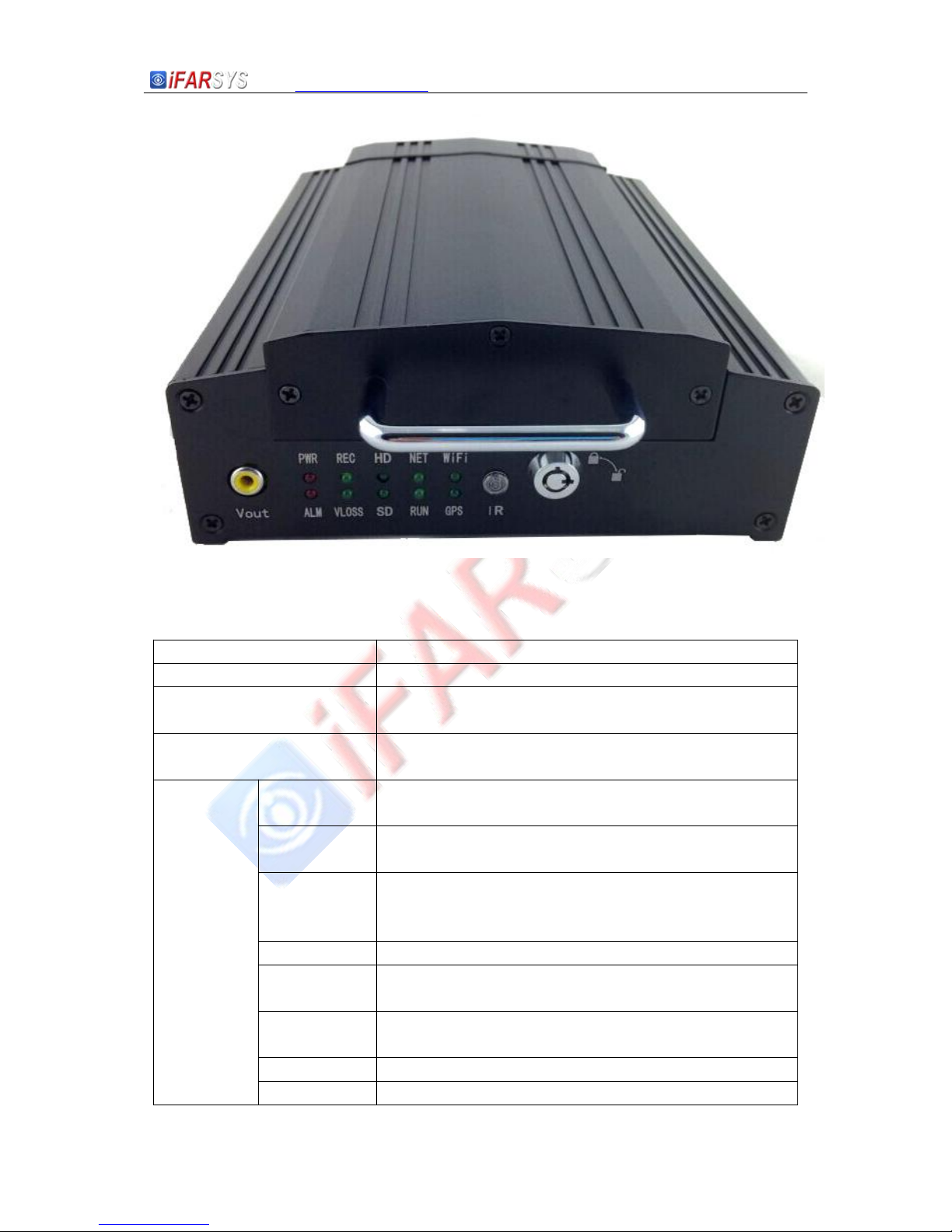

2.1. Front Panel Definitions
2.1.1. LED Indicator
[PWR]Power supply state indicator: LED on ─ system powered.
[AL]Alarm indicator.
[REC]Recording indicator: LED ON - recording.
[HD]Hard drive indicator: LED ON -hard drive successfully loaded; LED out -failure
loading hard drive; LED flashing -hard drive recording.
[SD]SD card indicator: LED ON -SD card successfully loaded; LED out-failure loading
SD card; LED flashing-SD card recording.
[GPS]GPS signal indicator.
[V-Loss]Video loss indicator: LED ON -1 or more video inputs lost.
[HTR]Heating indicator.
[NET]Network indicator.
2.1.2. Other Definitions
[IR]IR receiver for receiving signals from the remote controller.
[LOCK]Hard drive lock, the device can be started only after being locked and be
automatically in the standby status after being unlocked.
[Video out] video output
Http://www.ifarsys.com Mobile DVR Manual V6.0
11
2.2. Rear Panel Definitions
●
[PWR]Power supply interface.
●
[*]
[GPS]GPS module interface.
●
[EXTEND I/O]Extension interface.
●
[RJ45]Network interface.
●
[AV IN]Audio/video input interface.
●
[AV OUT]Audio/video output interface.
●
[*]
[WI-FI]Wireless LAN antenna interface.
●
[*]
[3G]3G antenna interface.
2.3. Definitions of External Cables
2.3.1. Power Cable
The figure below shows the power cable, and the red wire and the black wire are directly
connected to the battery jar of the vehicle. The red wire is connected to the positive pole,
and the black to the negative pole. The yellow wire is connected to the ignition wire when
the on/off mode is set to ignition mode. The device will be automatically turned on once the
vehicle key switch is turned on and automatically turned off when the vehicle key switch is
turned off. The yellow wire is connected to the position for the vehicle key to turn on all
dashboard lights (the one before the position to start the motor).
Note: 1) Before connection, confirm the voltage of the battery jar between 12UUVUU—24UUVUU, or
the device may be burnt;
Http://www.ifarsys.com Mobile DVR Manual V6.0
12
2) After the connection, pay attention to the insulation between power cables to prevent
short circuit of the power supply that may burn the battery jar.
3) The yellow wire must be connected to the ignition wire, otherwise, the device will not
support ignition mode.
4) Note: the mobile device must be directly connected to the positive and negative poles of
the battery jar without any earth, which may generate negative pulse and disturb normal
operation of the device. Power cables for the positive and negative poles must have the
diameter of above Φ1.5.
Power cable
The figure above shows the actual power cable
Circuit
Color
Name
Description
Black
BAT-
Black wire for grounding
Red
BAT+
Red wire for power supply
Yellow
ACC
Yellow wire for ACC
2.3.2. Audio/Video Input/Output Cables
Http://www.ifarsys.com Mobile DVR Manual V6.0
13
2.3.3. GPS Module
GPS module antenna
The figure above shows the actual GPS module
2.3.4. 3G ，WiFi Antenna
3G antenna : Wi-Fi antenna
2.3.5. Extension Cables
Extension cables
Http://www.ifarsys.com Mobile DVR Manual V6.0
14
AL1—AL8： alarm input
RX/TX ： RS232 port
485A/485B： 485 port
12V：12V 500mA power output
out1/out2 ：2 channel alarm output ，Can activate the external two independent relay.

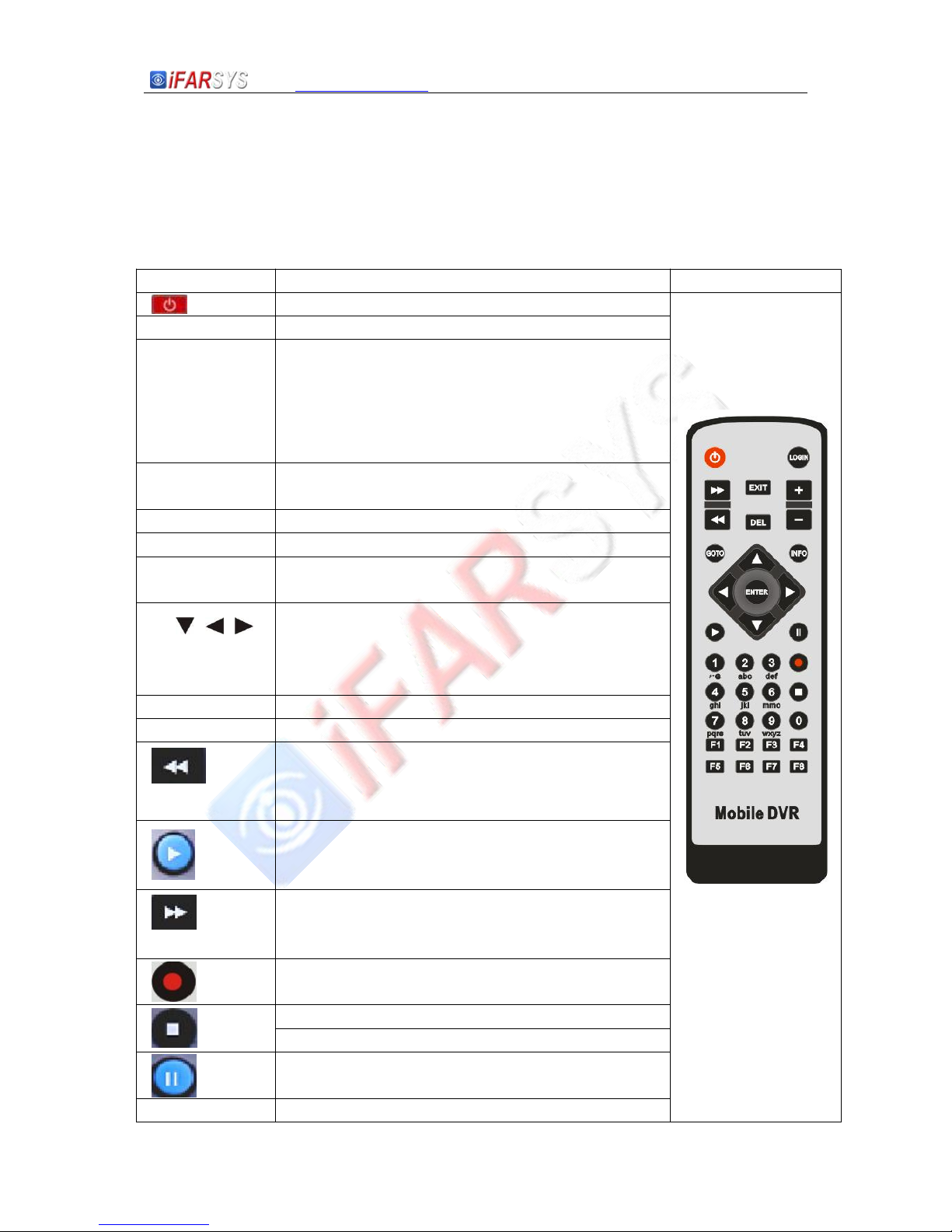

2.4. Infrared Remote Controller
Key
Function
Remote on.
[LOGIN]
Login the system for parameter settings.
[0-9]
[0-9] keys: In the setting status, the numeric keys are
used for number selection. During playback, keys 1, 2, 3
and 4 are used for switching between single window of
channels 1-4, key 5 is used for switching to
synchronous playback of 4 channels.
[-][+]
Increasing and decreasing (scrolling) in setting some
menu parameters.
[DEL]
Backspace when inputting numbers.
[EXIT]
Exits to the preview menu or returns to the parent menu.
[ENTER]
Confirms parameter selection and settings as well as
operations like play.
▲, , ,
Arrow keys that move the cursor upward, downward,
leftward and rightward.
The left and right keys are used for increasing and
decreasing the volume during surveillance playback.
[GOTO]
Plays the video from the selected time.
[INFO]
Displays system information in the surveillance status.
Fastback, 2x/4x/8x/16x for selection, press once to
switch to the next speed in order, press [Play] to resume
normal speed;
Plays the video during playback.
Fast-forward, 2x/4x/8x/16x for selection, press once to
switch to the next speed in order, press [Play] to resume
normal speed;
Starts recording in manual recording mode.
Stops recording in manual recording mode.
Stops playing the video in playback mode.
Pauses during playback.
[F1]
Displays information like acceleration GPS, Wi-Fi, 3G
Http://www.ifarsys.com Mobile DVR Manual V6.0
15
module, SIM card, dialing, online, etc. in the
surveillance menu.
[F2]
Monitors single channel and displays PTZ information.
[F3-F8]
Reservation
3. Description of Host Menus
3.1. Menu Structure
The user may control various functions of the device through a series of menu operations, in
this chapter, we will briefly introduce the structure of such menus, and detailed description
will be provided in subsequent chapters.
Menu Structure
3.2. User Login
When the password is set to “enabled”: press the [ENTER] button after startup of the
main device to enter the login menu (as shown in the figure below), where it is required
to input the correct user password or administrator password;
Login
Video playback
System settings
System information
Managementtools
All videos
Alarm video
Basic settings
Recording settings
On/off settings
Alarm settings
Security management
Network settings
Log management
Disk management
Factory settings
Configuration management
PTZ management
Display settings
System upgrading
Serial port management
System information
System set
Http://www.ifarsys.com Mobile DVR Manual V6.0
16
Move the cursor to “Login” and press [ENTER] to enter the system main menu;
Move the cursor to “Cancel” and press [ENTER] to quit the login menu.
When the password is set to “Disabled”: press the [ENTER] button after startup of the
main device to directly enter the system main menu without login;
Note: after restoring to factory settings, the password for ordinary user is 000000 and
that for administrator is 888888; You can only view the system menu if you log in with
the user password and will have no privilege to modify the parameters; if you log in with
the administrator password, you will be able to both view the system menu and modify
settings.
3.3. Main Menu
After user login, you will enter the following main menu, consisting of: Rec query ,Backup,
Picture,Log mgmt,System info, System set,Veh set ,Event Set,System Tool.
Http://www.ifarsys.com Mobile DVR Manual V6.0
17
3.4. Rec Query
In the main menu, press the arrow keys to select the video to playback, and press [ENTER]
to enter the REC SEARCH interface.
3.5. System Setup
In the main menu, press the arrow keys to select the SYSTEM SETUP menu, and press
[ENTER] to enter the following SYSTEM SETUP menu. The menu mainly consists of the
following submenus:.BASE SET, REC SET, POWER SET, ALARM SET, SECURITY,
NETWORK.
Http://www.ifarsys.com Mobile DVR Manual V6.0
18
3.5.1. Basic Setup
This menu is mainly for settings of basic information of the system.
Time Format
This is used for selecting date format, i.e., year-month-date, date-month-year,
month-date-year. press [ENTER] for selection.
Time Zone
This is used for selecting time zone, GMT+08 by default, press [ENTER] or [<] [>] for
selecting other time zones.
Sys Time
This is used for modifying the current date, press numeric keys for input
Device ID.
This is used for occasions where one remote controller is used for controlling multiple
devices, adopting different passwords and device IDs may avoid mutual interference.
Http://www.ifarsys.com Mobile DVR Manual V6.0
19
When setting the device No., press DEL to delete the original number and press the
numeric keys to input the number, which must be in 5 digits. Enter security settings to
set password corresponding to the device No.
“Company Name”, ”License Plate Number”, ”Driver Name”, ”Route Number”
Press [Enter] to enter keypad menu, press the arrow keys to move the cursor, and
press [Enter] to select corresponding letters and digits to be inputted.
Upon completion of settings, press the Save button to save the settings.
3.5.2. Record Setup
This menu is for settings of recording parameters.
System
PAL/NTSC, press [ENTER] to input.
Record Mode
Http://www.ifarsys.com Mobile DVR Manual V6.0
20
Record upon Power ON start recording (default)/Timed Recording/Alarm Recording,
press [ENTER] to input.
There are 3 modes: Power ON Startup, Timed and Alarm, and the default mode is
Power on start recodding
ON: Automatically starts recording at startup of the device
Timed: Automatically starts recording at the set time
Alarm: When there is alarm event triggered alarm recording
IQ(image quality)
Grade 1 to grade 8 for selection (1 is the best)
RS(Resolution)
720P/D1/HD1/CIF, D1 by default, press [ENTER] to input.
Audio
To set whether to encode audio synchronously while video recording or not. Select
enable/ disable, and press [ENTER] to input.
Time Slice
Length of each section of video recorded in continuous recording status, 15/30/45/60,
[ENTER] to input.
SD Function (*Future add)
No recording / Mirror image recording / Record upon loss, press [ENTER] to input.
1) No recording: recording is only available for hard drive, even if it’s full, the SD
card will not be used for recording.
2) Mirror image recording: When the hard drive is recording video with the main
stream, the SD card is recording video with the sub-bit stream; When the hard
drive is not recording, the SD card will not record; the recording will not be started
without the SD card; and the recording with SD card will not be started without the
hard drive;
3) Record upon loss: in case hard drive error or absence of the hard drive, the SD
card will record video with the main stream;
Note: If both the hard drive and the SD card exist, priority should be given to the hard
drive.
Video channel settings
This is used for setting recording parameters of each channel, press [ENTER] to
input.
4 channels, image quality levels from 1~8, with level 1 as the highest and level 8 as
the lowest, frame rate: 1~25 frames for PAL and 1~30 frames for NTSC; recording can
be enabled or disabled.
REC Delay for alarm recording
10 seconds by default, adjustable within the range 1 seconds~999 seconds, press
numeric keys to input.
VM (Video signal input)
Standard/High/Mixture.
Standard is Analog video input. High is 4 channel AHD 720P input. Mixture channel
Http://www.ifarsys.com Mobile DVR Manual V6.0
21
1-2 are AHD 720P input and 3-4channel is Analog video input.
Sub-Stream
Move the cursor to “sub-stream”, press [ENTER] to enter the follow menu of
Sub–stream Setup:
Resolution
CIF, press [ENTER] to input.
Quality
Hi/Med/Low, press [ENTER] to input.
Bitrate
16/24/32/48/56/64/80/96/112/128/160/176/200/280 bits, press [ENTER] to input.
Frame rate
01/02/03/04/05/07/10/13/15/20 frames, corresponding to bit rate, press [ENTER]
to input.
Upon completion of settings, you must press the Store button to save settings.
3.5.3. Power Setup
Set on/off parameters.
Http://www.ifarsys.com Mobile DVR Manual V6.0
22
On/off mode
Set on/off mode and press [ENTER] to input.
1) TIME mode: turns on or off the device according to the on/off period set by the
user.
2) ACC mode: turns on/off the device according to the vehicle key signals.
Delayed off
The device will be turned off upon the delayed off time, and then press [ENTER] to
input.
Delay time
The delay time can be set within the range 3~240 min, press DEL to clear the original
number and press numeric keys to input.
Timed on time
Set the time to turn on the device in the timed mode, press numeric keys to input.
Timed off time
Set the time to turn off the device in the timed mode, press numeric keys to input.
Upon completion, press the Save button to save settings.
Note:
There’s no difference in the length of timed on time and timed off time, the whole period is a cycle.
2
3.5.4. Alarm Setup
Set output parameters upon alarm.
Http://www.ifarsys.com Mobile DVR Manual V6.0
23
Alarm input
Supporting synchronous input of up to 8 channels of alarm.
“Enable”: Set whether to enable the function upon alarm, press [ENTER] to input.
“PWL”: set high\low level, press [ENTER] to input.
“Record”: set whether to start alarm recording of this channel, press [ENTER] to input.
Alarm output
Http://www.ifarsys.com Mobile DVR Manual V6.0
24
Supporting synchronous output of up to 2 channel of alarm.
“Enable”: Set whether to enable the function upon alarm, press [ENTER] to input.
“PWL”: set high\low level, press [ENTER] to input.
GPS Overspeed
Move the cursor to “overspeed” and press [ENTER] to enter the following menu of
overspeed alarm:
Threshold: 60km/h by default, adjustable within the range of 0~999. press DEL to
delete the original number, press numeric keys to input.
Enable: On/Off, press [ENTER] to input;
On: when the speed of the GPS exceeds the threshold value, the alarm recording
will be started and alarm logs will be recorded;
Off: when the speed of the GPS exceeds the threshold value, neither the alarm
recording nor the alarm logs will be started
Upon completion, press the Save button to save settings.
Acceleration
Move the cursor to “G-Sensor”, press [ENTER] to enter the following menu of
Http://www.ifarsys.com Mobile DVR Manual V6.0
25
G-Sensor settings:
“Threshold”: Set values of X, Y and Z directions within the range of 0.00g--9.99g,
press DEL to delete the original number, press numeric keys to input.
“Alarm Switch”: set whether to enable or disable G-sensor alarm, press [ENTER] to
input.
Alarm on: In the recording status, when any of the directions of X, Y and Z exceed
the “Threshold”, the alarm recording and the alarm logs will be started.
Alarm off: In the recording status, when any of the directions of X, Y and Z exceed
the “Threshold”, neither the alarm recording nor the alarm logs will be started.
“Adjust”: Before initial use of the device, you need to click on “Adjust” on the menu for
calibration of X/Y/Z values, press [ENTER] to input. Upon completion of the calibration,
the current X, Y, Z values will be zeroed.
Upon completion, press the Save button to save settings.
3.5.5. Security Setup
Setting login password
Http://www.ifarsys.com Mobile DVR Manual V6.0
26
Password
Set whether to enable the login password, and then press [ENTER] to input.
On: When log in with the Admin password, Admin\User password can be set;
When log in with the user password, only the User password can be set, press
numeric keys to input, the passwords inputted twice should be consistent.
Off: Password cannot be set. After entering the menu, one can directly enter the
main menu without login.
Note: If there are multiple devices with the same power supply for recording, please
set different password and device ID for each device so as to avoid disturbing other
devices when operating one of them, the device ID may be modified in Basic Setup.
3.5.6. Network Setup
Local setup
Set the device IP address, netmask, gateway, MAC, etc., which should be within the
same subnet with the center server, as shown in the figure above.
WAN connection: No need to set local network.
Center setup
Connection within the LAN
Set the center server IP address, which should be within the same subnet with
the device IP, the port number of 5678 is fixed.
WAN connection
Server IP
Set WAN IP
Port number
For accessing with routers, port mask 5678 on the router must be set.
Domain name
Targeting some users with dynamic IP, the user may apply for a DDNS account
on line and set corresponding domain name. (e.g.: HUwww.123.cnUH)
Http://www.ifarsys.com Mobile DVR Manual V6.0
27
Wi-Fi Setup
Move the cursor to ‘Wi-Fi’, press [ENTER] to enter the following Wi-Fi menu:
WiFi
On/ Off, press [Enter] for selection
Encrypt
On/ Off, press [Enter] for selection
Encrypt type: WEP by default
Wi-Fi wireless local network settings
Set IP, sub-mask, gateway, SSID, Password, etc., within the same subnet of the
center server
Upon completion, press the Save button to save settings.
Note: The settings above should be corresponding to the router;
3.6. System Info
In the main menu, press the arrow keys to select the System Information menu, and press
[ENTER] to enter the following menu of system information.
Http://www.ifarsys.com Mobile DVR Manual V6.0
28
Software version number
Software version number of the device.
Hardware version number
Hardware version number of the device.
MCU version number
Version number of the SCM
Hard drive information
“Storage Medium”: SD and HDD.
“Total Capacity”: displays the total capacity of the SD card and the hard drive.
“Remaining”: displays the free space of the SD card and the hard drive.

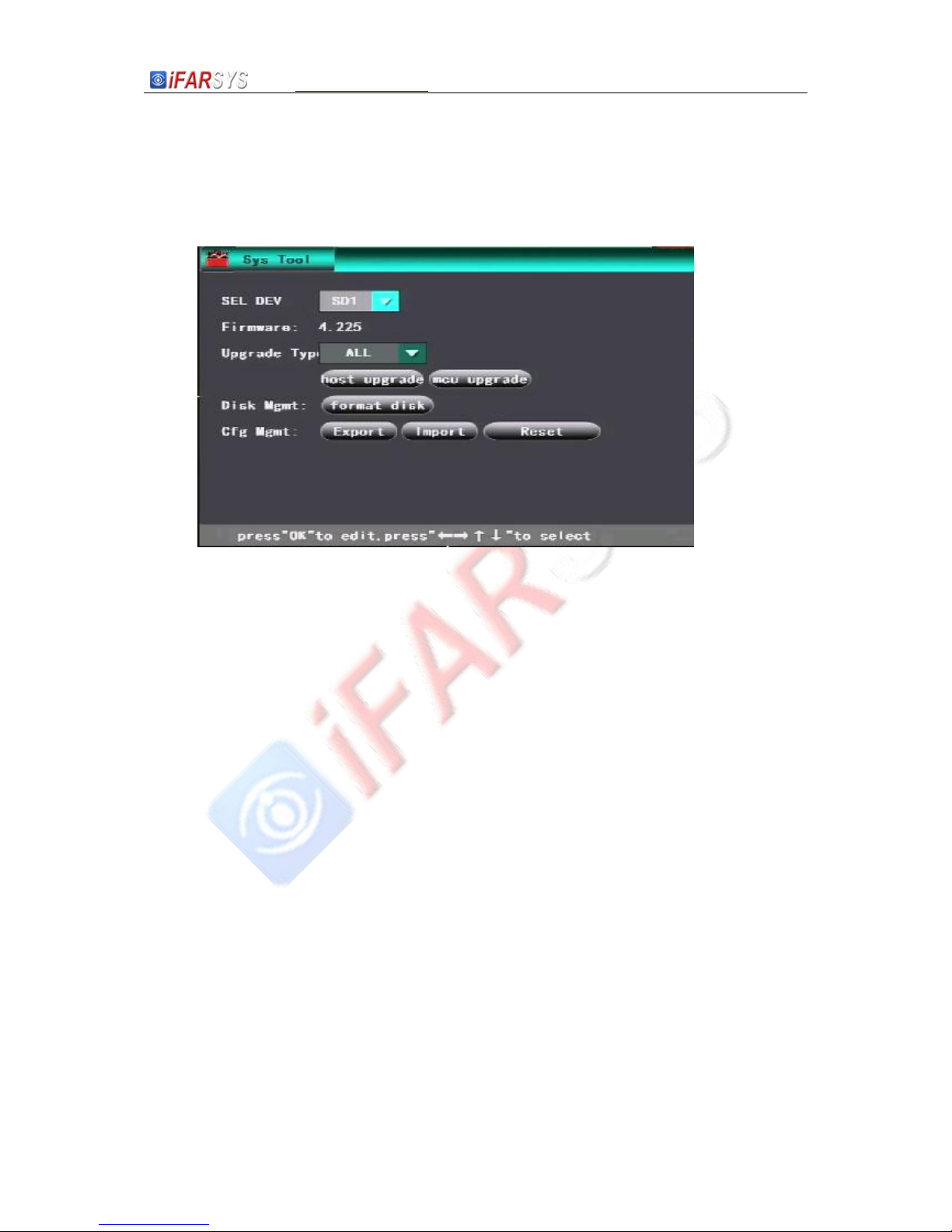

3.7. Management Tools
In the main menu, press the arrow keys to select Management Tools menu and press
[ENTER] to enter the following menu of Management Tools. The Management Tools menu
mainly consists of Log Management, Disk Management, Defult set, Configuration
Management, PTZ Management, OSD Settings, System Upgrade and Serial Port
Management.
Http://www.ifarsys.com Mobile DVR Manual V6.0
29
3.7.1. Log Management
The Log Management records events of startup and shutdown, GPS time correction, alarm
moment, etc., including date, time and event name.
Start Date
Set the start date of the log recalled, press numeric keys to input.
End Date
Set the end date of the log recalled, press numeric keys to input.
Start Time
Set the start time of the log recalled, press numeric keys to input.
End Time
Set the end time of the log recalled, press numeric keys to input.
Search Button
Move the cursor to the Confirm button to search all log information during the period
from the Start Time to the End Time, and press [ENTER] to search.
Http://www.ifarsys.com Mobile DVR Manual V6.0
30
Press the arrow keys to select “Home”, “Previous”, “Next”, “End”, and press [ENTER]
to display page turning information.
3.7.2. Disk Management
It is mainly used for formatting designated disk.
Disk Selection
Select SD or HDD, press [ENTER] for selection.
Format Disk
Select the Format Button and press [ENTER], the following window will pop up.
“Yes”: Start formatting the SD card or hard drive, press [ENTER] to input.
“No”: Cancel formatting and return to the Management Tools menu.
Cancel Button
Cancel disk management operations, press [ENTER] to return to the Management
Tools menu.
3.7.3. Display Settings
Setting Display style
Http://www.ifarsys.com Mobile DVR Manual V6.0
31
3.7.4. Peripherals Setting
3.7.5. PTZ Management
Http://www.ifarsys.com Mobile DVR Manual V6.0
32
Channel
Supporting 4 channels, each channel can be subject to independent serial port
information settings.
Address
Set the address code corresponding to the channel.
Baudrate
Set the Baudrate of serial port communication, supporting 600, 1200, 2400, 4800,
9600, 19200, 38400, 57600 and 115200.
Protocol
Support Pelco-P and Pelco-D protocols.
3.7.6. Serial Port setting

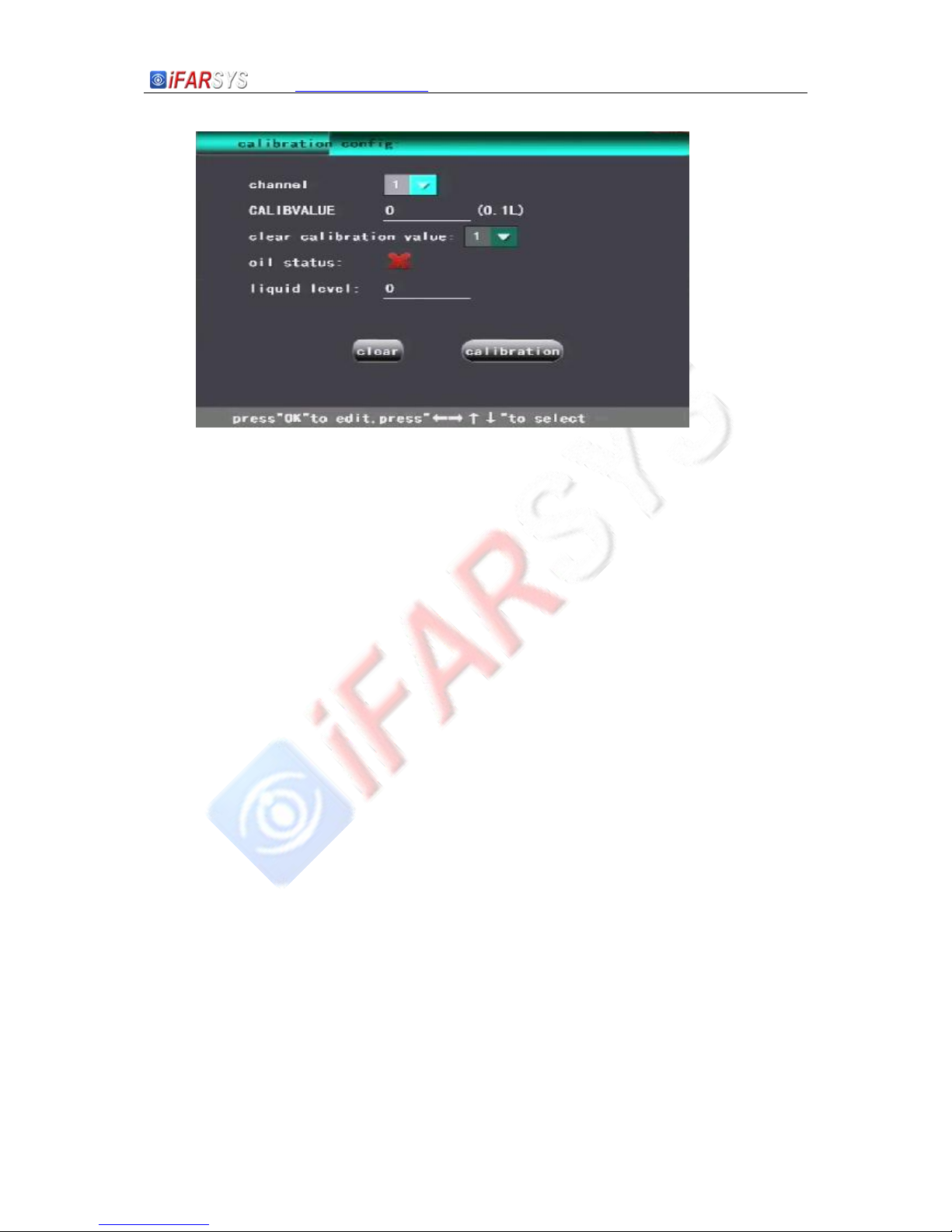

COM0，COM1 can support Fuel consumption sensor，PTZ，Alcohol test sensor
Fuel consumption（ oil set ） support two kinds of sensor ， one is simulation of
capacitive sensor. The other is a kind of ultrasonic sensor.
Http://www.ifarsys.com Mobile DVR Manual V6.0
33
Use simulation of capacitive sensor. Need to calibrate
channel：select sensor ID
calibration：current tank size.
Clear calibration value：
Oil status(tank sensor)：X sensor is not normal，√sensor is normal.
Liquid level：show the data from sensor
Clear button：clear
Calibration button：set oil reference value
3.7.7. System Upgrade
Current Version
Display corresponding version number according to the selection in Upgrading Type,
the current version should be corresponding to the selected Upgrading Type.
Upgrade Type
Uboot/Kernel/ Rootfs/ App/ ALL, press [Enter] for selection;
Upgrade From
Hard drive/SD card, select hard drive to copy to the hard drive, or select SD card to
copy to the SD card, press [Enter] for selection;
3.7.8. Shortcuts
F1 key show device working state
Http://www.ifarsys.com Mobile DVR Manual V6.0
34
4. Host Upgrading Instructions
Precautions:
During the upgrading, the following operations are forbidden: power cut, plugging or insertion
of hard disk or SD CARD, unlocking the hard drive lock or disabling ACC.
4.1. Upgrading Modes
This device supports local upgrading modes of SD card and hard drive; please refer to the
network platform operation manual for network upgrading;
4.2. Upgrading Steps
4.2.1. Applications
Format of upgrading file name: XXXXX-APP-*******.crc
Step 1. Copy the file to be upgraded onto the SD card or hard drive, ensure complete
copy of the file;
Step 2. Insert the SD card or hard drive into the device, unpowered;
Step 3. Enter the system menu, Management Tools-System Upgrading-Upgrading Type
(Select “Application”) -SD card or Hard drive to start upgrading;
Step 4. Messages like “System upgrading, do not cut the power”, “File check successful,
auto reboot for upgrading! ”, “UPGRADING…”, “Do not power off”,
“LOADING…”, etc. are shown on the screen.
Step 5. Upgrading completed, device rebooted and returning to the surveillance status.
4.2.2. Uboot/ Rootfs/Kernel
XXXXX-RFS-*******.crc
XXXXX-LDR-*******.crc
XXXXX-KNL-*******.crc
Please follow the same steps above for upgrading of uboot, rootfs and kernels.
4.2.3. SCM
Format of upgrading file name: XXXXX-MCU-*******.bin
Step 1. Copy the file to be upgraded onto the SD card or hard drive, ensure complete
copy of the file;
Step 2. Insert the SD card or hard drive into the device, unpowered;
Step 3. Auto upgrading after powered on;
Step 4. Messages like “UPGRADE MCU!”, “SUCCESSFUI!”,“REBOOT!” are displayed
on the screen successively;
Step 5. Upgrading completed, device rebooted and returning to the surveillance status.
Step 6. For SCM, there’s no need to enter interface settings, since there’s upgrading file
on the disk, juts power on for upgrading directly.
Http://www.ifarsys.com Mobile DVR Manual V6.0
35
4.2.4. Viewing Version Number
Press “INFO” on the remote controller or enter the system menu and select “Upgrade
Information” to view the upgrade version number, only display the version numbers of
software, hardware and SCM on this page; if the users want to view the version numbers
of kernel, uboot or rootfs, please enter Management Tools menu-system upgrading,
where the users can view corresponding version numbers when selecting Upgrading
Types.
Note:
1 Enter the Management Tools menu to resume factory settings, the device will
automatically be reset to the surveillance status.
2 Make sure that there’s upgrading file in the SD card or hard drive and the device is
powered off before the upgrading;
3 During the upgrading, the indicator is in the current status without special status
indicator, after the upgrading, the main device will restart from the surveillance
status;
4 If the upgrading fails, there will be the following prompts: "No upgrading file",
"Already the latest version", "failure in starting upgrading”, "file error" or "memory
error".
5. FAQs
5.1. Questions on Recording
1) Q: The device fails to record video?
A: This may be caused by the following causes:
a) Incorrect setting of recording mode, for instance, the alarm recording mode is
selected while there’s no alarm; the timed recording mode is selected while the
current time does not fall into the preset period;
b) Check the disk space. If the disk space is lower than 500M and the auto writing
function is disabled, the recording will be stopped;
c) The ERR indicator on the front panel is on. You may check the system
information whether the disk space is shown to be 0; check whether the disk is
inserted and whether it is formatted;
d) The recording functions of the 4 channels are disabled in the menu settings;
2) Q: No sound in the video?
A: This may be caused by the following causes:
e) Incorrect audio input connection. If the user connects line AIN1 and AIN2, the
user needs to turn on the audio switch and select LINE IN input in the Recording
Settings menu; if MICIN is connected, the user needs to turn on the audio switch
and select MIC input in the Recording Settings menu;
f) Audio output cable is not connected or incorrectly connected;
Http://www.ifarsys.com Mobile DVR Manual V6.0
36
5.2. Questions on Alarm
1) Q: Invalid alarm triggering?
A: This may be caused by the following causes:
a) Incorrect settings on the Alarm Settings menu; such as failure to enable alarm
for designated alarm input and incorrect output level configuration;
b) Incorrect connection of alarm input or failure to connection alarm input;
c) Incorrect signal level of the triggering source of alarm;
2) Q: Invalid alarm output?
A: This may be caused by the following causes:
a) Incorrect connection by the user;
b) Incorrect menu settings, such as failure to enable alarm output or incorrect
output level configuration;
5.3. Others
1) Q: The power indicator is not on when the device is powered on?
A: This may be caused by the following causes:
a) The voltage falls beyond the range between 8V and 36V;
b) The fuse on the power input wire is burnt out;
c) The ignition signal is not connected;
2) Q: The ERR indicator is on?
A: This may be caused by the following causes:
a) Neither the SD card nor the hard drive is inserted, or the SD card and hard drive
are inserted while the system partitioning is abnormal, causing failure of the
device in recognizing; 2) Disk reading/writing error;
b) Abnormal operation of the SCM;
3) Q: The SD card indicator is not on or flashing?
A: There are three states of the SD card indicator: on, out and flashing, respectively
indicating the following:
Out: The SD card not inserted or failure of the device to recognize the SD card;
On: The SD card exists but not the storage for the current recording
Flashing: The SD card exists and is the storage for the current recording;
4) Q: The hard drive indicator is not on or flashing?
A: There are three states of the hard drive indicator: on, out and flashing, respectively
indicating the following:
Out: The hard drive not inserted or failure of the device to recognize the hard drive;
On: The hard drive exists but not the hard drive for the current recording;
Flashing: The hard drive exists and is the disk of the current recording;
5) Q: Both the SD card indicator and the hard drive indicator are on while not flashing?
A: This may be caused by the following causes:
a) The device considers no current recording tasks according to the menu settings
by the user;
b) Both the SD card and the hard drive are full while the auto overwriting function is
disabled in the menu;
Http://www.ifarsys.com Mobile DVR Manual V6.0
37
6) Q: Blank screen of some channels?
A: This may be caused by the following causes:
a) This channel is not connected to the video;
b) The camera connected to this channel is damaged or abnormal;
c) If the camera is powered through the device, it may be possibly that the voltage
of the device cannot ensure normal operation of the camera;
d) Poor contact or damage of the cable connecting this channel;
7) Q: No GPS signal?
A: This may be caused by the following causes:
a) GPS antenna is not connected;
b) GPS antenna is placed indoors;
c) GPS module is damaged;
8) Q: Abnormal G-Sensor data?
A: This may be caused by the following causes:
a) G-Sensor not calibrated. G-Sensor should be calibrated in the settings menu;
b) G-Sensor is damaged;
9) Q: Video files cannot be played back on the PC?
A: This may be caused by the following causes:
a) Video file directory or video files are not selected. Please select the video file
directory before playback;
b) Local video files are damaged, causing failure in reading;
10) Q: The remote controller does not work?
A: This may be caused by the following causes:
a) No battery in the remote controller;
b) Remote controller damaged;
c) Device failure;
11) Q: The map is not displayed during the playback?
A: This may be caused by the following causes:
a) The network cable for the PC for playback is not connected;
b) The PC is unavailable for accessing the network although the network cable is
connected;
12) Q: How does the overwriting function of video files work when recording video on the SD
card and the hard drive?
A: The SD card and the hard drive will respectively record video circularly, and when the
SD card and the hard drive are full, the oldest video files in the card or disk will be
deleted.
13) Q: Are remote on/off operations supported?
A: Not supported at present, but possibly.
14) Q: Are there suggestions on the priority of SD card? Is SDHC card supported?
A: Kingston SD card is mainly support at present, and SDHC card is also supported.
Loading...
