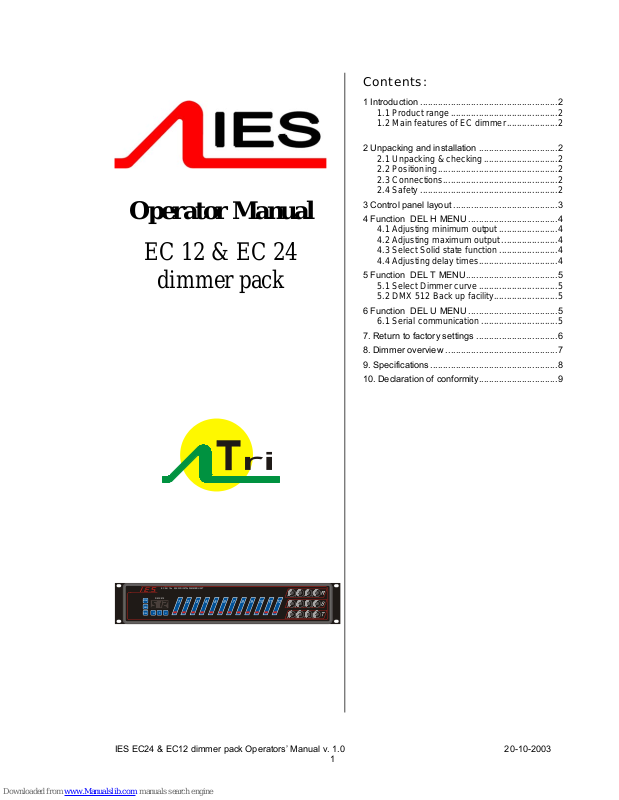

Operator Manual
EC 12 & EC 24
dimmer pack
Contents:
1 Introduction ......................................................2
1.1 Product range..........................................2
1.2 Main features of EC dimmer....................2
2 Unpacking and installation ...............................2
2.1 Unpacking & checking.............................2
2.2 Positioning...............................................2
2.3 Connections.............................................2
2.4 Safety ......................................................2
3 Control panel layout .........................................3
4 Function DEL H MENU ...................................4
4.1 Adjusting minimum output .......................4
4.2 Adjusting maximum output ...................... 4
4.3 Select Solid state function .......................4
4.4 Adjusting delay times...............................4
5 Function DEL T MENU.................................... 5
5.1 Select Dimmer curve...............................5
5.2 DMX 512 Back up facility.........................5
6 Function DEL U MENU ...................................5
6.1 Serial communication..............................5
7. Return to factory settings ................................6
8. Dimmer overview ............................................7
9. Specifications ..................................................8
10. Declaration of conformity...............................9
EC 24I 12x 2,3KW DIGITAL DIMMER UNIT
DMX 512
MAX
MIN
HTU
DEL
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
1
1. Introduction
1.1 Product range
This handbook describes the operation and
programming for the IES EC24 & EC12 rack
mounting dimmer pack. The dimmers covered by
this handbook are:
9602 EC12I, 12 x 1kW, 20A three
phase input, 2 x harting output
9804 EC24I, 12 x 2,5kW, 40A three
phase input, 2 x harting output
1.2 Main features of the EC dimmer
The EC dimmer is a fully digital triac dimmer pack
with fuse over current protection per circuit. LED
Status information per channel. This dimmer is a
Low cost solution for a wide range of destinations.
2. Unpacking and installation
2.1 Unpacking & checking
The EC dimmer pack is a self-contained dimming
system and only requires a suitable mains input
connector.
The EC dimmer pack is packed to withstand normal
transportation, but before operating the unit, check
there is no sign of transit damage which could affect
the operation and safety of the dimmer.
2.2 Positioning
The EC dimmer pack is an extremely versatile
dimmer, and can be incorporated in a 19” equipment
rack, or used as a portable dimmer. It is designed for
forced ventilation cooling and care must be taken to
ensure adequate ventilation especially when the EC
is built into a cabinet. The EC is supplied with
mountings suitable for 19” equipment enclosures,
and accommodates 2U of panel space.
2.3.2 Power output connections
The EC has a cable 5 x 4mm2. Connections to the
loads are simply made by fitting the appropriate plug
to the load cable.
2.3.3 DMX data signal connections
The dimmers are controlled using DMX 512. This is
connected by a two-pair and shield high-speed data
cable with XLR 5-pin connectors (male = input;
female = output).
Pin connections are:
1 0V shield
2 DMX +
3 DMX 4 - DATA
5 + DATA
The DMX network supports up to 32 PR-6 dimmer
packs (192 dimmers in total) connected to each
DMX line. For larger installations where more DMX
lines are required, the use of a DMX booster/isolator
is recommended. Any booster/isolator used has to
accommodate bi-directional data on pins 4 and 5 for
DimSTAT to operate. Suitable boosters are IES
code 9601 (5 channels) or 9815 (10 channels).
Termination is required for DMX data on all
networks. The last DMX output socket in the line has
to be terminated with two 120Ω 1/4 Watt resistors
connected between pins 2 and 3 (DMX). A ‘dummy
plug’ XLR male connector with the termination
resistors fitted is recommended for this purpose.
2.4 Safety
Even though the EC dimmer pack is equipped with
Fuses per channel, all normal electrical safety
procedures must be applied. Do not use the dimmer
if the mains input cable has been damaged, or the
body of the case is not intact. Do not expose the unit
to rain or moisture. To avoid electrical shock, do not
open the cabinet. Refer servicing to qualified
personnel only.
2.3 Connections
Note: All electrical connections to the EC dimmer
pack must be made by a suitably qualified
person.
2.3.1 Power input connections
Input power is supplied via a 3-phase, neutral and
earth 4mm
socket, such as a 32A three phase CEE17, is
recommended.
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
2
2
flexible cable. A suitable plug and
2.5 Warranty
We warrant each of our products to be free from
defects in material and workmanship. Our obligation
under this warranty is to repair or replace any
instrument of part thereof which, within two Years
after shipment, proves defective upon examination.
External influences are excluded. To exercise this
warranty, write or call Your local IES representative,
or contact IES service department. You will be given
prompt assistance and shipping instructions.
3. Control panel layout
MAX
The “MAX” function is used to adjust the maximum
level from 40 – 99,9% (=100%) or sets the zerocrossing solid-state switch. (1-0 displayed).
In normal mode whilst pressed it displays the
software version mode.
MIN
The “MIN” function is used to adjust the minimum
(preheat) level from 0,0 – 29.9%. In normal mode it
indicates the selected mains frequency 50 or 60 Hz.
To select another frequency press “MIN” and while
displaying the frequency press channel 1 until it
changes to the next frequency. This is automatically
stored in Eeprom.
DEL
The “DEL” function is used to adjust the delay time
(response time) from0,0 – 9,9 seconds. In normal
mode whilst pressed it displays the actual delay
time. Monitoring of settings: Press the “DEL” button
within 5 seconds the min and max buttons. The
displayed values should be written, including
frequency and software number if You might
encounter any problem. Your dealers need
information to assist in an adequate way.
H
Selects the hundreds.
T
Selects the tenths.
CHANNEL BUTTON AND INDICATION
Use these key’s to adjust the output level between 0
/ 25 / 50 / 75 / 100%.
Led’s shows the level of the outputs. *
DISPLAY
The display shows the selected start address. This
is the address for the first channel. The remaining
channels are sequential after this address.
The decimal point if blinking indicates the absence
of a valid DMX signal.
Selecting a new start address is simply done by
pressing “H” “T” “U”. This address will automatically
be stored in EEPROM after 30 seconds.
* Led’s on power boards will also show the
output level per channel.
U
Selects the units.
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
3
4. DEL-H MENU SETTINGS*
*To enter DEL-H menu press DEL and H for
5seconds.
4.1 ADJUSTING MINIMUM OUTPUT
By default the adjustment of the minimum
(PREHEAT) is selected after activation of the Del H
menu. The minimum output can now be set using H
and U keys below the display. The minimum output
can be set to any value between 0% and 29,9% of
the maximum output. Information thus set is
immediately stored in the dimmer. To leave this
menu a channel button must be pressed. To make
other alterations within the function available in the
Del H menu, select function using del, min or max
key.
4.2 ADJUSTING MAXIMUM OUTPUT
After activation of the Del H menu, selection of
maximum output is done by pressing the max key.
The maximum output can now be set using the H, T
and U keys below the display. The maximum output
can be set to any value between 30% and 99,9%
(99% is 100%) of the maximum output. Information
thus is set immediality stored in the dimmer. To
leave this menu a channel button must be pressed.
To make other alterations within the functions
available in the Del H menu, select function using
del, min or max key.
4.3 SELECT SOLIDSTATE FUNCTION
Each dimmer channel can function as a dimmer or
as a switch, solid-state channel (zero crossing).
To select the switch function enter the maximum
channel output adjustment using the key sequence
del H and max. The switch function is active if the
maximum output is set to 100%. Adjust the display
until it indicates until it indicates 99,9. Now press the
U key. The display will show 1-0 indicating that the
switch function is active. To deselect the switch
function simply set the maximum output level to a
value between 30% and 99,9%.
4.4 ADJUSTING DELAY TIMES
The delay (response-)time for each dimmer is the
time it takes for a dimmer channel to travel fro 0% to
100%. The time value influences dimming delay up
and down with the same setting. After activation of
the Del H menu, adjusting of delay times is done by
pressing the Del key. The delay time output can now
be set using the T and U keys below the display.
The delay time set is shown in seconds. The
minimum delay time is 0,0 seconds. The maximum
delay time is 9,9 seconds. To leave this menu a
channel button must be pressed.
To make other alterations within the functions
available in the Del H menu, select function using
del, min, or max key.
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
4
5. DEL-T MENU SETTINGS*
6. DEL-U MENU SETTINGS*
*To enter DEL-T menu press DEL and T for
5seconds.
5.1 SELECT DIMMERCURVE
After activation of the Del T menu the display show
C-(x). X will show the active curve. The EC dimmer
recognizes 8 curves. The curve selection is a global
setting and cannot be set for each channel
individually.
Via the U key the number after the C can be
incremented to the value, dimming curve needed.
Dimmer curves available are:
0 = s-log curve *
1 = linear
2 = square
3 = fluorescent
4 = TV light
5 = future use
6 = future use
7 = future use
* Factory default is the S-log curve.
5.2 DMX 512 BACK-UP FACILITY
This menu behaves like a dipswitch setting. Each
channel represents a switch. If the channel LED is
on it represents an on state. Normally if the DMX
data fails the control value is set to zero after 30
seconds. The following functions can be selected:
Channel one:
Disable (off), Enable (on)
The last valid data will be retained.
Channel two:
Disable (off), Enable (on)
If the DMX signal fails the backup scene will be
activated. To program this scene, make the desired
setting by means of a DMX signal. Then turn on
channel two and leave the menu with the “H” button.
This scene is now recorded.
Channel three:
Disable (off), Enable (on)
Exhibition mode. This means that a setting can be
made with the channel buttons, and automatically
recorded after 60 seconds.
This menu can be left by pressing the “H” button.
*To enter DEL-U menu press DEL and U for
5seconds.
6.1 SERIAL COMMUNICATION
The Del U menu controls parameters for SERIAL
communication with a PC. This menu is a dipswitch
menu. To enter the Del U menu, press the Del and
U key over 5 second simultaneously. Each channel
represents an on state. The following functions,
parameters can be altered.
Channel one : Enable (on) Disable (off)
Communication
Channel two : Enable (on) Disable (off)
Monitor data transfer
Channel three : Enable (on) Disable (off)
Bi-directional serial control
Channel four : Enable (on) Disable (off)
Error monitoring
Channel five : Enable (on) Disable (off)
Error monitoring
Channel five : Enable (on) Disable (off)
Currently not used
Channel six : Enable (on) Disable (off)
Currently not used
When the Del U menu is activated and the serial
communication is enabled the display will show the
valid information about the PC-communication
address. Default value for the PC is 00. This
address must be a unique number and is not related
to the DMX address. To set the PC address use the
H, T, U buttons.
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
5
7. RETURN TO FACTORY
SETTINGS
7.1 RETURN TO FACTORY SETTINGS
To return to the factory settings. Make the dipswitch
setting at the inside off the EC dimmer as below.
When dipswitch is placed, remove power from EC
dimmer. Plug in Power again. Display shows “555”
Dipswitch settings normal use.
Place dipswitch in normal mode. And repower EC
dimmer. EC dimmer is reset and all parameters
where set to Factory setting.
Dipswitch setting to reset the EC dimmer
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
6
8. DIMMER OVERVIEW
A Dimmer channel 1-4
B Dimmer channel 5-8
C Dimmer channel 9-12
D ceramic fuse 6,3 A
E Blower
F Glass fuse 400mA
G Output 7-12
H Output 1-6
I Power input 3 x 230VAC
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
7
9. Specifications
product ref.: EC 12 EC 24
Order code: 9602 9804
star/delta - -
Channels: 12 12
electrical specification:
Load per Ch.: 1250W 2.3kW
Supply Voltage: ----- 180V to 260V AC -----
Supply frequency: ----- 50Hz - 60Hz -----
Supply phase: three three
Supply Amps: 3 x 23A 3 x 40A
Minimum load: ----- 10W -----
Load phase angle: ----- 0.8 to unity -----
Power device triac triac
Non-dim function ----- per channel -----
Max. Ambient °C: ----- 50°C -----
circuit protection:
FUSE: ----- 6,3A per channel ----
weights & dimensions:
Size: ---- 483mm x 93mm x 280mm ----
Weight: ---- 6.0kg ----
connectors:
Supply connection: ---- 5 x 4mm2 cable ----
output sockets: 12 6 x 2
Output type: HAN E 16F Harting
product ref.: EC12 EC24
Control connectors (in and out) ----- XLR-5 -----
DMX data ----- pins 2+3 -----
Data ----- pins 4+5 -----
control data:
Control signal: DMX-512 4-wire (DMX and DATA
bi-directional data)
Max. level preset: 30.0% - 100% (full)
Min. level preset: 0.0% - 29.9%
Response time: 0.00 secs - 9.9 secs (up and dn)
Dimmer curves: 8 8
DMX backup: programmable for hold or backup
memory
standards:
Low voltage directive: complies with 76/23/EEC
EMC directive: complies with 89/336/EEC
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
8
10. Declaration of conformity
I.E.S. B.V.
DECLARATION OF CONFORMITY
According to ISO / IEC Guide 22
Manufacturer’s name: I.E.S. B.V.
Manufacturer’s address: Wageningselaan 52-54
3903 LA Veenendaal
Netherlands
Declares that the product:
Product name: EC12 / 24
Model number: EC12 / 24 no. 9602 / 9804
Conforms to the following product Specifications:
Emission EN 50081-1 / EN 50081-2
EN 55011
EN 55014
Immunity EN 50082-1 / EN 50082-2
EN 55024-2 6 kV Contact discharge
8 kV Air discharge
EN 55024-3 3 V / m
EN 55024-4 1 kV Signal lines
2 kV Power lines
Supplementary information: The product complies with the EMC Directive
89/336/EEC.
Veenendaal
December 2000
J.H.D. de Jonge
Technical Manager
IES EC24 & EC12 dimmer pack Operators’ Manual v. 1.0 20-10-2003
9
Loading...
